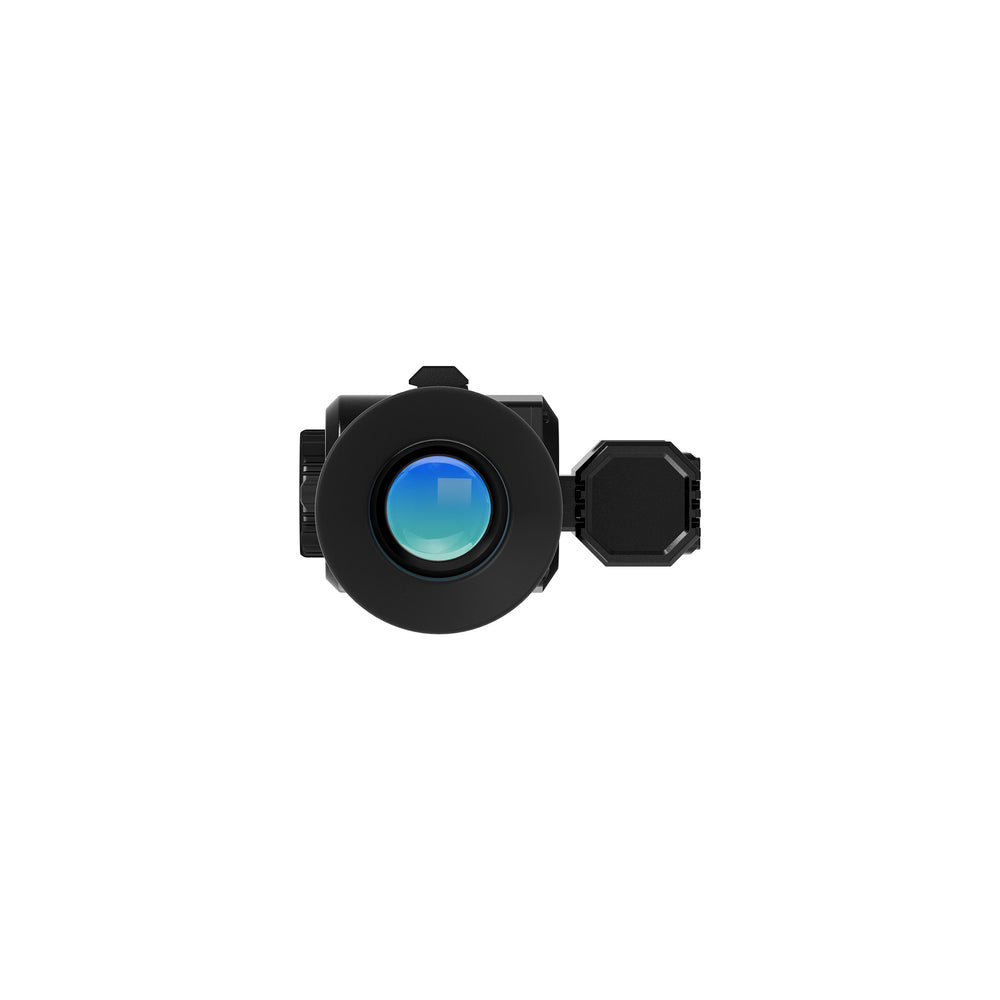

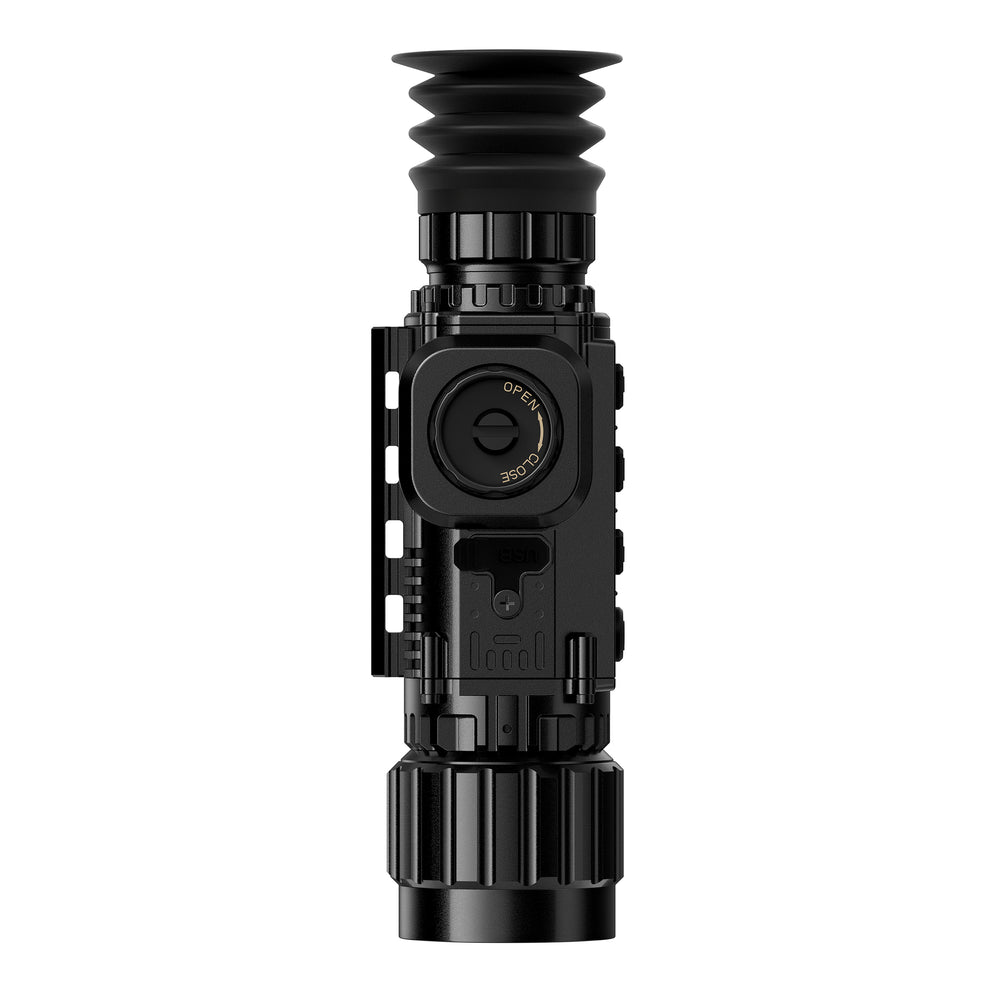

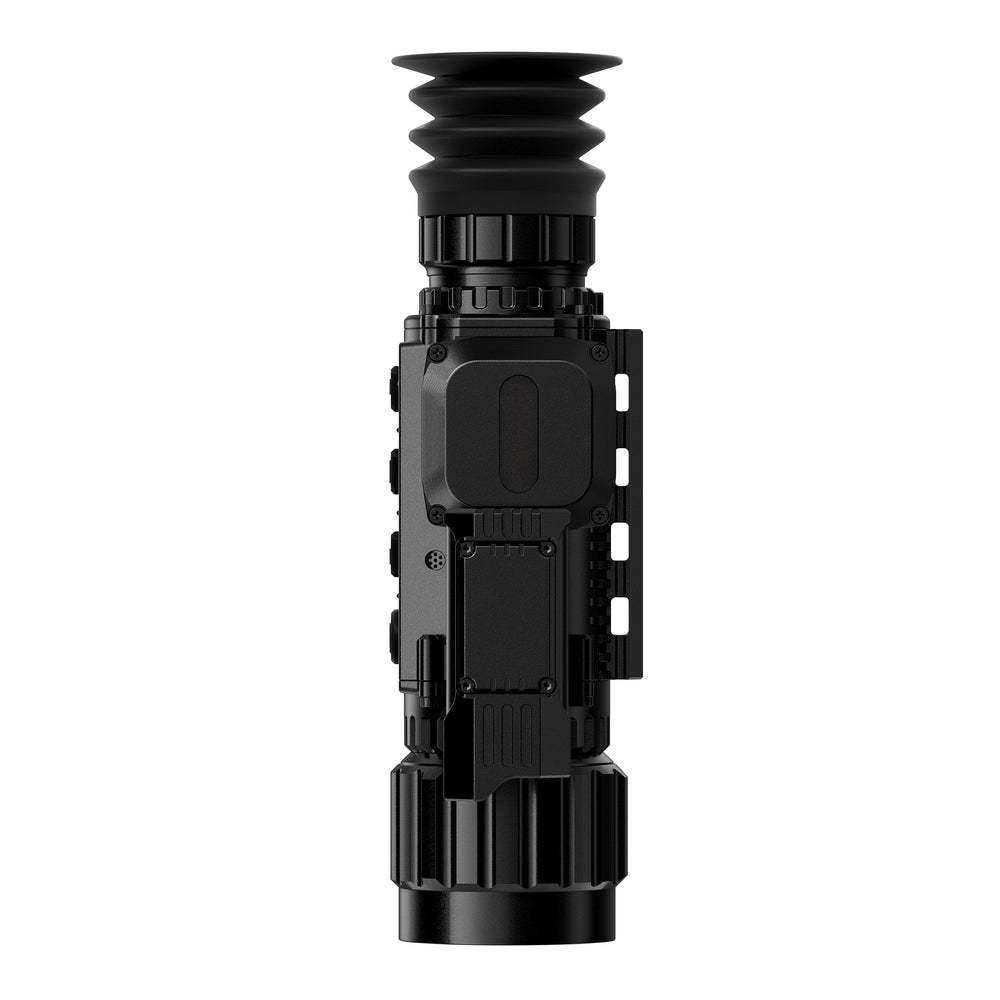

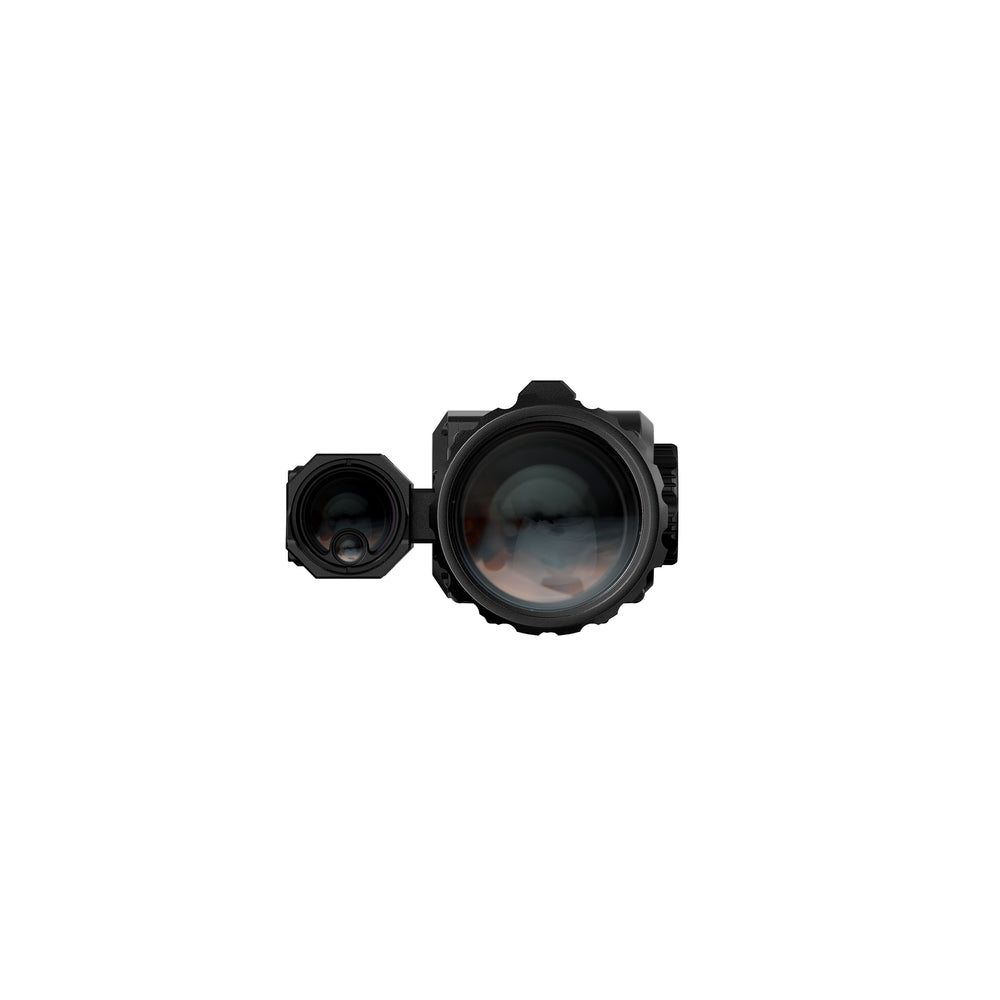

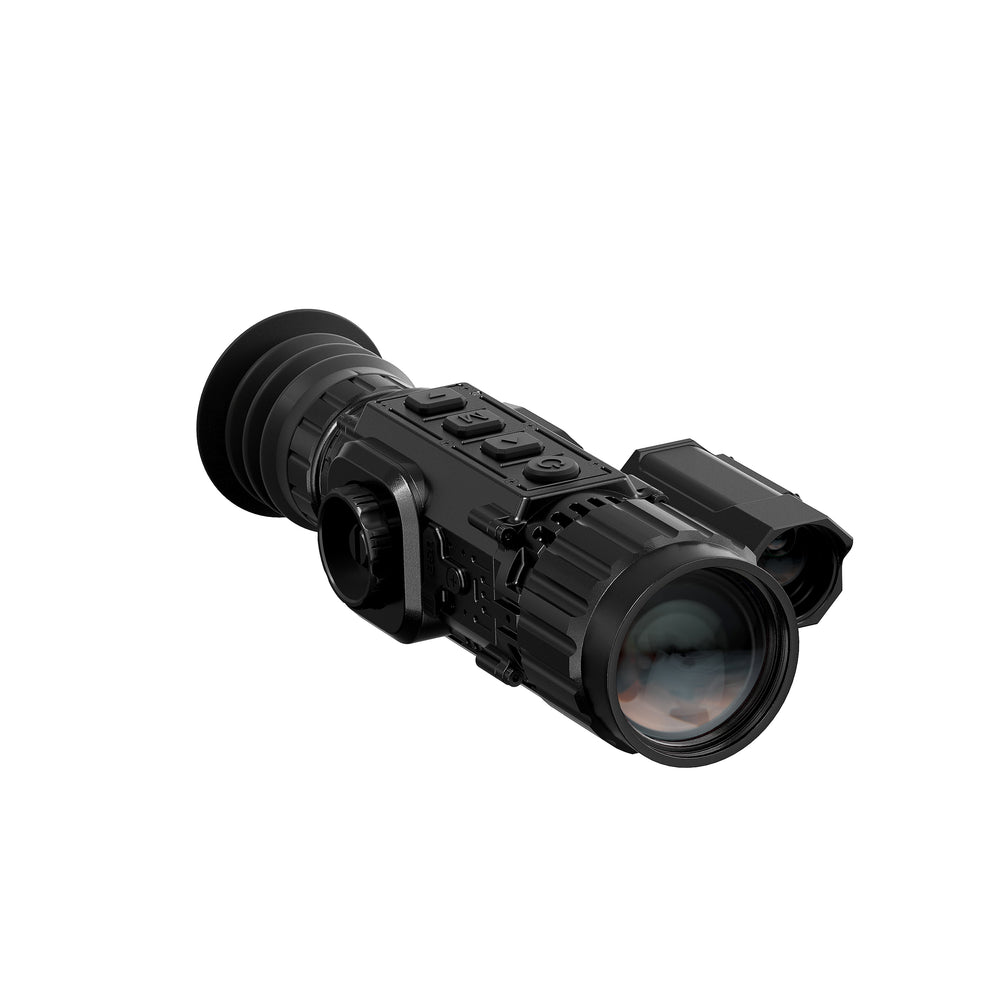

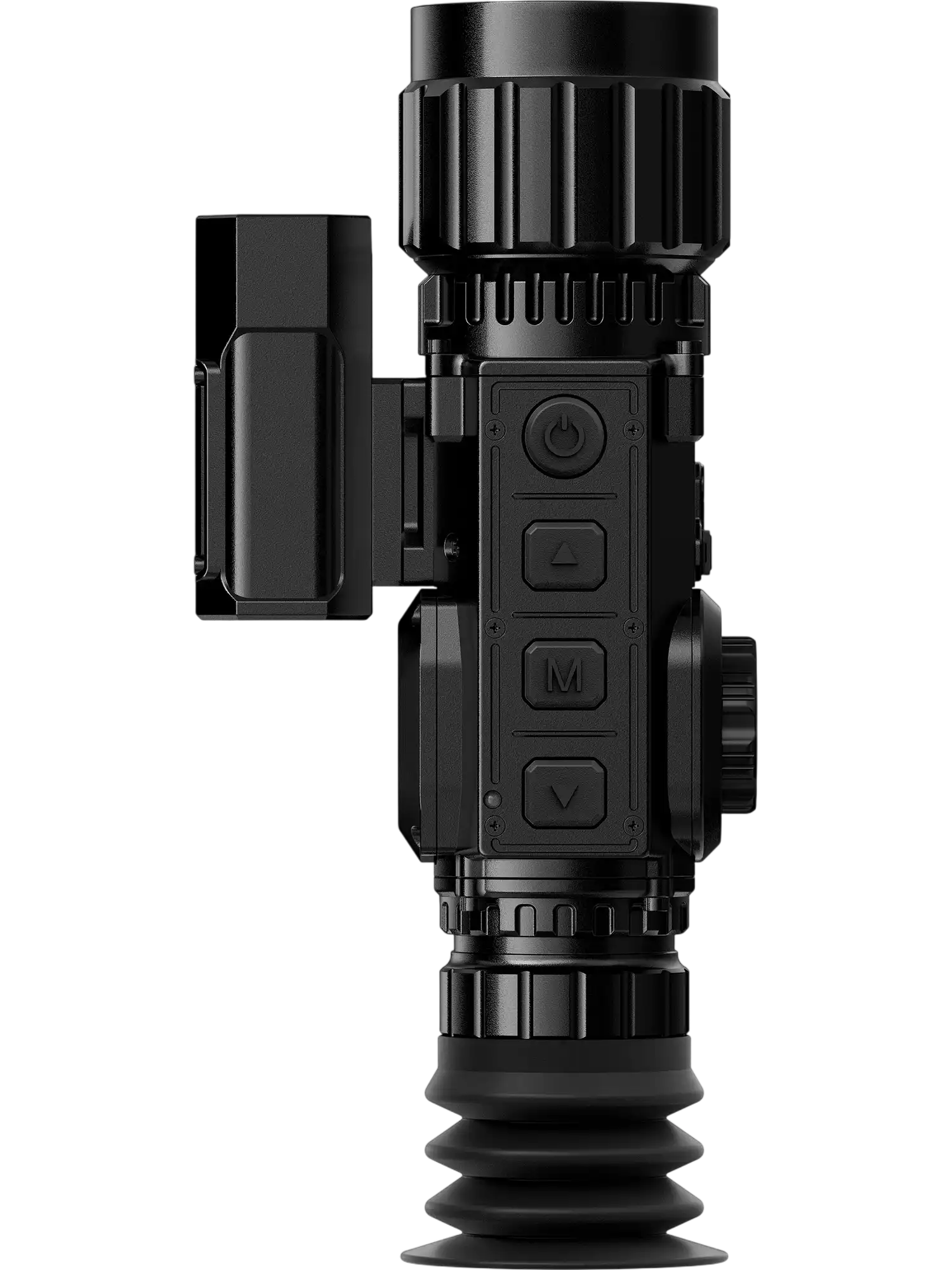

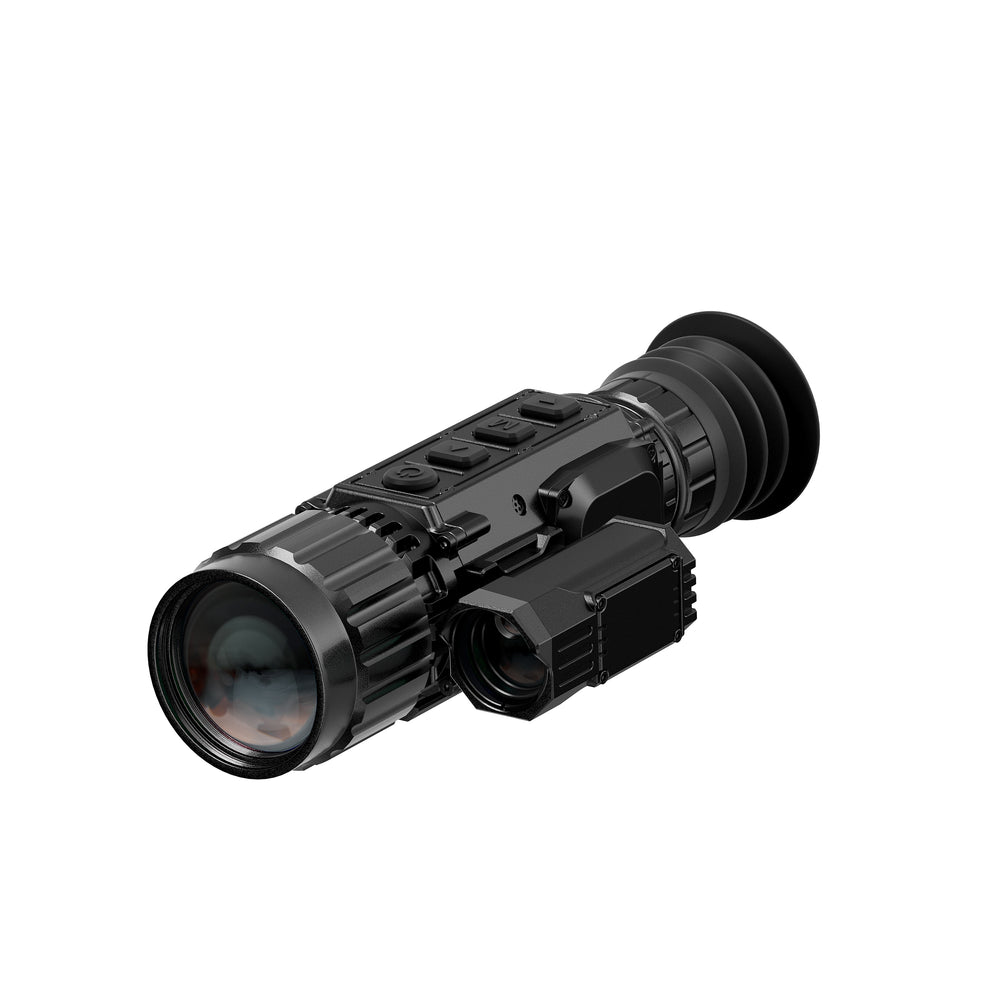

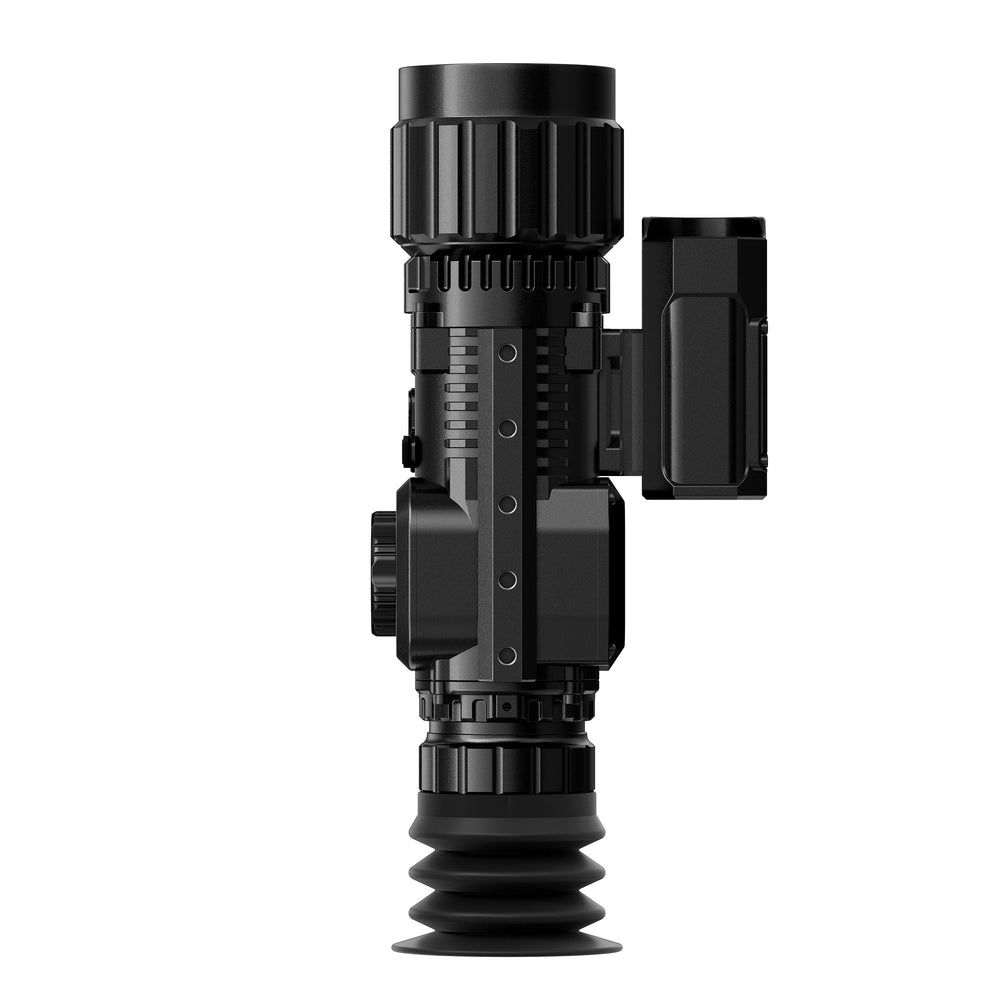

TOPDON TS006 Thermal Imaging Scope 35mm New
Product Overview
The TOPDON TS006 thermal imaging scope pairs a 384×288 VOx sensor with a fixed 35mm lens, offering thermal sensitivity of ≤0.04°C and human detection at distances up to 1,450 yards. Its 1024×768 color OLED display and 0.39" monocular eyepiece provide a view of your surroundings, with Black Hot, White Hot, and Pseudo Color modes to help distinguish targets. A built-in laser rangefinder measures distances up to 1,094 yards, while real-time video recording saves footage to 64GB of built-in storage, expandable to 512GB. Built-in WiFi lets you stream images in real time to compatible Android mobile devices. With an IP65 rating, 1000g shock rating, and operating temperature range of -4°F to 131°F, the scope is equipped for field use and includes a Picatinny mount, eight CR123A batteries, and a charger.
Brand new
1 year limited warranty
Manufacturer direct shipping from New Jersey
Authorized Topdon dealer
Features
- High-Resolution Thermal Sensor: 384×288 VOx with 12μm pitch and ≤0.04°C thermal sensitivity for crisp contrast.
- Fixed 35mm Lens: Optimal balance of field of view and range, with up to 0.9 miles (1,450 yards) human detection range.
- OLED Display: 1024×768 color display with a 0.39-inch monocular eyepiece.
- Real-Time Video Recording: Built-in 64GB storage (expandable to 512GB) to capture every hunt.
- Selectable Viewing Modes: Black Hot, White Hot, and Pseudo Color for enhanced target visibility.
- Built-In WiFi: Stream images directly to your mobile device in real time. Android devices only.
- Field-Rugged: Operates in temps from -4°F to 131°F, shock rated to 1000g, IP65 rated, and includes a quick-mount Picatinny rail.
- Full Kit Inlcuded: Designed for seamless integration with your gear, the TS006 comes ready with a Picatinny mount, 8 CR123A batteries, and a charger—everything you need to deploy right out of the box.
- Laser Rangefinder: Accurately measure distances up to 1,094 yards (1,000 meters).
Specifications
| System | Linux |
|---|---|
| Operating System | Linux |
| Battery Capacity | Replaceable Battery, 16340 x 4 2100mAh |
| Display Screen | 0.39 inch HD AMOLED display 1024x768 |
| Operating Voltage | 5V |
| Charging Time | NA |
| Battery Life | 4h |
| ROM | 64G memory |
| Detection Distance | 1400yd (1280m) |
| Infrared Light Resolution | 384x288 |
| Focal Range | 35mm (Adjustable) |
| FOV | 7.5°X5.6° |
| Spectral Range | 12μm |
| NETD | ≤40mK |
| Frame Rate | 50Hz |
| Professional Function | Outdoor Professionals and Hunters |
| Digital Zoom | 1x/2x/4x/8x Manual focus can be used without glasses for low myopia |
| Operating Temperature | -20℃ to 55℃(-4℉ to 131℉) |
| Drop, Impact, and Vibration | Shock rated to 1000g |
|---|---|
| IP Rating | IP65 |
| Certifications | UN38.3/DGM/CE/FCC/RoHS/UKCA |
| Gross Weight (g) | 1250g |
| Device Weight (g) | 600g(1.32lbs) |
| Package Size (mm) | 270*210*130 |
Package Contents
TS006 Thermal Imaging Scope
Picatinny Mount
Carrying Bag
User Manual
USB Cable
Video Cable
16340 Battery x 8
Battery Charger
Warranty
This item comes with a 1 year limited warranty.
