Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New

Manufacturer: Vestil

SKU: HDC-905-IDC/460V

Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New





Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New
Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New

QTY

Add to compare
Add to wishlist

$ 8,153.74

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Product Overview

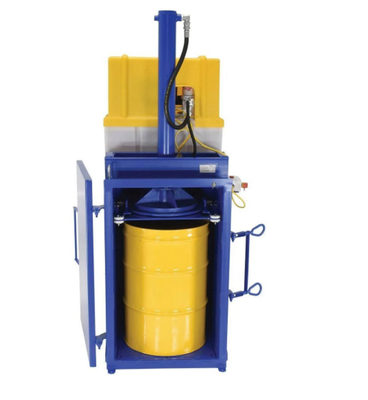

The Hydraulic Drum Crusher/Compactor crushes steel drums and resets automatically to crush another drum. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55 gallons.



Compacting feature will only work with 55 gallon drums.  Safety features include a pressure relief valve, which prevents overload, and a door interlock system that will prevent the motor from running unless the door is closed. Built-in fork pockets aid in transporting. Drip pan is included to reduce unnecessary oil spills.



vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

1 year limited manufacturer's warranty

checkmark

Ships from manufacturer in IN

checkmark

Fast processing with free shipping

checkmark

Authorized Vestil dealer

Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New

Vestil HDC-905-IDC/460V Steel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 lbs. Crushing Force Blue New

Features

  • 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
  • Powered illuminated on/off switch increases user awareness and safety
  • Mushroom-head emergency stop button will instantly shut-down unit
  • Manufactured to comply with OSHA and JIC standards & specifications

Specifications

Crushing Plate Weight (lbs.) 75
Oil Reservoir (Gallons) 18 Max.
Max. Compacting Force (lbs.) 18000
Drip Pan Width (in.) 31-1/2
Drip Pan Length (in.) 4-1/2
Drip Pan Height (in.) 1-5/8
Drip Pan Capacity (gallon) 1
Approximate Crushed Height (in.) 6
Full Cycle Time (Crush and Retract) (seconds) 25
Crushing Force (lb.) 38000
Motor (hp) 6.5
Voltage 460
Phase 3
Hertz 60
Crushing/Compacting Drums per week (qty.) 250
Compacting Platen Diameter (in.) 21
Usable Chamber Length (in.) 25
Usable Chamber Width (in.) 25
Usable Chamber Height (in.) 35-3/4

Package Contents

Steel Hydraulic Drum Crusher and Compactor

User's manual

Warranty
