Vevor 1700W Hydraulic Rebar Bender and Cutter 1" 25mm 110V Heavy Duty with Foot Pedal New
Product Overview

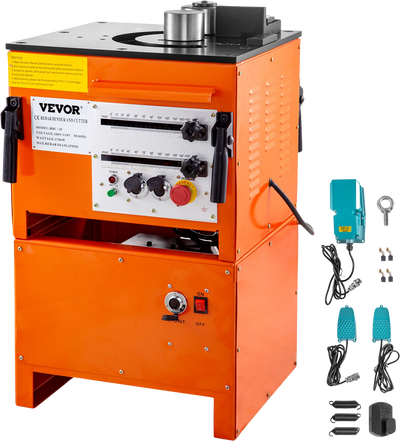

The Vevor Electric Rebar Bender and Cutter is designed for ultra-fast performance, bending rebar from 1/4 in. #2 to 1 in. #8 Grade 60 (6 to 25 mm) in 6-7 seconds and cutting it in 5-6 seconds. It features a 1700W pure copper motor, ensuring quiet operation and extended durability. With adjustable angle knobs for precise 0-180° bends, a sturdy iron body, and durable idler wheels, this machine handles tough rebar efficiently. The foot pedal control and four transport handles make it easy to operate and move, ideal for construction projects involving various steel types.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Ultra-Fast Working Speed: This rebar bender and cutter machine is designed with excellent performance. It helps save valuable person-hours by bending rebar 1/4'' #2 to 1" #8 Grade 60(6 to 25 mm) within 6 to 7 seconds. It can also cut rebar within 5-6 seconds. Bending Angle: 0-180°. Bending Radius: 1.57'' / 40 mm, Max. Rebar Hardness: HRC30, Hydraulic Oil Type: VG46.
- 1700W Pure Copper Coil Motor: This rebar cutter and bender features a 1700W pure copper motor, which can run quietly with low noise and significantly improve your working efficiency, reducing unnecessary wear. Besides, a copper motor can extend this rebar bender cutter's operating life to a large extent. Voltage: 110V, Frequency: 60 Hz, Amps: 14A, Noise: 92 dB(A).
- Angle Adjustment Knobs: This rod bending machine has two slide-type angle selectors, which can help you accurately bend any angle from 0-180 degrees. Preset angle locks are designed for repeating the same angle bending. When bending processing, the angle of point 1 must be bigger than point 2. Otherwise, the machine can not operate normally.
- Sturdy Machine Body: The bar bender machine adopts a sturdy iron machine body and durable Idler Wheel. Ø78 iron Gyre Idler Wheel and Ø94 Fixed Idler Wheel are stronger and not easy to break. Moreover, it can stand super-hard rebar with strong clamping force, which can help to reduce steel rebar waste.
- Easy to Operate & Transport: This heavy-duty rebar cutter bender comes with the standard foot pedal control switch for your easy hands-free bending. With four handles on the corner for you to transport and operate effortlessly. It is widely used in construction engineering for bending or cutting rebar, steel bar, steel rod, screw thread steel, carbon steel, round steel, etc.
Specifications
| Item Model # | RBC-25 |
|---|---|
| Voltage | 110V |
| Power | 1700W |
| Frequency | 60 Hz |
| Amps | 14A |
| Bending Angle | 0-180° |
| Max. Rebar Diameter | 1 in. (25 mm) #8 Grade 60 |
| Min. Rebar Diameter | 1/4 in. (6 mm) #2 Grade 60 |
| Bending Speed | 6-7 Seconds |
| Bending Radius | 1.57 in. (40 mm) |
| Cut-Off Speed | 5-6 Seconds |
| Max. Rebar Hardness | HRC30 |
| Hydraulic Oil Type | VG46 |
| Noise | 92 dB(A) |
| Material | Iron |
|---|---|
| Item Dimensions | 19.69 x 17.72 x 31.1 in. (50 x 45 x 79 cm) |
| Packing Size | 22.44 x 18.9 x 38.58 in. (57 x 48 x 98 cm) |
| Net Weight | 299.82 lbs. (136 kg) |
| Gross Weight | 368.17 lbs. (167 kg) |
| Certificate | CE |
Package Contents
Vevor 1700W Hydraulic Rebar Bender and Cutter 1 in. 25mm 110V Heavy Duty
(2) Foot Pedals
(3) Tension Springs
(4) Carbon Brushes
User Manual
Warranty
This item comes with a 1 year factory warranty.
