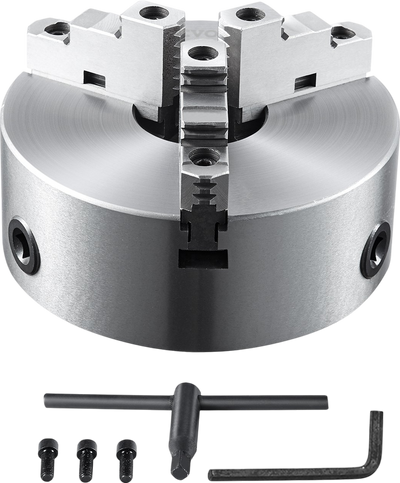

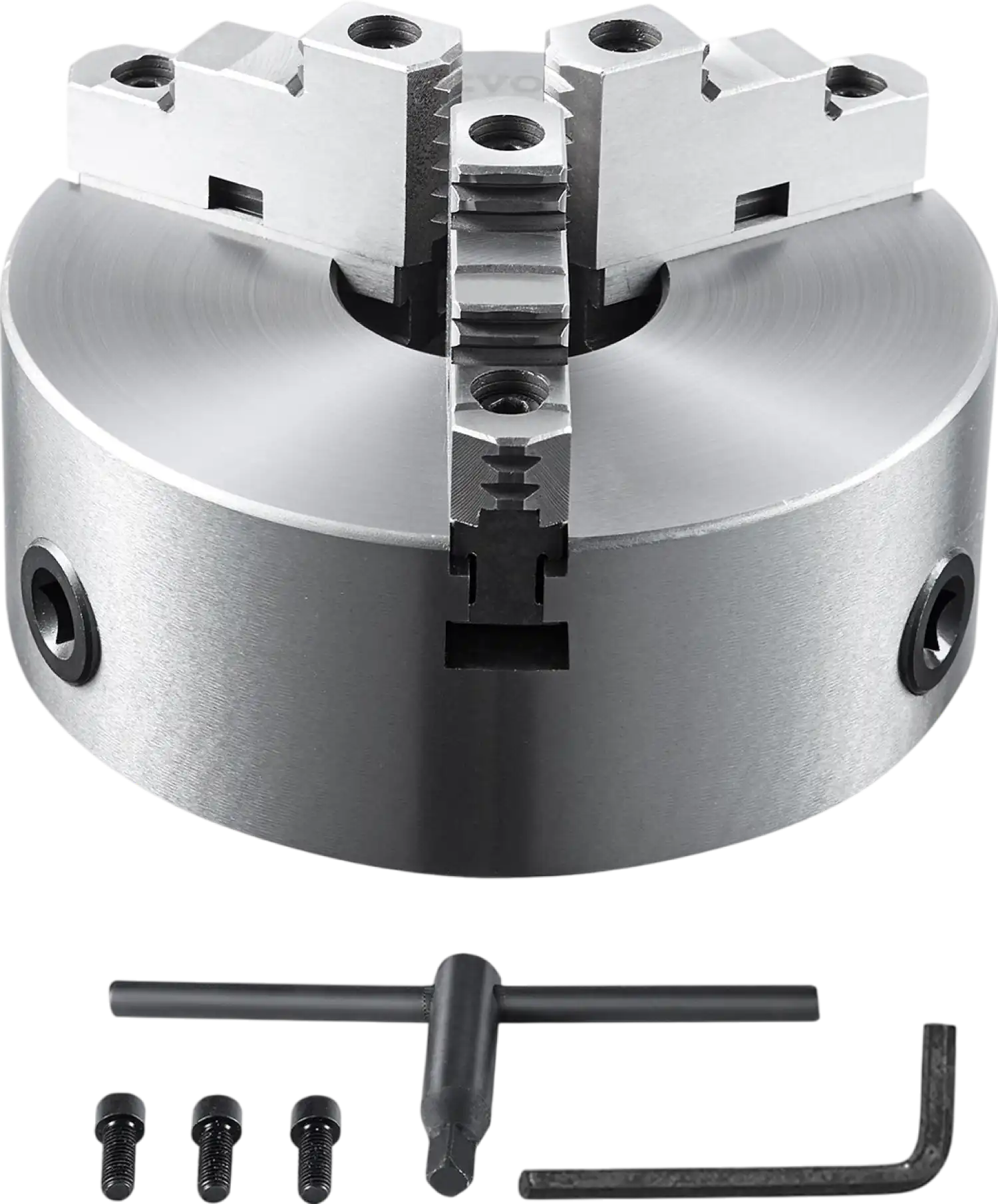

Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
Manufacturer: Vevor
SKU: SZKP10YC3G00YQFFEV0
QTY
(888) 999-1522
$ 133.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
Product Overview
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Superior HT300 Material: This 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
- High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm.
- Dual-Use Jaw: The chuck jaws can be used as both internal and external jaws. The external jaws are capable of clamping larger-sized industrial parts. 4mm - 200mm clamping range provides precise clamping and securing of various industrial components.
- Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
- Applicable to Various Lathes: Vevor's self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using this lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.
Specifications
| Item Model # | K11-250 |
| Main Material | HT300 |
| Surface Treatment | ＜Ra0.8, Oil Coated |
| Chuck O.D. | 10" / 250mm |
| Clamping Range | 6mm - 110mm |
| External Jaw Clamping Range | 80mm - 250mm |
| Fixed Thread | 3-M10 |
| Bore | φ80 mm |
| Jaw | 20Cr, ≥53HRC |
| Scroll | 40Cr, ≥45HRC |
| Product Dimensions | 9.9" x 7.5" |
| Net Weight | 49.1 lbs (22.3 kg) |
Package Contents
Vevor 3-Jaw Self-Centering Lathe Chuck 10"
T-Key
Hex Wrench
(3) Fixing Screws
User Manual
Warranty
This item comes with a 1 year factory warranty.
