Vevor 5-in-1 Heat Press 15" x 15" and 28" Vinyl Cutter/Plotter LCD Control Panel USB Port New
Product Overview

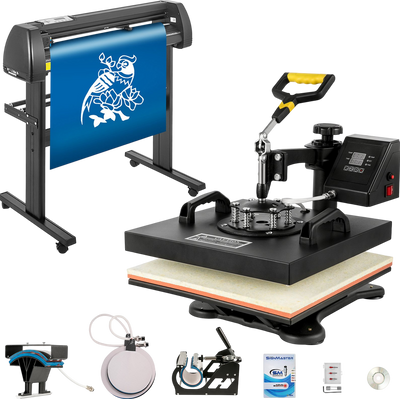

The Vevor 28" Vinyl Cutter and 15" x 15" Heat Press offer a complete solution for precise cutting and heat transfer on T-shirts, caps, mugs, and more. The vinyl cutter boasts a 28.3" paper feed, 24.8" cutting width, and high precision, while the heat press’s 360° swing-away arm ensures even pressure and safe operation. Both feature user-friendly LCD controls and are compatible with multiple interfaces.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Works Cooperatively: 28" vinyl cutter plotter can achieve more refined and exquisite design on the pattern carved by 15 x 15" heat press and vice versa. You can make the most out of the vinyl cutter & heat press for creating and transferring pleasure. Both can be used in the advertisement field, various decoration, handcraft, label & sign making, etc.
- Trusted Performance: 28" cutting plotter comes with a max paper feed of 28.3", max cutting width of 24.8", cutting precision of +/- 0.0004", and paper feed precision of 118". Besides, the swing-away arm is fully rotated 360 degrees, allowing elements to move to the side and reducing accidental contacts. Furthermore, this design ensures pressure to be applied directly & evenly, enhancing the transfer quality.
- Convenient LCD Digital Control: The vinyl cutter plotter has an illuminated LCD screen with a large control panel to adjust. LCD screen display with easy-to-operate buttons makes this heat press easy to set. It also equips with an audible alarm, which reminds the machine of stopping heating when the designated time and temperature are reached.
- High Compatibility: The vinyl printer is available with COMPIM and USB interface for easier connection, supporting DM/PL and HP/GL language, Pentium processor-based PC or Windows. Adopts D-typed motherboard and high-speed cache memory. 2 double-spring pinch rollers and aluminum knurling stick ensure that the paper feed will not deviate by long distance.
- 5-In-1 Versatile Kit: 15" x 15"(38 x 38 cm) large heat platen can be used for transferring caps, T-shirts, cups, plates, etc. by replacing the adjustable spring plate with different accessories, such as mug press, cap press, easy and straightforward to assemble. Considerate design is beneficial to distribute the pressure evenly.
Specifications
| Item Model # | 15" x 15" Heat Press & 28" Vinyl Cutter |
| Max Paper Feed | 28.3"/720MM |
| Max Cutter Width | 24.8"/630MM |
| Cutter Pressure | 10-500g |
| Cutting Speed | 0.4"-31.5"/s / 10-800 mm/s |
| Repetition Accuracy | 0.0004" / 0.01 mm |
| Rated Voltage | 110V |
| Heating plate size | 15" x 15" (38 x 38 cm) |
| Time range | 0-999 S |
| Temperature range | 200-450 °F (95-232 °C) |
Package Contents
Vevor 5-in-1 Heat Press 15 x 15 in. and Vinyl Cutter/Plotter 28 in.
28 Inch Vinyl Cutter Plotter Machine
SIGNMASTER Software
Blades Holder
(3) Blades
Pen Holder
(3) Cables (USB/Serial/Power Cord)
Fully-Assembled Machine With Platen Press
Hat Press
Mug Presses
(2) Plate Presses
User Manual
Warranty
This item comes with a 1 year factory warranty.
