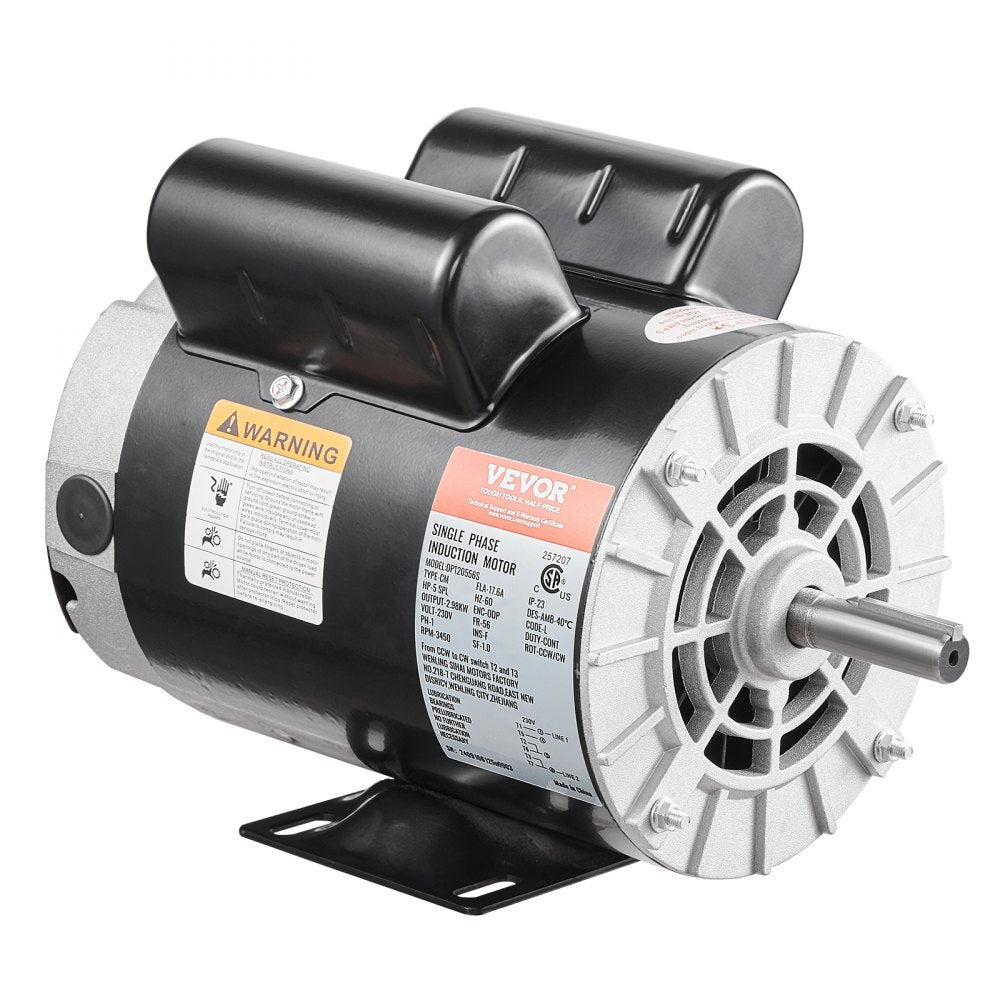

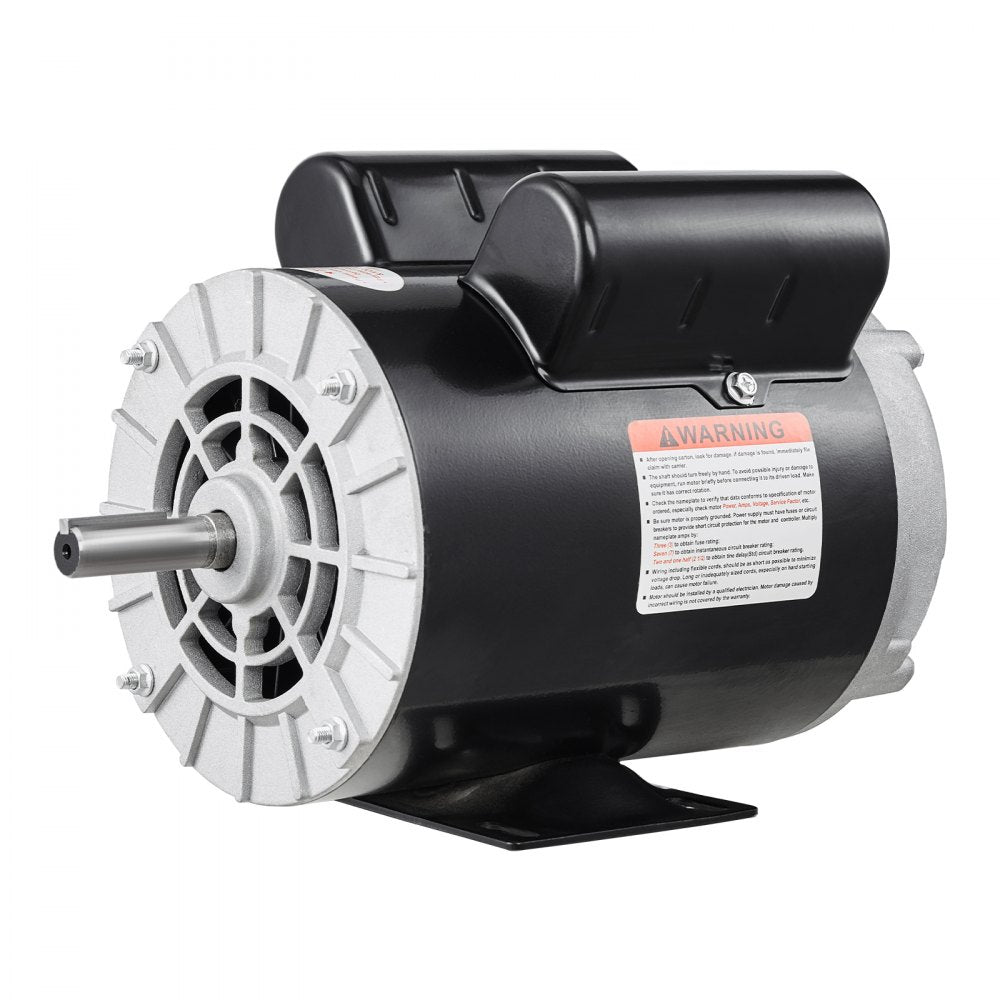

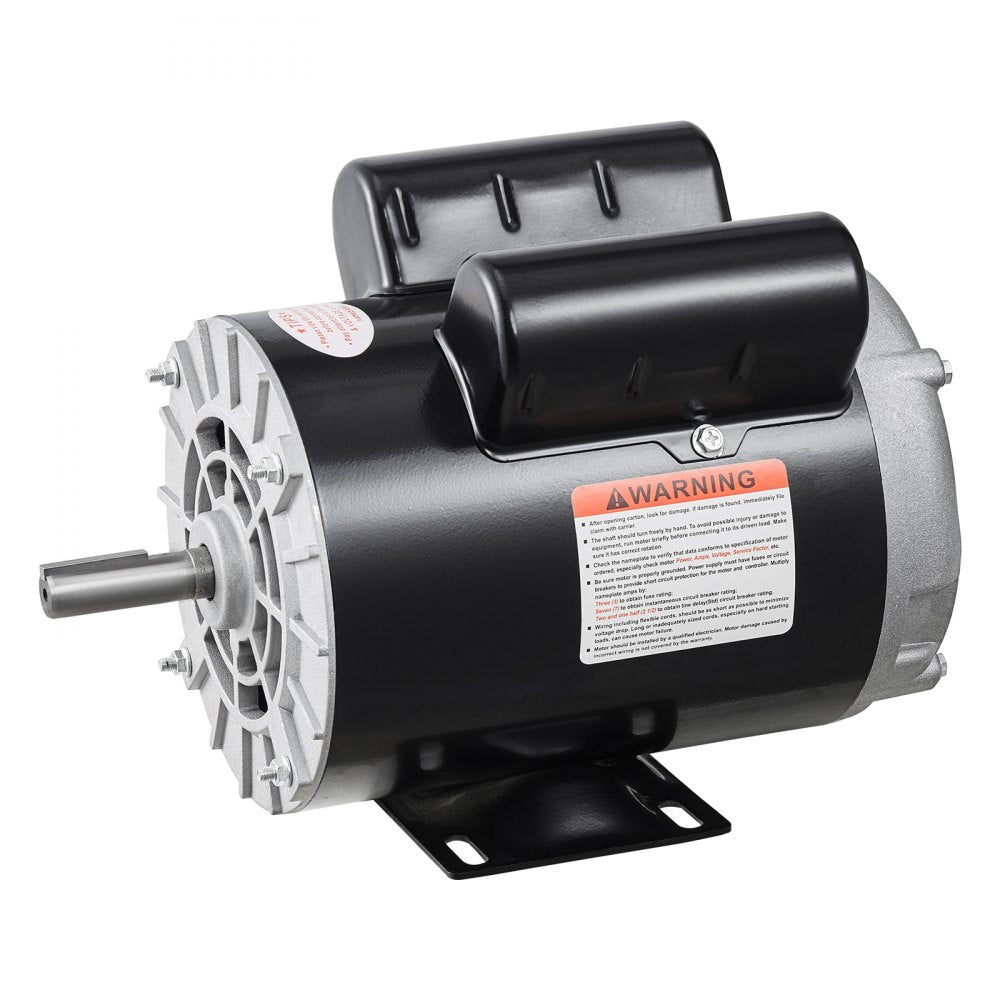

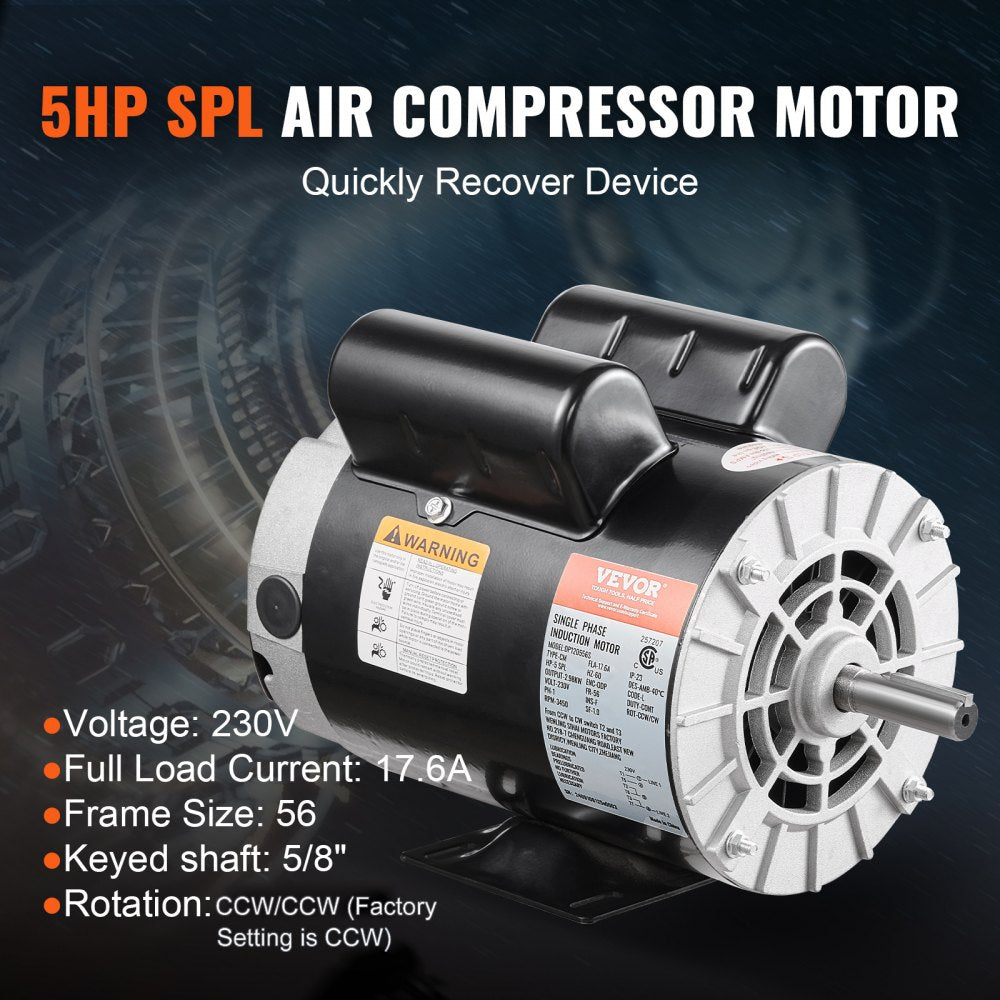

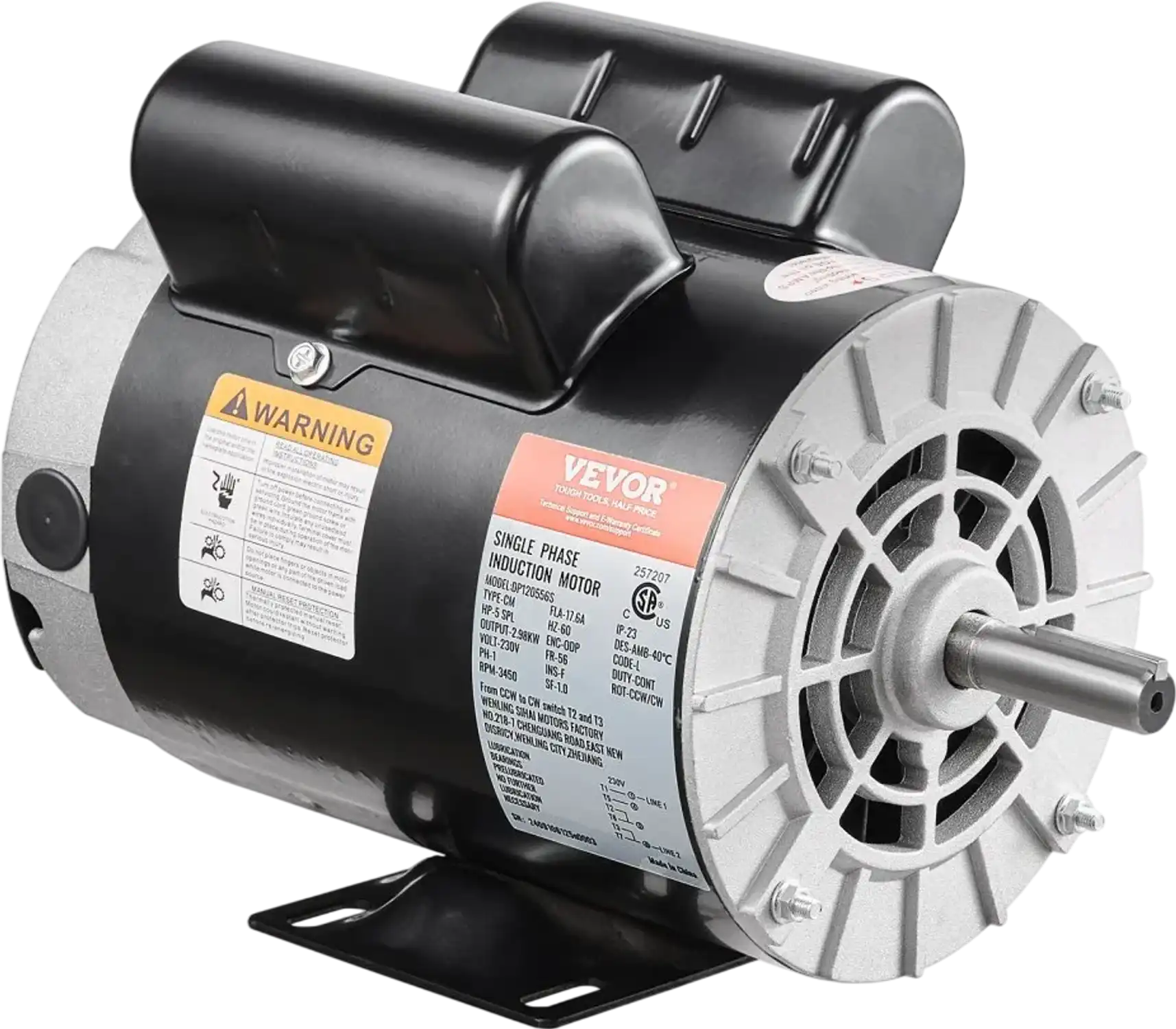

Vevor Air Compressor Motor 5 HP 230V 3450 RPM 56 Frame Single Phase New

Manufacturer: Vevor

SKU: ODPKYJDJ5HP5AUXXGV7

×
SMS
Messenger
WhatsApp
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase
VEVOR 5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, CW/CCW Rotation (Factory Setting is CCW), Single Phase

QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$ 169.90

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or


divider
in stock checkmark

In Stock

delivery truck icon

Most orders ship out the same or next business day

If ordered by 12 PM ET

Extended Warranty

×

Factory Warranty

  • This item comes with a 1 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 1 year factory warranty.

$39.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$59.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$89.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

    Customers Also Purchased

    Vevor Air Compressor Motor 5 HP 230V 3450 RPM 56 Frame Single Phase New

    Vevor Air Compressor Motor 5 HP 230V 3450 RPM 56 Frame Single Phase New

    ×
    SMS
    Messenger
    WhatsApp
    Add To Wishlist
    Remove From Wishlist

    Product Overview

    The Vevor air compressor motor is a 5 HP single-phase replacement motor designed to restore strong, reliable compressor performance. It operates on 230V power with a 3450 RPM speed and a 56 frame design for compatible installations. The motor features a 5/8" keyed shaft, 1.88" shaft length, and reversible CW/CCW rotation for flexible setup. Its open drip-proof construction and steel housing support durability in clean, dry working environments.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

    • High Performance: 5HP SPL, 3450 RPM, Single Phase, Full Load Amps: 17.6Amp, 230V 60Hz, SF: 1.0.

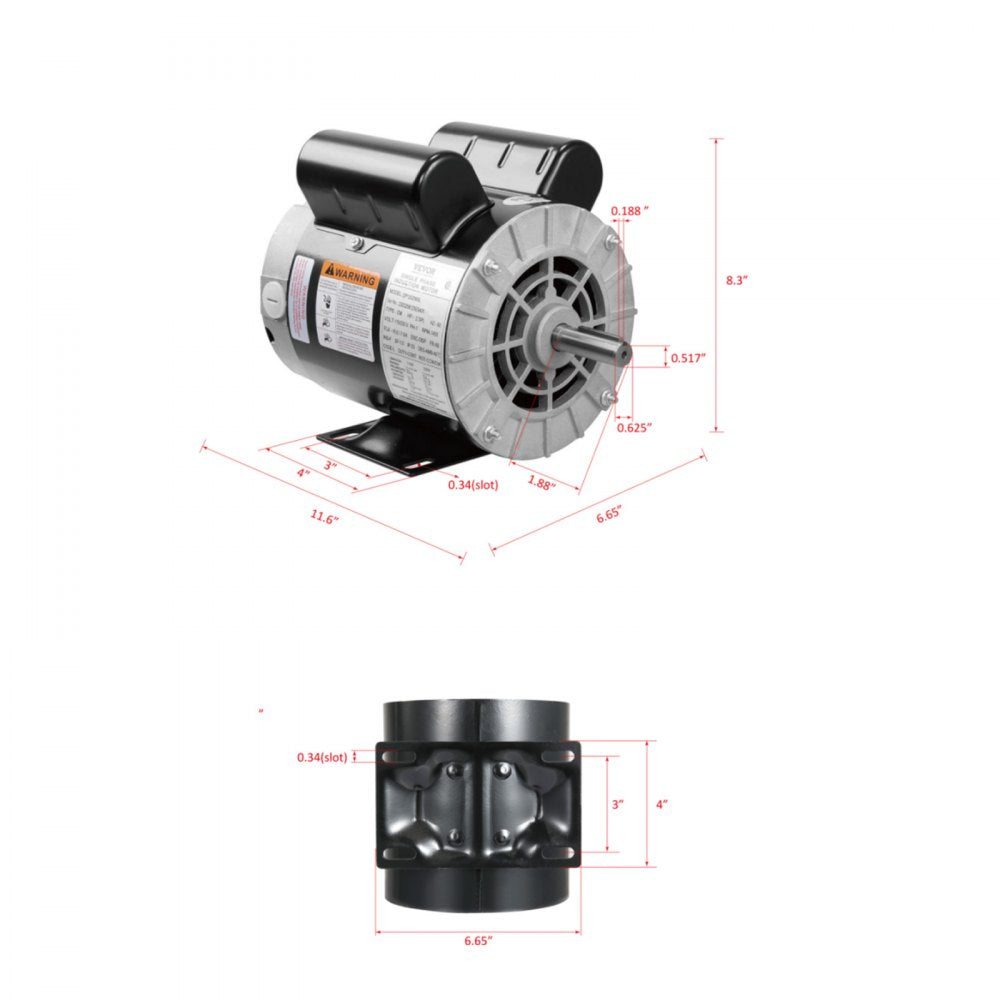

    • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
    • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
    • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
    • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)

    Specifications

    Product Type Air Compressor Motor
    Item Model Number DP120556S
    Horsepower 5 HP
    Voltage 230V
    Frequency 60Hz
    Current 17.6A
    Phase Single Phase
    Rotation Speed 3450 RPM
    Service Factor 1.0
    Enclosure ODP
    Frame Size 56 Frame
    Shaft Diameter 5/8" keyed shaft
    Shaft Length 1.88"
    Keyway Size 0.188"
    Net Weight 34.5 lbs
    Dimensions Shaft diameter 5/8", shaft length 1.88", keyway size 0.188"

    Package Contents

    Air compressor motor

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.

    Manuals & Documentation

    manual icon

    User Manual

    Customer Reviews

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    Similar Products
