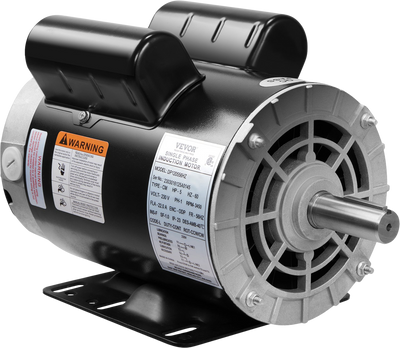

Vevor Air Compressor Motor 5HP 3450 RPM 7/8" Keyed Shaft CW/CCW Rotation New
Product Overview
Inject powerful energy into your air compressor with Vevor's 5HP compressor motor. This single phase induction motor features 230V voltage, 2.25" shaft length, a 7/8" keyed shaft, and CW/CCW dual rotation direction. With a high rotary speed of 3450 RPM, this high-speed motor delivers faster air speed and energy-saving efficiency. A large fan dissipates heat quickly and prevents the motor from overheating, ensuring long-term durability.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- 5HP Air Compressor Motor: 3450 RPM, Single Phase, Full Load Amps: 22A, 230V, 2 Pole, SFA: 1.0
- Dual Rotation Direction: The motor is reversible for CW/CCW, with easy wiring installation and quick connections.
- Open Drip-proof: It is suggested to use this motor in clean and dry environments. The shell is made of high-quality steel material, protecting the engine and providing a longer service life.
- Frame Type: 56Hz Frame, 7/8" Keyed shaft, Shaft length-2.25"
- Safe & Durable: This motor has been tested for safety and reliability and has received CSA certification. The rolled steel shell, fast heat dissipation and compatible keyed shaft ensure long-term usage.
Specifications
| Voltage | 230V |
| Horsepower | 5HP |
| Rotation Speed | 3450 RPM |
| Frame Size | 56HZ |
| Rated Current | 22A |
| Shaft Length | 2.25" |
| Shaft Diameter | 7/8" Keyed Shaft |
| Rotation | CW/CCW |
| Certification | CSA |
| Product Dimensions | 13.2" x 6.7" x 8.3" |
| Weight | 41.3 lbs (18.75 kg) |
Package Contents
Vevor 5HP Air Compressor Motor
User Manual
Warranty
This item comes with a 1 year factory warranty.
