Vevor Air Compressor Motor CW/CCW Rotation 7.5 HP 230V 31.6A 3450 RPM New
Manufacturer: Vevor
SKU: ODPKYJDJ75HPQ7RREV7
Size Options
QTY
(888) 999-1522
$ 359.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Single-Phase ODP 230V 184T New
-
Vevor 10HP 3-Cylinder Air Compressor Pump Head 17.5CFM @ 90PSI Dual-Stage Piston Pump New
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New
-
Vevor Single Phase to 3-Phase Rotary Converter 2.5 HP 7A 208-240V New
-
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
-
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
-
Vevor Electric Motor 1.5 HP 3450 RPM 56C Frame 5/8" Keyed Shaft Single Phase 115/230V New
-
Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New
-
Vevor Electric Motor 0.5 HP 1725 RPM Air Compressor Single-Phase TEFC 56 Frame New
Vevor Air Compressor Motor CW/CCW Rotation 7.5 HP 230V 31.6A 3450 RPM New
Product Overview

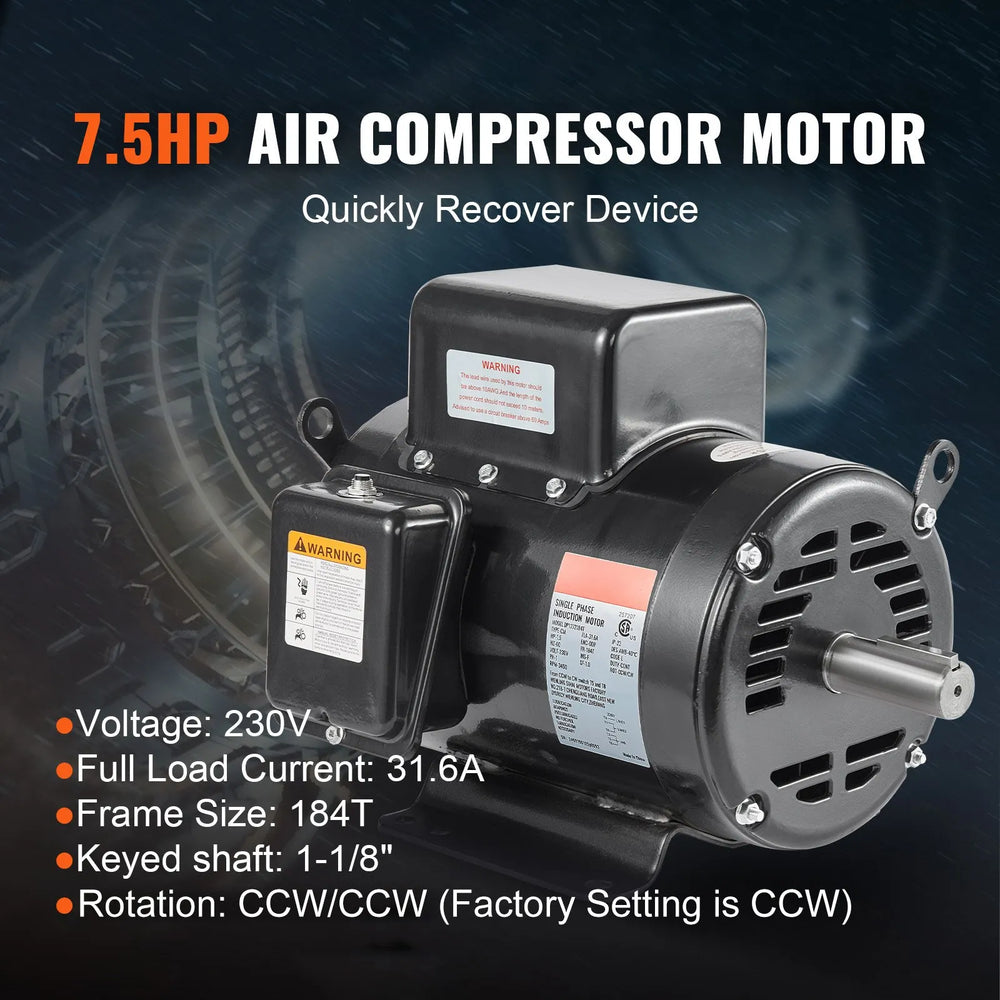

Inject powerful energy into your air compressor with this 7.5 HP electric motor. This high-speed motor reaches 3450 RPM for faster air speed and energy-saving efficiency. The motor supports both forward and reverse rotation (factory setting is counter-clockwise). It features a 2.75" shaft length and 1-1/8" keyed shaft, 230V voltage, 31.6A current.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.
- Frame Type: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

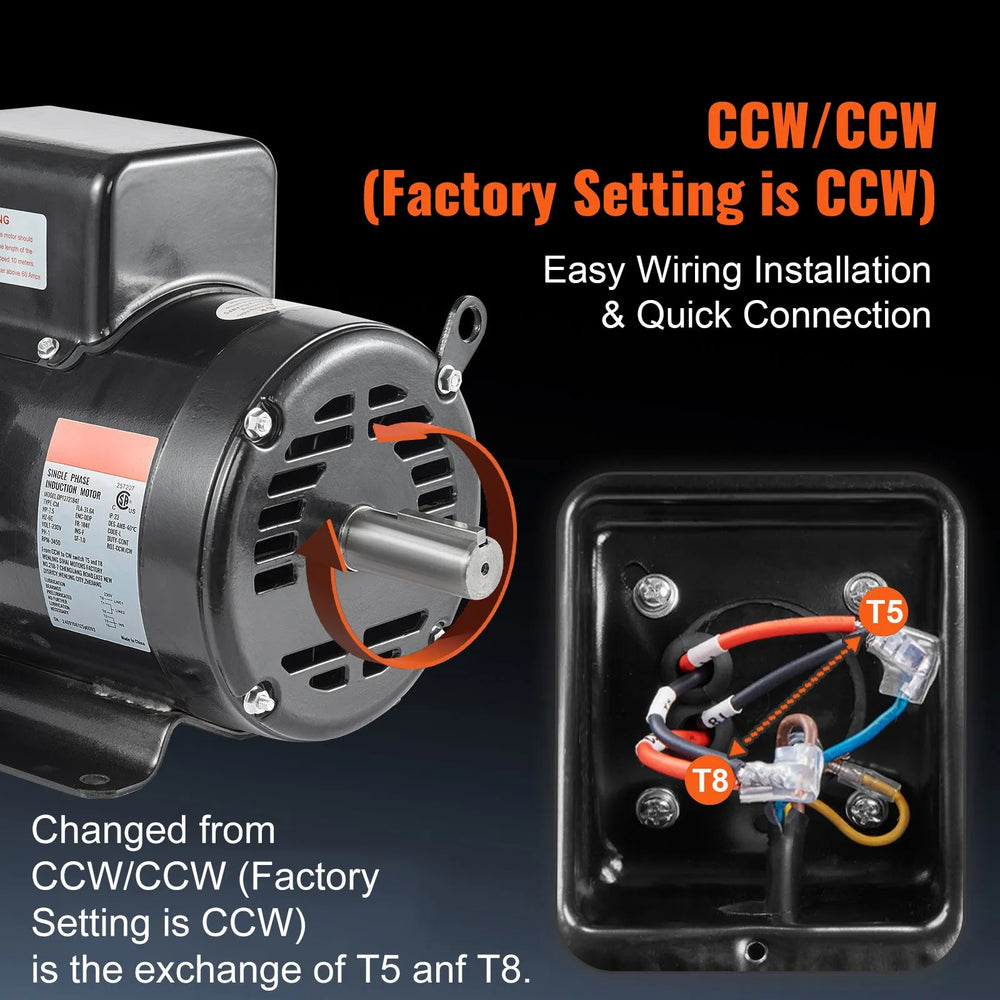

- Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)
Specifications
| Item Model # | DP1272184T |
| Voltage | 230V |
| Frequency | 60 Hz |
| Current | 31.6A |
| Rotation Speed | 3450 RPM |
| Frame Size | 184T |
| Shaft Diameter | 1-1/8" Keyed Shaft |
| Shaft Length | 2.75" |
| Keyway Size | 0.25" |
| Dimensions | 14.8" x 10.43" x 11.02" |
| Net Weight | 67.7 lbs |
Package Contents
Vevor 7.5 HP Air Compressor Motor
User Manual
Warranty
This item comes with a 1 year factory warranty.
