Vevor Air Cooled Chiller 15 Ton Panasonic Compressor 15 HP 150L Built-In Tank Stainless Steel New
Manufacturer: Vevor
SKU: FLLSJ15DLSJ000001V4
Compressor Motor Power Options
QTY
(888) 999-1522
$ 4,529.99
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

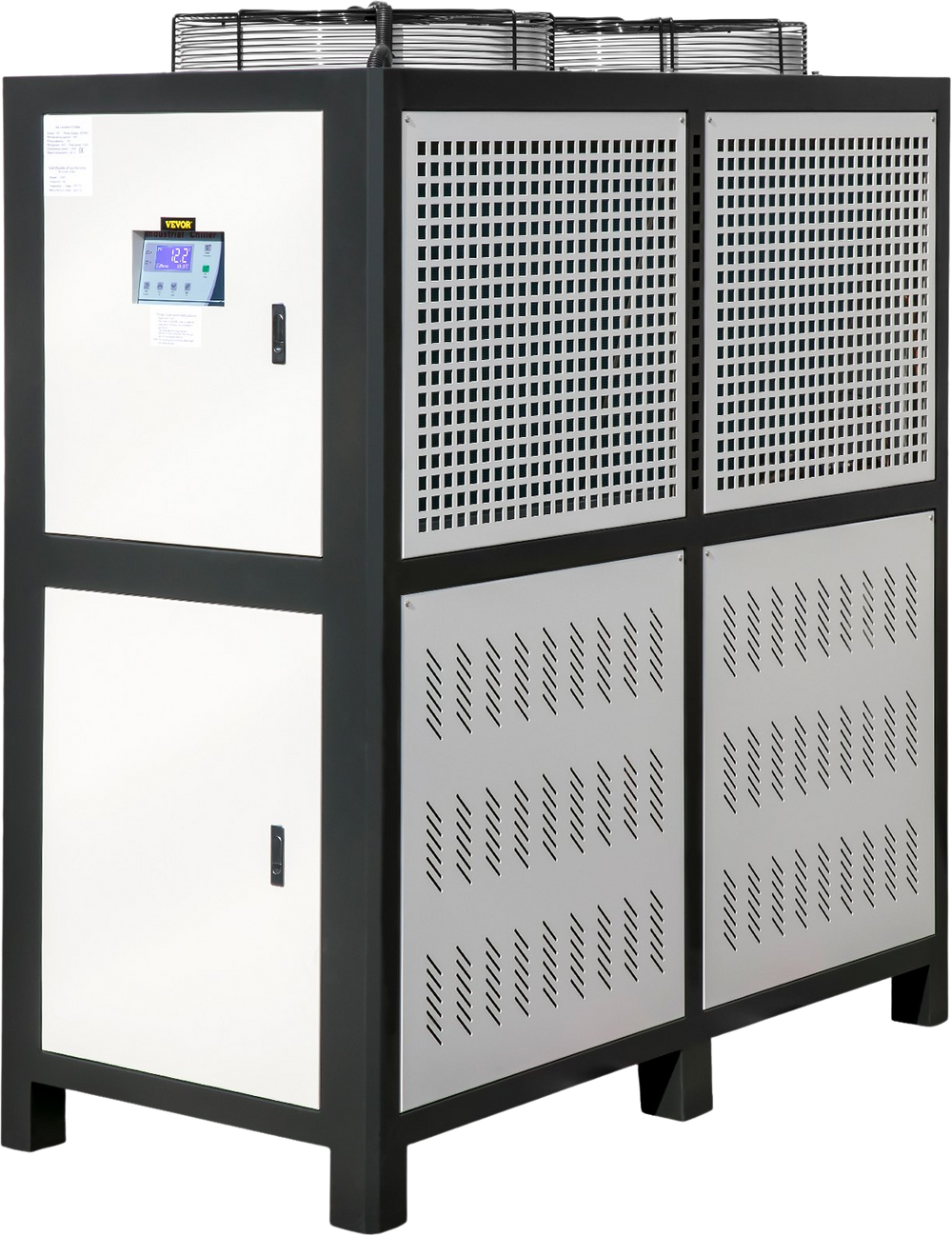

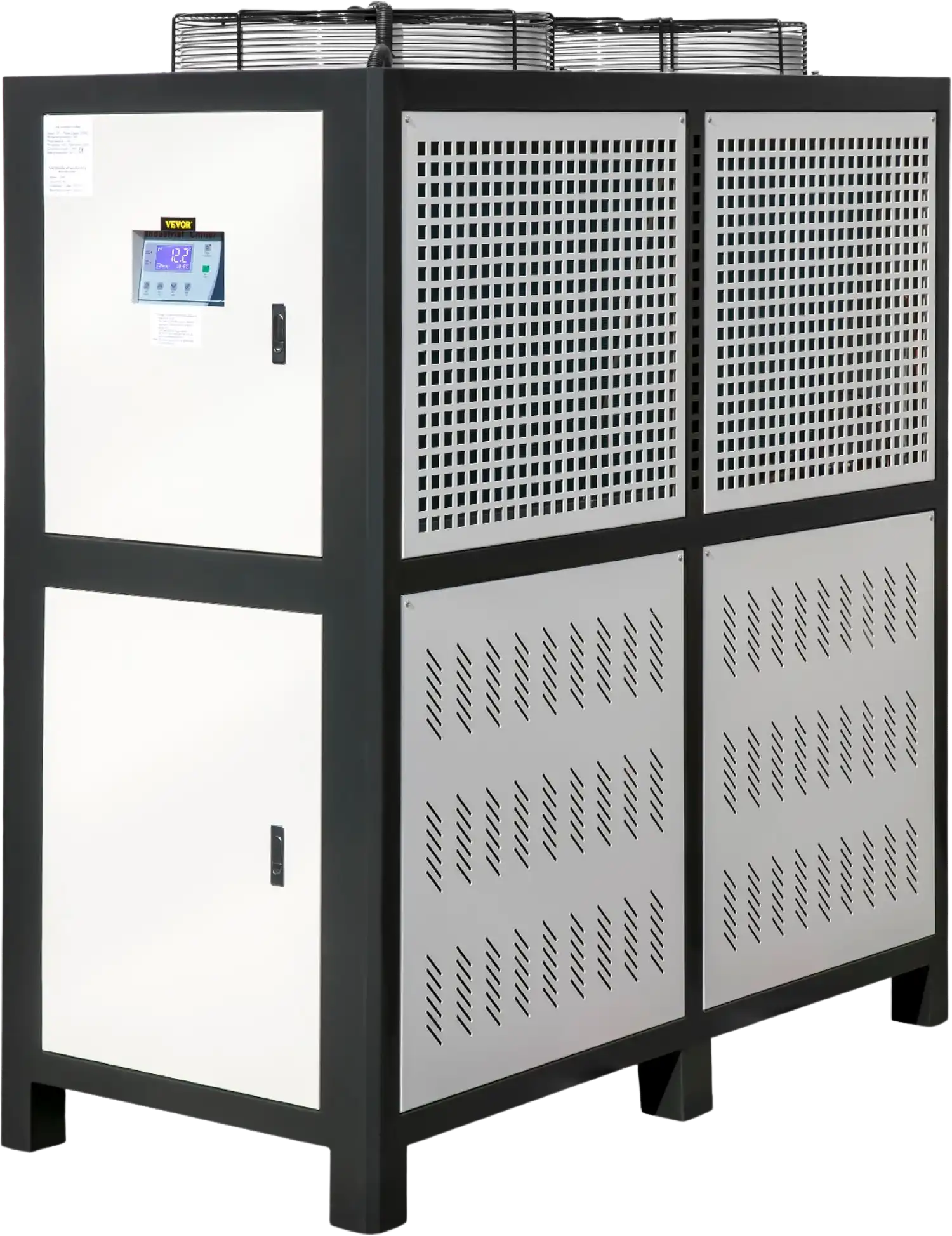

Vevor Air Cooled Chiller 15 Ton Panasonic Compressor 15 HP 150L Built-In Tank Stainless Steel New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- High-Performance Compressor: The portable chiller applies a 15 HP Panasonic compressor that ensures the chiller will operate reliably and stably. Water flow is 7 m3/h, and pipe diameter is DN1 in (DN25 mm), less vibration and noise. Built-in 150L stainless steel water tank for your facilitated operation.
- Powerful Cooling: This water chiller uses standard R407 refrigerant to keep engraving machines up to 45kW cooling during use. Its 11.25kW compressor can cool up to 38700 Kcal per hour. The 150L water tank is enclosed to reduce evaporation and provides long-term service between refills.
- Professional Protection System: Including an overload protector, high and low-pressure switch, electronic alarm prompt functions, automatic water replenishment. The environmental temperature must be less than or equal to 40°C.
- Smart Micro-Computer Control: Multi-functional control table includes intelligent LCD, microcomputer control, power buttons for compressor and condenser. A simple one-key rule makes operation convenient and efficient. The adjustable temperature ranges from 41°F to 77°F (5℃ to 25℃).
- Versatile Application: The easy setup industrial chiller is widely used in electronics, electroplating, food, machinery, business card printing, and other industries. An air-cooled chiller can accurately control the temperature of a plastic forming mold to shorten the forming cycle and accelerate product setting. It is an essential piece of configuration equipment for modern industries.
Specifications
| Power | 220V / 60Hz / 3P |
| Regulate Temperature | 41°F to 77°F (5°C - 25°C) |
| Condensation Temperature | 113°F (45°C) |
| Compressor Type | Fully Enclosed Vortex |
| Compressor Motor Power | 15 HP / 11.25 KW |
| Tank Capacity | 39.6 gal. (150 L) |
| Cooling Capacity | 45 KW / 38700 Kcal/h |
| Heat Exchange Tube Material | Copper |
| Coolant Type | R-407 |
| Fan Motor Power | 0.64 KW |
| Pipe Diameter | 0.1 in. (25 mm) |
| Pump Motor Power | 2 HP |
| Pump Power | 2.2 KW |
| Item Dimensions | 63 x 30.7 x 67 in. (160 x 78 x 170 cm) |
| Net Weight | 1345 lbs. (610 kg) |
Package Contents
Vevor Air Cooled Chiller 15 Ton
User Manual
Warranty
This item comes with a 1 year factory warranty.
