Vevor Air Hydraulic Pump 10,000 PSI Foot-Actuated Single Acting with 4.1' Hose New
Product Overview

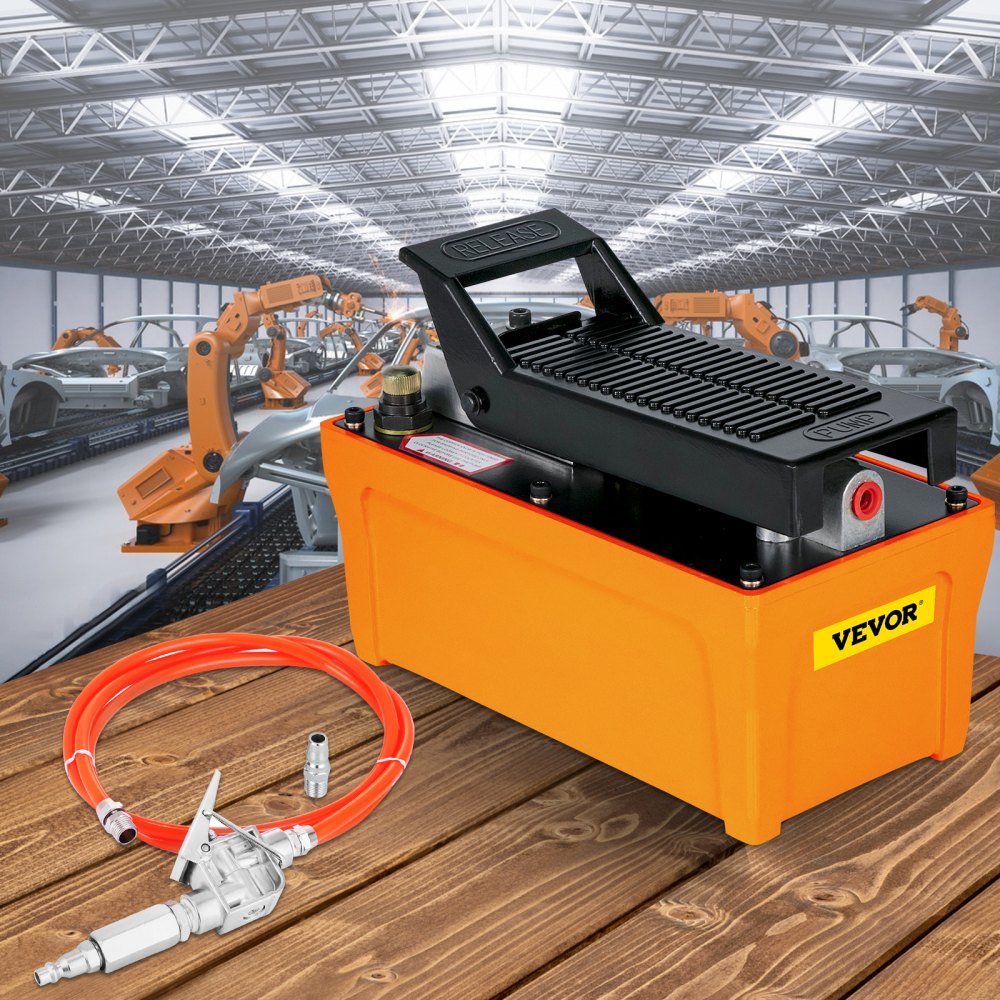

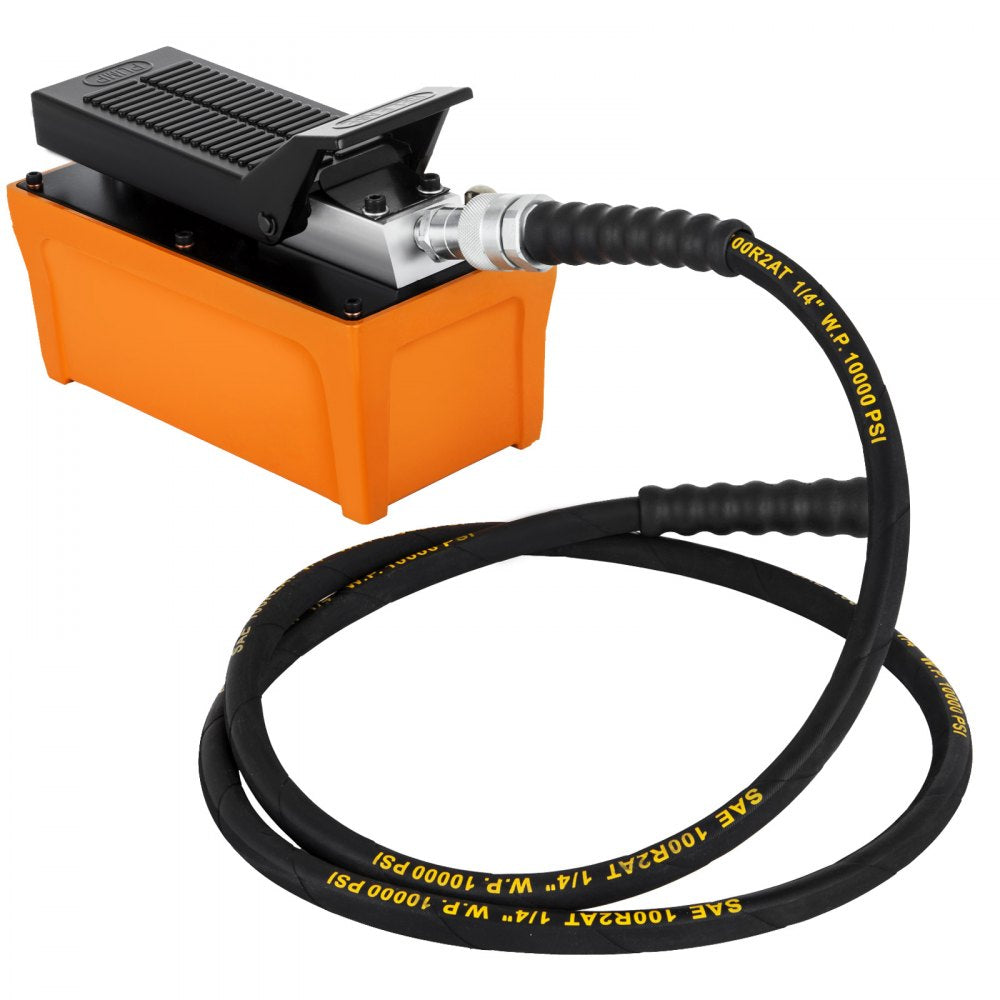

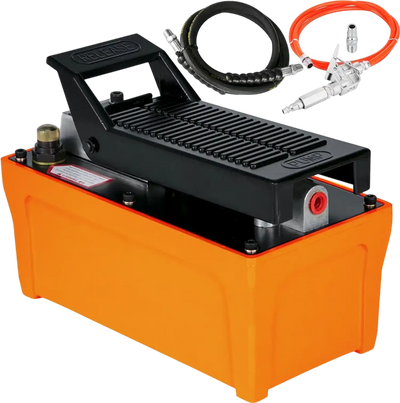

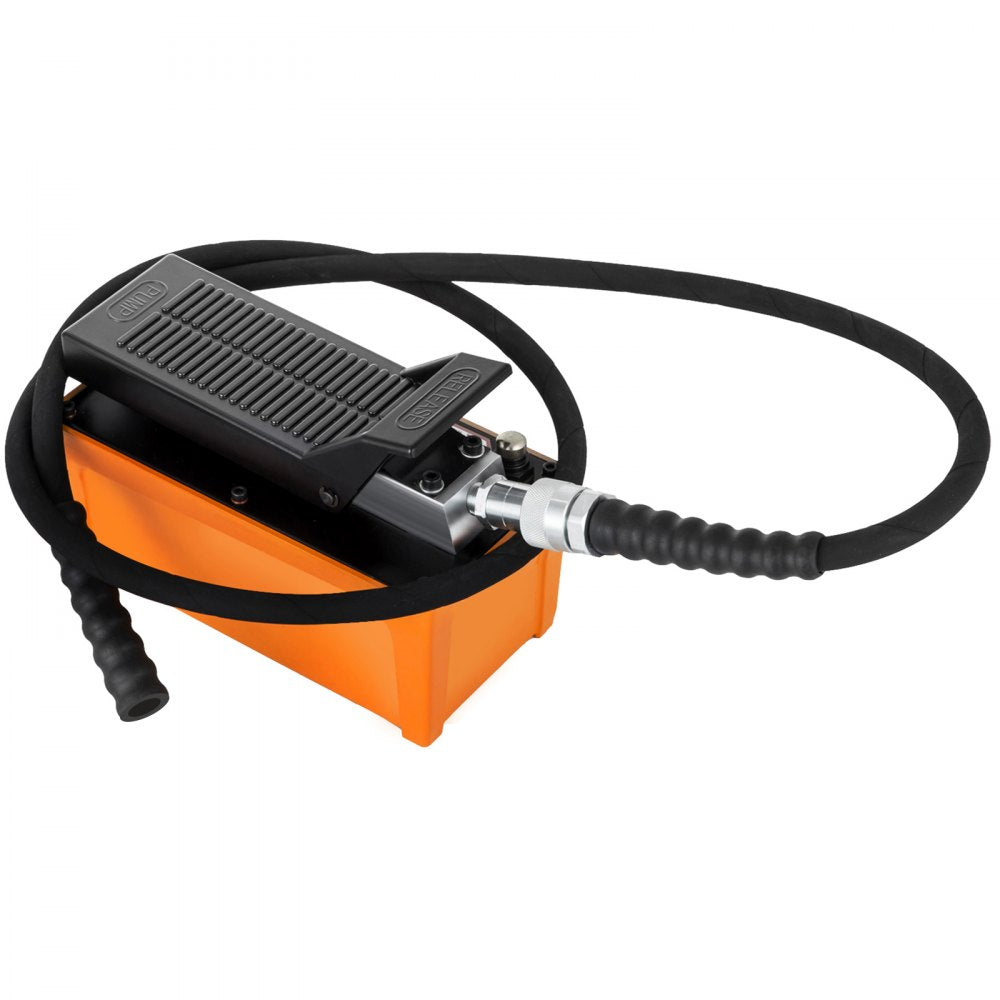

The Vevor air hydraulic pump is a foot-actuated single-acting pump designed for high-pressure industrial and automotive applications. It delivers up to 10,000 PSI output pressure and includes a 4.1' hydraulic hose with quick coupler for convenient operation. Its reinforced aluminum alloy construction and built-in relief valve support durable, reliable use in demanding environments. A spray gun is included to help control airflow during operation. This pump is suited for use with single-acting cylinders, presses, rams, and hydraulic pullers.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.

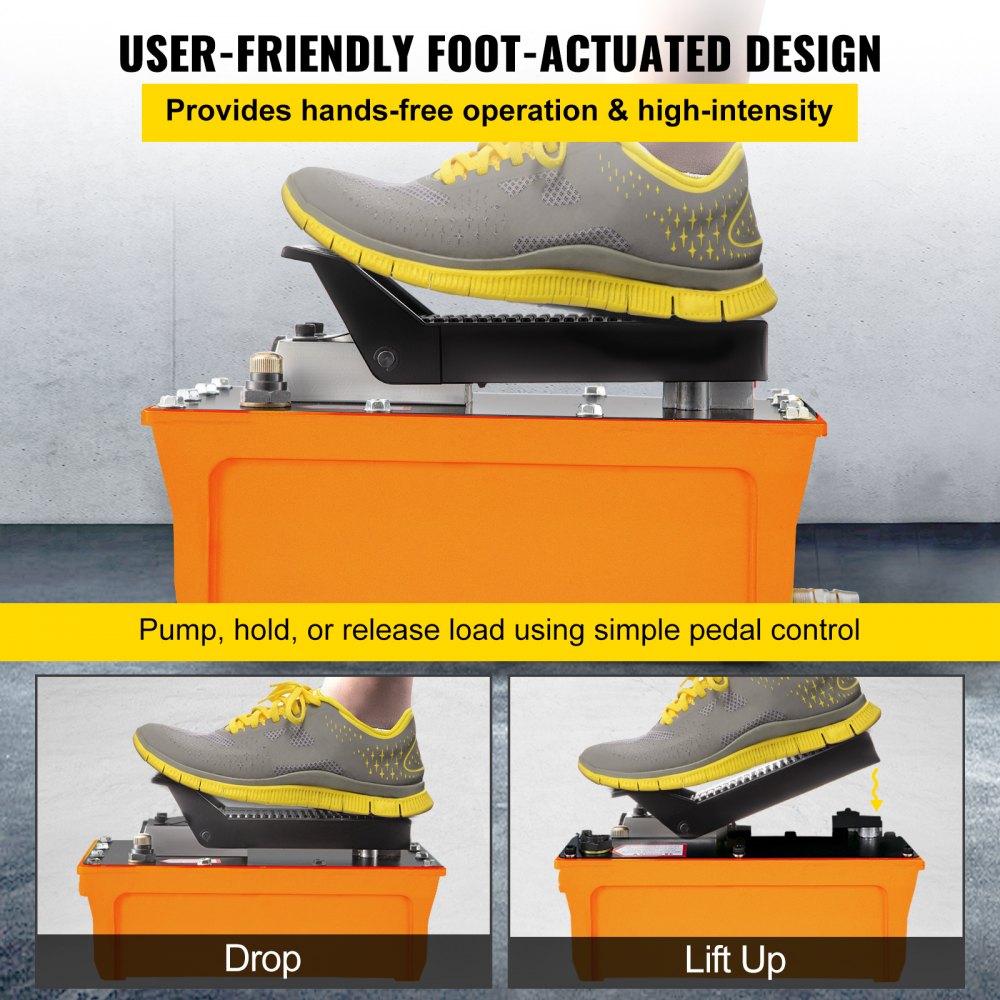

- Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

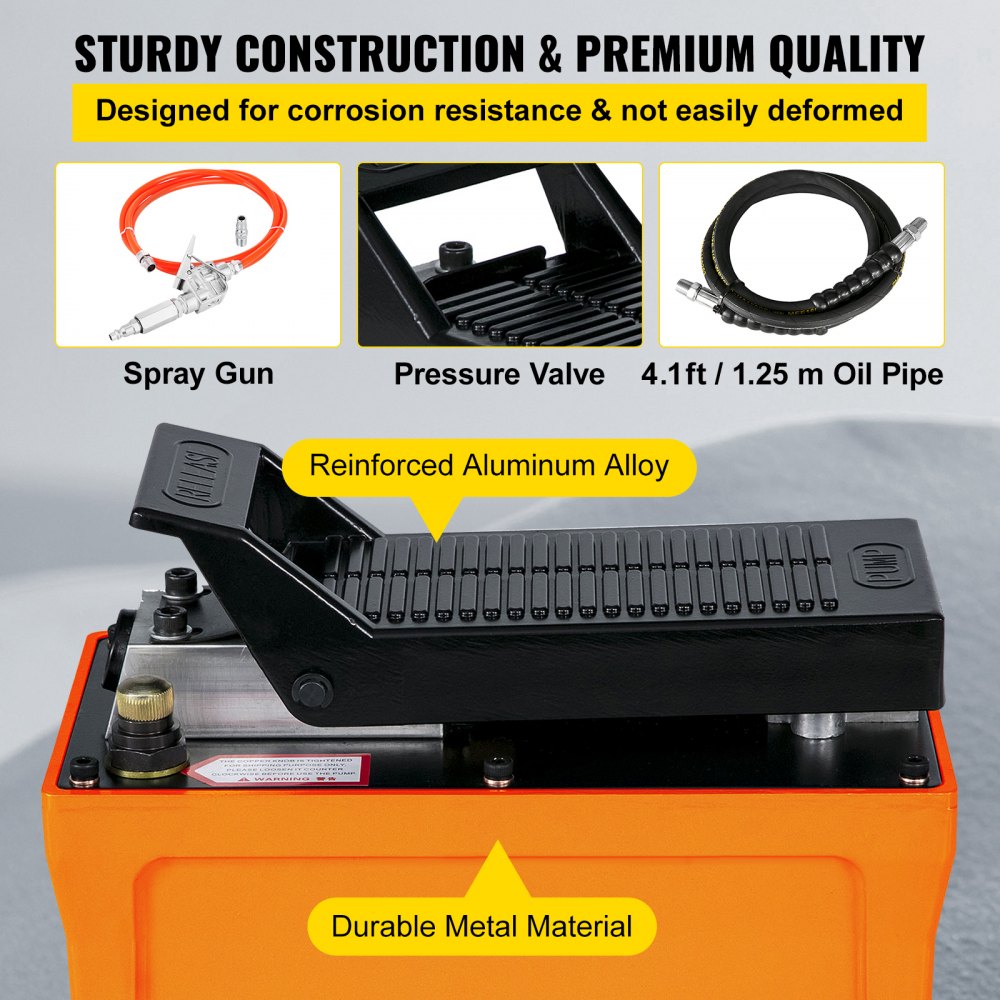

- Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1.6 liters oil capacity. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
- Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 1.25 m / 4.1 ft high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included to control the input and interruption of the airflow, which is an effective start-stop device.

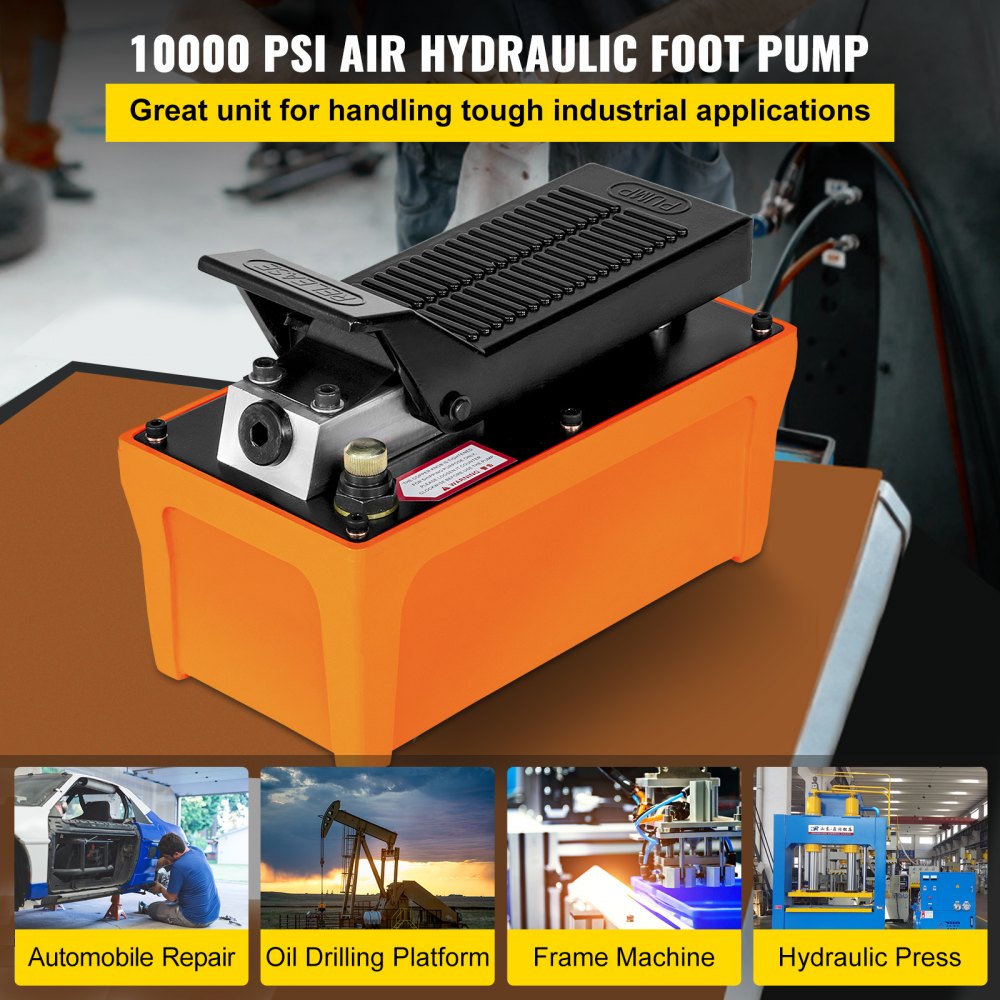

- 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
Specifications
| Model | B-70BQ |
| Type | Air Powered Hydraulic Pump |
| Action | Single Acting |
| Control | Foot pedal pump - Release pressure to return fluid |
| Includes Hydraulic Hose | 1.25 m / 4.1' with 3/8'' NPT - Quick hydraulic coupler |
| Flow Rate | 0.8 liters / 0.21 gallons per minute |

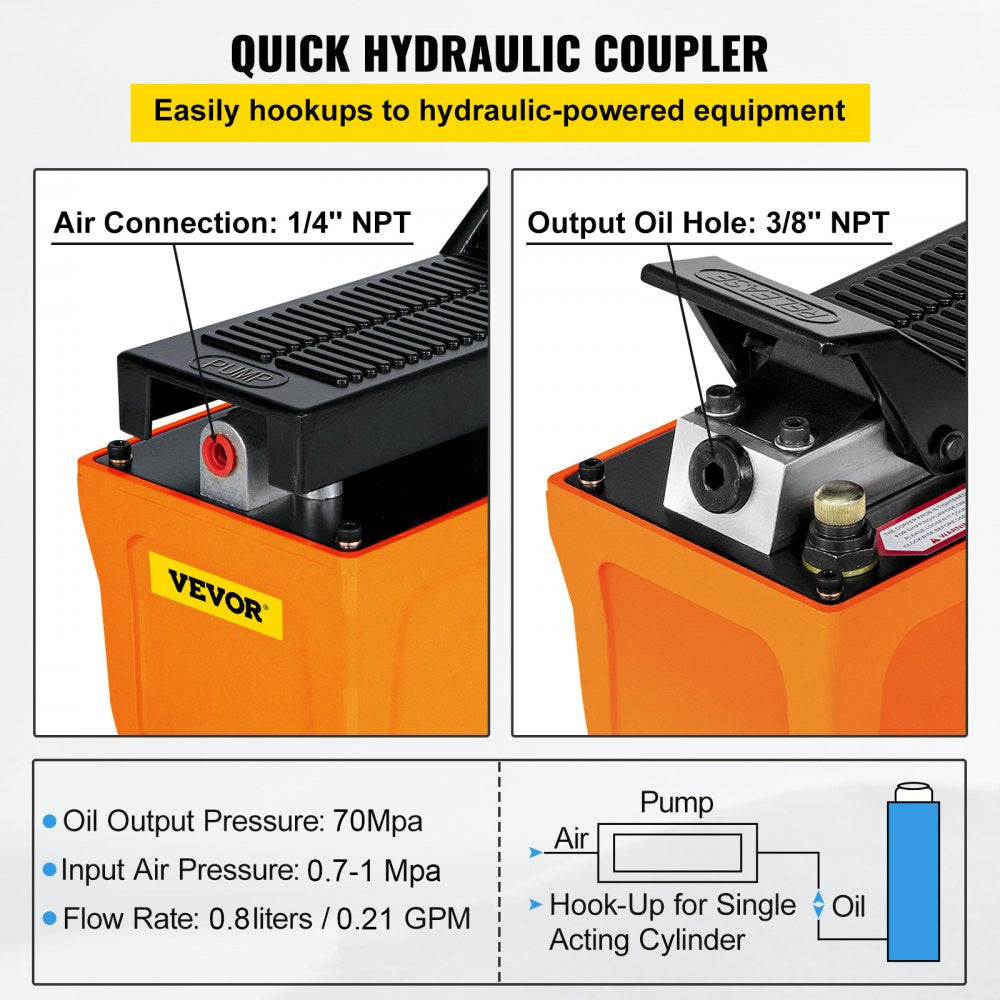

| Air Connection | 1/4" Female NPT |
| Output Oil Hole | 3/8'' NPT Connection |
| Hydraulic Oil Type | HM22/HM32 |

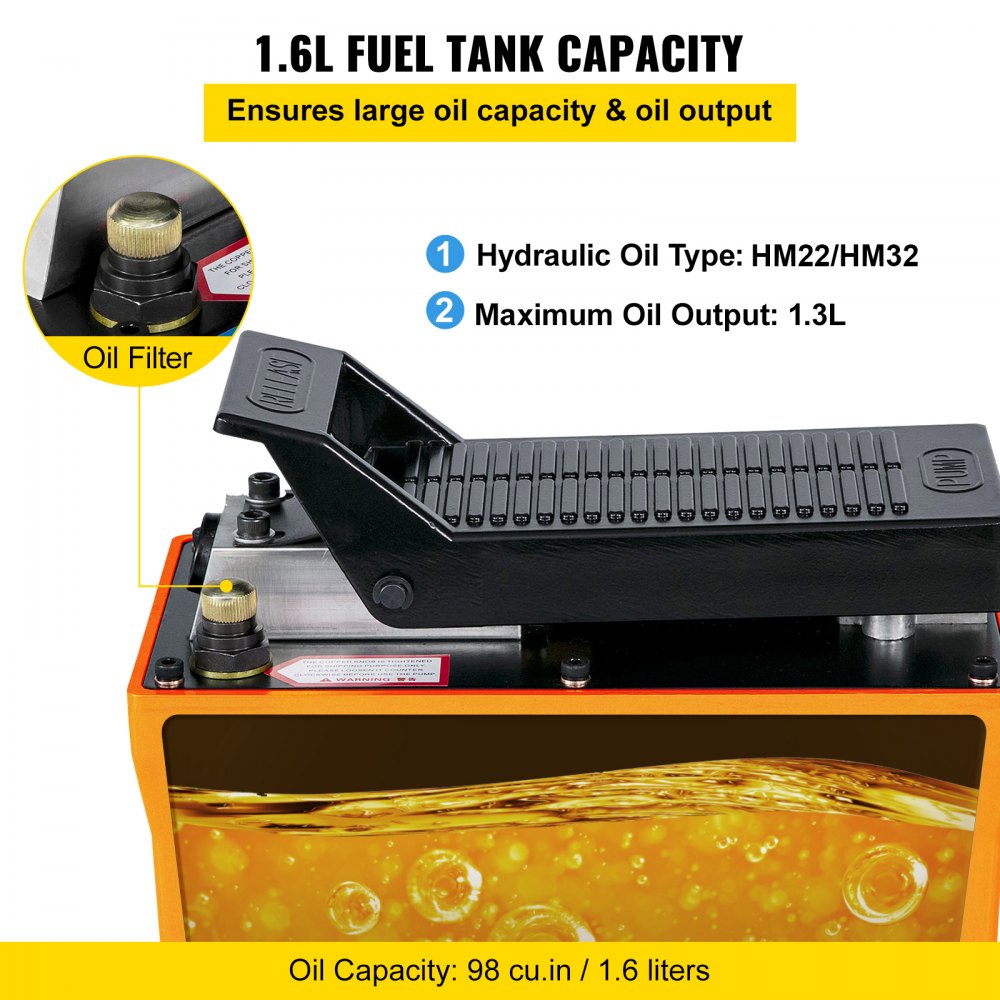

| Oil Capacity | 98 cubic inches / 1.6 liters (1600 cc) |
| Input Air Pressure | 0.7-1 MPa |
| Shell Material | Reinforced Aluminum Alloy |
| Fuel Tank Capacity | 1.6 L |
| Capacity Tolerance | ± 0.1 L |
| Maximum Oil Output | 1.3 L |
| Oil Output Pressure | 70 MPa |
| Pressure Range | ≥0.5 |
| Max Output Hydraulic Pressure | 10,000 psi, 700 kg/square cm |
| Total Mass | 8.0 kg / 17.64 lbs |

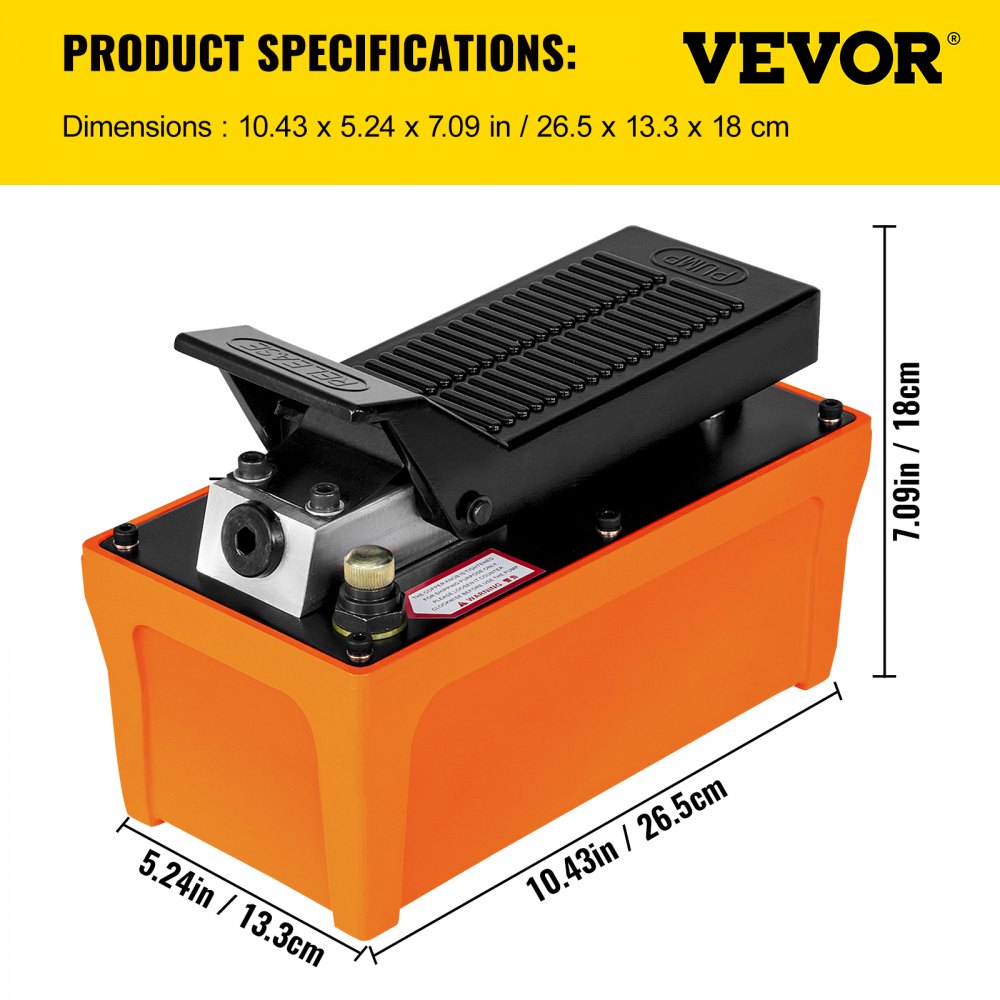

| Dimensions | 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09" |

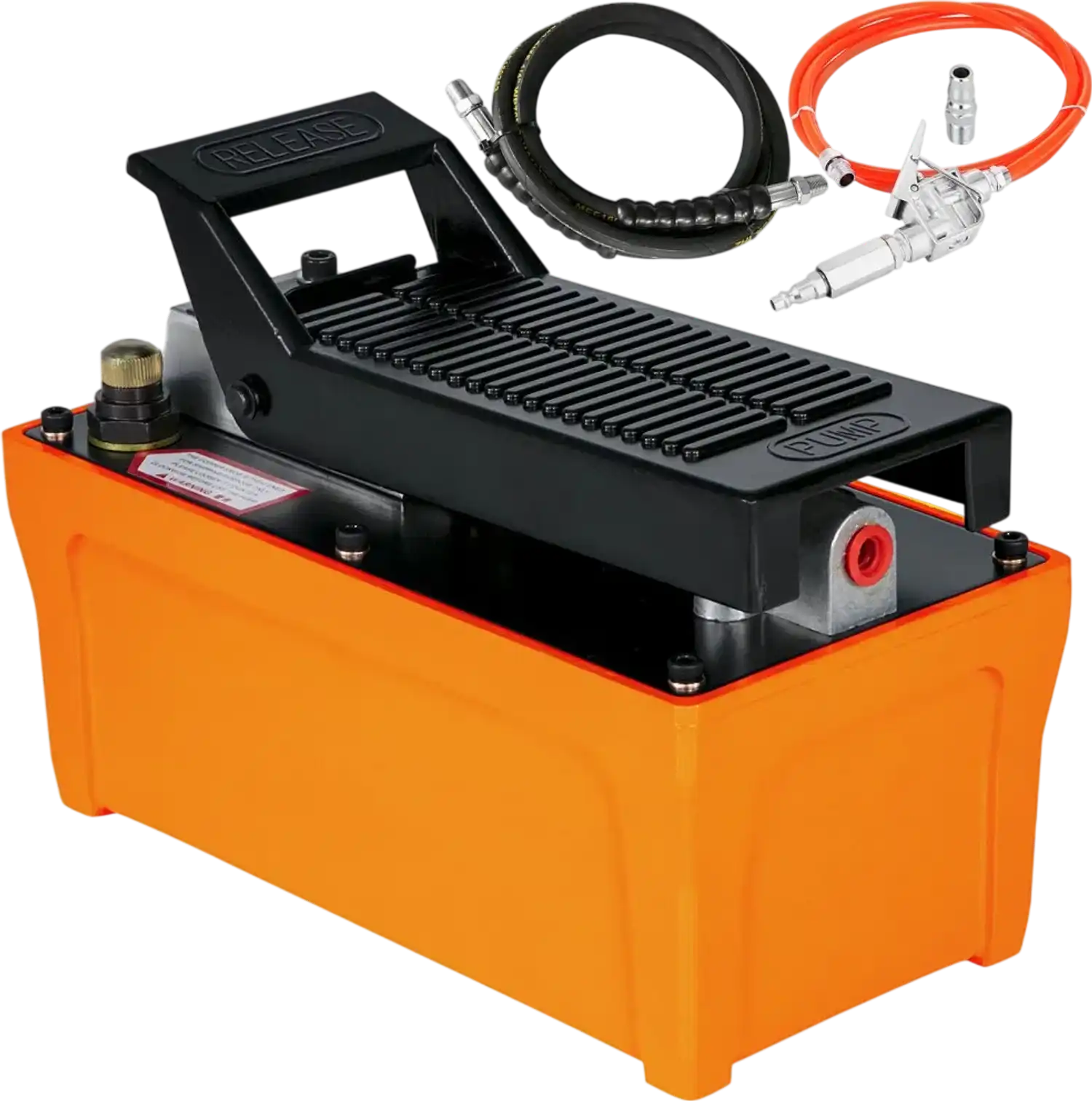

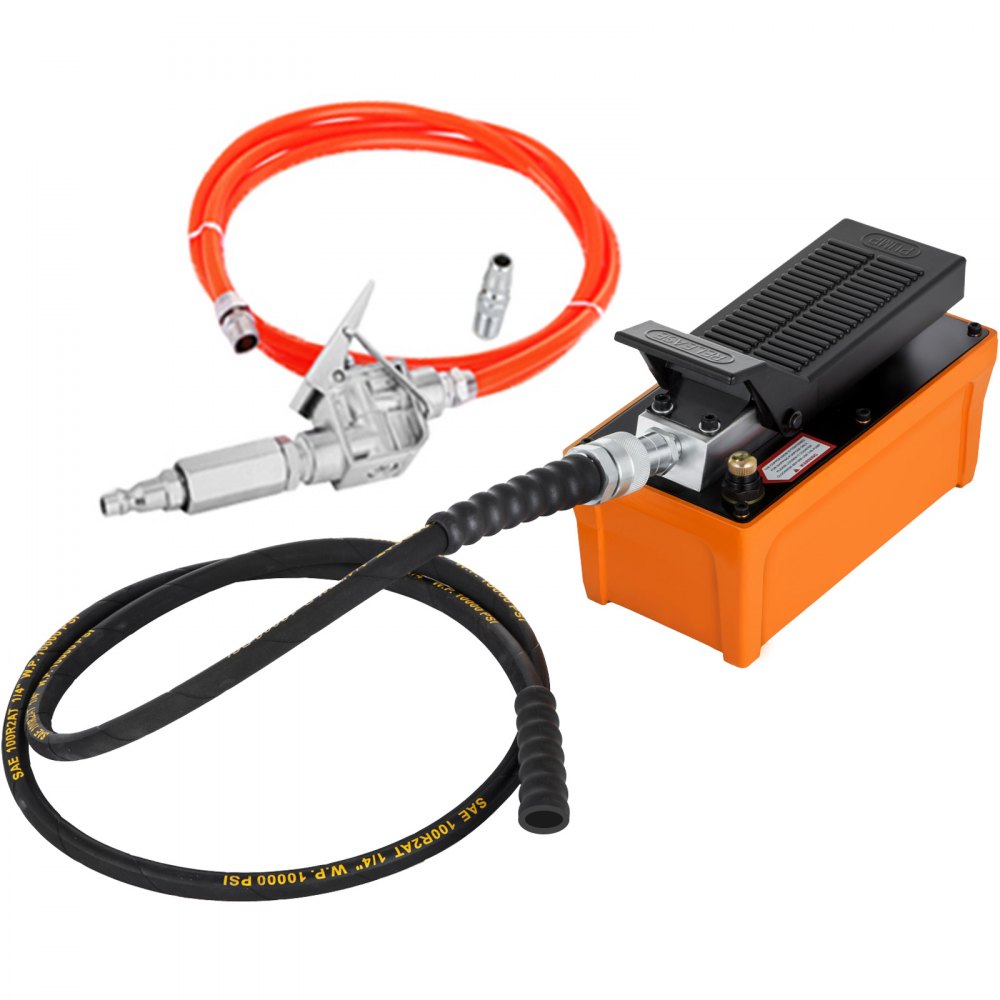

Package Contents
1 x Air Powered Hydraulic Pump

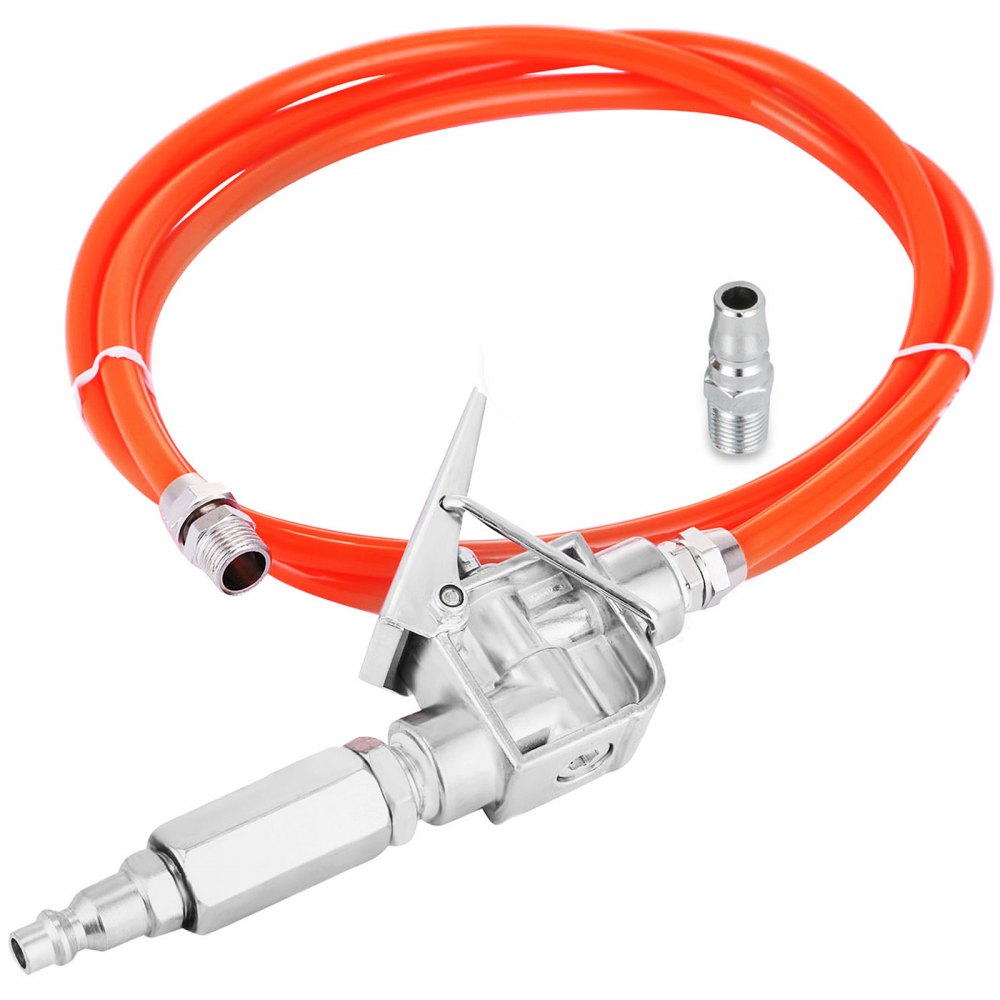

1 x Spray Gun
1 x 4' Air Line
1 x 5' Hose
Warranty
This item comes with a 1 year factory warranty.
