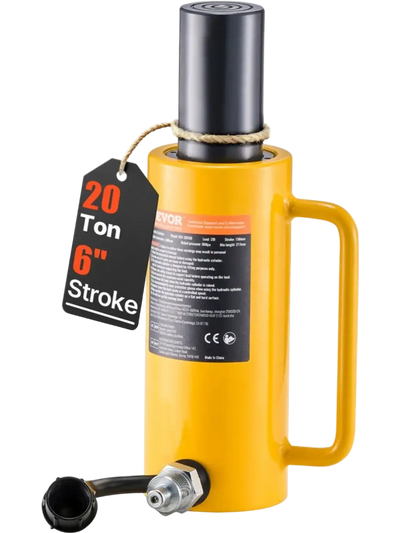

Vevor Hydraulic Cylinder Jack 20 Ton 6" Stroke Single Acting Ram New
-
Vevor Hydraulic Ram Kit 12 Ton Air Pump Lift Porta Power for Auto Body and Frame Repair New

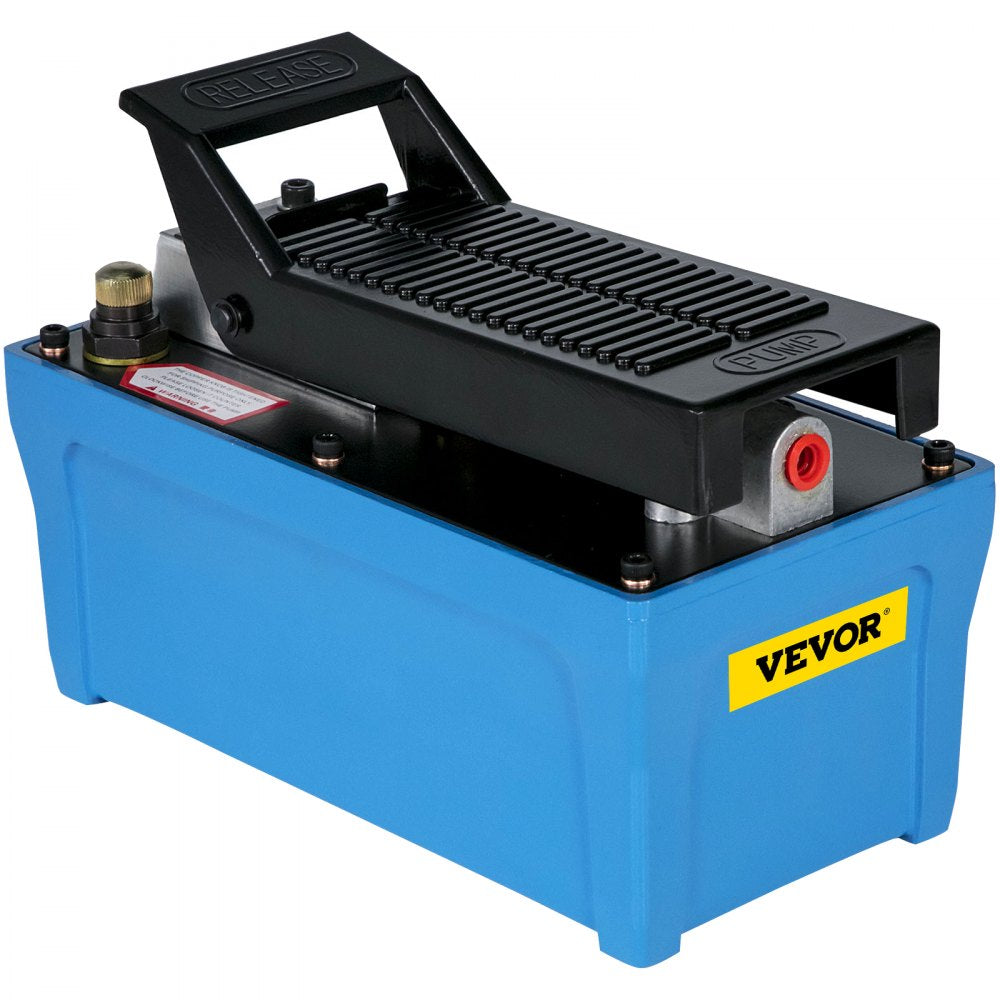

Vevor Air Hydraulic Pump 10,000 PSI Foot Pedal Single Acting New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

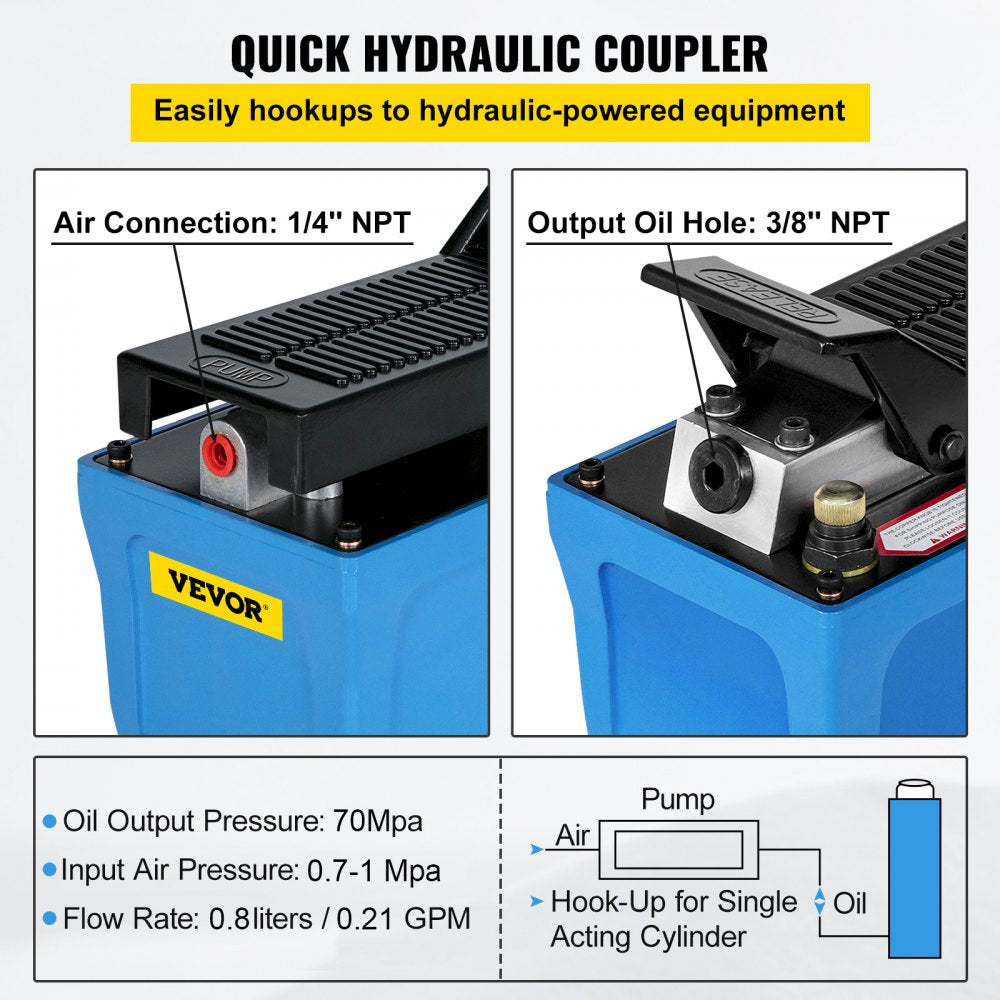

- Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons, Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.

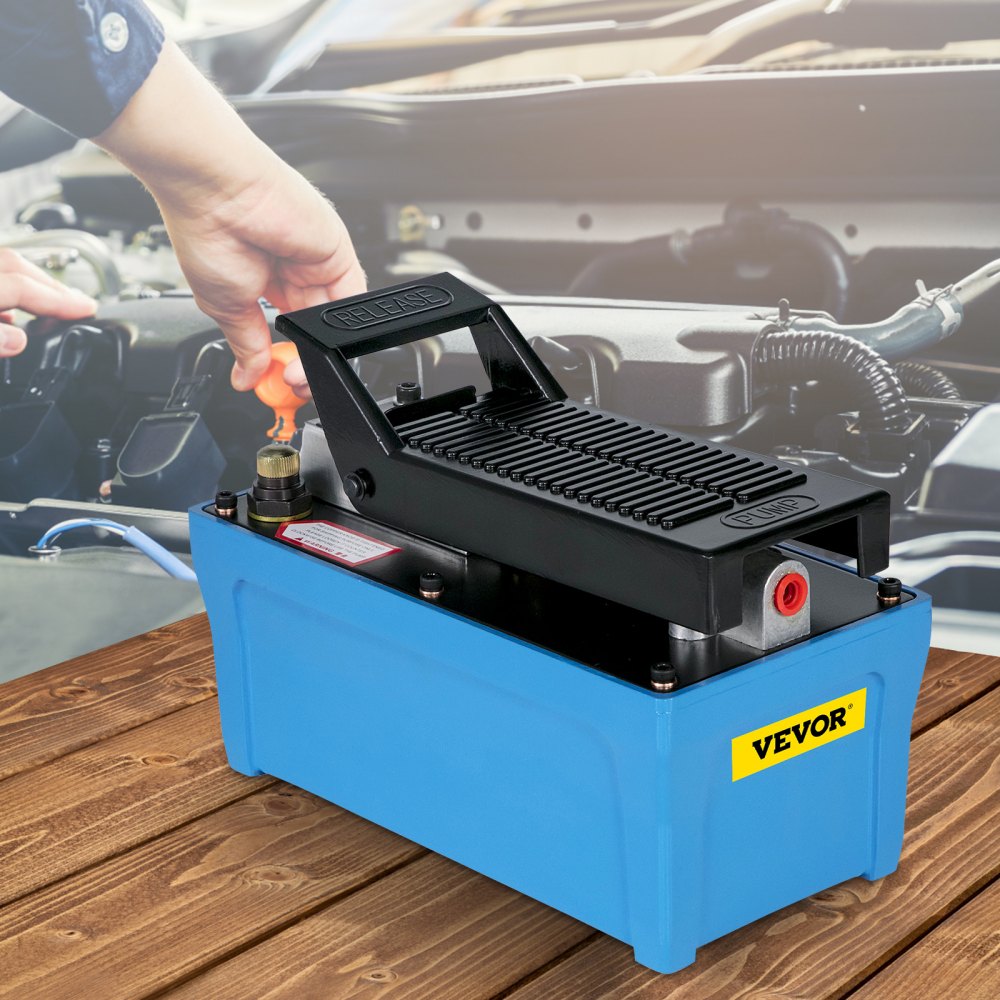

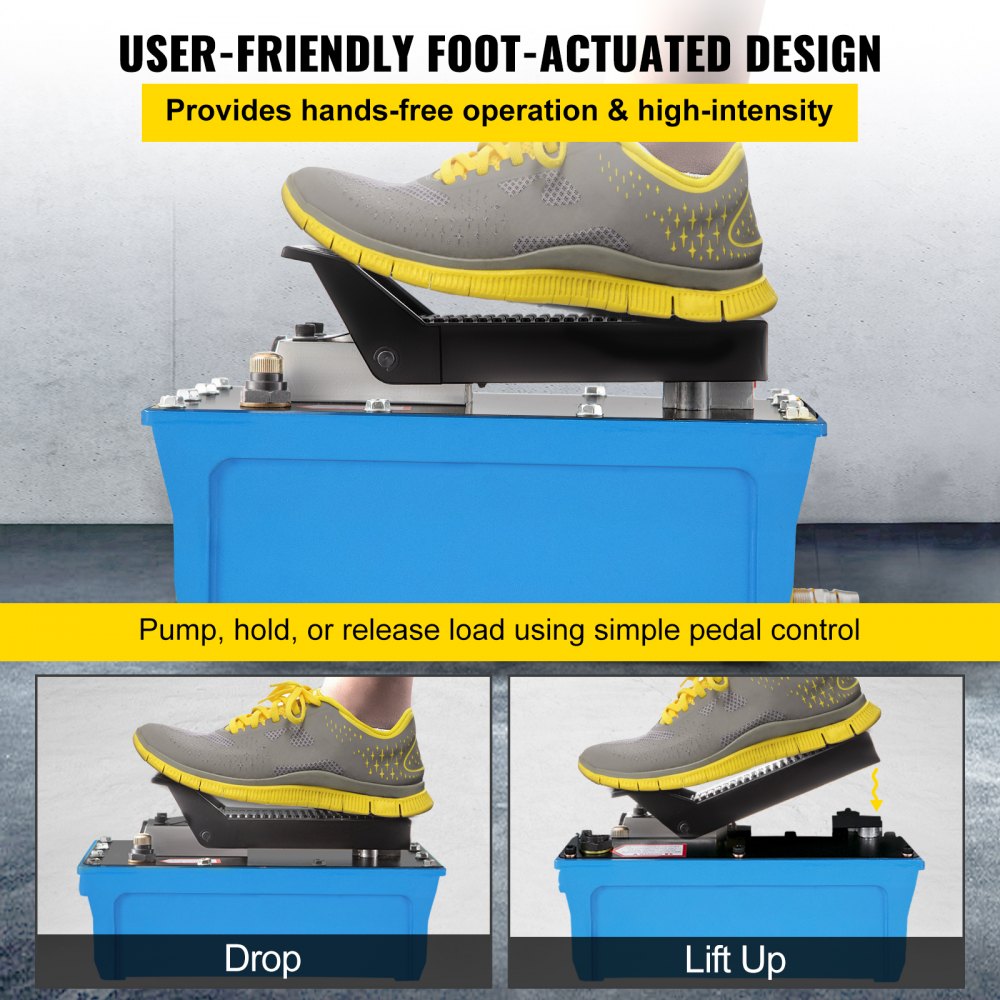

- Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

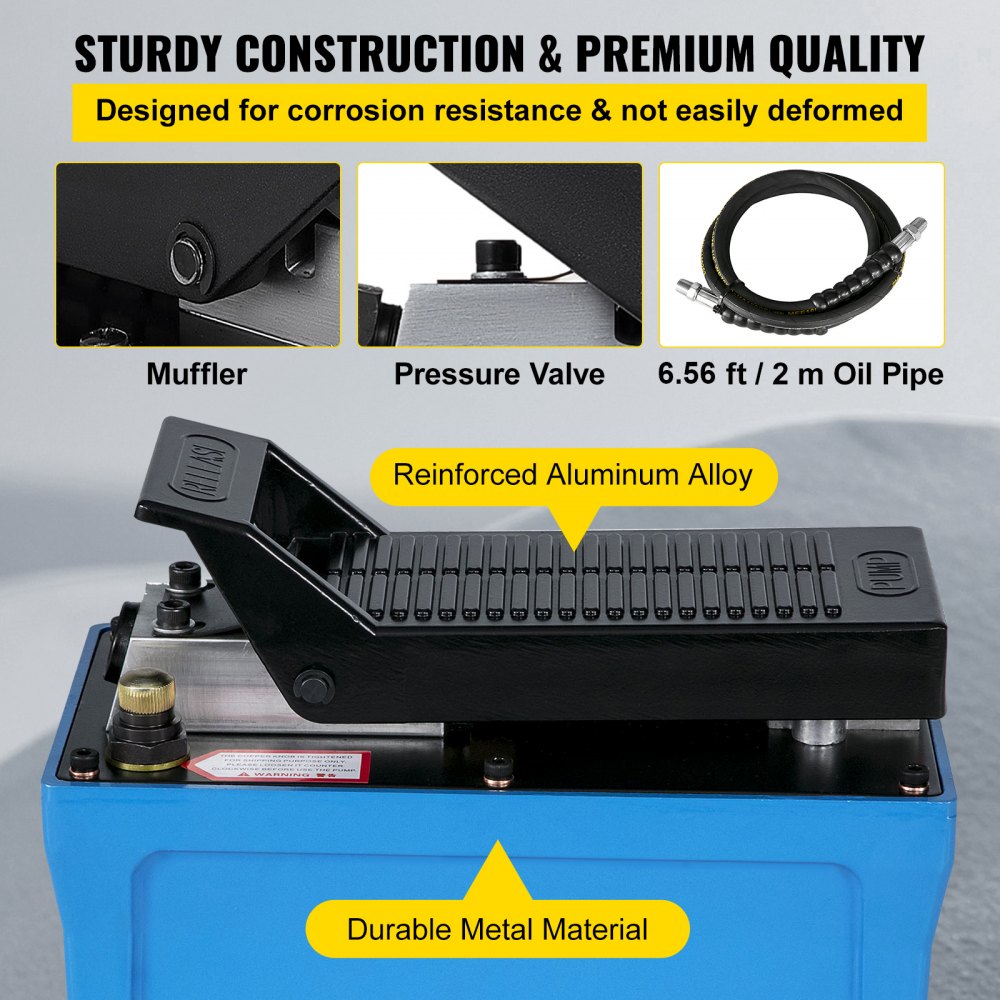

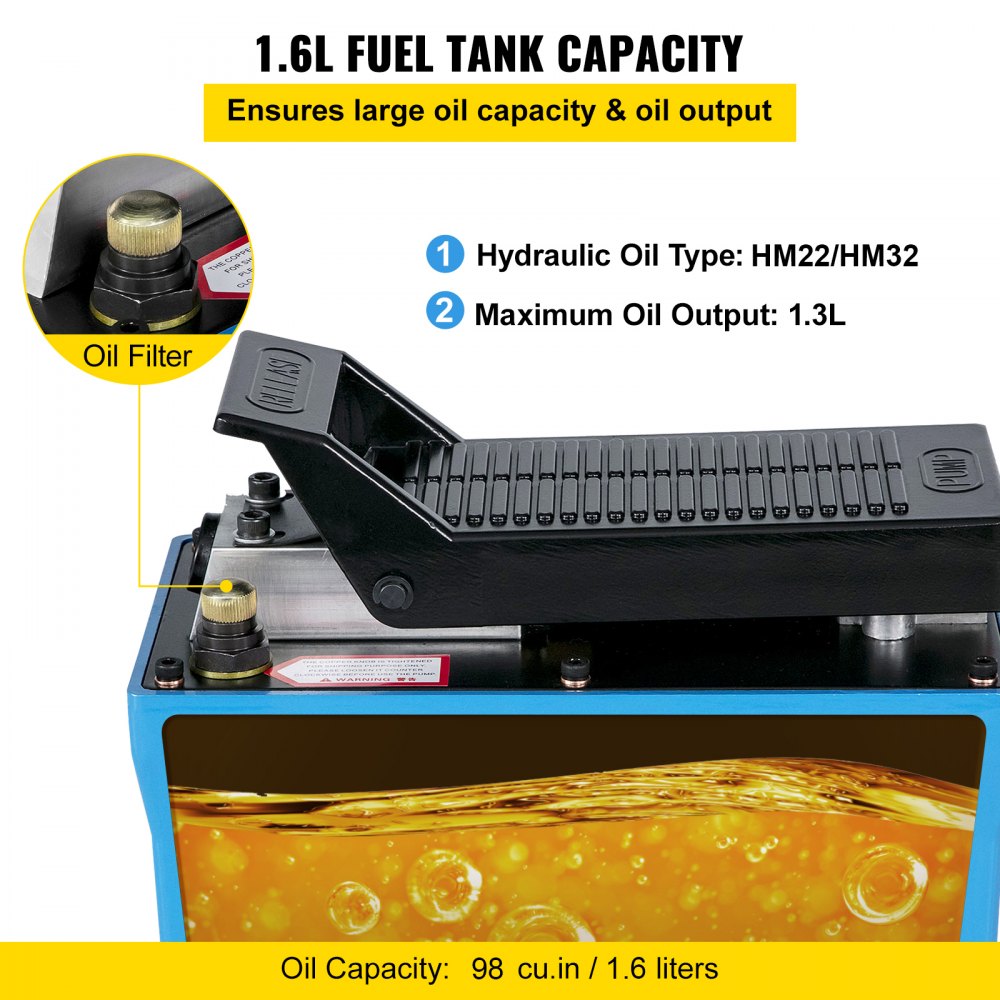

- Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L ± 0.1L oil tank has a larger capacity with 1.3 liters maximum oil output. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
- Durable Oil Pipe Included: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.

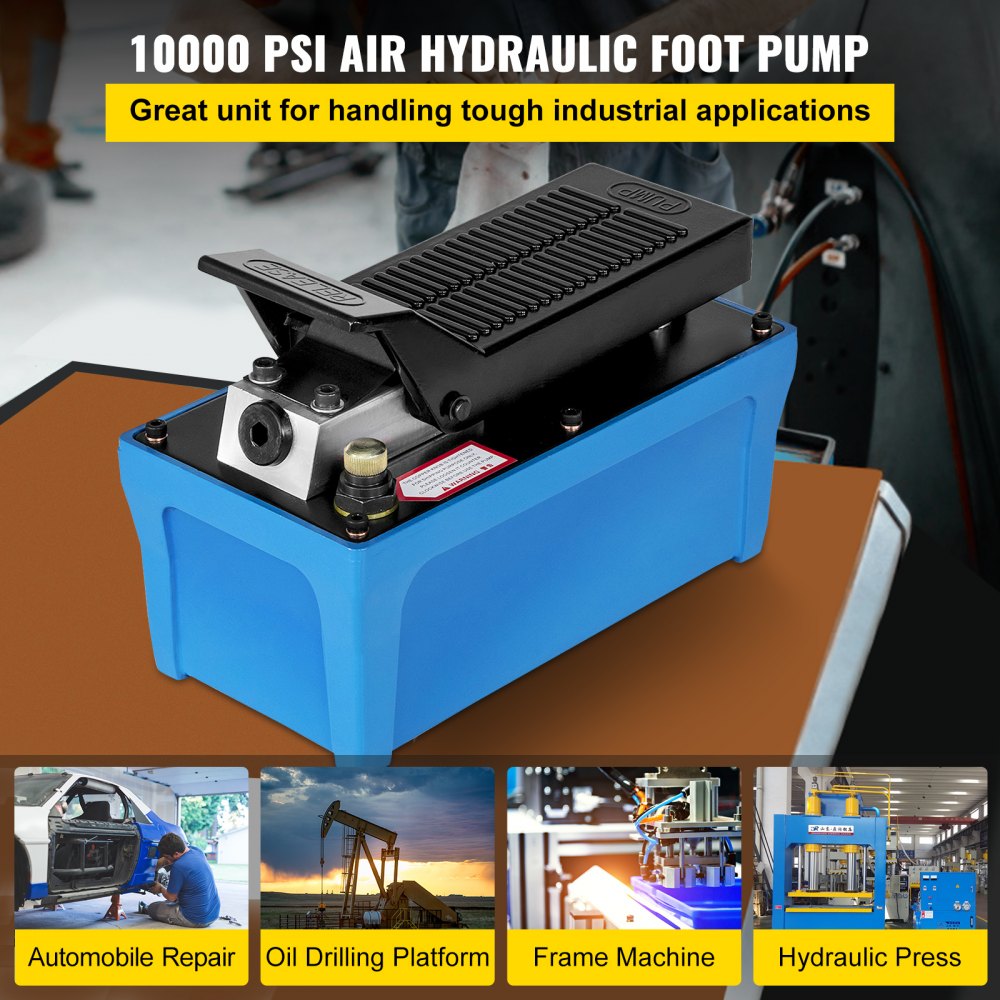

- 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
Specifications
| Type | Air Powered Hydraulic Pump |
| Action | Single Acting |
| Control | Foot pedal pump - Release pressure to return fluid |
| Includes Hydraulic Hose | 6.56' / 2 m with 3/8" NPT - Quick hydraulic coupler |
| Flow Rate | 0.8 liters / 0.21 gallons per minute |
| Air Connection | 1/4" Female NPT |
| Connector Type | 3/8" NPT ISO 14540 quick hydraulic coupler |
| Hydraulic Oil Type | HM22/HM32 |
| Oil Capacity | 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons |
| Input Air Pressure | 0.7-1MPa |
| Shell Material | Reinforced Aluminum Alloy |
| Fuel Tank Capacity | 1.6L |
| Capacity Tolerance | ± 0.1L |
| Maximum Oil Output | 1.3L |
| Oil Output Pressure | 70MPa |
| Pressure Range | ≥ 0.5 |
| Max Output Hydraulic Pressure | 10000 psi, 700 kg/square cm |
| Weight | 17.72 lbs / 8.04 kg |

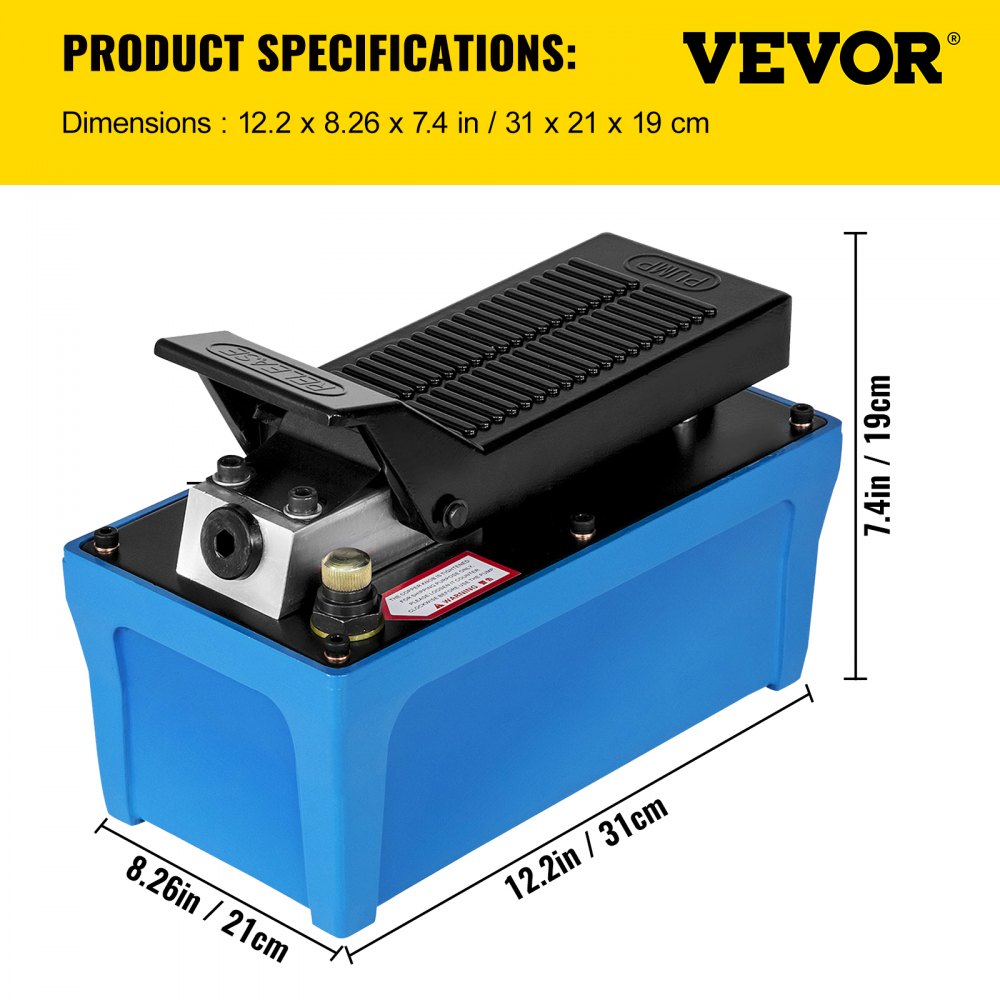

| Dimensions | 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm |
| Color | Blue |
| Model | BTQBTYYJTBLSK0001V0 |

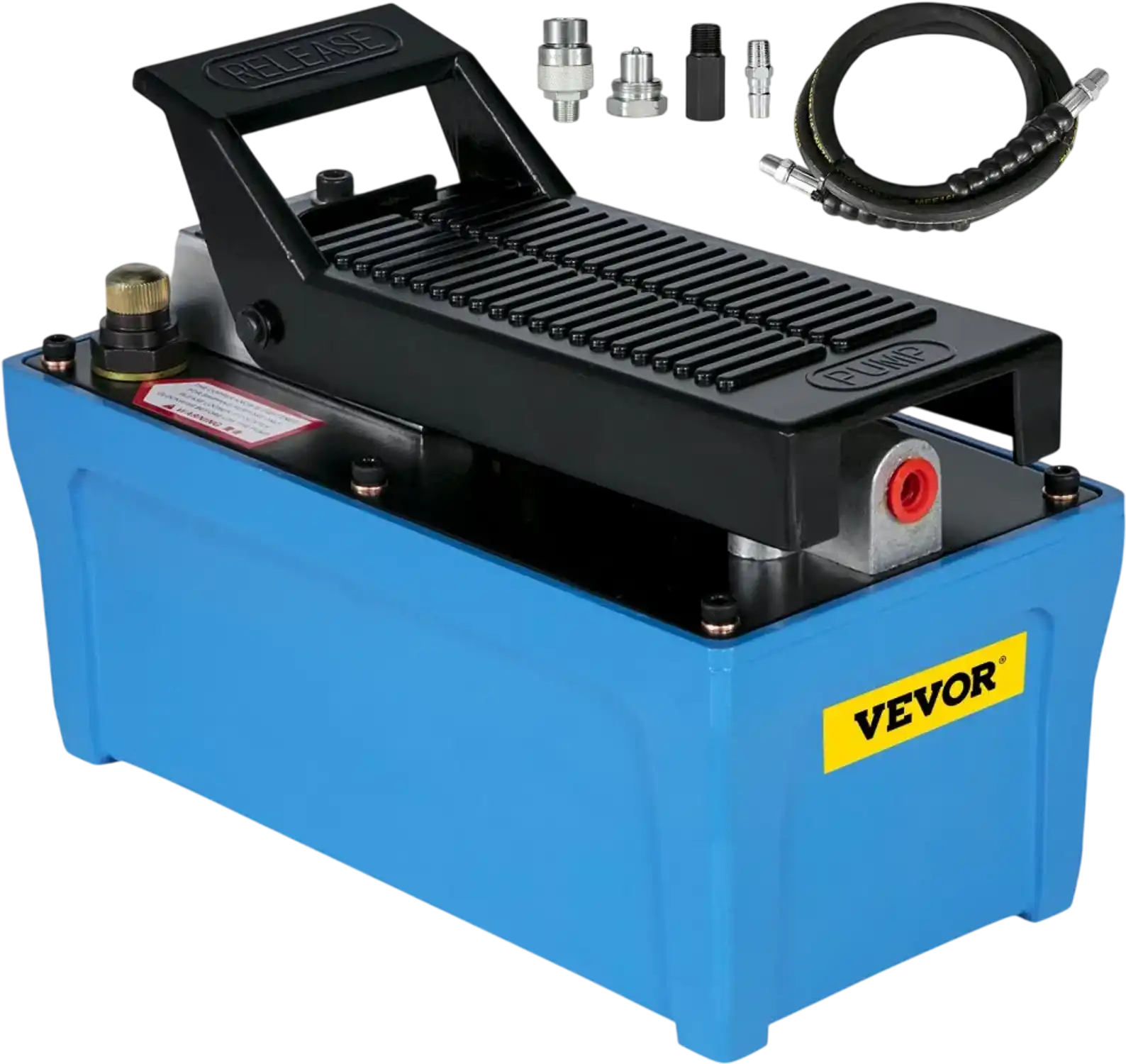

Package Contents
1 x Air Powered Hydraulic Pump
1 x High Pressure Oil Pipe
2 x Quick Connector
1 x Air Gun Connector with Air Pipe
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
