Vevor Auto Body Frame Straightener 13227 Lbs. Tensile Force with Hydraulic Foot Pump and Pulling Clamp Set New
Manufacturer: Vevor
SKU: ZHSKU00000000000059
QTY
(888) 999-1522
$ 1,729.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

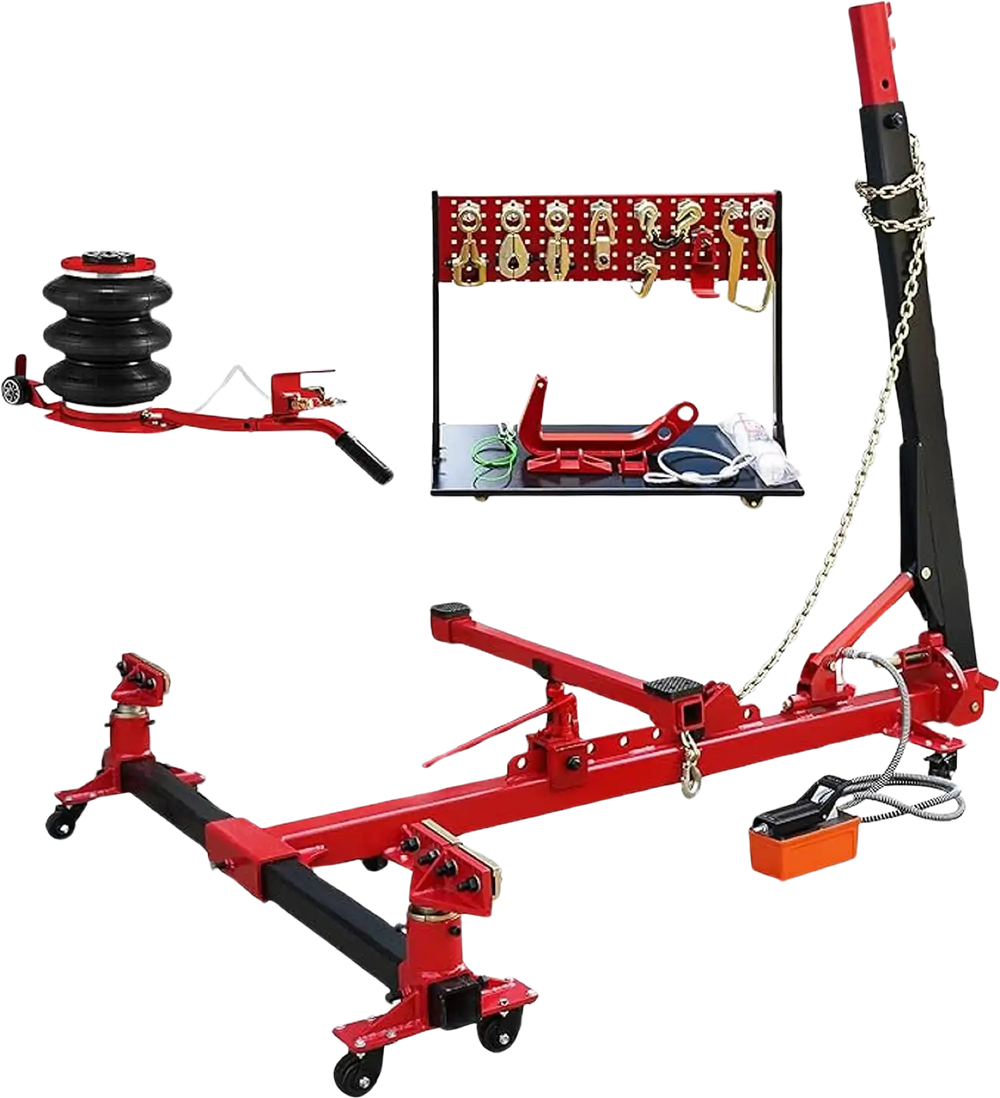

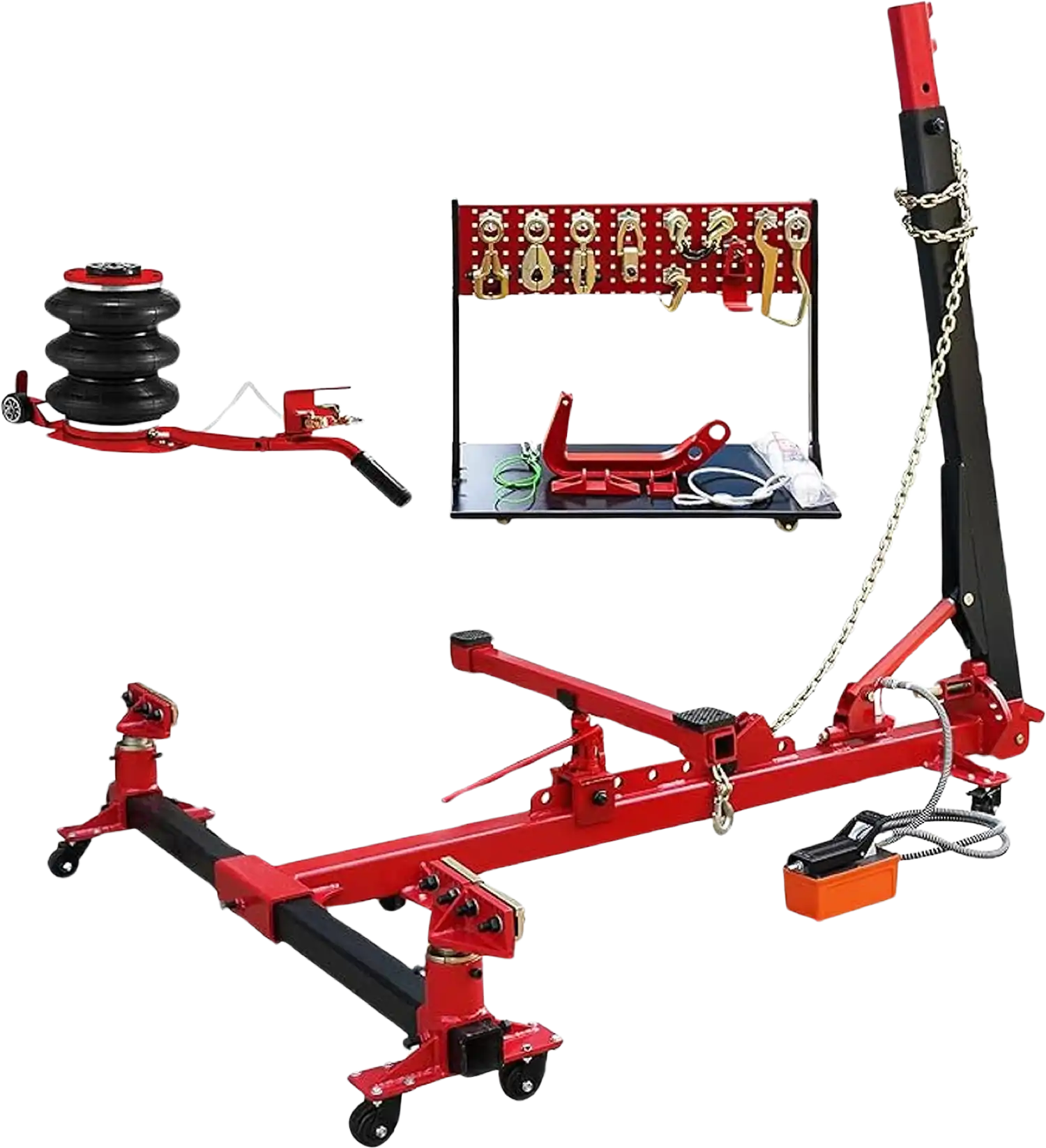

Vevor Auto Body Frame Straightener 13227 Lbs. Tensile Force with Hydraulic Foot Pump and Pulling Clamp Set New
Product Overview
The Vevor Auto Body Frame Straightener features a powerful 15,432 lbs. hydraulic cylinder and air pump, providing 13,227 lbs. of tensile force for effective vehicle body repairs. Its adjustable tower column, with a swing range from -60 to +60 degrees, and an 8-hole pin design, ensures flexibility for various vehicle parts. Equipped with a 6,613 lbs. airbag jack, it offers quick lifting capabilities and easy positioning. Durable double-screw clamps and a main frame on smooth casters enhance clamping force, stability, and mobility, making it suitable for SUVs, cars, and trucks.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- 13,227 Lbs. Strong Tensile Force: The auto body frame straightener features a robust 15,432 lbs. (7-ton) hydraulic cylinder and a hydraulic air pump, delivering exceptional tensile strength for repairing vehicle body dents and deformations. It includes a 118 in. (3 m) iron chain for high-strength tension and stability, ensuring a reliable repair process.
- Flexible Adjustable Tower Column: With a swing range from -60 to +60 degrees and a maximum rear angle of 35 degrees, the adjustable auto puller column caters to various vehicle parts, including side doors and chassis. Its 8-hole pin design ensures adaptability for different vehicle types and maintenance needs.
- 6,613 Lbs. Airbag Jack: Our auto body frame puller is equipped with a 6,613 lbs. (3-ton) airbag jack capable of lifting 6,600 lbs. between 5.7 in. and 15.75 in. within 5 seconds. Constructed from durable rubber and stainless steel, this airbag jack features an ergonomic long handle and wheels for easy positioning under vehicles.
- Durable Double-Screw Clamps: Featuring a quenching high-frequency treatment, the frame puller clamp boasts hardness and wear resistance. The double screw design enhances clamping force and stability, supported by a complete set of frame puller auto body tools for efficient maintenance.
- Enhanced Mobility: The main frame and beam vice are mounted on 8 smooth casters, providing easy adjustment and stable support during repairs. With a 2.95 in. caster diameter, this frame puller auto body is ideal for working on SUVs, cars, trucks, and other vehicle models, ensuring mobility and stability.
Specifications
| Item Model # | JT-19 |
| Load Capacity | 6,613 lbs. (3 ton) |
| Max. Tension | 13,227 lbs. (6 ton) |
| Material | Q235B |
| Number of Casters | 8 pcs |
| Caster Diameter | 2.95 in. (75 mm) |
| Column Swing Angle | -60°, -45°, -30°, -15°, 0°, 15°, 30°, 45°, 60° |
| Column Rear Tilt Angle | 35° |
| Chain Diameter | 0.4 in. (1 cm) |
| Chain Length | 118 in. (3 m) |
| Load Capacity of Hook | 6,613 lbs. (3 tons) |
| Position Adjustment | 8-hole |
| Max Thrust of Hydraulic Cylinder | 15,432 lbs. (7 tons) |
| Max Pressure of Hydraulic System | 45 MPa |
| Air Supply Required | 0.6-1 MPa |
| Clamp Set | Box Clamp, Mini Clamp, Scissor Clamp, Sharp Mouth Clamp, Right Angle Universal Clamp, Small Clamp, C-Clamp |
| Product Dimensions | 98.43 x 74.8 x 88.58 in. (2.5 x 1.9 x 2.25 m) |
| Net Weight | 639 lbs. (290 kg) |
| Airbag Jack | |
| Working Pressure | 0.8-1.0 MPa |
| Load Capacity | 6,613 lbs. (3 tons) |
| Lifting Range | 5.7-15.75 in. (14.5-40 cm) |
| Material | Rubber |
| Product Dimensions (uninflated) | 40.55 x 10.55 x 5.5 in. (103 x 26.8 x 14 cm) |
| Net Weight | 34.83 lbs. (15.8 kg) |
Package Contents
Vevor Auto Body Frame Straightener 13,227 Lbs. Tensile Force
Tool Cart
Clamp Set
118 in. Chain
39 in. Chain
Large/Small Bend Hook
Steel Hook
4,409 Lbs. Lifting Nylon Belt
39.37 in. Steel Wire Rope
59.05 in. Steel Wire Rope
Hydraulic Pump with Hose
Two-Way Hook Connector
Crescent Wrench
Chain Connector
Double Rake Body
Teflon Tape
User Manual
Warranty
This item comes with a 1 year factory warranty.
