Product Overview

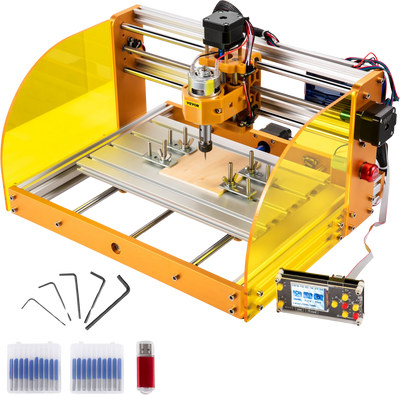

Vevor's CNC engraving machine with an effective working area of 11.8 x 7.1 x 1.8 in. is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- CNC 3018 Router Machine: CNC 3018 Prover is an upgraded version of 3018 CNC. We have assembled the basic frame in advance, so you only need to finish the assembly in 30-60 minutes. Then, you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more. This product does not include a laser head and can be purchased by yourself.
- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
- Excellent Motor: This yellow CNC engraving machine has three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
- Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the 1.8" display GRBL offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
- Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to repeatedly withstand the rigors of all-day use. Also, it has a yellow baffle on both sides, so you can safely monitor the engraving process.
Specifications
| Model | 3018 Prover |
|---|---|
| Frame Material | Aluminum Alloy |
| Panel Material | Acrylic |
| Input Power | DC 24V 5A |
| Working Area (X x Y x Z) | 11.8 x 7.1 x 1.8 in. (30 x 18 x 4.5 cm) |
| Spindle | 775 motor, 12-24V, 10000 RPM |
| Rated Power | 60W |
| Maximum Power | 120W |
| Accuracy | 0.004 in. (0.1 mm) |
| Connection | USB |
| Compatible | Win XP, Win7 32/64 bits, Win8, Win10, Linux, and Mac OS |
| Control Software | GRBL Control |
| Stepper Motor | Size 42, 1.3 A, 12V; Torque |
|---|---|
| End Mill Diameter | 0.125 in. (3.175 mm) |
| Item Dimensions | 18.1x 15.7 x 11.8 in. (46 x 40 x 30 cm) |
| Net Weight | 24.25 lbs. (11 kg) |
Package Contents
Vevor CNC Router Engraving Machine 3018-PRO
GRBL Control Board
Set of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
