Product Overview
This VEVOR CNC router machine is a 3-axis engraving and milling system designed for wood, acrylic, leather, vinyl, and soft metals. It features a 500W spindle, dual linear rails, and ball screw construction for precise and stable cutting performance. The machine offers a 15.75 x 15.75 x 3.74 inch working area and supports expansion for a Y-axis extension, laser module, and rotary axis. It is compatible with GRBL f1.1-supported software and works with Mac, Windows, and Linux systems. Pre-assembled and pre-wired components help simplify setup and operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

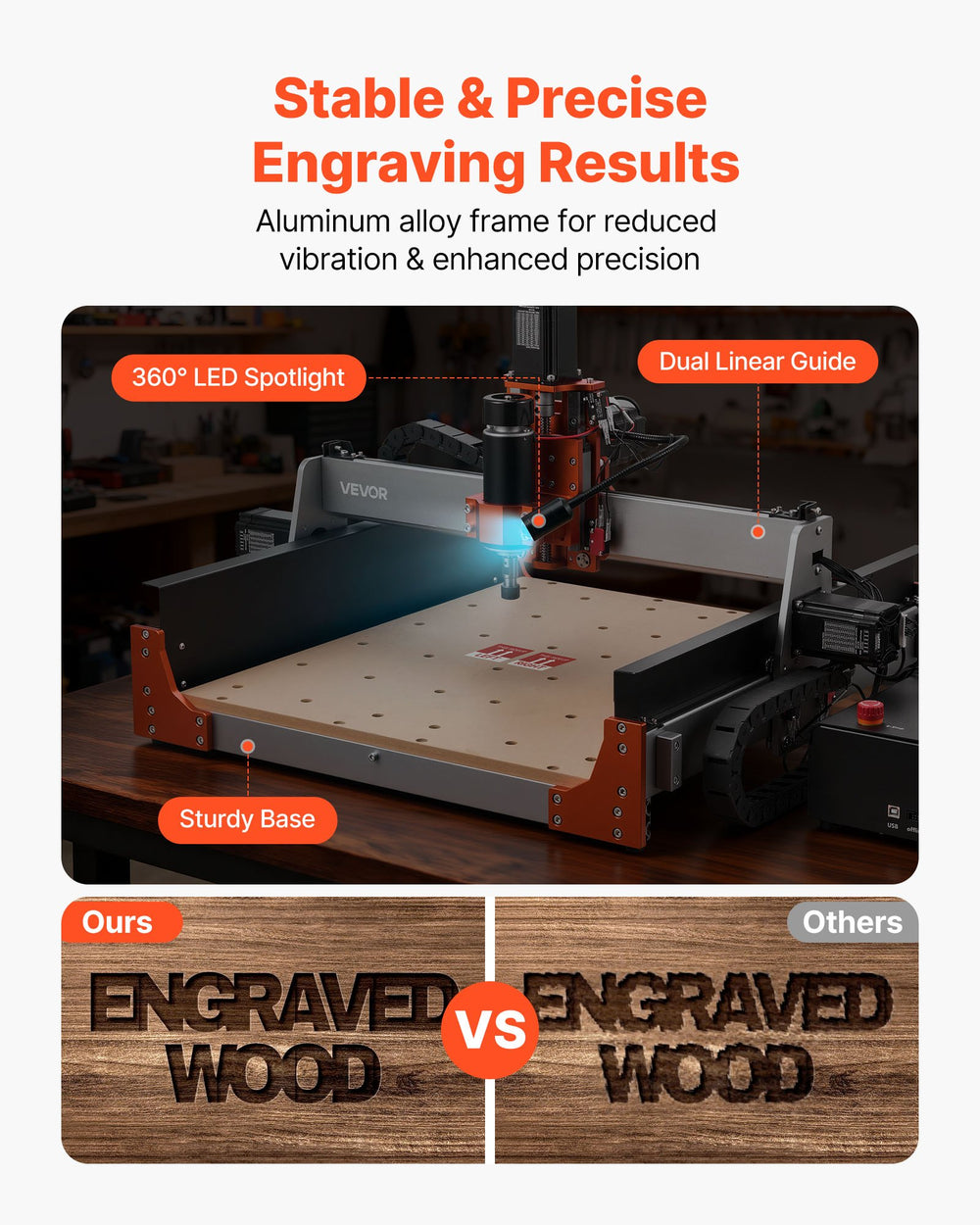

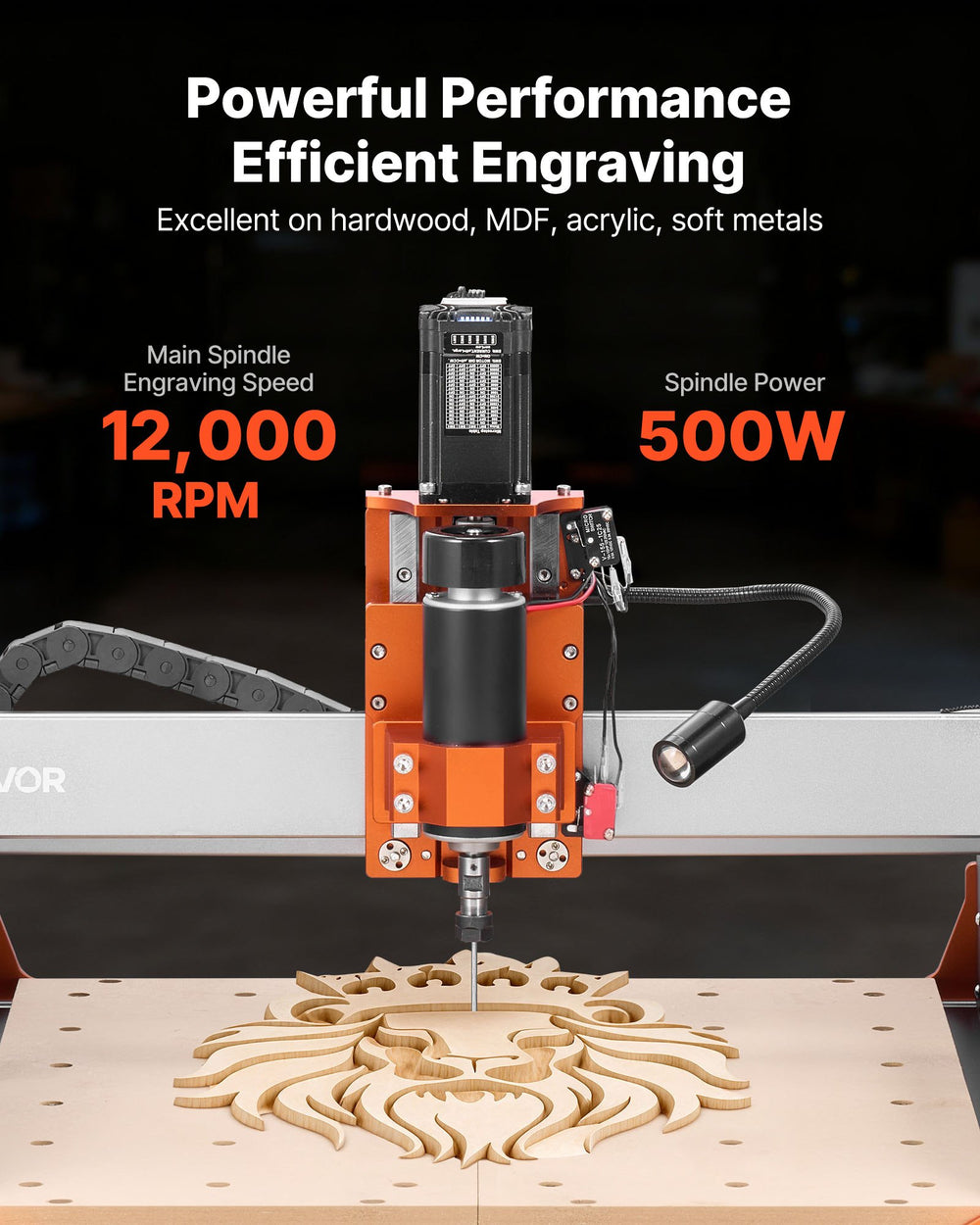

- High-Precision Engraving: The CNC router machine features an aluminum alloy frame and dual linear rails for vibration-free accuracy. With a 500W spindle, it engraves wood, acrylic, and soft metals. Repeat positioning accuracy: ≤ 0.05 mm

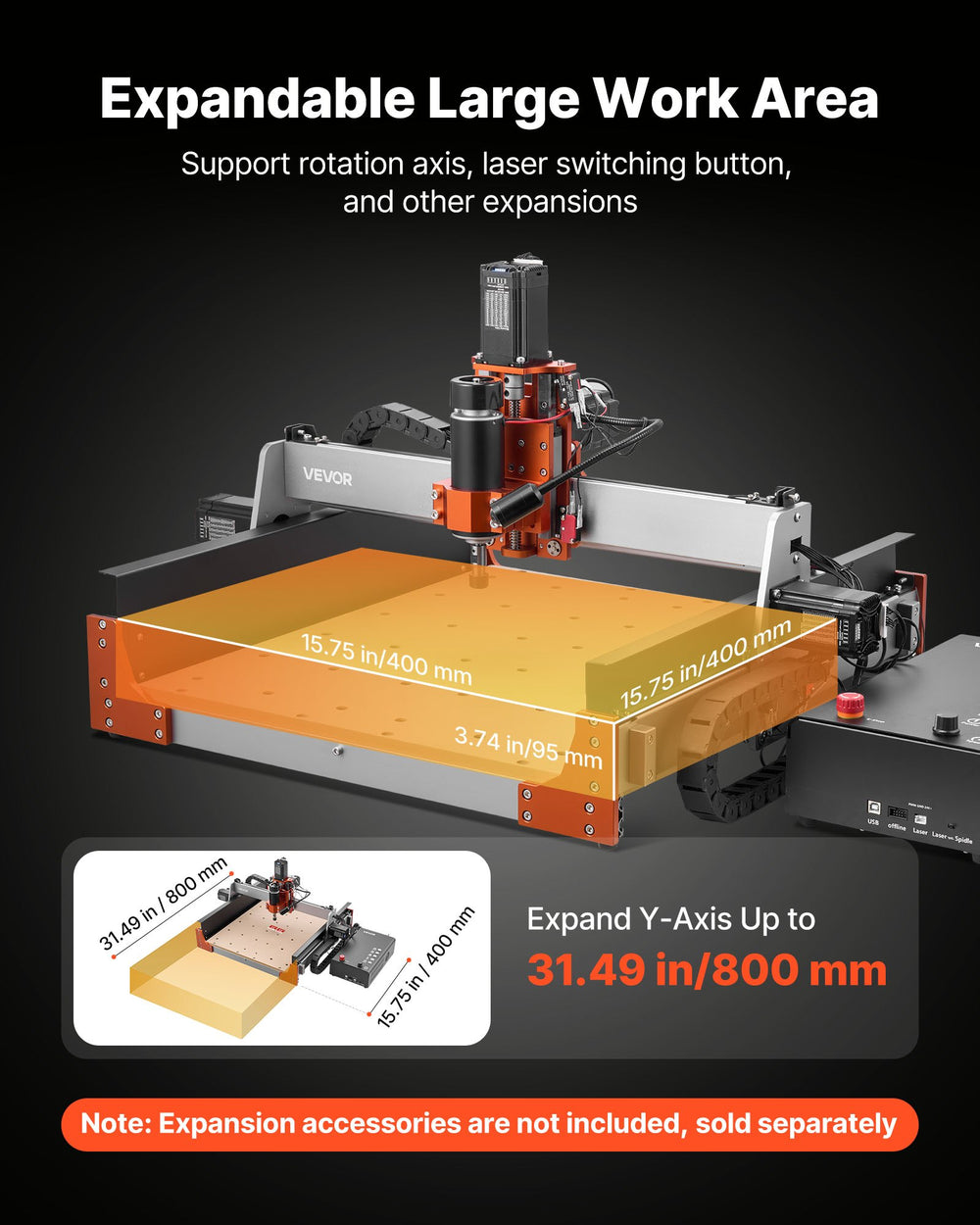

- Large Work Area & Expandability: Create without limits on the 15.75 x 15.75 x 3.74 in (400 x 400 x 95 mm) work area, expandable Y-axis up to 31.49 in (800 mm). With 52 mm and 65 mm collets for various spindle types. Supports rotary axis expansion. Note: Expansion accessories are not included, sold separately

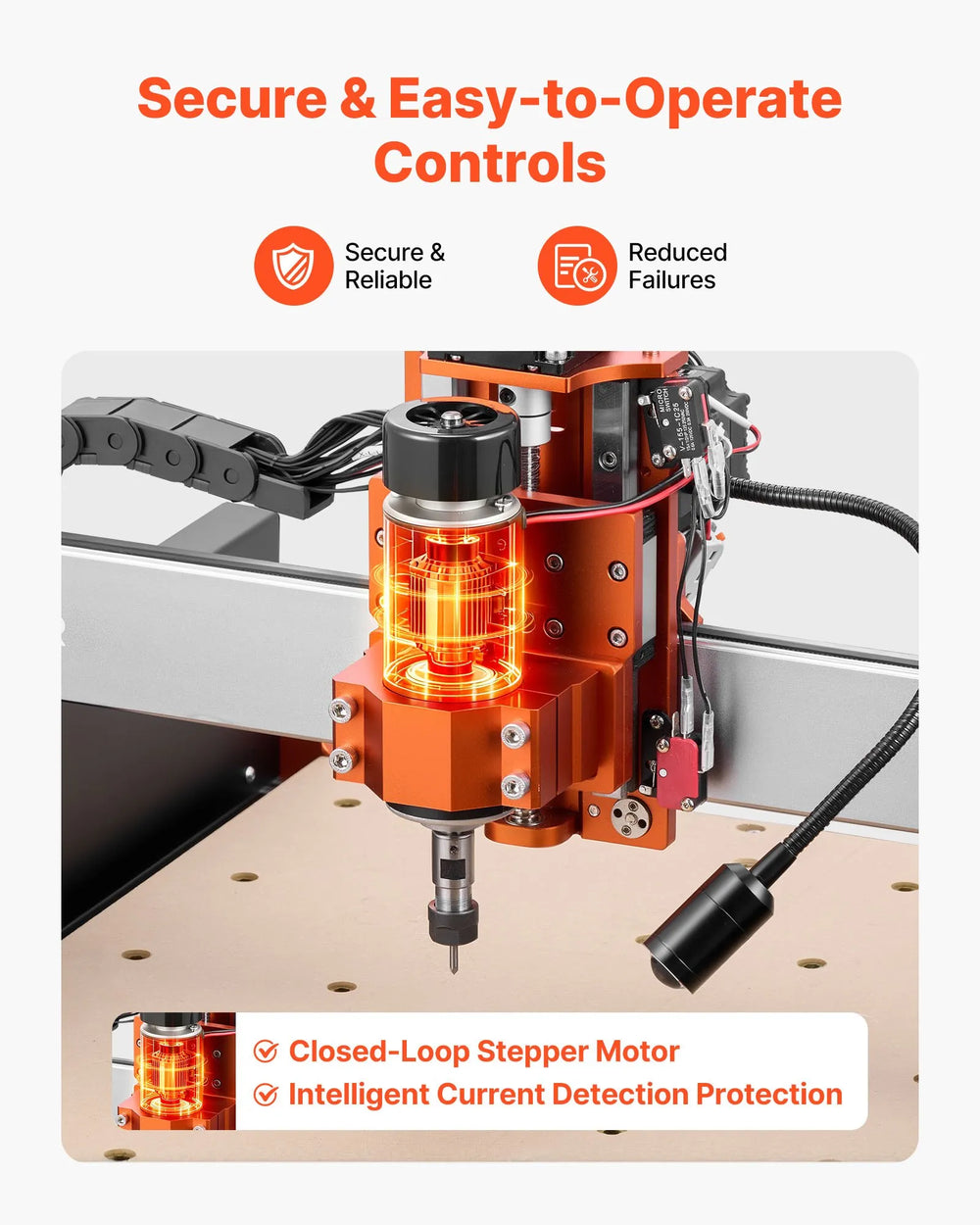

- Secure & Durable Build: Equipped with a NEMA23-76 closed-loop stepper motor, this CNC wood router ensures smooth and quiet operation (≤75 dB). The spindle features a current detection protection, extending lifespan up to 5000 hours, and enhancing security

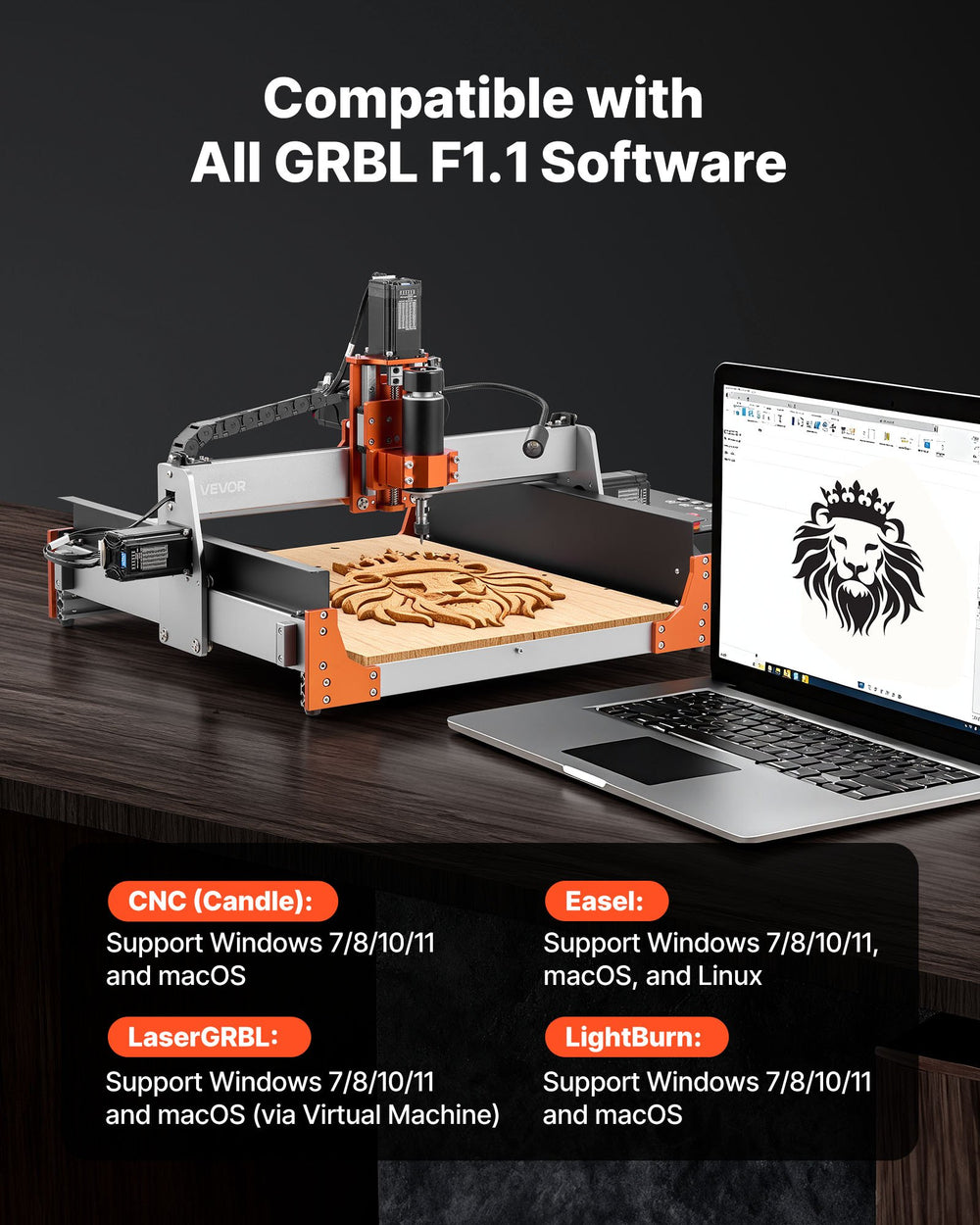

- Wide Software Compatibility: This CNC wood router is compatible with all software that supports GRBL f1.1 firmware. Includes Candle software for easy setup. It works with Mac/Windows/Linux systems and supports CNC (Candle) and Easel
- Easy Assembly & Operation: Key components come pre-assembled and pre-wired for quick setup. This CNC router machine is built with a 360° LED spotlight to reduce Z-axis shadows for clearer visibility, while the rotary knob provides precise spindle control

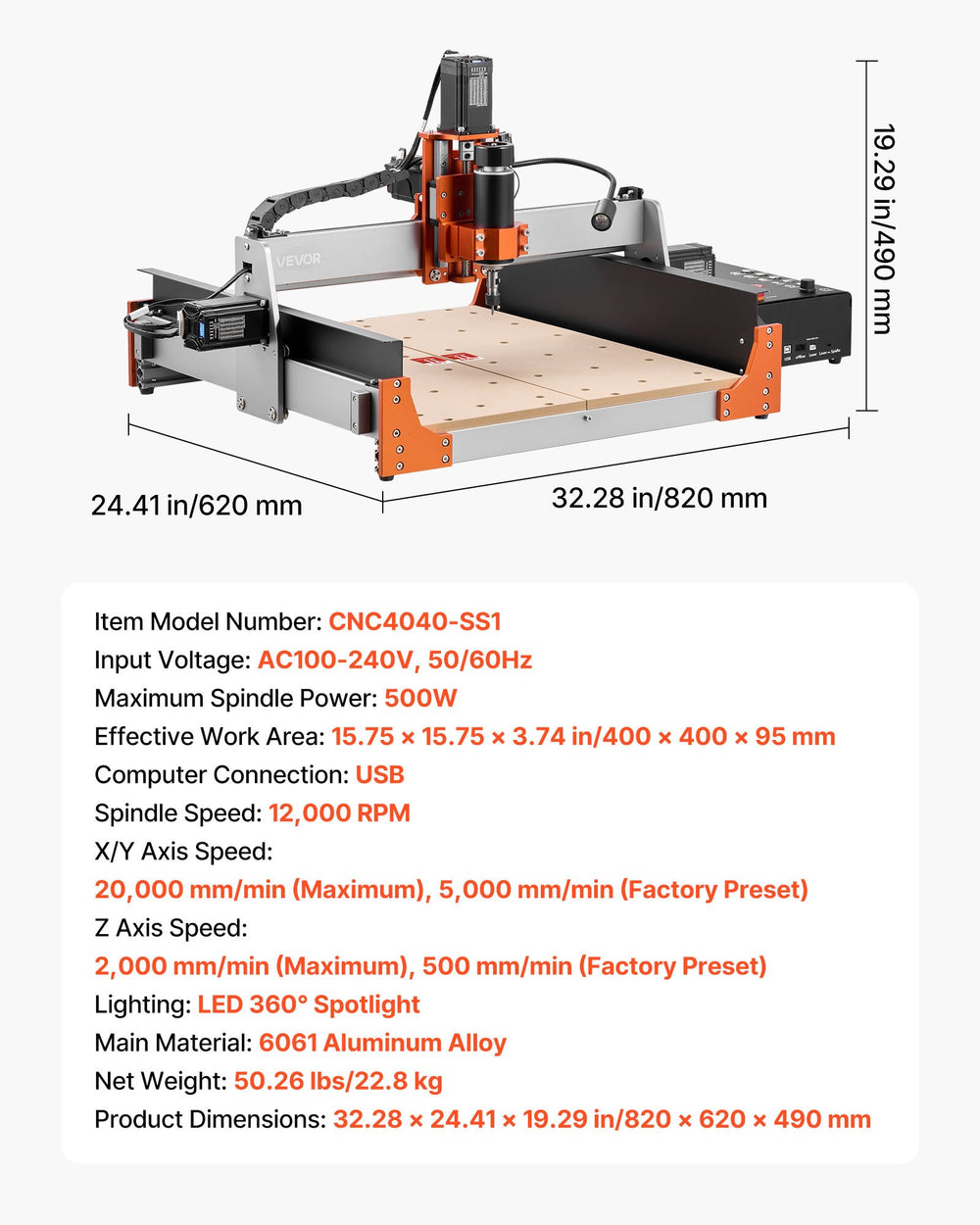

Specifications
| Item Model Number | CN C4040-SS1 |
| Input Voltage | AC 100-240V, 50/60Hz |
| Maximum Spindle Power | 500W |
| Effective Work Area | 15.75 x 15.75 x 3.74 in/400 x 400 x 95 mm |
| Computer Connection | USB |
| Spindle Speed | 12,000 RPM |
| X/Y Axis Speed | 20,000 mm/min (Maximum), 5,000 mm/min (Factory Preset) |
| Z Axis Speed | 2,000 mm/min (Maximum), 500 mm/min (Factory Preset) |
| Lighting | LED 360° Spotlight |
| Main Material | 6061 Aluminum Alloy |
| Product Dimensions | 32.28 x 24.41 x 19.29 in |
| Net Weight | 50.26 lbs |
Package Contents
CNC Router Machine
Candle Software
User Manual
Warranty
This item comes with a 1 year warranty.
