Vevor Collet Chuck CAT40 ER16 4-Pc 4" Tool Holder Set New
Product Overview

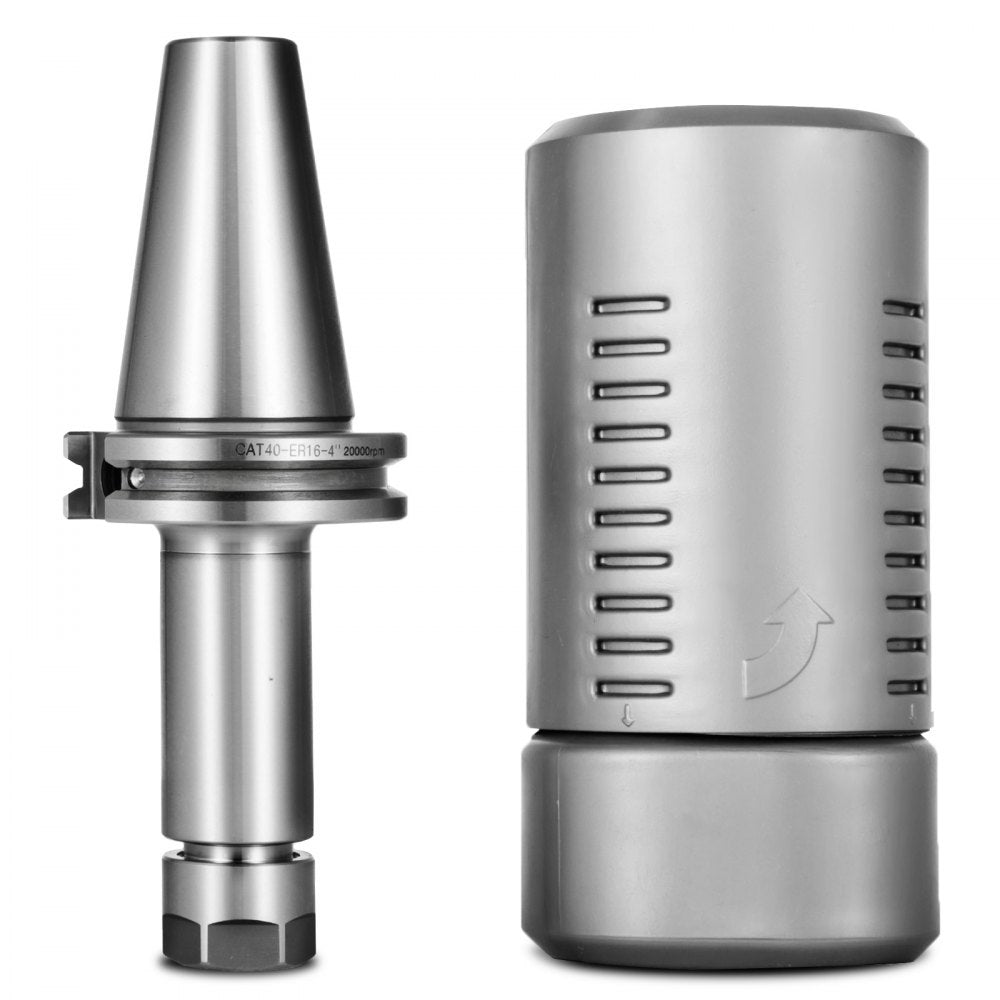

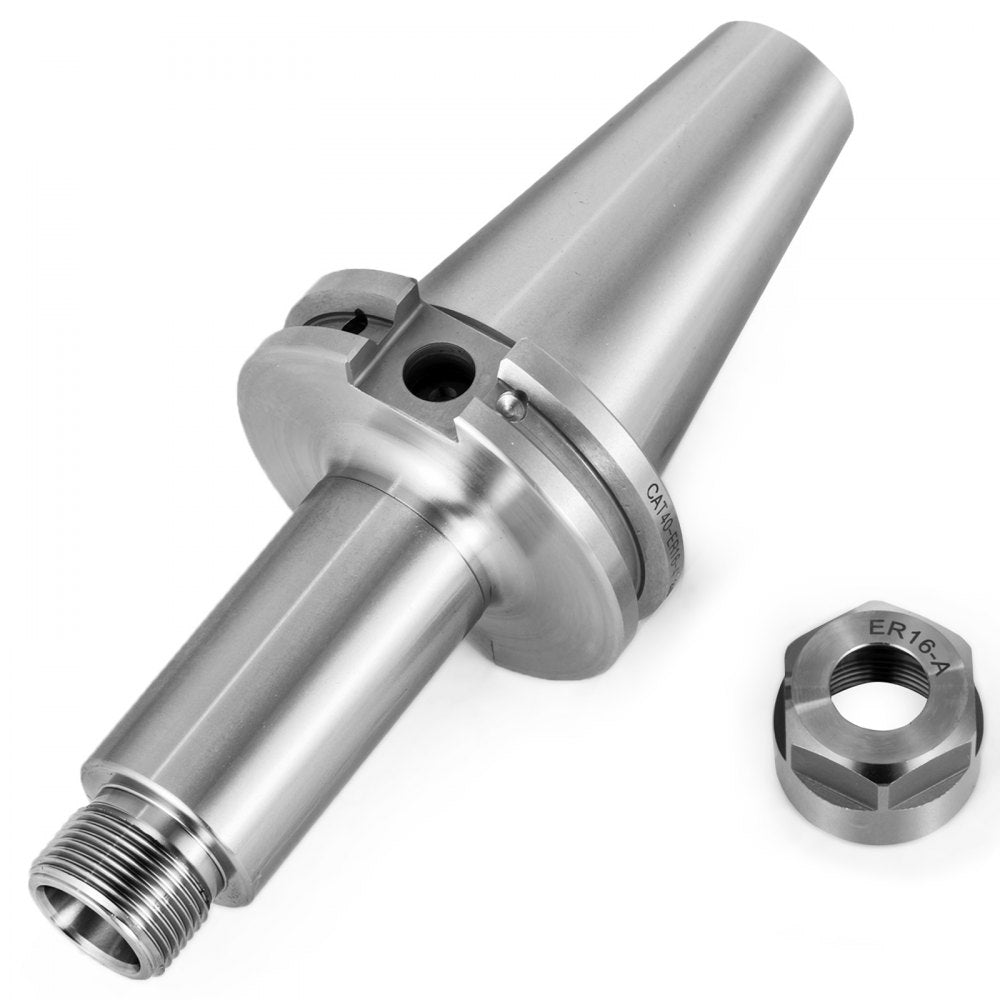

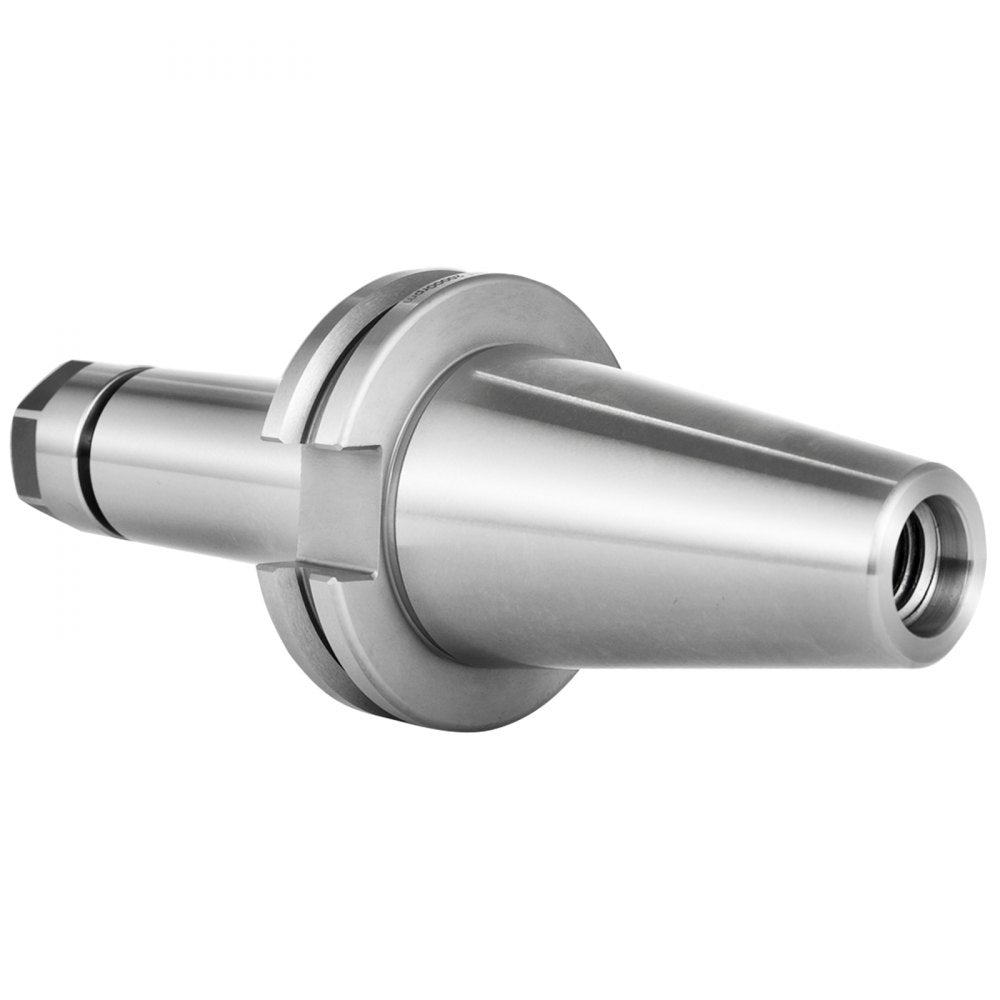

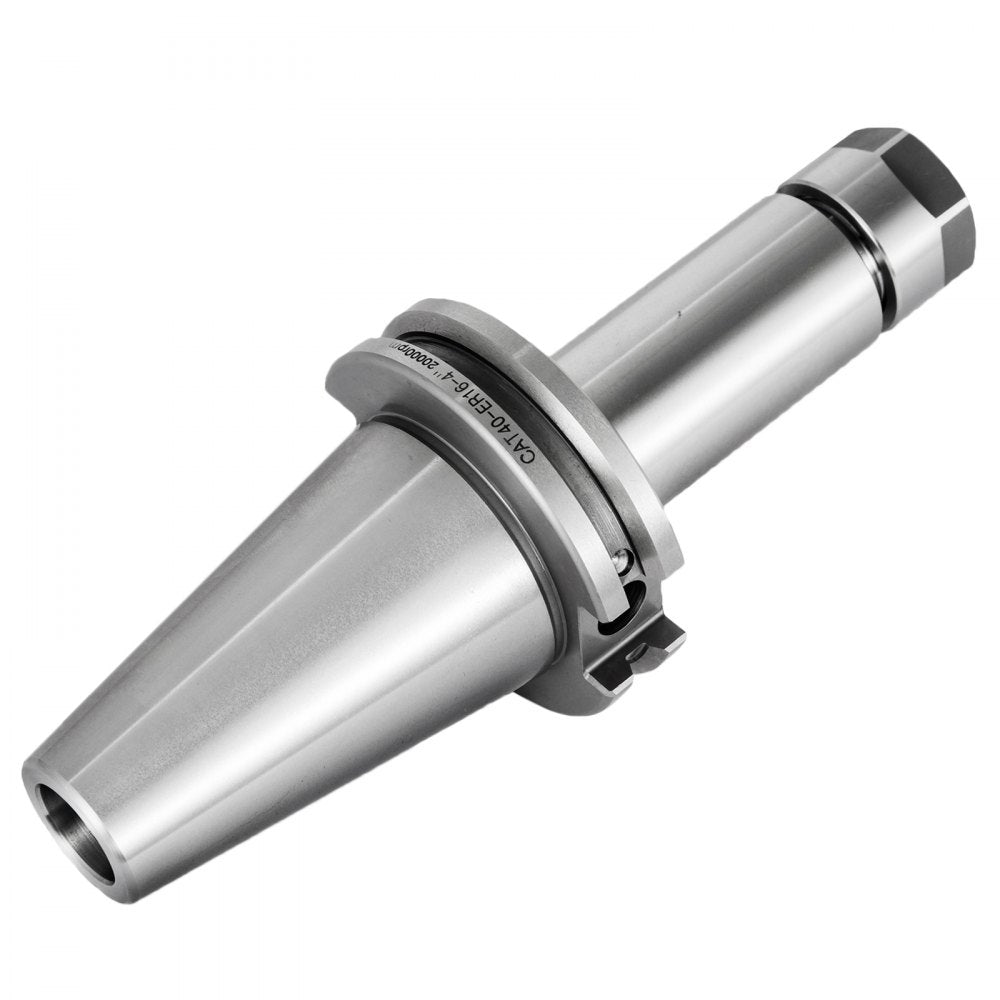

The Vevor CAT40 ER16 collet chuck set includes 4 precision tool holders designed for stable, high-speed machining applications. Built from durable 40CrMnTi material, these holders are suited for drilling, milling, and coolant-thru operations. The set offers high accuracy with low runout and supports speeds up to 20,000 RPM. Fully ground flanges and V-grooves help simplify operation while reducing wear on tool changers. This 4-piece set is made for dependable performance in high-precision machining environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

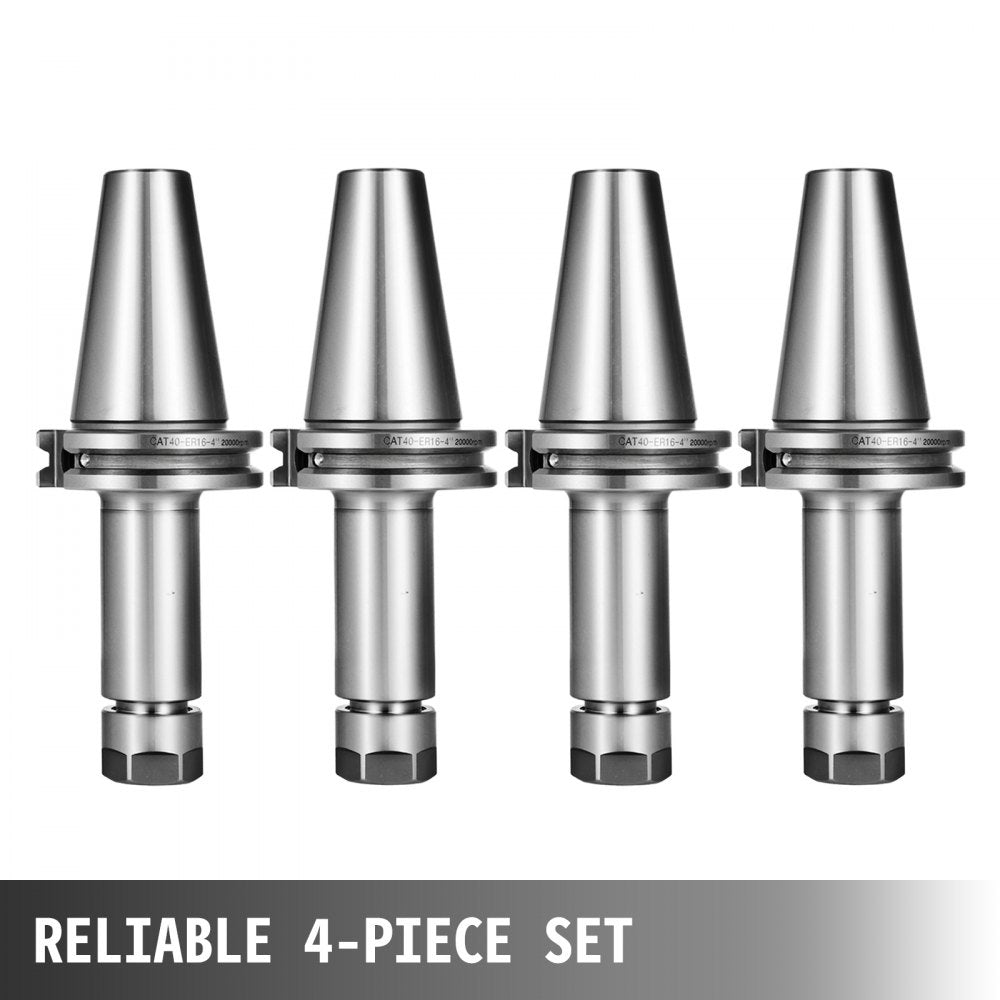

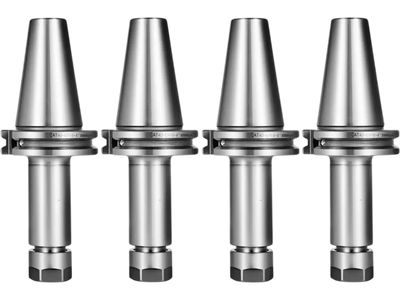

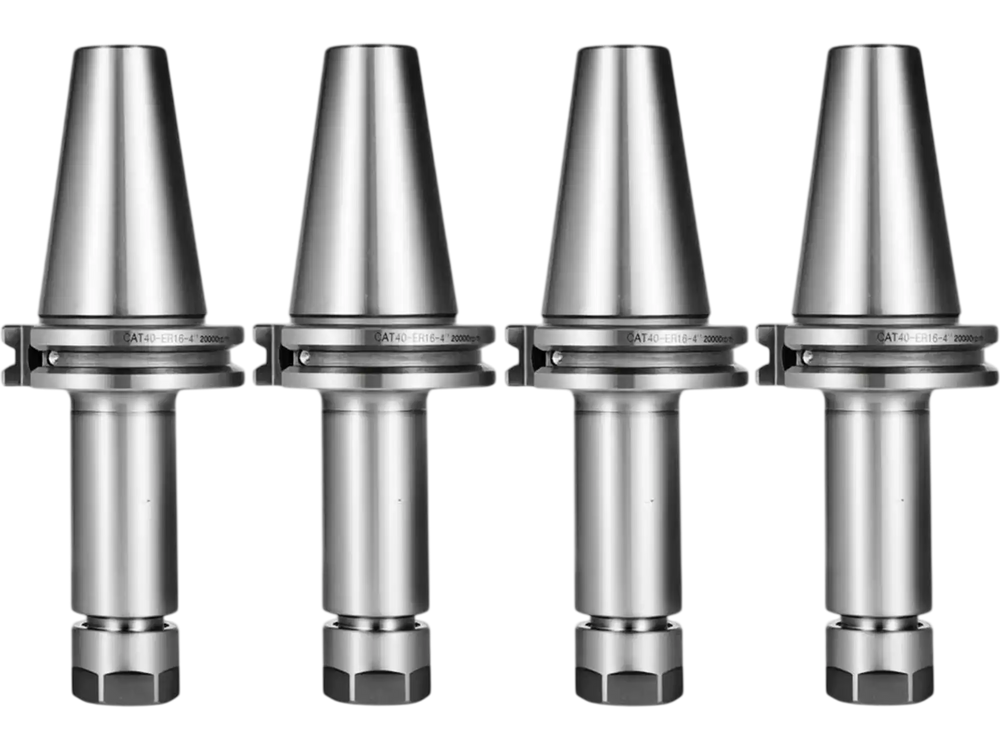

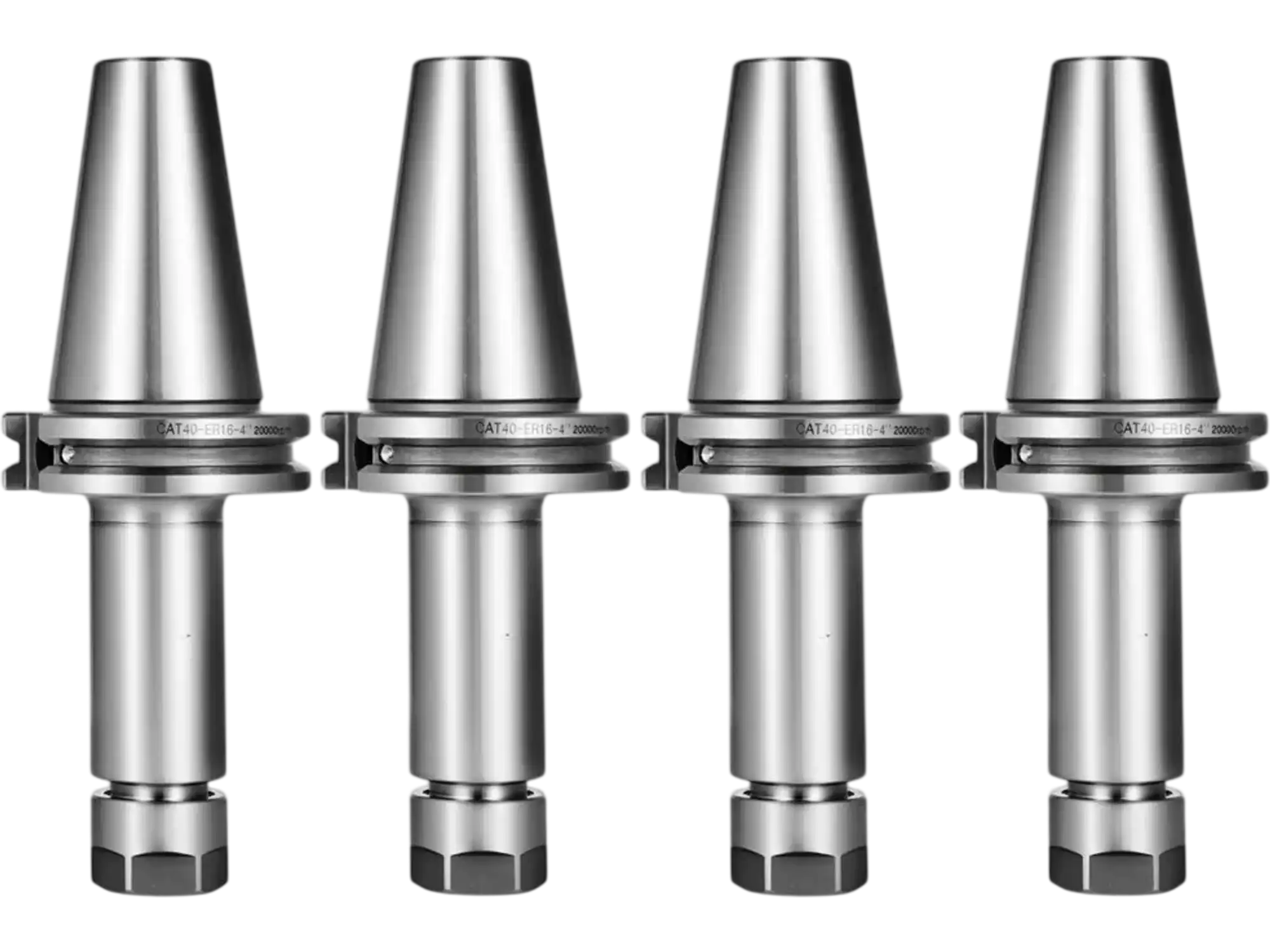

- DEPENDABLE COMBINATION: -This CAT40 tool holder set comes with 4 collet chucks, which can offer stable performance to meet your various requirements and for your convenient replacement. Gage Length: 4”/100mm.

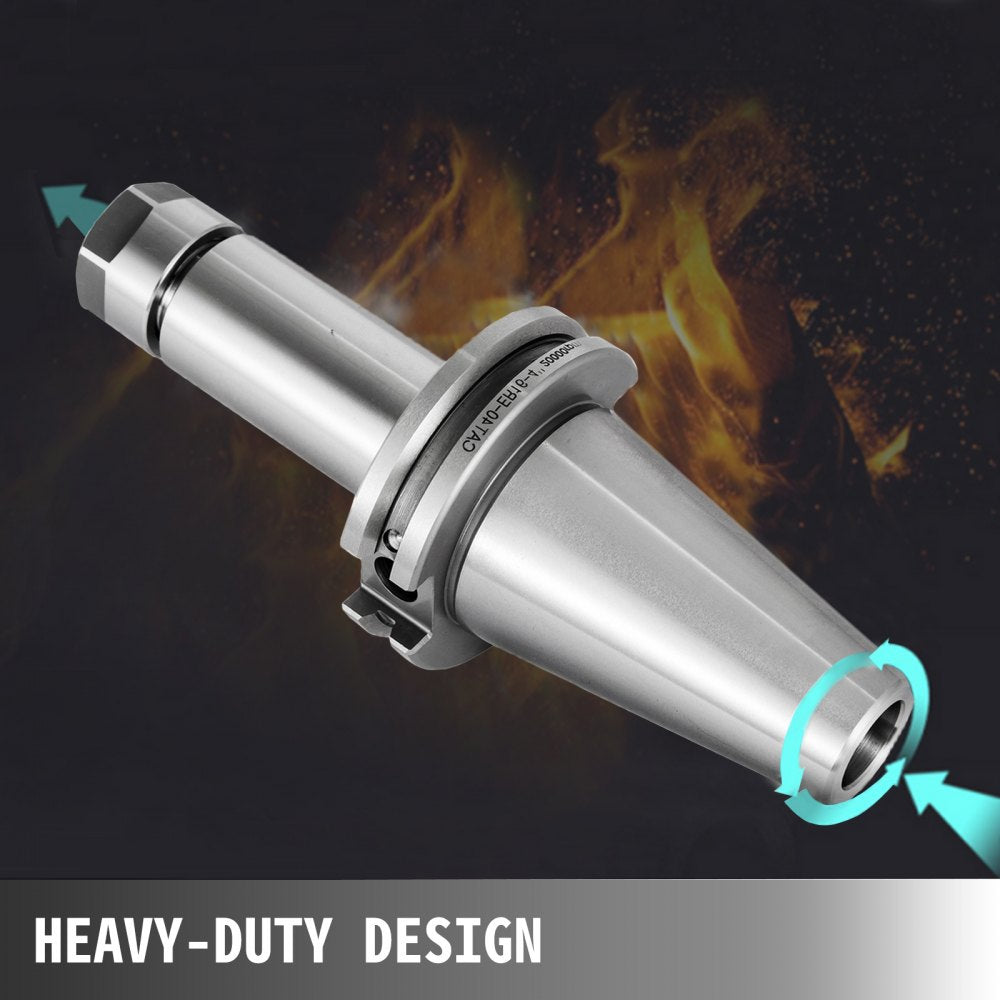

- DURABLE DESIGN: -High precision face mill holder is integrated for a single piece construction. The high-grade 40Cr frame ensures a better overall balance of tool holder assembly. Durable and long-lasting. Polished body to be smooth and rust-resistant.

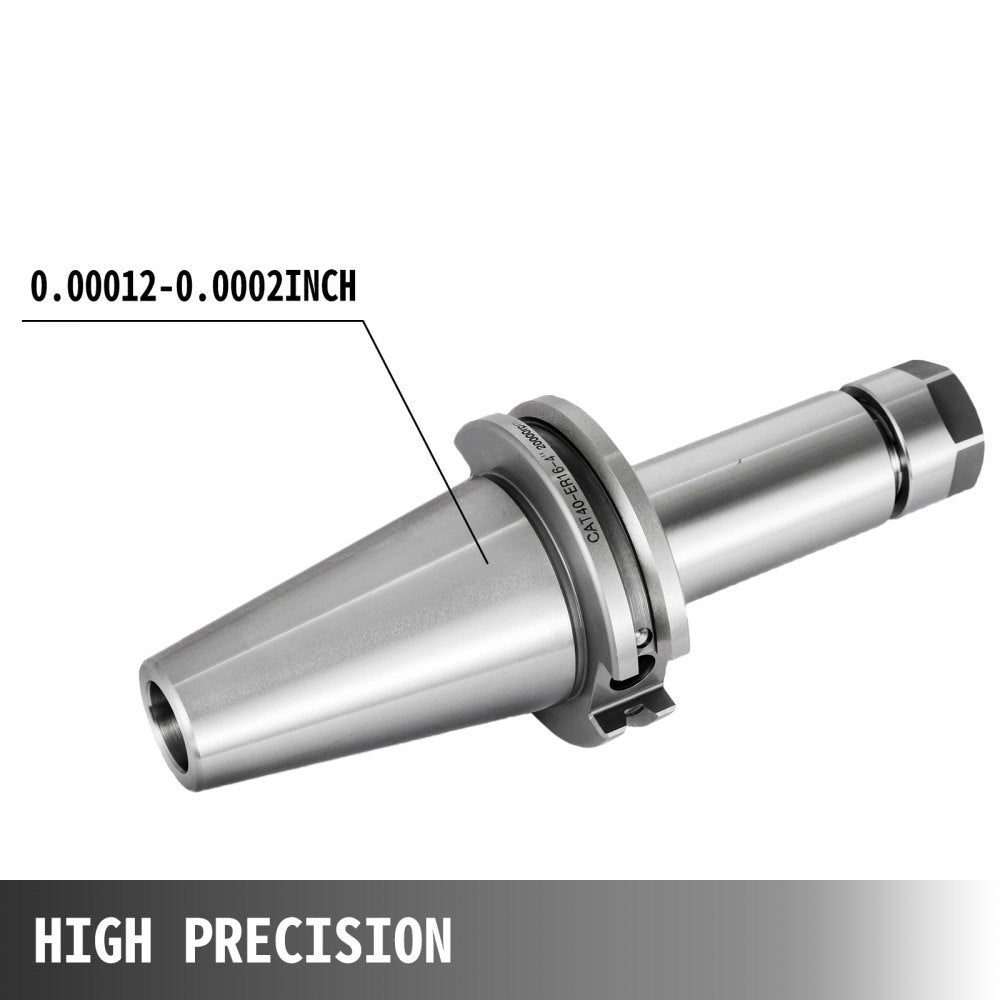

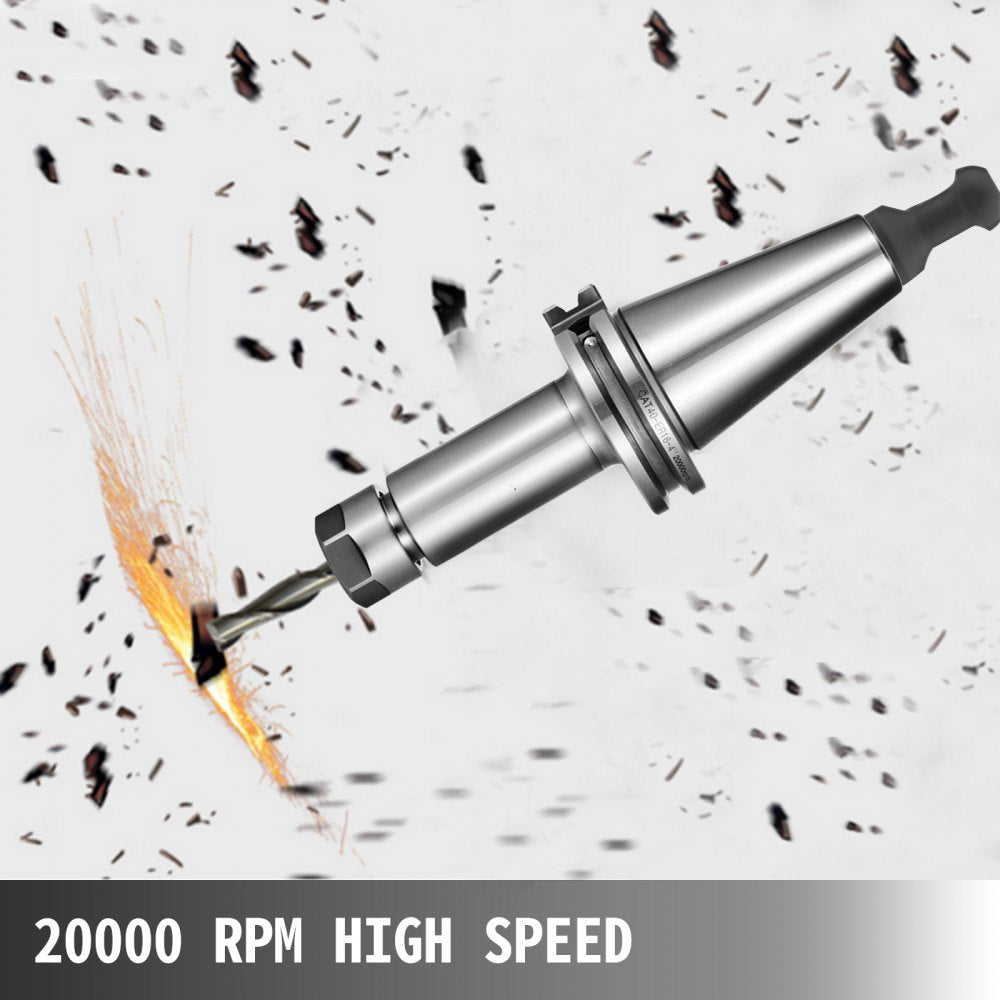

- EXCELLENT PERFORMANCE: -Our CAT40 holder features high accuracy and high speed, sure to be your good helper of machining. Accuracy: 0.00012-0.0002 inch (0.003-0.005mm); Speed: 20000Rpm.

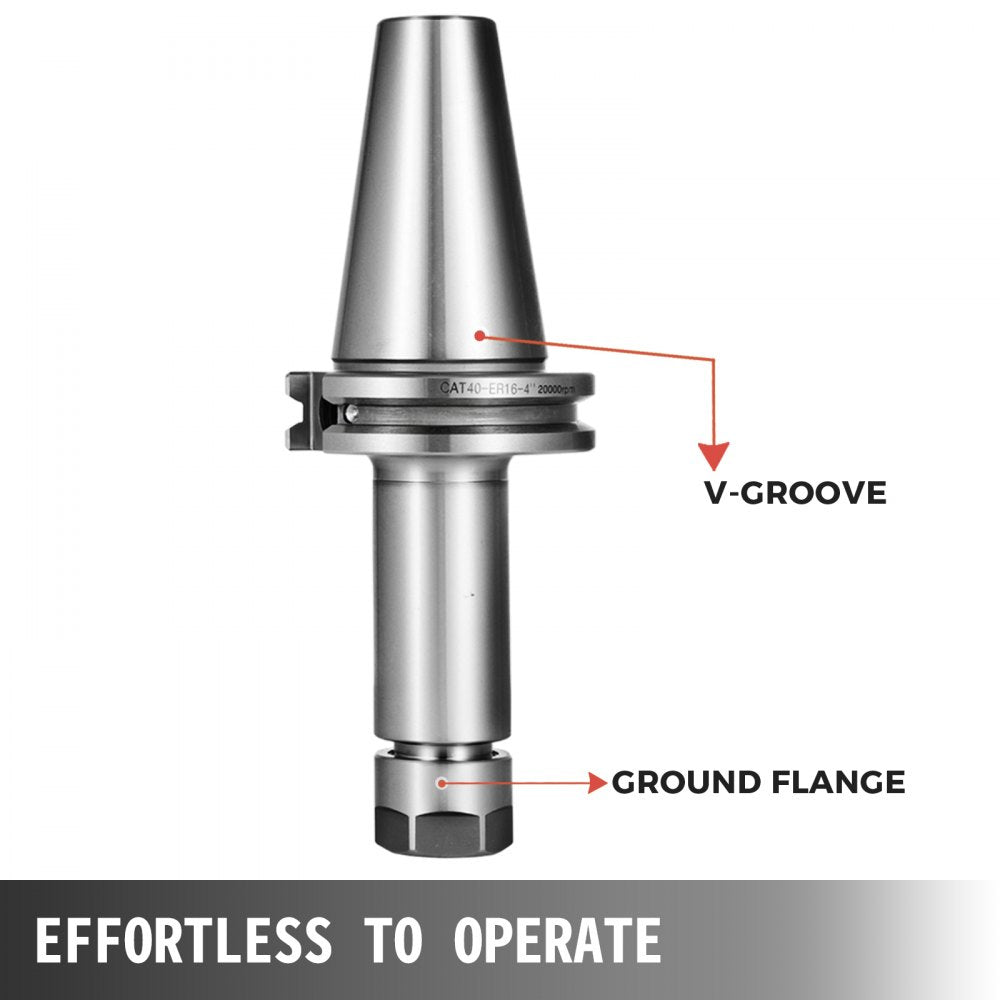

- SIMPLE OPERATION: -4 CAT40 precision collet chuck. Easy to use. Fully ground flange and V-groove says it is easy on tool changers for less spindle and changer maintenance.
- HIGHLY VERSATILE: This4-piece set CAT40 tool holder is quite popular in high-precision machining applications, such as drilling, milling, coolant thru, and high-speed applications.
Specifications
| Product Type | CAT40 ER16 |
| Type | Collet Chuck |
| RPM | 20000RPM |
| Material | 40CrMnTi |
| Accuracy | 0.00012"-0.0002" / 0.003-0.005 mm |
| Quantity | 4 pieces |

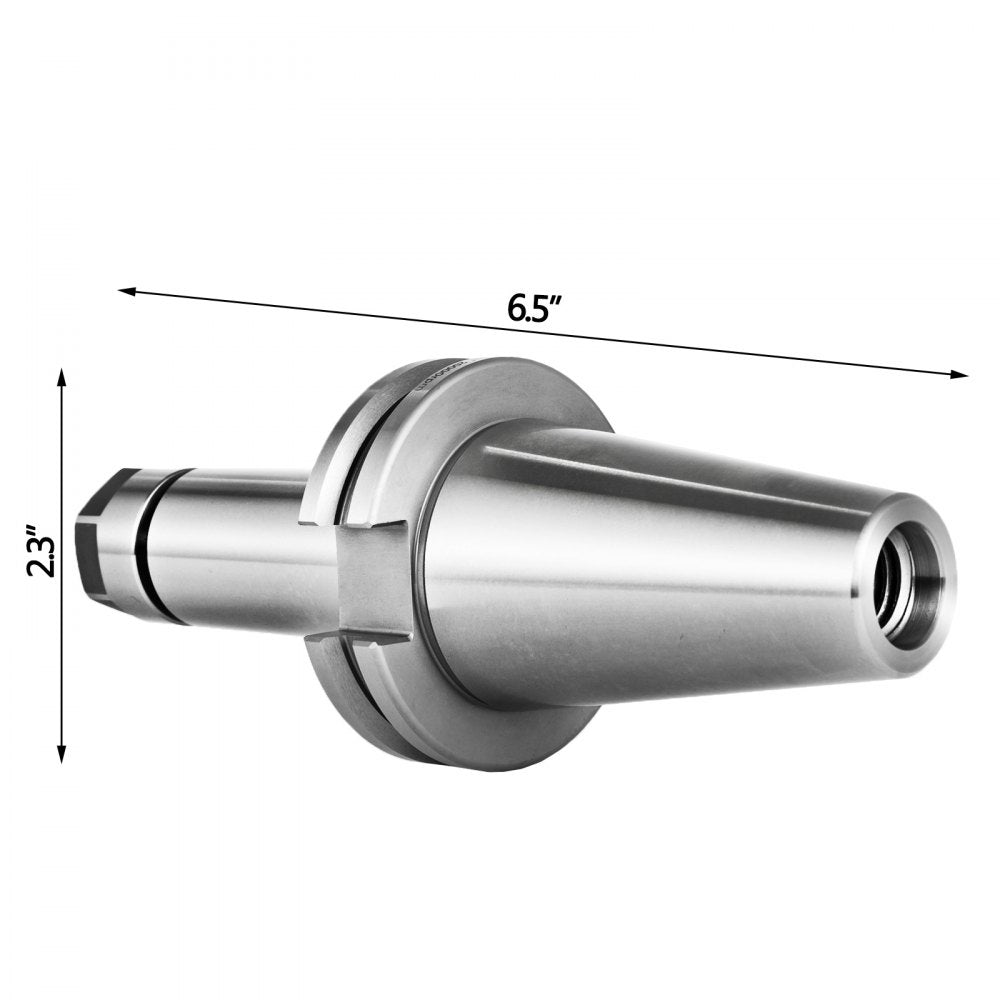

| Processing Length | 4" / 100 mm |
| Draw Bar Threads | 5/8''-11 |
| Gross Weight | 11.8 lbs / 5.3 kg |
| Package Dimensions | 9.8 x 7.5 x 6.7" / 25 x 19 x 17 cm |
| Model | CAT40-ER16-100DB4V0 |
Package Contents
4 x Collet Chucks
Warranty
This item comes with a 1 year factory warranty.
