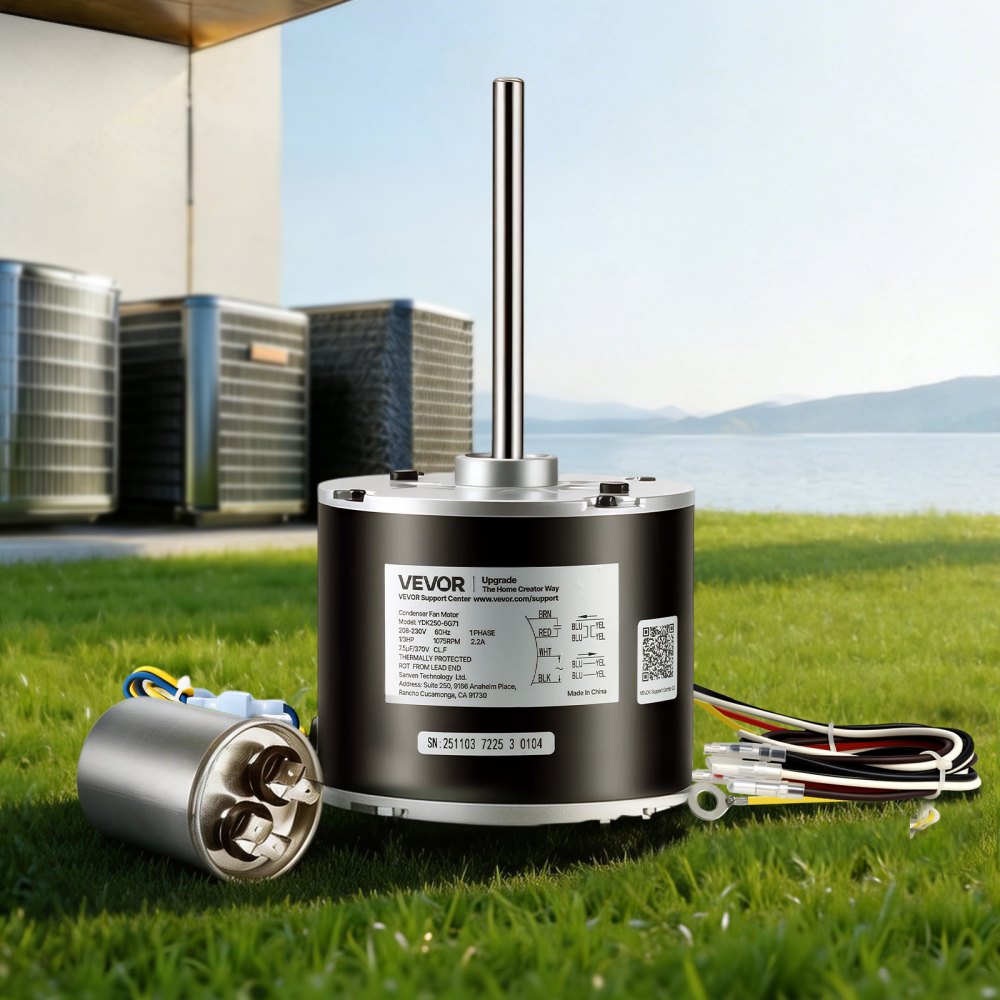

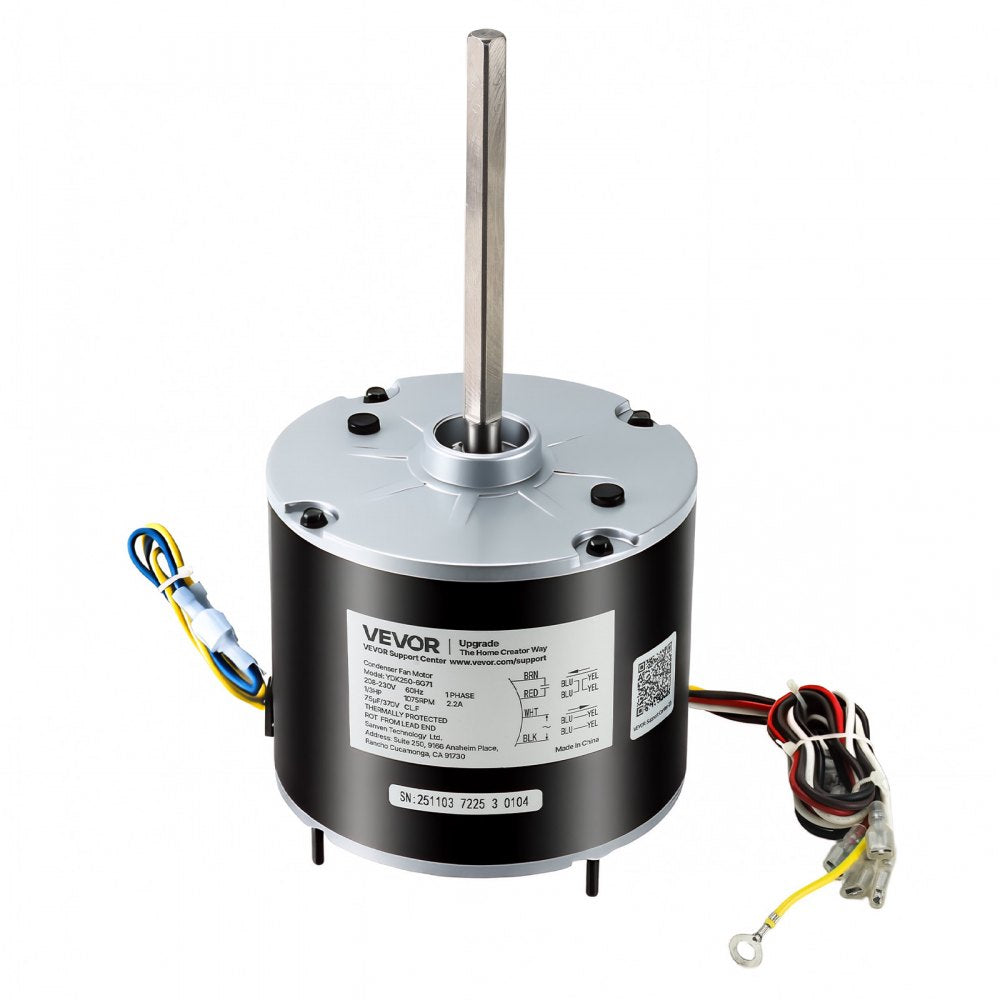

Vevor Condenser Fan Motor 1/3HP 1075RPM 208-230V with Capacitor New
Manufacturer: Vevor
SKU: LNQDJ48Y13HP0DY6A001V7
Frame Size Options
Power Options
Speed Options
QTY
(888) 999-1522
$ 96.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor RV Air Conditioner Motor 1/3 HP 115V 2-Speed Replacement with Capacitor New
-
Vevor Fan Motor RV AC Replacement New
-
Vevor Furnace Blower Motor 1/3HP 1075 RPM 4-Speed 110/120V New
-
Vevor Furnace Blower Motor 1/2 HP 1720 RPM 115V Single Phase Belt Drive New
-
Vevor Furnace Blower Motor 3/4HP 208-230V 1075RPM 5-Speed CW/CCW 48 Frame with Capacitor and Hold...
-
Vevor Furnace Blower Motor 1/4 HP 115V 1725 RPM Belt Drive Single Phase New
-
Vevor RV AC Fan Motor 1/5 HP 115V 3-Speed Replacement New
Vevor Condenser Fan Motor 1/3HP 1075RPM 208-230V with Capacitor New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- OEM Standard Quality: 1/3HP 60HZ, AC208-230V, 1075RPM, 2.2A Rated Current, Single Phase

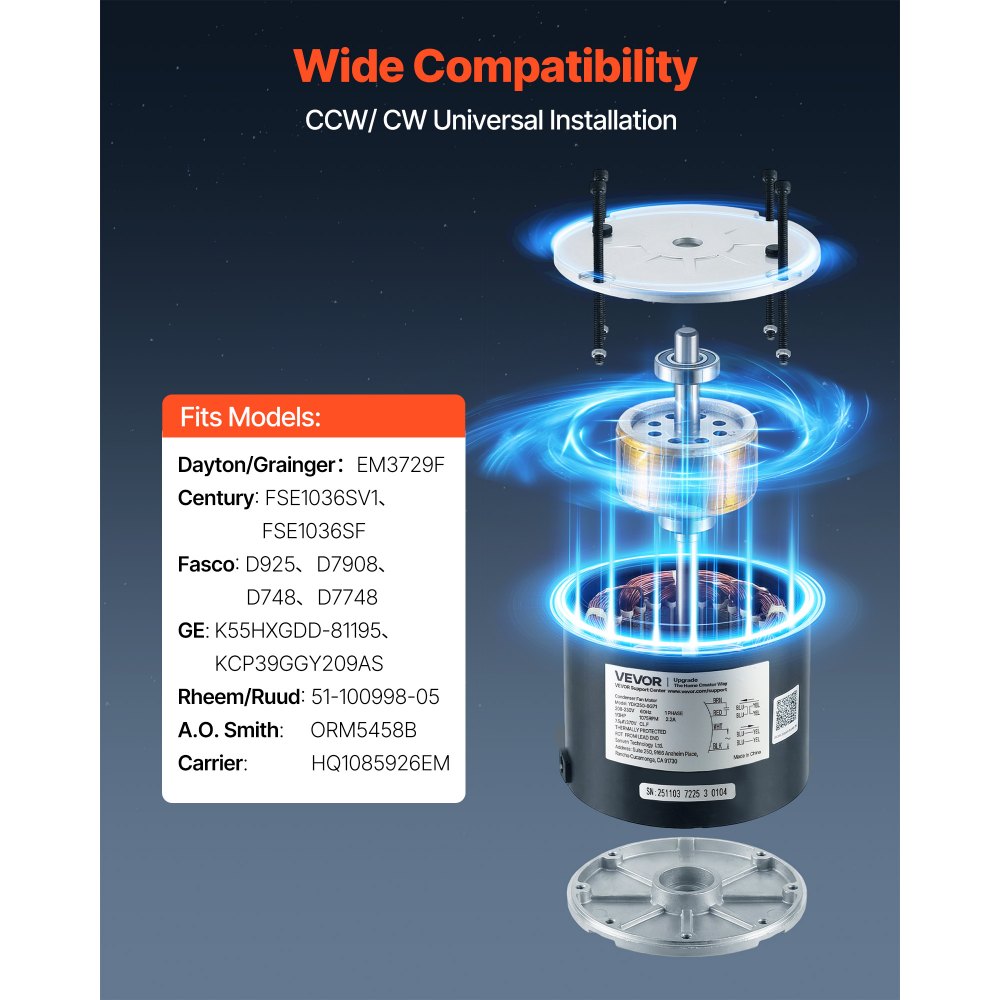

- Models Compatibility: Compatible with GE Genteq (K55HXGDD-81195, 5KCP39GGY209AS), Fasco (D925, D7908, D748, D7748), Carrier (HQ1085926EM), Dayton Grainger (EM3729F), Century (FSE1036SV1, FSE1036SF), Rheem Ruud (51-100998-05), and A.O. Smith (ORM5458B)

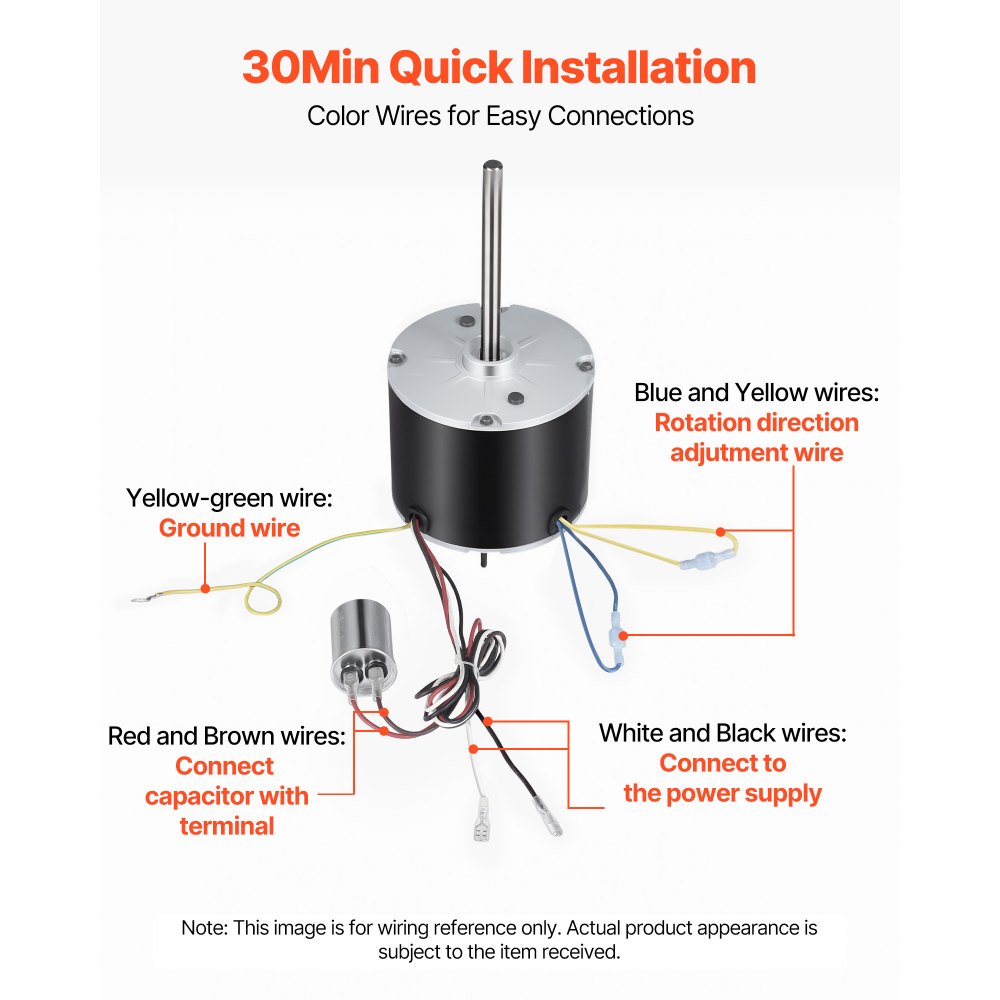

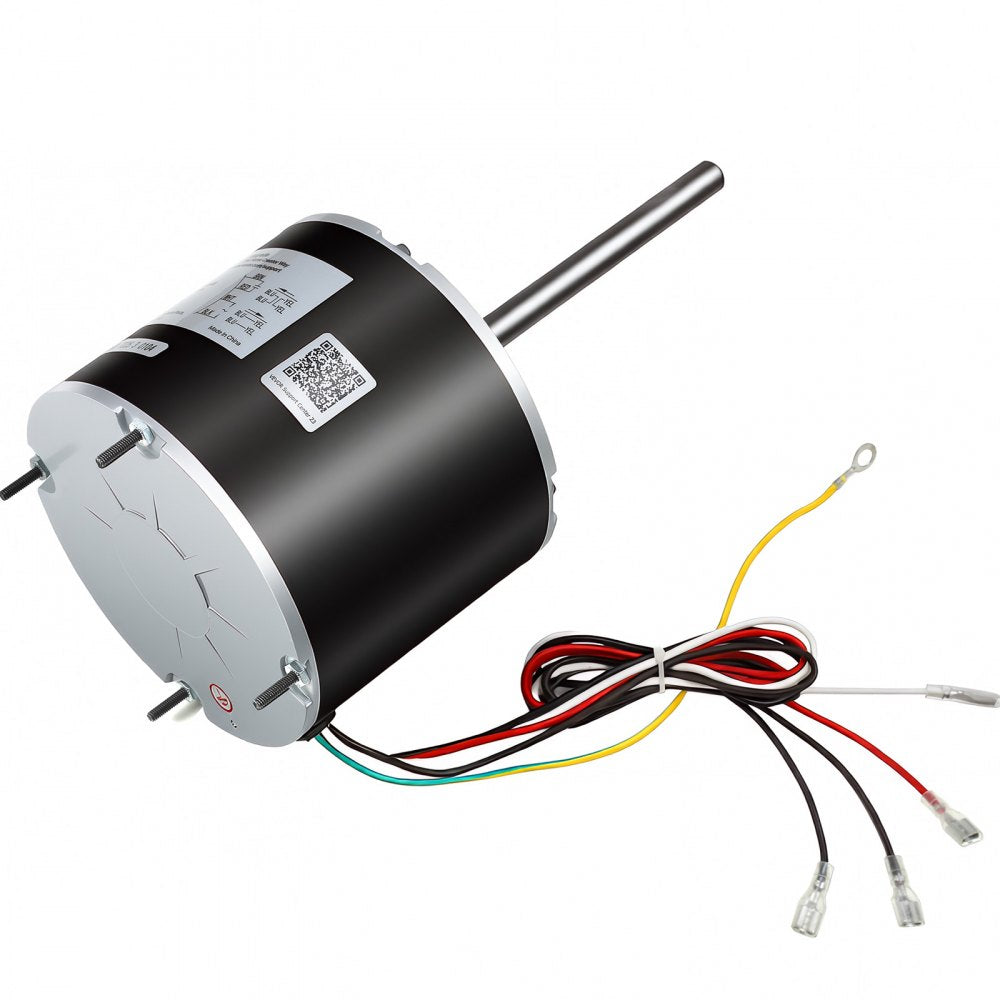

- Easy Installation: 48Y Frame, Shaft Length: 6.02 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation

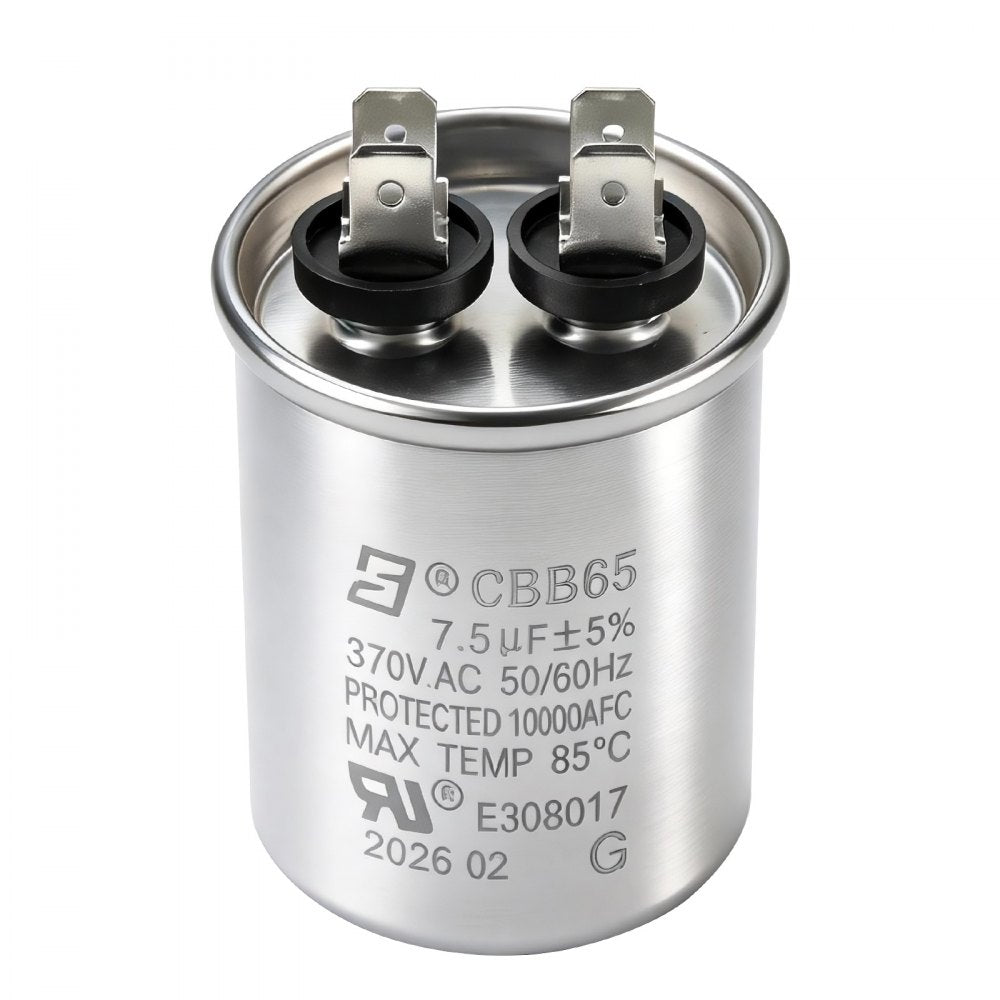

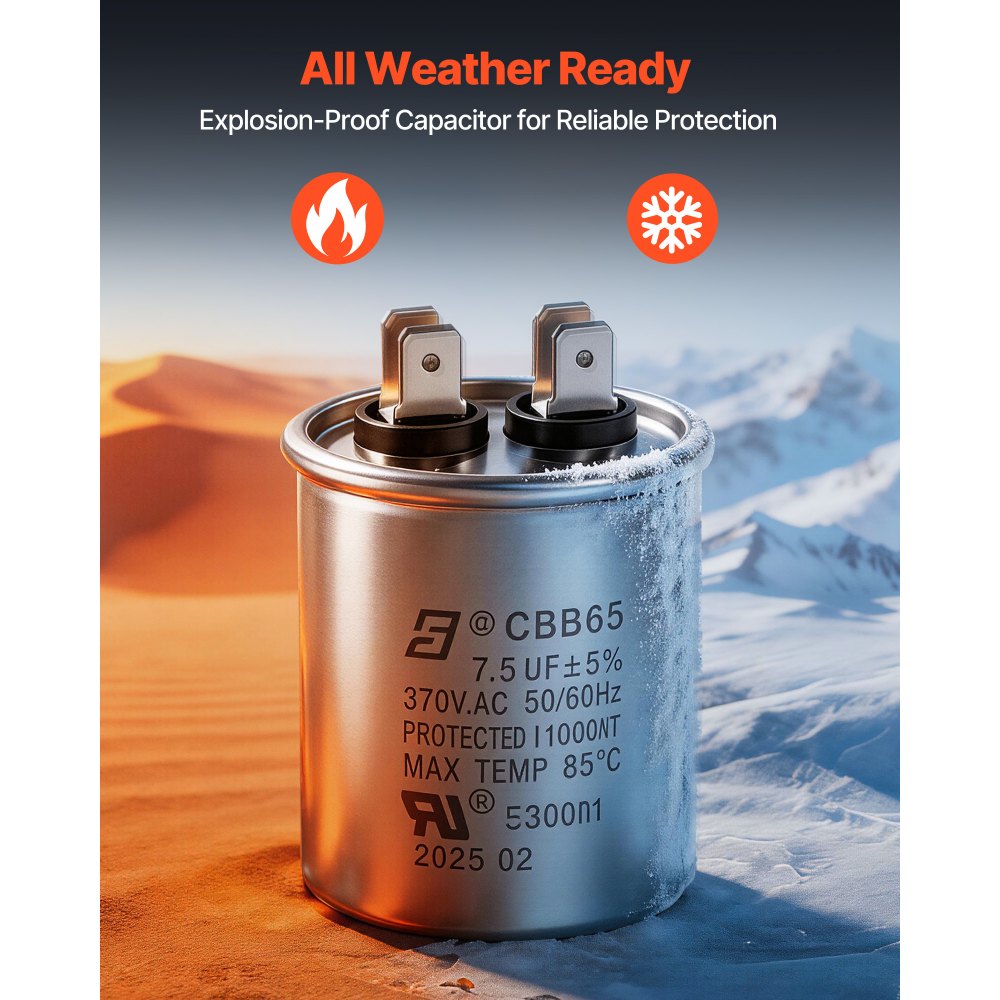

- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast starts—no extra purchase needed, install and use right away

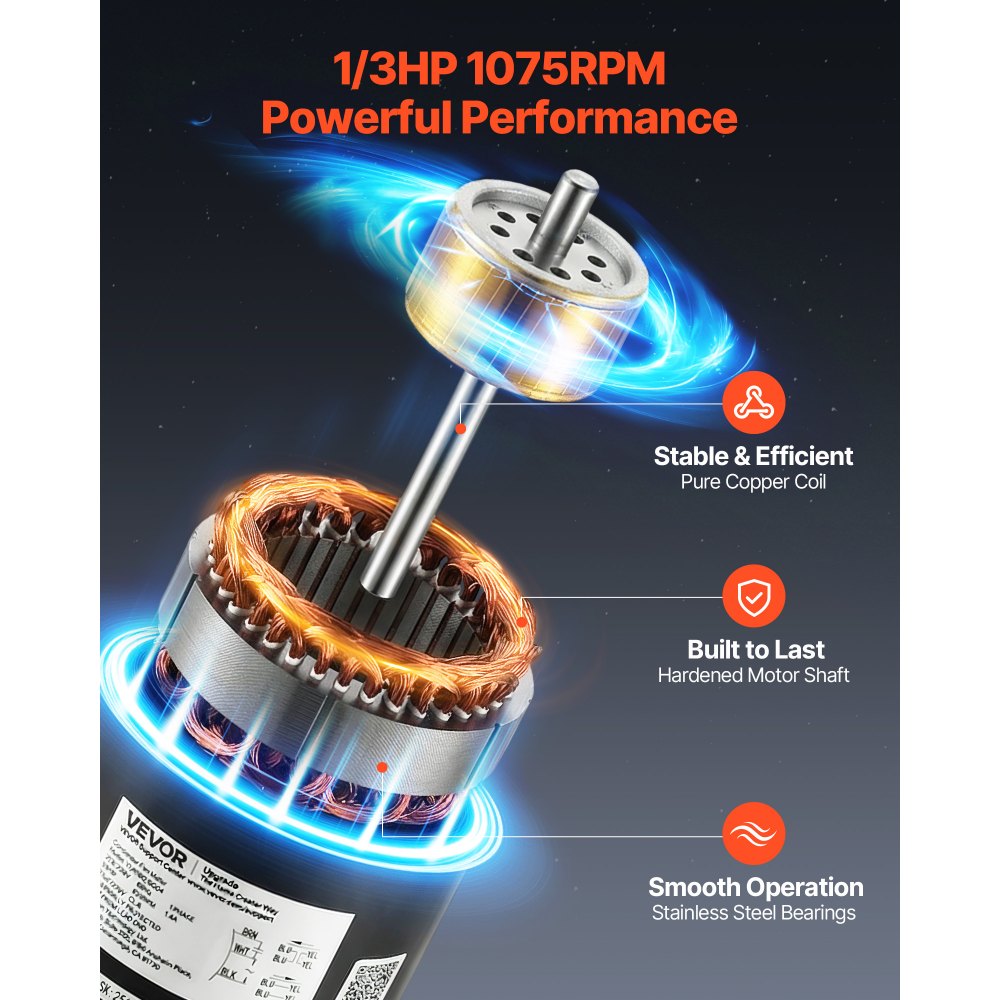

- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C

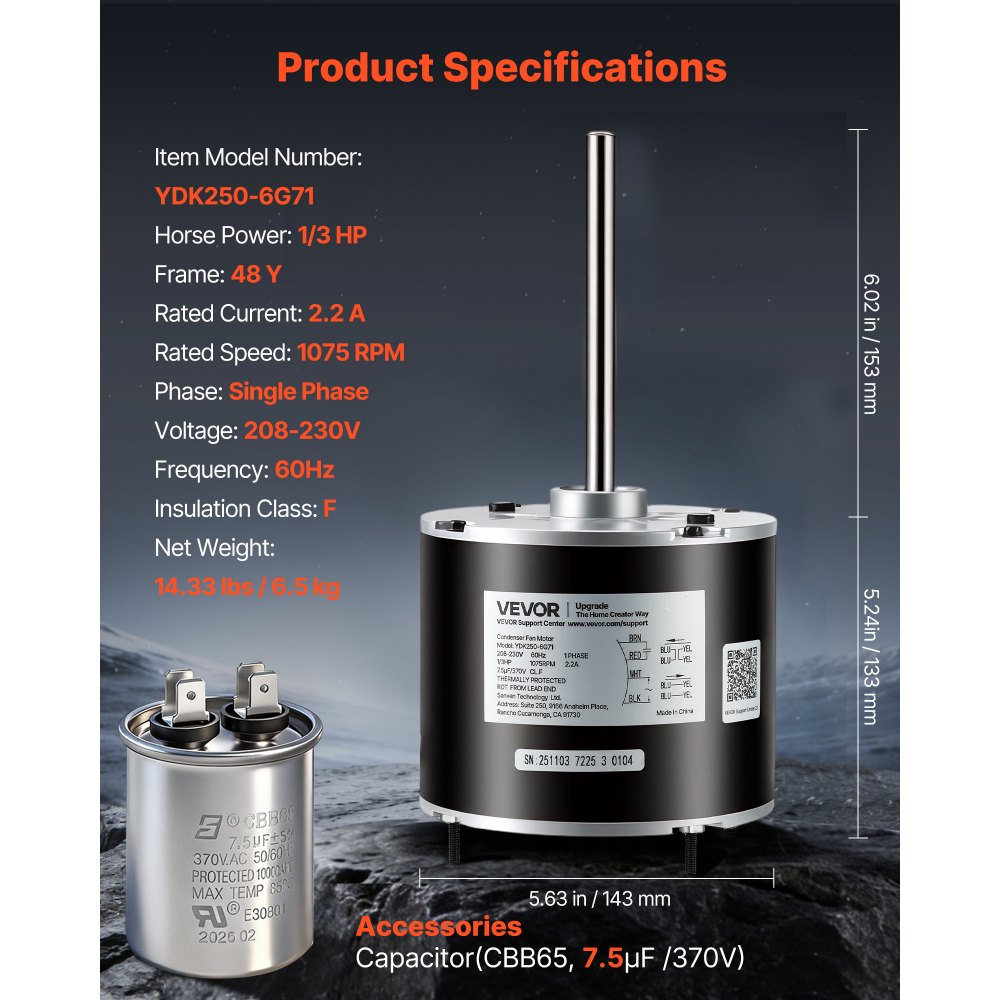

Specifications
| Item Model Number | YDK250-6G71 |
| Horse Power | 1/3HP |
| Rated Current | 2.2A |
| Rated Speed | 1075RPM |
| Voltage | 208-230V |
| Frequency | 60Hz |
| Frame | 48Y |
| Rotation | CCW / CW |
| Phase | Single Phase |
| Shaft Length | 6.02 in / 153 mm |
| Shaft Diameter | 0.5 in / 12.7 mm |
| Insulation Class | F |
| Net Weight | 14.33 lbs / 6.5 kg |
| Dimensions | 5.63 x 5.63 x 11.26 in / 143 x 143 x 286 mm |

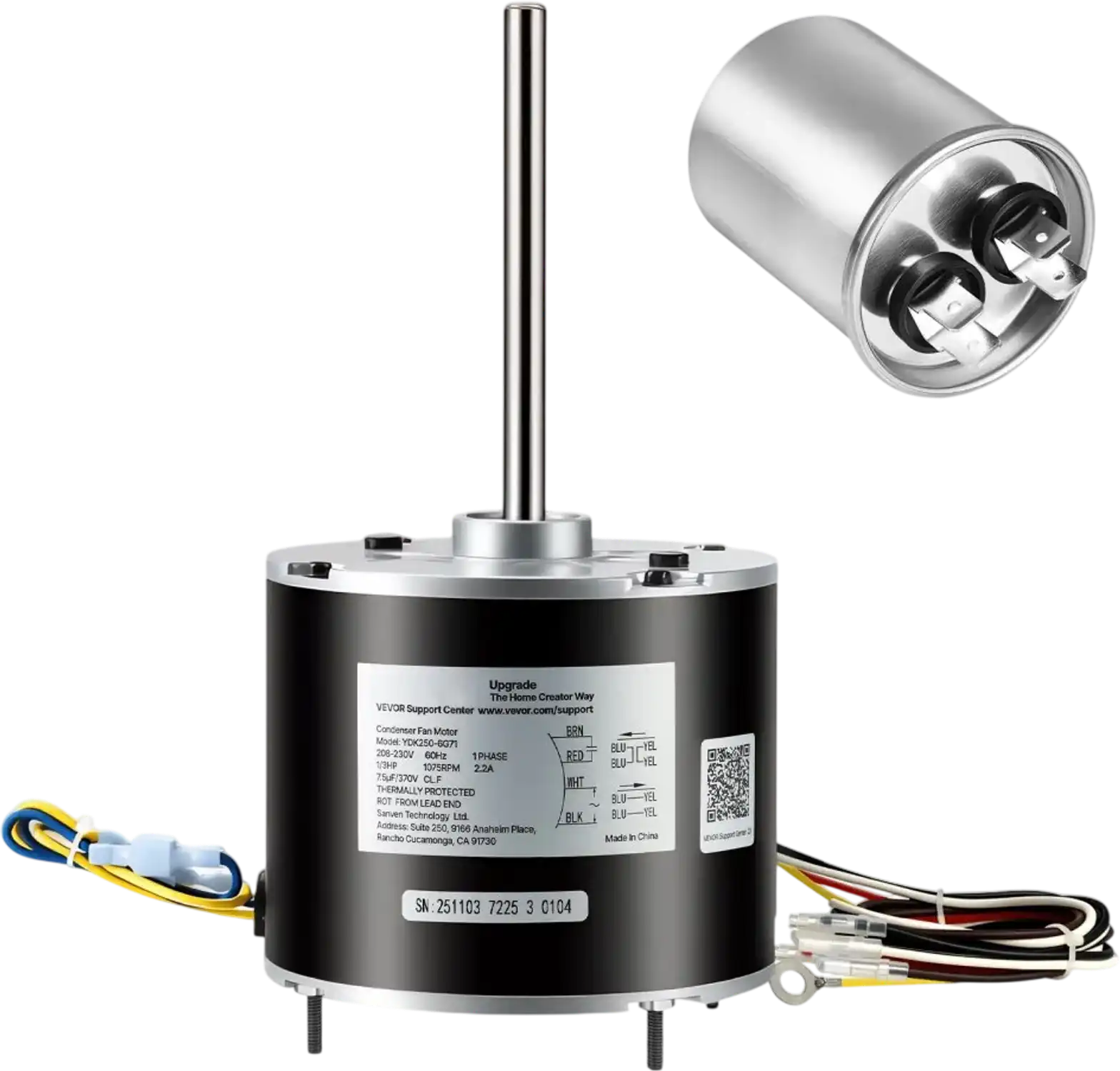

Package Contents

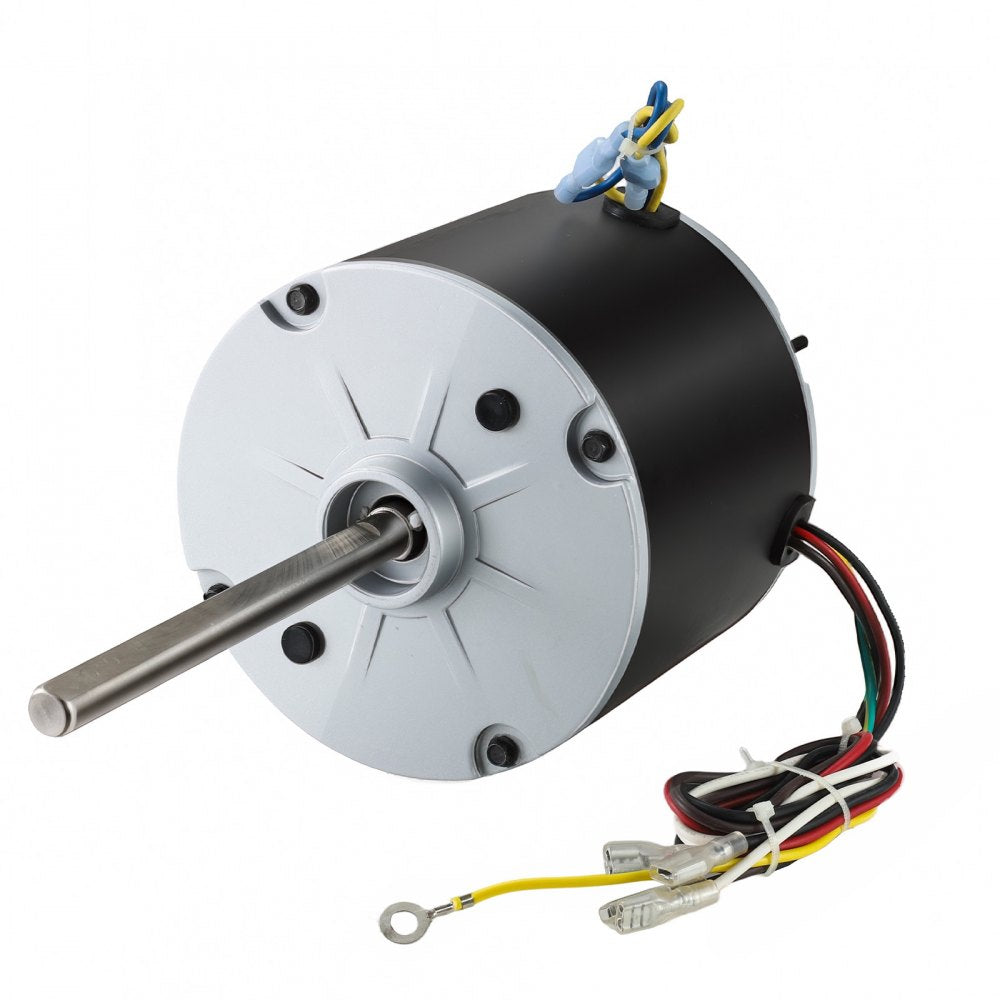

Condenser fan motor
Capacitor
Warranty
This item comes with a 1 year factory warranty.
