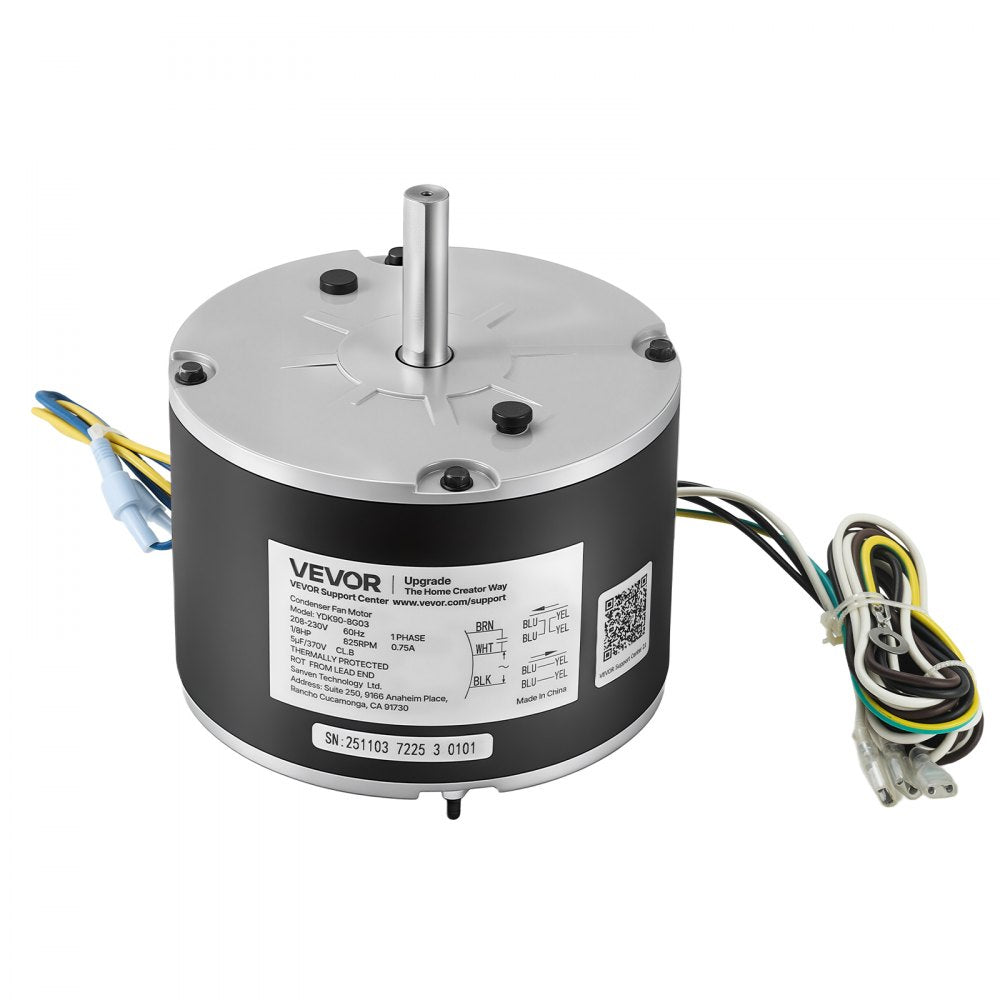

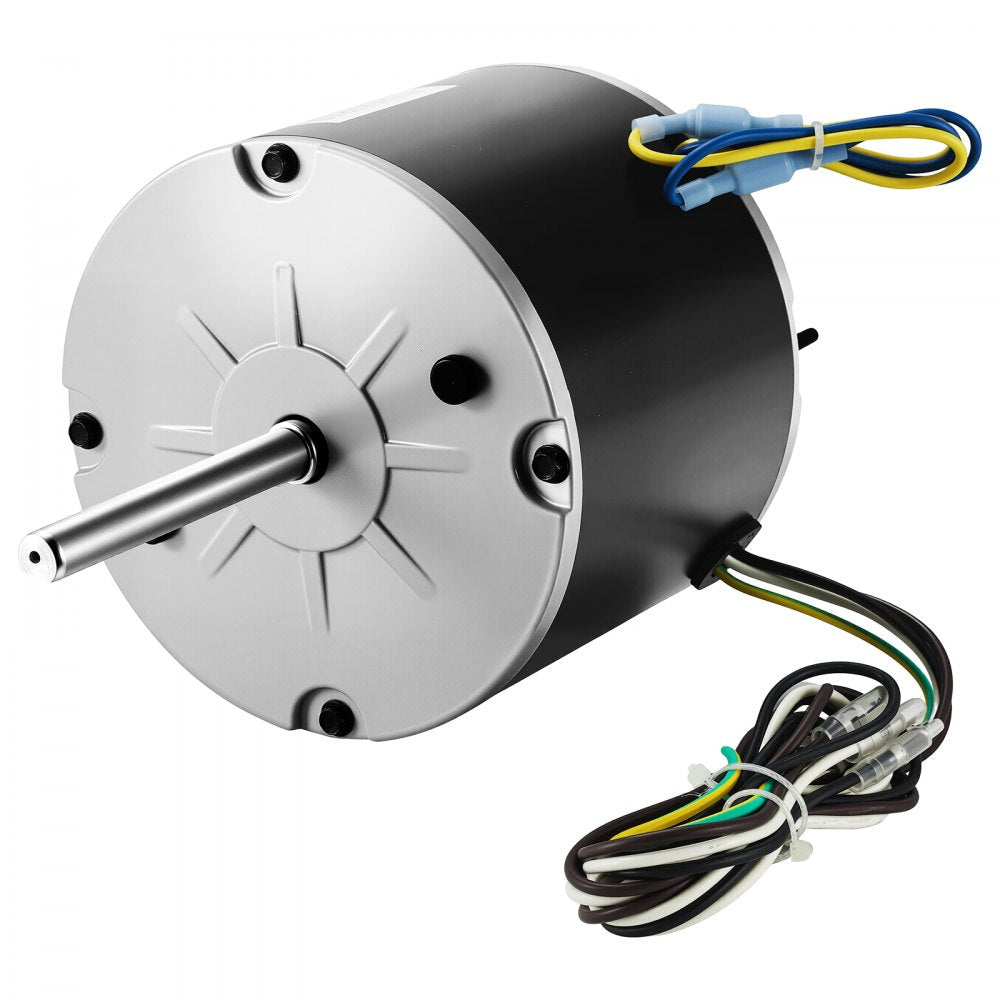

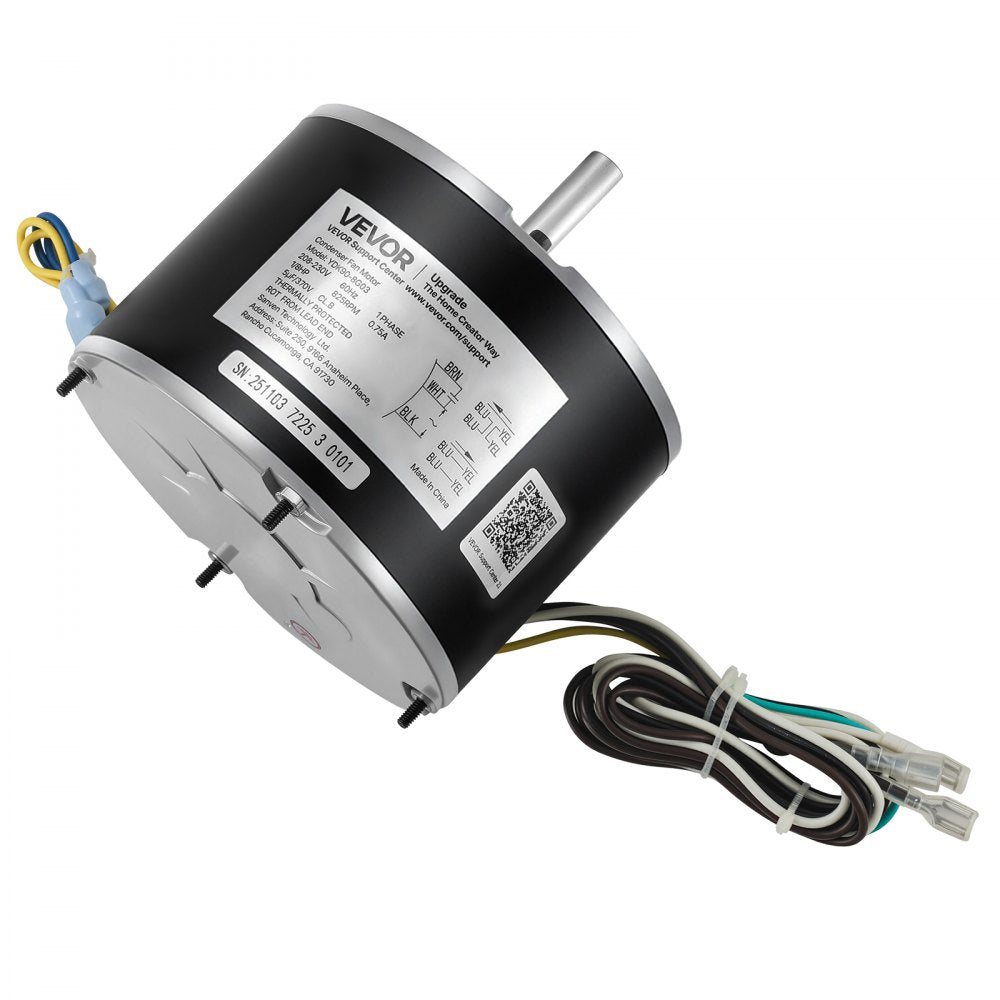

Vevor Condenser Fan Motor with Capacitor 1/8HP 825RPM 208-230V Replacement for GE Genteq Carrier Bryant Payne New
Manufacturer: Vevor
SKU: LNQDJ48Y18HPXDOWV001V7
Frame Size Options
Power Options
Speed Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 79.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor RV AC Fan Motor 1/5 HP 115V 3-Speed Replacement New
-
Vevor Furnace Blower Motor 1/2 HP 1720 RPM 115V Single Phase Belt Drive New
-
Vevor Fan Motor RV AC Replacement New
-
Vevor RV Air Conditioner Motor 1/3 HP 115V 2-Speed Replacement with Capacitor New
-
Vevor Furnace Blower Motor 3/4HP 208-230V 1075RPM 5-Speed CW/CCW 48 Frame with Capacitor and Hold...
-
Vevor Furnace Blower Motor 1/3HP 1075 RPM 4-Speed 110/120V New
-
Vevor Furnace Blower Motor 1/2HP 208/230V 1075RPM 5-Speed CW/CCW New
-
Vevor Furnace Blower Motor 1/4 HP 115V 1725 RPM Belt Drive Single Phase New
Vevor Condenser Fan Motor with Capacitor 1/8HP 825RPM 208-230V Replacement for GE Genteq Carrier Bryant Payne New
Product Overview
The Vevor condenser fan motor with capacitor is designed to provide steady airflow for condenser systems, helping dissipate heat quickly and maintain stable air conditioning performance. It features 1/8 HP power, 825 RPM speed, 208-230V operation, and single-phase performance for dependable replacement use. The motor supports reversible rotation and includes a capacitor for easier installation and immediate operation. Built with a pure copper coil, stainless steel bearings, and overload protection with automatic reset, it is made for reliable long-term use. Its enclosed design also helps withstand demanding and all-weather environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- OEM Standard Quality: 1/8HP 60HZ, AC208-230V, 825RPM, 0.75A Rated Current, Single Phase

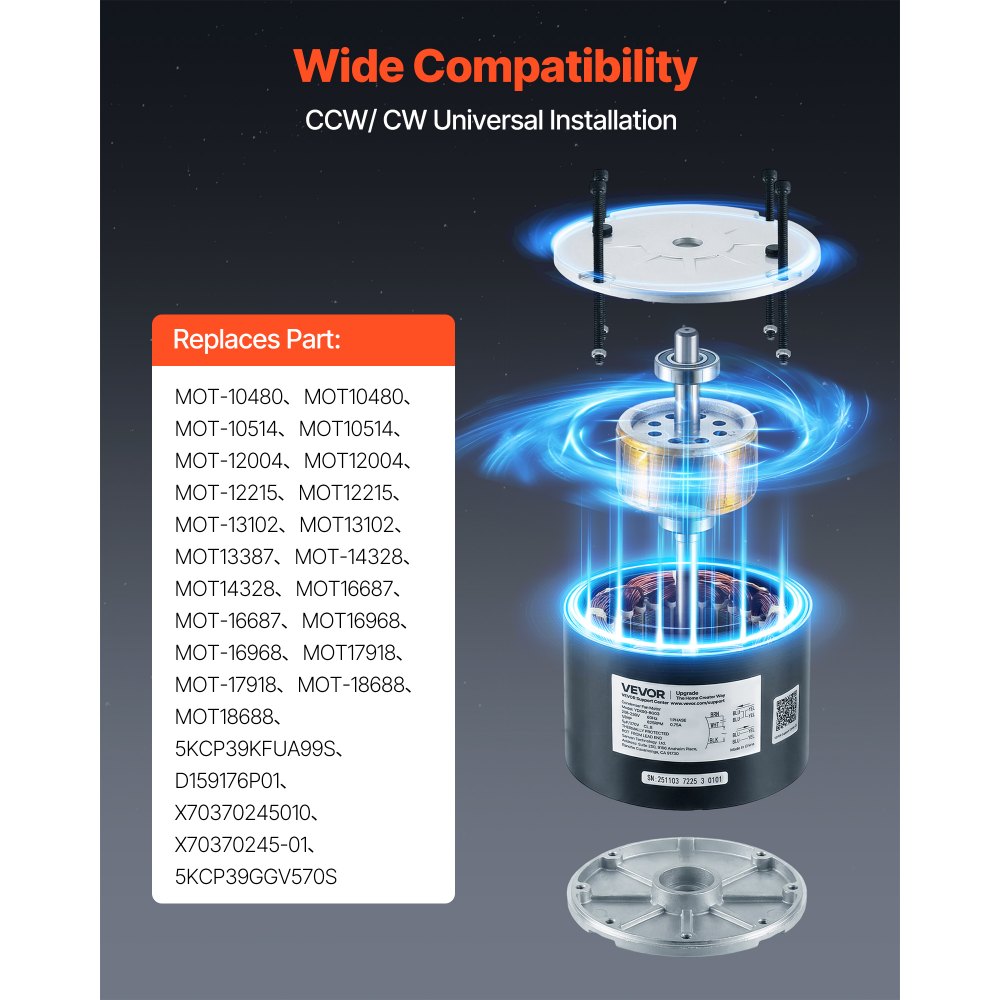

- Replacement for: 5KCP39KFUA99S, 5KCP39GGV570S, D159176P01, X70370245010, X70370245-01, MOT-10480, MOT10480, MOT-10514, MOT10514, MOT-12004, MOT12004, MOT-12215, MOT12215, MOT-13102, MOT13102, MOT13387, MOT-14328, MOT14328, MOT16687, MOT-16687, MOT16968, MOT-16968, MOT17918, MOT-17918, MOT-18688, MOT18688

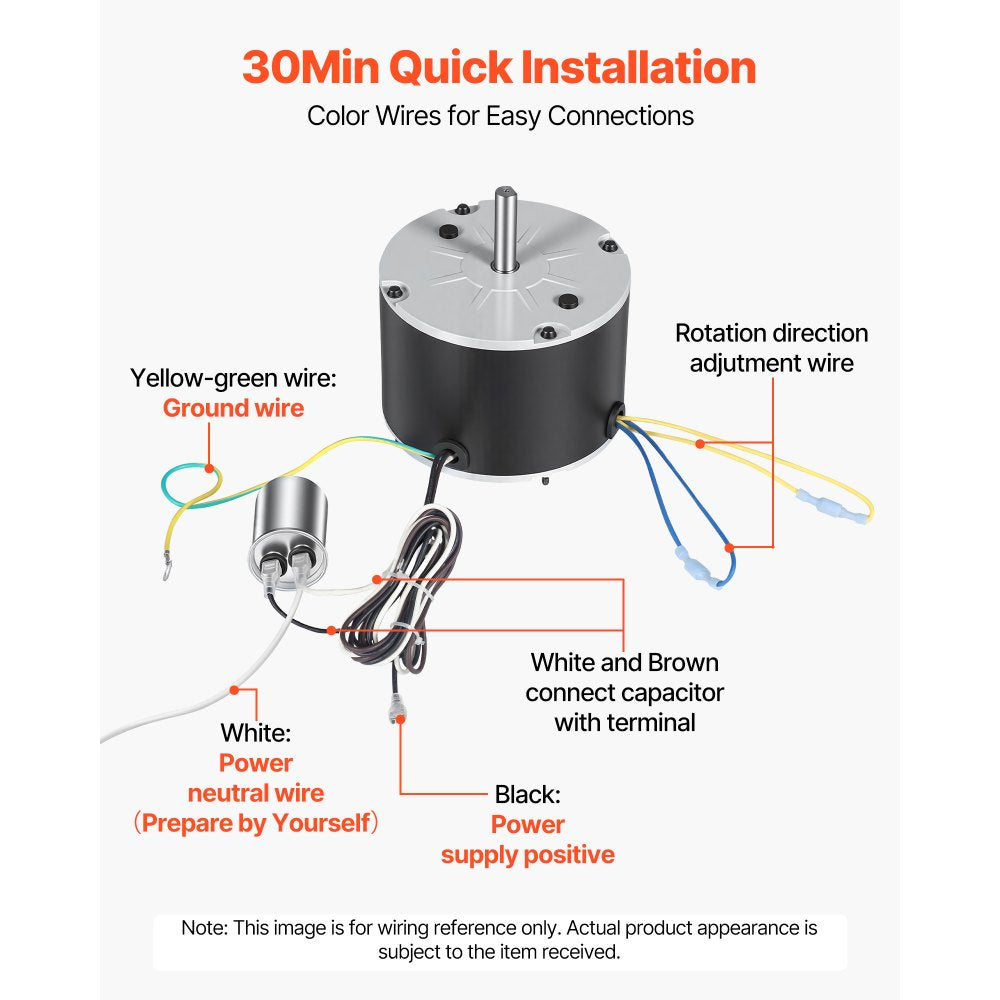

- Easy Installation: 48Y Frame, Shaft Length: 2 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation

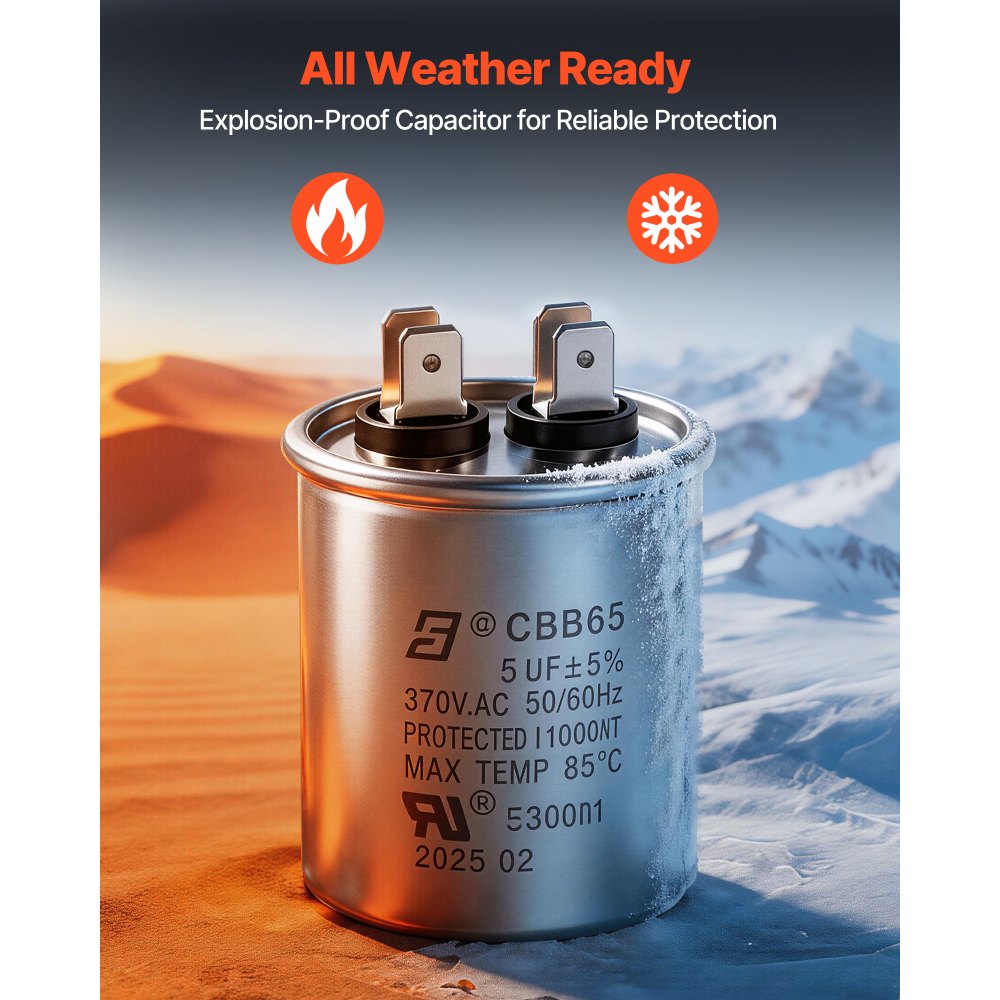

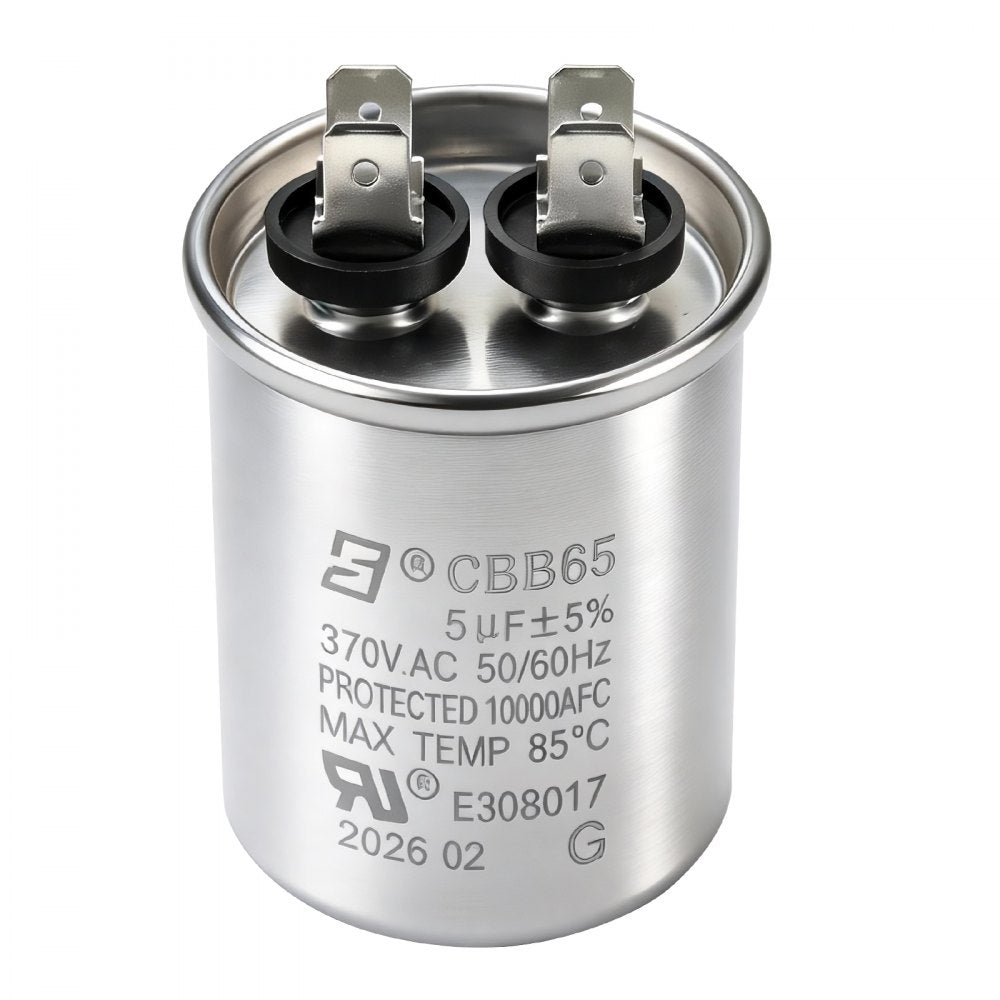

- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast starts—no extra purchase needed, install and use right away

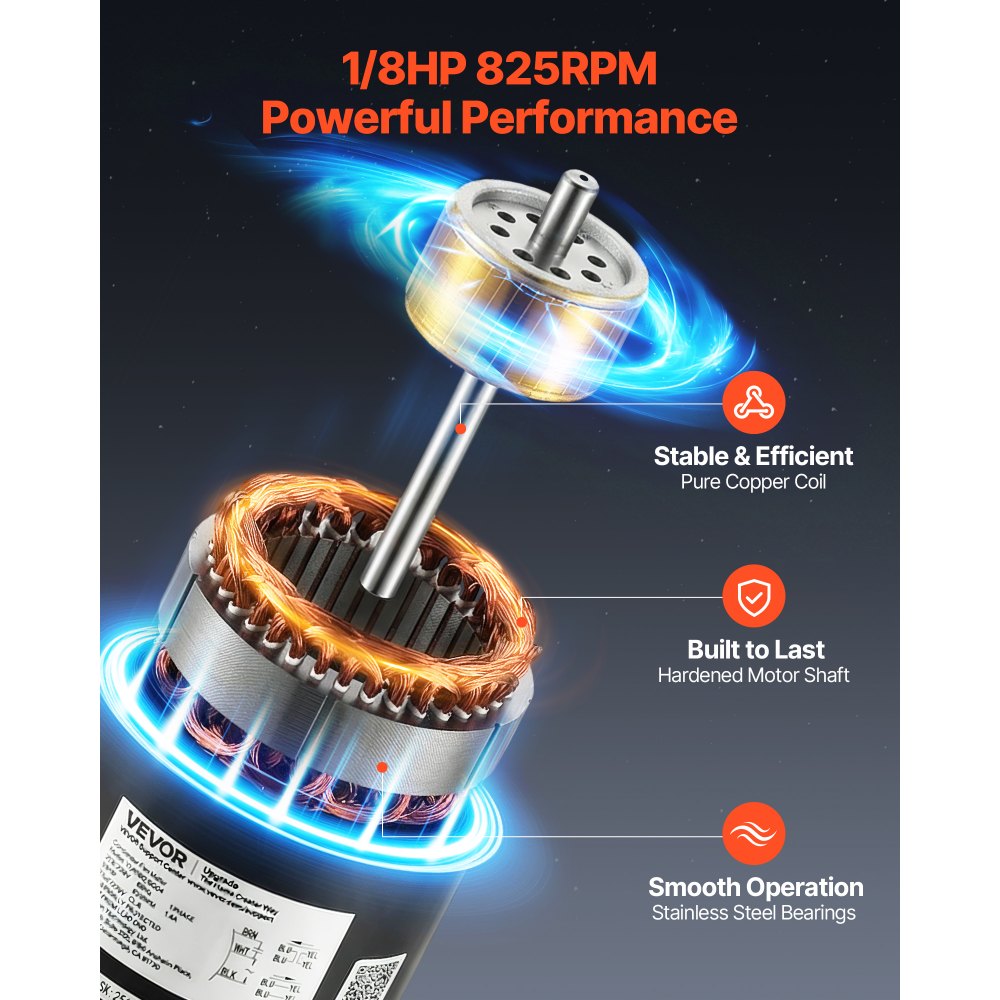

- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C

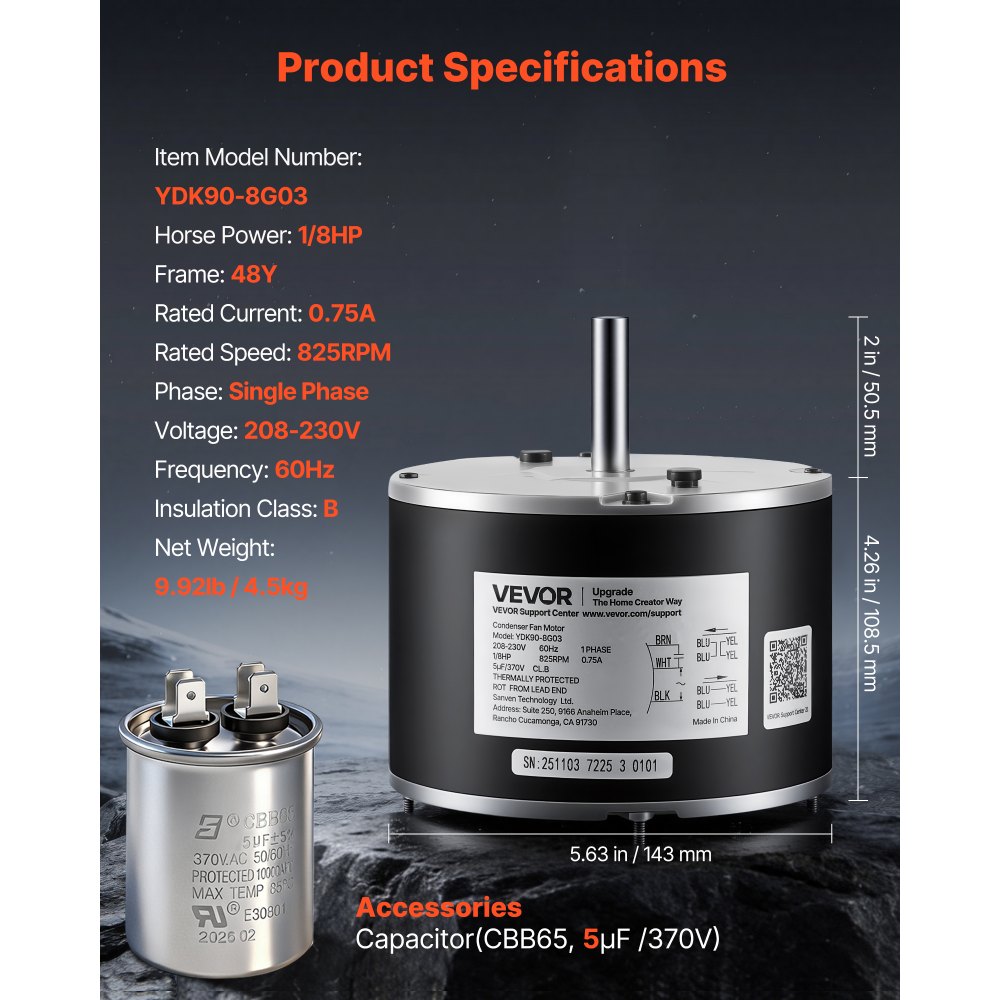

Specifications
| Item Model Number | YDK90-8G03 |
| Horse Power | 1/8HP |
| Rated Current | 0.75A |
| Rated Speed | 825RPM |
| Voltage | 208-230V |
| Frequency | 60Hz |
| Frame | 48Y |
| Rotation | CCW / CW |
| Phase | Single Phase |
| Shaft Length | 2 in / 50.5 mm |
| Shaft Diameter | 0.5 in / 12.7 mm |
| Insulation Class | B |
| Net Weight | 9.92 lbs / 4.5 kg |
| Product Size | 5.63 x 5.63 x 6.26 in / 143 x 143 x 159 mm |

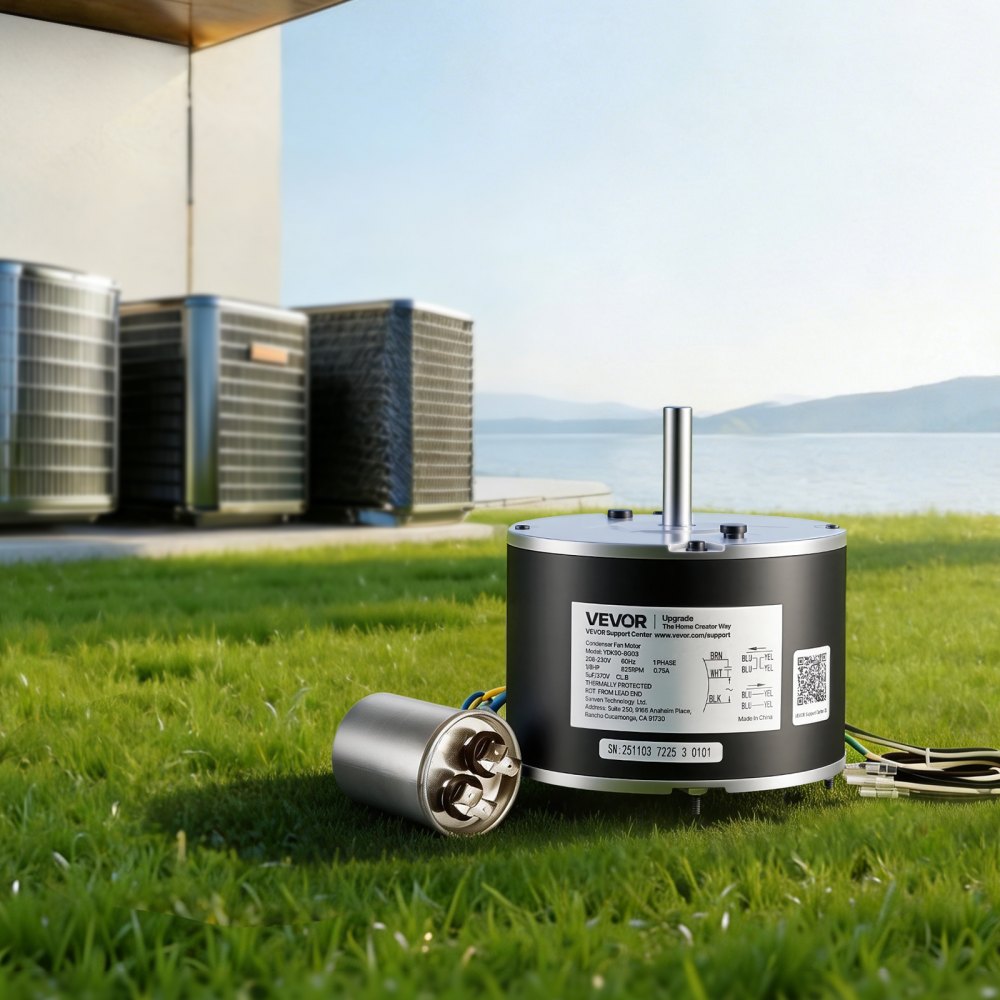

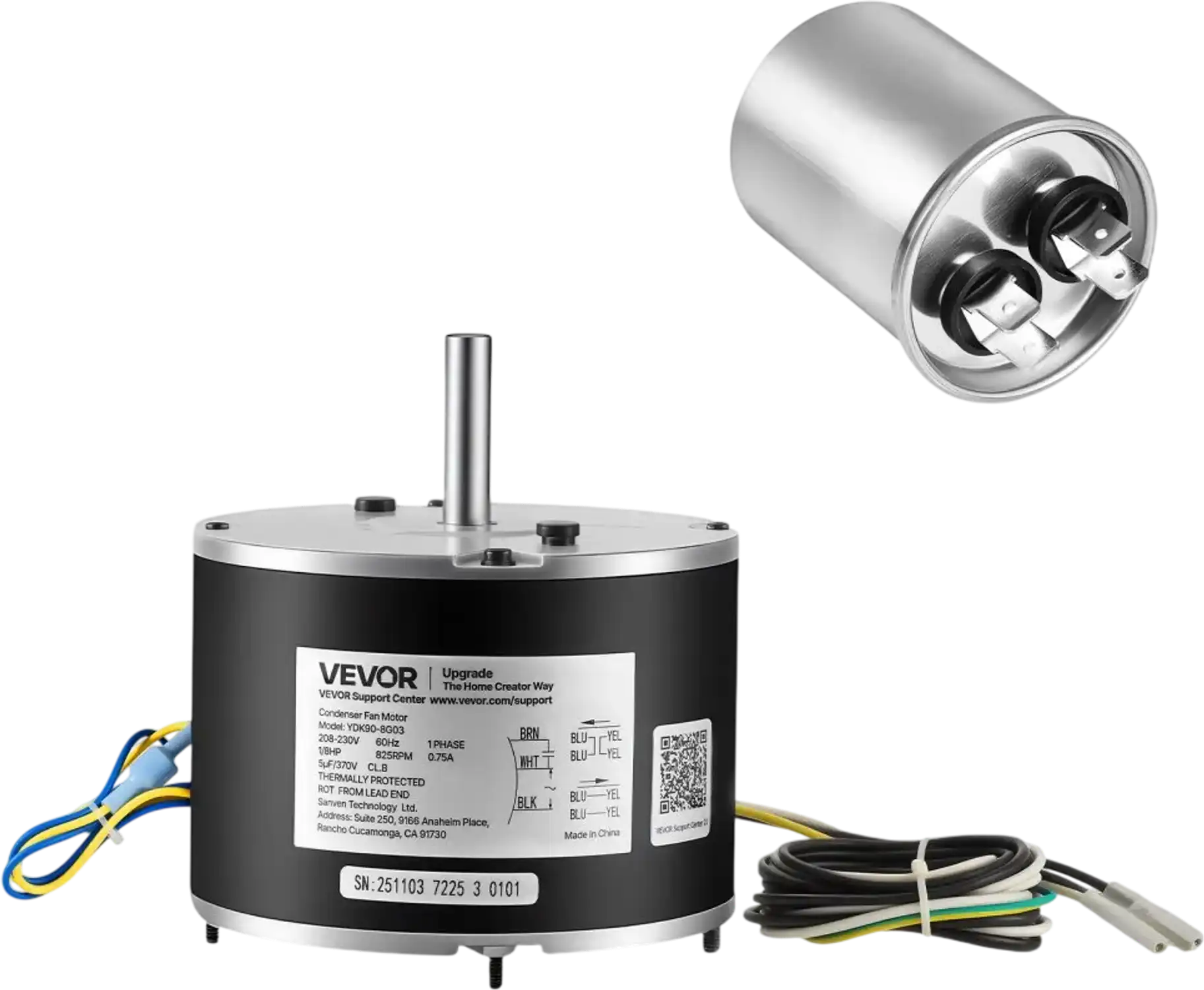

Package Contents
Condenser fan motor
Capacitor
Warranty
This item comes with a 1 year factory warranty.
