Vevor Core Drill Rig 8" Diameter Handheld with 4 Drill Bits 1800W New
Product Overview
The VEVOR handheld diamond core drilling machine delivers up to 1800W of power with a 2-speed gearbox for efficient wet or dry coring in concrete, brick, stone, and marble. It supports large drilling capacity up to 8 in (200 mm) and uses a UNC 1 1/4-7 external threaded output shaft for core bits. Safety-focused features like a built-in clutch and overload protection help reduce kickback and protect the motor during demanding work. The lightweight aluminum body is designed for durability while keeping fatigue lower during extended use. This kit includes multiple core bits so you can start drilling common sizes right away.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Powerful & Fast Drilling: This core drill boasts a robust 1800W motor and dual-speed settings (1075 RPM/2300 RPM), delivering fast, efficient drilling. It handles holes up to 8 in (200 mm) with a 1/4-7 in threaded output shaft—ideal for tough tasks
- Superior Hole Quality: Our diamond core drilling machine features both wet and dry drilling. The wet drilling option flushes out debris and cools the bit with water, reducing dust and improving hole smoothness—great for indoor renovation work
- Enhanced Security & Stability: The built-in clutch automatically stops the drill when it hits hard resistance to save you and the core drill machine. Plus, the water-seal-free design avoids common water seal failures and keeps your workflow steady
- Built to Last: Crafted with a lightweight yet tough aluminum body, this core drill rig resists wear and tear while keeping fatigue low. The reinforced PVC water hose is crack-resistant, and the steel output shaft delivers consistent accuracy
- Professional Kit: Comes fully loaded. This concrete core drill includes four premium drill bits (1 in, 2 in, 3 in, 4 in) that cut through reinforced concrete, brick, marble, and more. It is ideal for all your drilling needs
Specifications
| Item Model Number | Z1Z-CF02-80S |
| Type | Handheld |
| No-Load Power | 700W |
| Max Load Power | 1800W |
| No-Load Speed | 2-Speed Adjustable—1075 RPM (1st), 2300 RPM (2nd) |
| Output Shaft Size | UNC 1 1/4-7 External Thread |
| Water Inlet Size | Mesh Tube Fitting, OD 0.6 in / 16 mm |
| Included Drill Bits | 4 Pieces |
| Brick Drilling Capacity | Max 8 in / 200 mm |
| Concrete Drilling Capacity | Max 3.1 in / 80 mm |
| Net Weight (Machine Only) | 17.6 lbs / 8 kg |
| Net Weight (Including Accessories) | 35.7 lbs / 16.2 kg |
| Product Dimensions (L x W x H) | 16.5 x 4.3 x 11.8 in (420 x 110 x 300 mm) |

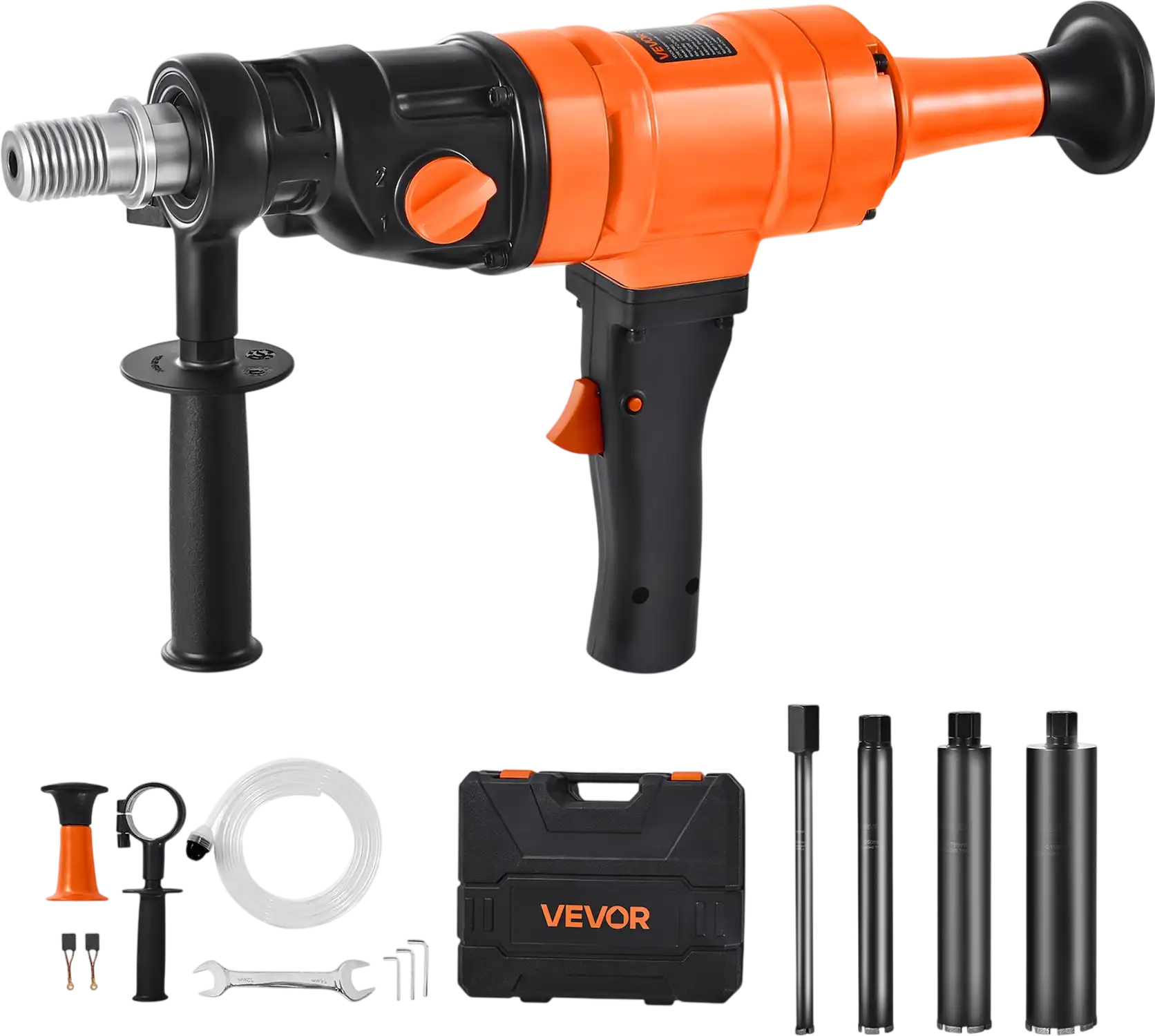

Package Contents
Diamond core drilling machine (handheld)
4 drill bits (1 in, 2 in, 3 in, 4 in)
Reinforced PVC water hose
Carrying case

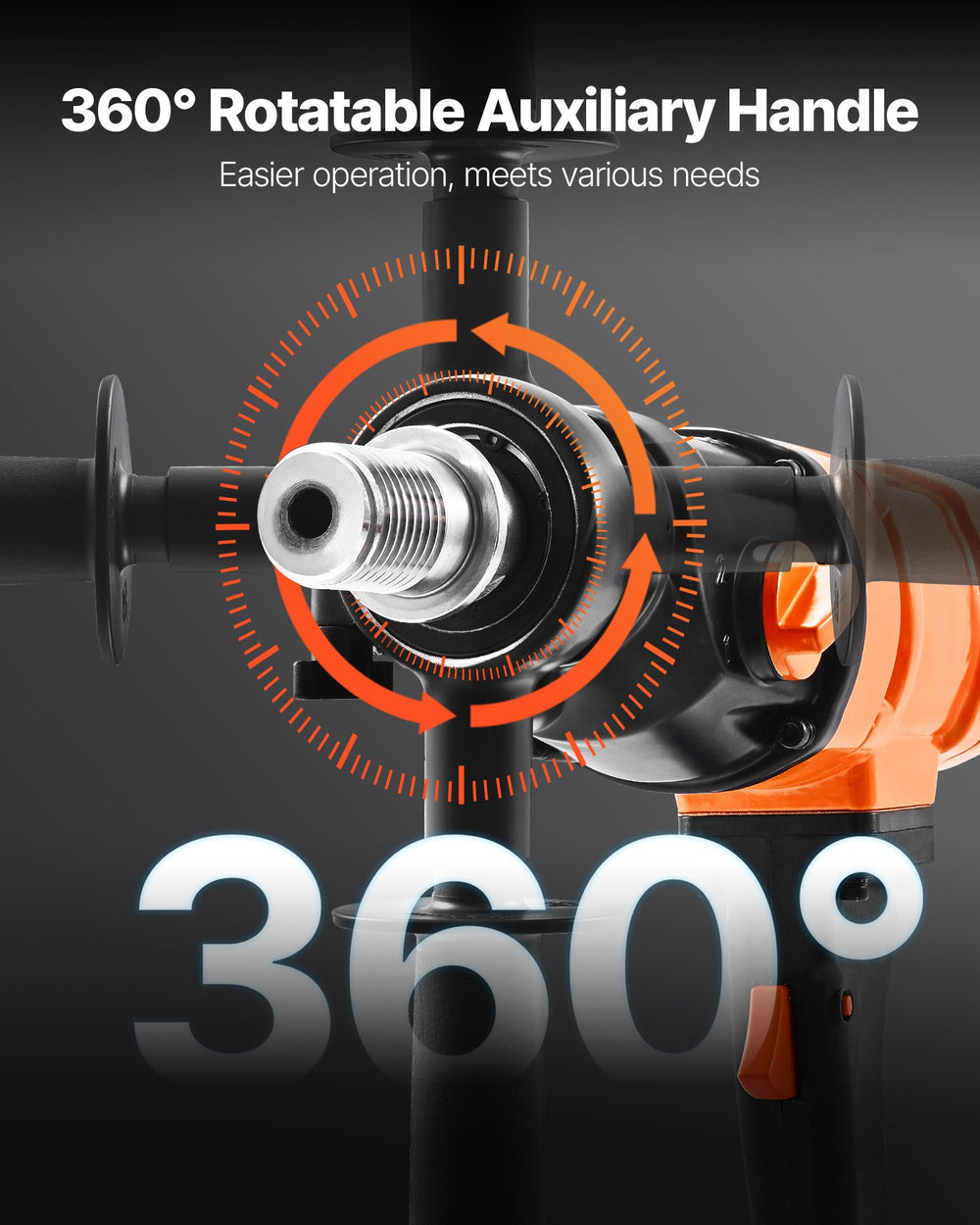

Auxiliary handle
Wrench
Hex keys
User Manual
Warranty
This item comes with a 1 year factory warranty.
