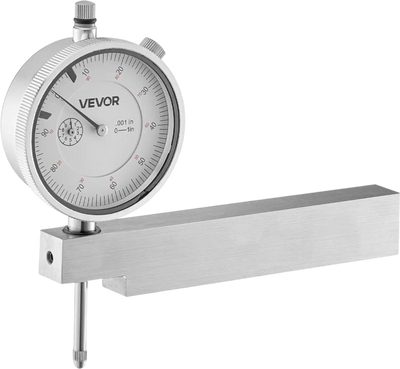

Vevor Dial Test Indicator Gauge 0.001" Accuracy 0-1" Range with Metal Base New
-
Vevor Dial Indicator Bore Gauge 0.001" Accuracy 2-6" Bore Range with Rod Storage Case New
-
Vevor Dial Test Indicator Magnetic Base Set New
-
Vevor Torpedo Level Magnetic 4-Piece 48/24/16/10" Set New
-
Vevor Tripod Laser Level Mount Stand Adjustable 27.36"-68.9" New
-
Vevor Laser Level 100' Self-Leveling Green 16-Line 4 x 360° New
-
Vevor Torpedo Level 6-Piece Magnetic Set with Bubble Vials New
-
Vevor Measuring Rod 14' Telescopic Aluminum Grade Rod New
-
Vevor Rotary Laser Level Kit 1,650 ft. 360-Degree Self-Leveling with Heavy-Duty Tripod Remote Con...
-
Vevor Load Height Measuring Stick 15' Fiberglass Truck Height Stick New
-
Vevor Laser Level Tripod Stand Adjustable 27.16-67.71" Heavy Duty Survey Tripod New
-
Vevor Dial Indicator and Stand 0-1" Magnetic Base Precision Gauge New
-
Vevor Tripod Laser Level Stand Adjustable Height 40.94"-133.85" New
-
Vevor Laser Level Tripod Stand 45.07"-114.37" Height Adjustment with Level Bubble New
-
Vevor Grade Rod 9' Telescopic Aluminum Survey Leveling Rod New
-
Vevor Levels Set 6-Piece Torpedo Box Level Set 10"-78" Aluminum Alloy New
-
Vevor Measuring Rod 18' Telescopic Aluminum Grade Rod with Bubble Level and Carrying Bag New
-
Vevor Grade Rod 16' Telescopic Aluminum Survey Rod with Bubble Level & Carrying Bag New
-
Vevor Tripod for Laser Levels Adjustable Survey Stand New
-
Vevor Torpedo Level 4-Piece 48/24/16/10" Aluminum Box Set New
Vevor Depth Micrometer 0-22" Precision Measuring Gauge New
Product Overview
This depth micrometer is designed for precise groove, step, hole, and surface depth measurements across a wide 0-22" range. It features a mechanical design with clear markings for easy reading and does not require batteries. The set includes interchangeable measuring heads and extension rods to handle different workpieces and measuring tasks. Its metal construction and stainless-steel contact components are built for dependable workshop and field use. A hard carrying case is included to keep the kit organized and protected.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

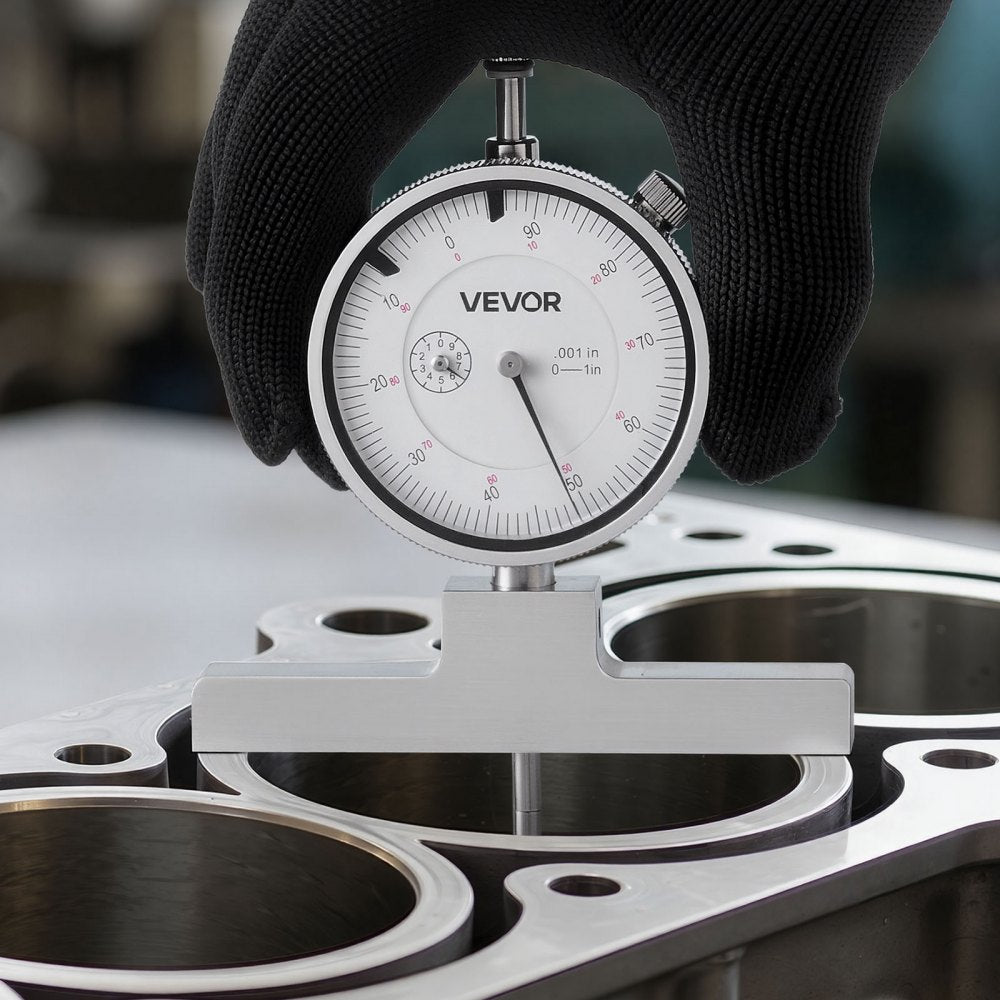

- High-Precision Micrometer Set: This depth micrometer delivers accurate, reliable linear readings with a 1–2 in range, ±0.001 in accuracy, and 0.001 in resolution. Ideal for measuring engine parts or precision components

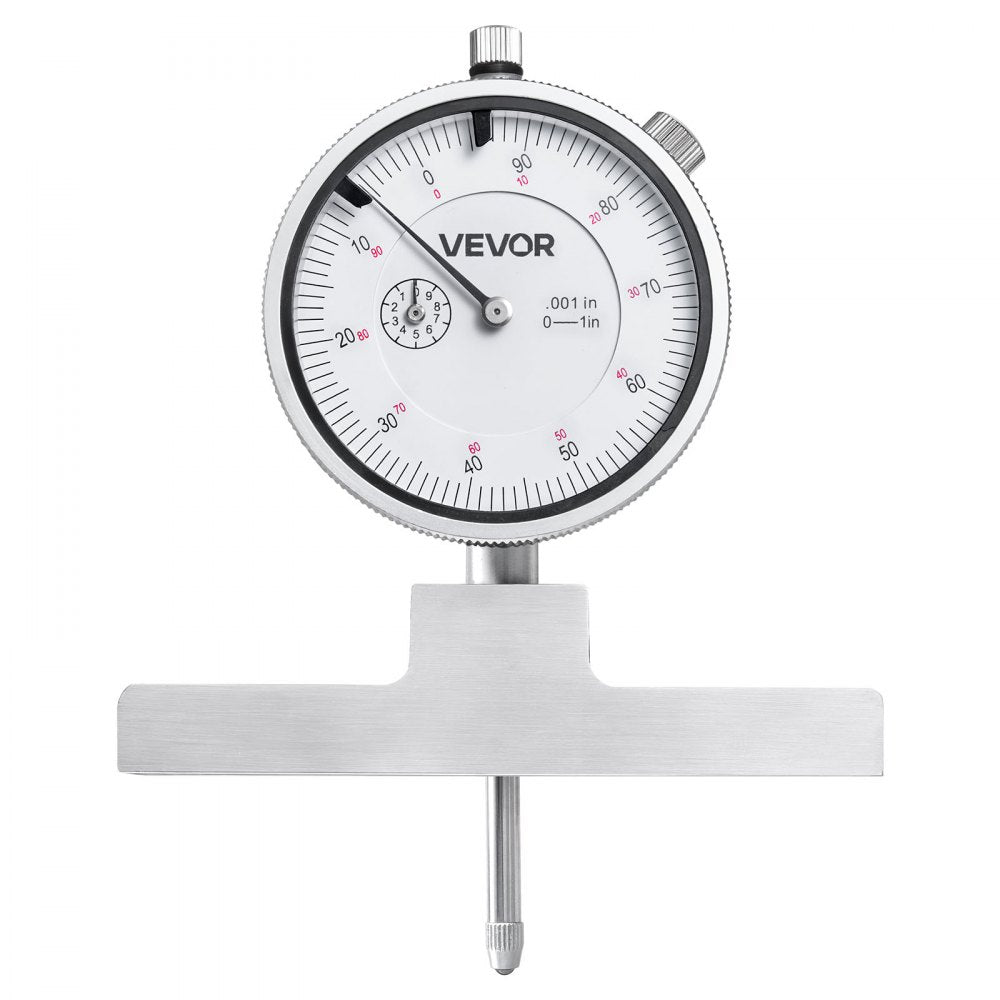

- Clear & Easy Operation: This Micrometer features clear dial markings for effortless reading. With high scratch and corrosion-resistance, it withstands frequent workshop use while providing accurate linear distance measurements over long-term use

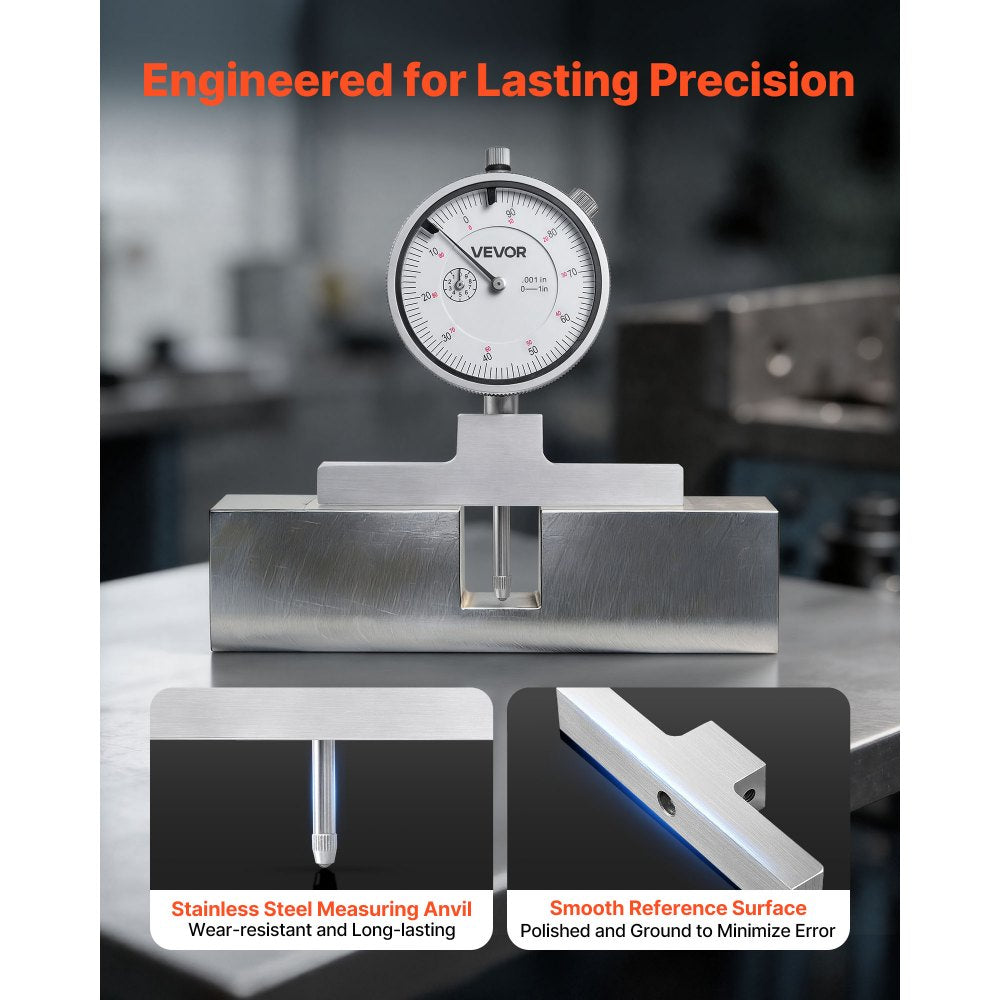

- Precise Measuring: This depth gauge features stainless-steel anvils and smooth reference faces to securely hold workpieces and avoid measurement errors. The solid metal frame offers excellent wear resistance and long-term stability for workshop use
- Versatile Measurement Tasks: This depth gauges include four anvils to suit different workpieces. Six calibration rods can be combined for a 0–22 in range, ideal for measuring metal sheets, grooves, and other depths, meeting professional metalworking needs

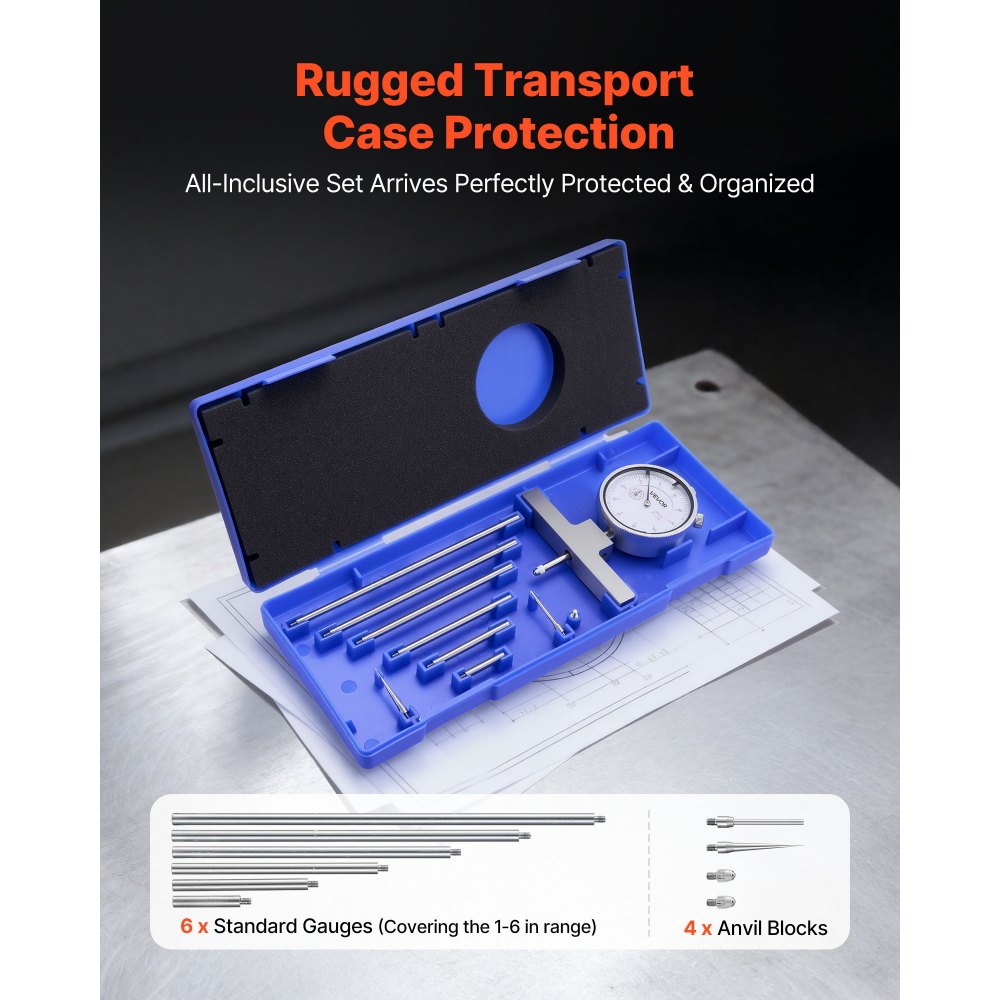

- Complete Set Included: This depth gauge tool comes with a hard case containing one depth micrometer, six rods, four anvils, and instructions. Keeps tools organized and portable, ready for immediate use in the field or lab without risk of loss

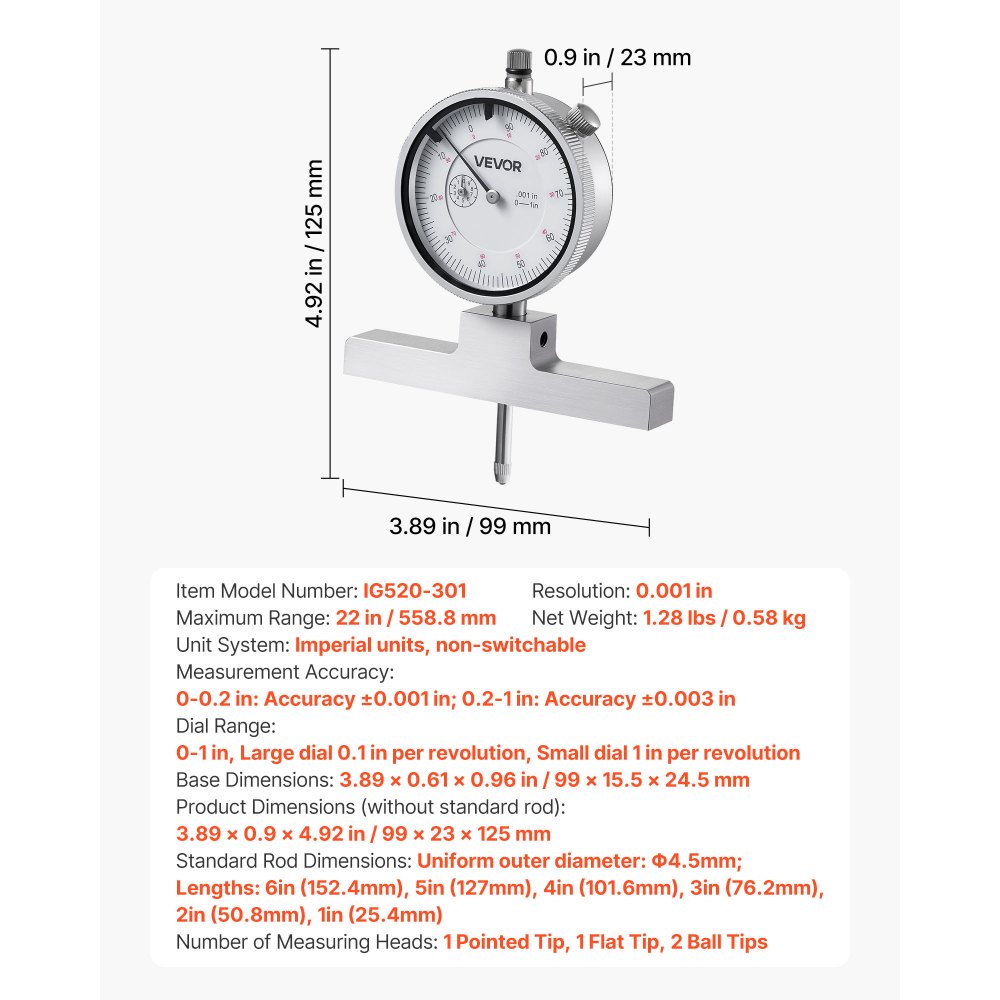

Specifications
| Item Model Number | IG520-301 |
| Maximum Range | 22 in |
| Unit System | Imperial units, non-switchable |
| Resolution | 0.001 in |
| Measurement Accuracy | 0-0.2 in |
| Base Dimensions | 3.89 x 0.61 x 0.96 in |
| Product Dimensions | 3.89 x 0.9 x 4.92 in |
| Standard Rod Lengths | 6/5/4/3/2/1 in |
| Number of Measuring Heads | 1 Pointed Tip, 1 Flat Tip, 2 Ball Tips |
| Net Weight | 1.28 lbs |

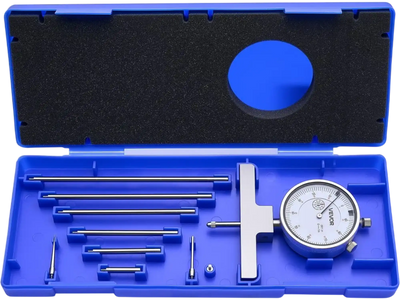

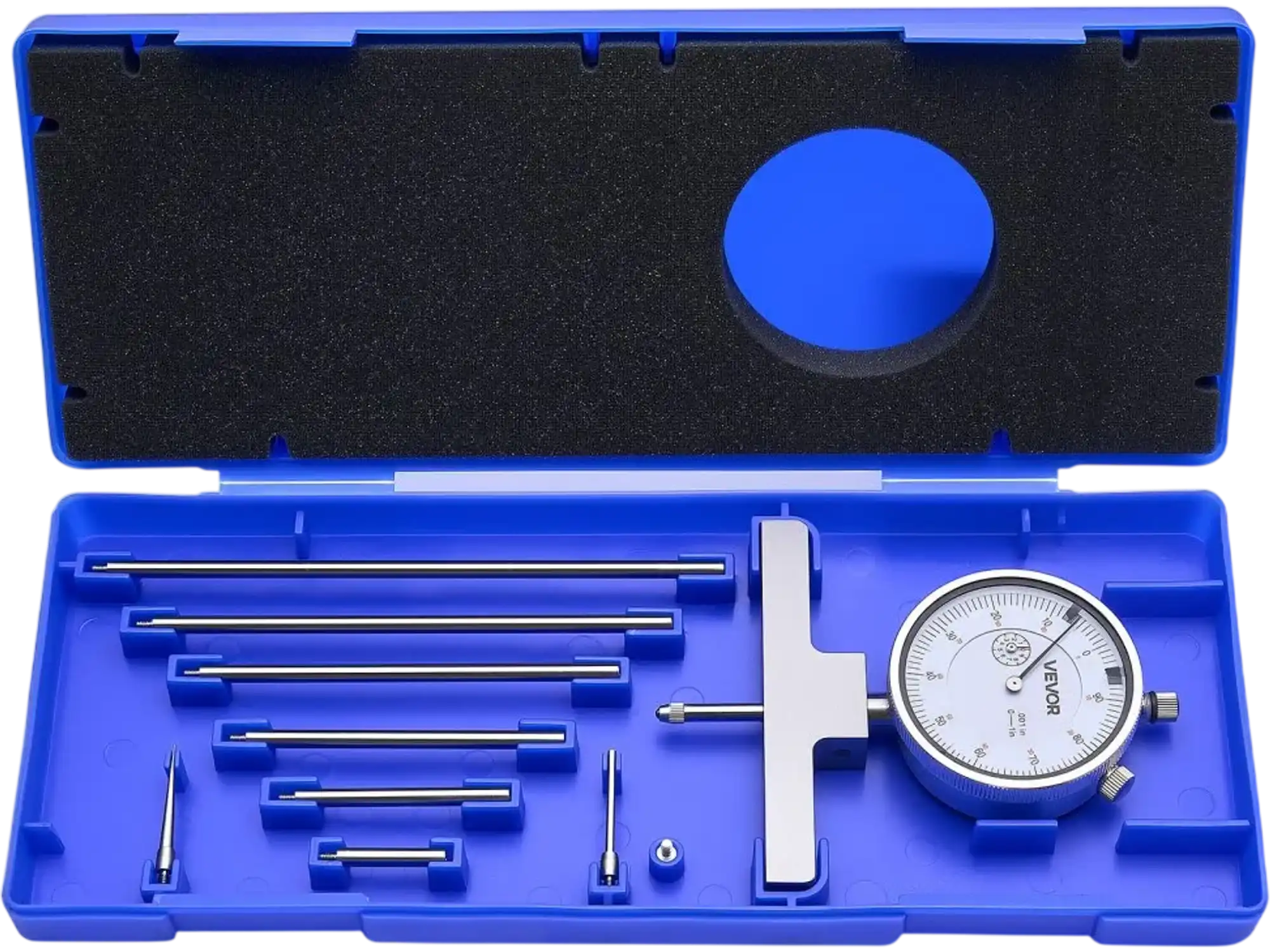

Package Contents
Depth micrometer
6 standard rods
4 anvils
Instructions
Hard carrying case
Warranty
This item comes with a 1 year factory warranty.
