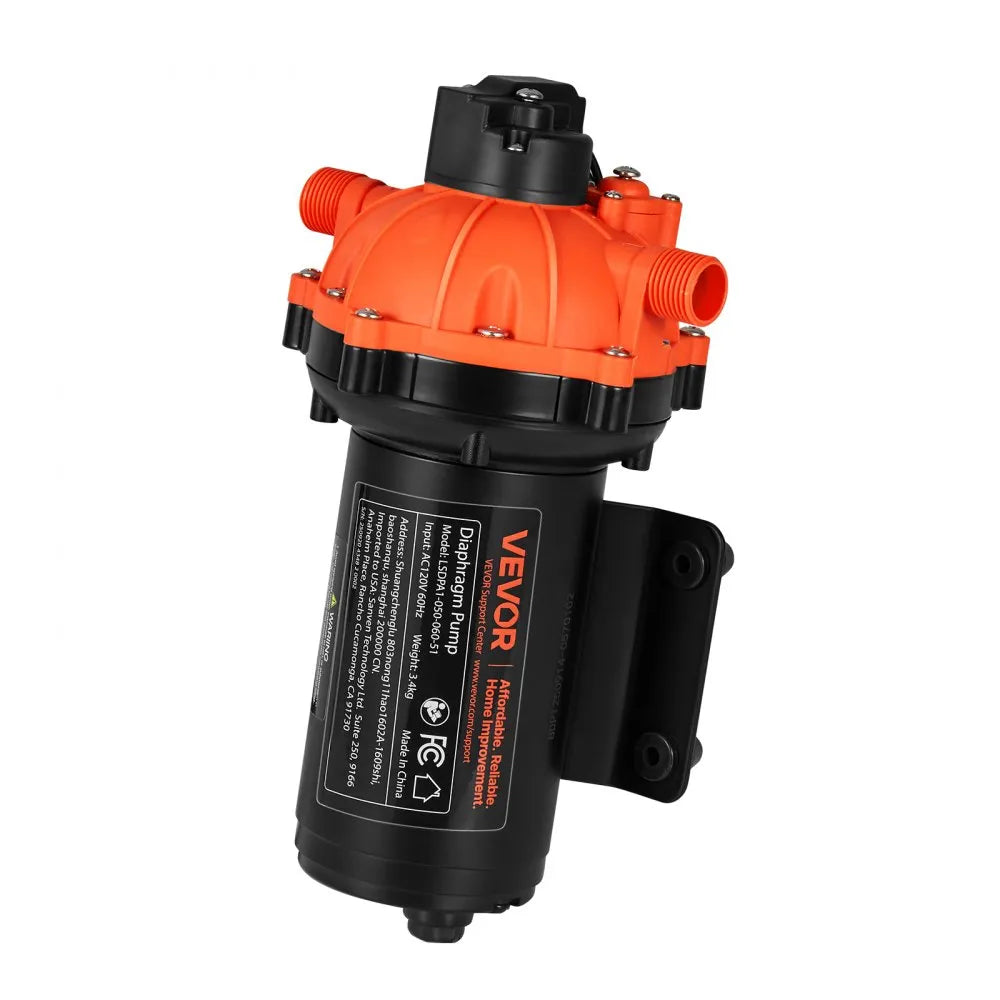

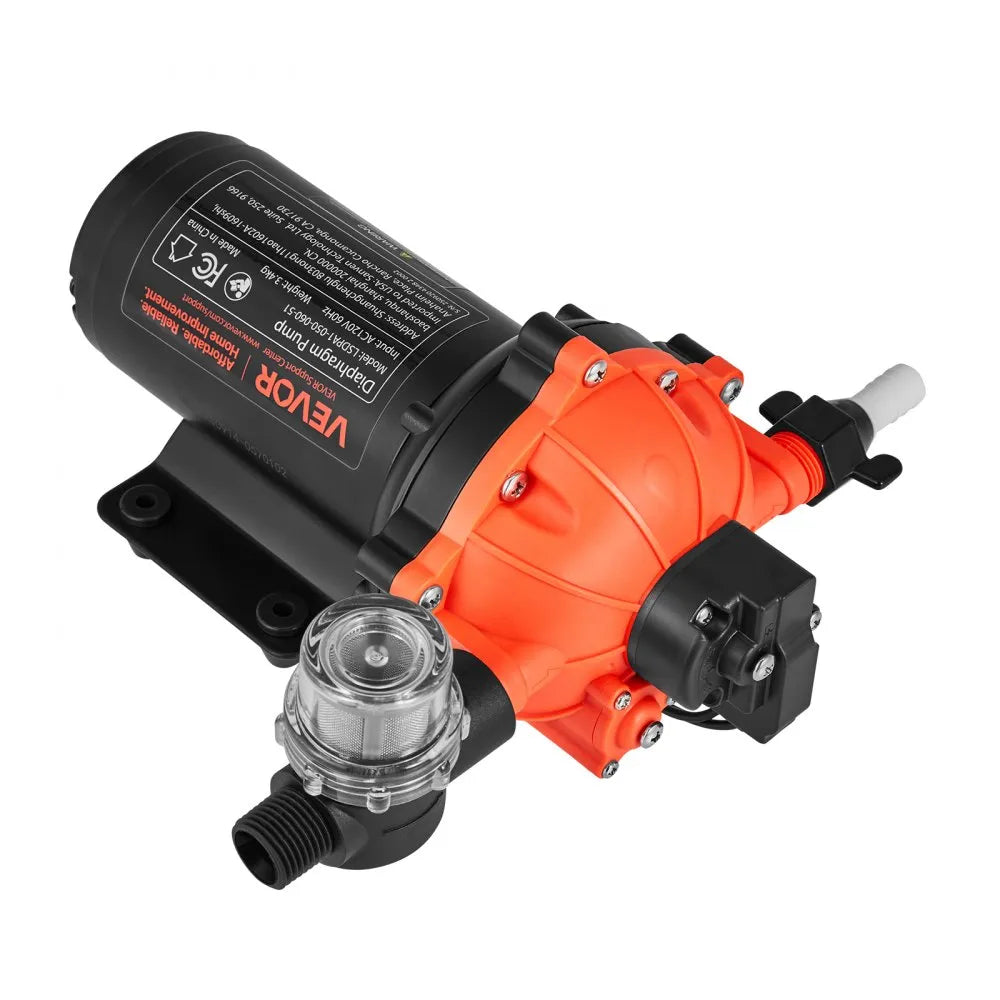

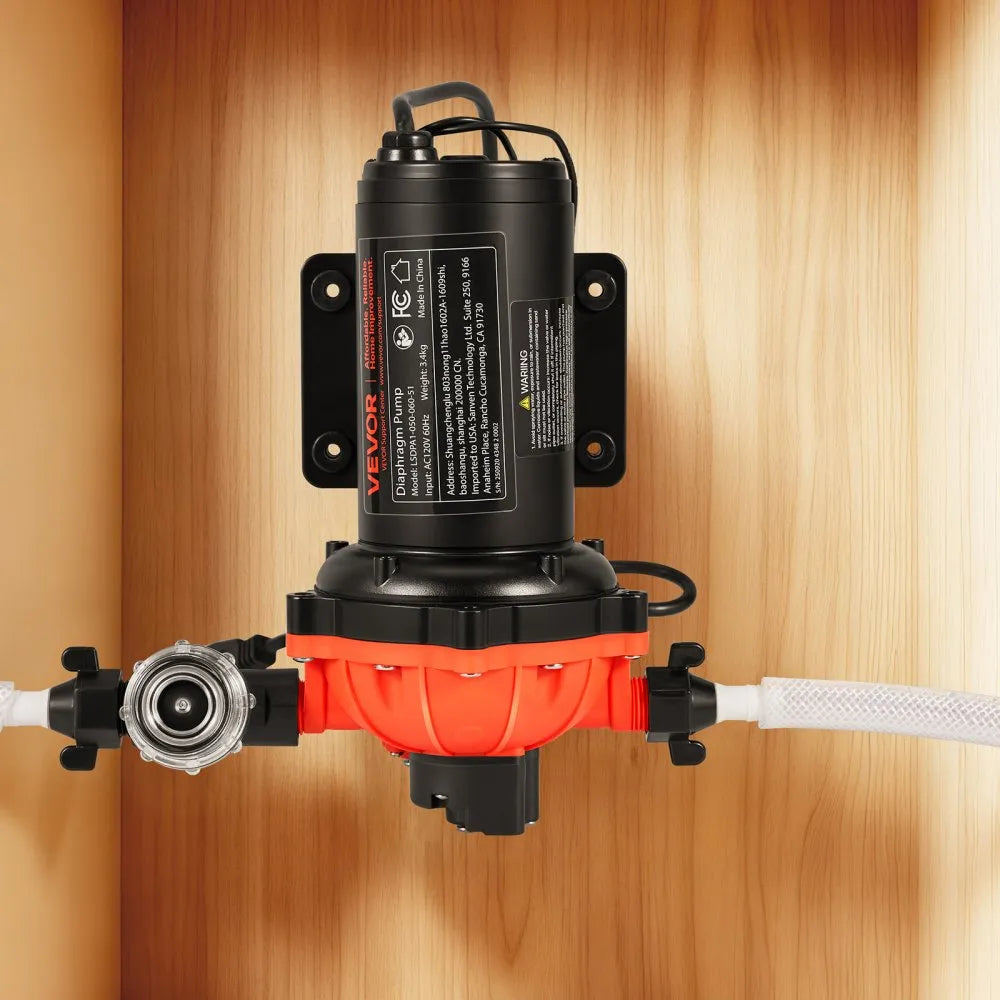

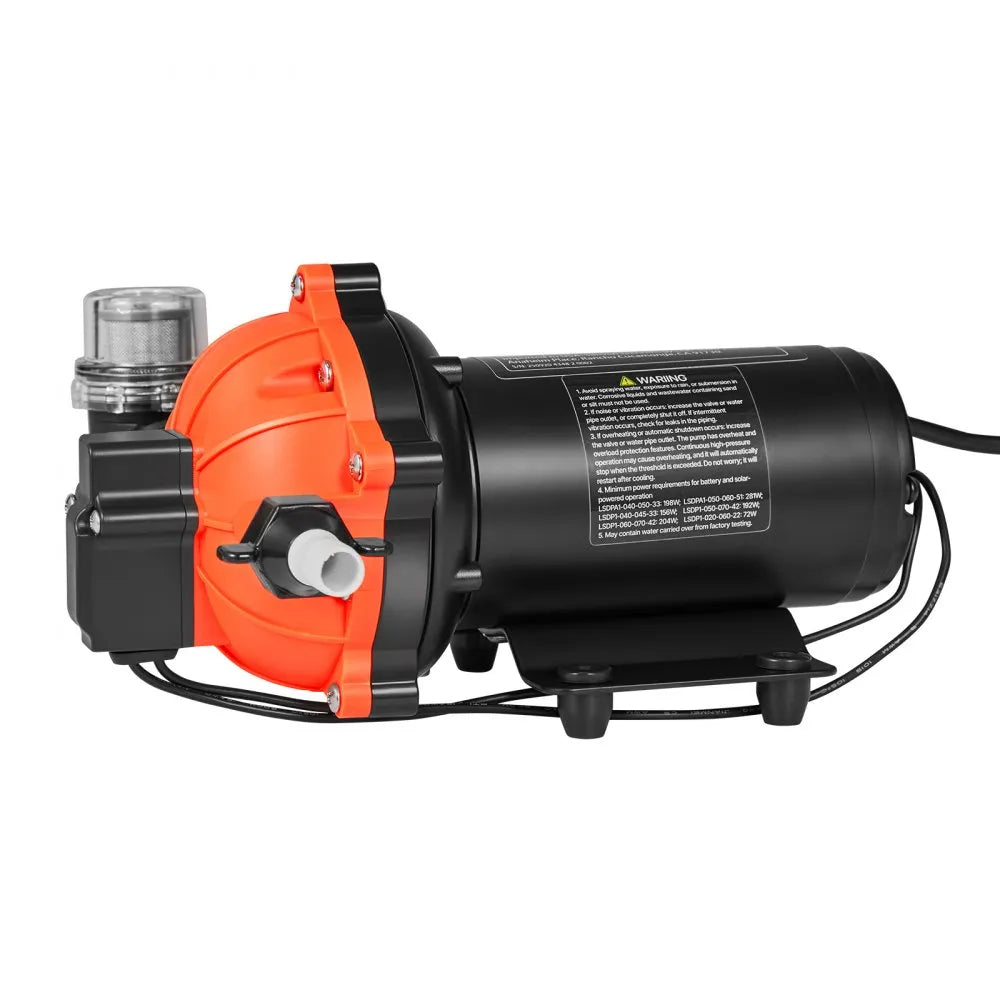

Vevor Diaphragm Water Pump 110V AC 5 GPM 60 PSI On-Demand New
Manufacturer: Vevor
SKU: DDGMSBCGK110UKMA5001V1
Number of Chambers Options
Maximum Flow Rate Options
Voltage Type Options
QTY
(888) 999-1522
$ 82.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor TC4268 ATV Dump Trailer Tow Behind Cart 1500 lbs 15 cu. ft. Capacity Removable Sides Heavy ...
-
Vevor BTC002C ATV Dump Trailer Cart 750 lbs 15 cu. ft. Capacity Removable Sides For Riding Lawn M...
-
Vevor Shallow Well Pump Portable Jet Pump with Auto Controller 1HP 23GPM New
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Diaphragm Pump 12V DC 3.5 GPM 55 PSI Self-Priming Water Pump New
-
Vevor Trimmer Tool 6-in-1 Set Gas 43cc Engine with Extension Pole New
-
Vevor Deep Well Pump 1HP 115V 37 GPM 207' Stainless Steel Submersible Water Pump New
-
Vevor Utility Pump 1 HP 4000 GPH Submersible Water Pump New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Electric Tankless Water Heater 8kW with Digital Temp Display 240V New
-
Vevor Gas Hedge Trimmer 63cc 5-in-1 Set with String Brush Cutter Pole Saw New
-
Vevor Water Transfer Pump Portable Electric Utility Pump 12V DC 360 GPH New
-
Vevor Shallow Well Pump Portable Garden Water Jet Pump New
-
Vevor Fuel Transfer Pump Kit 12V 10 GPM DC with Automatic Shut-Off Nozzle Hose New
Vevor Diaphragm Water Pump 110V AC 5 GPM 60 PSI On-Demand New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

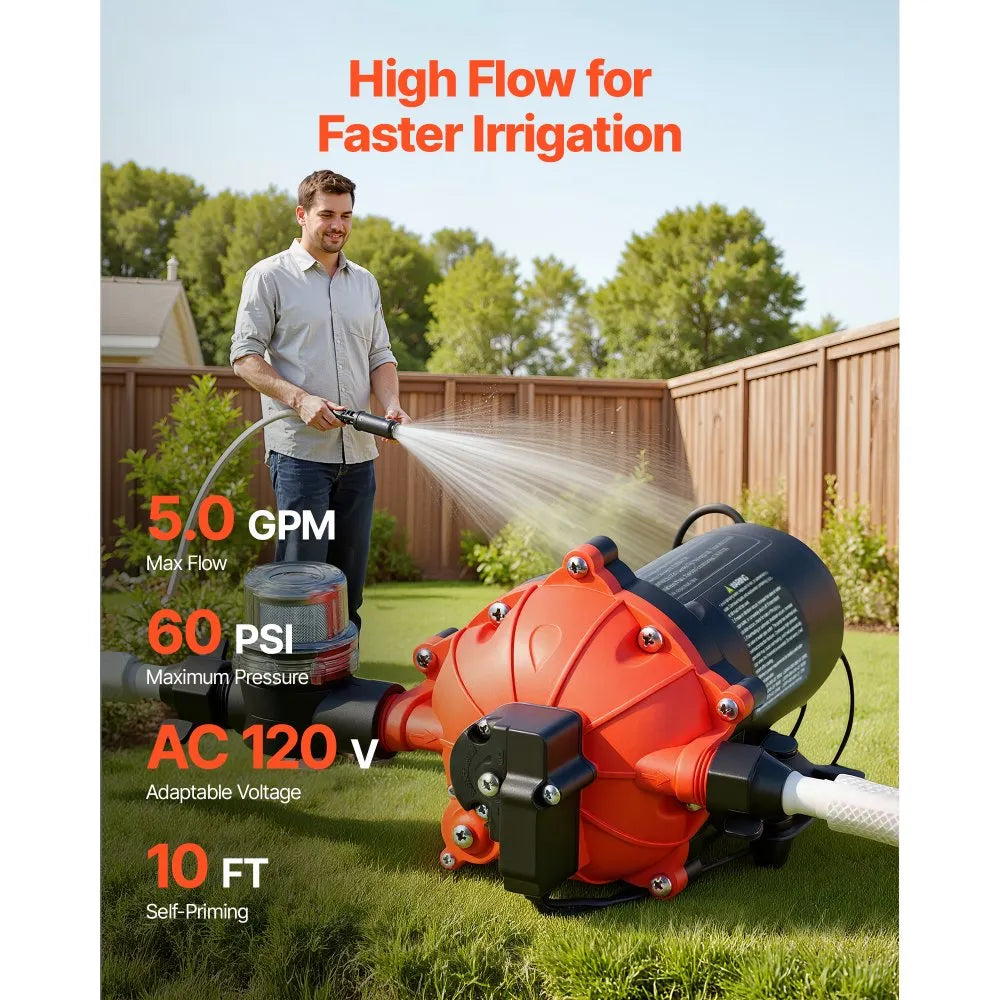

- High-Flow 5 GPM Pump: Our high-performance 120V AC diaphragm pump delivers 5 GPM (18.9 L/min) max flow, 60 PSI max pressure, and 10 ft self-priming height. Quickly draw water from distant tanks without pre-filling—supports short dry-run starts

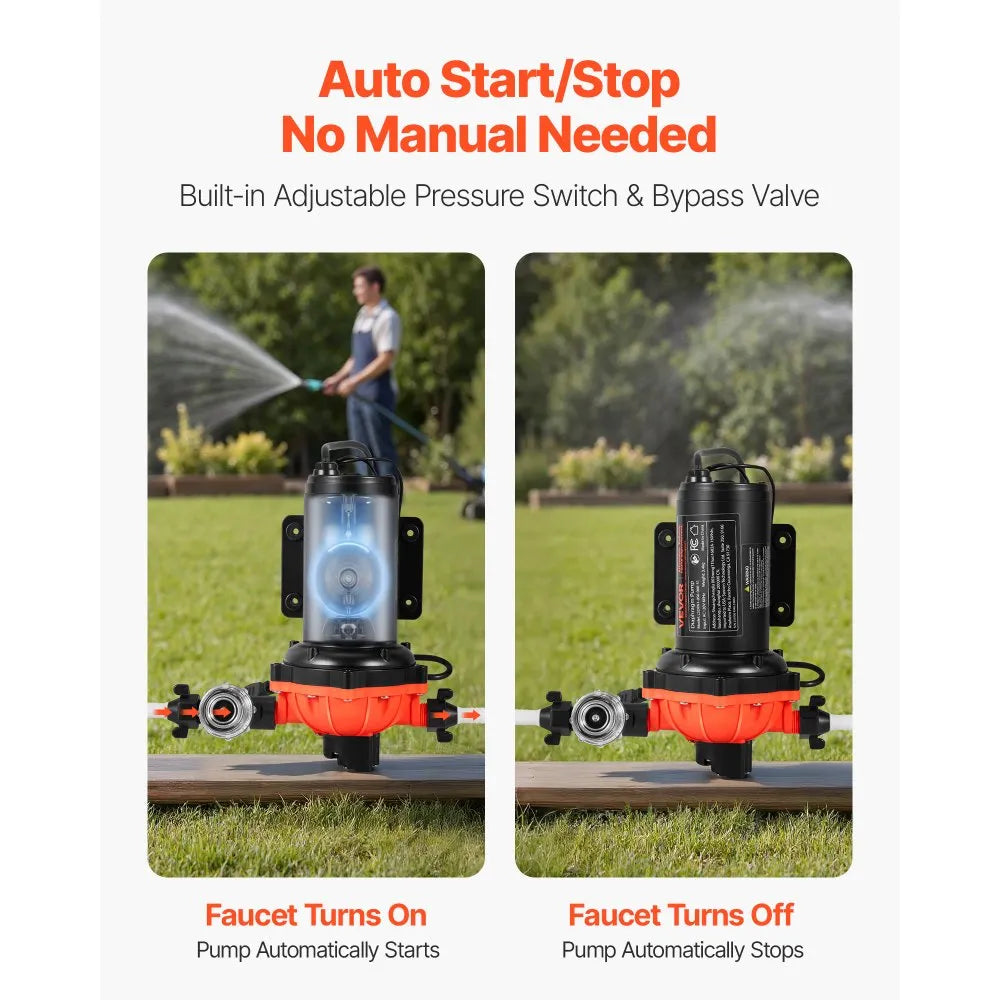

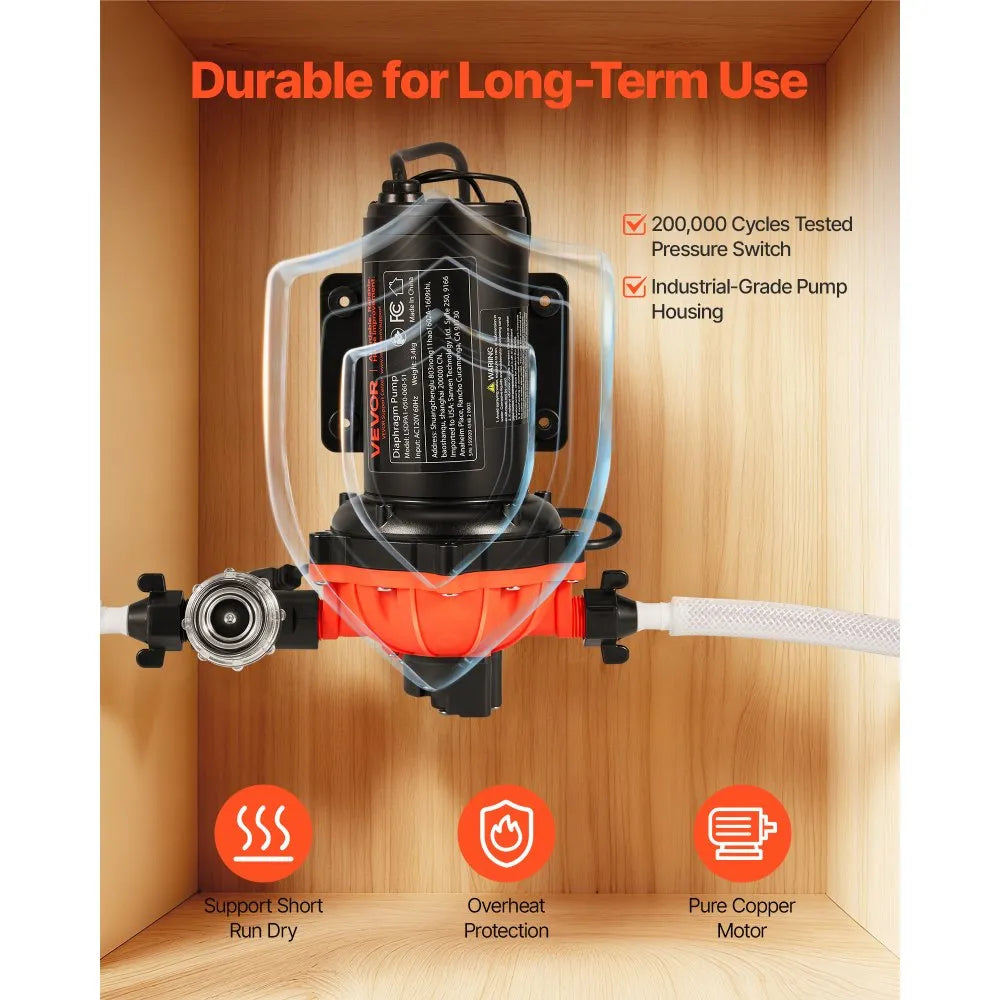

- Automatic Start & Stop: Features a pressure switch tested over 200,000 cycles and a bypass valve. Open the faucet and the water pump auto starts, close it and the pump auto stops instantly. You can also adjust the water pressure with a Phillips screwdriver (not included)

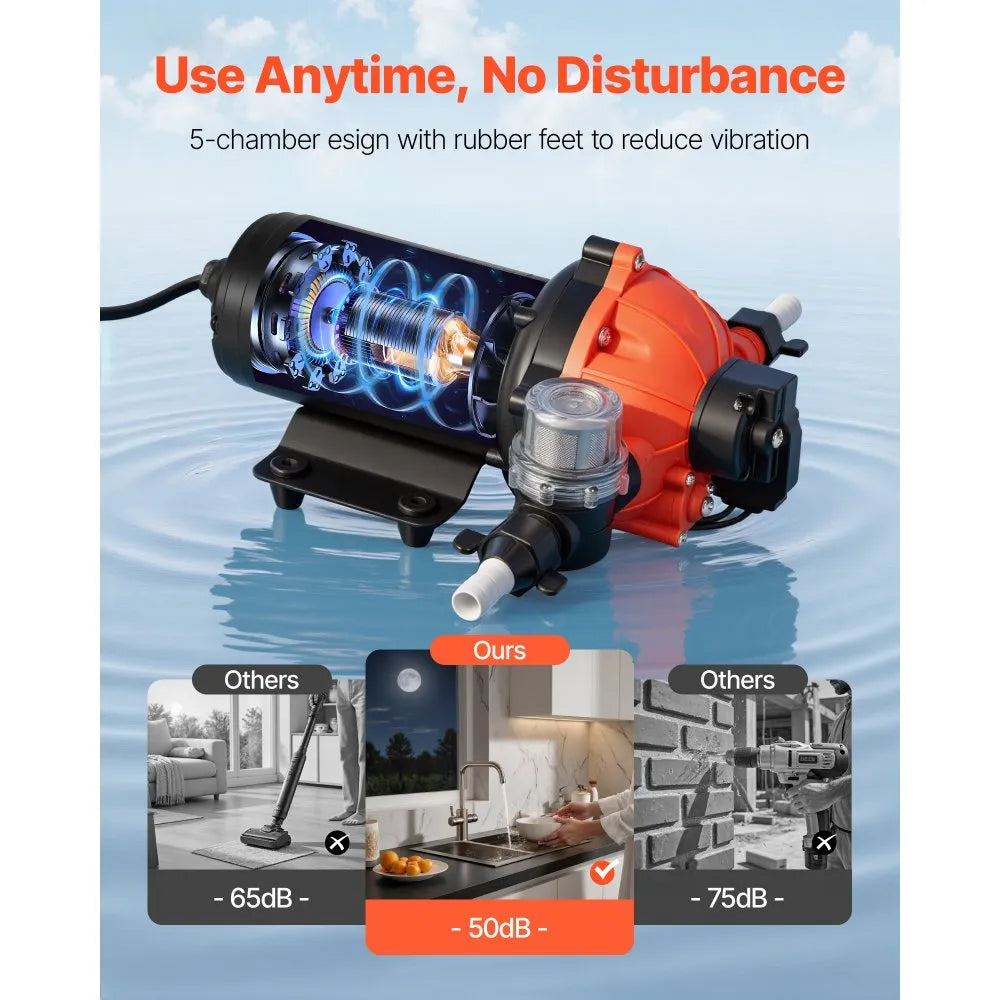

- Low Noise, Vibration Reduction: 5-chamber diaphragm pump paired with a pure copper motor for smooth operation, reducing water pulsation and vibration. Four high-rebound rubber feet absorb shocks and keep noise as quiet as a 50 dB soft conversation

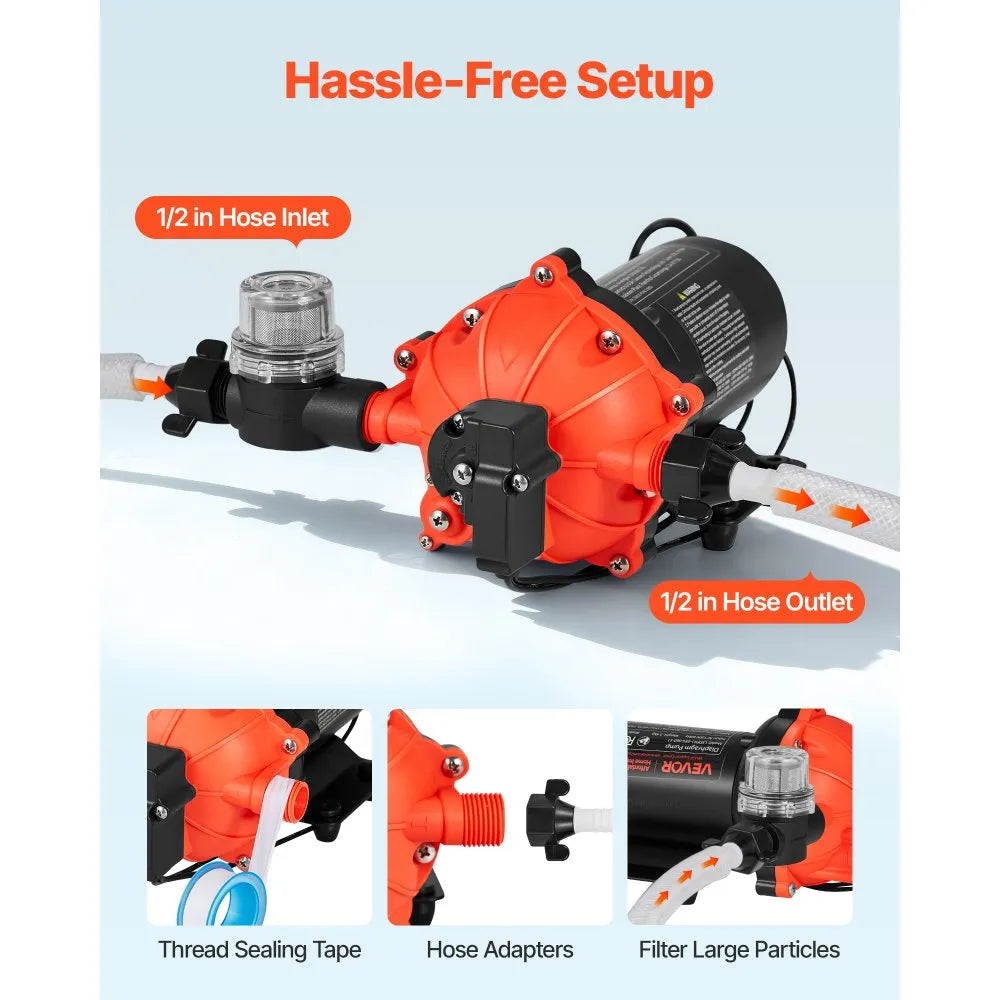

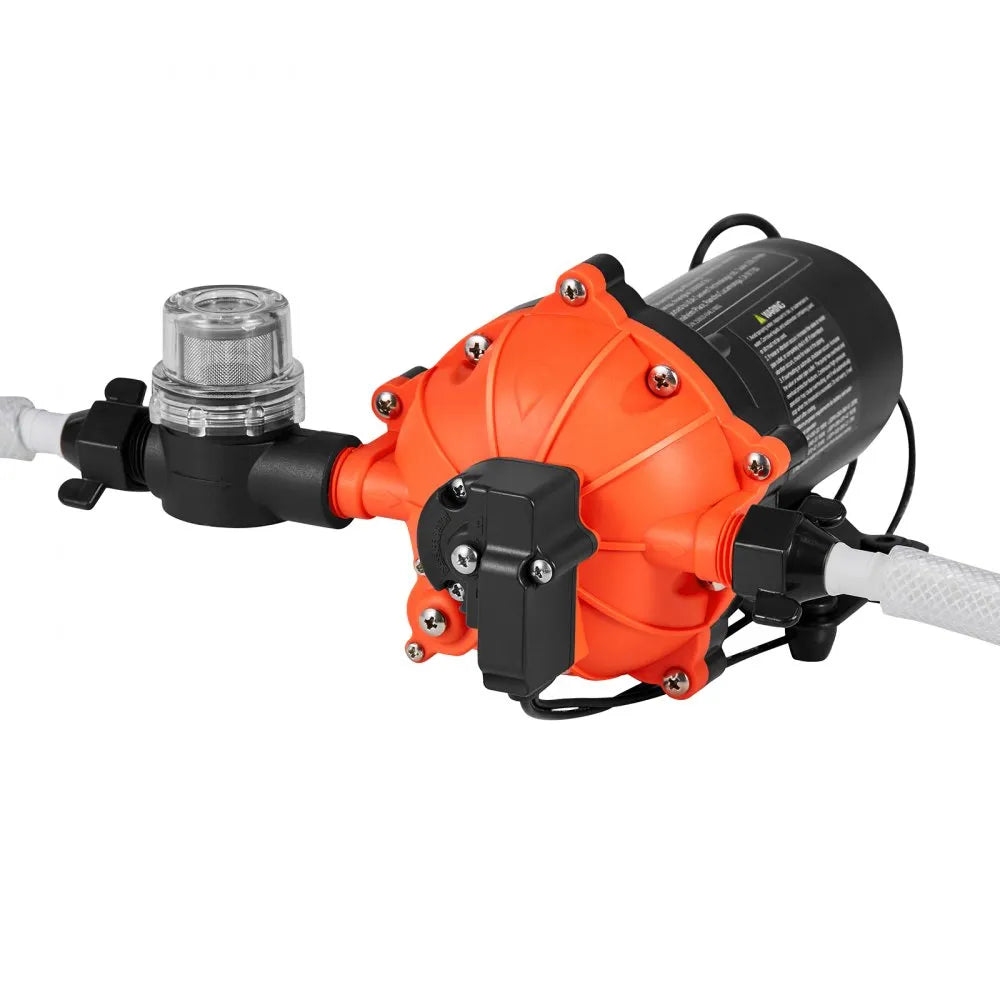

- 1/2-Inch Hose Connection: Equipped with a hose adapter, our diaphragm pump quickly connects to any standard 1/2 in hose. Stainless steel clamps reinforce the connection, PTFE tape enhances thread sealing to avoid leaks, and the filter blocks large debris
- Widely Applicable: Built to last with the overheat and overload protection. This on demand diaphragm water pump is ideal for garden irrigation, sprinklers, kitchen water boosting, faucets, and rainwater barrels. Note: Not waterproof, not for outdoor use

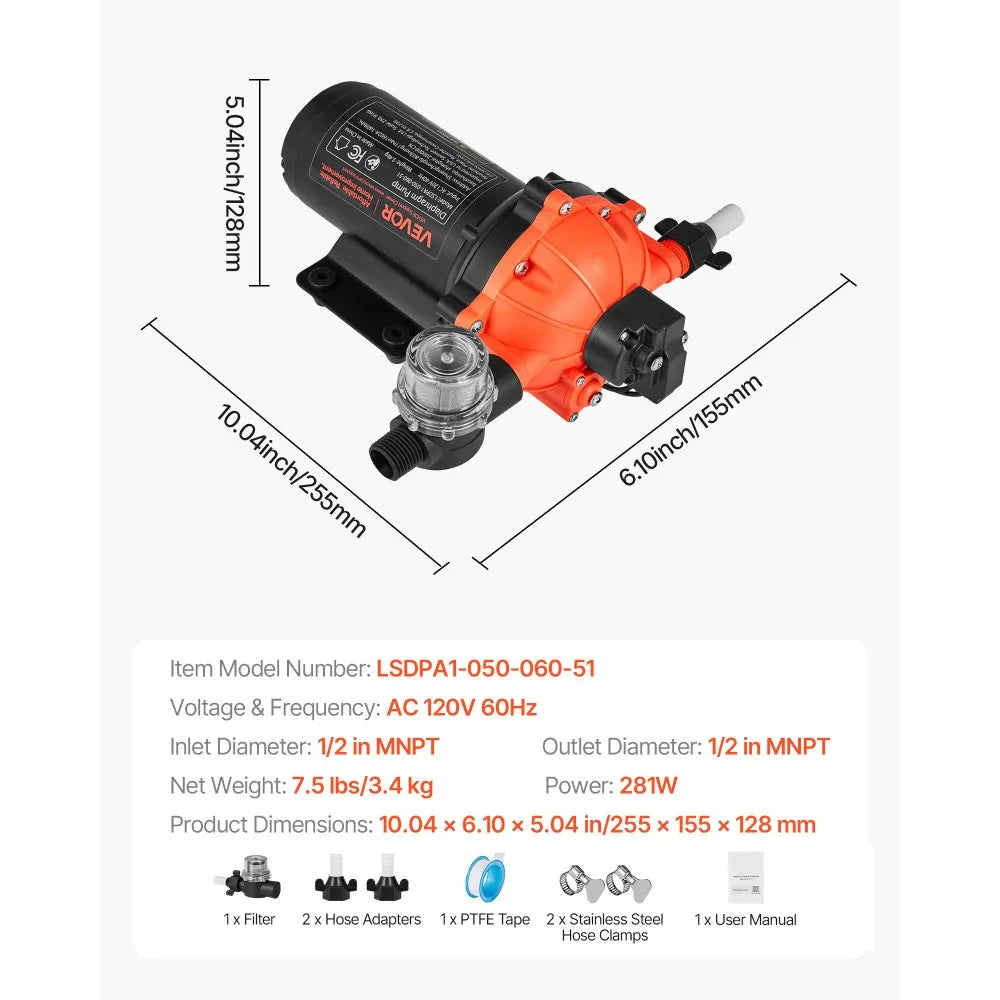

Specifications
| Model | LSDPA1-050-060-51 |
| Voltage & Frequency | AC 120V 60Hz |
| Power | 281W |
| Maximum Flow Rate | 5 GPM |
| Maximum Pressure | 60 PSI |
| Self-Priming Height | 10' |
| Number of Chambers | 5 |
| Inlet Diameter | 1/2 in MNPT |
| Outlet Diameter | 1/2 in MNPT |
| Noise Level | 50 dB or less |

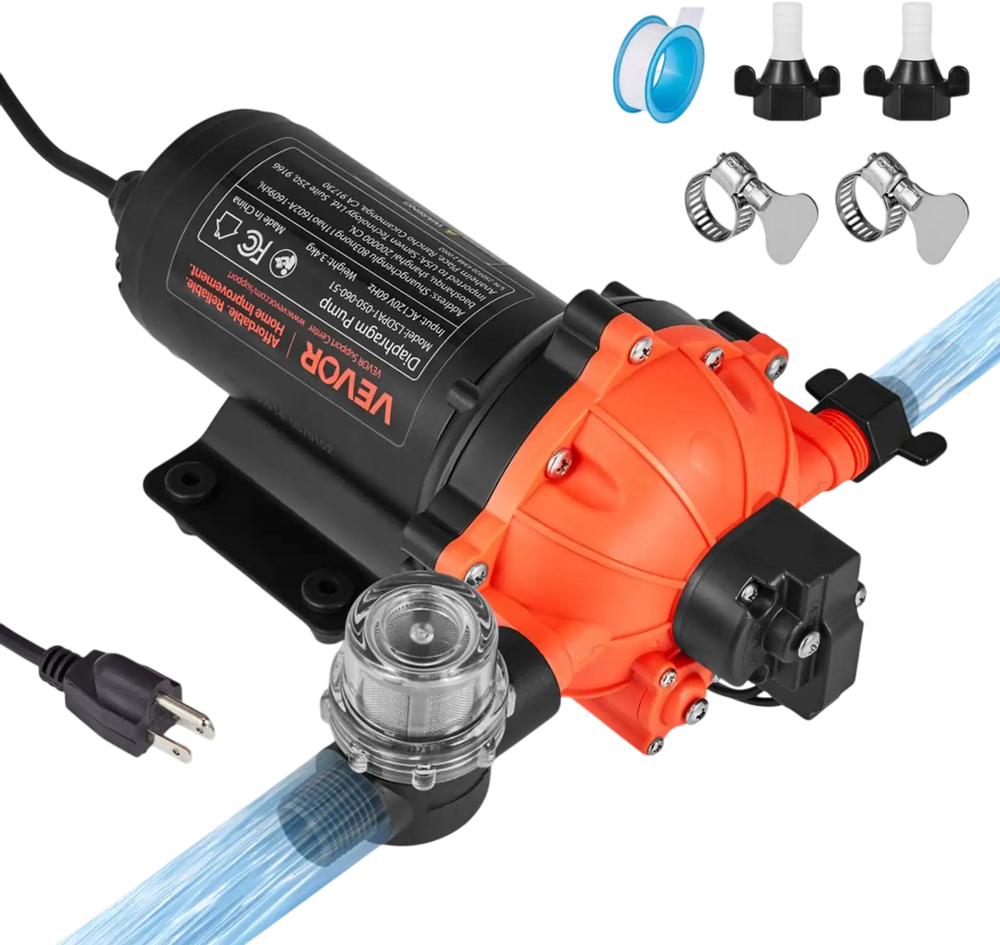

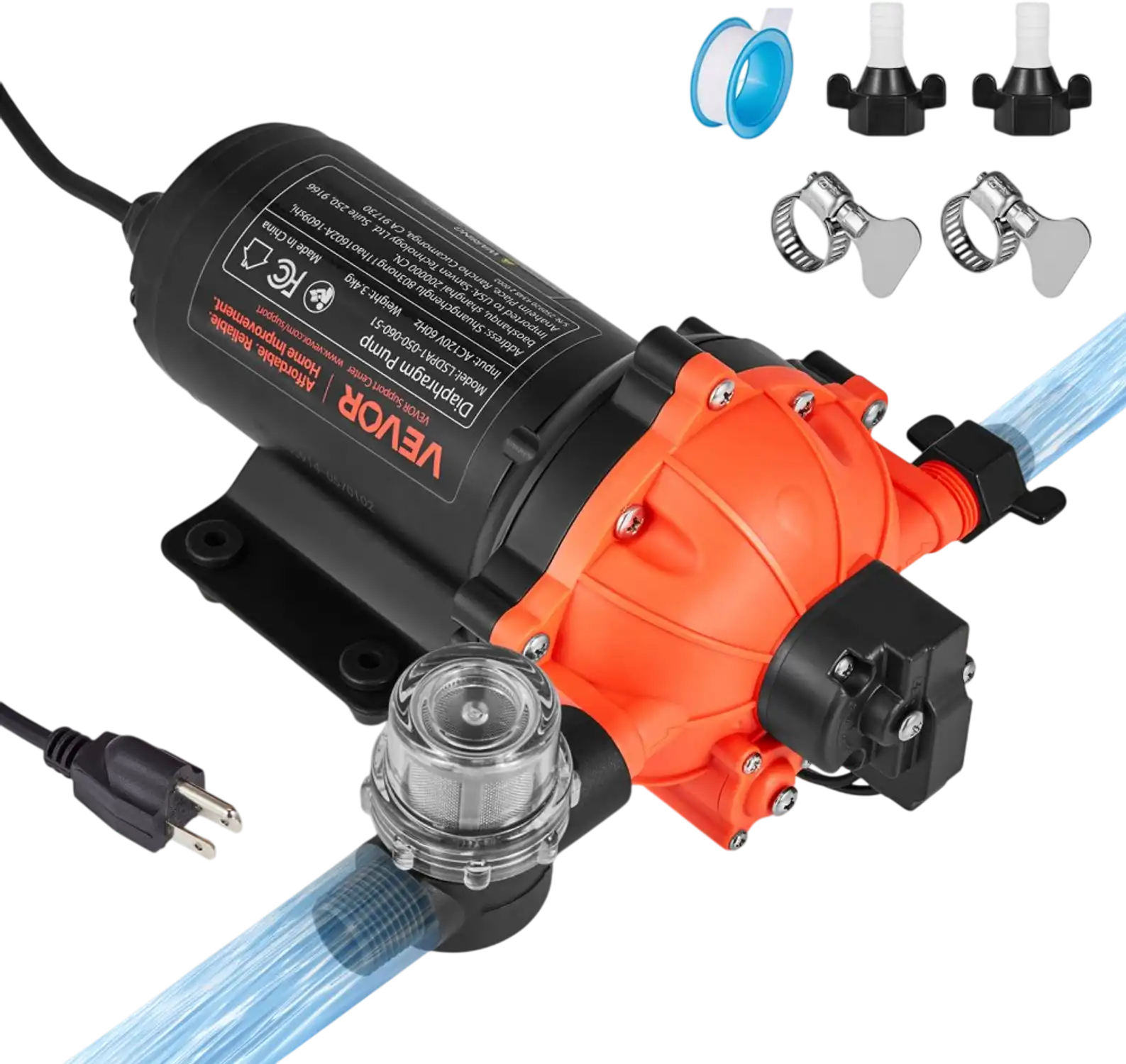

Package Contents
Diaphragm water pump
Hose adapter
Stainless steel clamps
PTFE tape
Filter
Warranty
This item comes with a 1 year factory warranty.
