Vevor Digital Readout 3-Axis DRO Display Kit New
Product Overview
The Vevor 3-axis DRO display kit is designed for precise three-dimensional measurement on machine tools and workpieces. It includes three linear scales with 6", 12", and 24" measuring ranges for versatile installation across multiple axes. The display supports inch and millimeter conversion, relative and normal measuring modes, and fractional readouts for detailed work. With 10μm resolution, a clear display, and included mounting hardware, it is well suited for low to moderate precision machining applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

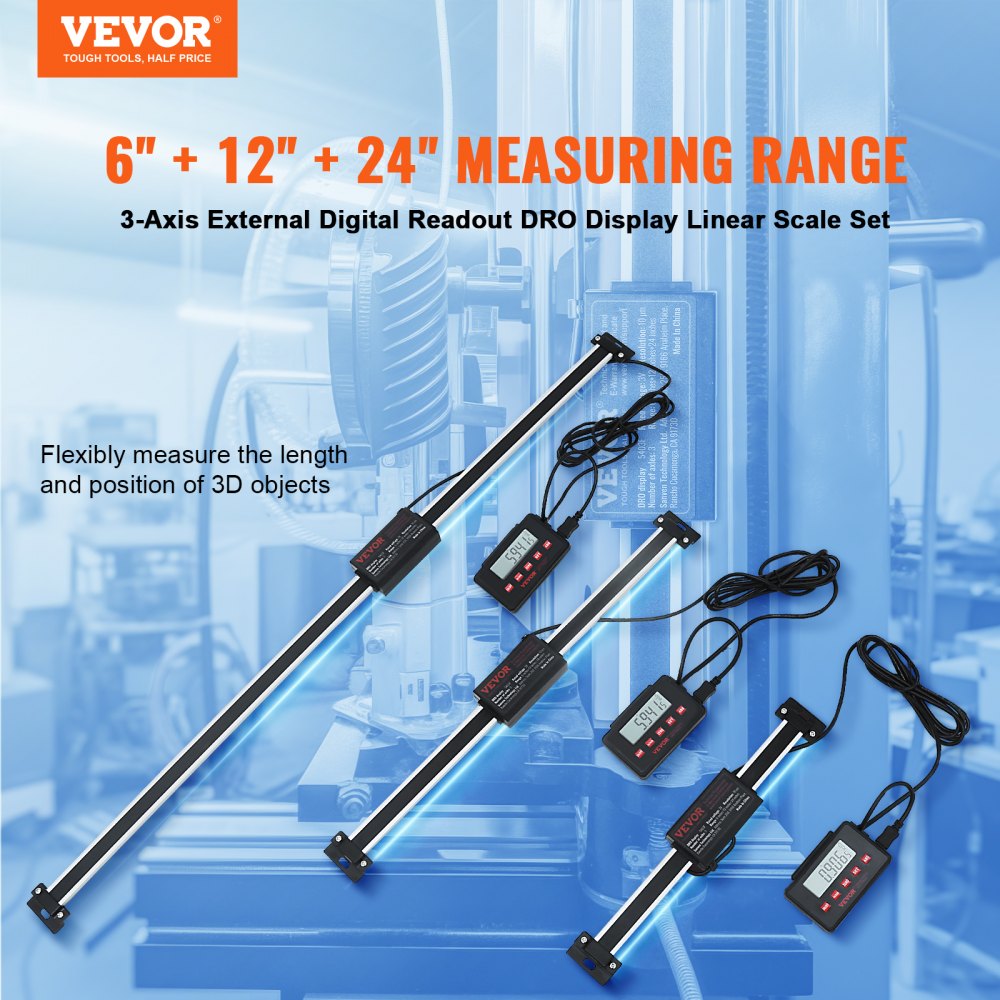

- 6'' + 12'' + 24'' Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 6 in (150 mm), 12 in (300 mm), and 24 in (600 mm). Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Craftsmanship without limits.

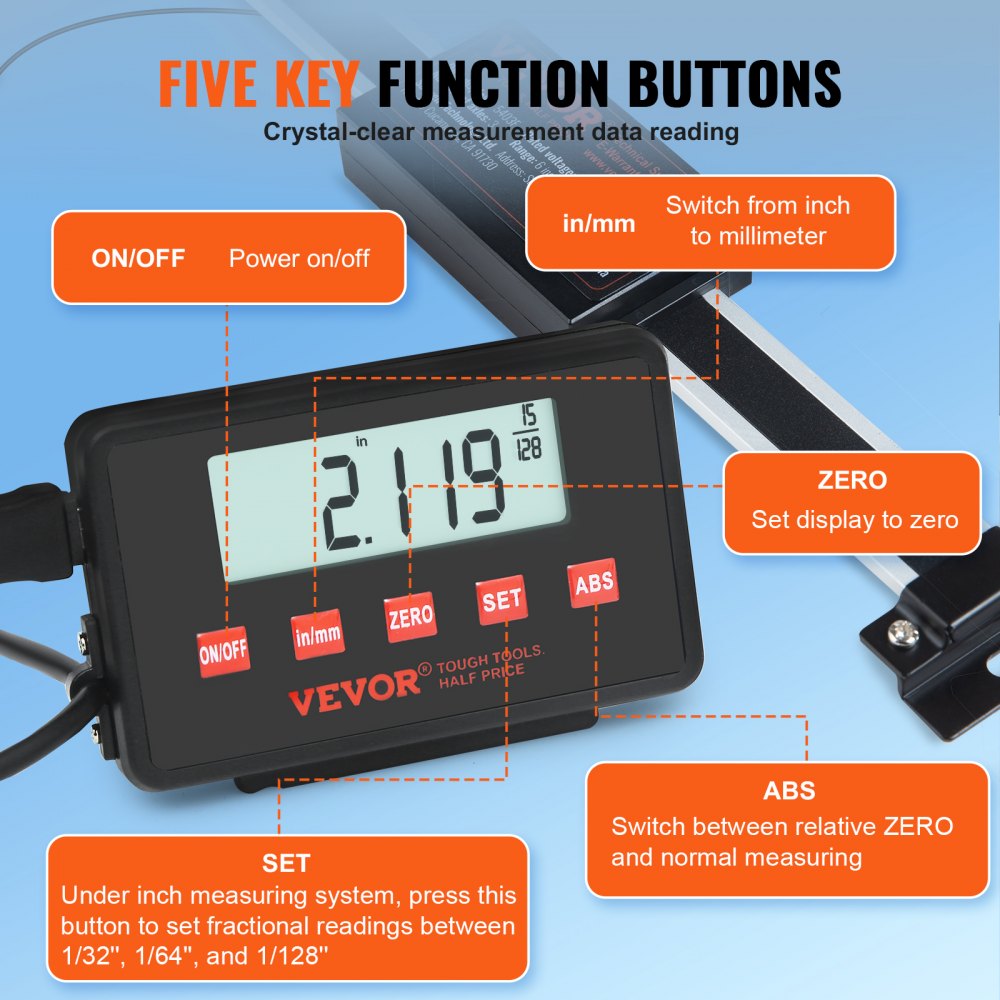

- Multifunctional Crystal-Clear Display: Our high-definition display screen, built with a top-notch chip, effortlessly displays decimals and fractions. It enables switching from inch to millimeter, setting display to zero, switching between relative zero and normal measuring, and making resolution adjustments. Under the inch measuring system, press this button to set fractional readings between 1/32'', 1/64'', and 1/128''. Precision made easy, down to the finest detail.

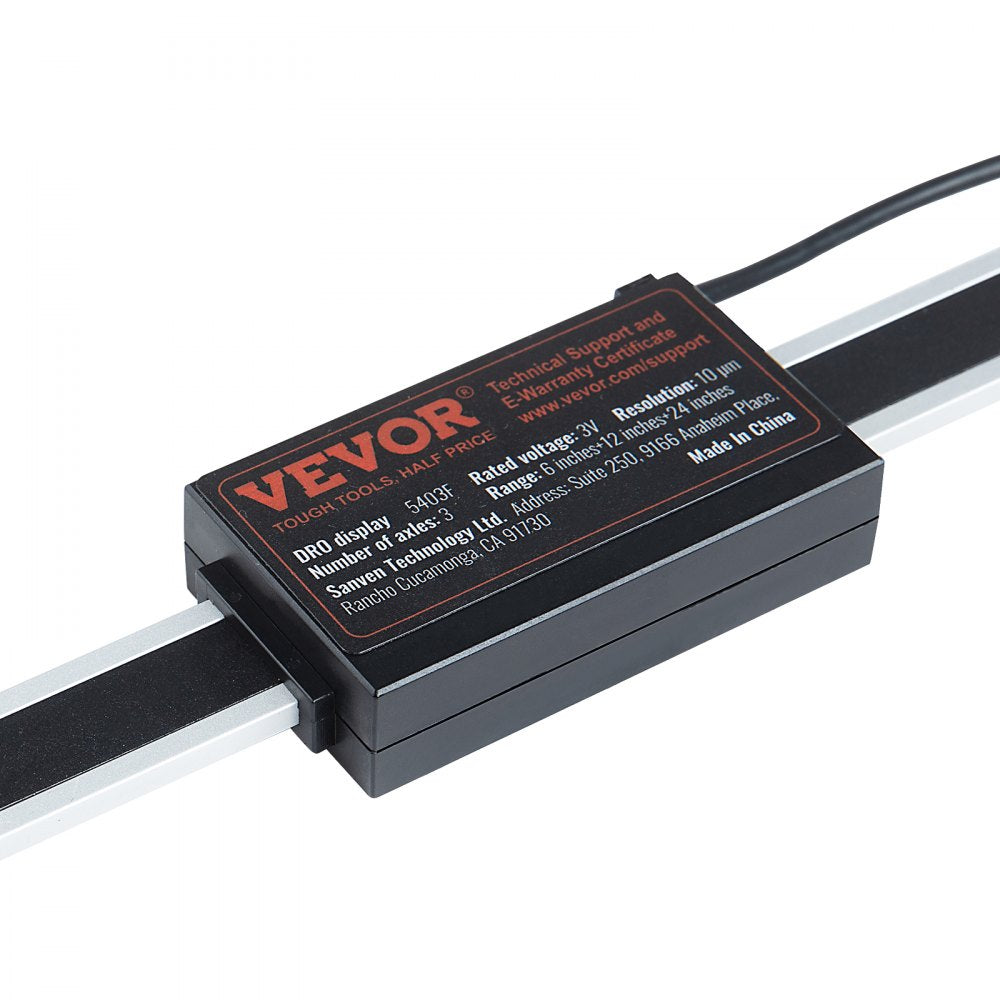

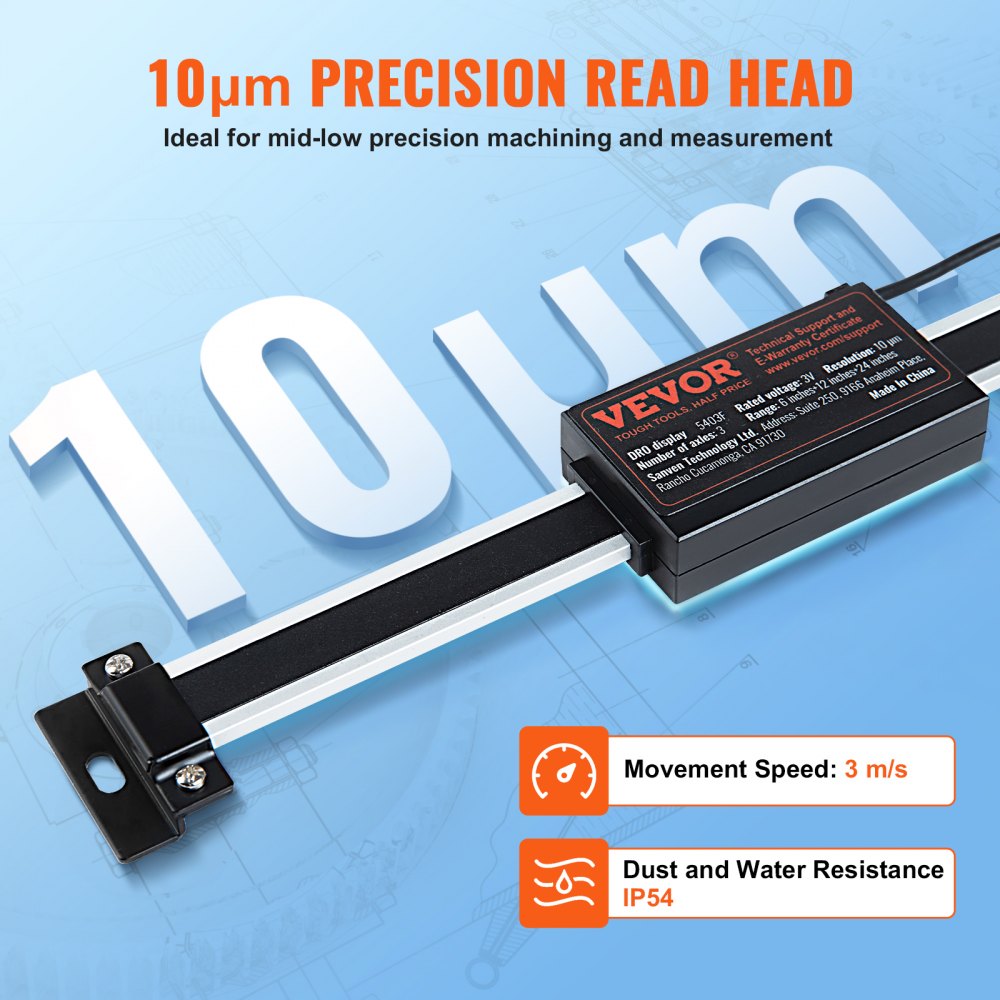

- 10μm Precision Read Head: Our fully enclosed linear scale set boasts 10μm resolution for minimal length measurement error, even the longest 24-inch (600 mm) linear scale having only 0.006'' (0.15 mm) of error, making it perfect for low to moderate precision machining and measurements. It features a 3 m/s movement speed without overspeed error and a corrosion-resistant dust cover to achieve an IP54 dust and waterproof rating.

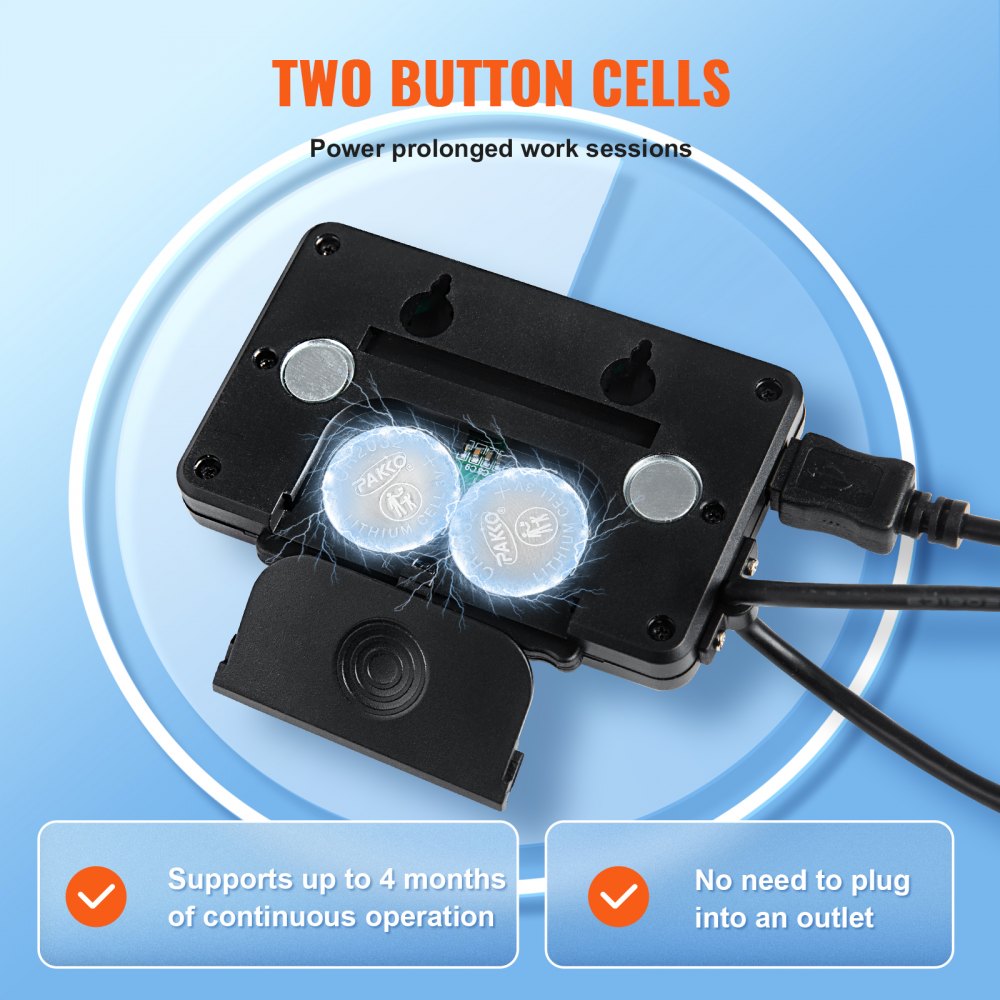

- 3V Long-Lasting Button Cells: Our linear scale set's display screen is powered by two 3V button cells discreetly placed on the back. No need for additional power sources. Enjoy up to 4 months of continuous operation, and when it's time for replacement, it's a hassle-free endeavor. Power your precision with ease.

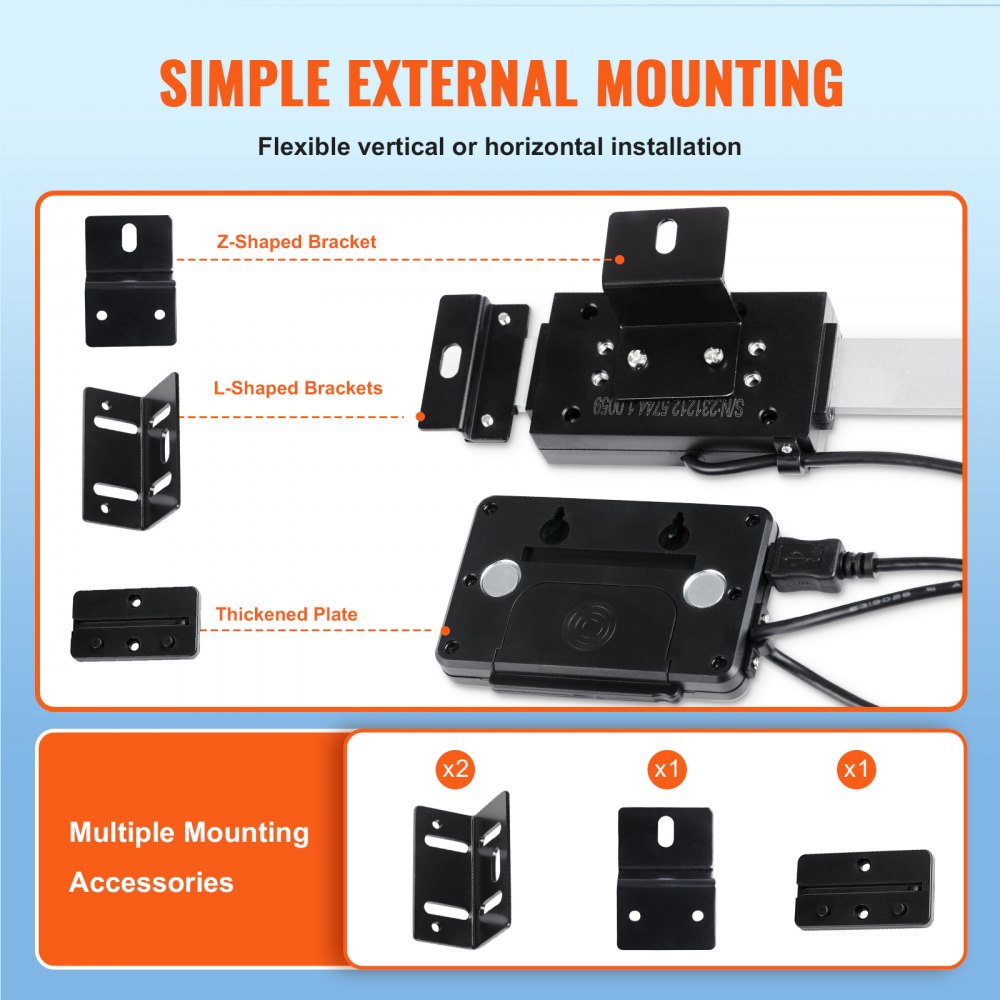

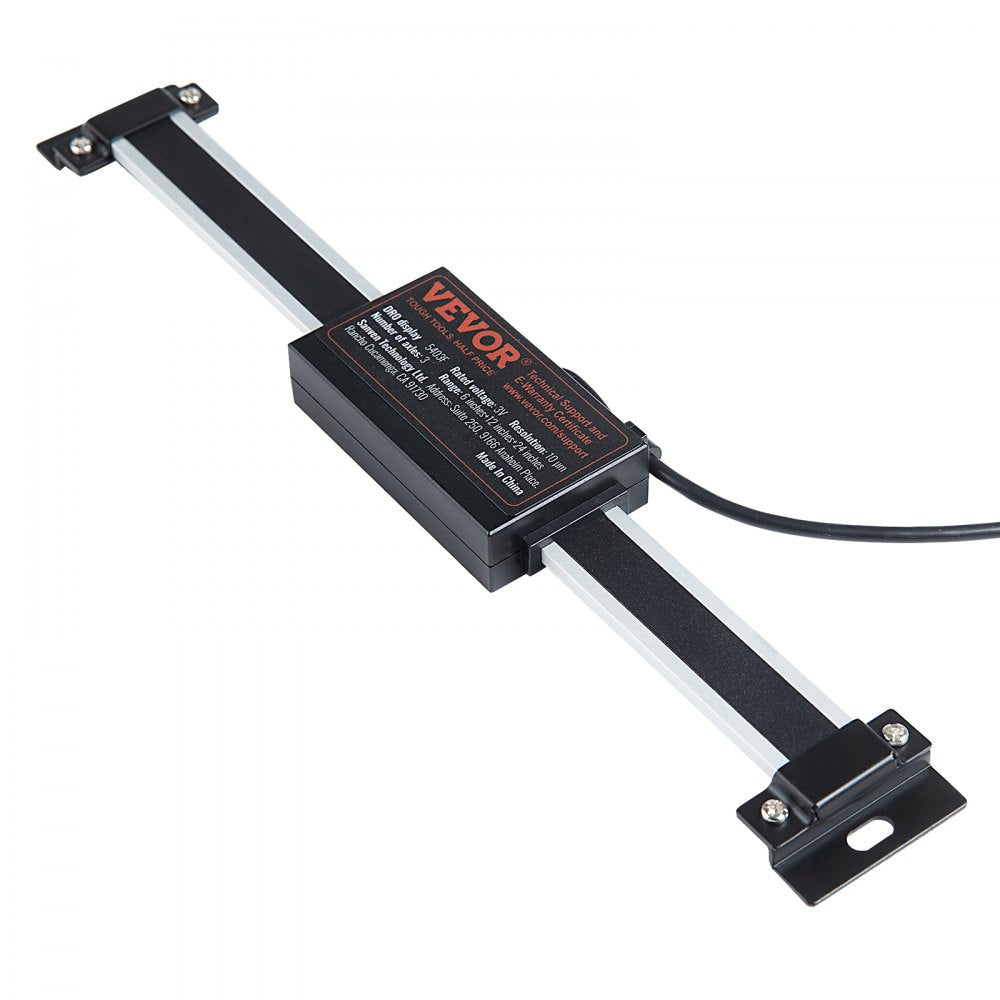

- Installation Made Easy: There are mounting holes on the back of the read head, and we provide 2 L-shaped brackets, 1 Z-shaped bracket, and 1 thickened plate for each linear scale. Totaling 12 installation accessories, allowing for vertical or horizontal installation, it perfectly complements a variety of machine tools, including cutting and drilling machines. Plus, the display screen's backside is equipped with dual magnets for a secure attachment to iron surfaces.

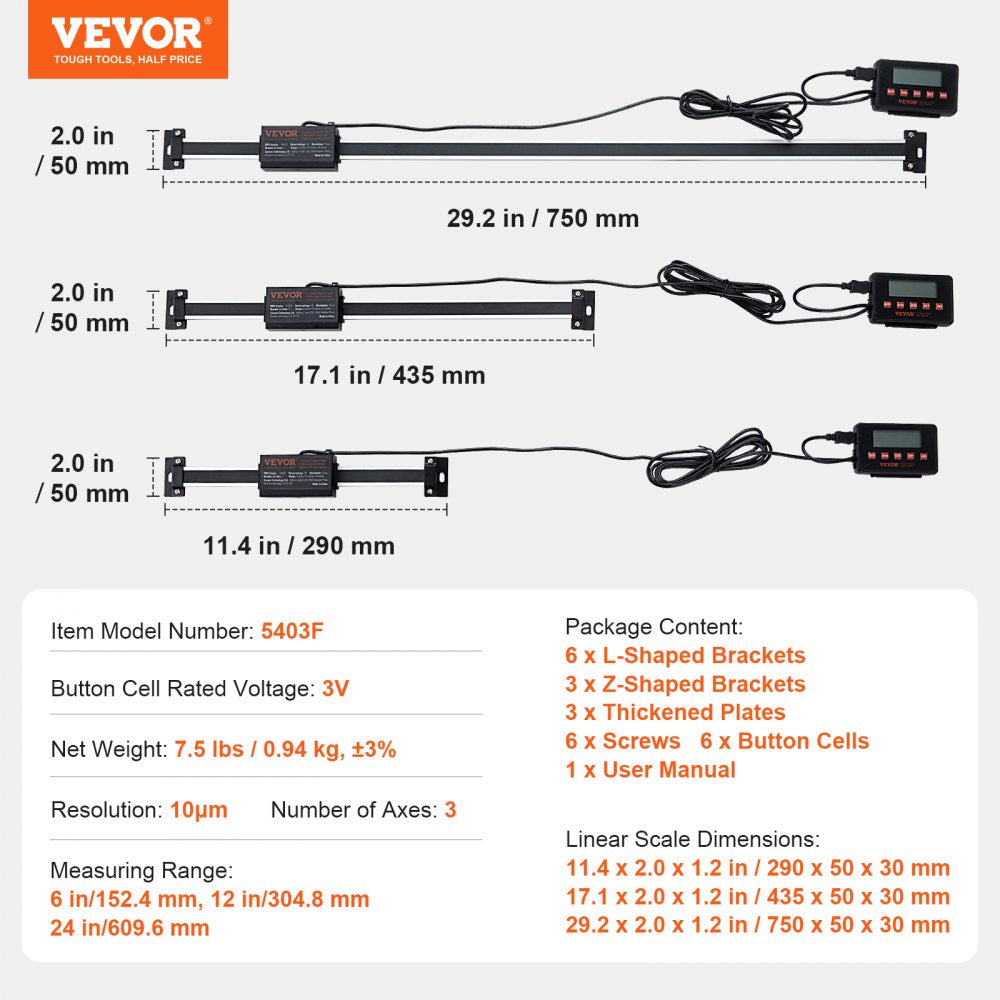

Specifications
| Item Model Number | 5403F |
| Button Cell Rated Voltage | 3V |
| Resolution | 10μm |
| Number of Axes | 3 |
| Measuring Range | 6" / 152.4 mm, 12" / 304.8 mm, 24" / 609.6 mm |
| Net Weight | 7.5 lbs |
| Linear Scale Dimensions | 11.4 x 2.0 x 1.2", 17.1 x 2.0 x 1.2", 29.2 x 2.0 x 1.2" |

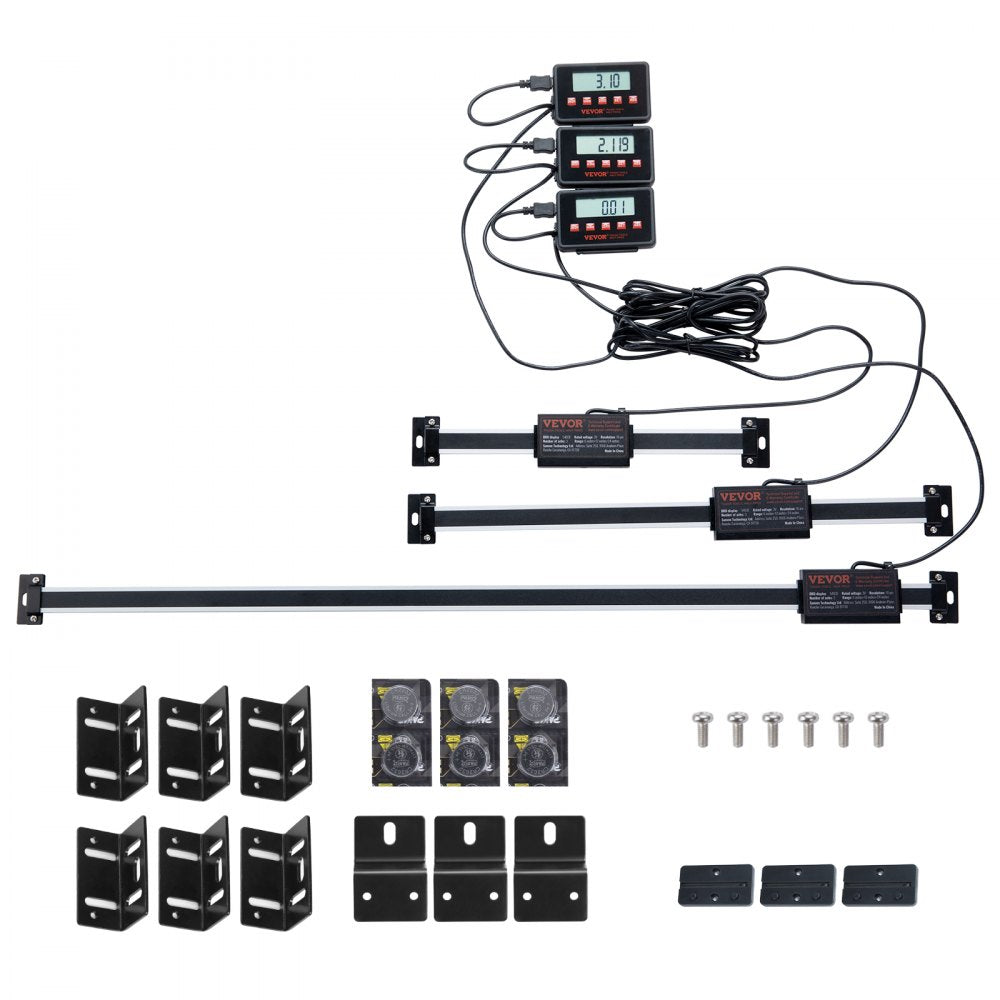

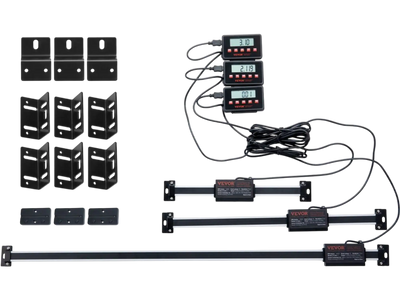

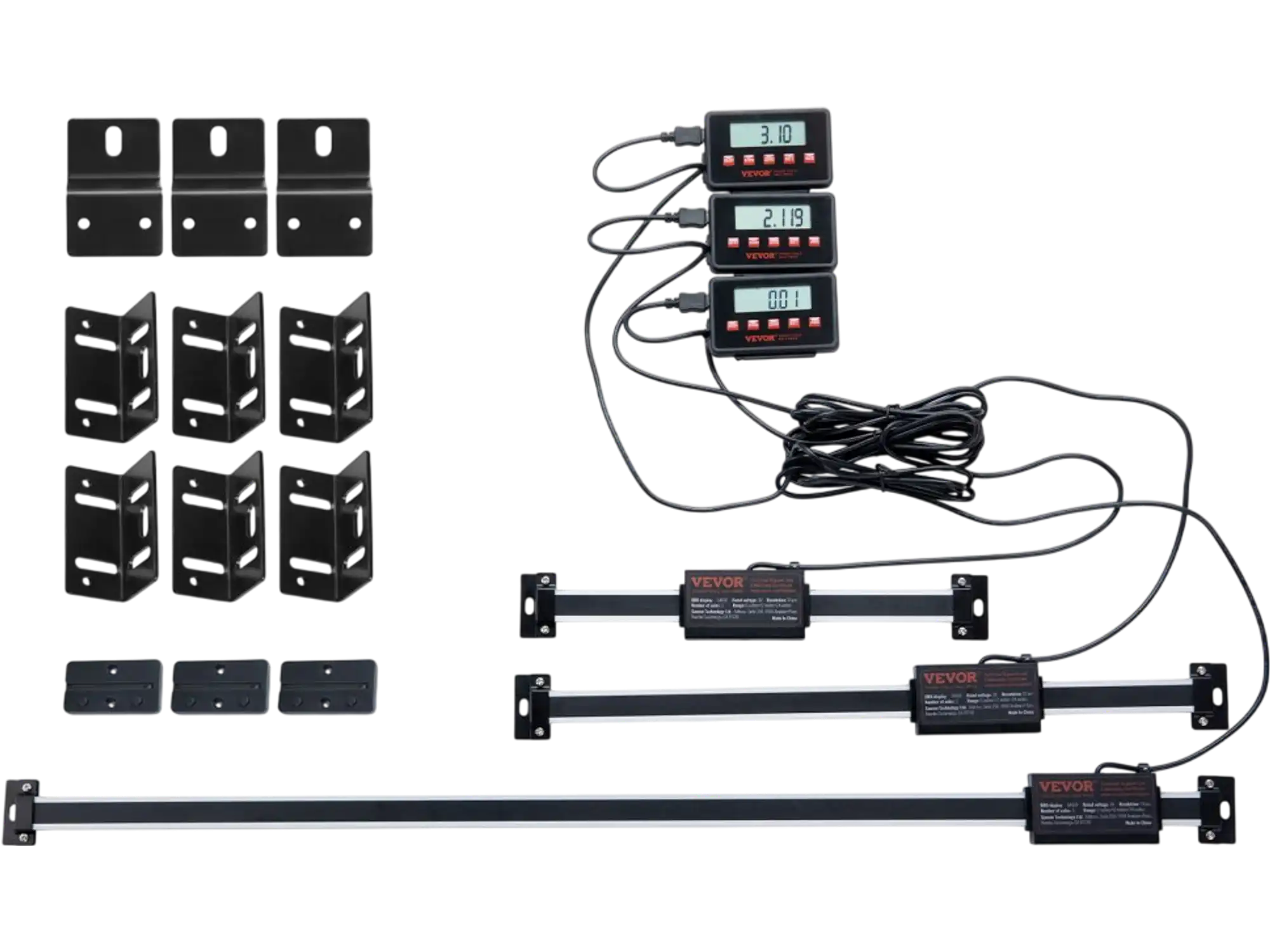

Package Contents
3-axis digital readout display
6" linear scale
12" linear scale
24" linear scale
2 L-shaped brackets for each linear scale
1 Z-shaped bracket for each linear scale
1 thickened plate for each linear scale
Screws
Button cells
Warranty
This item comes with a 1 year factory warranty.
