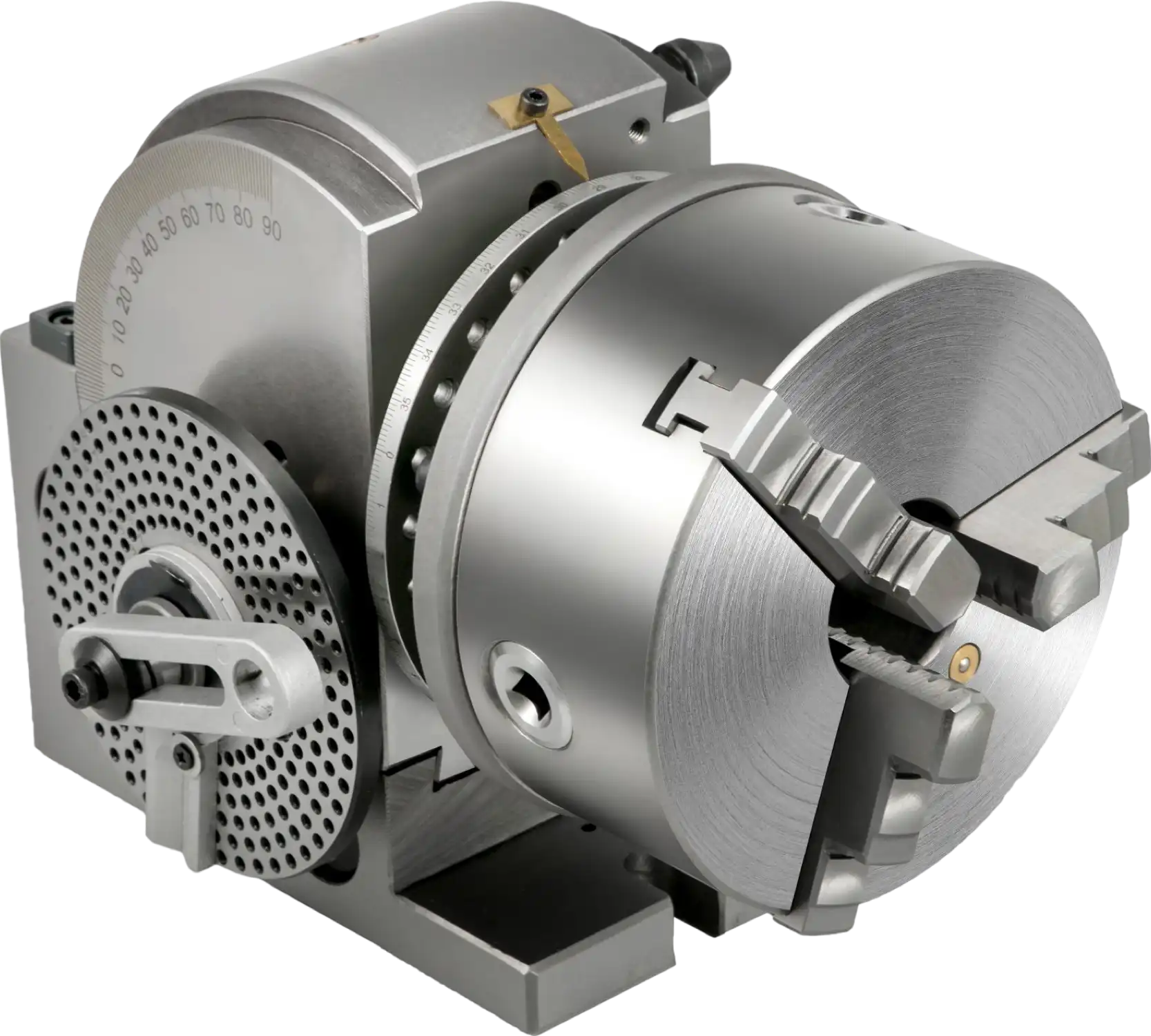

Vevor Dividing Head BS-1 with 6" 3-Jaw Chuck Tailstock Dividing Plates Semi-Universal Milling Set New
Manufacturer: Vevor
SKU: FDTBS-1LYC0000001V0
QTY
(888) 999-1522
$ 299.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Vevor Dividing Head BS-1 with 6" 3-Jaw Chuck Tailstock Dividing Plates Semi-Universal Milling Set New
Product Overview
Vevor's semi-universal dividing head set includes a 6-inch 3-jaw chuck, tailstock, and dividing plates. Suitable for vertical and horizontal milling, it is adjustable from 0-90°. Designed with a rotary table and indexing chuck for convenient operation. The rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90° upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm. Free 3 more jaws for 6" chuck.
- Solid Construction: This indexing head is made of durable HT200 for a long service life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.
- Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
- MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.
- Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.
Specifications
| Chuck Diameter | 6" |
| Spindle Speed | 2500 RPM |
| Swing | 6-1/2" |
| Center Height | 5" |
| Reduction Ratio | 1:40 |
| Tailstock | MT3 |
| Headstock Dimensions | 4.4" x 7.9" x 11.8" |
| Tailstock Dimensions | 4.5" x 6.6" x 5.2" |
| Net Weight | 77 lbs (35 kg) |
Package Contents
Vevor Dividing Head Set
(2) Dividing Plates
(3) 6" Chuck Jaws
Dead Center
Tailstock
Related Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
