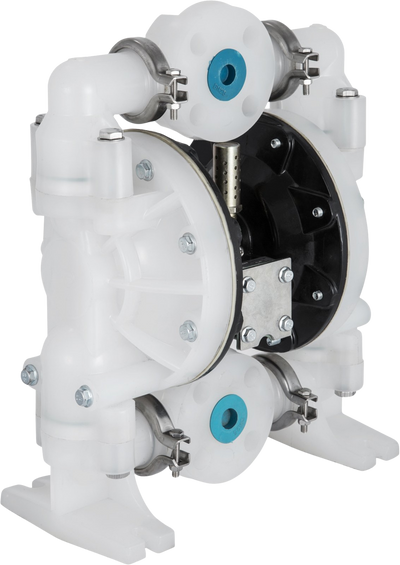

Vevor Double Diaphragm Pump Air-Operated 1" Inlet/Outlet 30 GPM 120 PSI New
Product Overview
Vevor's self-priming diaphragm pump features an all-bolted polypropylene body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids including waste oil, alcohol, hydraulic fluid, gasoline, water, and more.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：79.6 GPM; Max Head Lift：275.6 ft/84 m.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port: DN25PN10 Flange Connection; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Specifications
| Item Model # | QBY4-25PP |
| Type | Double Diaphragm |
| Body Material | Polypropylene |
| Inlet/Outlet Port | 1" |
| Air Inlet Size | 1/2" |
| Max Flow Rate | 79.2 GPM |
| Suction | 0-16.4 ft. (0-5 m) |
| Max Suspended Solids | 1/8 inch (3 mm) |
| Max Head Lift | 275 ft. (84 m) |
| Max Pressure | 120 psi |
| Self-Priming Dry | 10 ft (3 m) |
| Self-Priming Wet | 15 ft (4.6 m) |
| Product Dimensions | 11.8" x 7.9" x 15.8" |
| Weight | 22 lbs (10 kg) |
Package Contents
Vevor Air-Operated Double Diaphragm Pump
User Manual
Warranty
This item comes with a 1 year factory warranty.
