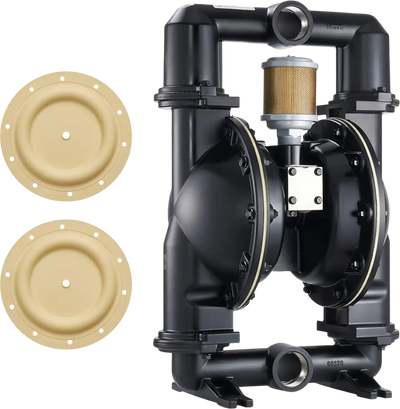

Vevor Double Diaphragm Pump Air Operated 158 GPM 2" Inlet/Outlet Max 114 PSI New
Manufacturer: Vevor
SKU: QDGMBLHJBT2I1YH7J001V0
QTY
or
(888) 999-1522
$ 518.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Double Diaphragm Pump Air Operated 158 GPM 2" Inlet/Outlet Max 114 PSI New
Product Overview
Featuring triple-layer rubber diaphragms and a fully bolted structure for a secure seal and long-lasting reliability. With a 158 GPM max flow rate, 262 ft. max head lift, and standard port size, it efficiently transfers waste oil. This pump features a professional pneumatic design with industry-standard ports, integrating seamlessly with your piping system for secure and dependable performance. Equipped with a sealed ball valve, it avoids backflow while allowing quick access to the valve and cover for easy inspection and maintenance.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

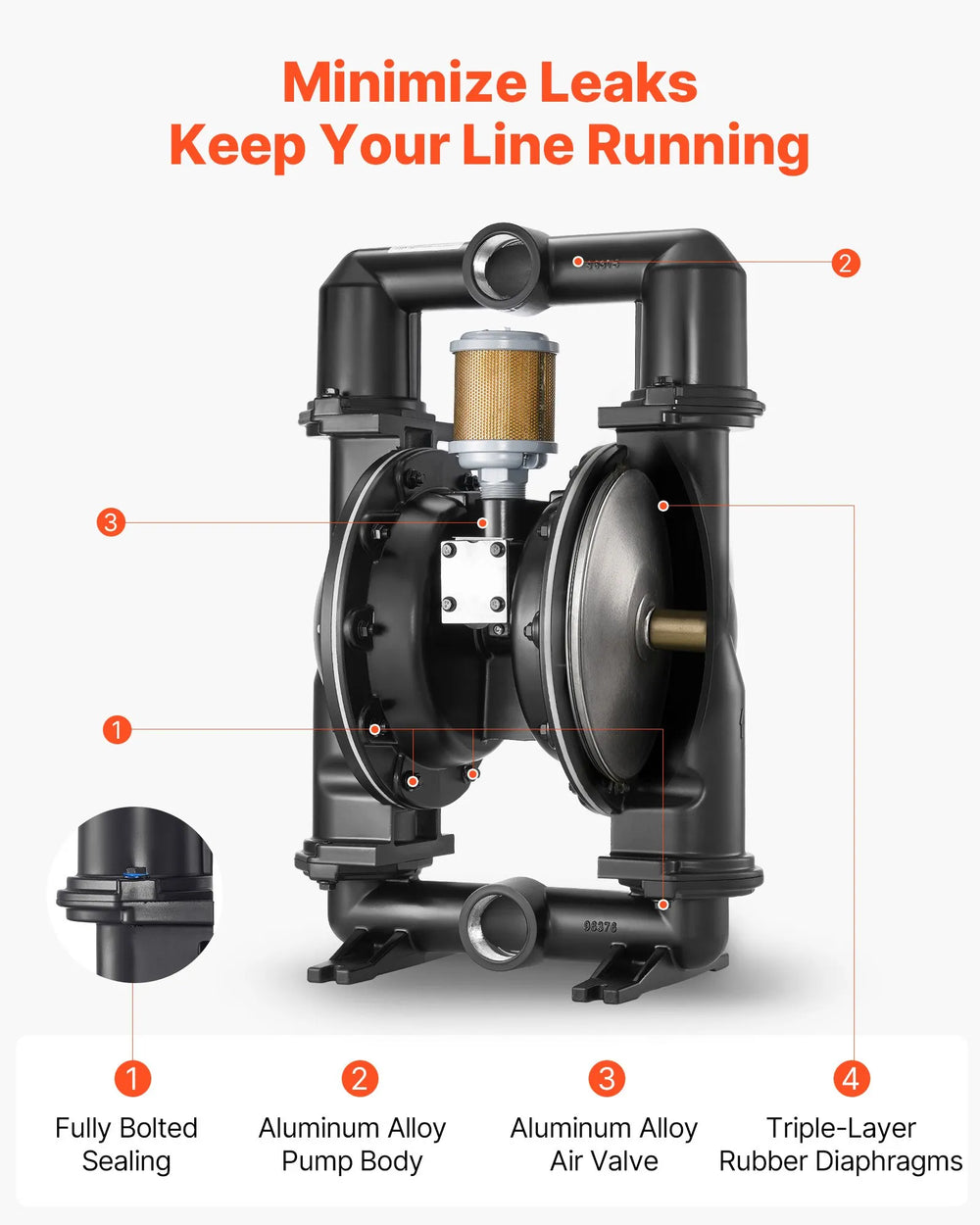

- Durable & Leak-Proof: Equipped with an aluminum alloy pump body and triple-layer rubber diaphragms for wear resistance. This air operated diaphragm pump features a full-bolt structure for a secure seal. Built for long-term use, it runs dry without damage.

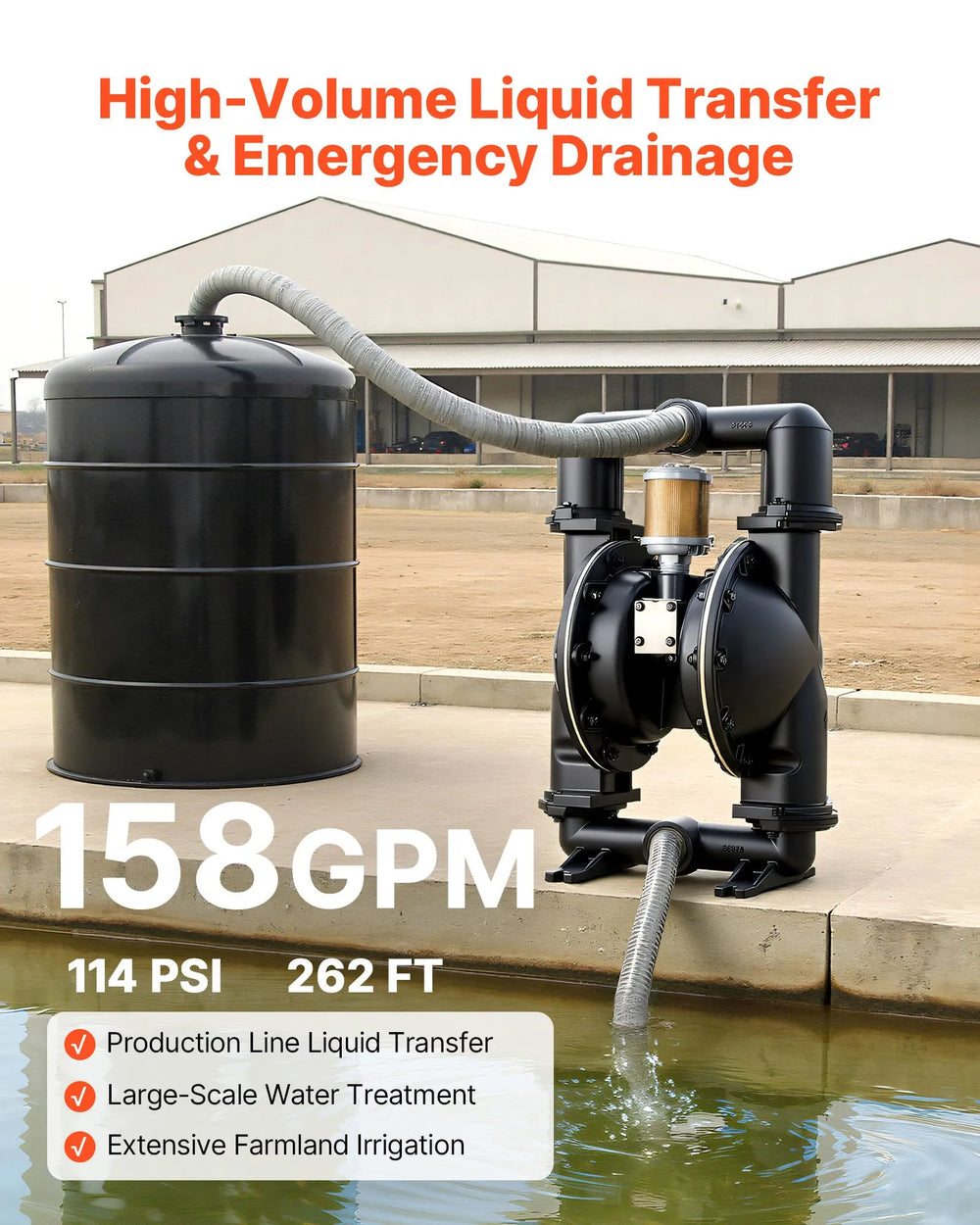

- Powerful Pneumatic Performance: Delivers 158 GPM max flow rate, 114 PSI max pressure, and 262 ft max head lift. This air diaphragm pump quickly and efficiently transfers liquids to target tanks in minutes without worrying pressure.
- Standard Port Size: Designed with industry-standard ports that integrate seamlessly with your existing piping and fittings. Our air operated transfer pump ensures stable airflow, enhanced pneumatic performance, and reliable operation.
- Versatile Liquid Handling: Effectively transfers waste oil, hydraulic oil, gasoline, diesel, detergents, and even beverages. This pneumatic transfer pump is not suitable for corrosive acids/alkalis or liquids above 140℉/60℃.

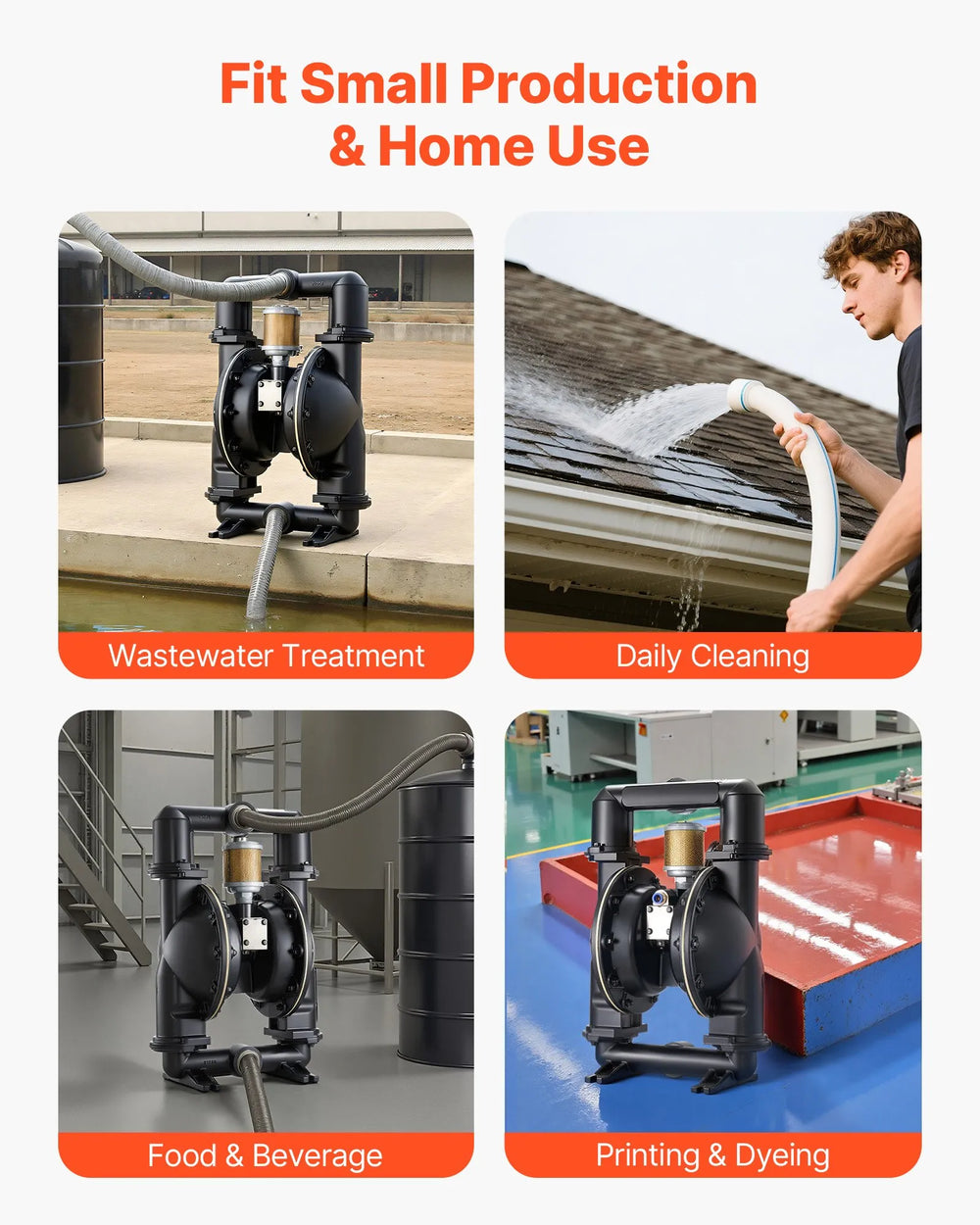

- Wide-Ranging Applications: This waste oil pump is ideal for petroleum, metallurgy, printing, water treatment, and automotive industries. Contractors can count on it for asphalt, paints, and other viscous fluids—or build a home rainwater collection system.

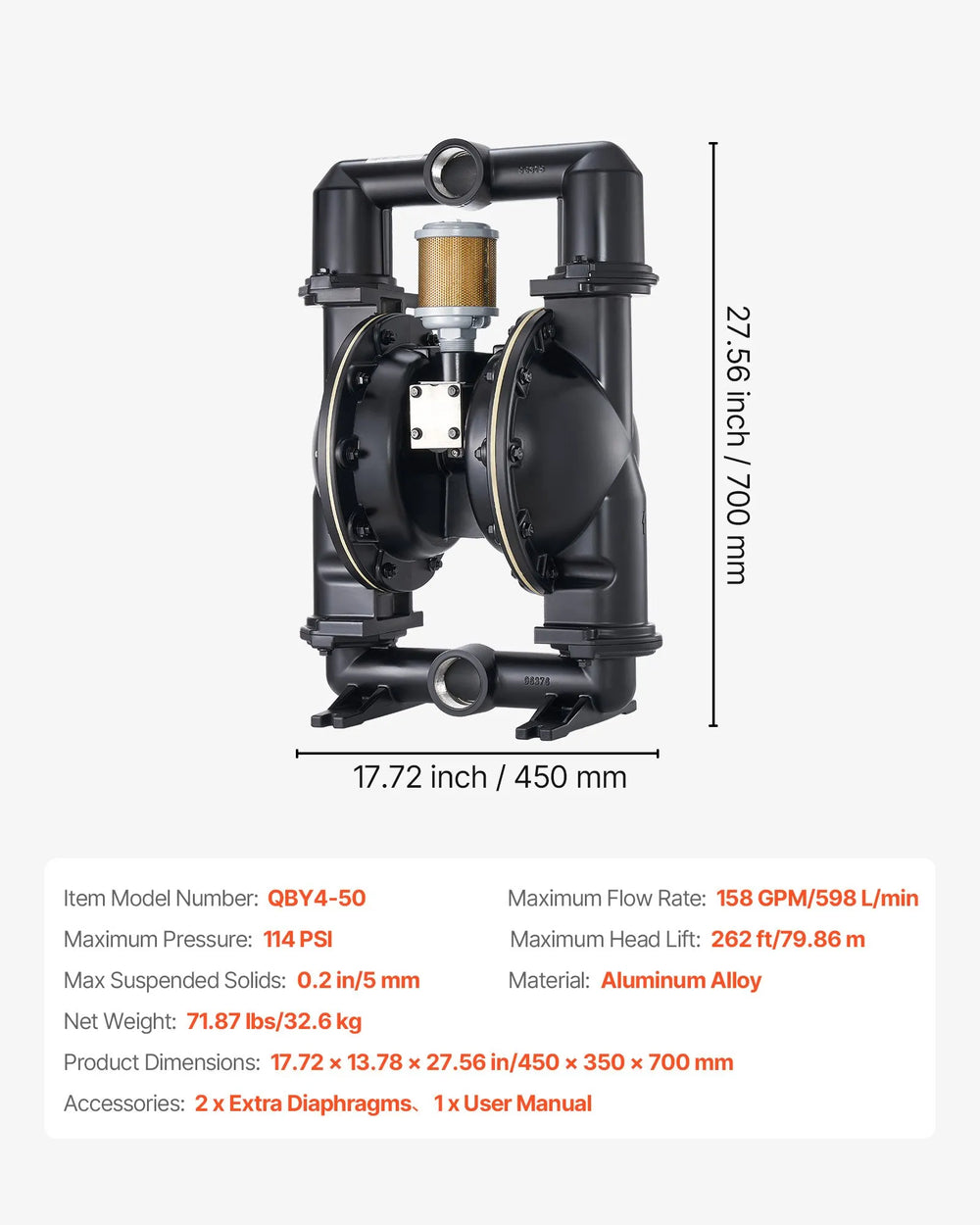

Specifications
| Item Model Number | QBY4-50 |
| Maximum Flow Rate | 158 GPM |
| Maximum Pressure | 114 PSI |
| Maximum Head Lift | 262 ft |
| Max Suspended Solids | 0.2 in / 5 mm |
| Material | Aluminum Alloy |
| Product Dimensions | 17.72" x 13.78" x 27.56" |
| Net Weight | 71.87 lbs |
Package Contents

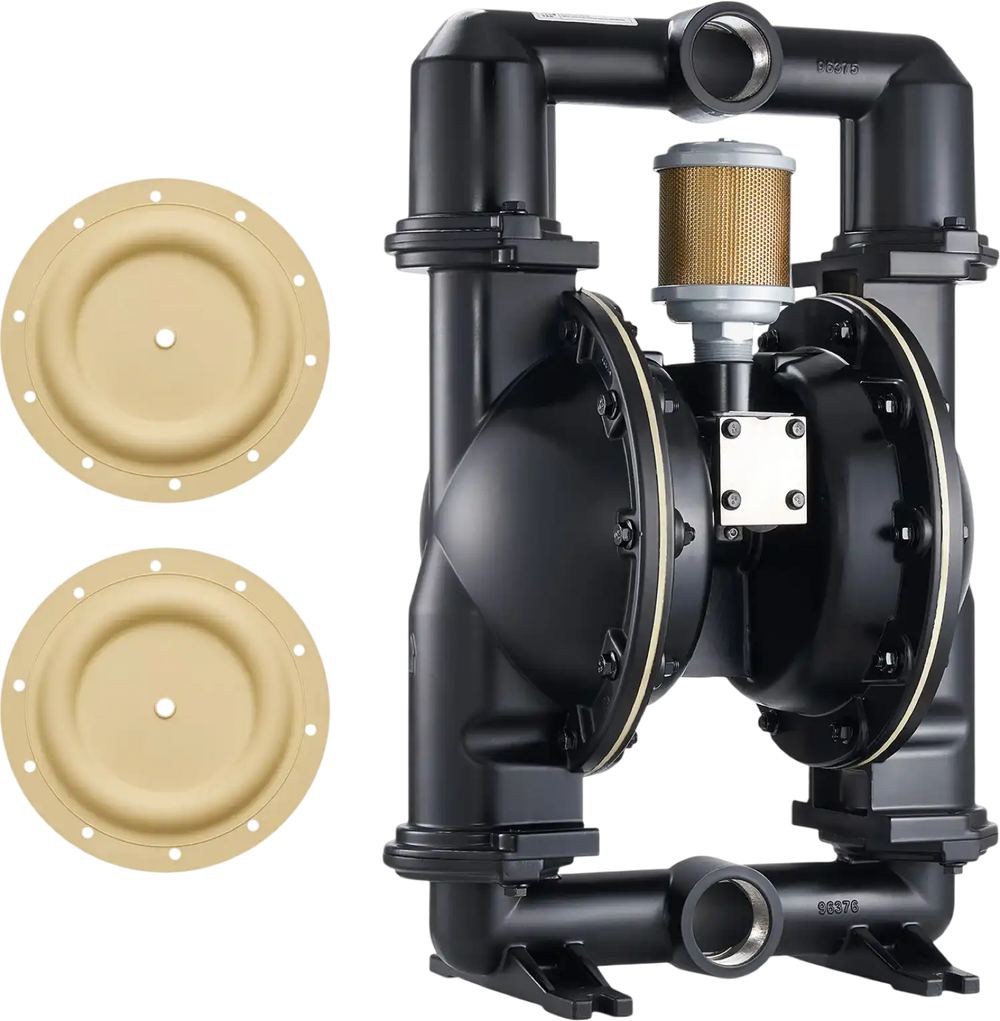

Vevor Air Operated Double Diaphragm Pump
(2) Extra Diaphragms
User Manual
Warranty
This item comes with a 1 year factory warranty.
