Product Overview
The Vevor 24" full-extension drawer slides are built for heavy-duty storage applications with a 500 lbs load capacity. Made from high-hardness steel with a galvanized finish, they are designed for durability, rust resistance, and smooth operation. A locking mechanism helps keep drawers securely in place, while double-row ball bearings and nylon cushioning support quiet, controlled movement. These side-mount slides are suitable for cabinets, industrial drawers, RVs, trucks, and vending machines. The package includes one pair of slide rails with installation hardware.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- 500lbs Heavy-Duty: Made of 0.77 in/19.5 mm thick high hardness steel, the heavy duty drawer slides have a weight capacity of up to 500 lbs. The galvanized finish makes the telescoping drawer slides rust and wear-resistant for long-time use. It can be used in shelving, cabinets, industrial drawers, RVs, trucks, vending machines and more.

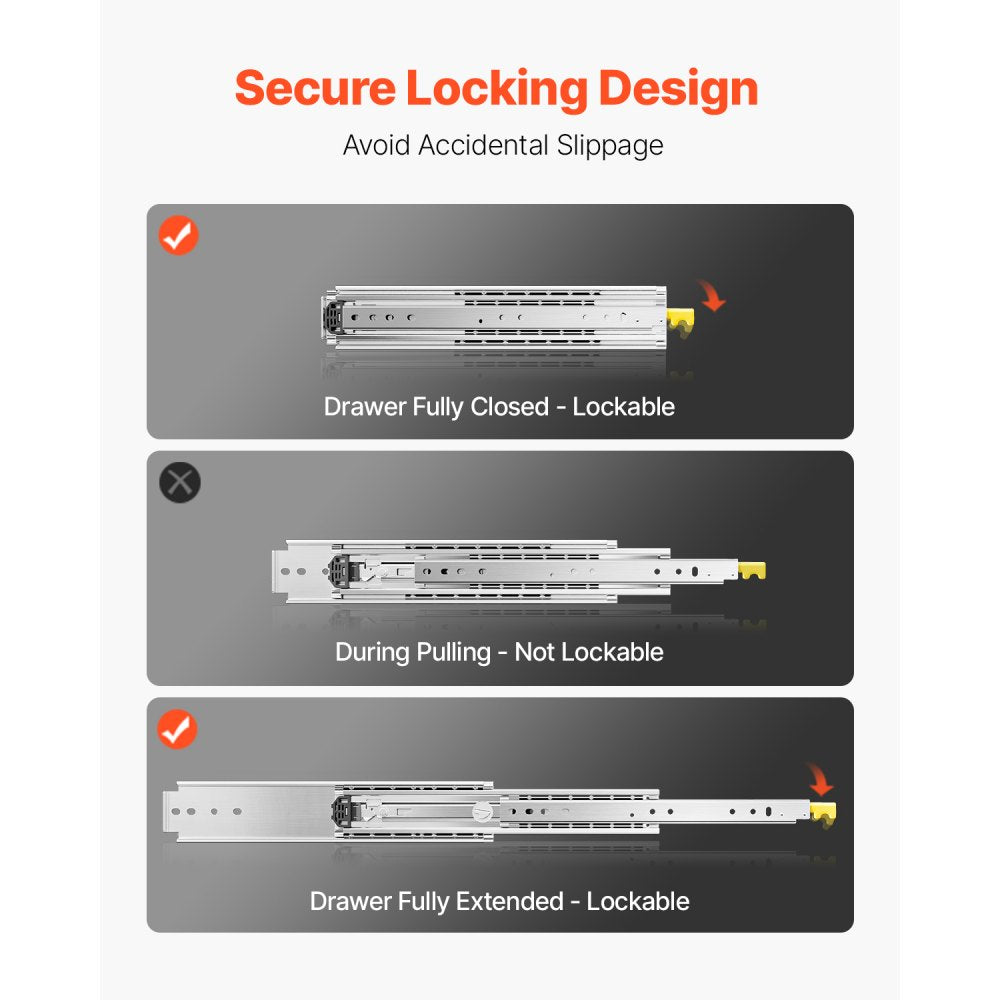

- Secure Lock Design: The full extension dresser drawer slides are equipped with a locking design that locks the slides with a simple press, ensuring that your items are secure and won't slip off even in bumpy roads.

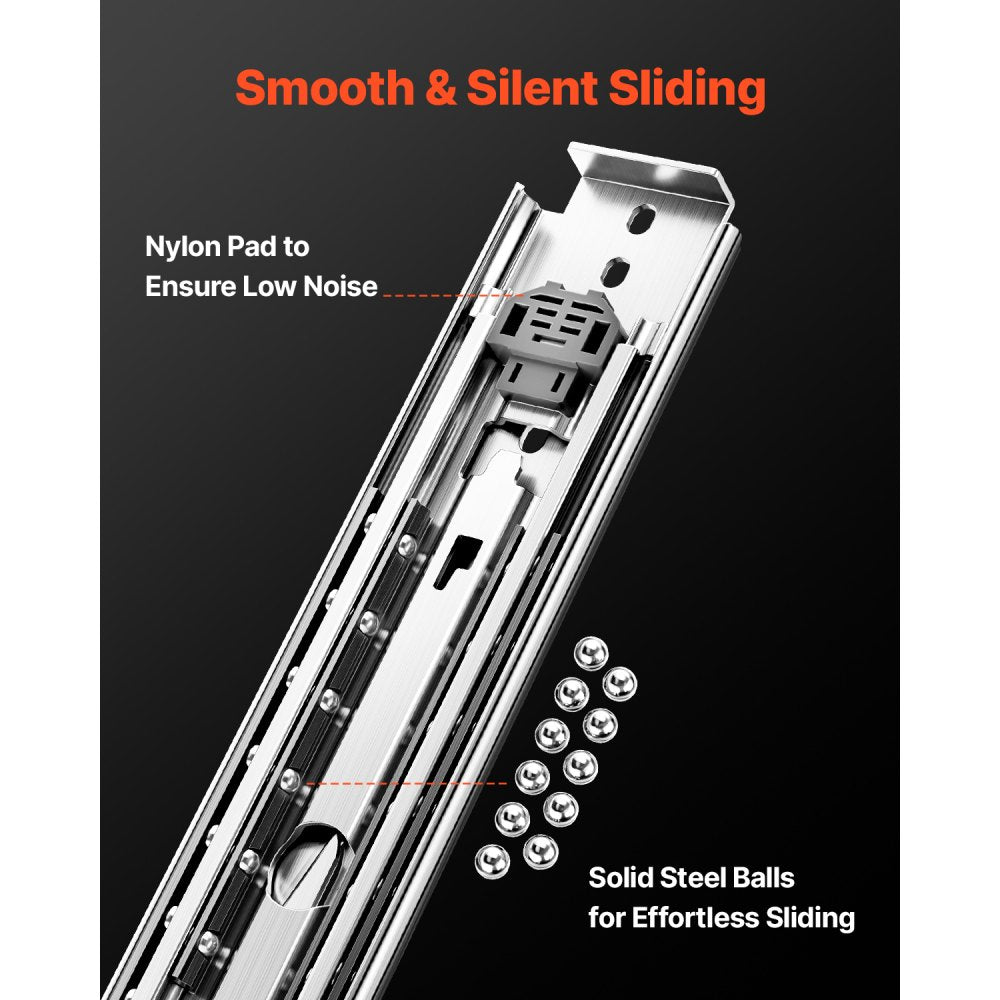

- Gentle & Quiet Lock Slides: These slides feature a locking and latching design that is easy to control. Unlike slides with no lock or only one lock, our double-lock design provides greater security and stability. Double-row ball bearing provides smooth sliding when closing and opening drawers. Nylon cushioning on center slides is designed to produce less noise and won't bounce.

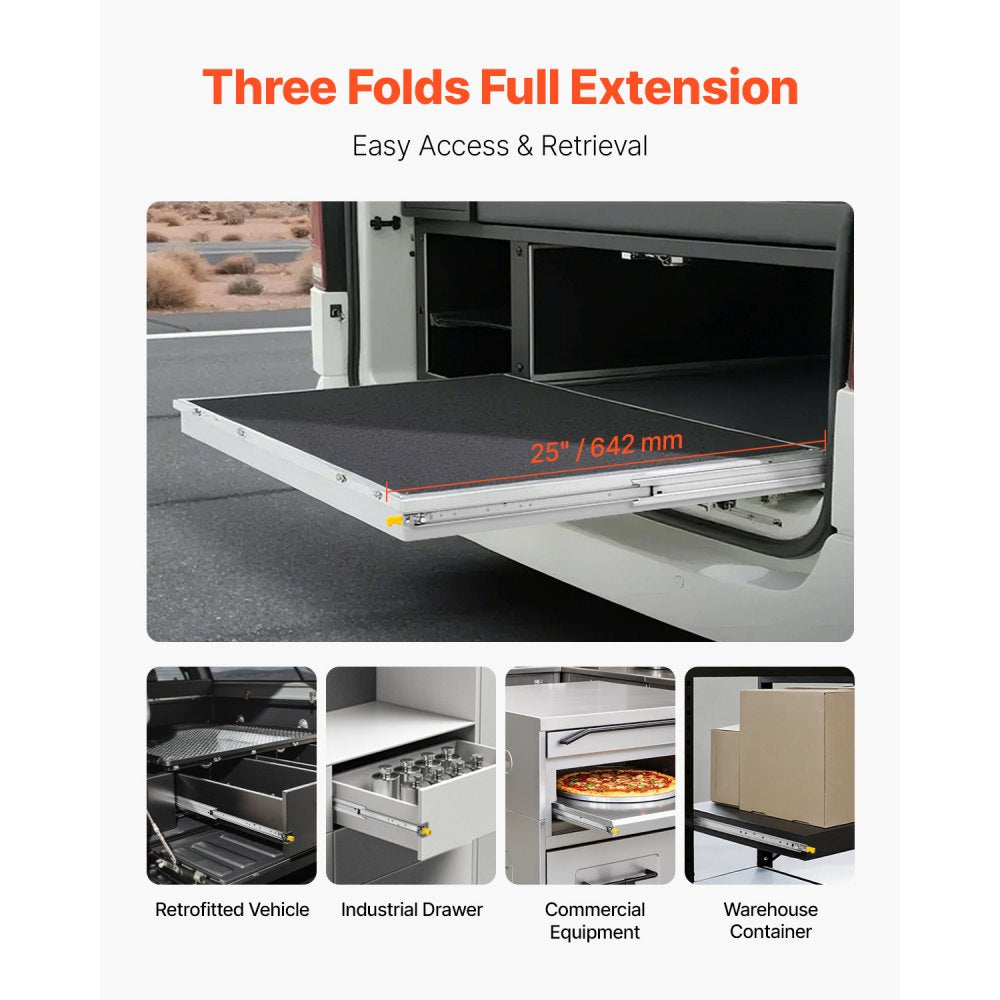

- 3-Fold Drawer Slides: You can get 1 pair of drawer slides with lock: 24 inches/610 mm long, 3 inches/76 mm wide, 0.77 inches/19.5 mm thick. With 3-fold full extension design, you can reach the whole drawer. It is a good assistant for utilizing drawer space!

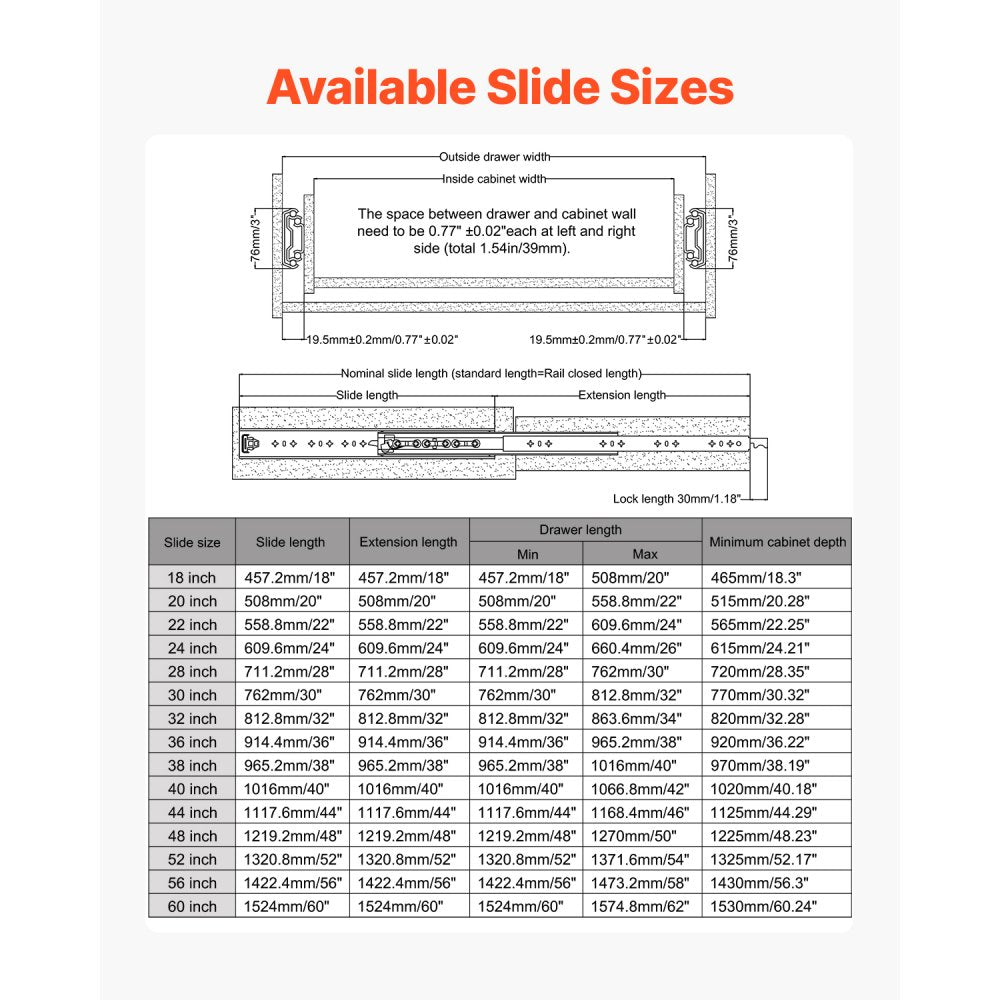

- Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinets. Please see the pictures for a detailed description of each size when choosing. Please measure the length of your drawers and cabinets (excluding frame boards) before choosing our drawer slides. Note: The length of the slide should not be less than or equal to the depth of the drawer.

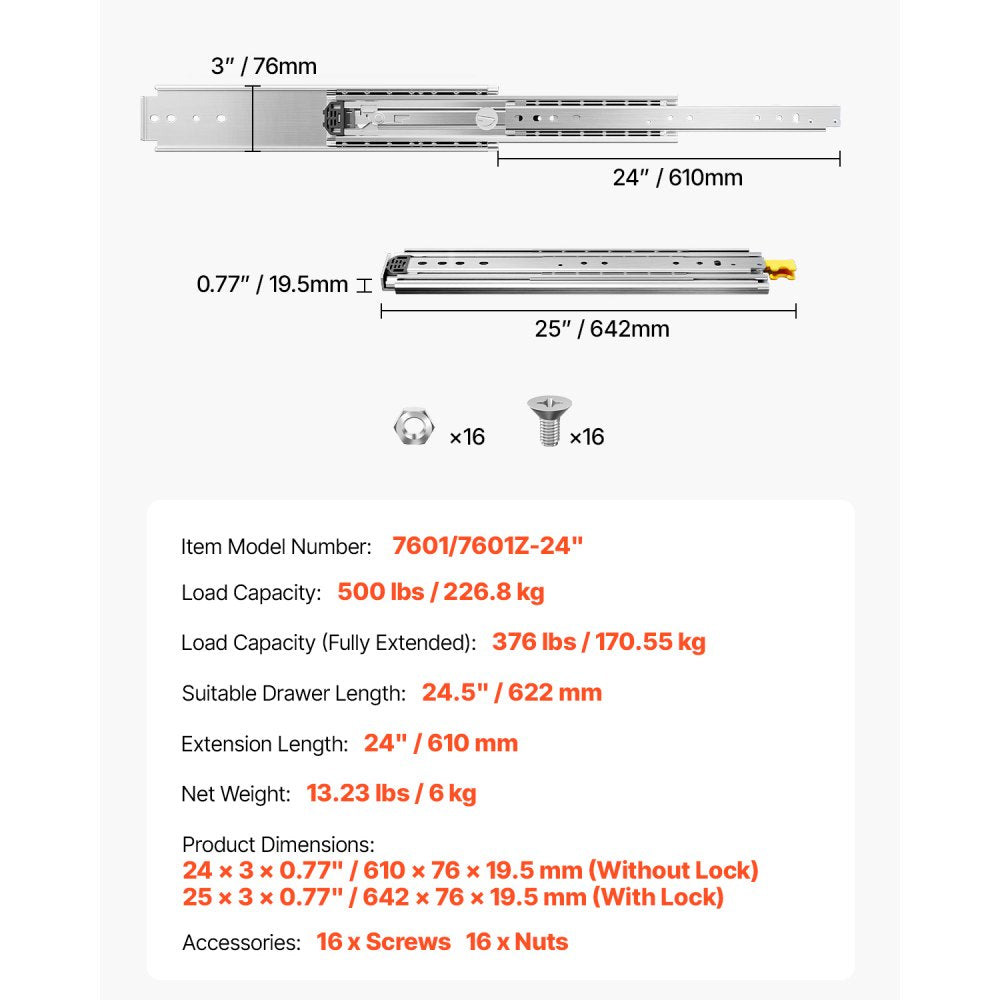

Specifications
| Item Model Number | 7601/7601Z-24" |
| Product Type | Locking full-extension side-mount drawer slides |
| Load Capacity | 500 lbs / 226.8 kg |
| Load Capacity Fully Extended | 376 lbs / 170.55 kg |
| Suitable Drawer Length | 24.5" / 622 mm |
| Extension Length | 24" / 610 mm |
| Dimensions Without Lock | 24 x 3 x 0.77" / 610 x 76 x 19.5 mm |
| Dimensions With Lock | 25 x 3 x 0.77" / 642 x 76 x 19.5 mm |
| Net Weight | 13.23 lbs / 6 kg |
| Material | High hardness steel |
| Finish | Galvanized |
| Mount Type | Side mount |
Package Contents
1 pair of drawer slides
Installation screws
Detailed guides
Warranty
This item comes with a 1 year factory warranty.
