Vevor Drawer Slides Heavy Duty 16" 500 lbs Locking Side Mount Full Extension Ball Bearing Rails 1 Pair New
Manufacturer: Vevor
SKU: ZXCTHG500B167GMID001V0
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 29.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Vevor Drawer Slides Heavy Duty 16" 500 lbs Locking Side Mount Full Extension Ball Bearing Rails 1 Pair New
Product Overview
These heavy-duty drawer slides are designed for demanding storage applications in cabinets, workbenches, RVs, and other utility setups. Built from Q235B carbon steel with a zinc-plated finish, they provide durable support and resistance to rust and wear. The three-section full-extension design gives easier access to stored items, while dual-row ball bearings help ensure smooth operation under load. A right-side lock adds extra security to help keep the drawer in place. Screws and nuts are included for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High Load Capacity: These drawer slides are made of 2.5 mm+2.2 mm thick Q235B industrial-grade carbon steel and support up to 500 lbs for stable heavy-duty storage. The zinc-plated finish provides rust and wear resistance
- Smooth Sliding: These cabinet drawer slides feature dual-row ball bearings for smooth operation even under full load. Built-in nylon components help cushion opening and closing for quieter operation. The slides are designed for up to 10,000 cycles of use
- Three-Section Full Extension: These drawer rails measure 17.17 x 2.99 x 0.77 in / 436 x 76 x 19.5 mm and feature a three-section telescoping design for easier access to items at the back. The single-side locking design helps avoids the drawer from sliding out, providing more secure storage
- Simple Installation: These drawer guides use standard mounting hole spacing to fit a wide range of cabinets and can be secured directly without complicated modifications. Note: Measure the drawer depth before purchase and make sure the drawer length is greater than or equal to the slide length
- Versatile Applications: These heavy duty drawer slides are suitable for a variety of storage needs, including home cabinets, tool rooms, RV modifications, campers, pickup truck storage, industrial equipment cabinets, and more

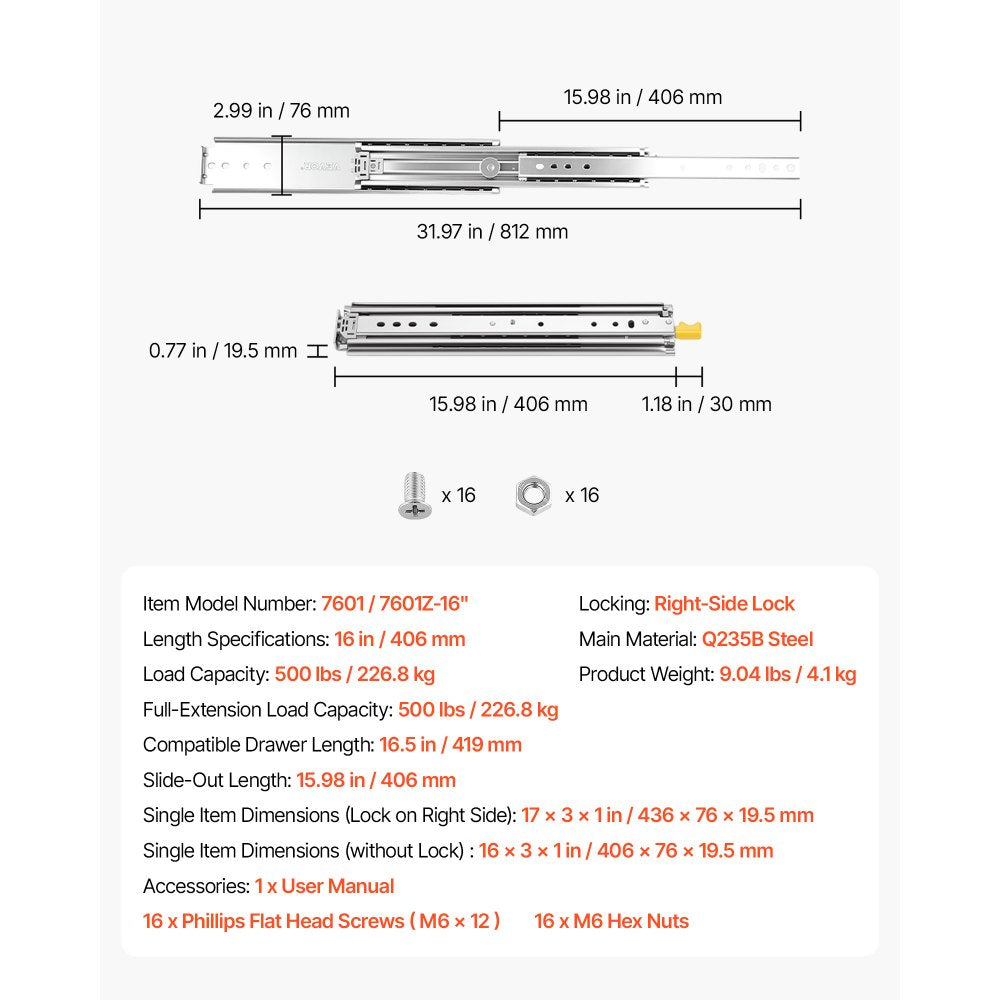

Specifications
| Item Model Number | 7601/7601Z-16" |
|---|---|
| Length | 16 in / 406 mm Lock on Right Side |
| Load Capacity | 500 lbs / 226.8 kg |
| Full-Extension Load Capacity | 500 lbs / 226.8 kg |
| Compatible Drawer Length | 16.5 in / 41.9 cm |
| Slide-Out Length | 15.98 in / 406 mm |
| Locking | Right-Side Lock |
| Main Material | Q235B Carbon Steel |
| Product Weight | 9.04 lbs / 4.1 kg |
| Single Item Dimensions Lock on Right Side | 17 x 3 x 1 in / 436 x 76 x 19.5 mm |
|---|---|
| Single Item Dimensions Without Lock | 16 x 3 x 1 in / 406 x 76 x 19.5 mm |
Package Contents
1 Pair of drawer slides
Screws
Nuts
Warranty
This item comes with a 1 year factory warranty.
