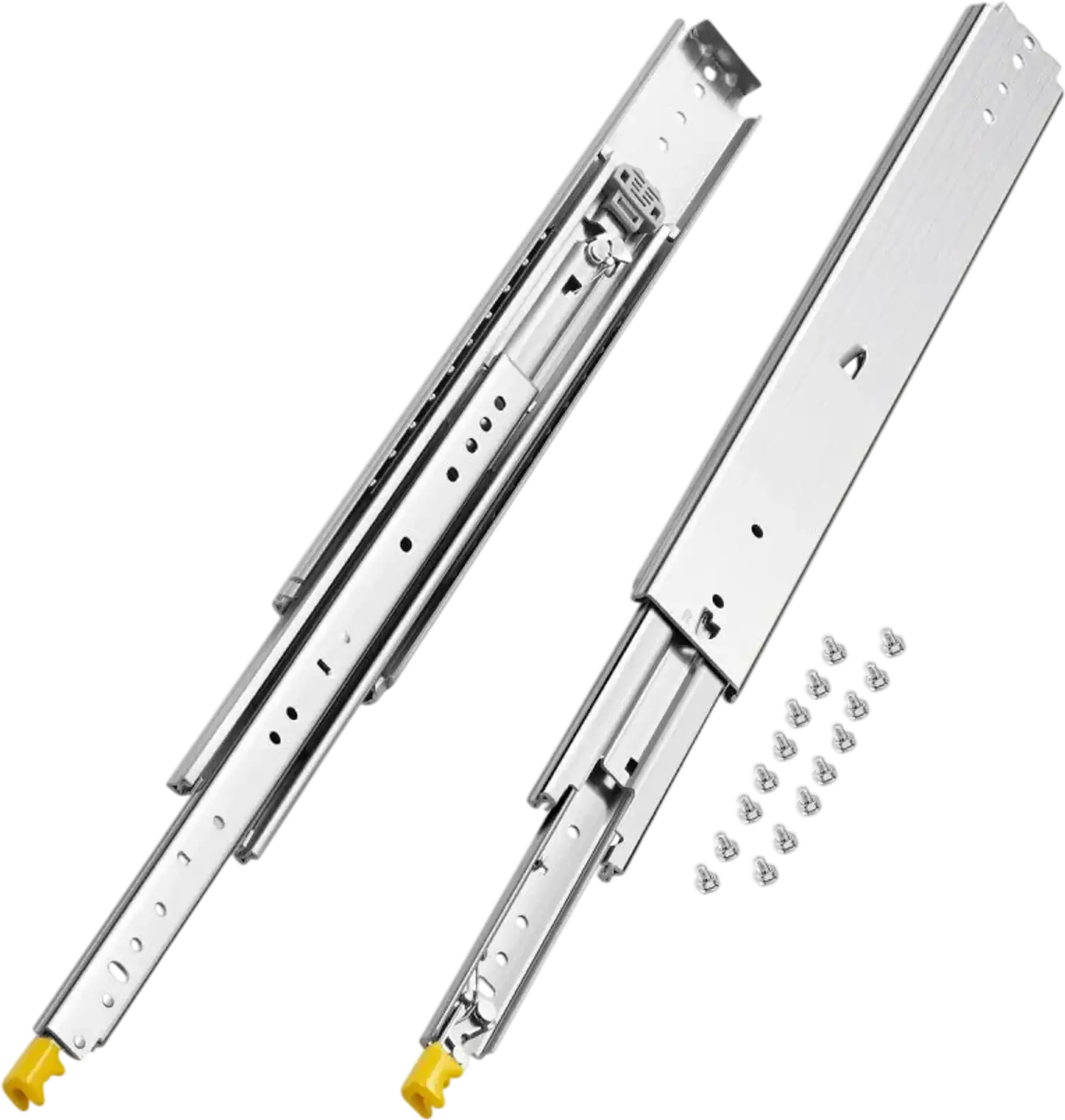

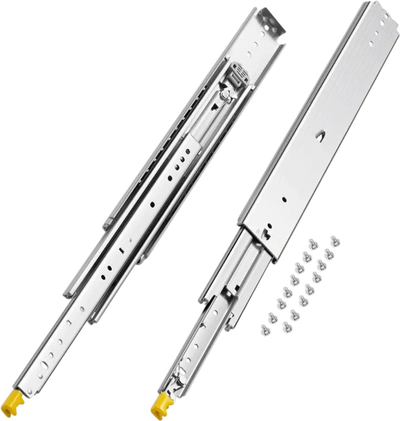

Vevor Drawer Slides Heavy Duty Soft Close Full Extension 22" 500 lbs Locking Side Mount Pair New
Manufacturer: Vevor
SKU: ZXCTHG500B22LTASUV0
Length Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 43.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Vevor Drawer Slides Heavy Duty Soft Close Full Extension 22" 500 lbs Locking Side Mount Pair New
Product Overview
These heavy-duty drawer slides are built from high-hardness steel for durable, stable performance in cabinets, industrial drawers, commercial equipment, and modified vehicles. The 3-fold full-extension design gives full access to the drawer while the double-lock mechanism helps keep it securely in place. Ball bearings and nylon cushioning support smooth, quiet operation during opening and closing. The galvanized finish helps resist rust and wear over time. This pair includes detailed guides and mounting screws for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

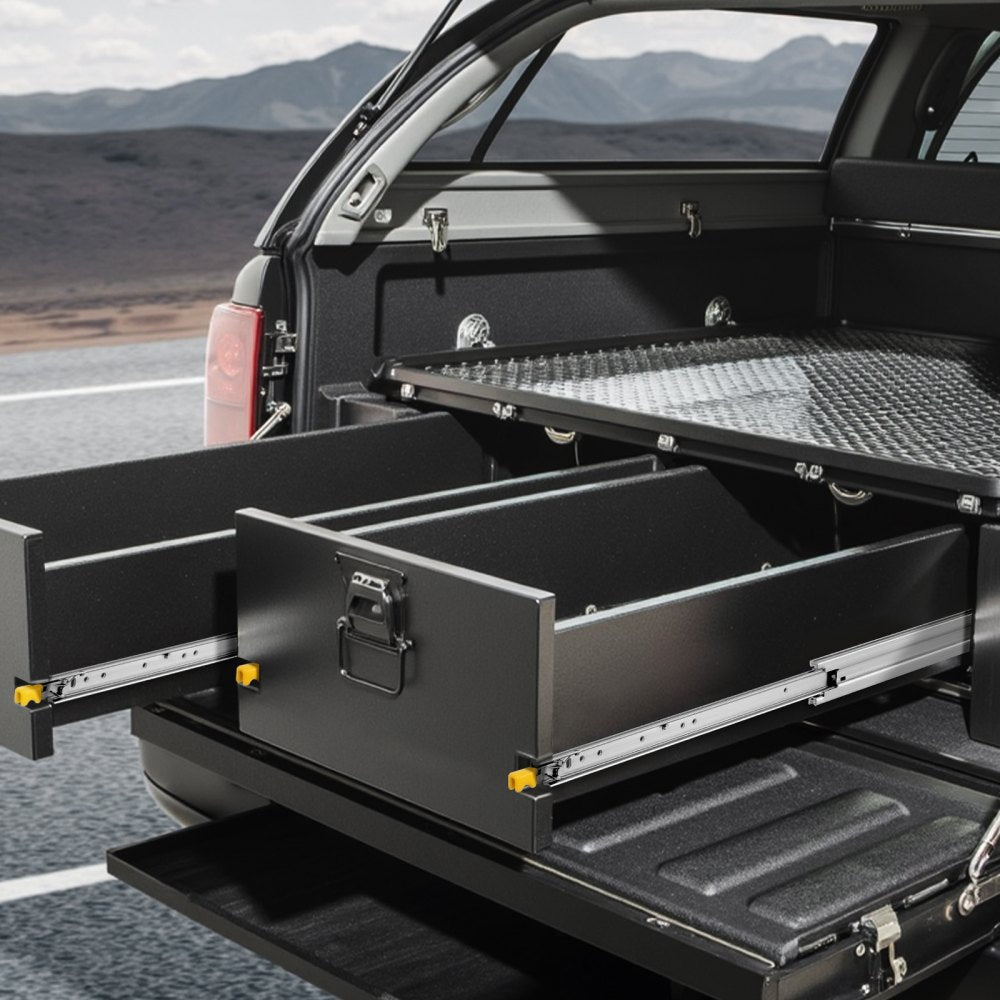

- 500lbs Heavy-Duty: Made of 0.77 in/19.5 mm thick high hardness steel, the heavy duty drawer slides have a weight capacity of up to 500 lbs. The galvanized finish makes the telescoping drawer slides rust and wear-resistant for long-time use. It can be used in shelving, cabinets, industrial drawers, RVs, trucks, vending machines and more.

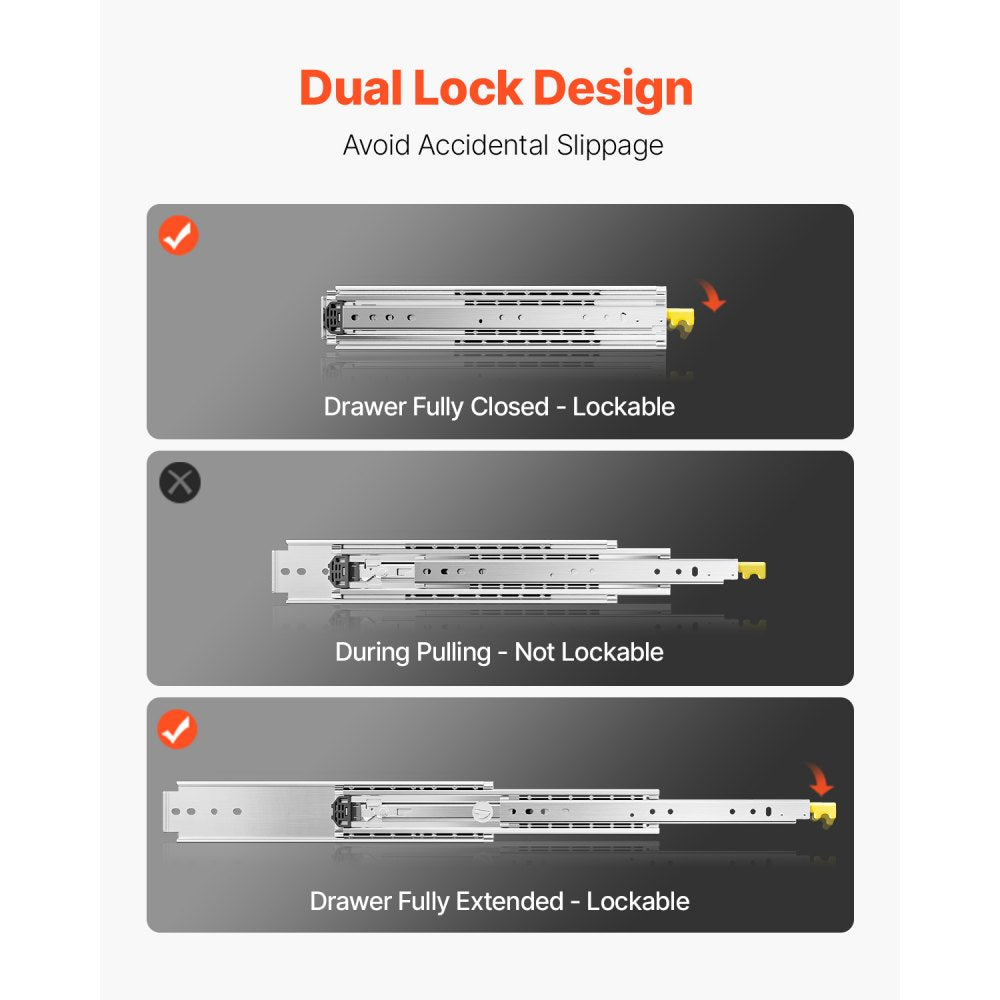

- Double Lock Design: The full extension dresser drawer slides are equipped with a dual locking design that locks the slides with a simple press, ensuring that your items are secure and won't slip off even in bumpy roads.

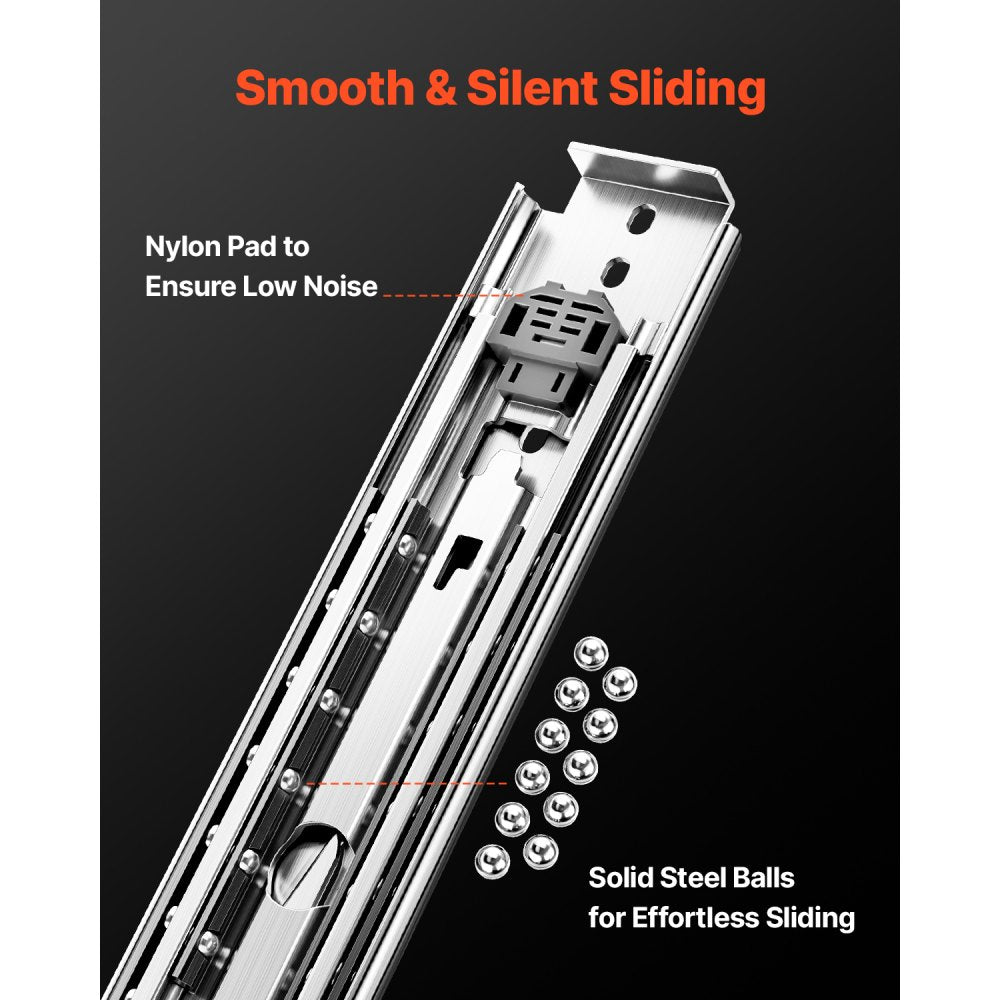

- Gentle & Quiet Lock Slides: These slides feature a locking and latching design that is easy to control. Unlike slides with no lock or only one lock, our double-lock design provides greater security and stability. Double-row ball bearing provides smooth sliding when closing and opening drawers. Nylon cushioning on center slides is designed to produce less noise and won't bounce.

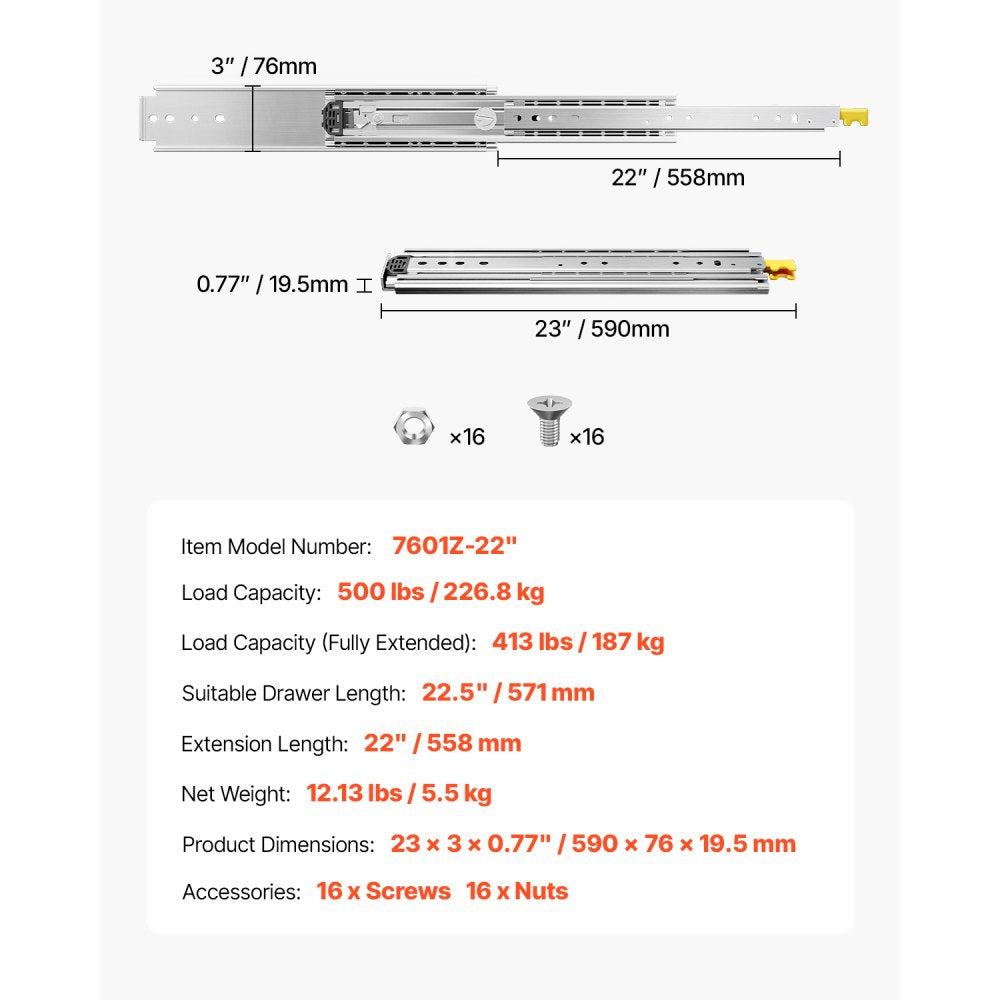

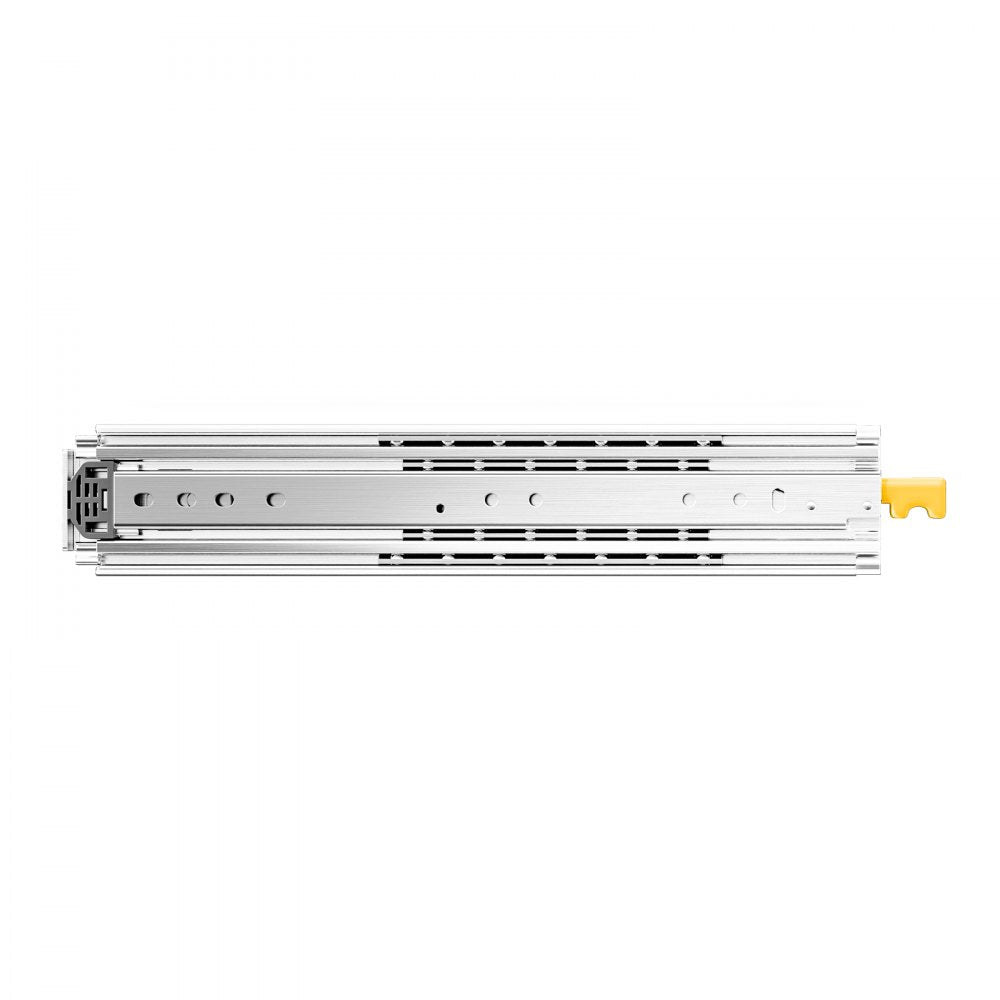

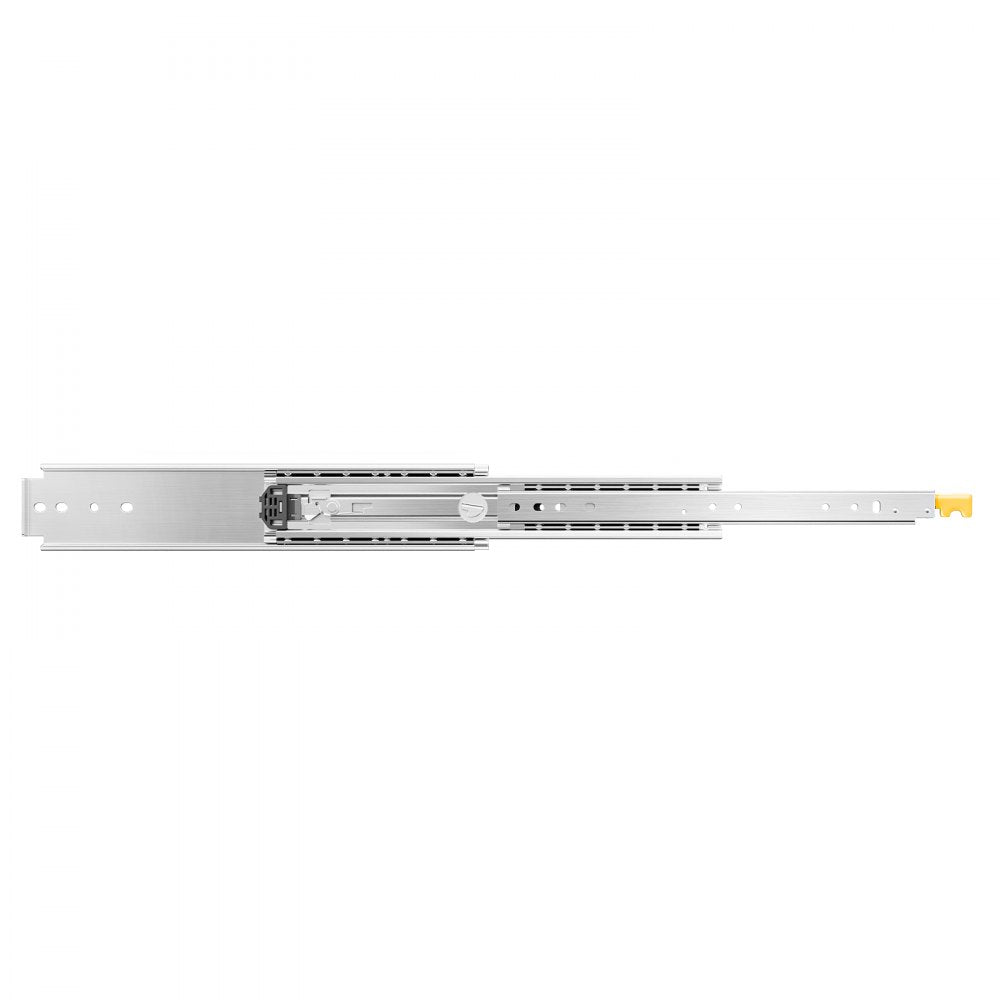

- 3-Fold Drawer Slides: You can get 1 pair of drawer slides: 23 inches/590 mm long, 3 inches/76 mm wide, 0.77 inches/19.5 mm thick. With 3-fold full extension design, you can reach the whole drawer. It is a good assistant for utilizing drawer space!

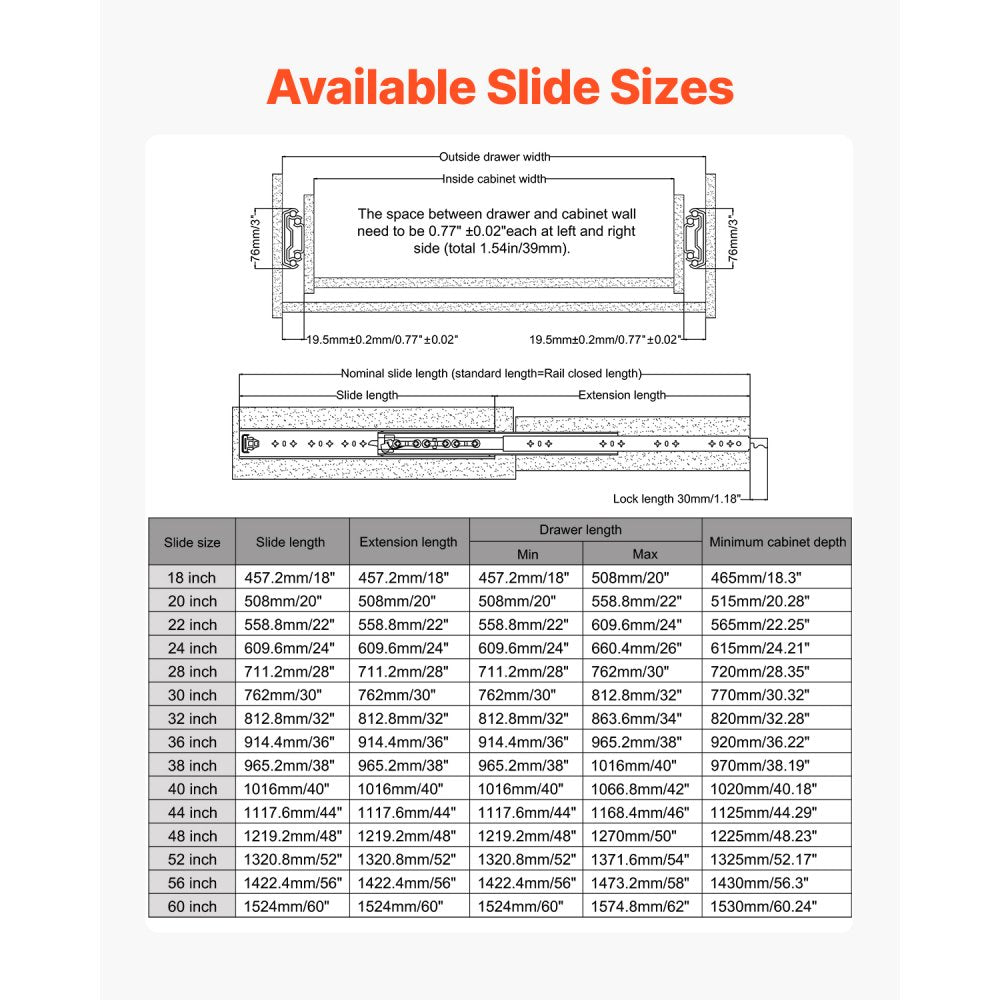

- Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinets. Please see the pictures for a detailed description of each size when choosing. Please measure the length of your drawers and cabinets (excluding frame boards) before choosing our drawer slides. Note: The length of the slide should not be less than or equal to the depth of the drawer.
Specifications
| Item Model Number | 7601Z-22" |
| Load Capacity | 500 lbs / 226.8 kg |
| Load Capacity Fully Extended | 413 lbs / 187 kg |
| Suitable Drawer Length | 22.5" / 571 mm |
| Extension Length | 22" / 558 mm |
| Net Weight | 12.13 lbs / 5.5 kg |
| Dimensions | 23 x 3 x 0.77" / 590 x 76 x 19.5 mm |
| Material | High hardness steel |
| Mount Type | Side mount |
| Finish | Galvanized |
| Extension Type | 3-fold full extension |
Package Contents

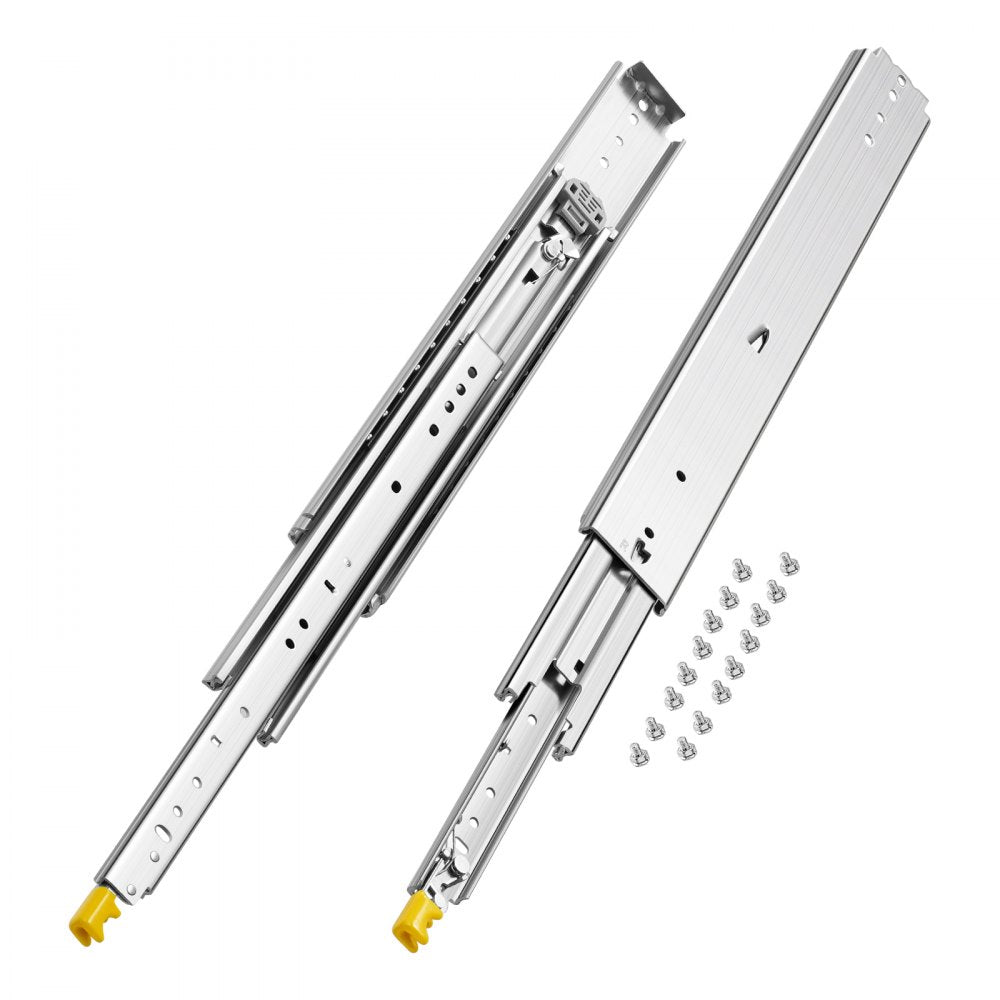

1 pair of drawer slides
Mounting screws
Detailed guides
Warranty
This item comes with a 1 year factory warranty.
