Product Overview

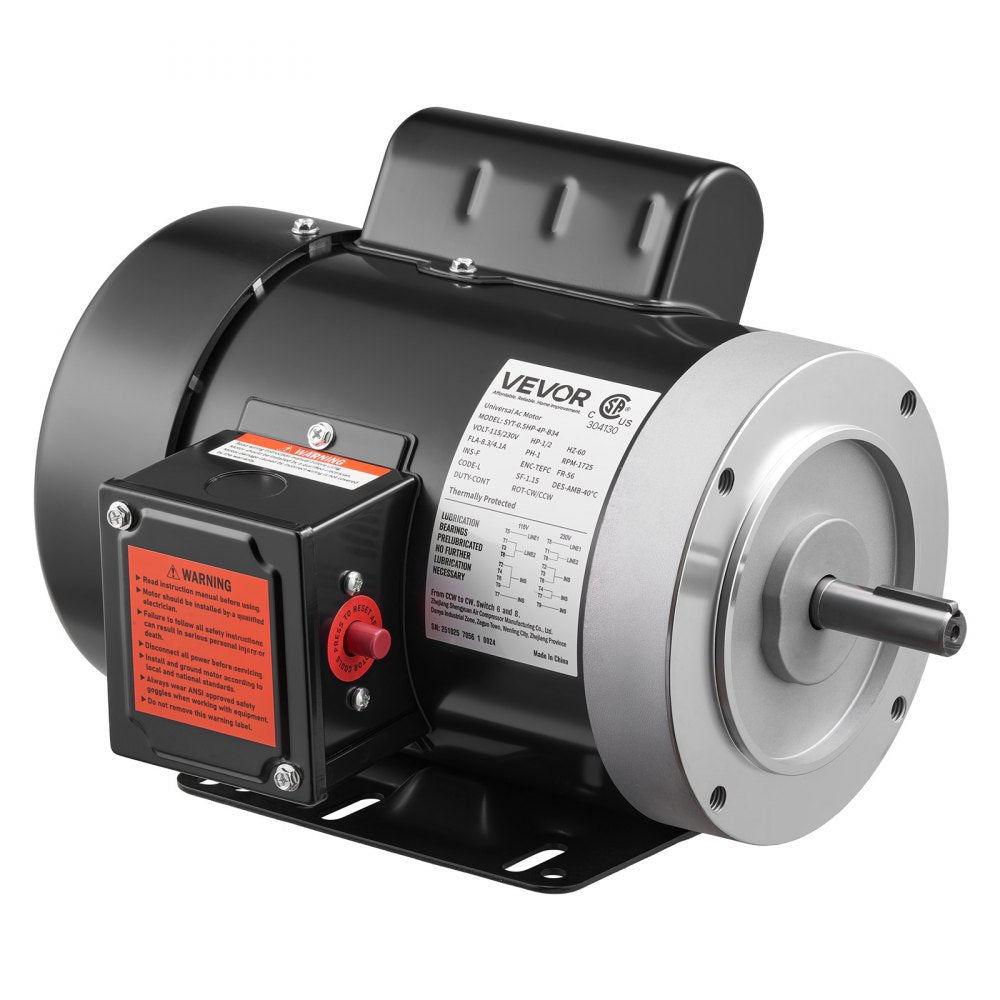

The Vevor 0.5 HP electric motor is designed for air compressor and general-purpose applications requiring dependable single-phase performance. It runs at 1725 RPM and supports dual-voltage 115V/230V operation for flexible installation. The motor features reversible CW/CCW rotation, TEFC cooling, and a durable steel body with aluminum alloy end covers. A 56 frame, 5/8" shaft, and manual reset overload protection help support reliable everyday use.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

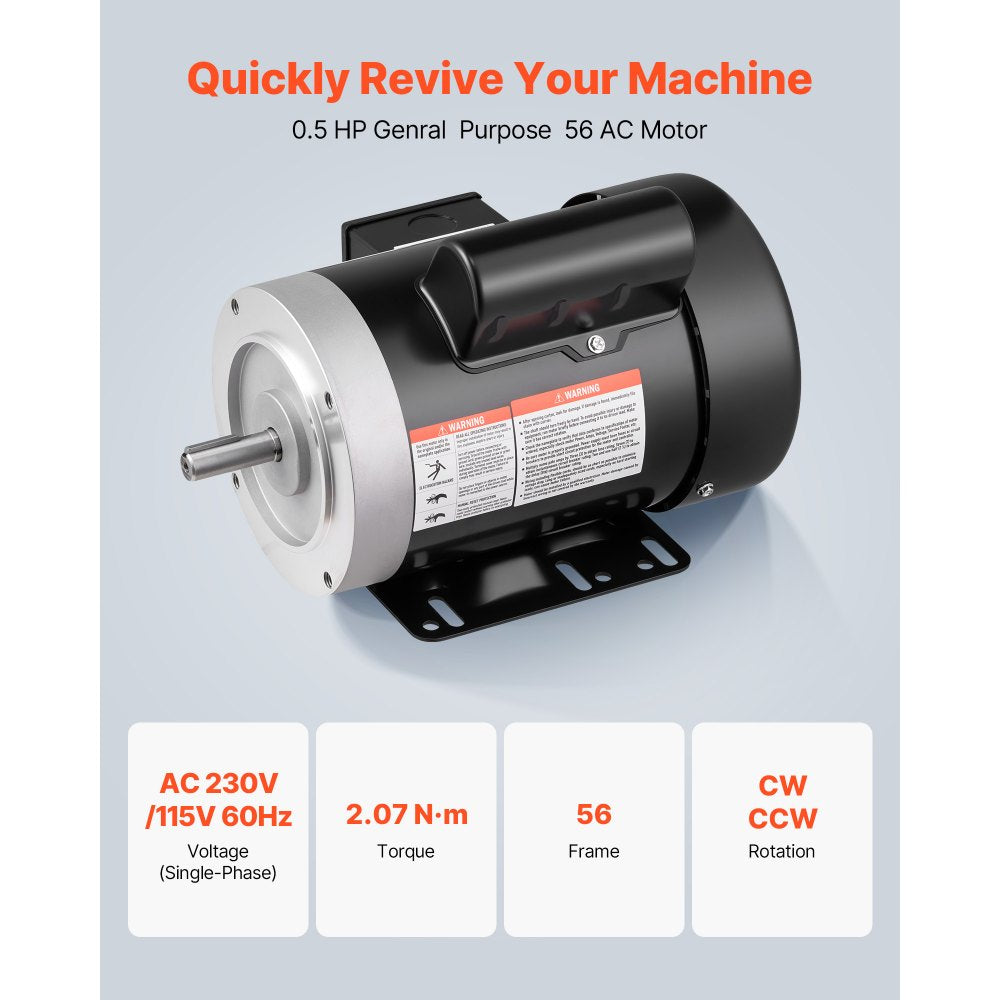

  • High Performance: 0.5HP high-performance motor featuring 2.07 N.m rated torque. Designed for AC 115V/230V 60Hz, single-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

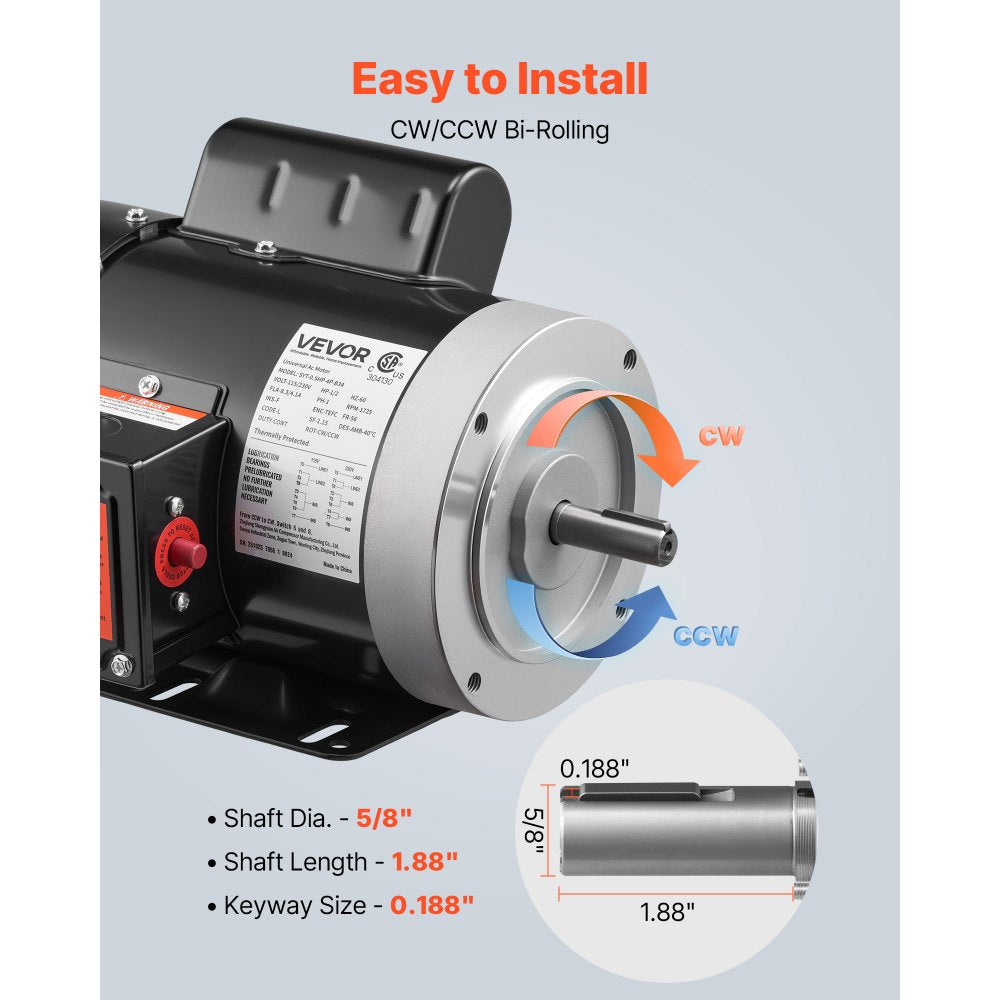

  • Rugged Frame Type: The 56 frame of this electric motor includes a 5/8-inch shaft diameter, 1.88-inch shaft length, and keyway size: 0.188 inch / 4.77 mm width x 0.094 inch / 2.38 mm depth
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

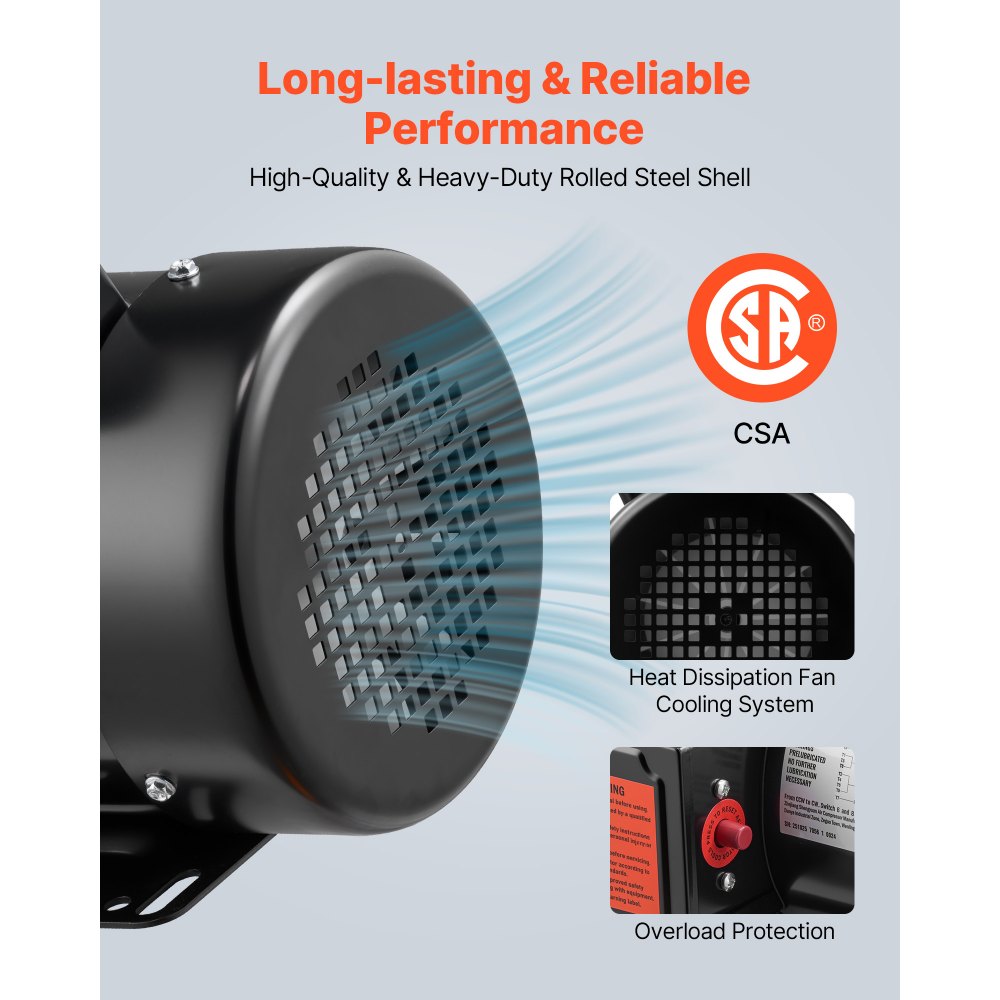

  • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
  • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

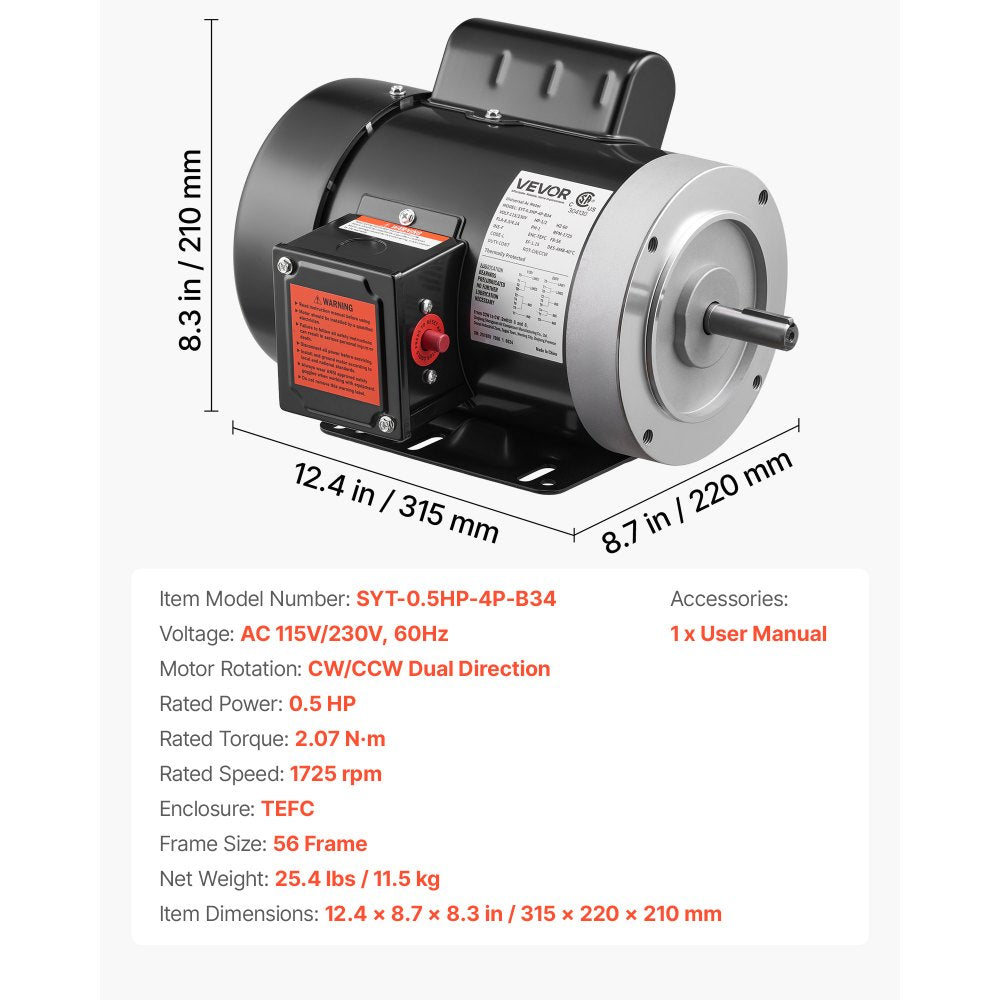

Specifications

Item Model Number SYT-0.5HP-4P-B34
Voltage / Frequency AC 115V / 230V, 60Hz
Rotation Direction CW/CCW Dual Direction
Horsepower 0.5 HP
Rated Torque 2.07 N.m
Speed 1725 RPM
Cooling Type TEFC
Frame 56
Shaft Diameter 5/8"
Shaft Length 1.88"
Keyway Size 0.188" / 4.77 mm width x 0.094" / 2.38 mm depth
Main Materials Aluminum Alloy End Covers; Steel Plate Motor Body
Net Weight 25.4 lbs
Item Dimensions 12.4 x 8.7 x 8.3"
Certification CSA
