Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
Manufacturer: Vevor
SKU: ZLWSDJTJ750WXOI9PV9
Power Options
with handle or not ? Options
QTY
(888) 999-1522
$ 106.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Refrigerant Recovery Tank Float Switch 30 lbs New
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor 4400 PSI Gas Pressure Washer 4.0 GPM with Copper Pump and 5 Quick Connect Nozzles New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Brushed DC Motor Kit 24V 250W 2700 RPM with Speed Controller New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Electric Bike Motor Kit 450W 36V 3000 RPM with Upgraded Speed Controller and Thumb Throttle...
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Reverse Gearbox Go Kart Forward Reverse Gear Box New
-
Vevor Brushed DC Motor Kit 450W 36V 3000 RPM with Controller and Twist Throttle New
-
Vevor Electric Car Jack 5-Ton 12V Hydraulic Tire Change Kit New
-
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
-
Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM with Controller and Foot Pedal Throttle New
-
Vevor Hybrid Solar Inverter 6000W Pure Sine Wave Charger 48V DC to 220/230V AC Single Phase New
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Winch 13,500 Lbs Truck 3/8" x 80' Synthetic Rope Waterproof Wireless or Wired Remo...
-
Vevor Drive Clutch Torque Converter Kit for 2-8 HP Engines 2000 RPM New
-
Vevor Electric Scooter Battery 48V 10Ah Lithium Battery Pack with 30A BMS New
-
Vevor Commercial Ice Maker 130 lbs/24H with 33 lbs Storage New
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our brushless DC motor delivers 750W of output power and operates efficiently with 85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 21.1 MPH at rated speed, and a no-load speed of 23 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 2.5 N·m ensures reliable performance even on steep inclines and rough terrains.

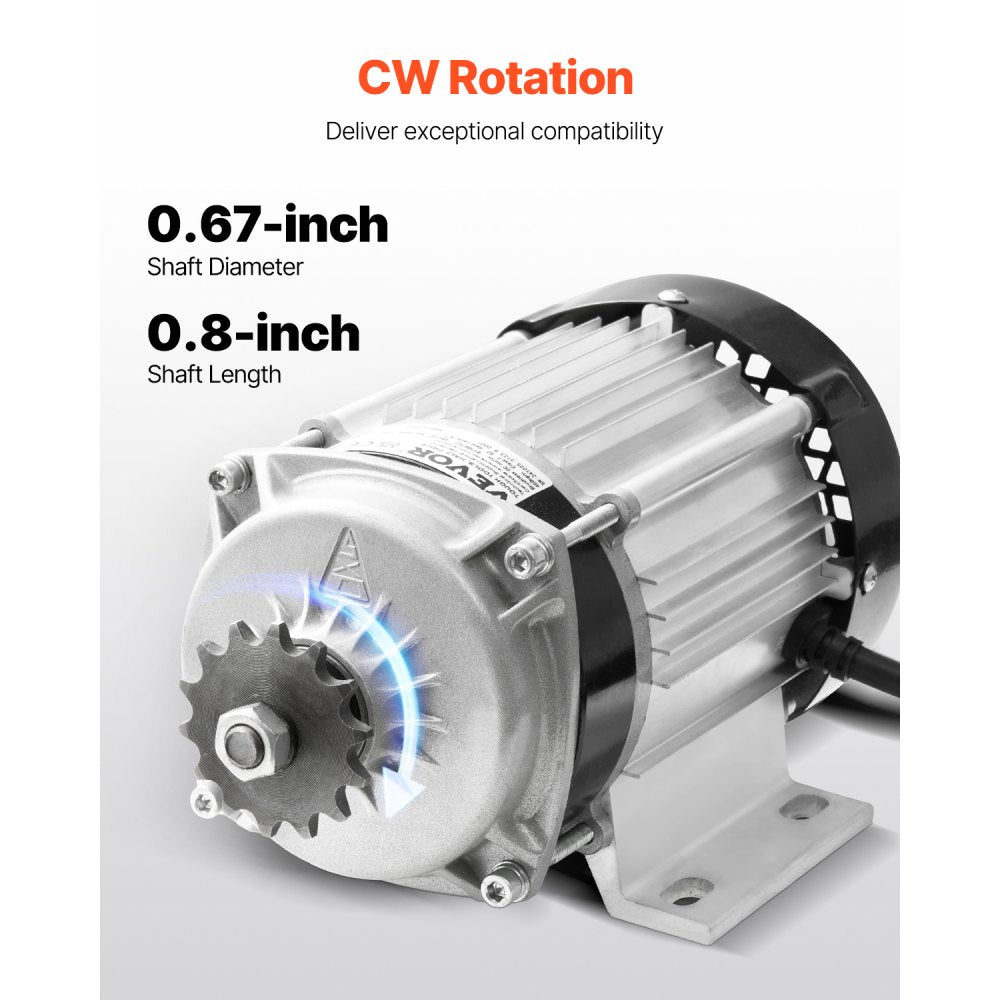

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.

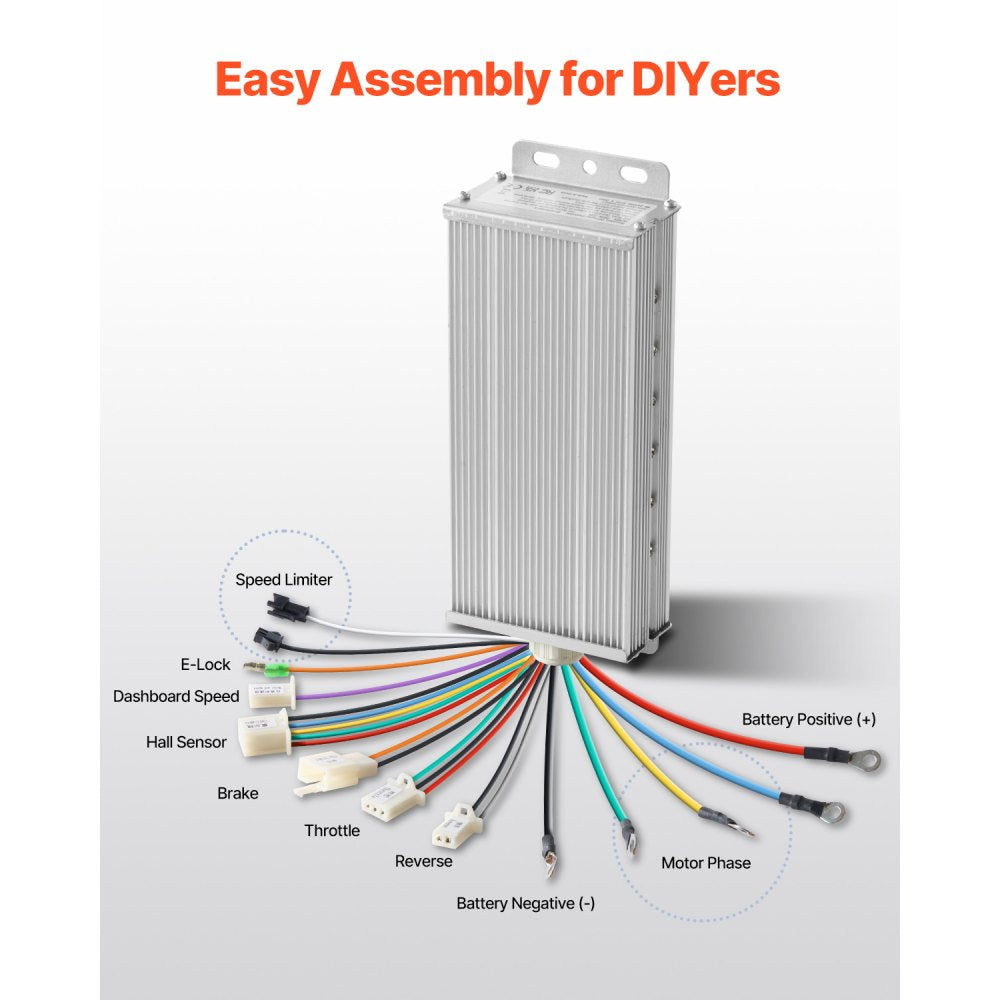

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.

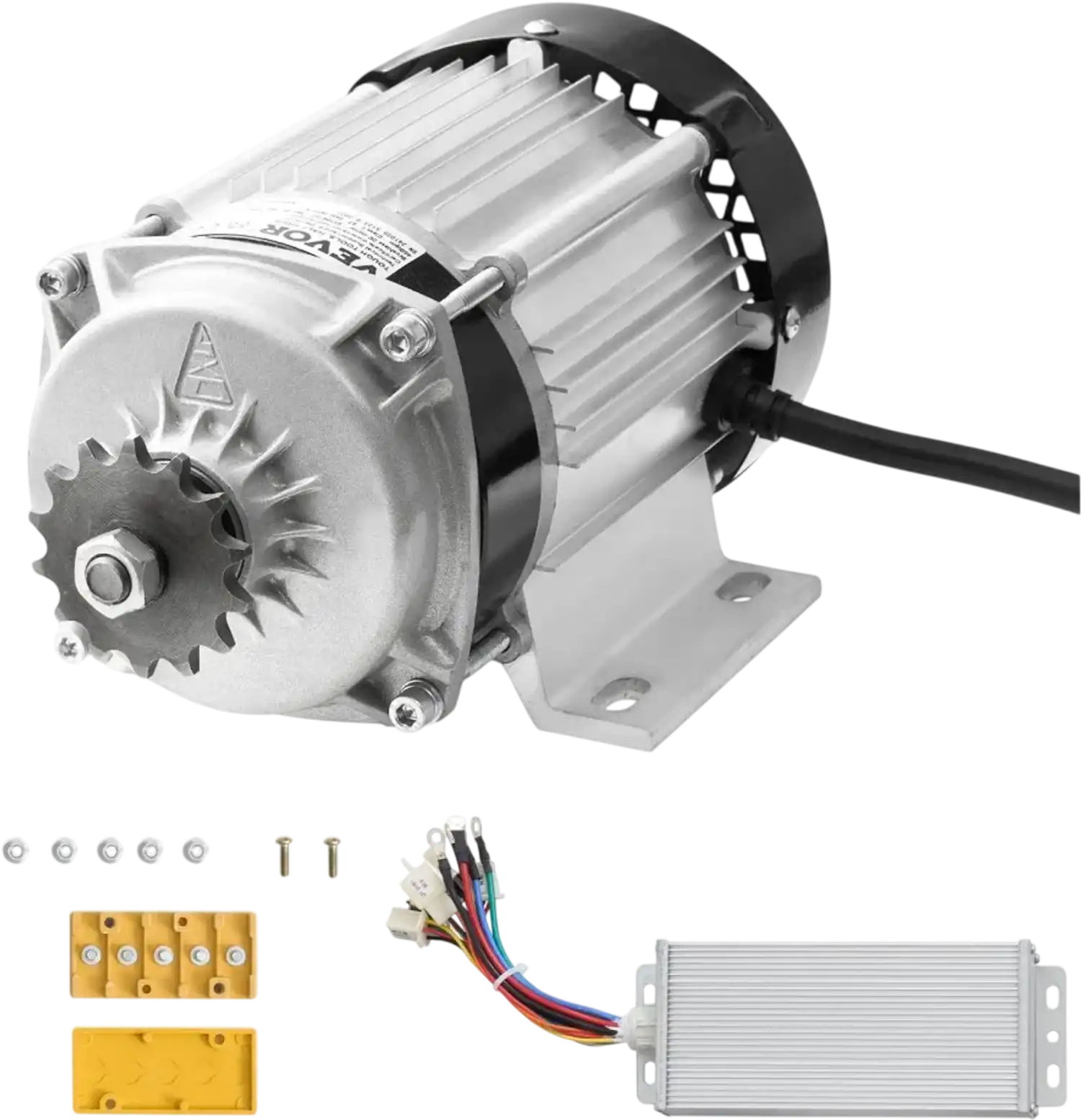

- Easy DIY Installation: Package includes: 1 x 48V 750W Brushless Motor, 1 x Motor Controller, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

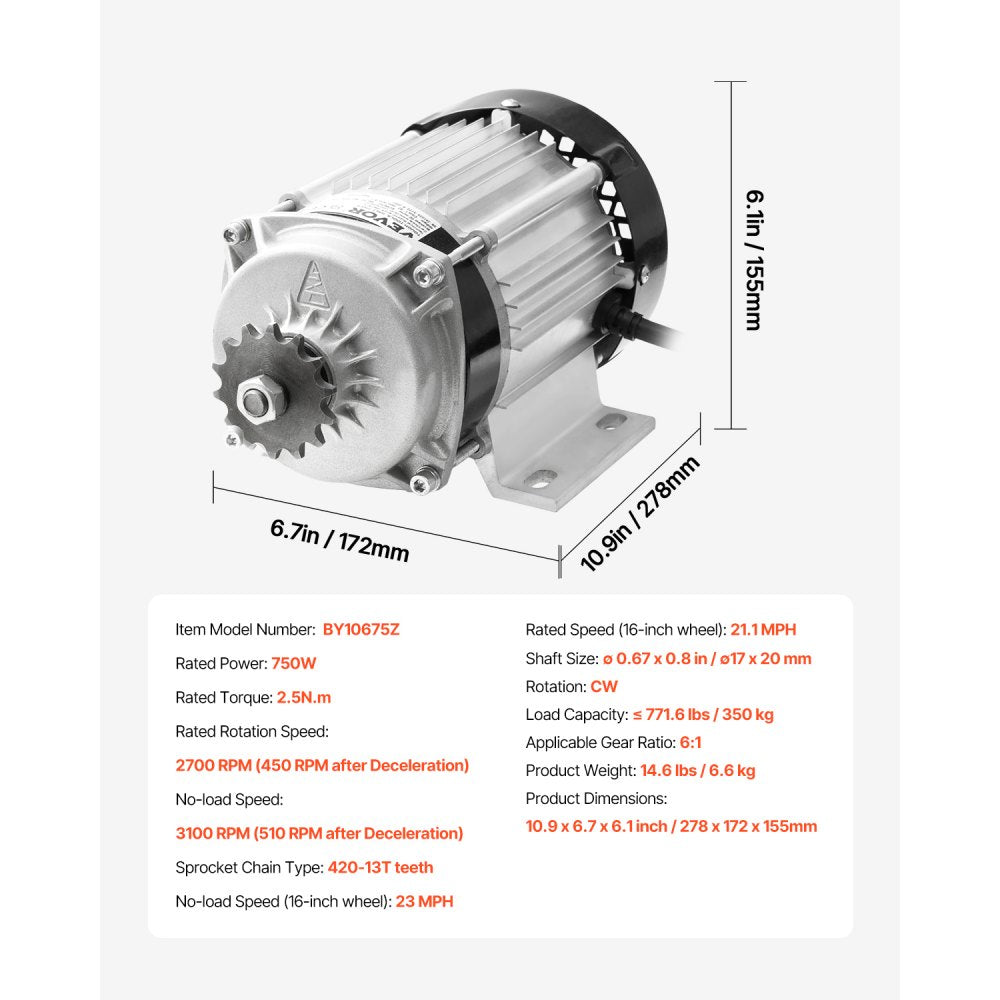

Specifications

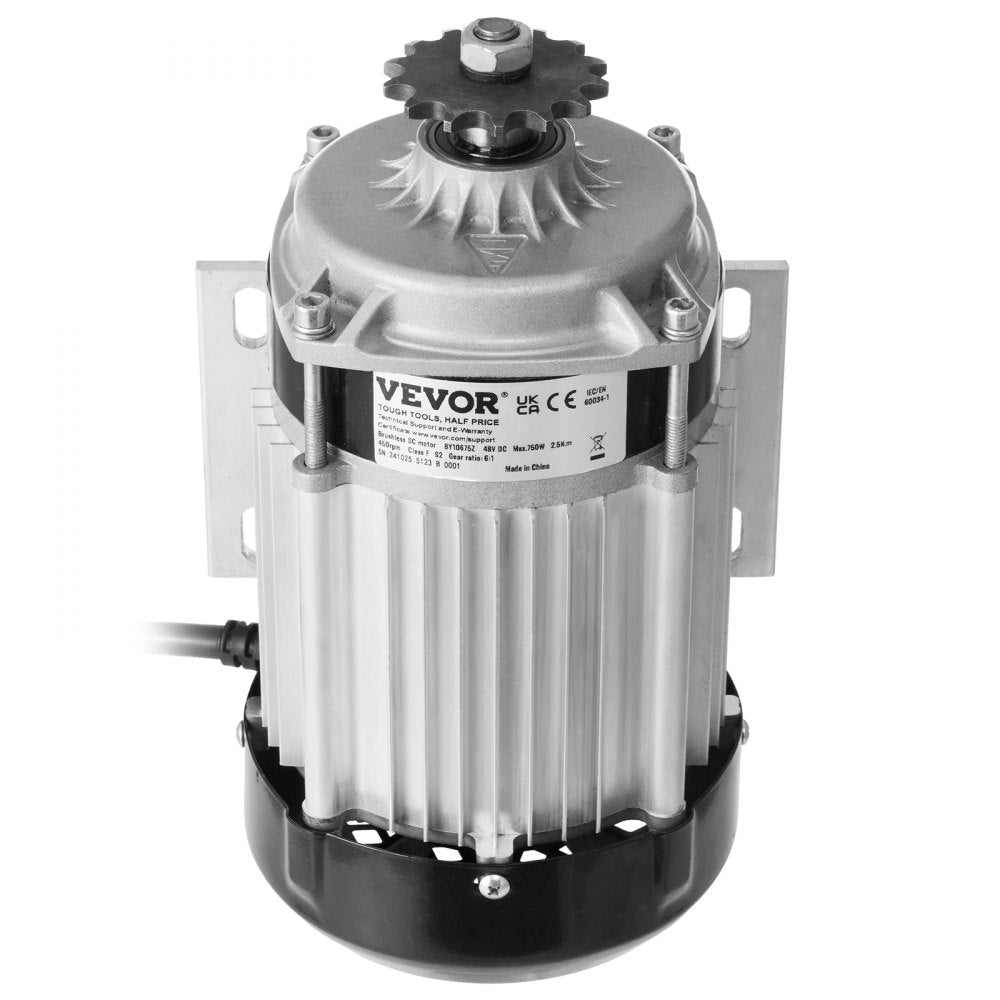

| Model Number | BY10650Z |
| Rated Power | 750W |
| Voltage | 48V |
| Rated Torque | 2.5 N·m |
| Rated Rotation Speed | 2700 RPM 450 RPM after deceleration |
| No-load Rotation Speed | 2900 RPM 480 RPM after deceleration |
| Rotation | CW |
| Load Capacity | 771.6 lbs |
| Noise | 70 dB |
| Applicable Gear Ratio | 6 |
| Product Weight | 14.6 lbs |
| Dimensions | 10.95 x 6.77 x 6.1 in |

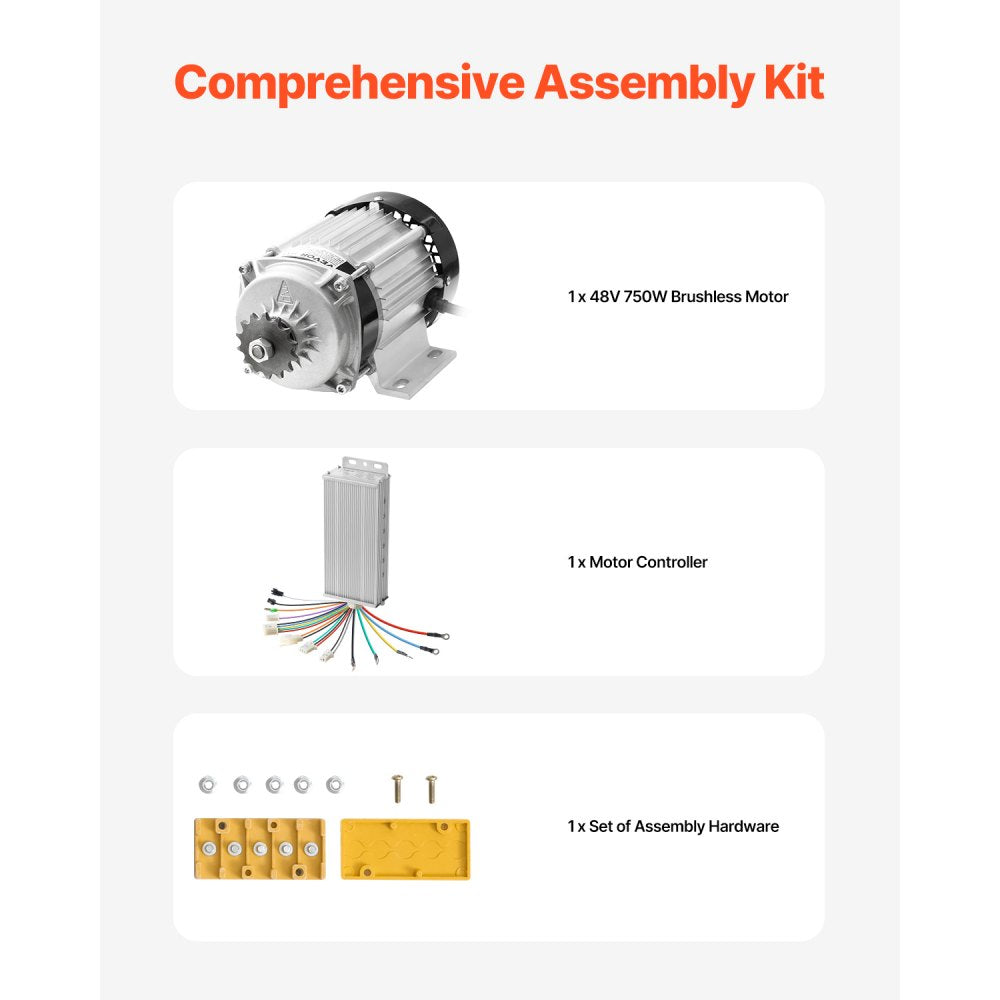

Package Contents
1 x 48V 750W Brushless Motor
1 x Motor Controller
1 x Set of Assembly Hardware
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
