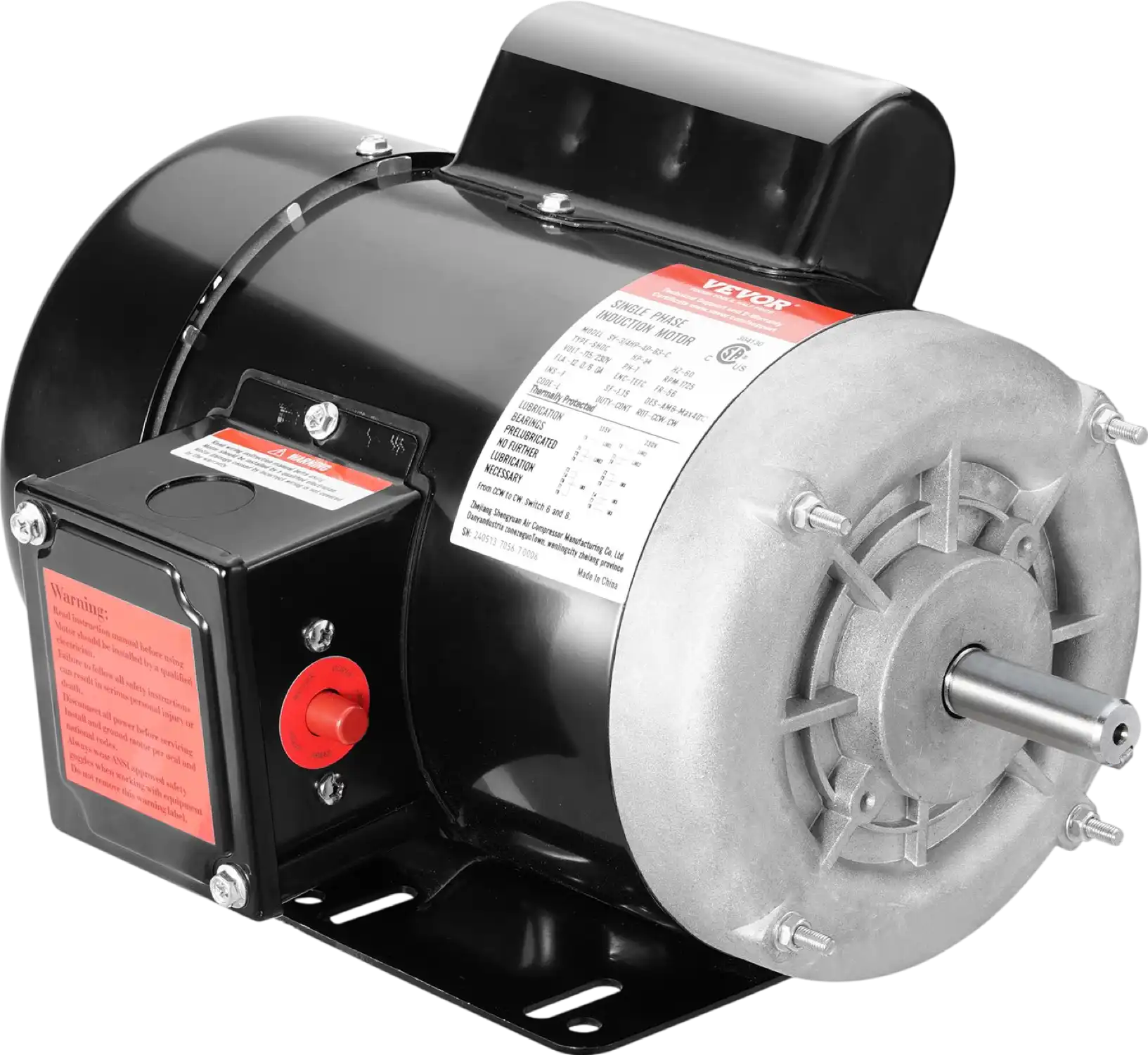

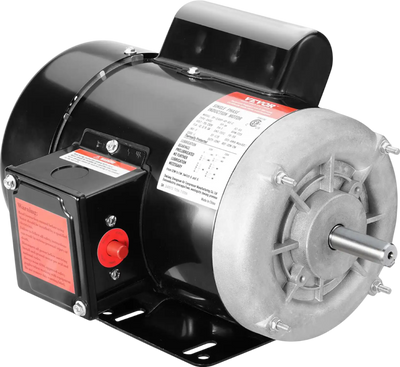

Vevor Electric Motor Single Phase 0.75HP 1725 RPM 115V/230V 56-Frame CW/CCW Rotation New
Product Overview
Inject powerful performance into your equipment with Vevor's 0.75 HP electric motor. Operating at 115V/230V voltage with 12A/6A current, it features 1725 RPM high speed, 56 frame, 1.88-inch shaft length, 5/8-inch keyed shaft, and CW/CCW dual rotation direction. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity. Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Dual Rotation Direction: This electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
- Wide Range of Applications: Vevor's 0.75HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.
- Powerful Performance: 0.75 HP, Single Phase, Full Load Current: 12A/6A, AC 115V/230V 60Hz, 1725 RPM high speed, SF: 1.15.
- Sturdy Frame Type: 56 frame, 5/8-inch keyed shaft, 1.88-inch shaft length, and 0.188-inch keyway size.
Specifications
| Item Model # | SY-3/4HP-4P-B3-C |
| Voltage | AC 115V/230V |
| Frequency | 60Hz |
| Horsepower | 0.75 HP |
| Current | 12A/6A |
| Frame Size | 56 |
| Rotation Speed | 1725 RPM |
| Product Dimensions | 12.4" x 9.1" x 8.3" |
| Net Weight | 27.1 lbs / 12.3 kg |
Package Contents
Vevor 0.75HP Electric Motor Single Phase
User Manual
Warranty
This item comes with a 1 year factory warranty.
