Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Manufacturer: Vevor
SKU: TCDZCC10225YF83OC001V9
Applicable Pound Rating Options
QTY
(888) 999-1522
$ 404.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Electric Trailer Brake Assembly Self-Adjusting 10" x 2-1/4" 4-Pack for 3500 lbs Axles New
-
Vevor Brake Drum Electric Trailer 12" 8-Hole for 7000 lbs Axles New
-
Vevor RV Leveling Pads 9" Round Landing Feet Jack Stabilizers 4-Pack New
-
Vevor Tripod Stabilizer 5th Wheel 5000 lbs 35"-57" Adjustable RV Gooseneck Jack New
-
Vevor Stabilizer Jack Telescoping Folding Trailer Jack 2-Pc Set 1000 lbs 11.7"-18.2" New
-
Vevor RV Screen Door Protector Adjustable Pet Protection Grille Black New
-
Vevor RV Slide Out Support Jacks Heavy-Duty 20"-48" Stabilizers 2-Pack 5000 lbs Each New
-
Vevor RV Levelers Camper Leveling Blocks 2 Pcs Up to 4" New
-
Vevor Toggle Switch 12V 6-Pin DPDT Momentary Polarity Reversing On-Off-On New
-
Vevor Truck Air Conditioner 12V 10,000 BTU Mini Split Cab AC Unit New
-
Vevor RV Stabilizer Jacks Adjustable 4-Pack 6000 lbs Support 11"-17" New
-
Vevor RV Leveling Pads 9" Round Rubber Jack Stabilizers 6-Pack New
-
Vevor Trailer Jack Block 6000 lbs RV Leveling Blocks 4-Pack New
-
Vevor Trailer Jack Block 6" 6000 lbs RV Leveling Block New
-
Vevor Electric Trailer Brake Assembly Self-Adjusting 10" x 2-1/4" 1 Pair for 3500 lbs Axle New
-
Vevor Truck Air Conditioner 12V 10000 BTU Mini Split AC Unit New
Vevor Electric Trailer Brake Assembly 10" x 2.25" Self-Adjusting Kit 3500 Lbs. Set of 4 New
Product Overview

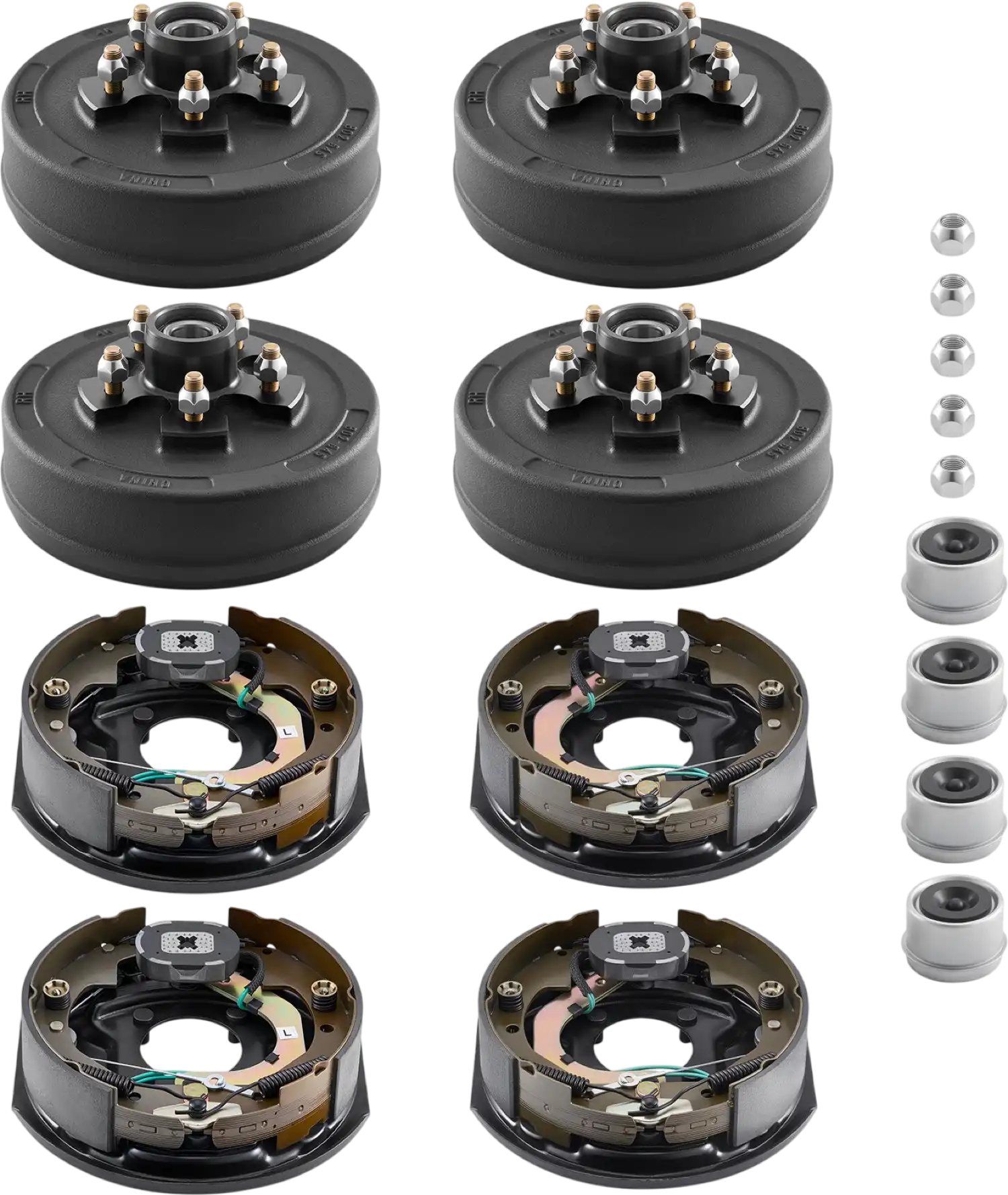

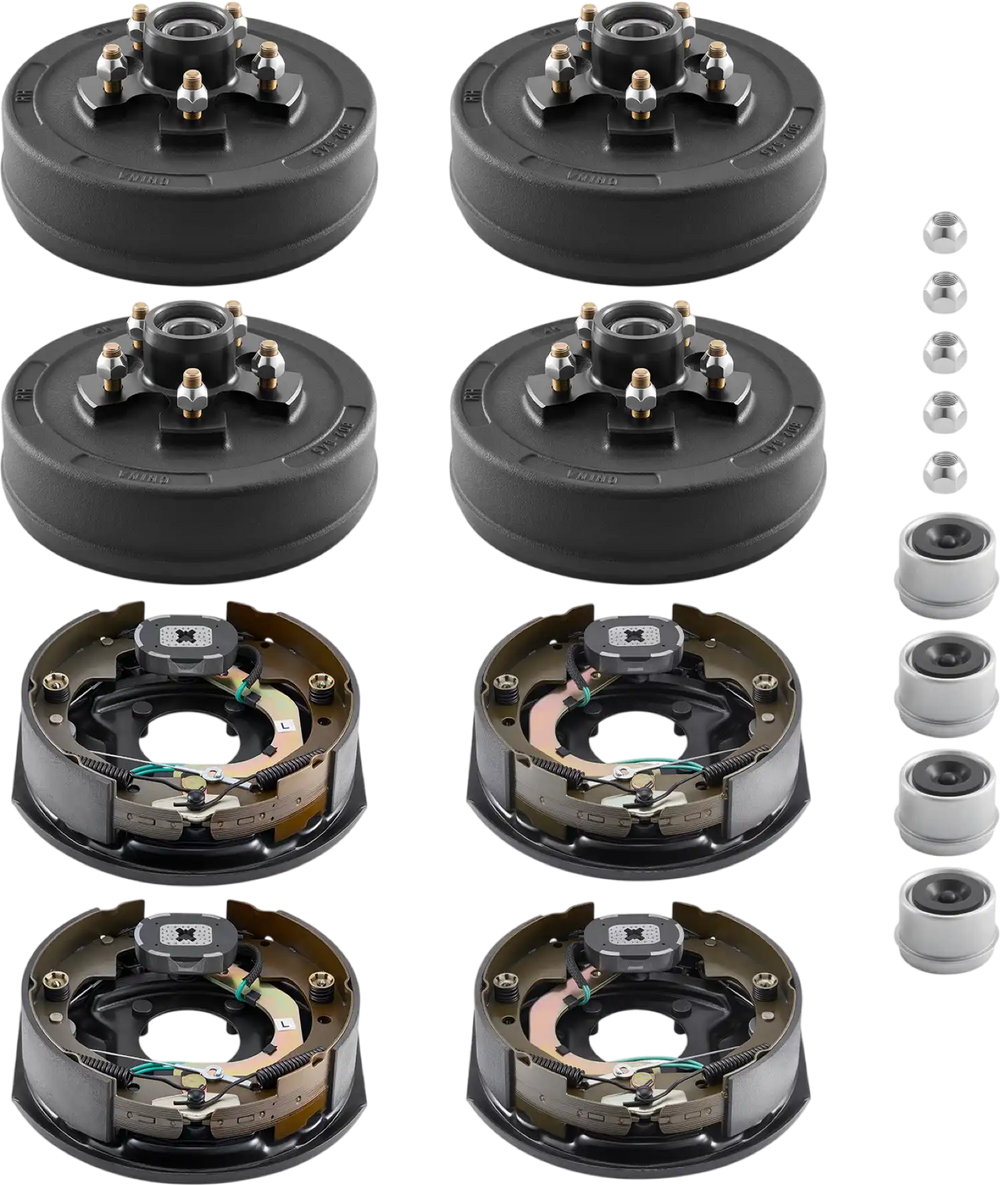

This trailer brake kit includes 4 brake assemblies and 4 brake drums, fit for 3,500 lb. trailers. The auto-adjust feature compensates for wear, making it an ideal upgrade for enhanced braking performance. These brake assemblies are compatible with top brands like Al-Ko, Dexter, and Lippert; pre-assembled core components make installation easy. Crafted with GG-rated brake pads, steel assemblies, and cast iron drums, they resist wear, heat, and impact, ideal for long road trips.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

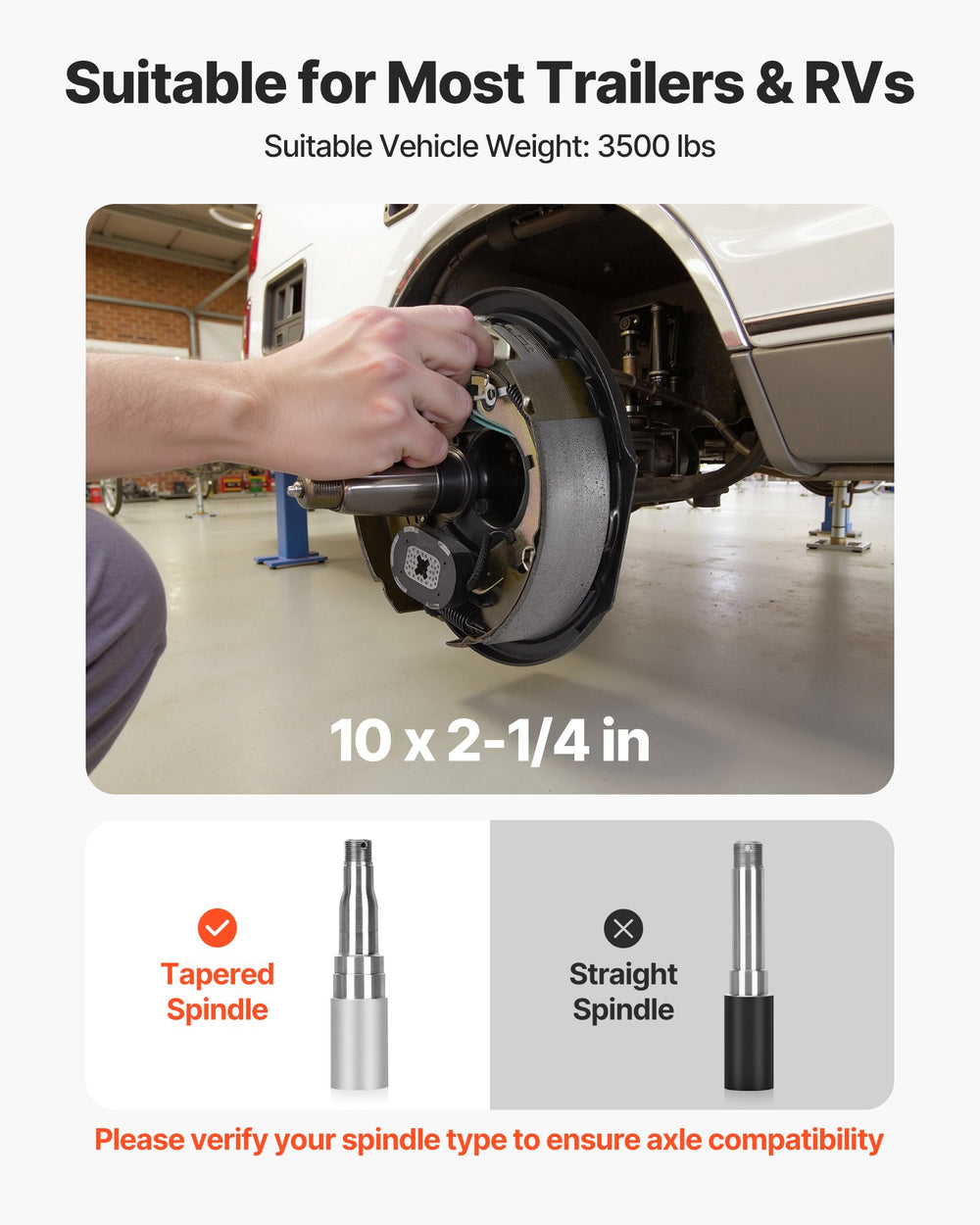

- Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies and 4 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

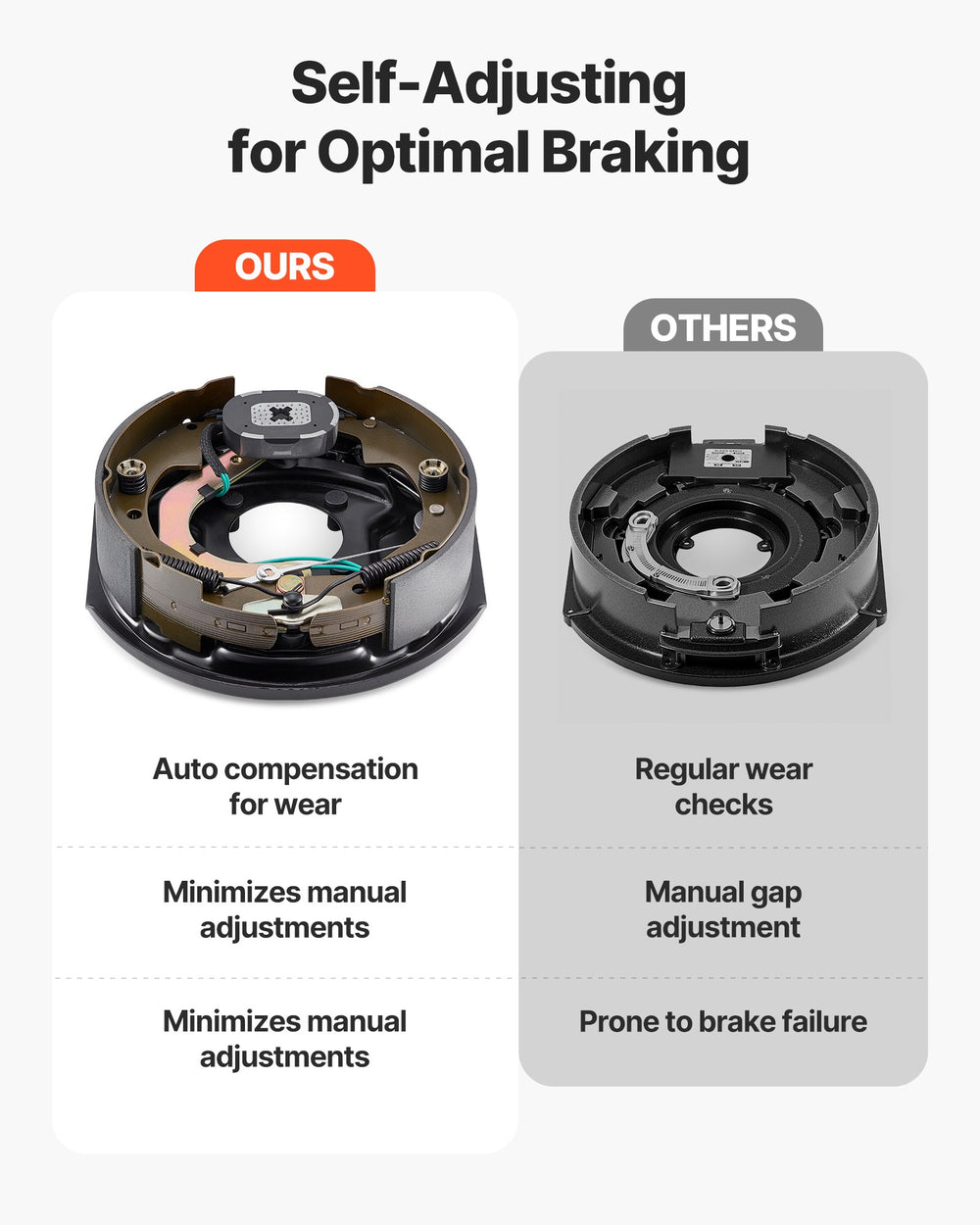

- Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

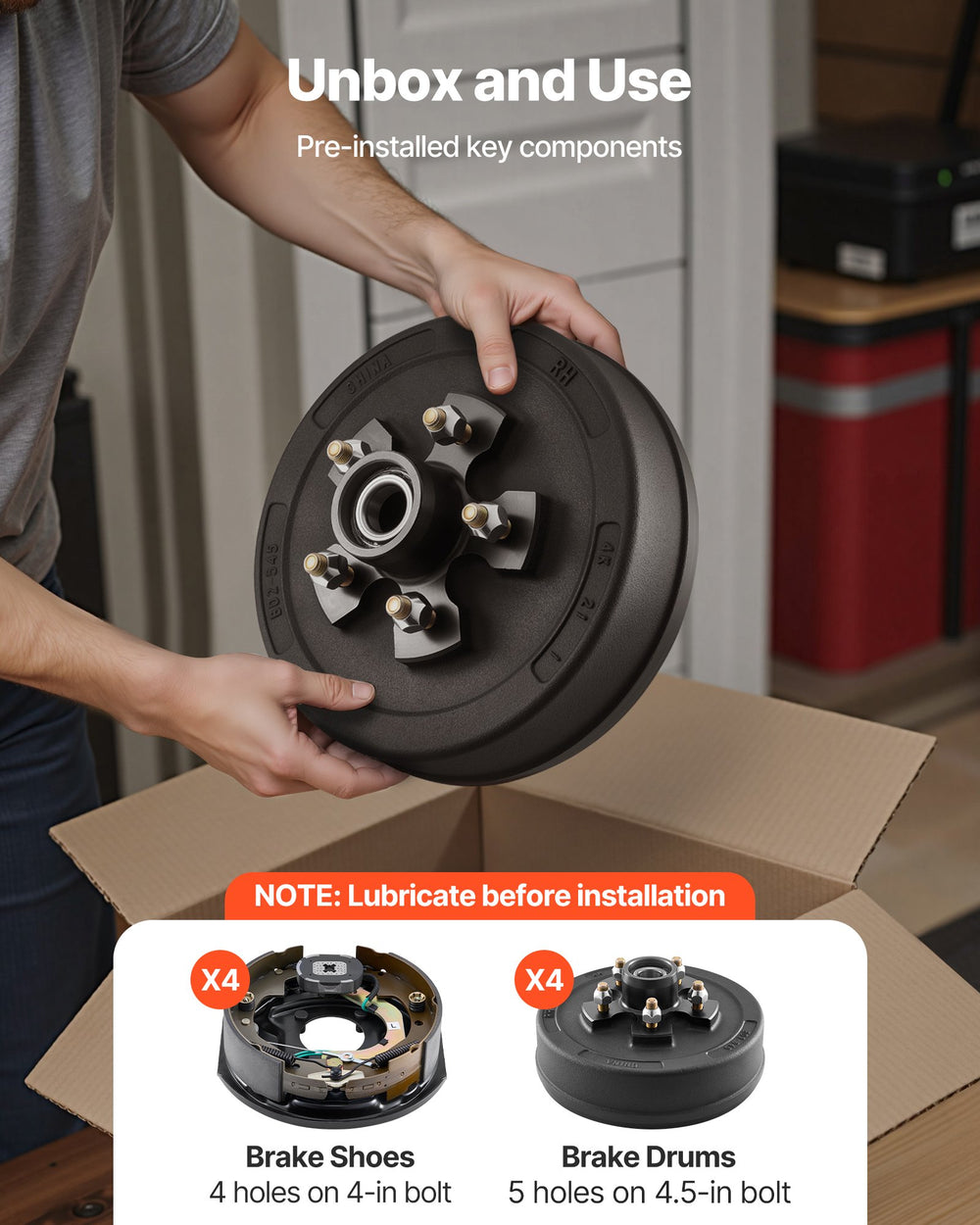

- Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go

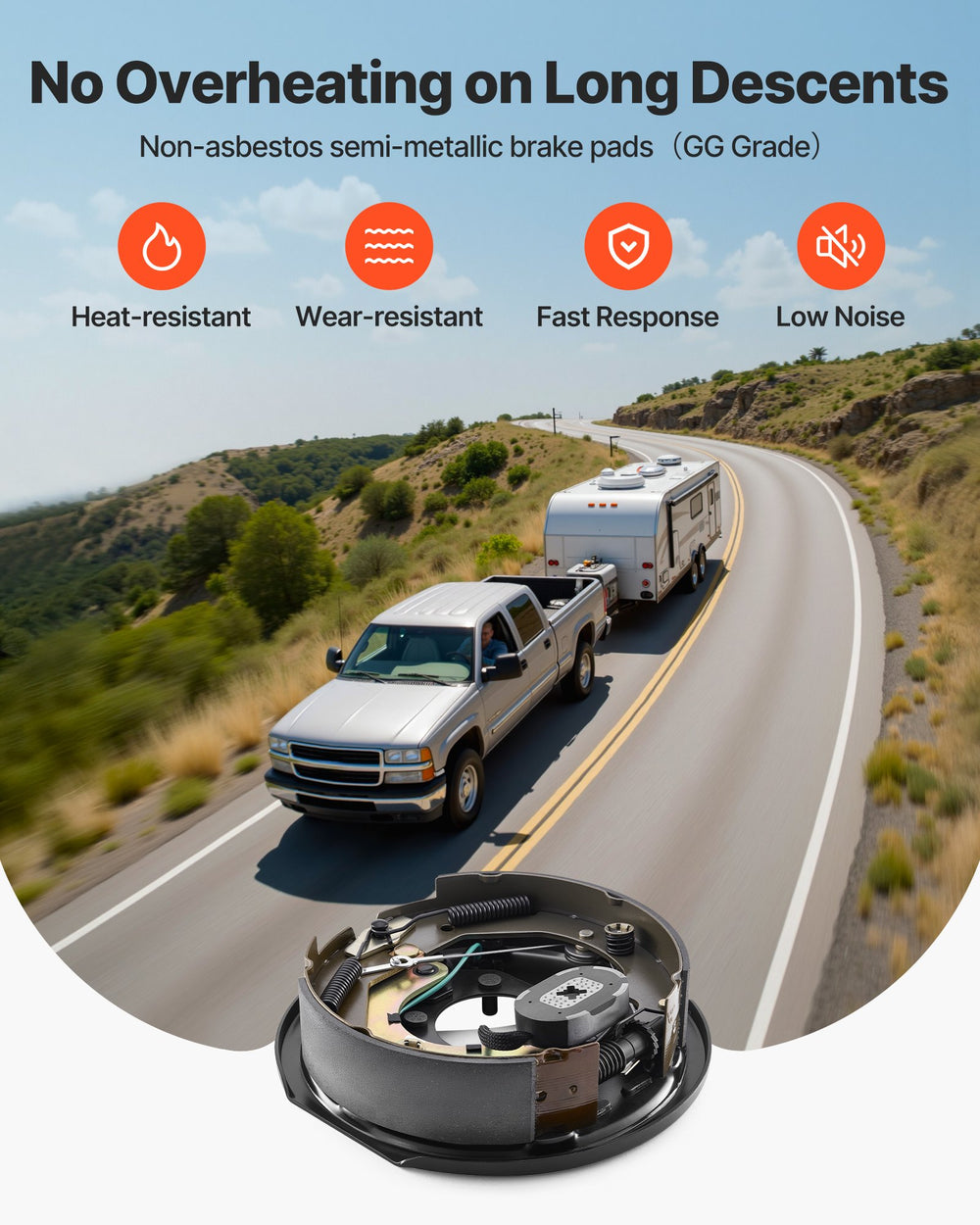

- Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking

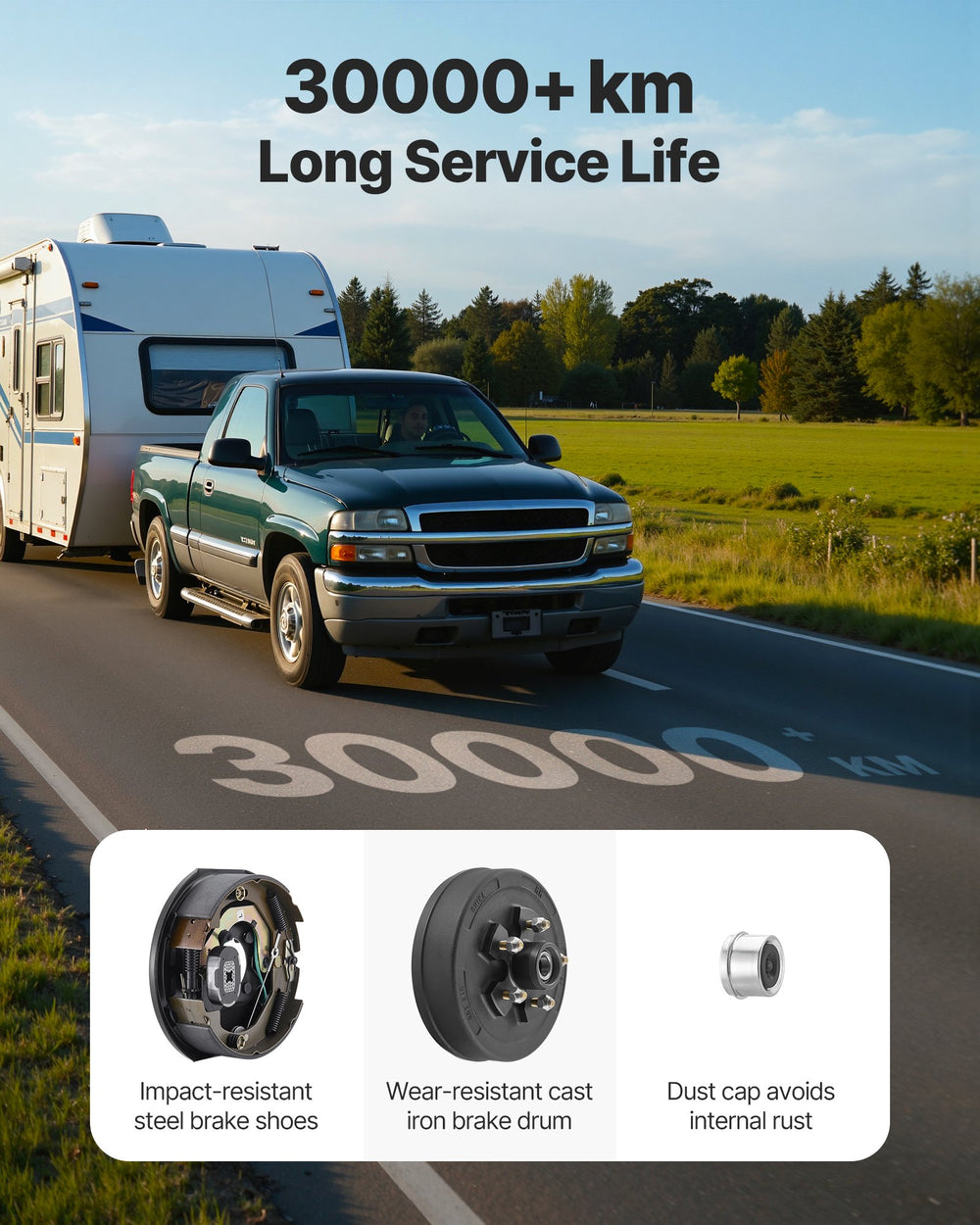

- ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

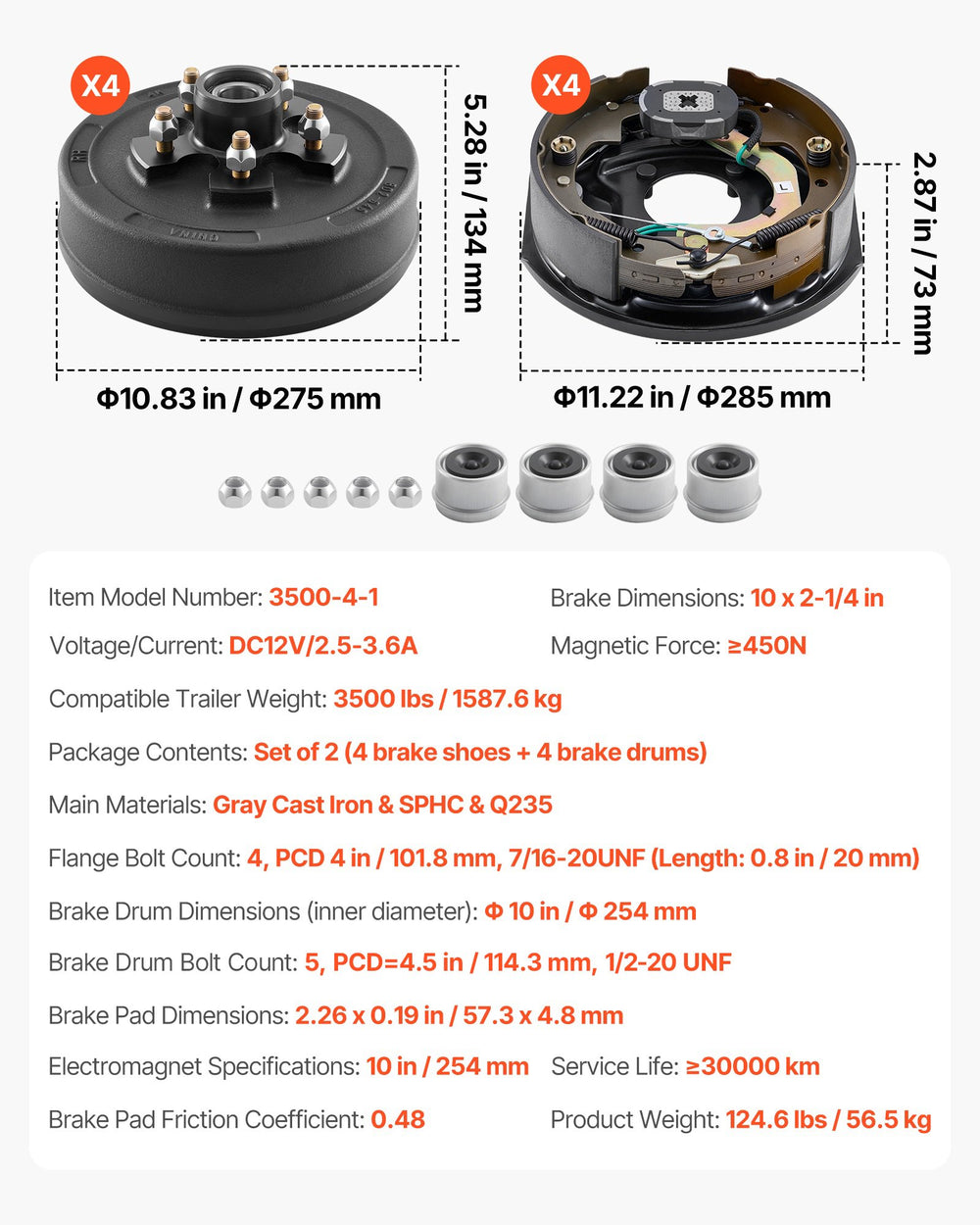

Specifications
| Item Model Number | 3500-4-1 |
| Compatible Trailer Weight | 3500 lbs |
| Package Contents | Set of 2 (4 brake shoes + 4 brake drums) |
| Main Materials | Gray Cast Iron & SPHC & Q235 |
| Brake Dimensions | 10 x 2-1/4 inch |
| Flange Bolt Count | 4, PCD 4 in / 101.8 mm, 7/16-20UNF (Length |
| Brake Drum Dimensions (inner diameter) | Φ 10 in |
| Brake Shoe | Φ11.22 x 2.87 in |
| Brake Drum | Φ10.83 x 5.28 in |
| Voltage/Current | DC12V/2.5-3.6A |
| Magnetic Force | ≥450N |
| Service Life | ≥30000 km |
| Brake Pad Friction Coefficient | 0.48 |
| Brake Pad Dimensions | 2.26 x 0.19 in |
| Product Weight | 124.6 lbs |
Package Contents
Vevor Electric Trailer Brake Assembly 10" x 2.25" (Set of 4)
User Manual
Warranty
This item comes with a 1 year factory warranty.
