Vevor Electric Trailer Brake Assembly 12 x 2 inch Self-Adjusting for 6000 lb. Trailer Axle 1 Pair New
Manufacturer: Vevor
SKU: TCDZCC122YCZFCRJT001V9
QTY
(888) 999-1522
$ 229.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Vevor Electric Trailer Brake Assembly 12 x 2 inch Self-Adjusting for 6000 lb. Trailer Axle 1 Pair New
Product Overview
This self-adjusting electric trailer brake kit is designed for trailers and RVs with tapered axles up to 6000 lbs. The kit includes one pair of brake assemblies and matching brake drums to restore or upgrade braking performance. Its automatic adjustment helps maintain proper brake gap as components wear for consistent stopping power. Built with durable steel assemblies and cast-iron drums, it’s made for frequent braking and long-distance towing. Pre-assembled components simplify installation for straightforward replacement.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

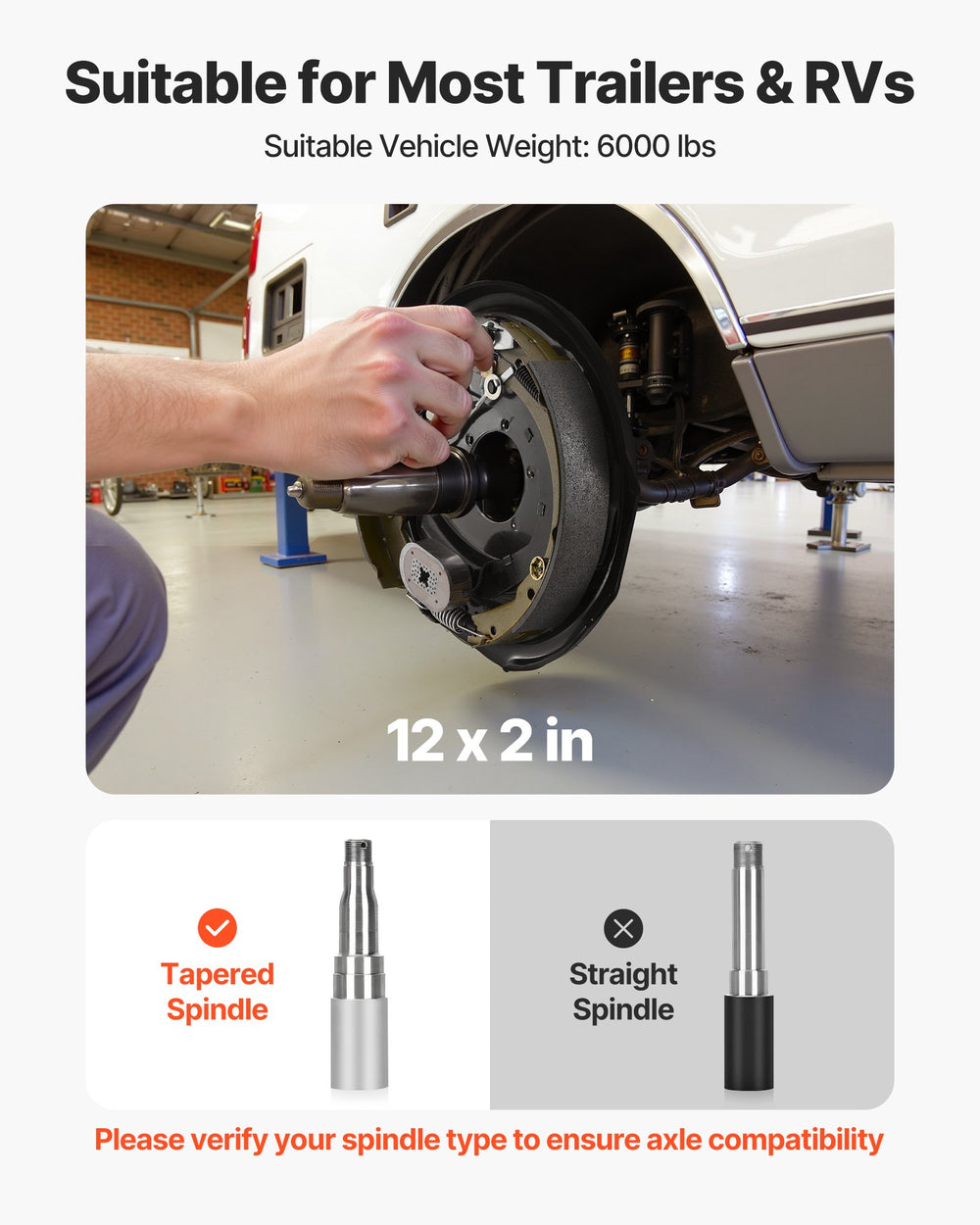

- Upgrade Your Brake System: This electric trailer brake kit includes 2 brake assemblies, designed for trailers and RVs with tapered axles up to 6000 lbs. With a 12 x 2 inch brake and a 12 inch drum, it's the ultimate upgrade.
- Automatic Brake Adjustment: The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips.

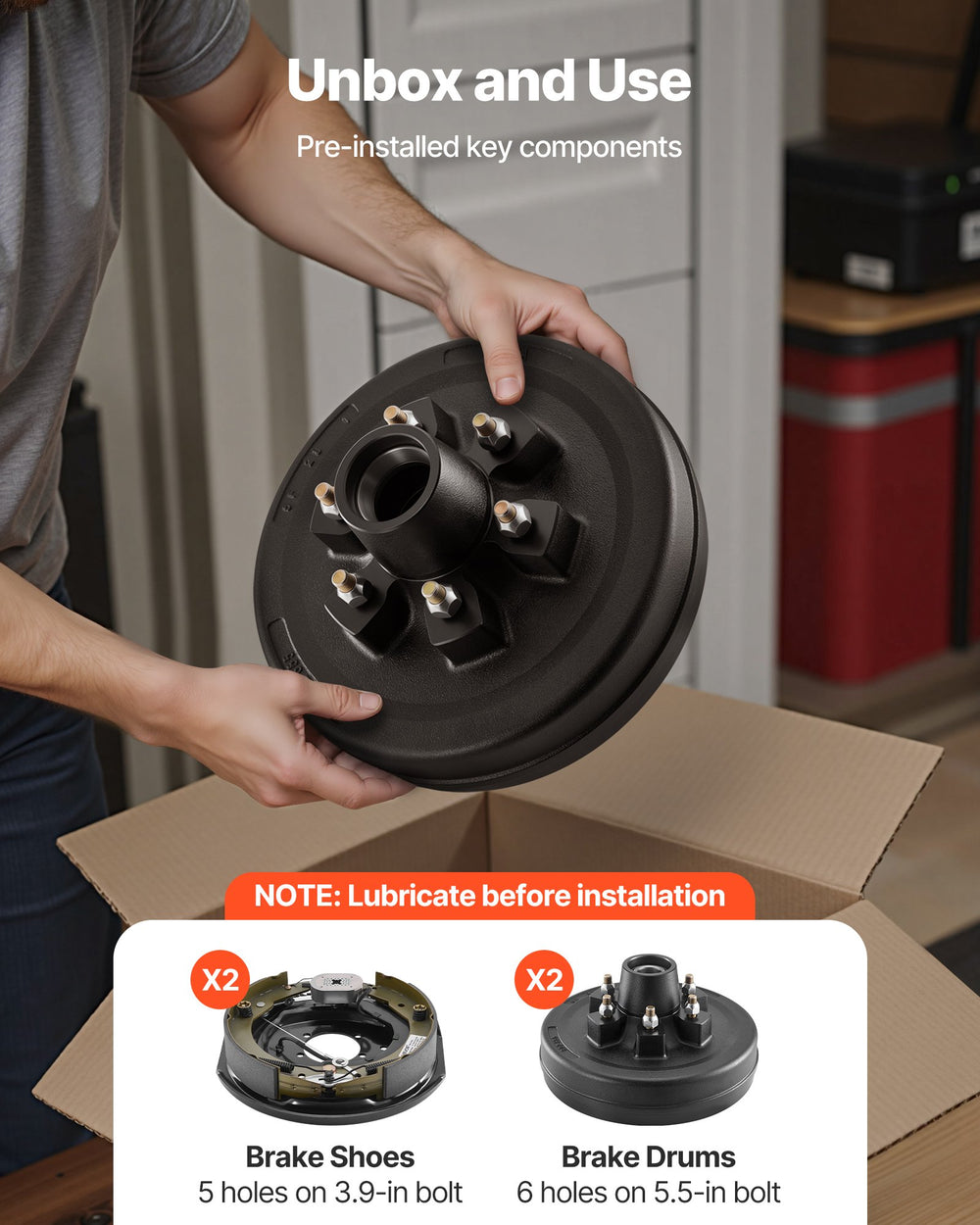

- Easy Installation: This electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go.
- Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). The trailer brakes are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking.
- ≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads.
Specifications
| Item Model Number | BF12-Z03AB*2 |
| Compatible Trailer Weight | 6000 lbs / 2722 kg |
| Brake Dimensions | 12 x 2 in / 304.8 x 50.8 mm |
| Brake Drum Dimensions (Inner Diameter) | 12 in / 305 mm |
| Flange Bolt Count | 5, PCD 3.9 in / 99 mm, 5-Φ10 |
| Brake Drum Bolt Count | 6, PCD 5.5 in / 139.7 mm, 1/2-20 UNF |
| Main Materials | Gray Cast Iron & SPHC & Q235 |
| Electromagnet Specifications | 12 in / 304.8 mm |
| Voltage/Current | DC12V / 2.8-4.2A |
| Magnetic Force | ≥600 N |
| Brake Pad Friction Coefficient | 0.48 |
| Brake Pad Dimensions | 2 x 0.2 in / 50 x 4.7 mm |
| Service Life | ≥30000 km |
| Product Weight | 91.7 lbs / 41.6 kg |
Package Contents

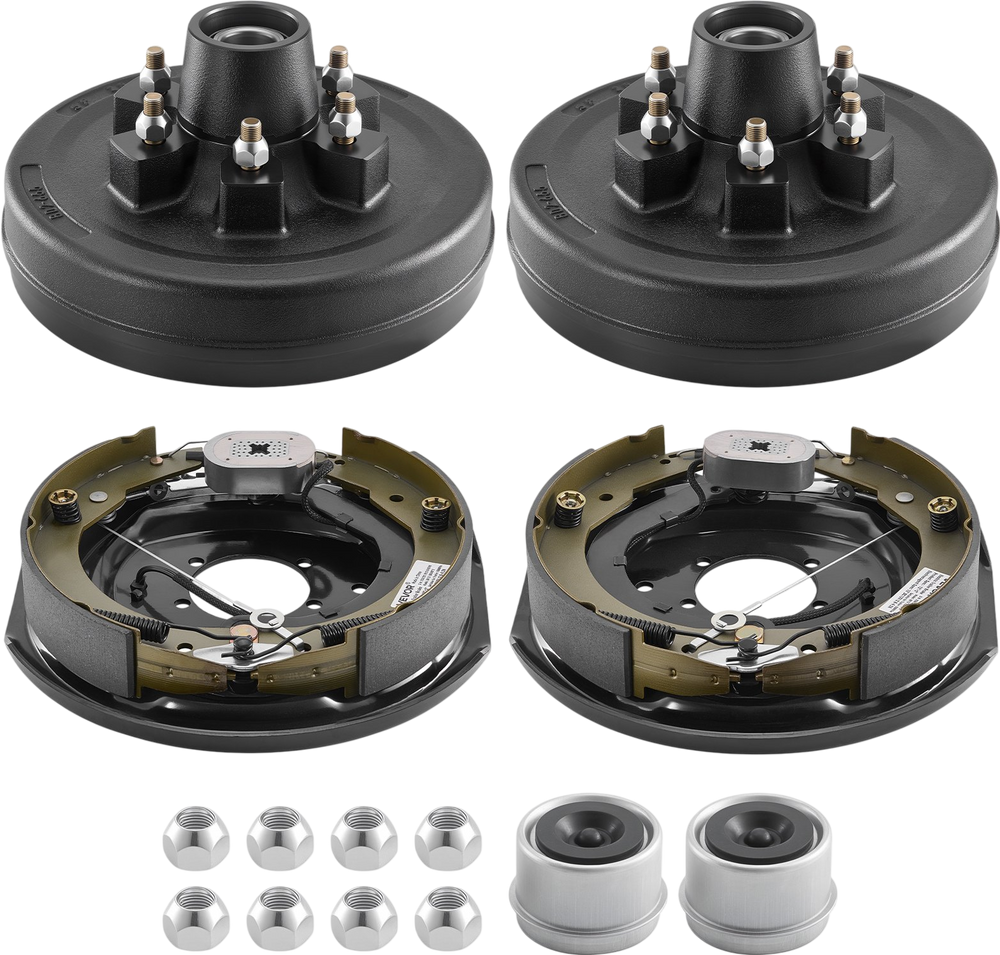

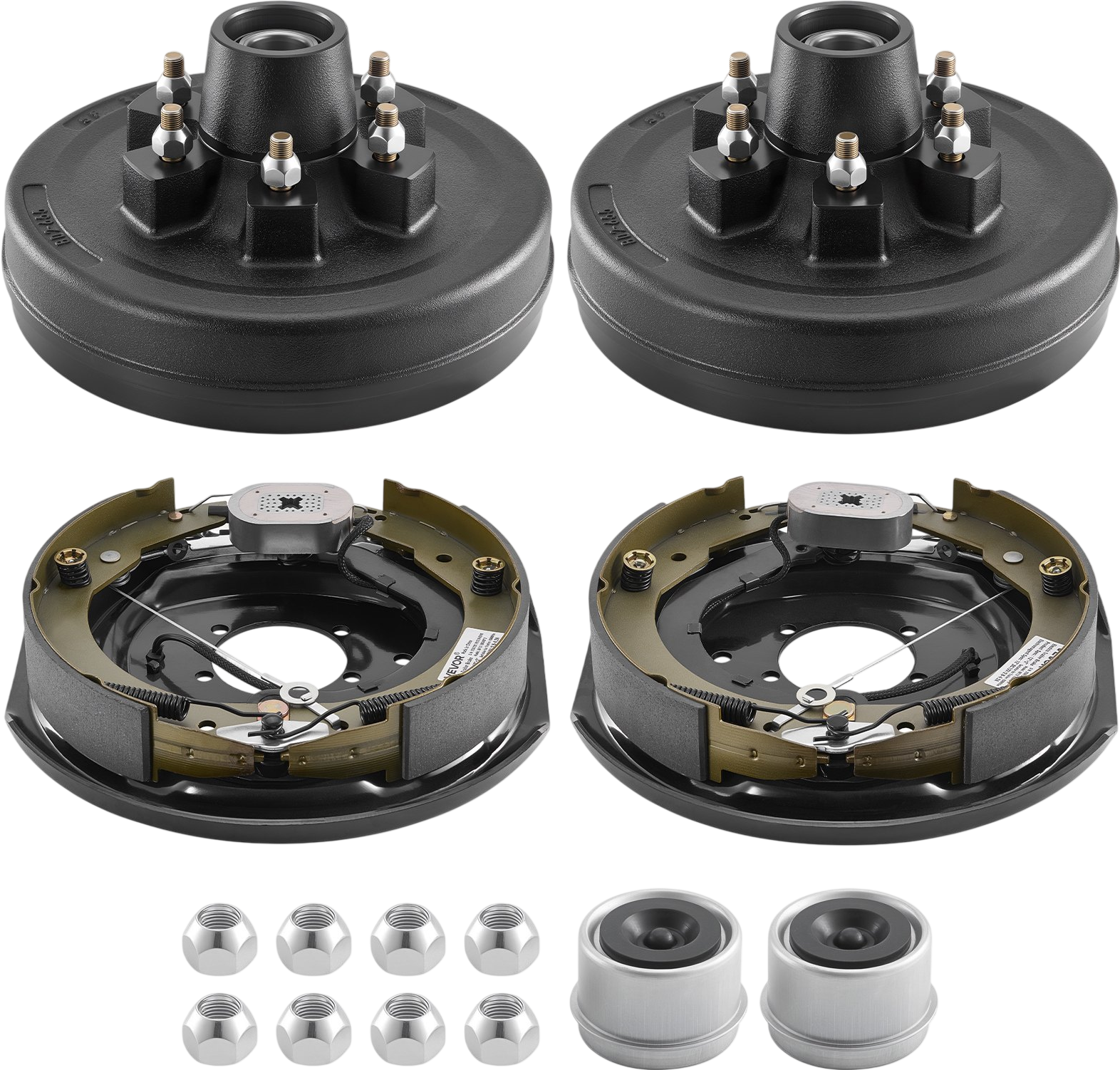

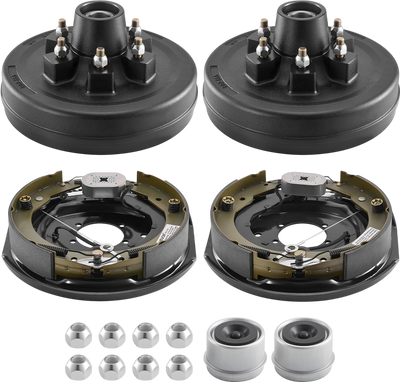

Vevor Electric Trailer Brake Assembly (One Pair)
User Manual
Warranty
This item comes with a 1 year factory warranty.
