Product Overview

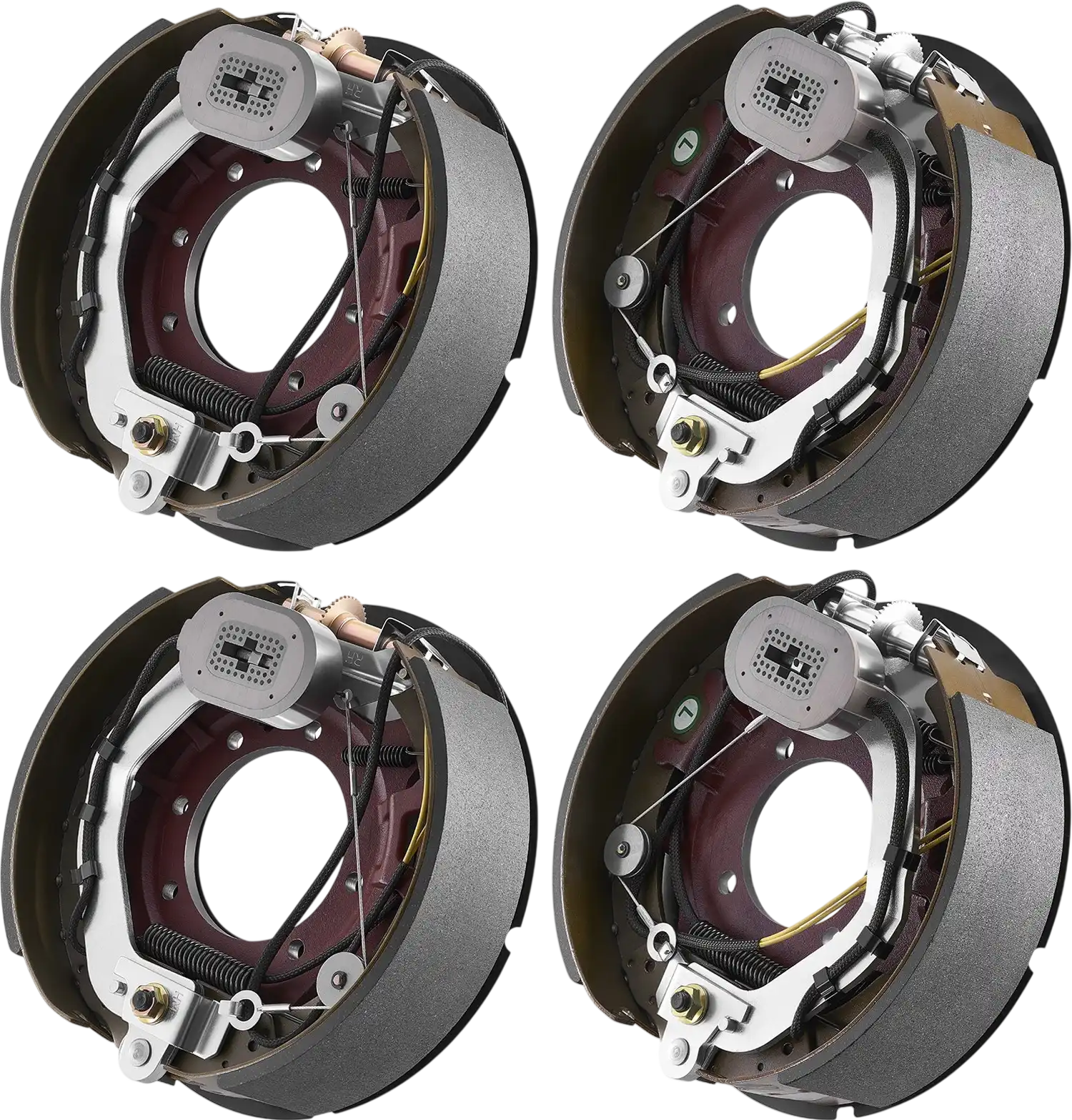

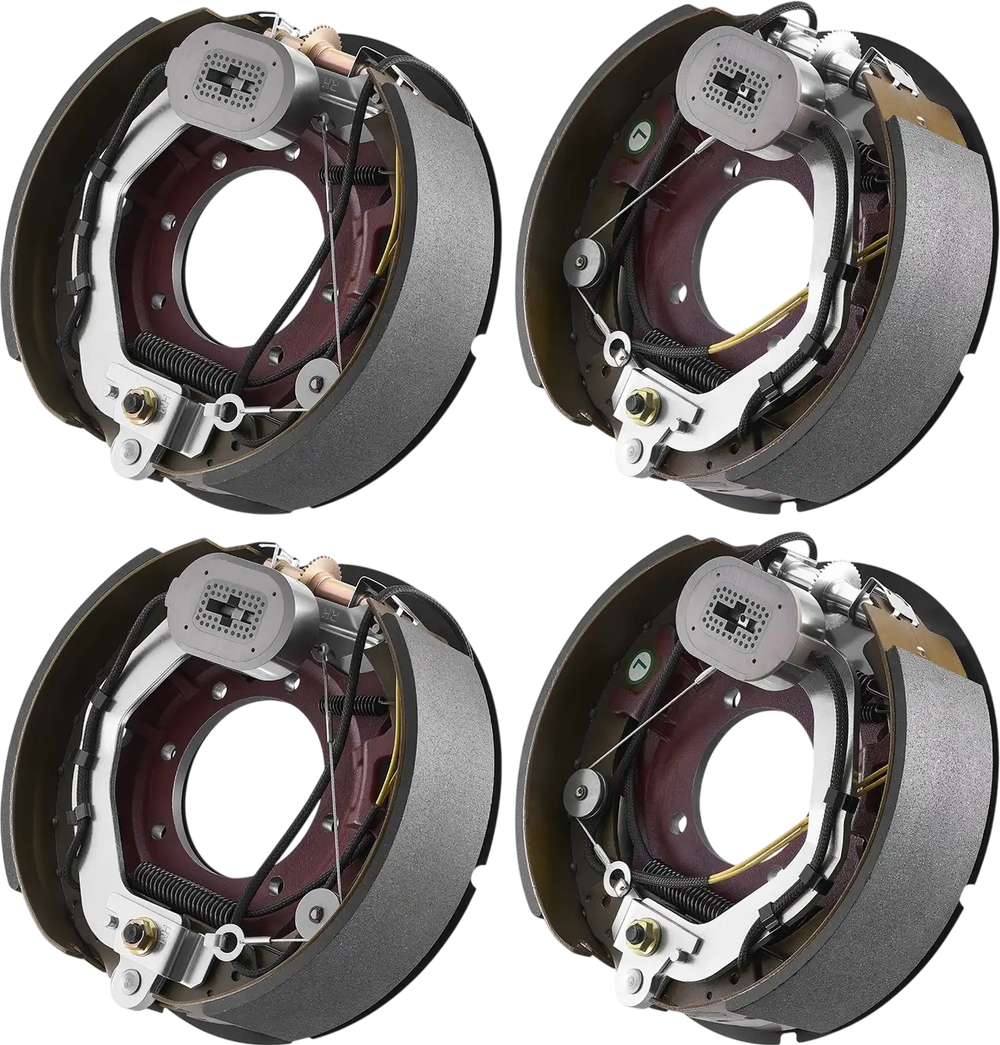

This electric trailer brake kit includes four brake assemblies designed for trailers and RVs with tapered axles up to 10,000 lbs. The 12.25 x 3.375 in brakes automatically maintain proper adjustment to reduce wear and help keep braking consistent. It comes pre-assembled for easier installation and uses semi-metallic brake pads engineered for stable braking under heavy loads. Built with durable steel components and a protective shield, it’s intended for long service life and dependable stopping power.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies, designed for trailers and RVs with tapered axles up to 10000 lbs. 12.25 x 3.375 inch brakes, with 7 holes on a 5.5 inch bolt circle, fit most vehicle installations
- Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips
- Easy Installation: Installing your new brakes is a breeze! Our self-adjusting electric brakes it comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
- Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
- ≥30000km Lifespan: These steel brake assemblies of the self-adjusting electric brakes kit are shock-resistant and built to last. The protective shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

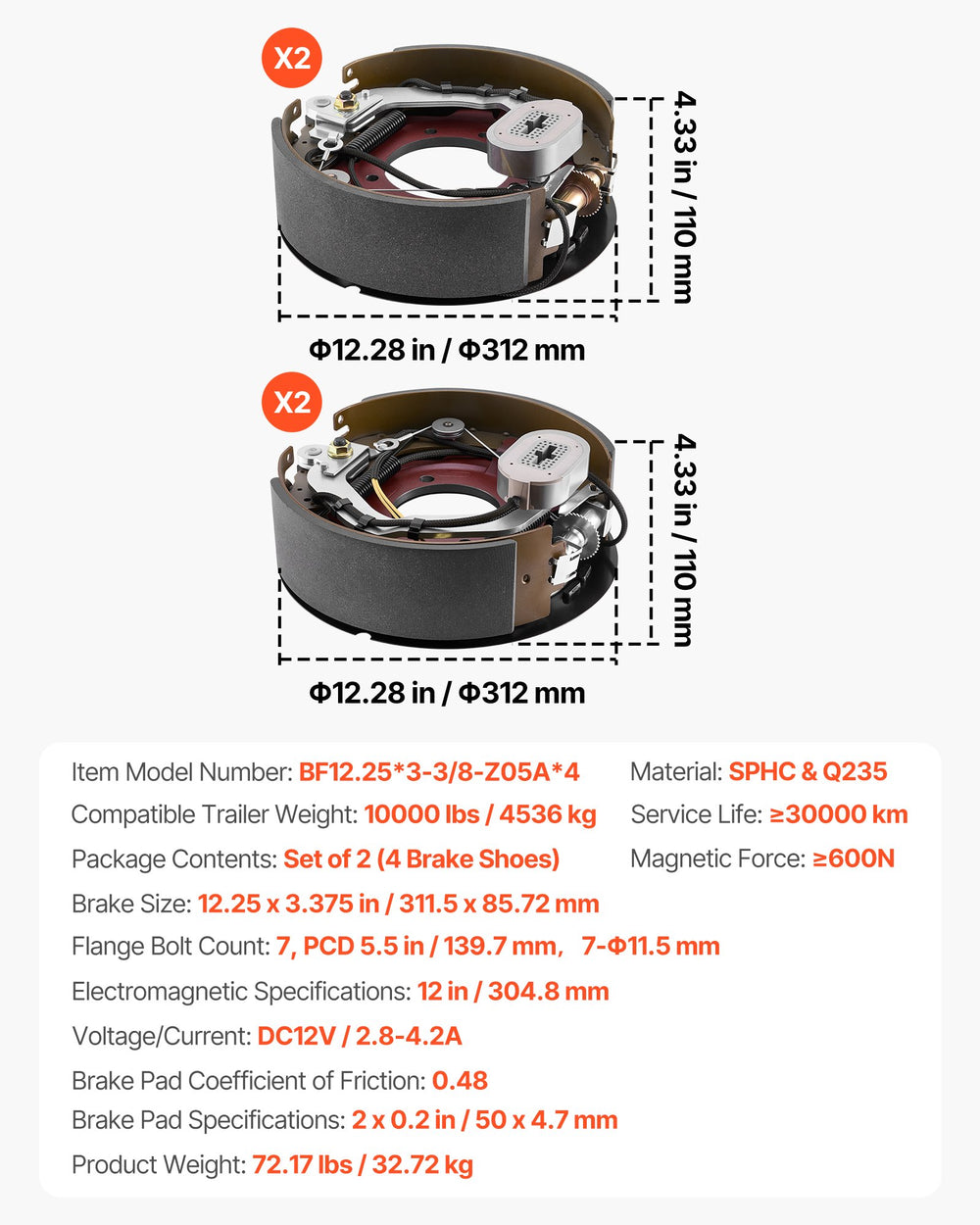

Specifications
| Item Model Number | BF12.25*3-3/8-Z05A*4 |
| Compatible Trailer Weight | 10,000 lbs |
| Brake Size | 12.25 x 3.375 in |
| Flange Bolt Count | 7, PCD 5.5 in |
| Electromagnetic Specifications | 12 in |
| Voltage/Current | DC12V / 2.8-4.2A |
| Magnetic Force | ≥600 N |
| Material | SPHC & Q235 |
| Brake Pad Coefficient of Friction | 0.48 |
| Brake Pad Specifications | 2 x 0.2 in |
| Service Life | ≥30000 km |
| Product Weight | 72.17 lbs |
Package Contents
Vevor Electric Trailer Brake Kit (4 Brakes)
User Manual
Warranty
This item comes with a 1 year factory warranty.
