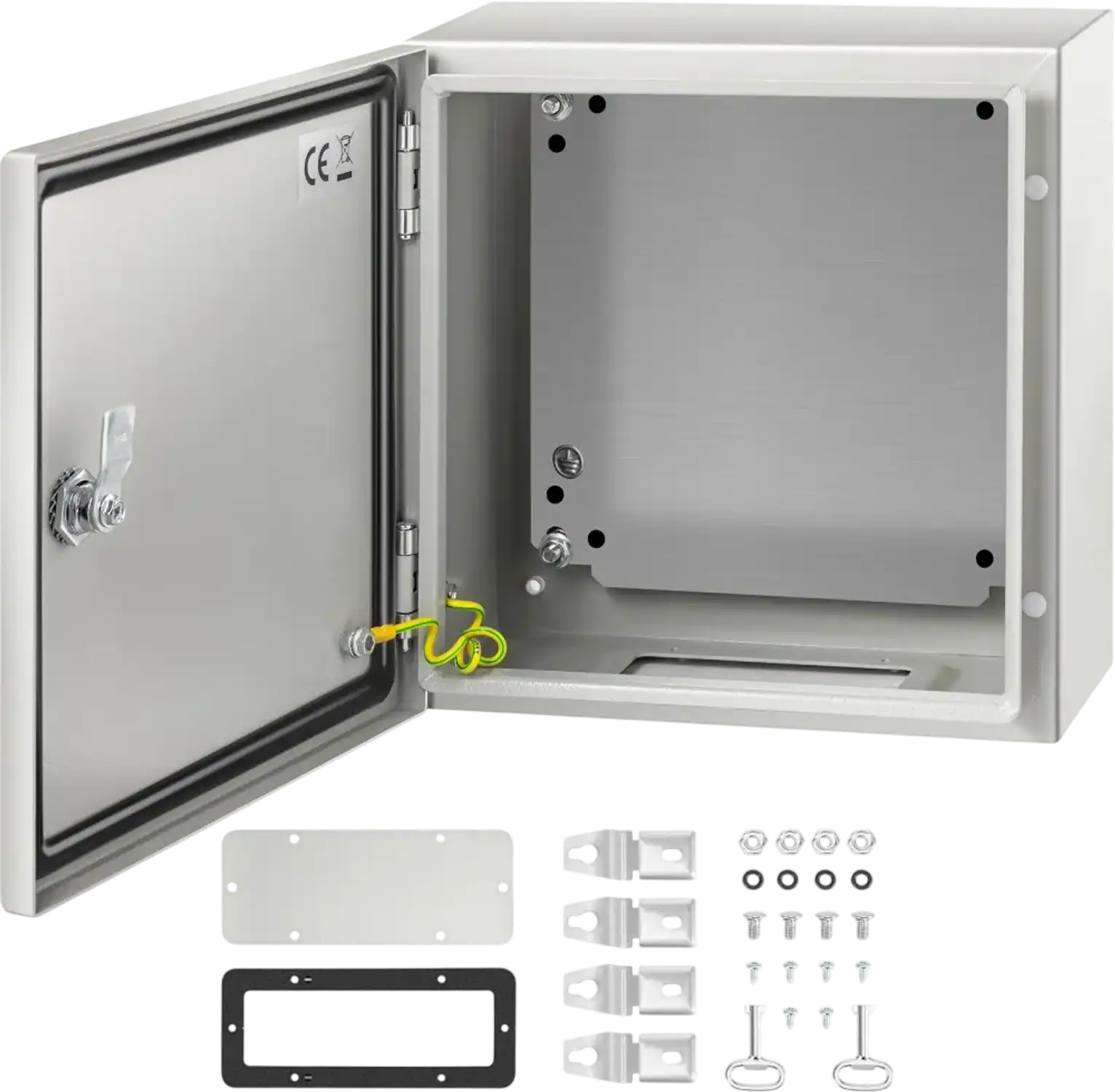

Vevor Electrical Enclosure 12" x 12" x 6" NEMA 4X Steel Junction Box New
Manufacturer: Vevor
SKU: DQXJSTCFS30X30X15V0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 50.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Vevor Electrical Enclosure 12" x 12" x 6" NEMA 4X Steel Junction Box New
Product Overview

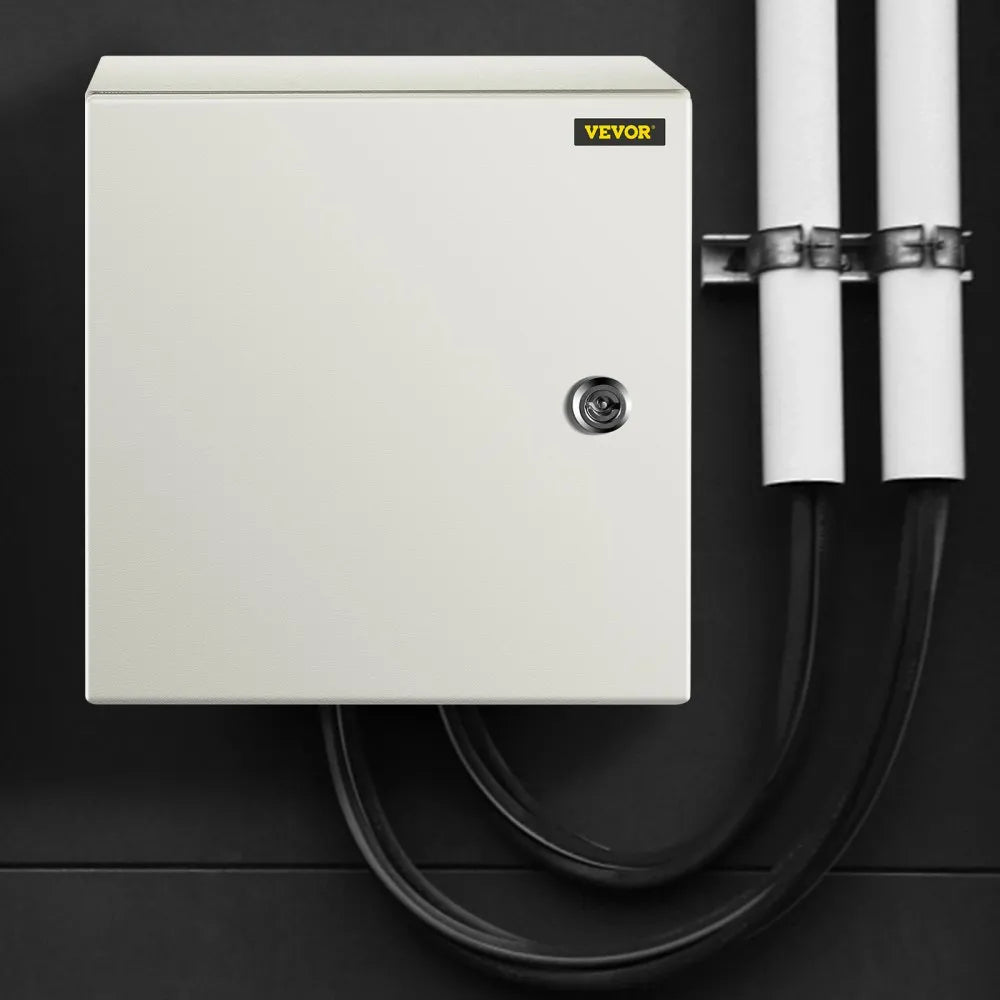

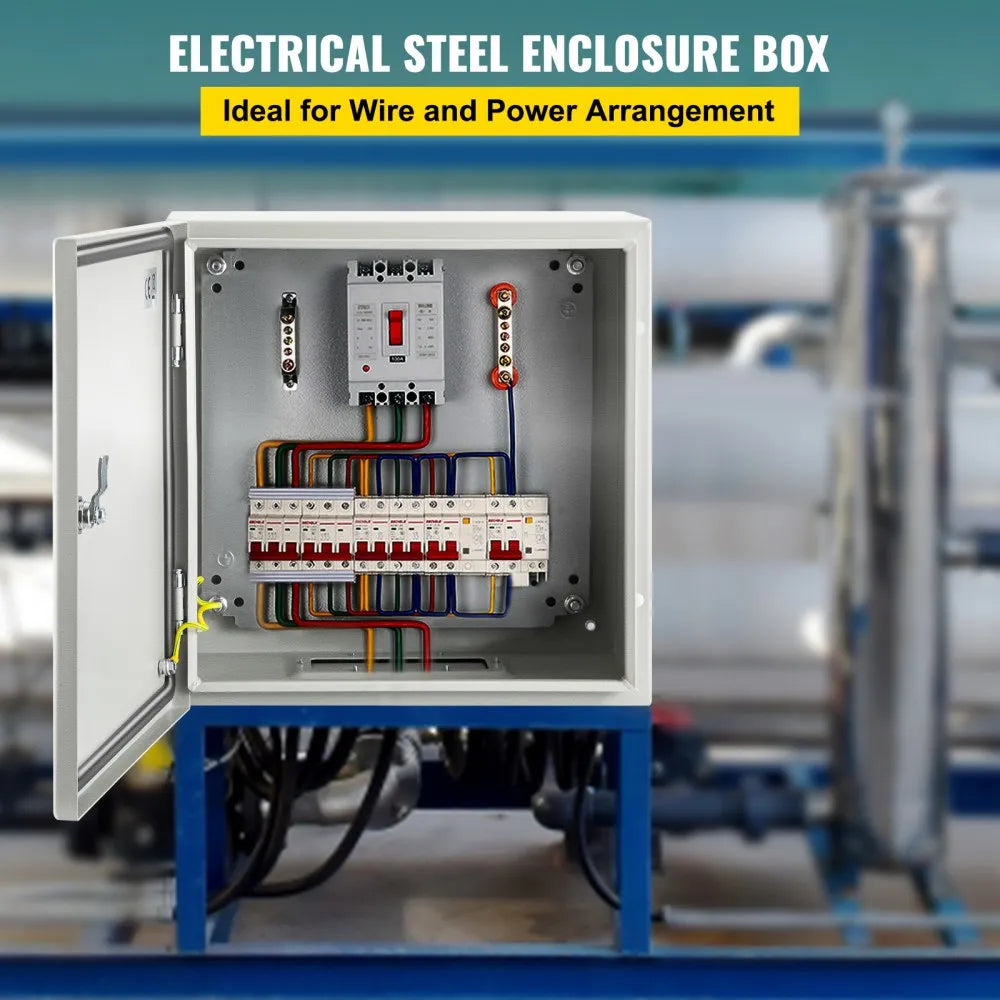

The Vevor electrical enclosure is a carbon steel junction box designed to protect electrical components in demanding indoor and outdoor environments. It features an IP66 waterproof and dustproof rating, a hinged lockable door, and a detachable galvanized mounting backplate for convenient installation. The enclosure is built from 1.5 mm cold-rolled steel with an epoxy polyester powder coating for durability and corrosion resistance. It is suited for factories, construction sites, commercial spaces, residential areas, and other electrical projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

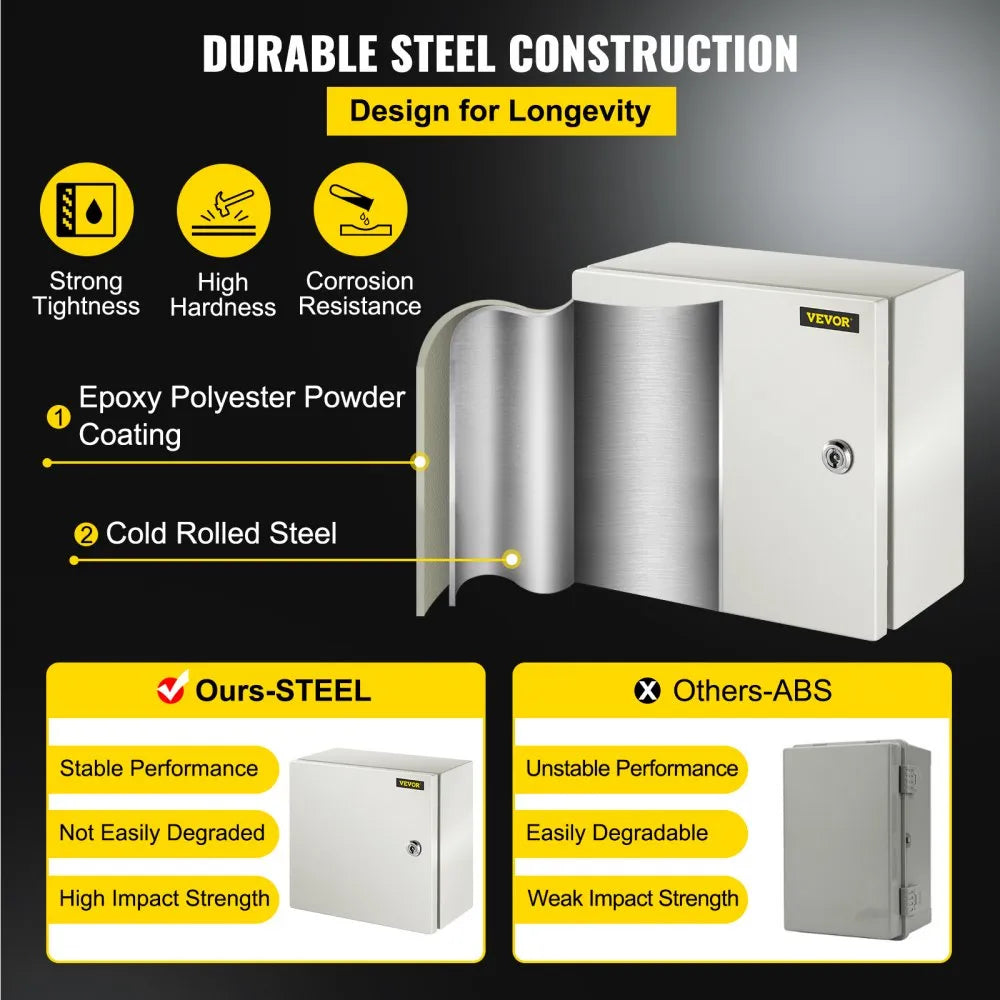

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

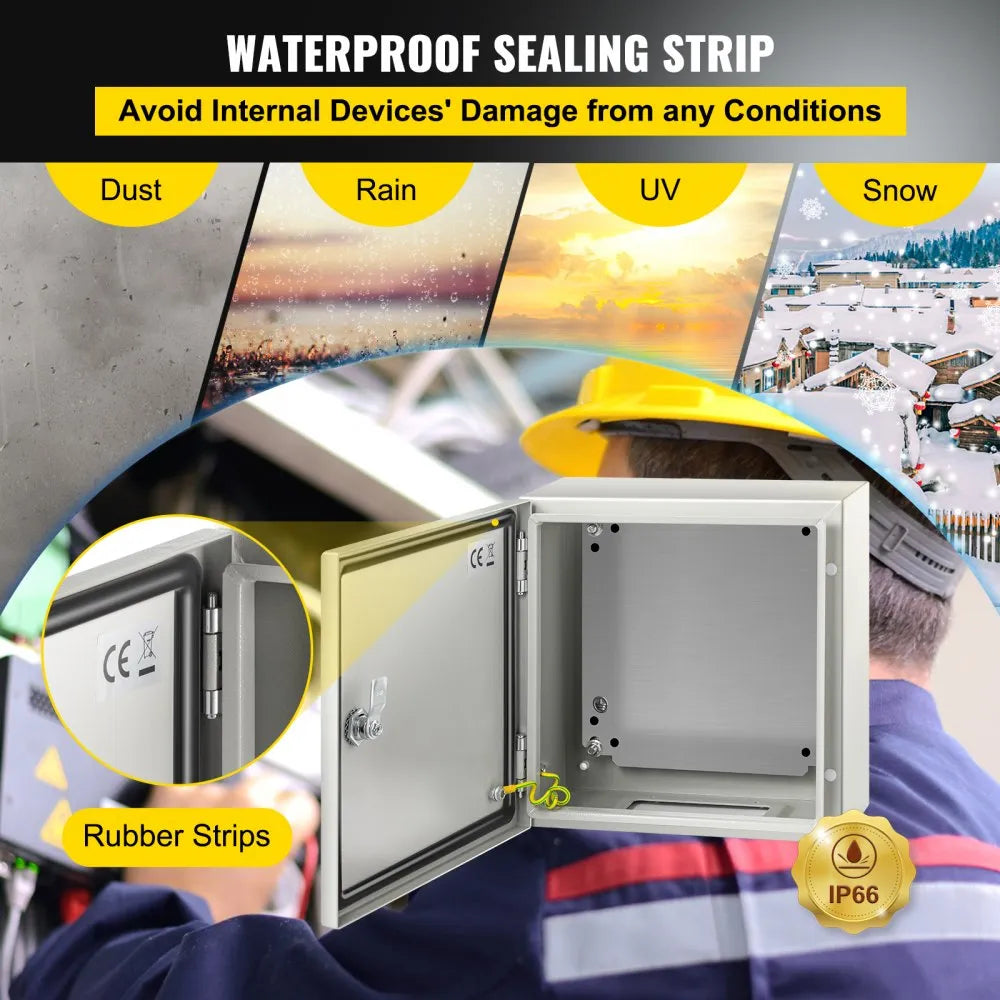

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

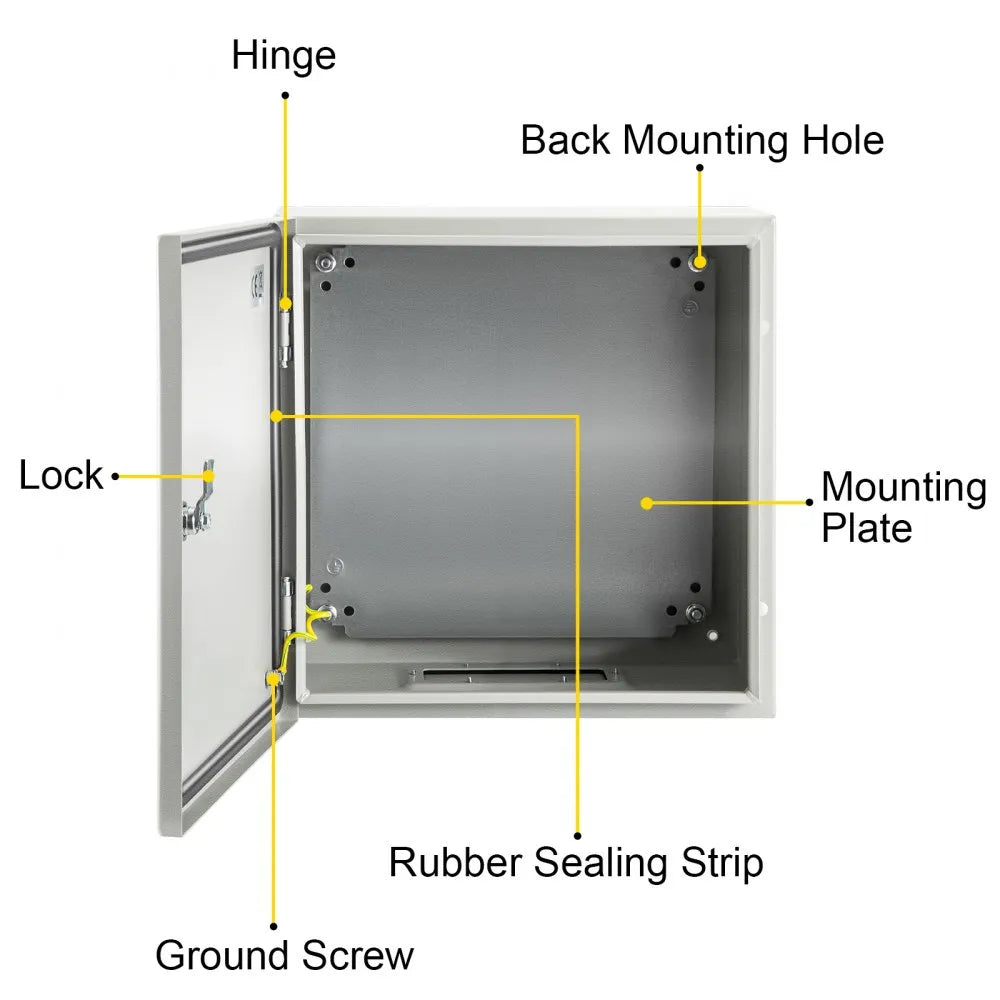

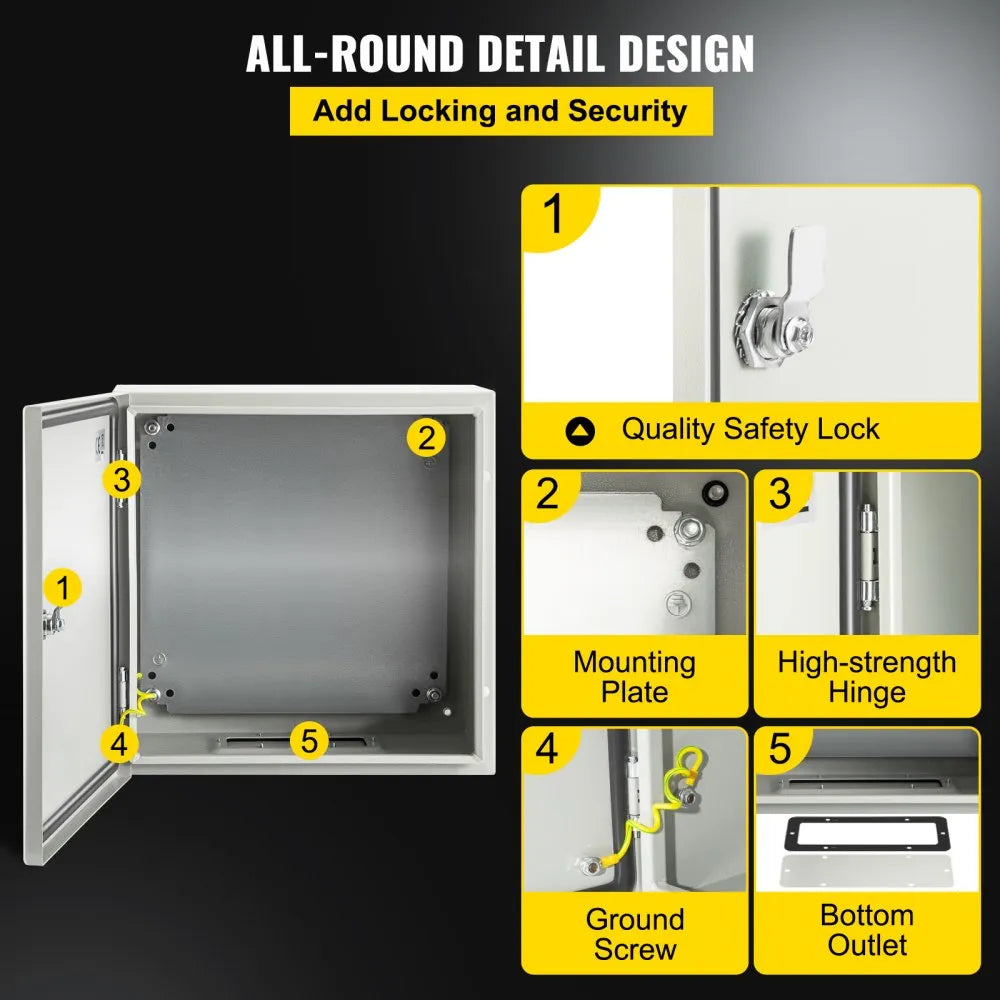

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

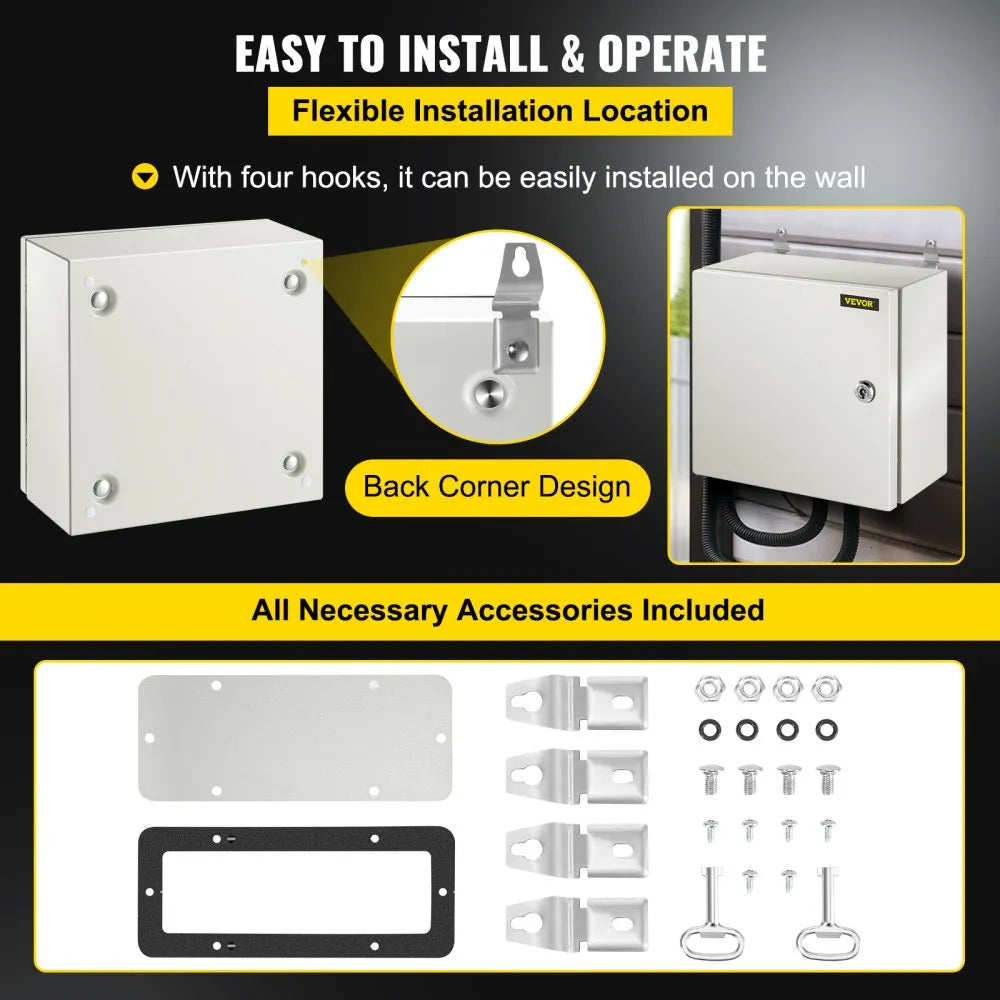

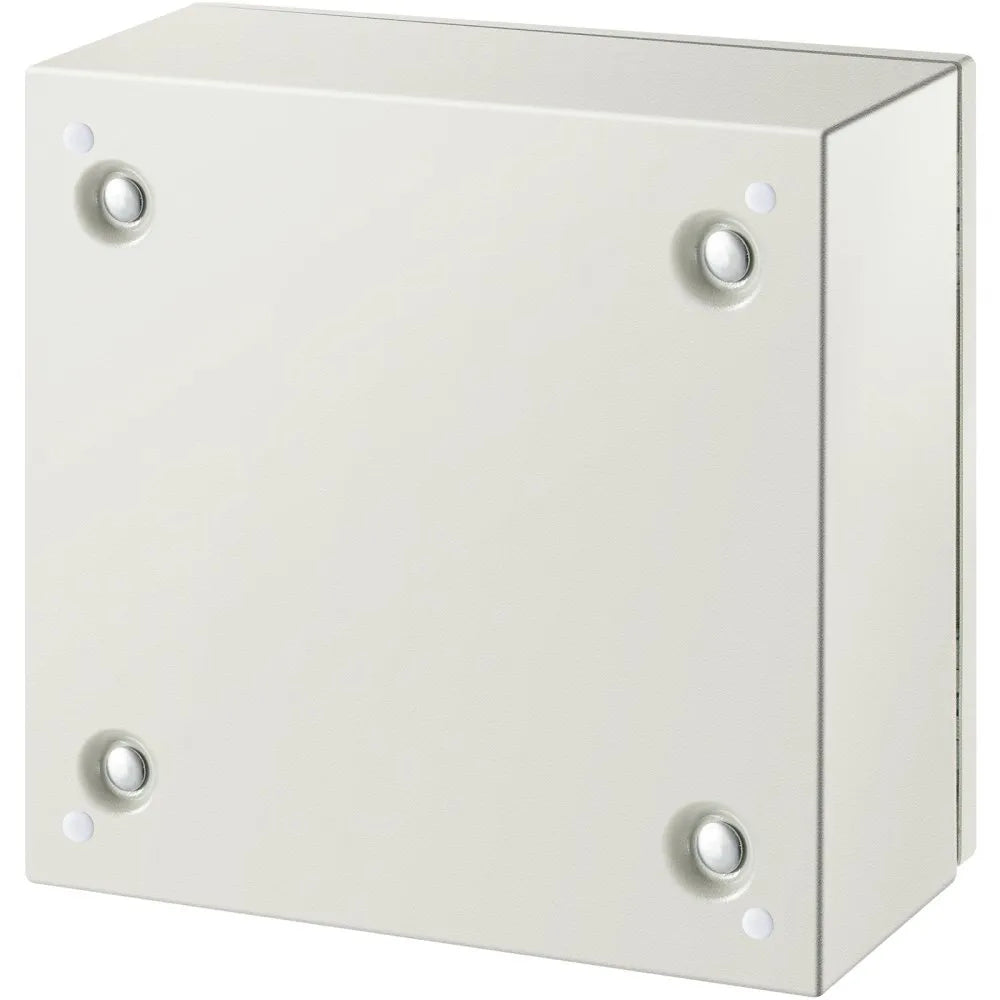

- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

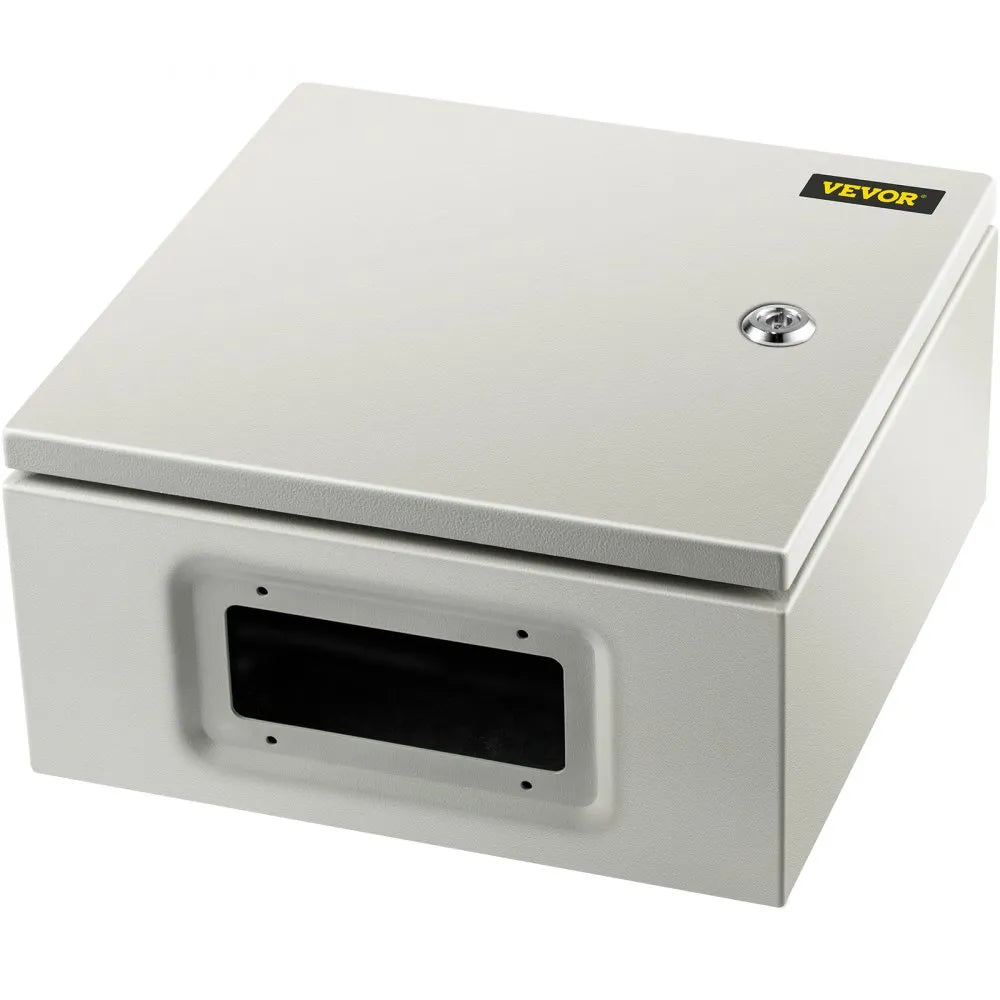

- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
Specifications
| Model | SPT |
|---|---|
| Product Type | Electrical Enclosure |
| Color | Gray White RAL7035 |
| Material | 1.5 mm carbon steel |
| Coating | Epoxy polyester powder coating |
| Mounting Plate | 2 mm detachable galvanized backplate |
| IP Rating | IP66 |
| NEMA Rating | NEMA 1, 2, 4, 4X, 12 |
| Connection Type | Hinged |
| Features | Lockable, Waterproof |

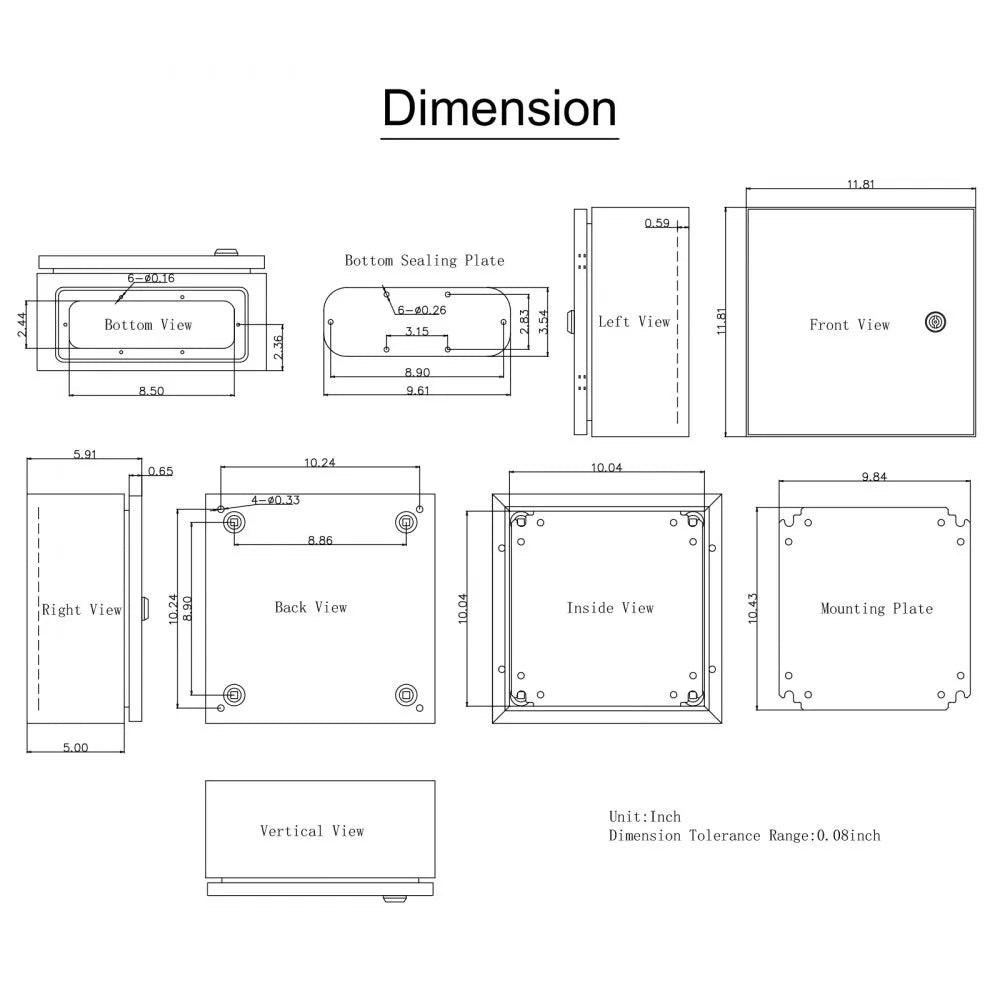

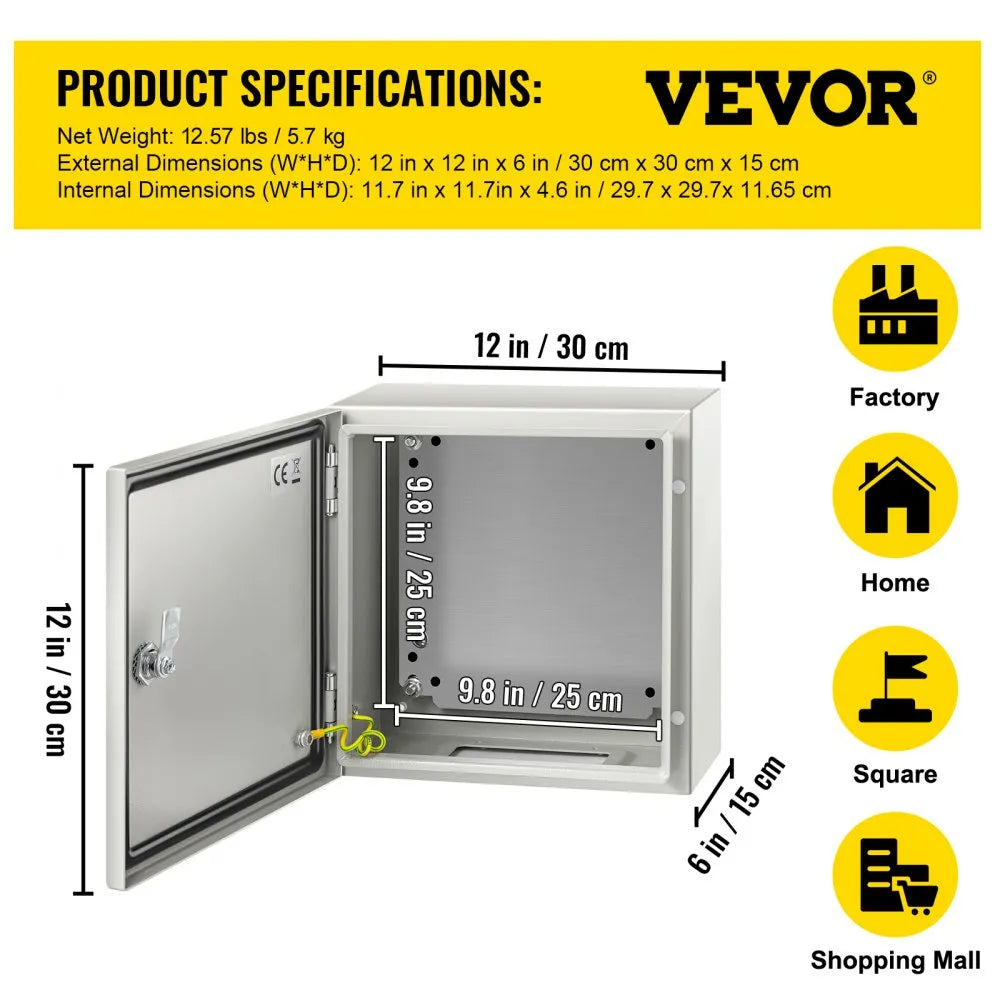

| Galvanized Backplate Dimensions | 9.8" x 9.8" |
|---|---|
| Outer Dimensions | 12" x 12" x 6" |
| Inner Dimensions | 11.7" x 11.7" x 4.6" |
| Product Weight | 14.55 lbs |
| Certification | CE, ROHS |

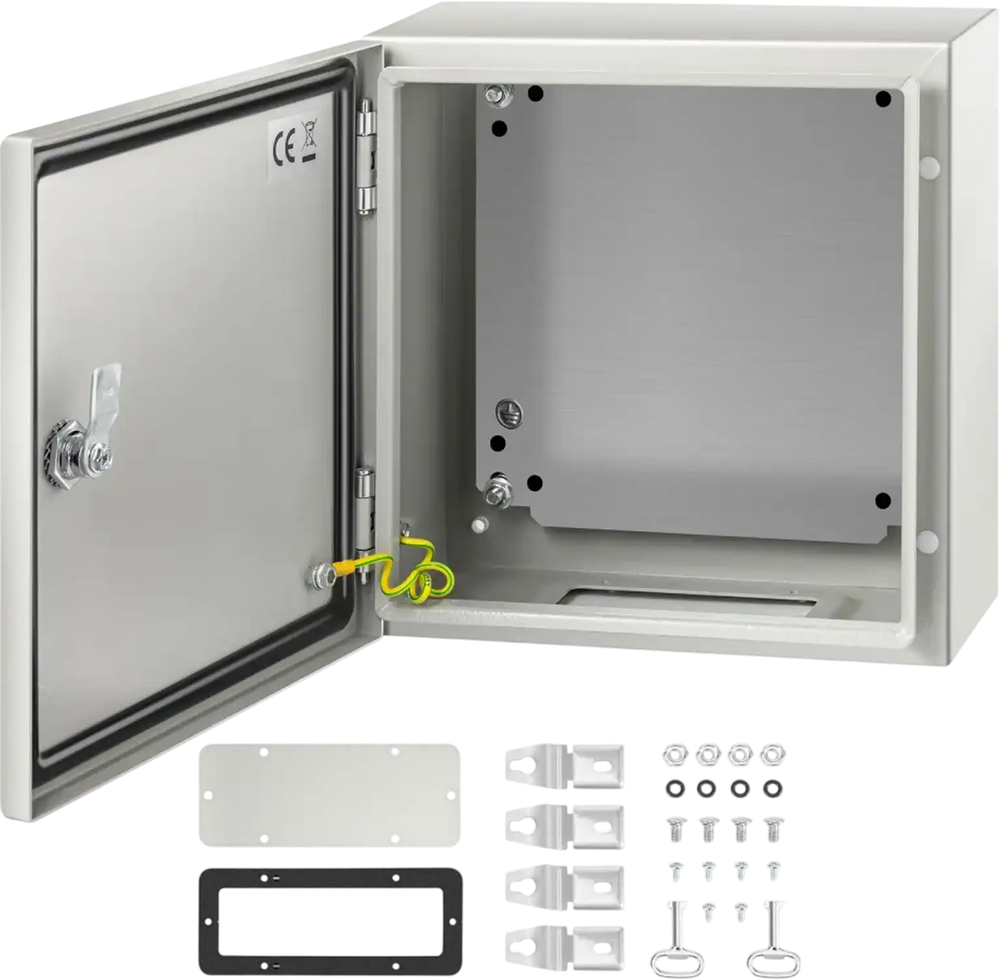

Package Contents
Electrical enclosure box
Detachable galvanized mounting backplate
Warranty
This item comes with a 1 year factory warranty.
