    Vevor Electrical Enclosure Box 16" x 12" x 8" Carbon Steel Waterproof Lockable New

    ×
    SMS
    Messenger
    WhatsApp
    Add To Wishlist
    Remove From Wishlist

    Product Overview

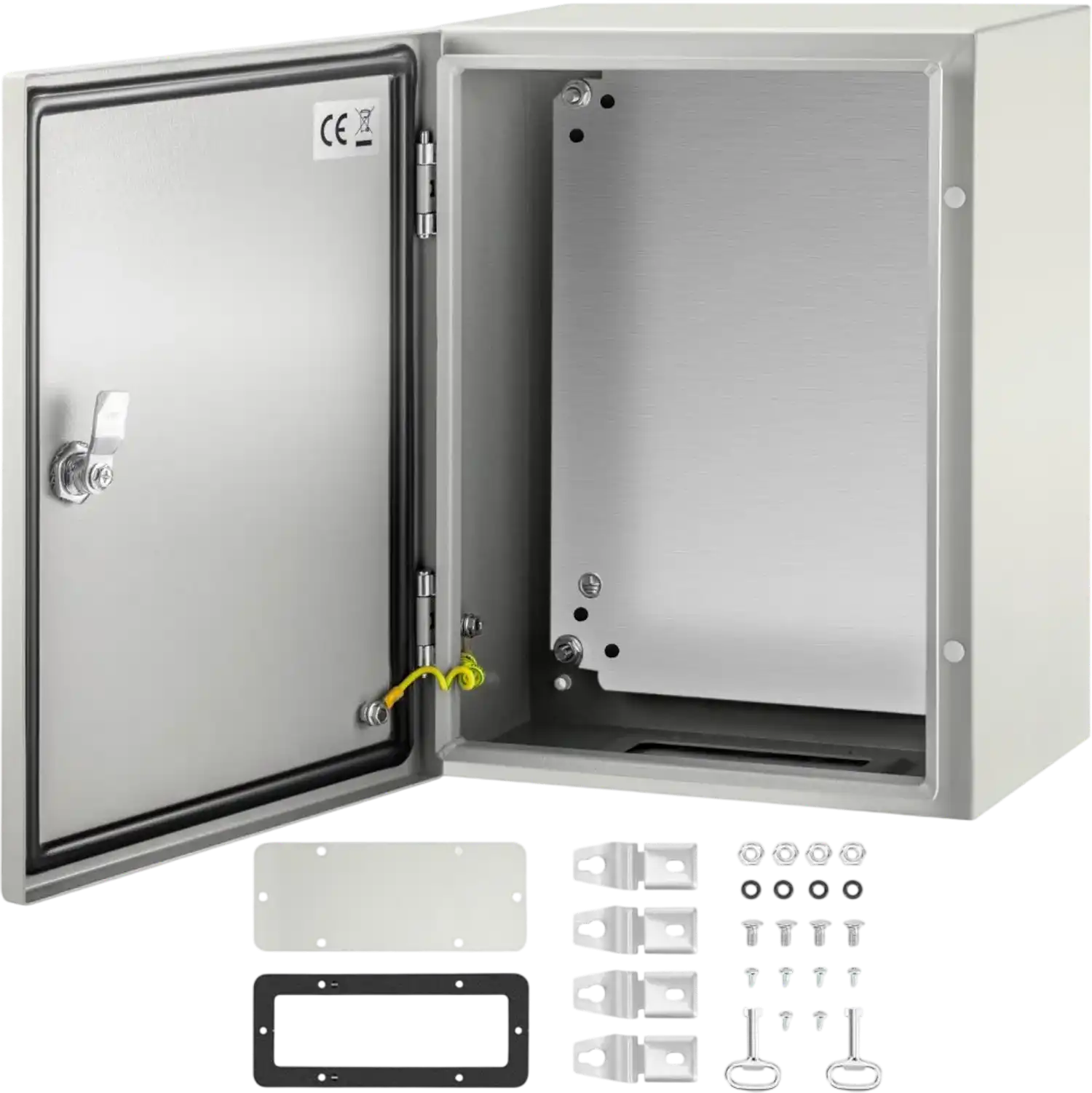

    The Vevor electrical enclosure box is a carbon steel cabinet designed to help protect electrical components in indoor and outdoor environments. It features an IP66-rated waterproof and dust-resistant design with a hinged, lockable door for added security. A detachable galvanized mounting backplate makes installation and customization more convenient. Its powder-coated steel construction is built for durability in demanding commercial, industrial, and residential settings.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

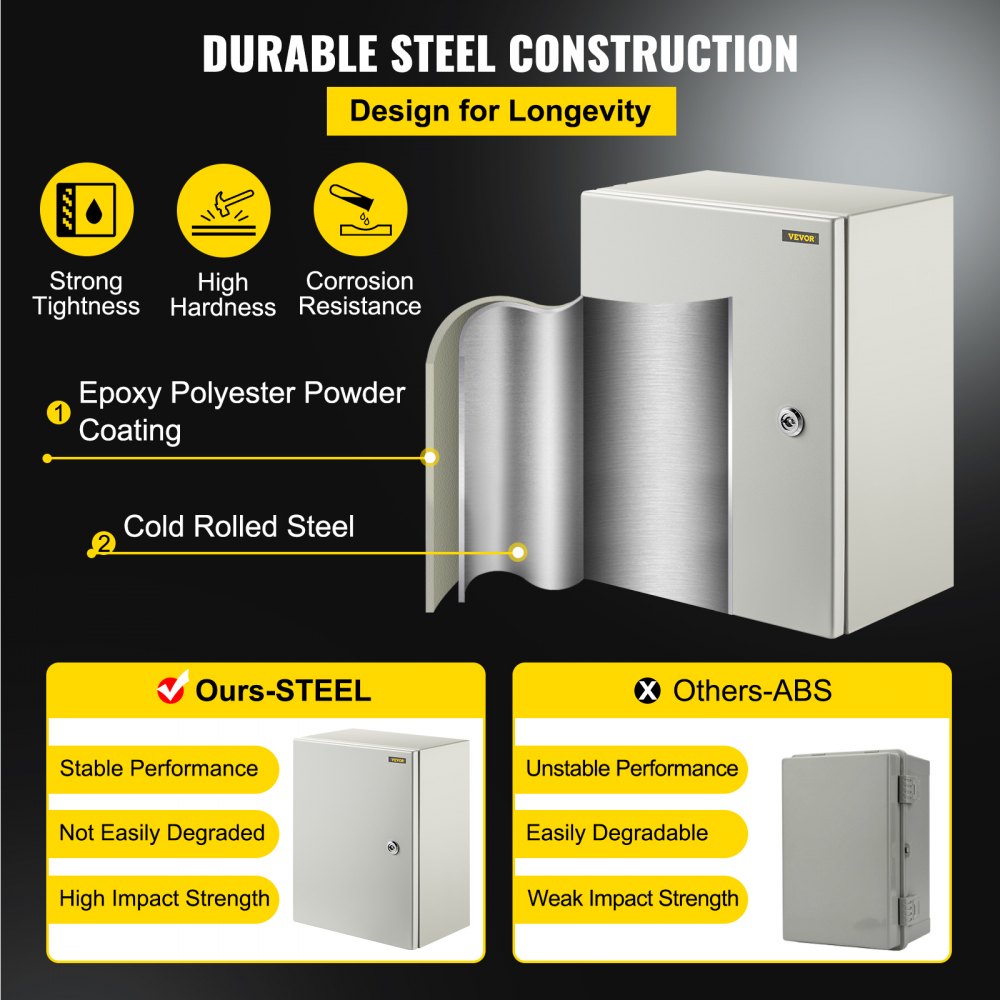

    • Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

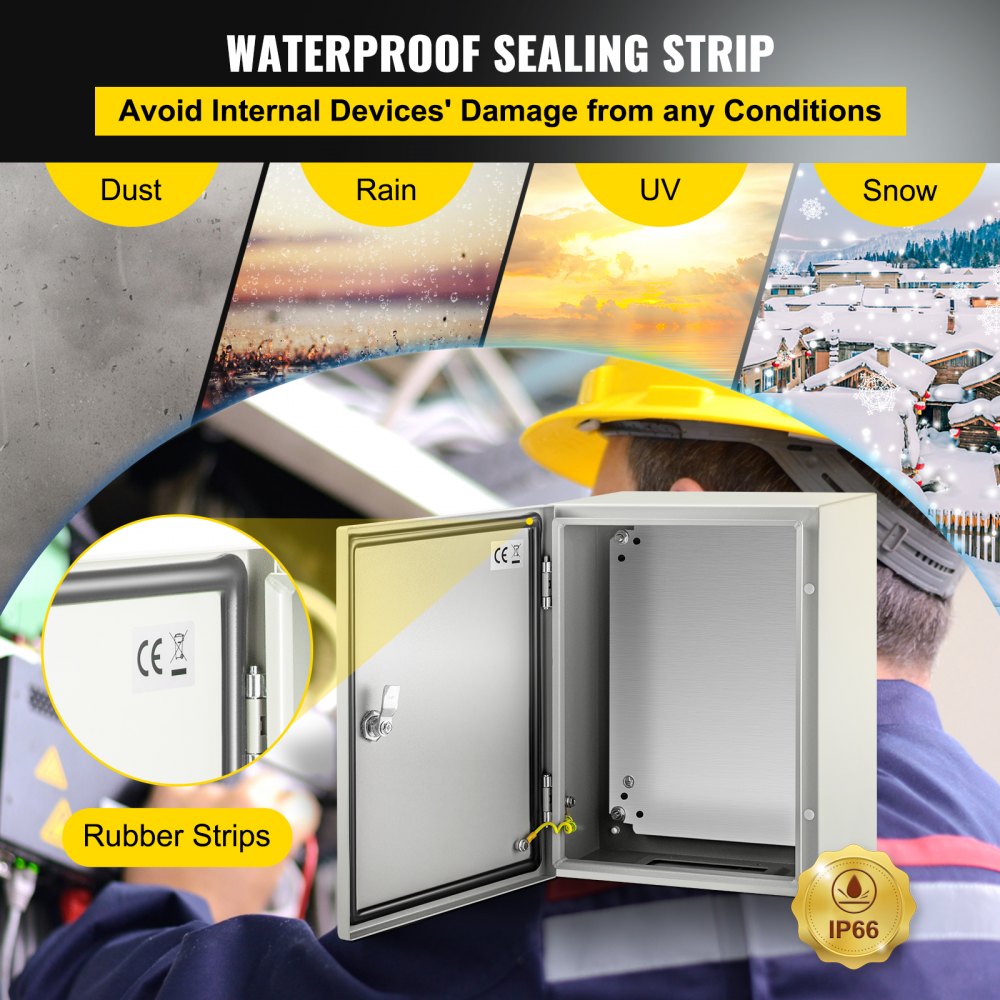

    • IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

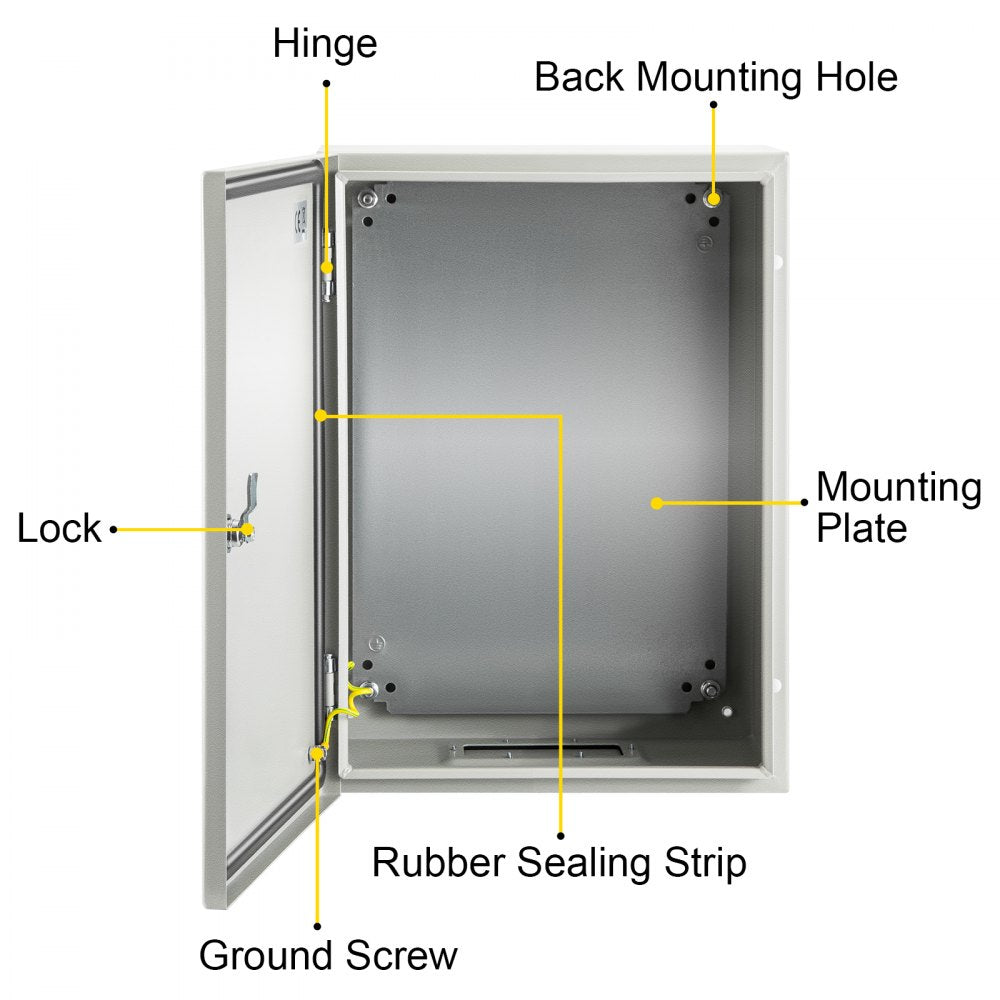

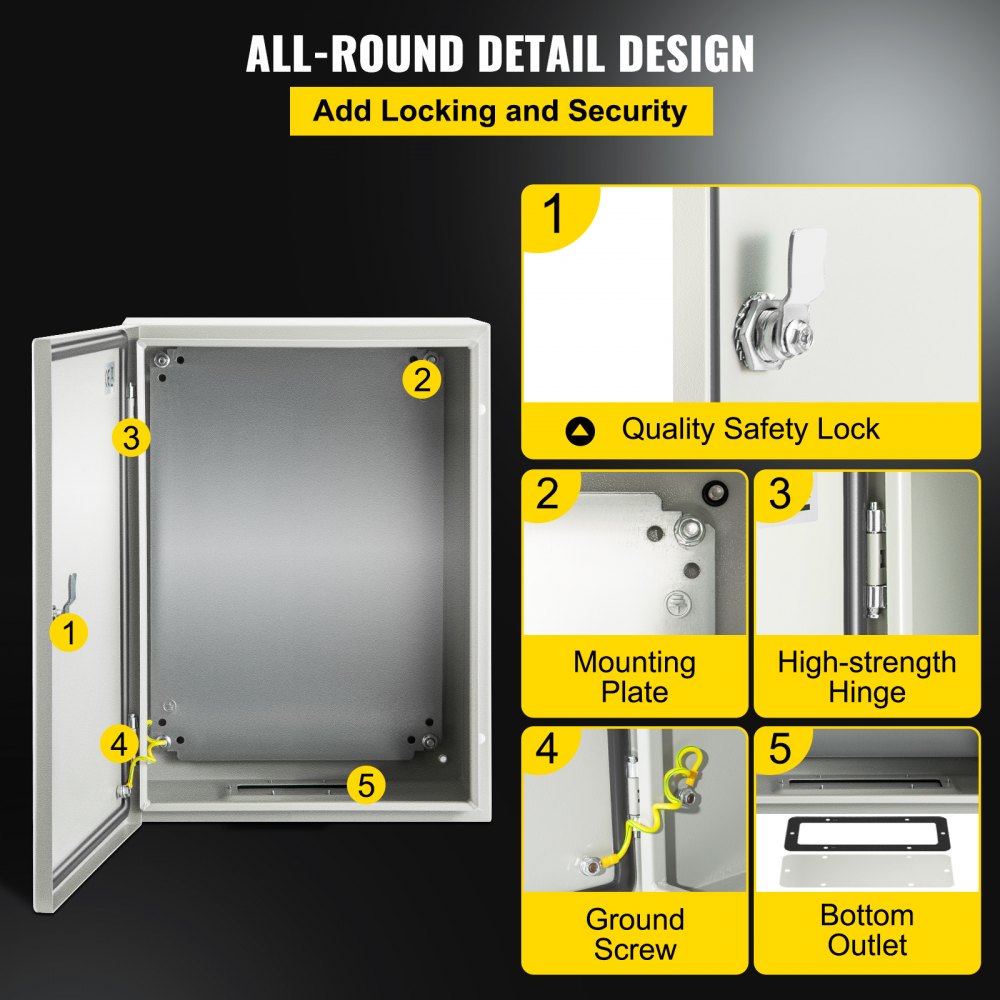

    • Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

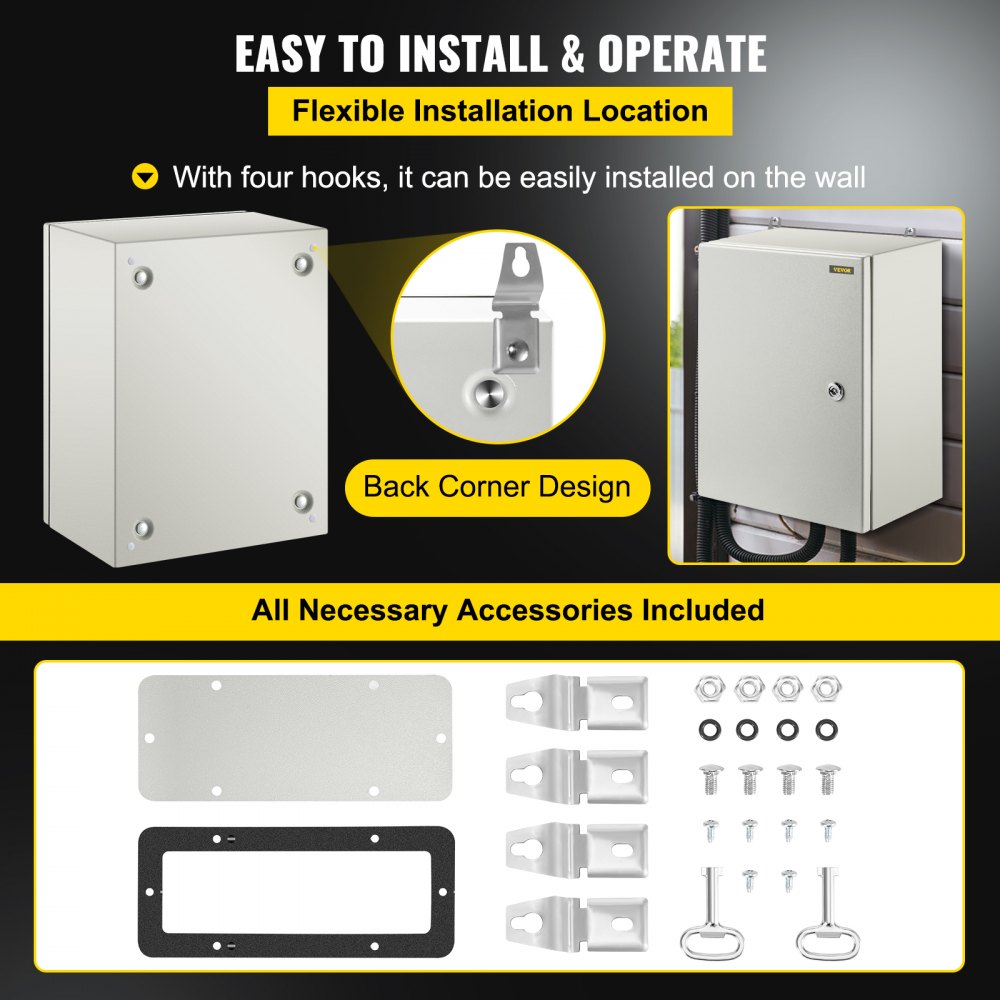

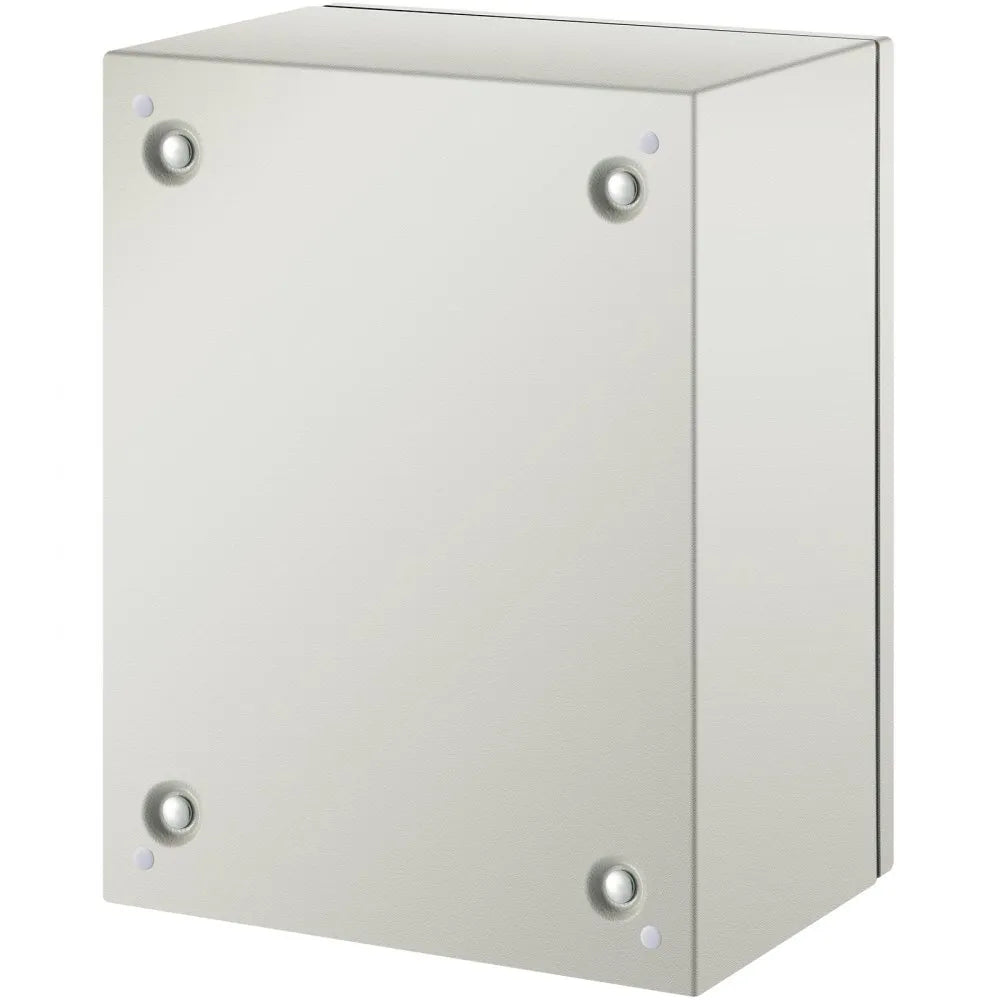

    • Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

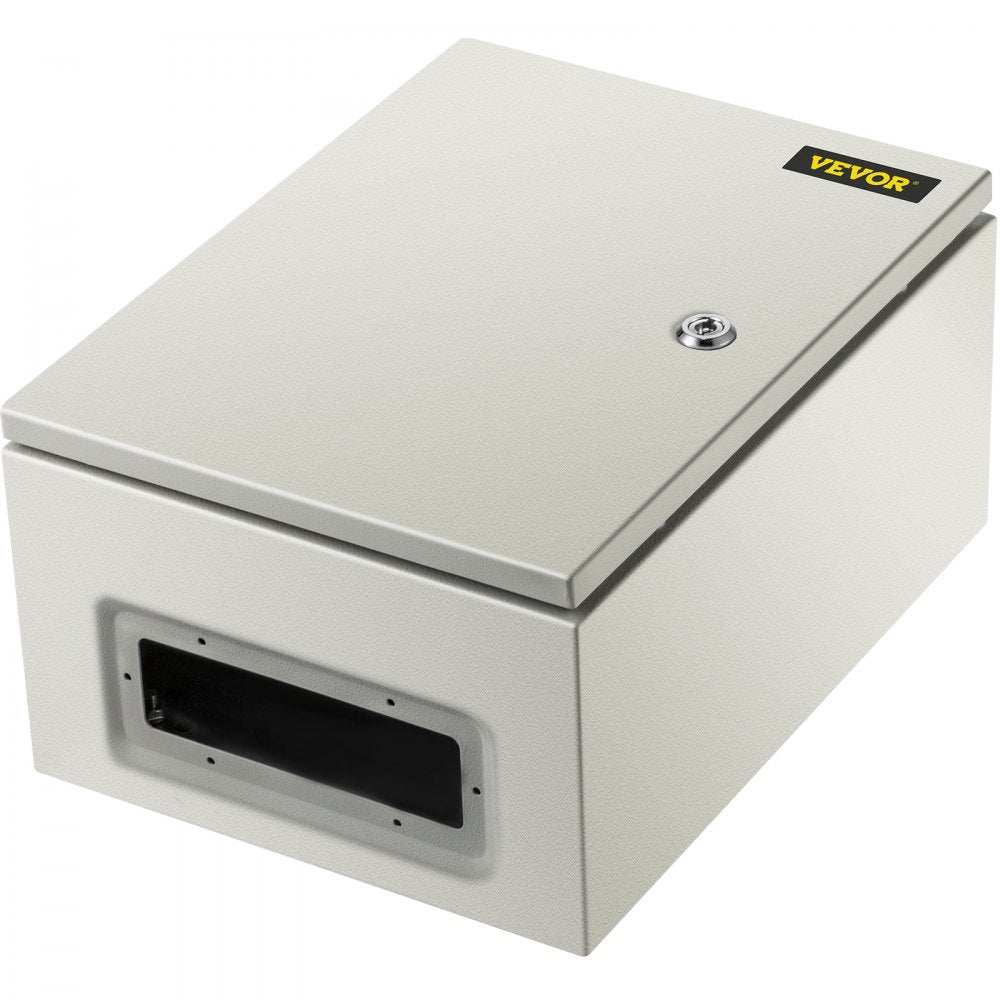

    • Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

    Specifications

    Model SPT
    Color Gray White (RAL7035)
    Material 0.059" / 1.5 mm Carbon Steel
    Coating Epoxy Polyester Powder Coating
    Mounting Plate 0.079" / 2 mm Detachable Galvanized Backplate
    IP Rating Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
    Connection Type Hinged
    Feature Lockable, Waterproof

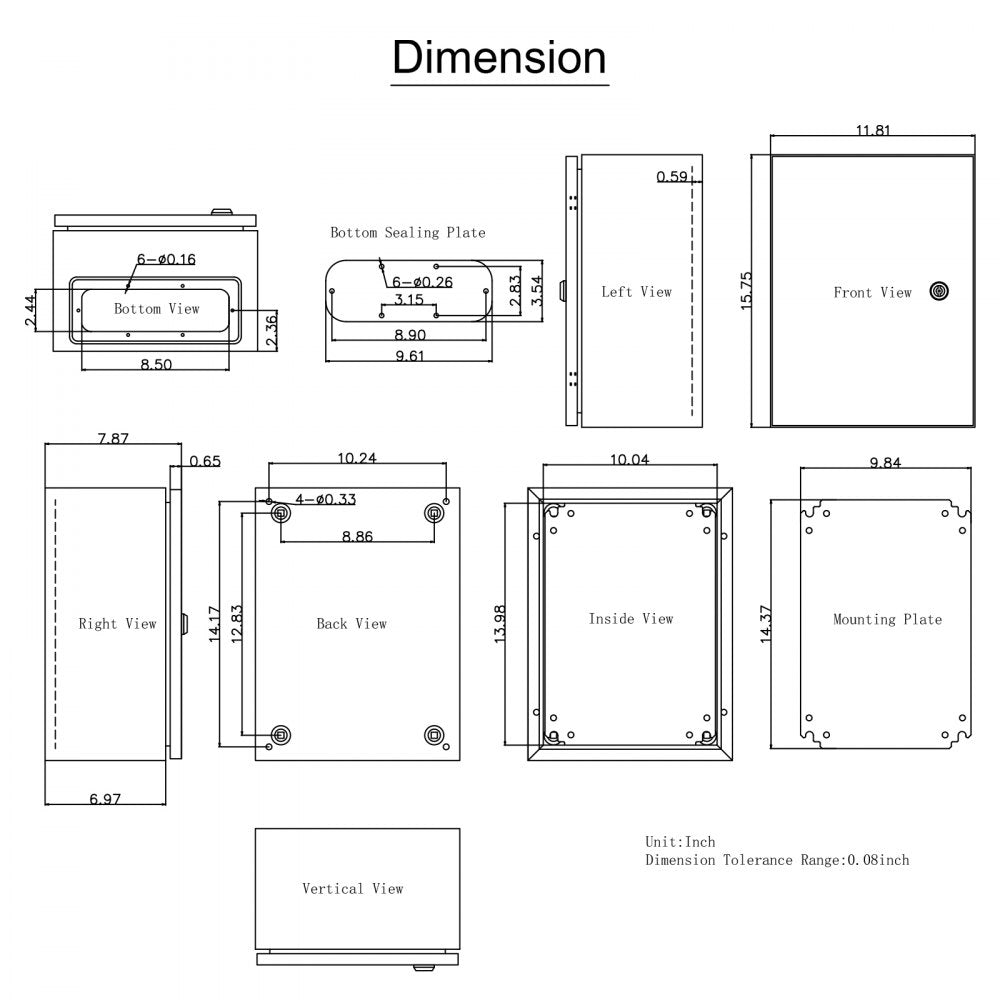

    Galvanized Backplate Dimensions 13.8" x 9.8" / 35 x 25 cm

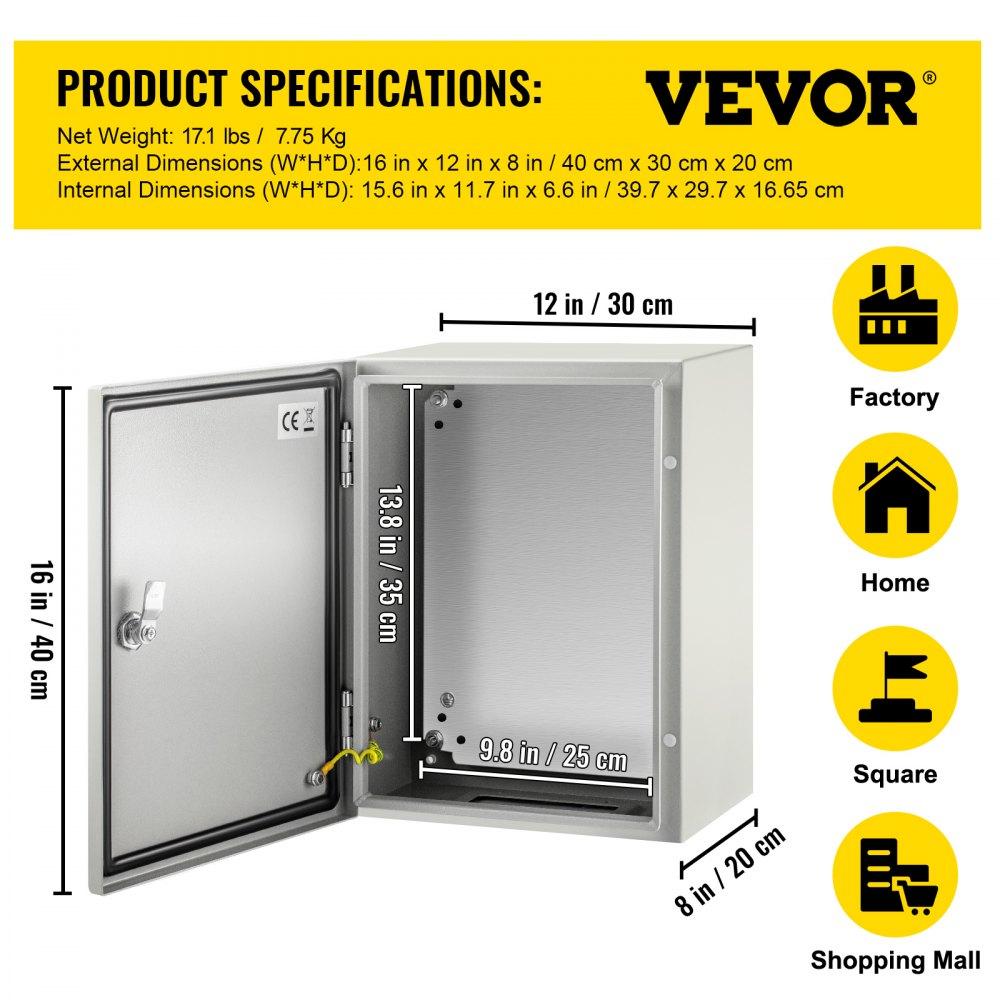

    Outer Dimensions (H x W x D) 16" x 12" x 8" / 40 x 30 x 20 cm
    Inner Dimensions (H x W x D) 15.6" x 11.7" x 6.6" / 39.7 x 29.7 x 16.65 cm
    Product Weight 16.98 lbs / 7.7 kg
    Certification CE / ROHS Certification

    Package Contents

    Electrical enclosure box

    Detachable galvanized mounting backplate

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
