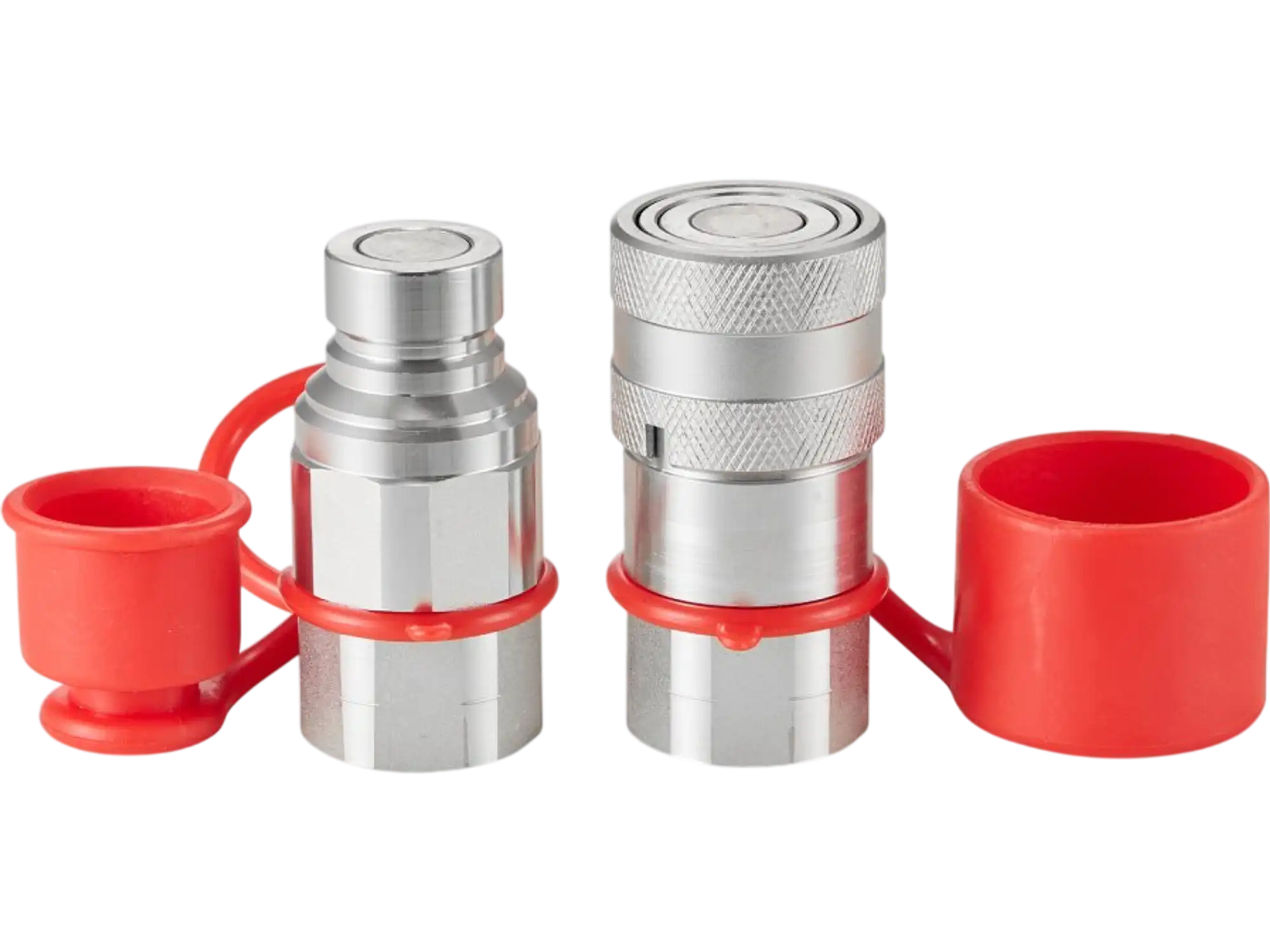

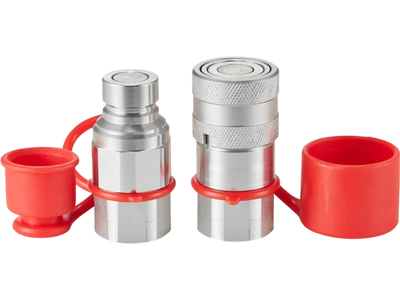

Vevor Flat Hydraulic Fitting 1/2" NPT Quick Connect Couplers with Dust Caps New
Manufacturer: Vevor
SKU: YYKSJTISO1605BND4V0
Quantity Options
Product Type Options
Thread Type Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 31.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Air Hose Reel Retractable 3/8" x 50' 300 PSI Wall or Ceiling Mount New
-
Vevor Air Blow Gun Car Cleaning 6-9.2 Bar 360° Rotating Nozzle New
-
Vevor Air Hose Reel Retractable 3/8" x 50' Rubber Hose 300 PSI New
-
Vevor Air Compressor 13 Gal. 2HP 4.6SCFM @ 90 PSI Oil Free Ultra-Quiet New
-
Vevor Air Impact Wrench 1/2" 1400 ft-lb Pneumatic Impact Gun with Socket Set & Carrying Case New
-
Vevor Air Impact Wrench 1" Up to 5175 ft-lbs Reverse Torque with 8" Anvil New
-
Vevor PCP Air Compressor 4500 PSI with Built-in Converter Auto Stop New
-
Vevor Tire Inflator Portable Dual-Cylinder 12V 150 PSI Air Compressor New
-
Vevor Air Compressor 4.8 Gallon 900W 2.2CFM @ 90PSI Ultra Quiet Oil-Free New
-
Vevor Air Compressor Dual-Cylinder Heavy-Duty Portable Tire Inflator 12V 150 PSI New
-
Vevor PCP Air Compressor 4500 PSI with Built-in Converter Auto Stop 300W New
-
Vevor Air Hose Reel Retractable 3/8" x 50' Hybrid 300 PSI Auto Rewind New
-
Vevor Air Compressor 3 Gal Portable Pancake Oil-Free 1/3 HP 100 PSI New
-
Vevor Air Compressor Pump Motor 2 HP Oil-Free 5.2 CFM 145 PSI New
-
Vevor Air Hose 3/8" x 50' Hybrid Rubber Air Compressor Hose New
-
Vevor Compressed Air Dryer Refrigerated 125 CFM Automatic Drainage 110/120V New
-
Vevor Air Compressor 80 Gallon 6.5HP Oil-Free 145 PSI Max Single-Phase 220V New
Vevor Flat Hydraulic Fitting 1/2" NPT Quick Connect Couplers with Dust Caps New
Product Overview

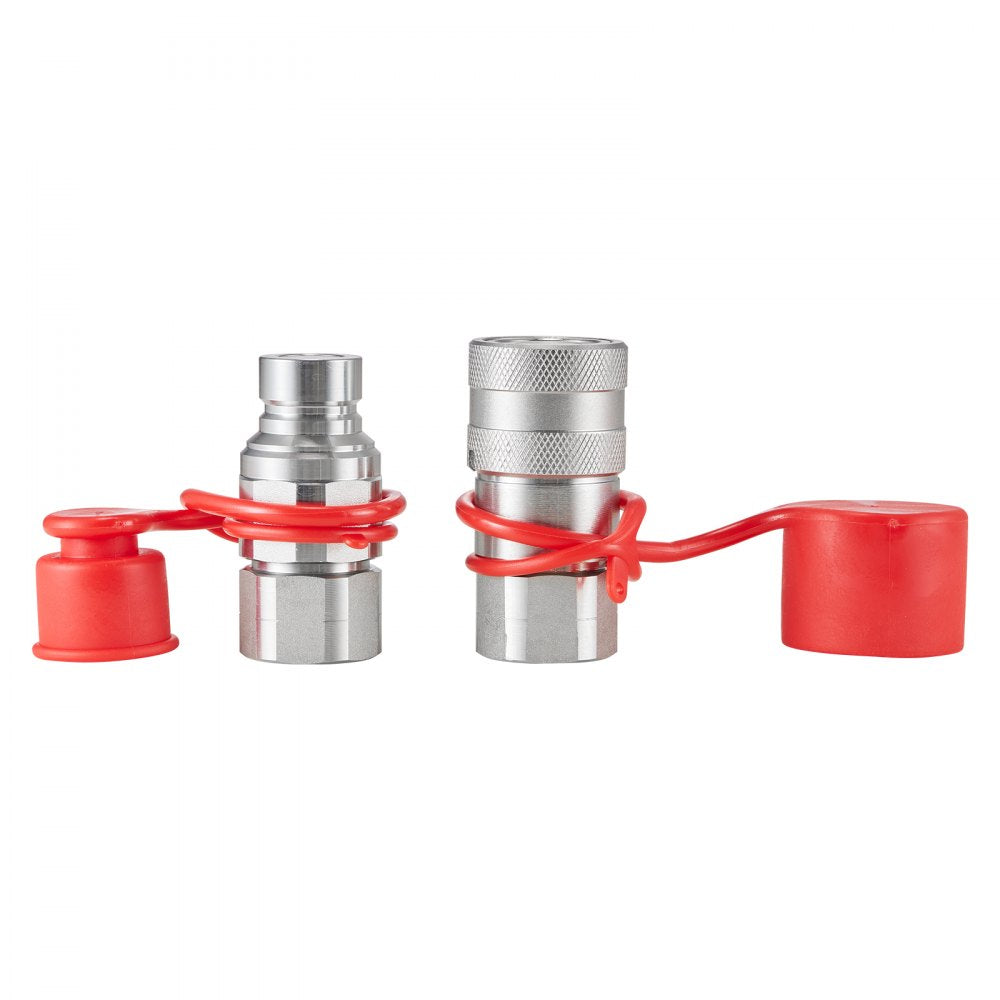

The Vevor flat hydraulic fitting set is designed for skid steer hydraulic connections and includes a pair of flat face quick connect couplers with dust caps. Built from hardened carbon steel and made to ISO 16028 standards, it is engineered for durability, clean connections, and reliable hydraulic performance. The flat-face design helps reduce contamination during connection and disconnection, while the sleeve locking design supports simple push-to-connect use. Heavy-duty knurled sleeves provide a secure grip for easier handling. This coupler set is suitable for use with many common skid steer loader systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

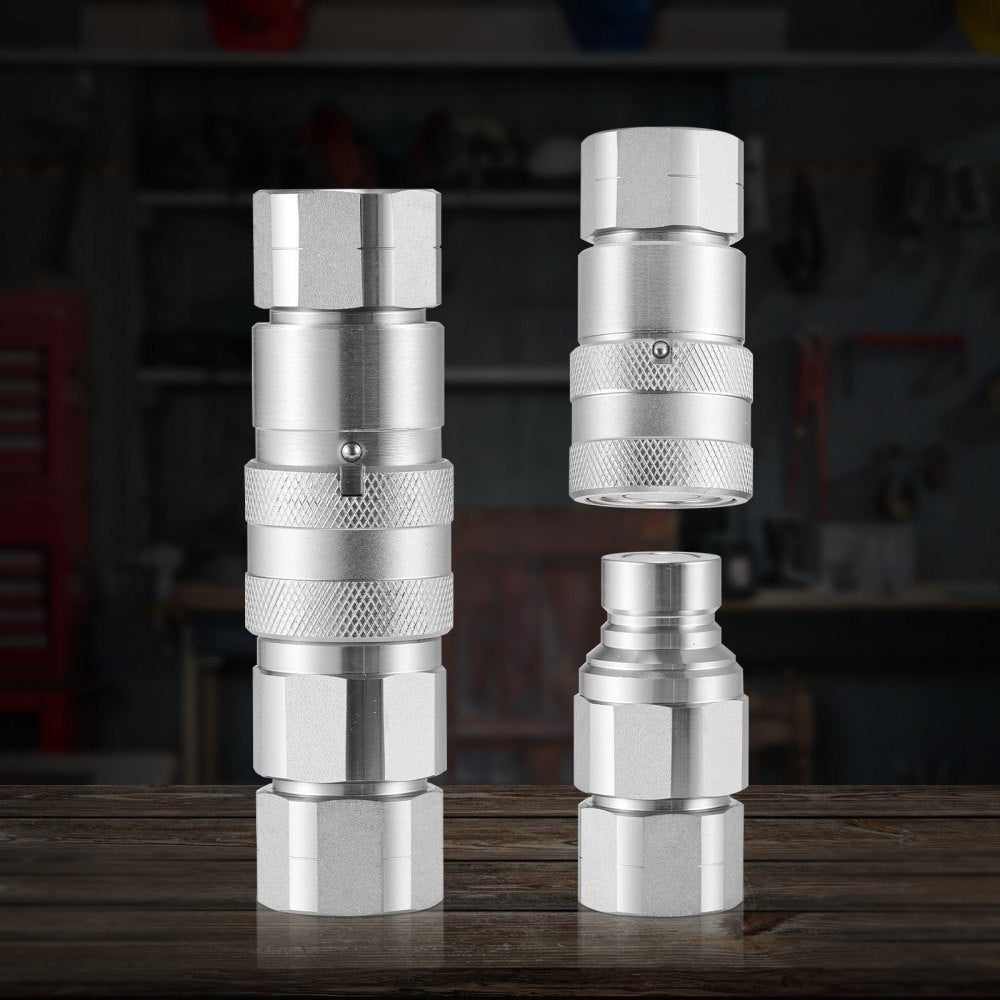

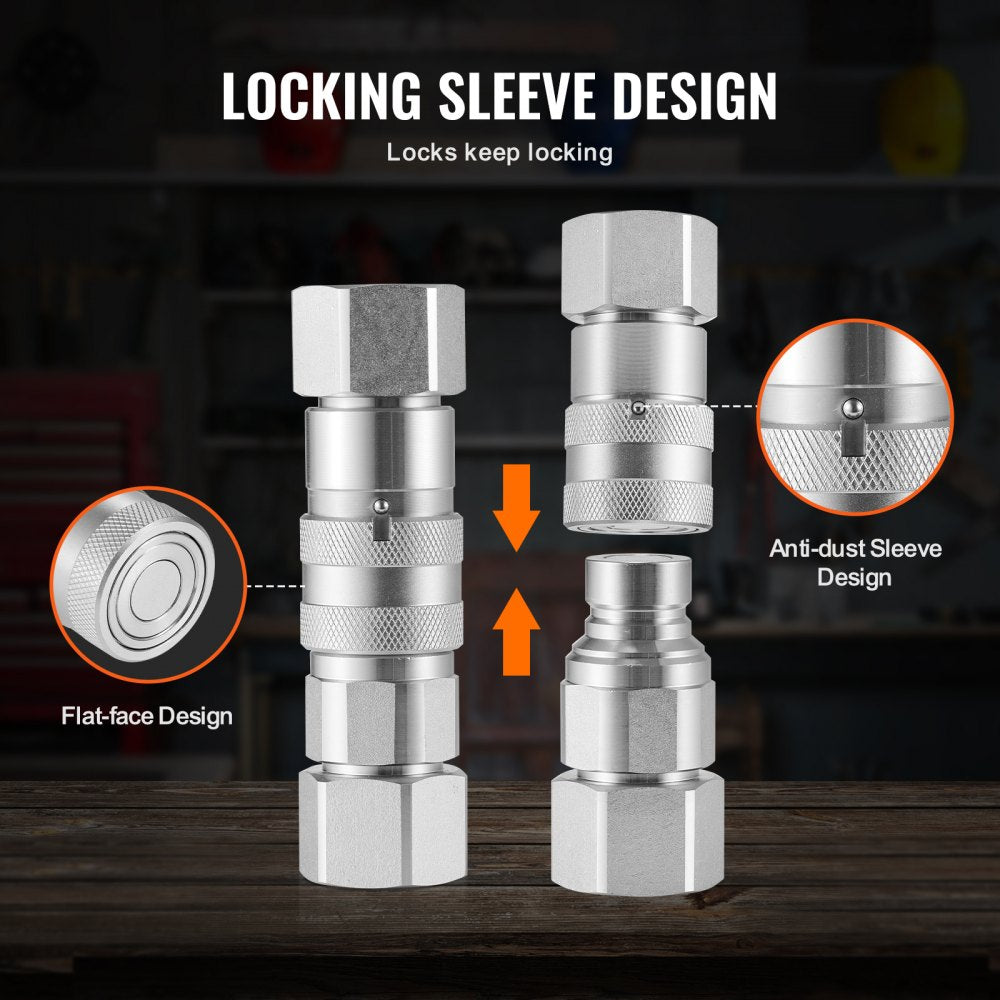

- Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.
- Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

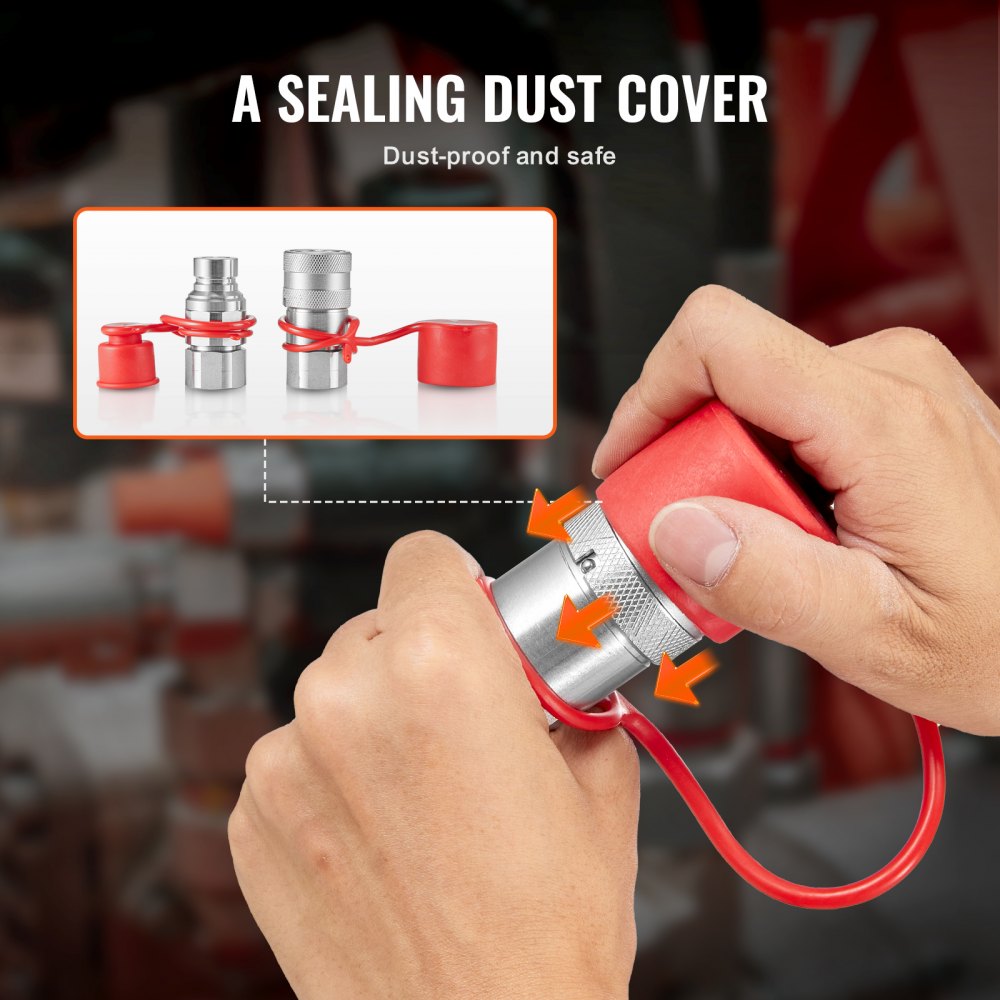

- Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.
- Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Specifications
| Model | LSQ-FF |
| Coupler Type | Flat Face Hydraulic Coupler |
| Standard | ISO16028 |
| Coupler Body Size | 1/2" |
| Rated Pressure | 5076 psi |
| Rated Flow | 12 GPM |
| Maximum Flow | 25 GPM |
| Quantity | 1 pair |
| Male Coupler Thread Size | 1/2" NPT internal thread |
| Female Coupler Thread Size | 1/2" NPT internal thread |
| Configuration | Dust caps |
| Color | White |
| Main Material | 45# carbon steel |

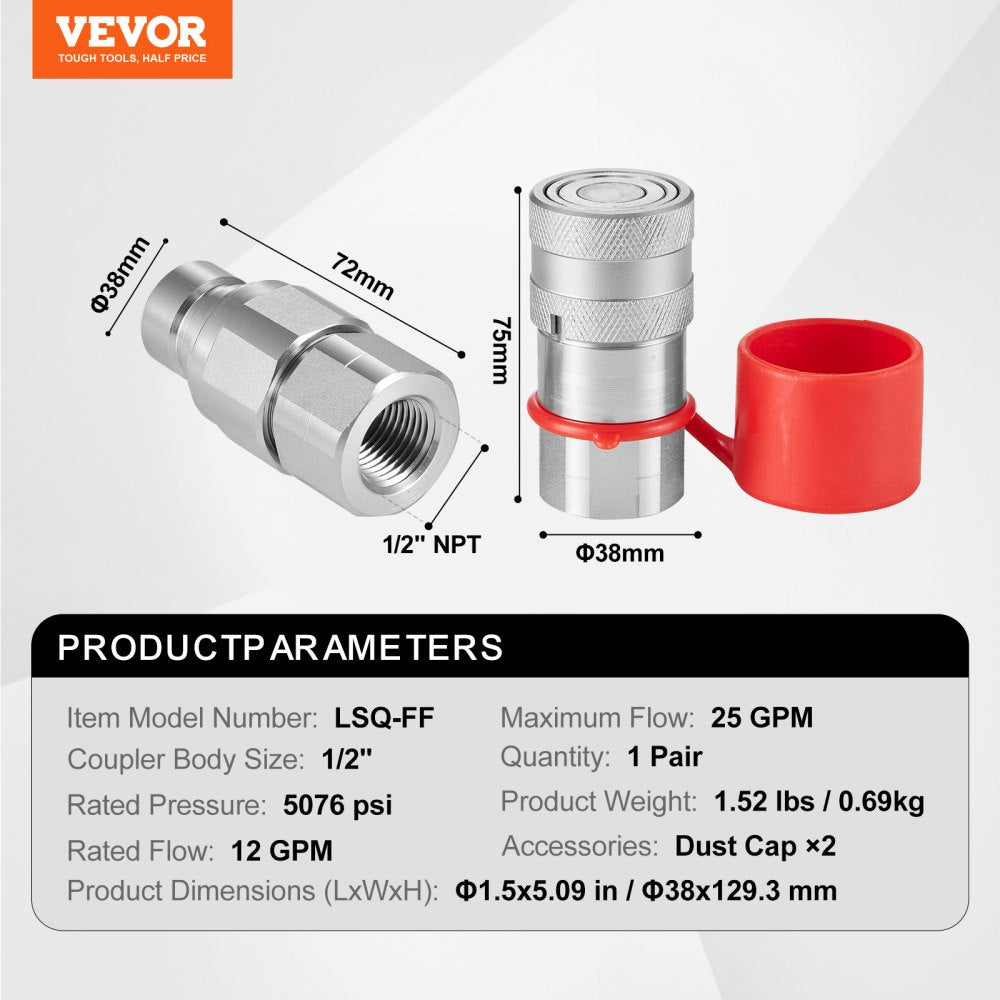

| Male Coupler Dimensions | Φ38 × 72 mm O.D. x L |
| Male Coupler Finish | Chrome plating |
| Female Coupler Dimensions | Φ38 × 75 mm O.D. x L |
| Female Coupler Finish | Chrome plating |
| Dust Cap Dimensions | Φ40 × 260 mm O.D. x L |
| Dust Cap Material | Rubber |
| Dust Cap Color | Red |
| Product Weight | 1.52 lbs |
| Product Dimensions | Φ1.5 x 5.09" |
Package Contents

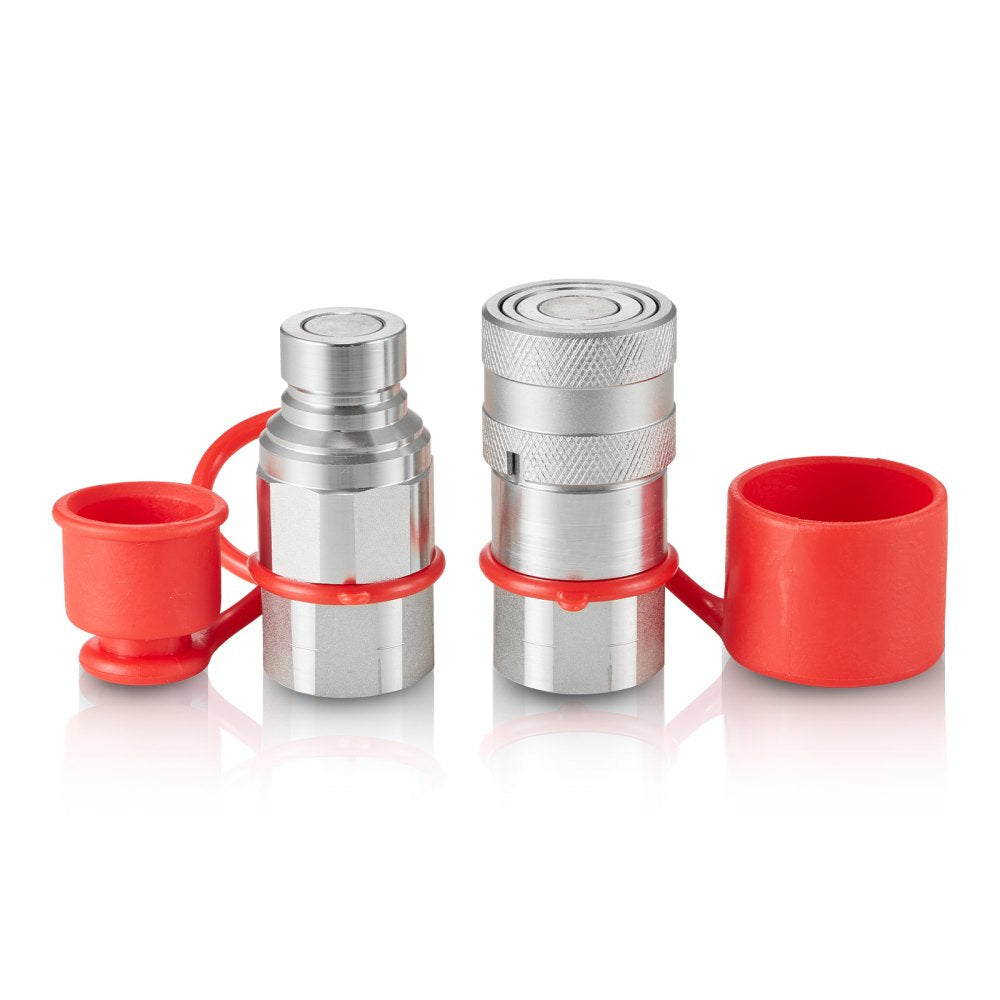

1 pair of flat face hydraulic couplers

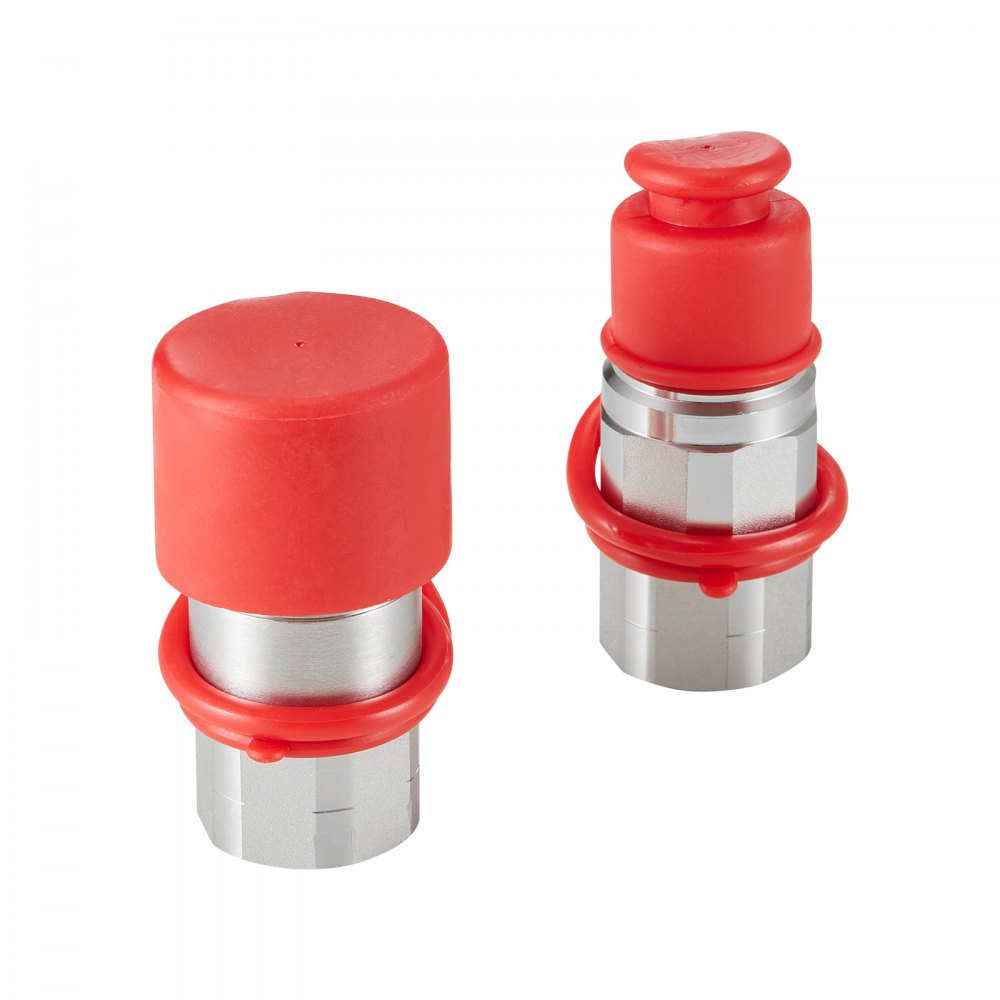

2 dust caps
Warranty
This item comes with a 1 year factory warranty.
