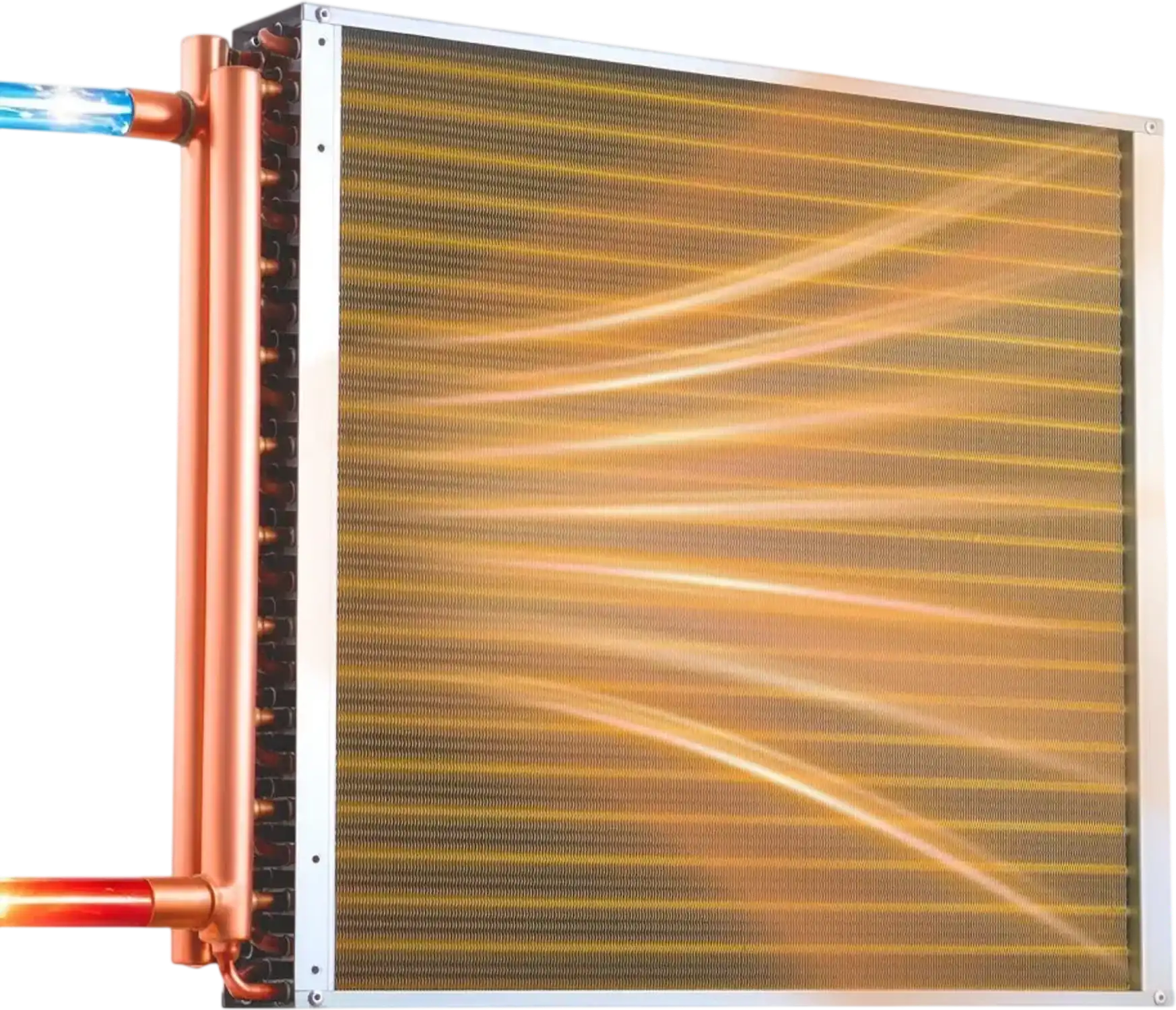

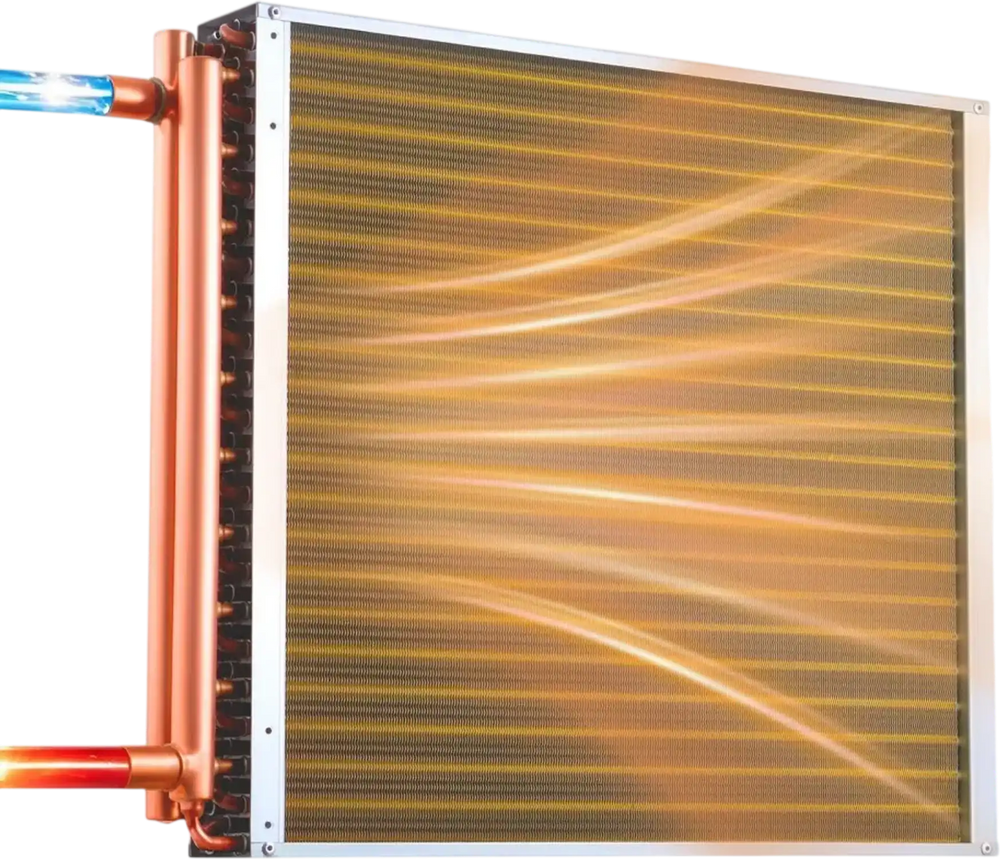

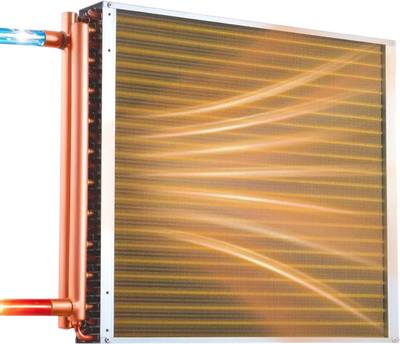

Vevor Heat Exchanger 22 x 22" Water to Air HVAC Coil 190K BTU New
Manufacturer: Vevor
SKU: CPGSHRQ22INCEXP9L001V0
QTY
(888) 999-1522
$ 305.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Baseboard Heater Cover Premium Series 6' White New
-
Vevor Exhaust Pipe Kit Diesel Heater Pipe Ducting Set New
-
Vevor Glow Plug Repair Kit 8V Diesel Heater Maintenance Kit New
-
Vevor Baseboard Heater Cover Basic Series 4' White New
-
Vevor Fuel Pump Diesel Heater Quiet 12/24V DC Parking Heater Pump New
-
Vevor Exhaust Hose 118.1" Stainless Steel Flexible Exhaust Pipe with 2 Clamps New
-
Vevor Fuel Pump Diesel Heater 12V DC Quiet Dosing Pump New
-
Vevor Diesel Heater Muffler 0.94" Noise Reducer with Clamps and Screws New
-
Vevor Diesel Heater Glow Plug Kit with Removal Fitting Tool for 2KW 5KW 8KW Heaters New
-
Vevor Baseboard Heater Cover Basic Series 3' White New
-
Vevor Baseboard Heater Cover Replacement 4' Premium White New
-
Vevor Fuel Line Kit 196.9" Diesel Heater Replacement Hose Set New
-
Vevor Baseboard Heater Cover Basic Series 5' White New
Vevor Heat Exchanger 22 x 22" Water to Air HVAC Coil 190K BTU New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 190k BTU/h

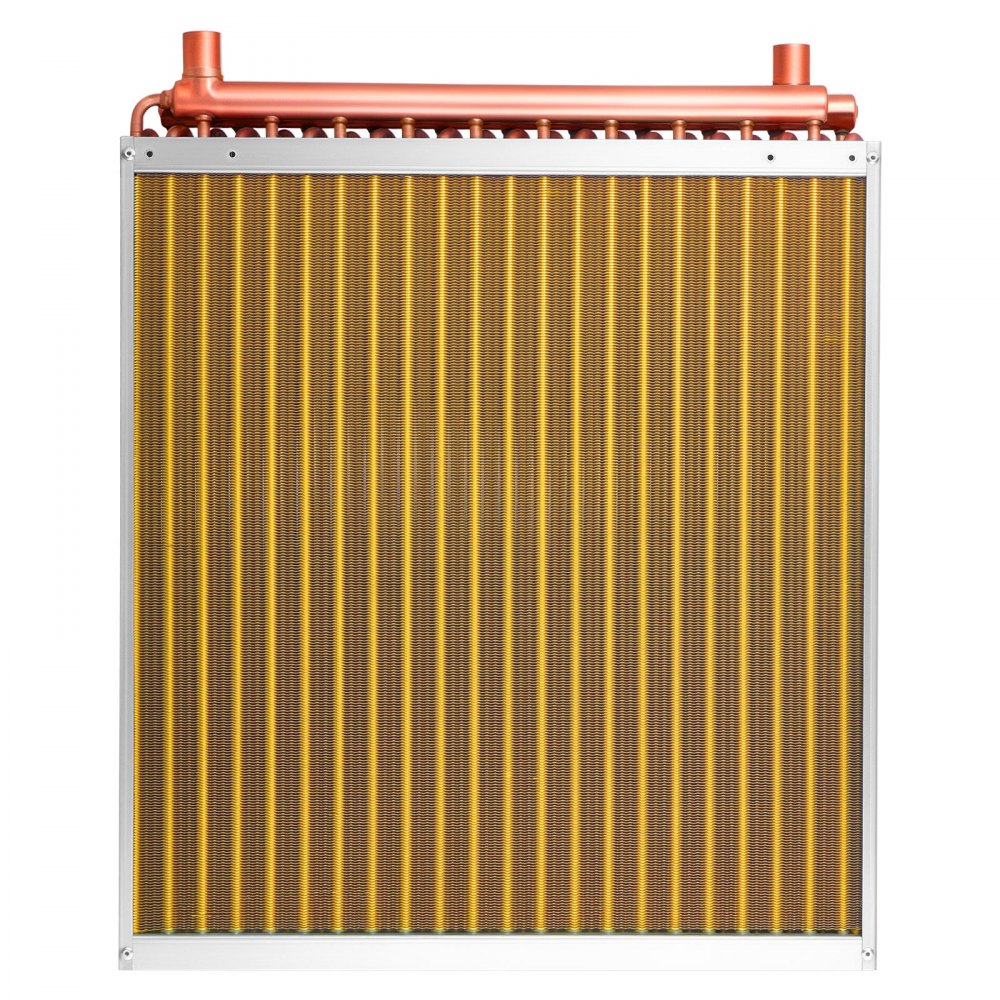

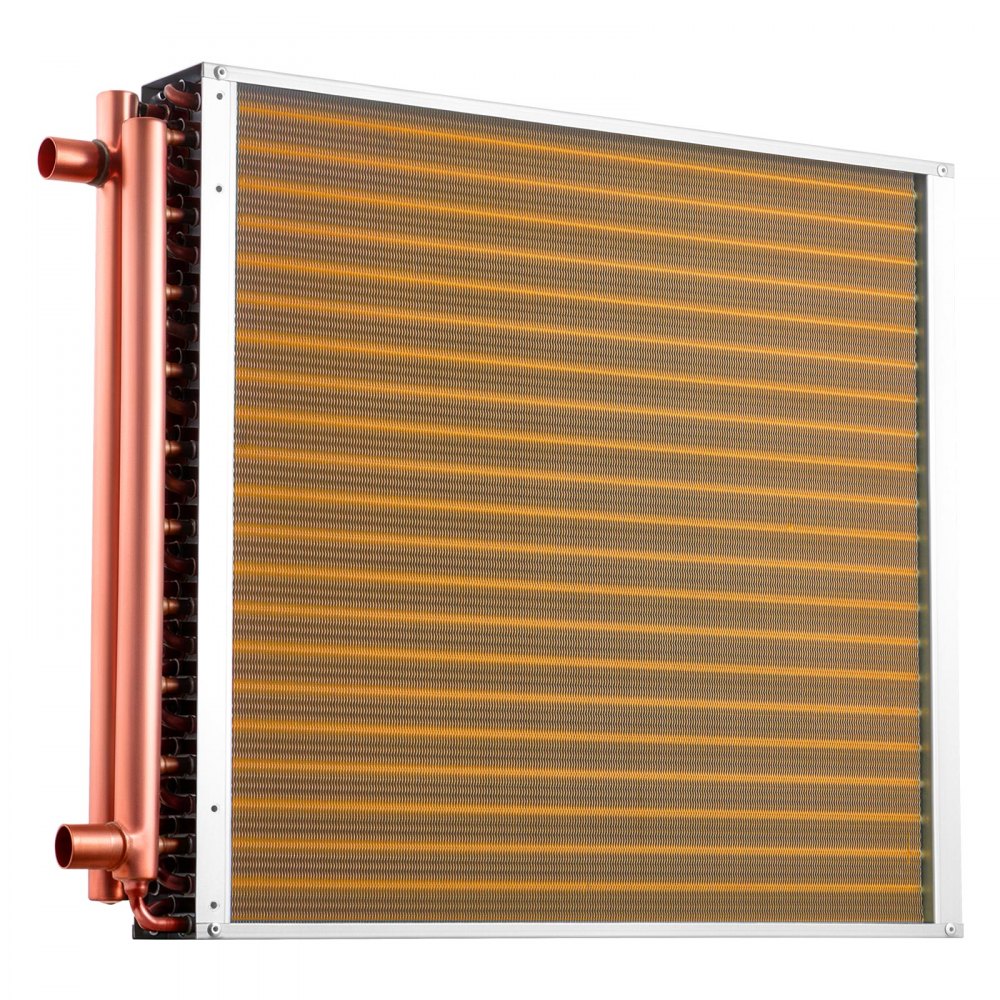

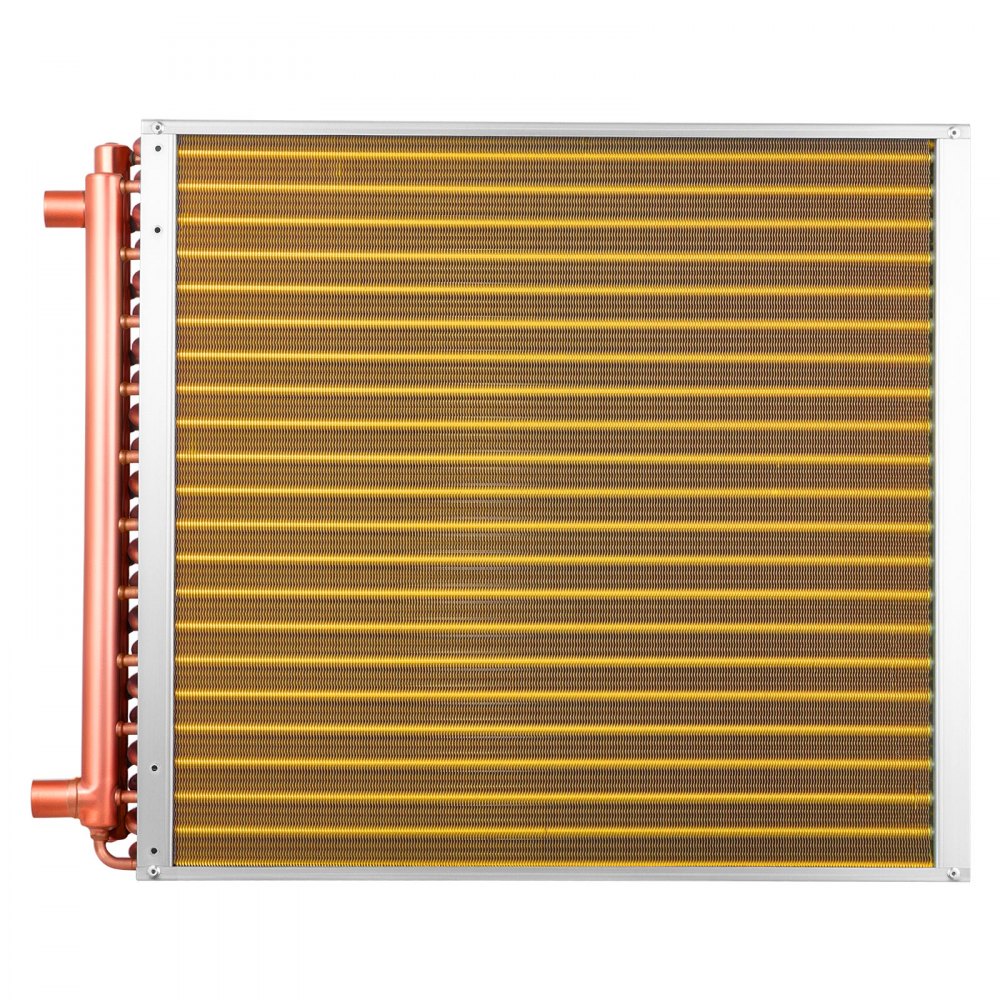

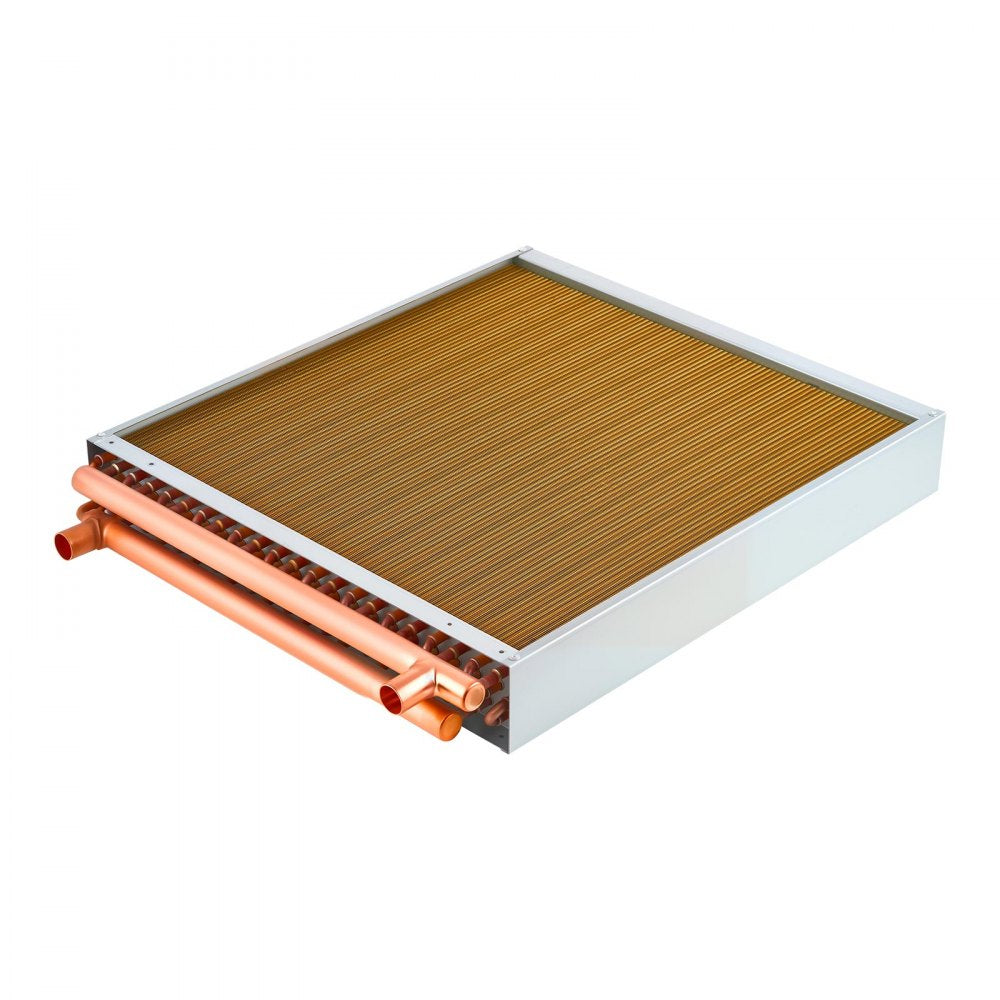

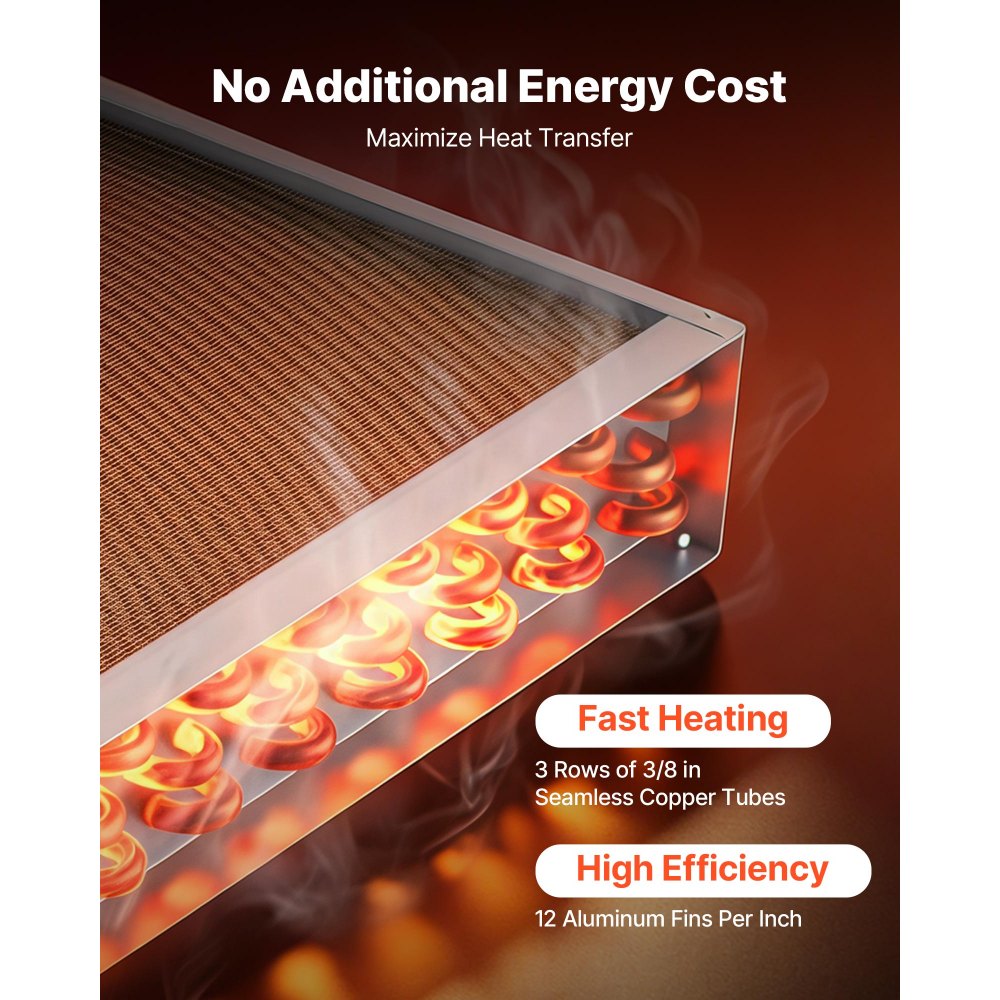

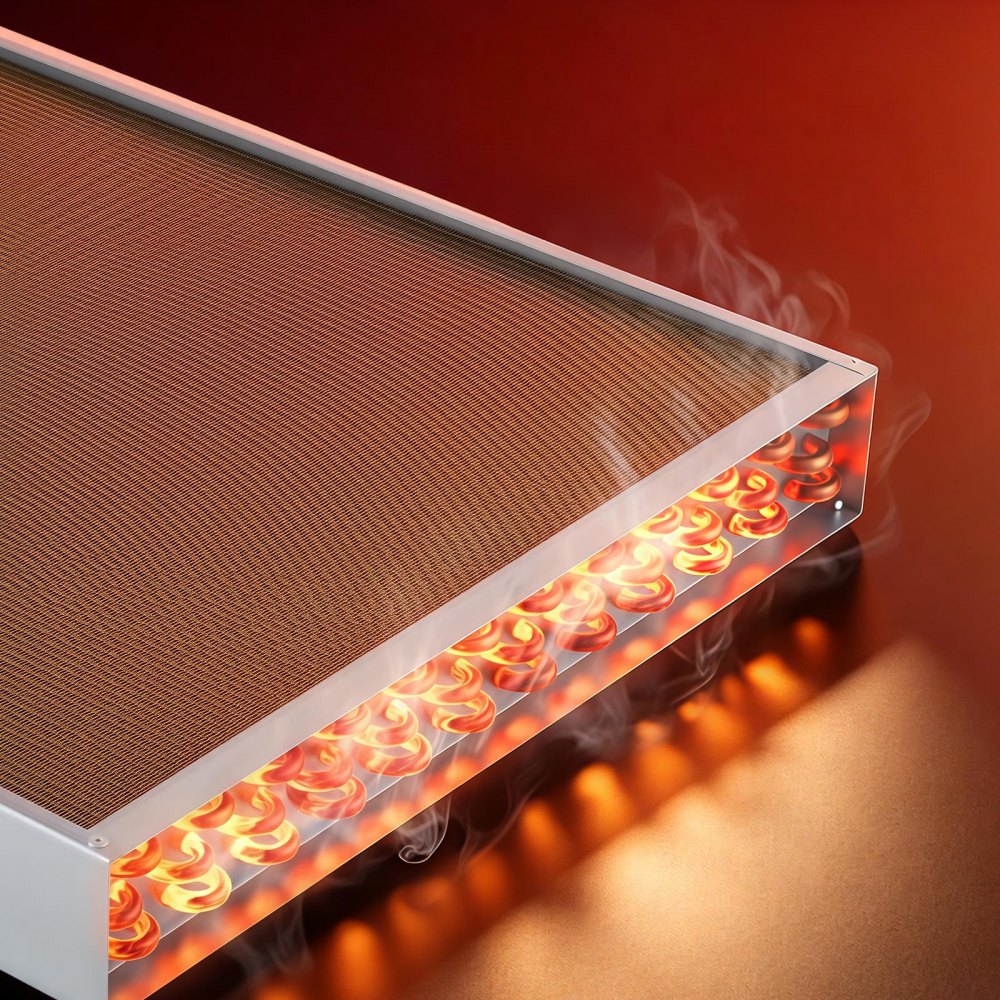

- Large Heat Transfer area: This heat exchanger coil features a 22 x 22 in effective heat transfer area with 266 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications
- Solid and Long-Lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F

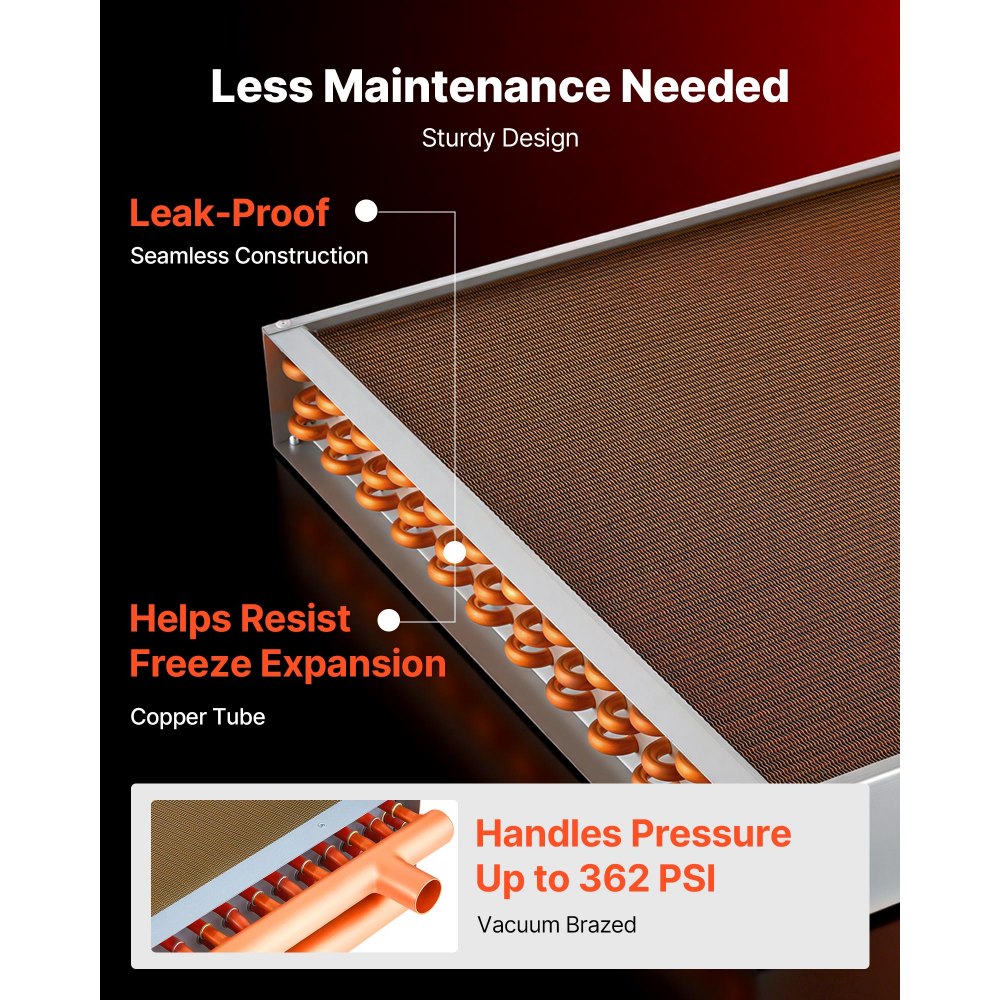

- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems
Specifications

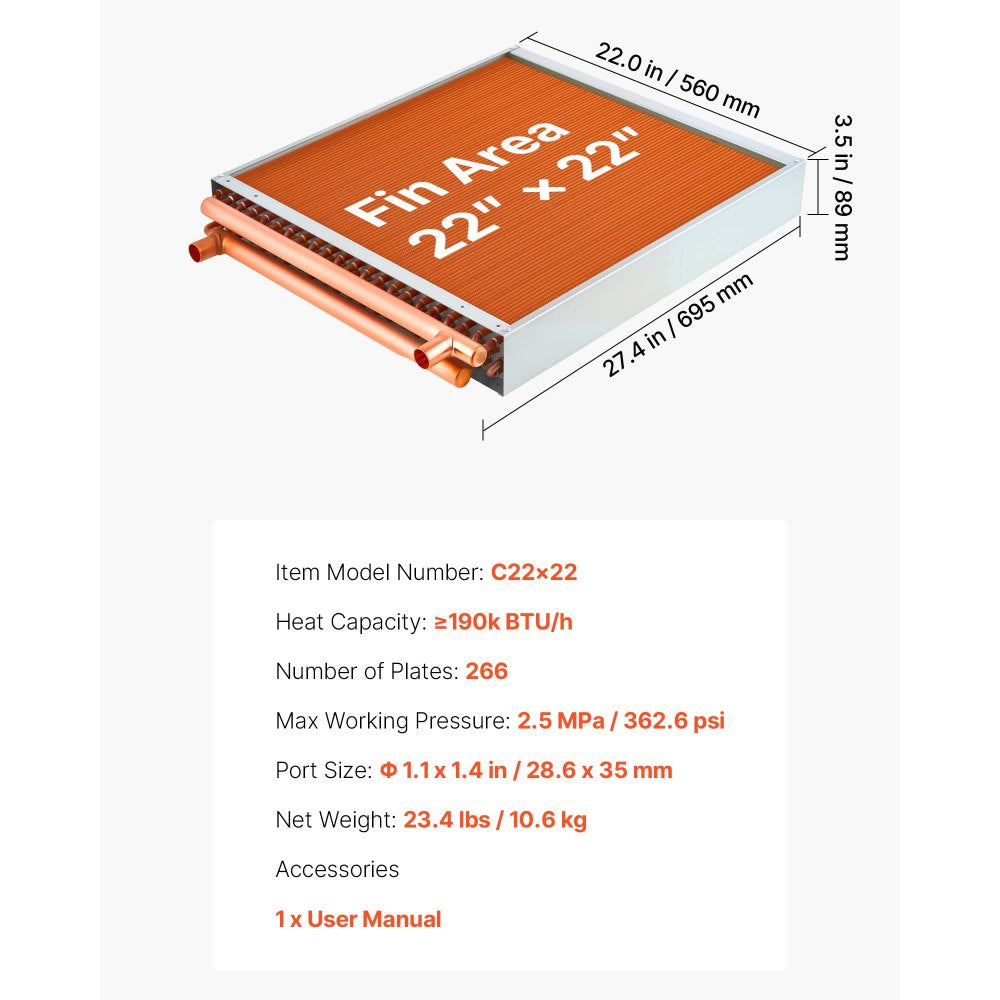

| Item Model Number | C22×22 |
| Heat Capacity | ≥190k BTU/h |
| Plate Area | 22 x 22 in / 559 x 559 mm |
| Number of Fins | 266 |
| Max Working Pressure | 2.5 MPa / 362.6 psi |
| Port Size | 1.1 x 1.4 in / 28.6 x 35 mm |
| Net Weight | 23.4 lbs / 10.6 kg |
| Product Dimensions | 27.4 x 22.0 x 3.5 in / 695 x 560 x 89 mm |
Warranty
This item comes with a 1 year factory warranty.
