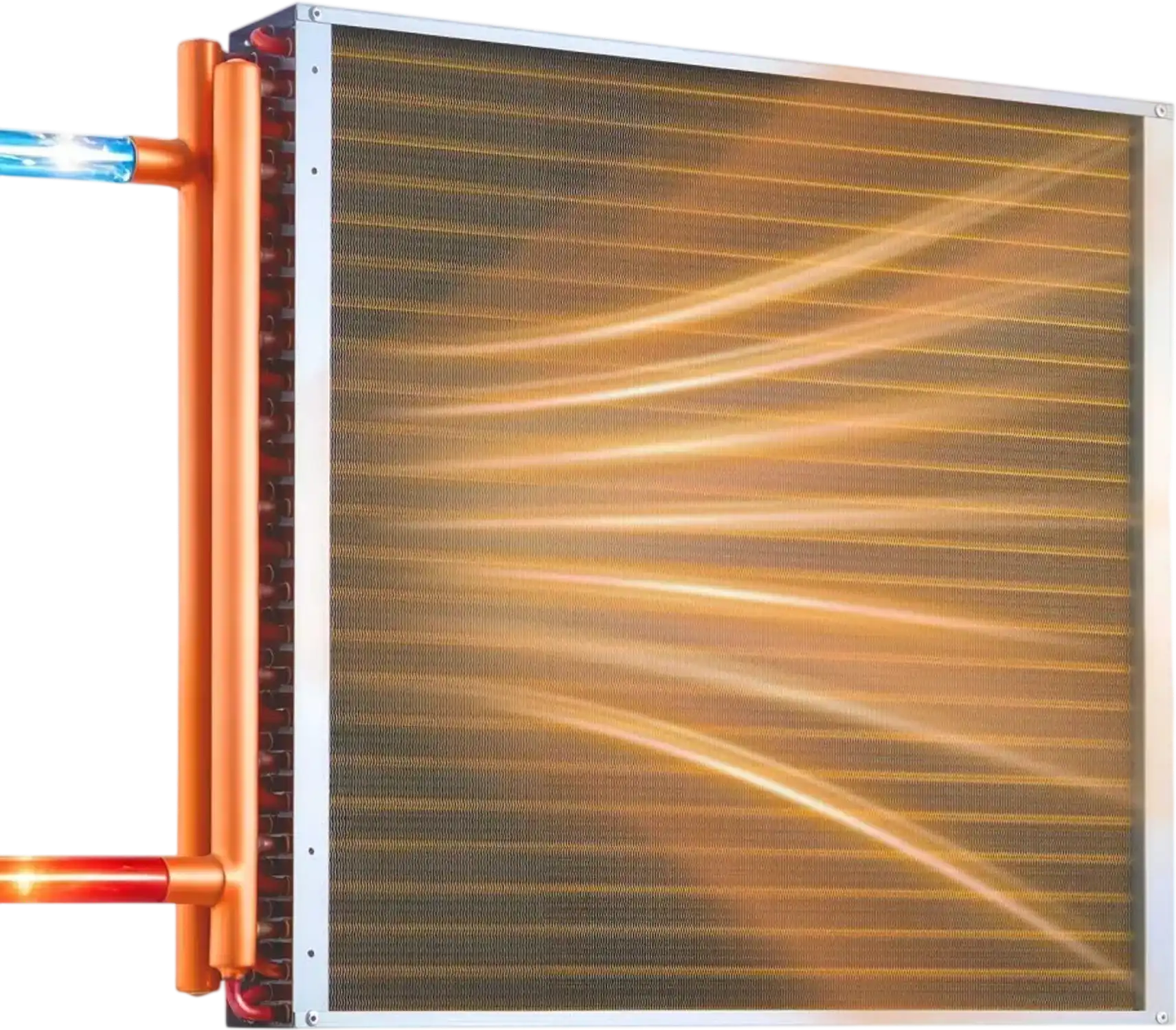

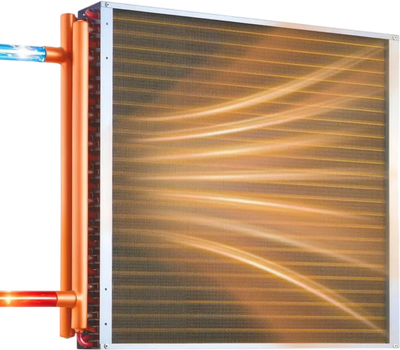

Vevor Heat Exchanger 24 x 24" Water to Air HVAC Coil 225K BTU New
Manufacturer: Vevor
SKU: CPGSHRQ24INCX5EY7001V0
QTY
(888) 999-1522
$ 349.90
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 4 left in stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

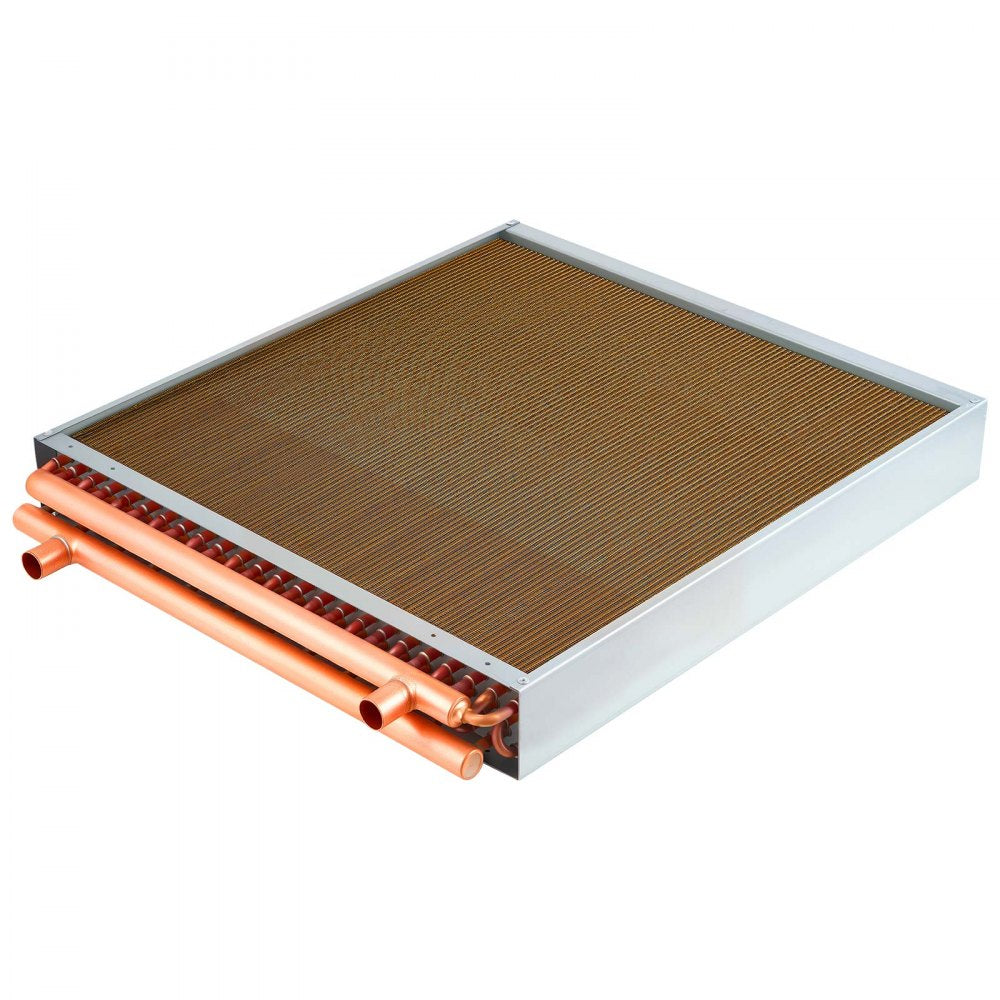

Vevor Heat Exchanger 24 x 24" Water to Air HVAC Coil 225K BTU New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

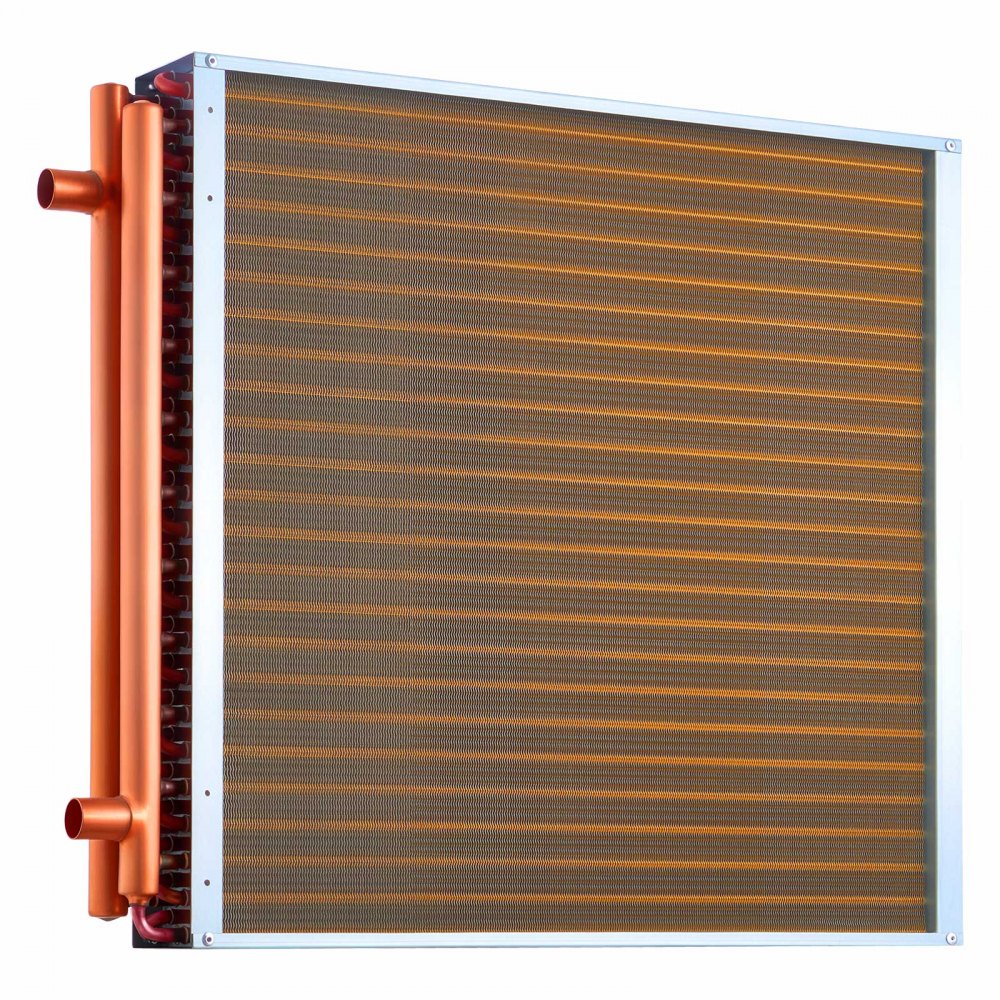

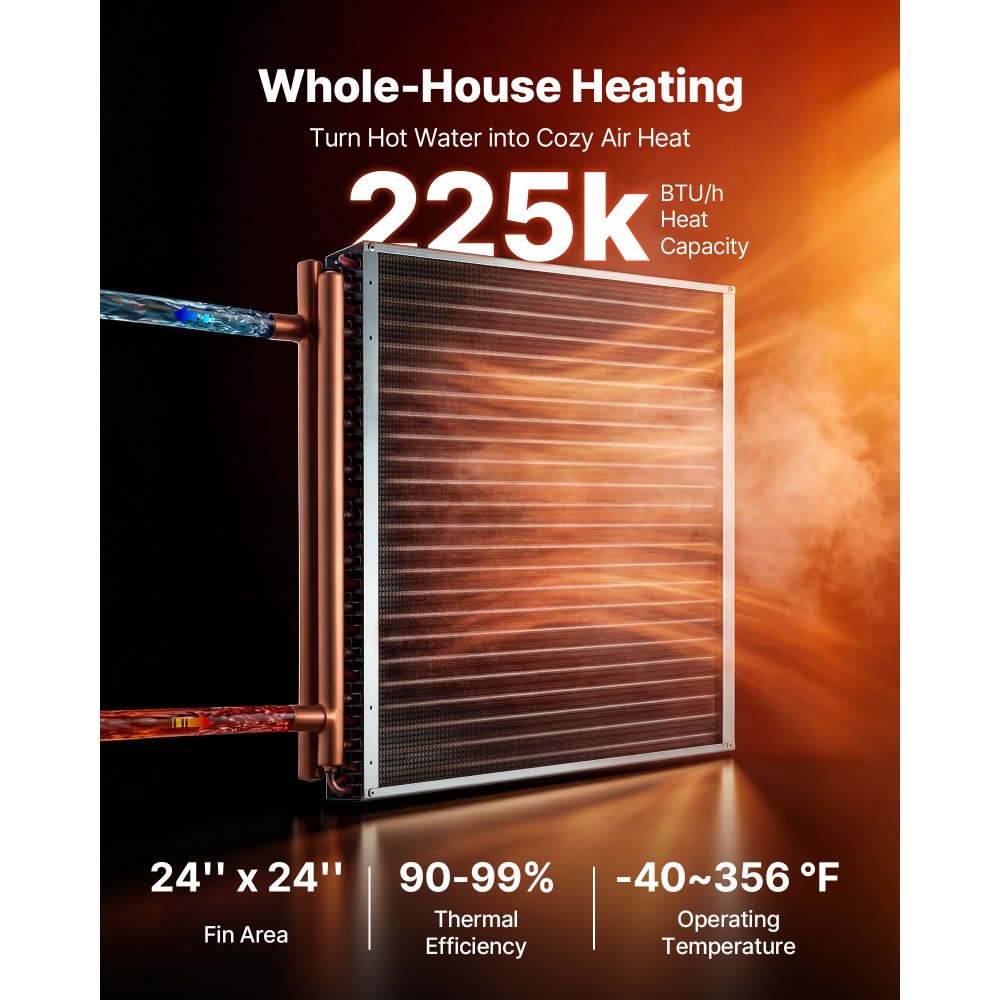

- High Efficiency: this heat exchanger is constructed with copper tubes and aluminum fins to maximize thermal conductivity, delivering efficient heat transfer efficiency and a heating capacity of up to 225k BTU/h

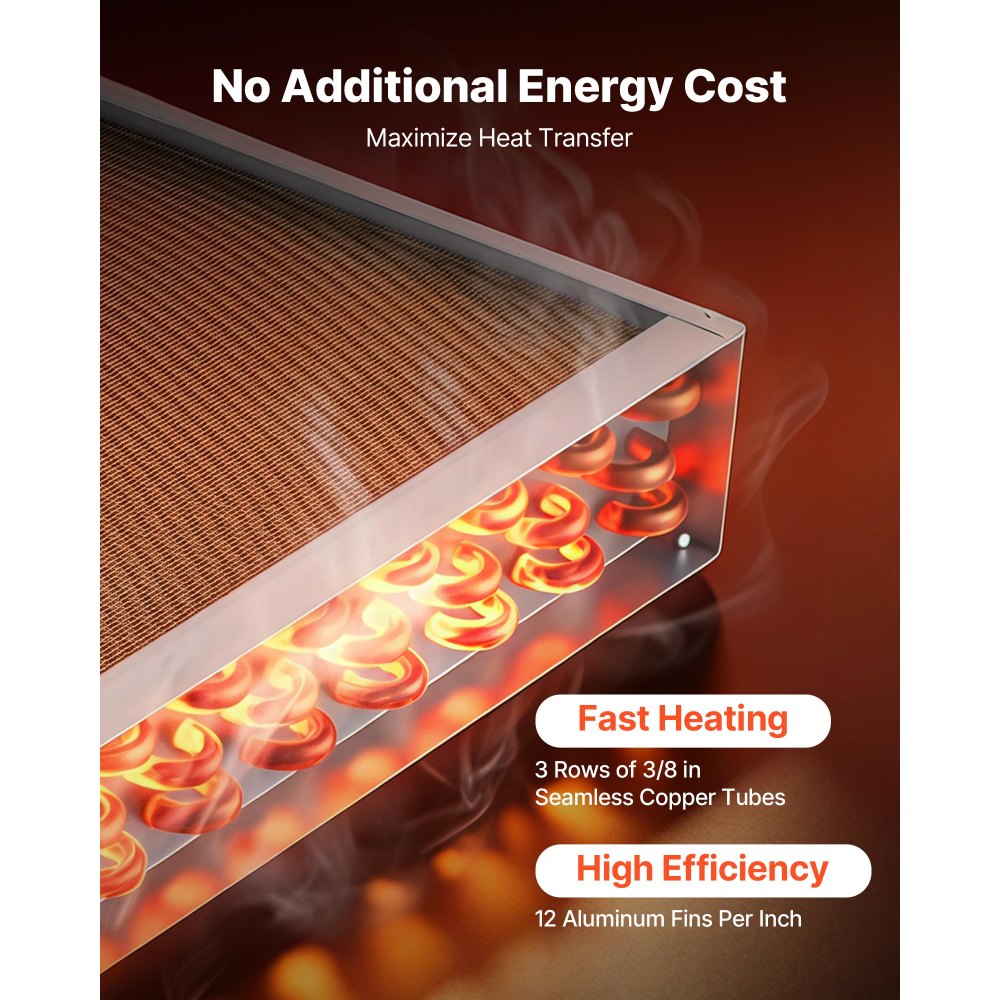

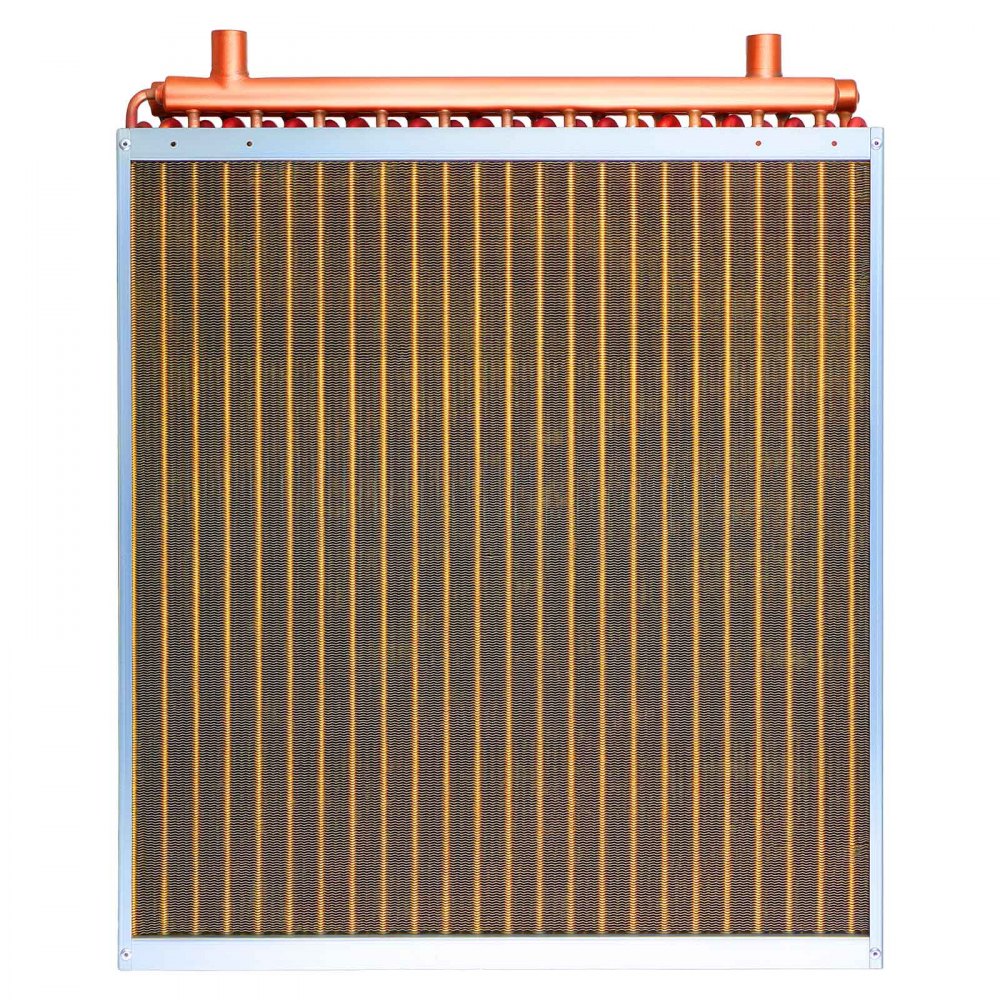

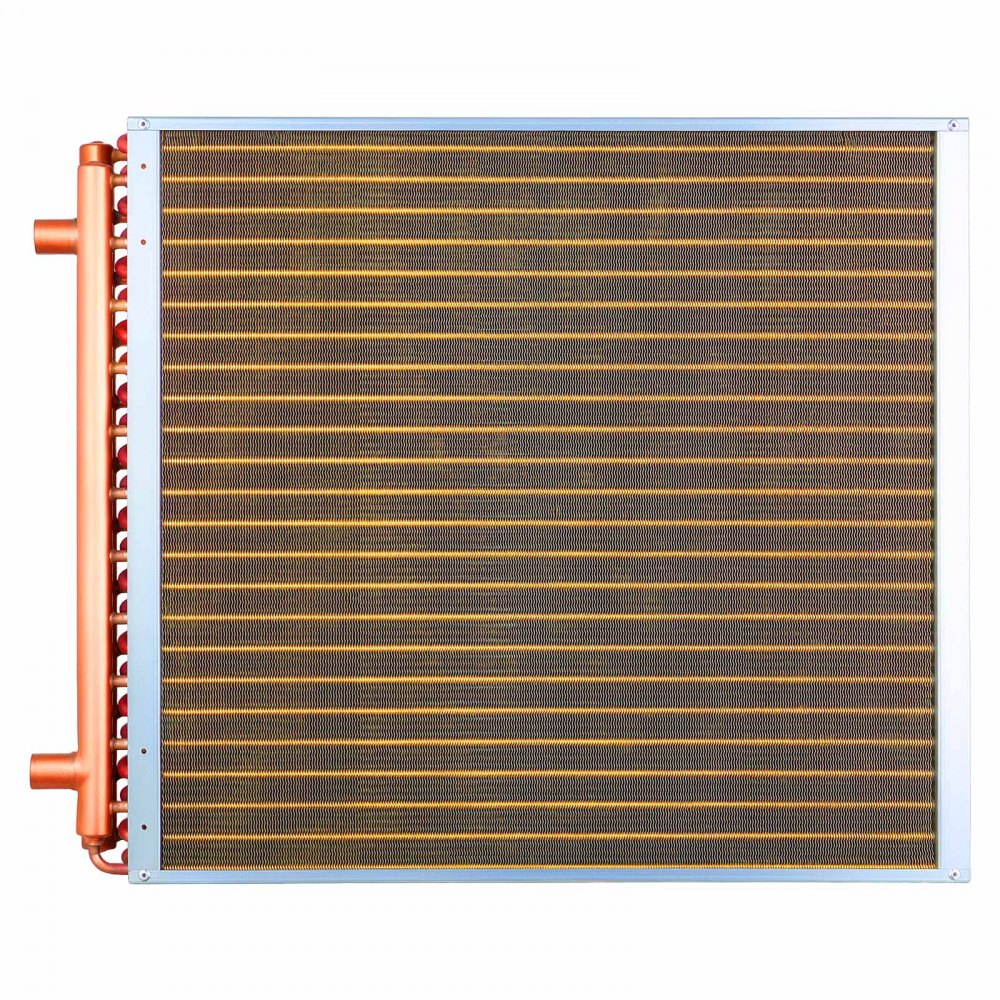

- Large Heat Transfer Area: This heat exchanger coil features a 24 x 24 in effective heat transfer area with 290 fins and 3 rows of 3/8 in seamless copper tubes, delivering outstanding performance across a wide range of applications

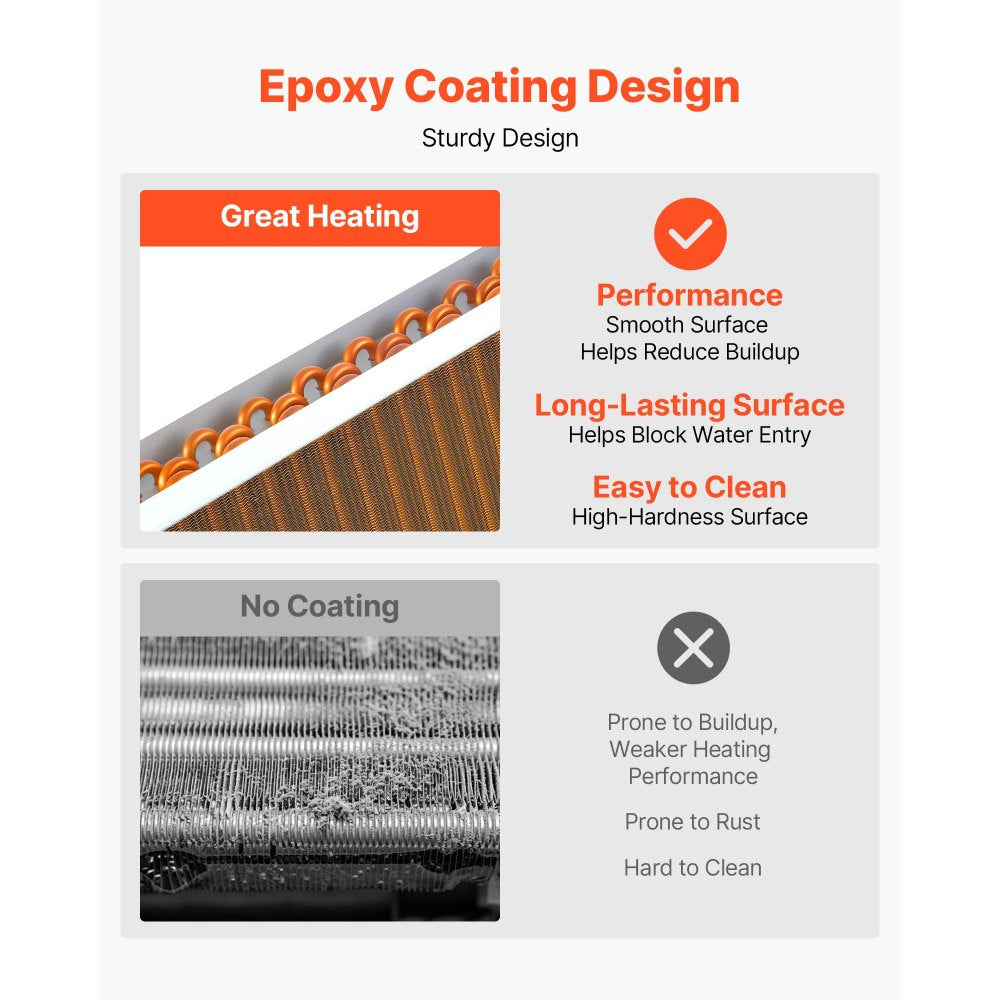

- Solid and Long-lasting: Designed as a sturdy air to water heat exchanger, high-hardness epoxy-coated aluminum fins help reduce scale buildup, paired with pure copper tubing for efficient heat transfer, with an operating temperature range of -40–356 °F

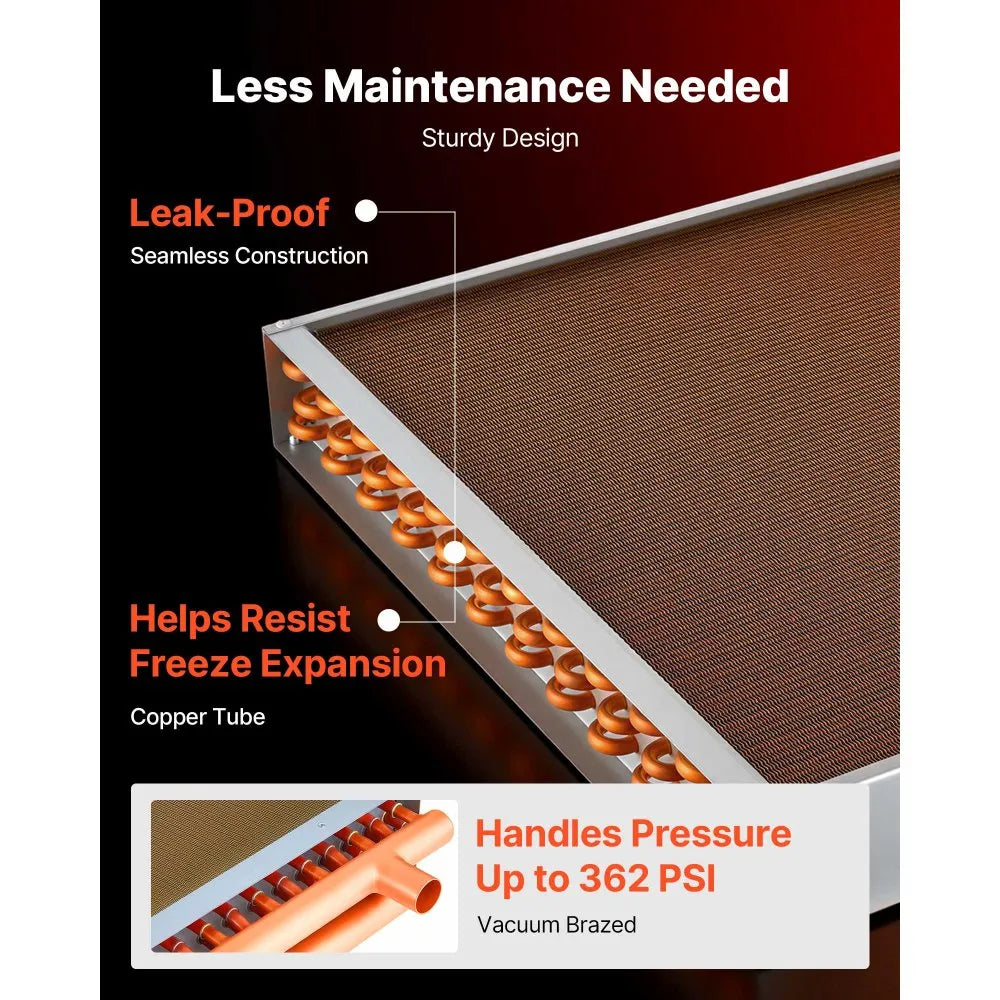

- Sealed and Leakproof: Built to perform as a reliable HVAC heat exchanger, it uses high-pressure vacuum brazing technology and undergoes rigorous leak testing for extended service life and dependable operation
- Wide Application: This water to air heat exchanger is an excellent solution for residential use, outdoor wood furnaces, large farm shops, hydroponic grow rooms, commercial heating and cooling, forced-air heating, and hybrid systems

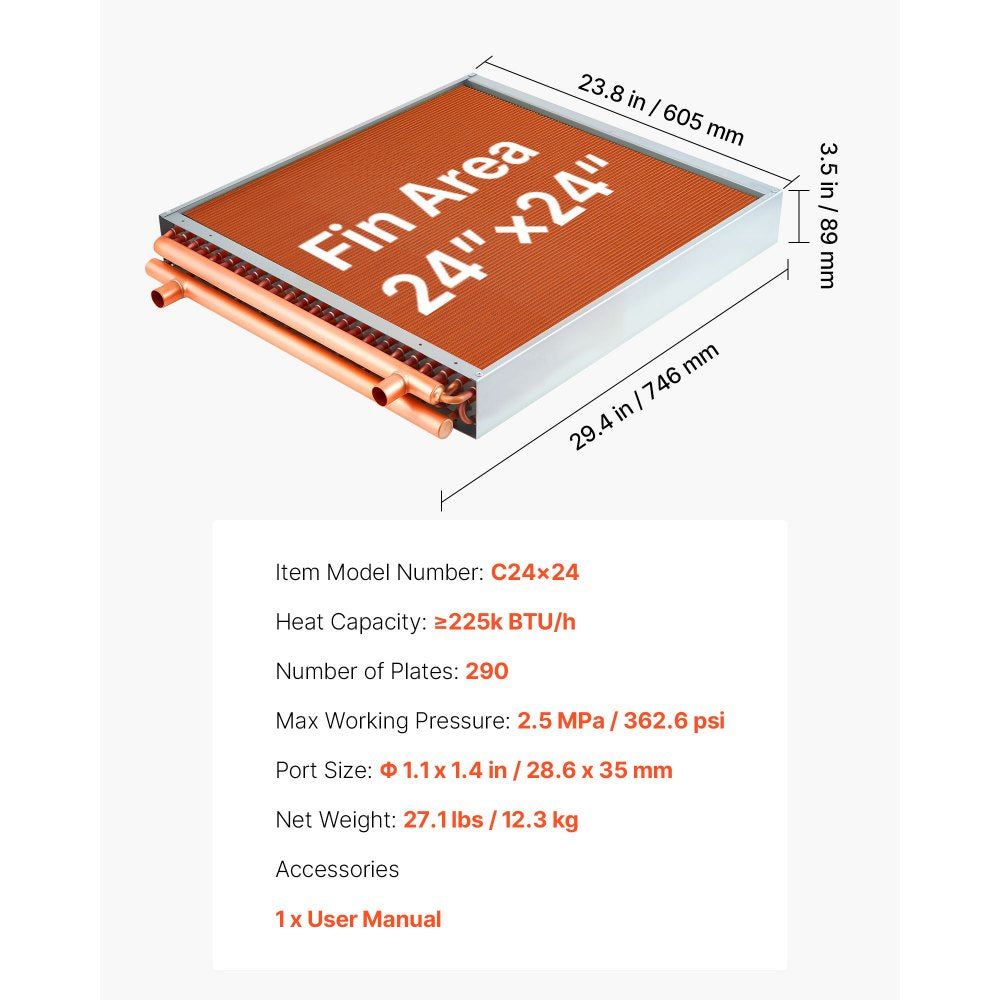

Specifications
| Item Model Number | C24×24 |
| Heat Capacity | ≥225k BTU/h |
| Plate Area | 24 x 24 in / 610 x 610 mm |
| Number of Fins | 290 |
| Max Working Pressure | 2.5 MPa / 362.6 psi |
| Port Size | 1.1 x 1.4 in / 28.6 x 35 mm |
| Net Weight | 27.1 lbs / 12.3 kg |
| Product Dimensions | 29.4 x 23.8 x 3.5 in / 746 x 605 x 89 mm |
