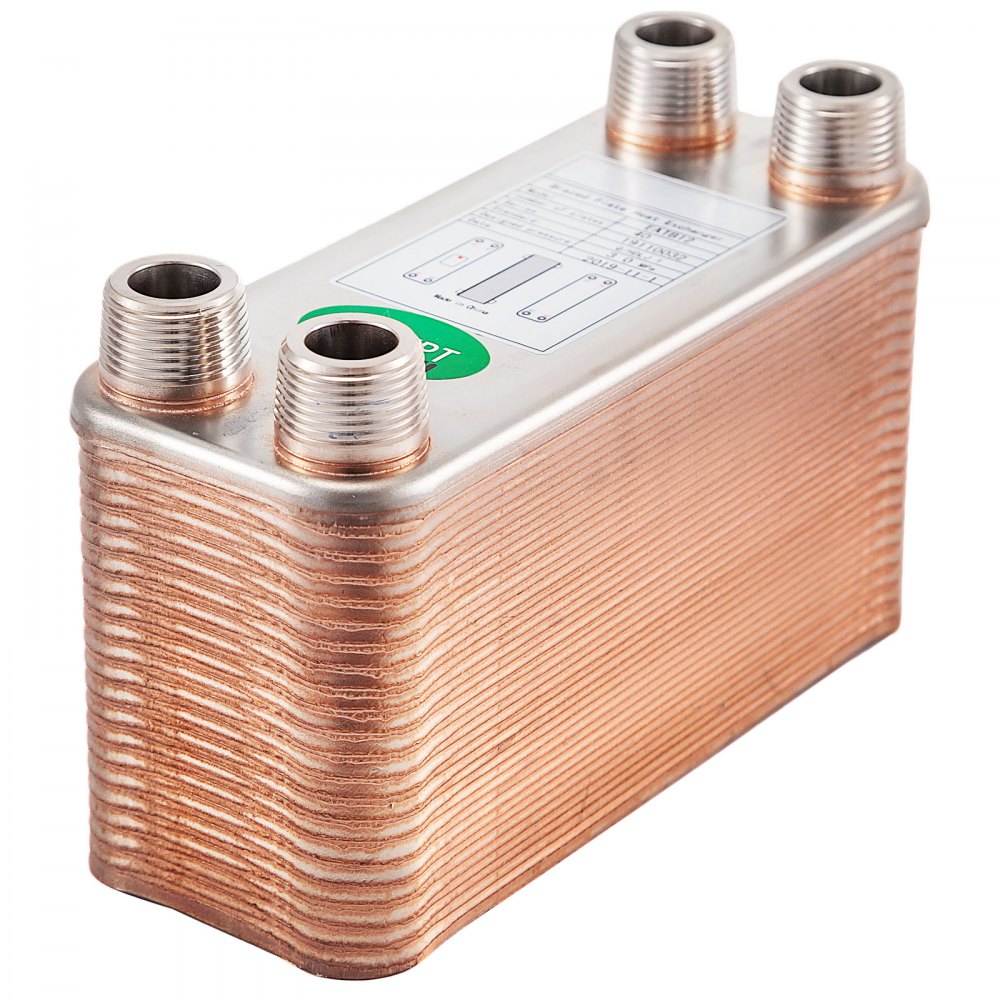

Vevor Heat Exchanger 3" x 7.5" 40-Plate Brazed Plate Heat Exchanger New
Product Overview
The Vevor brazed plate heat exchanger features a compact, lightweight design built for efficient heat transfer in hydronic heating, solar heating, oil heat recovery, engine cooling, evaporation, and condensing applications. It is made from 316L stainless steel with 99.9% copper brazing for durability and long service life. The turbulent-flow plate design helps improve thermal efficiency while maintaining a small footprint. Four 3/4" MNPT ports support straightforward installation in a range of heating and cooling systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

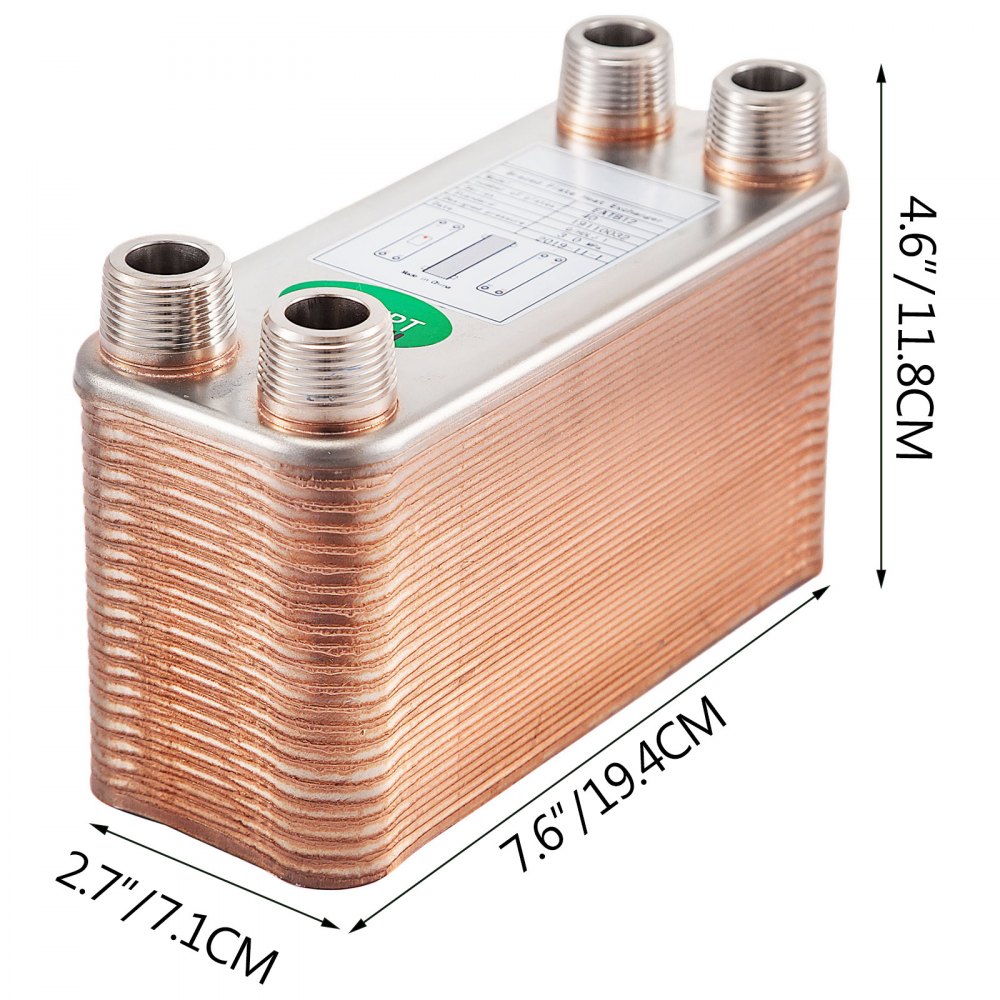

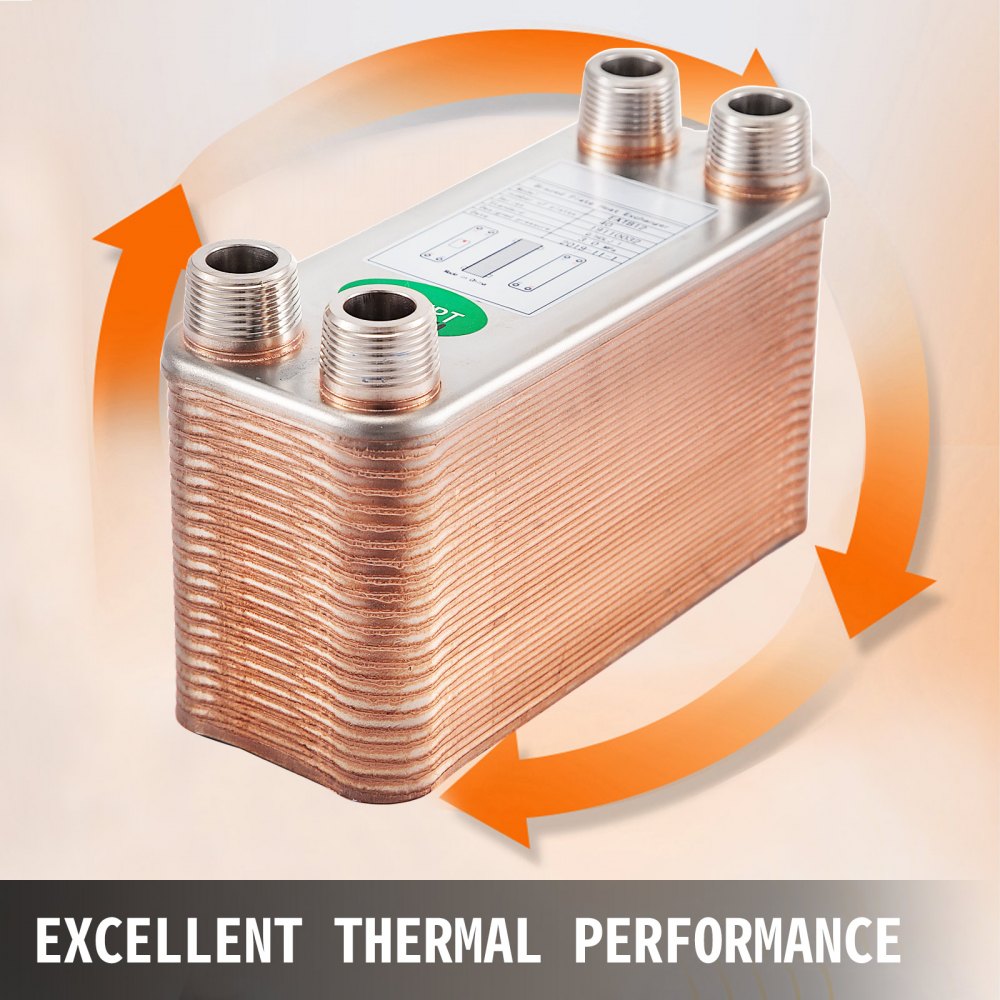

- HIGH THERMAL EFFICIENCY: - Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm.

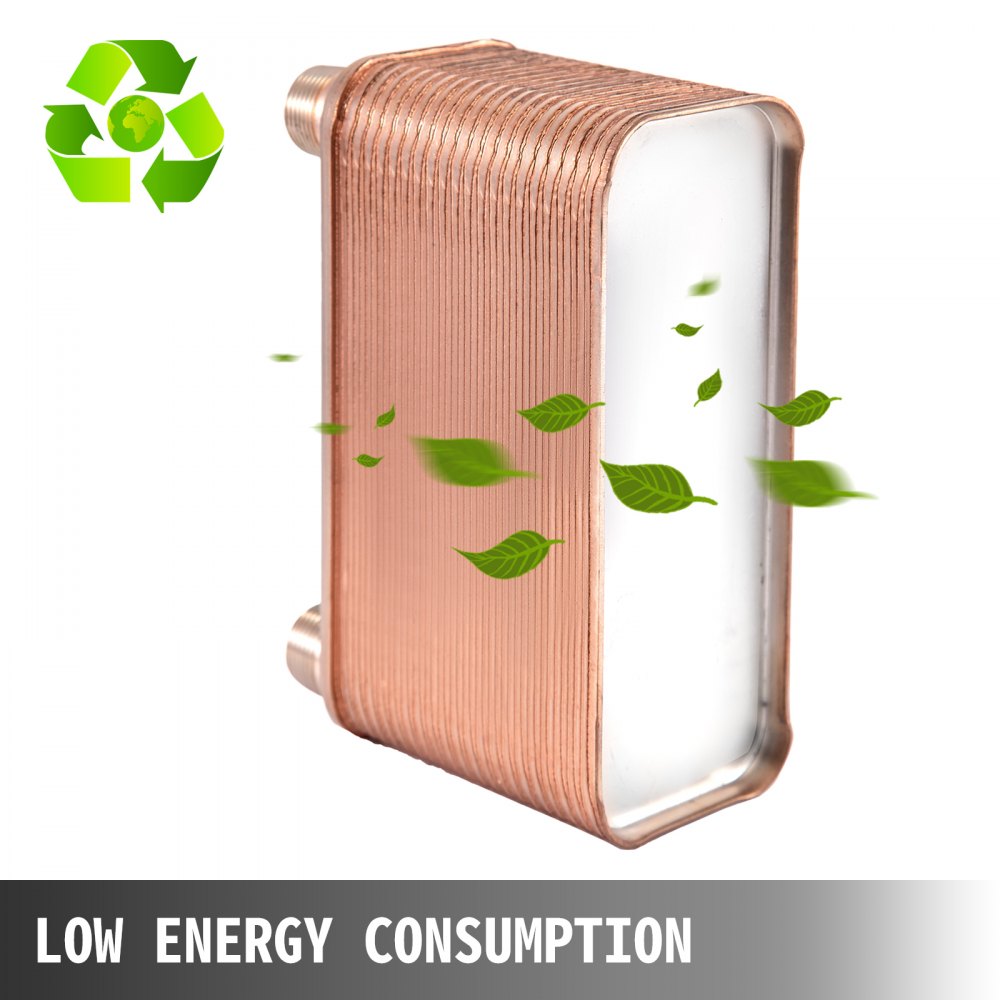

- ENERGY OPTIMIZED: - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.

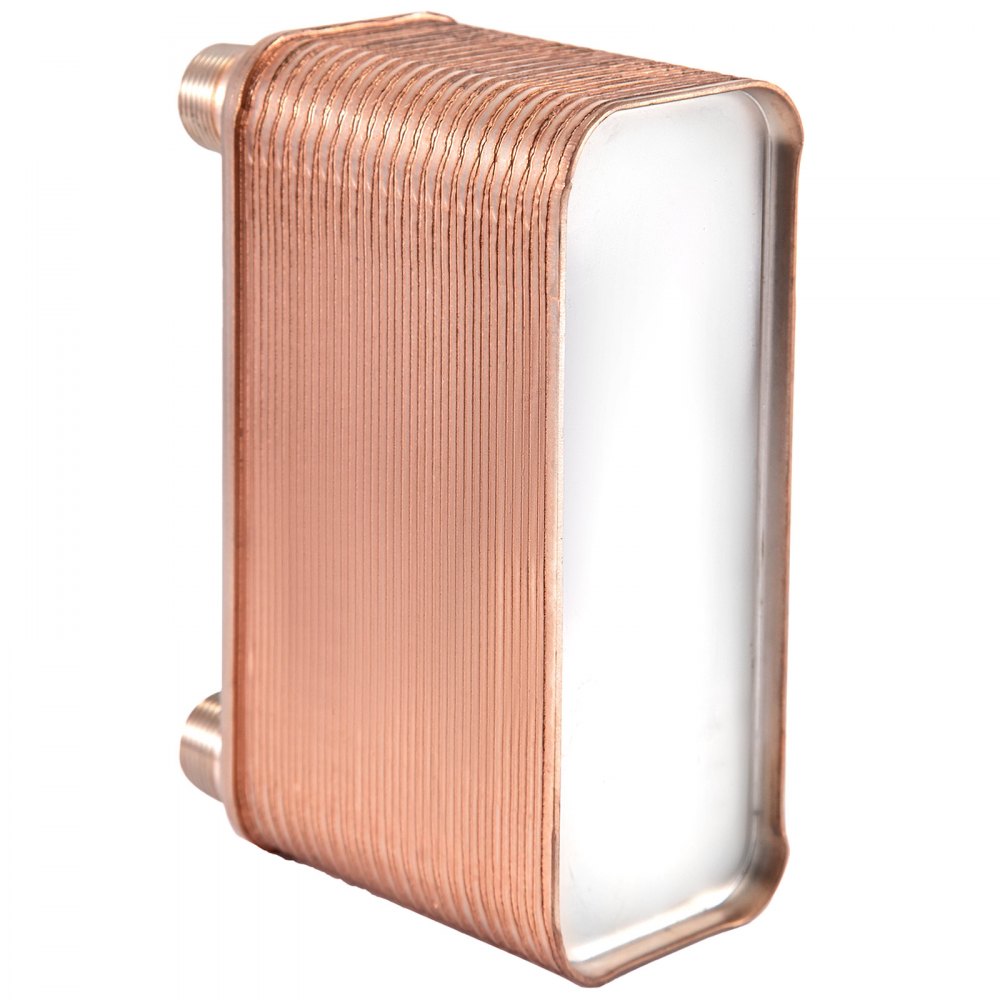

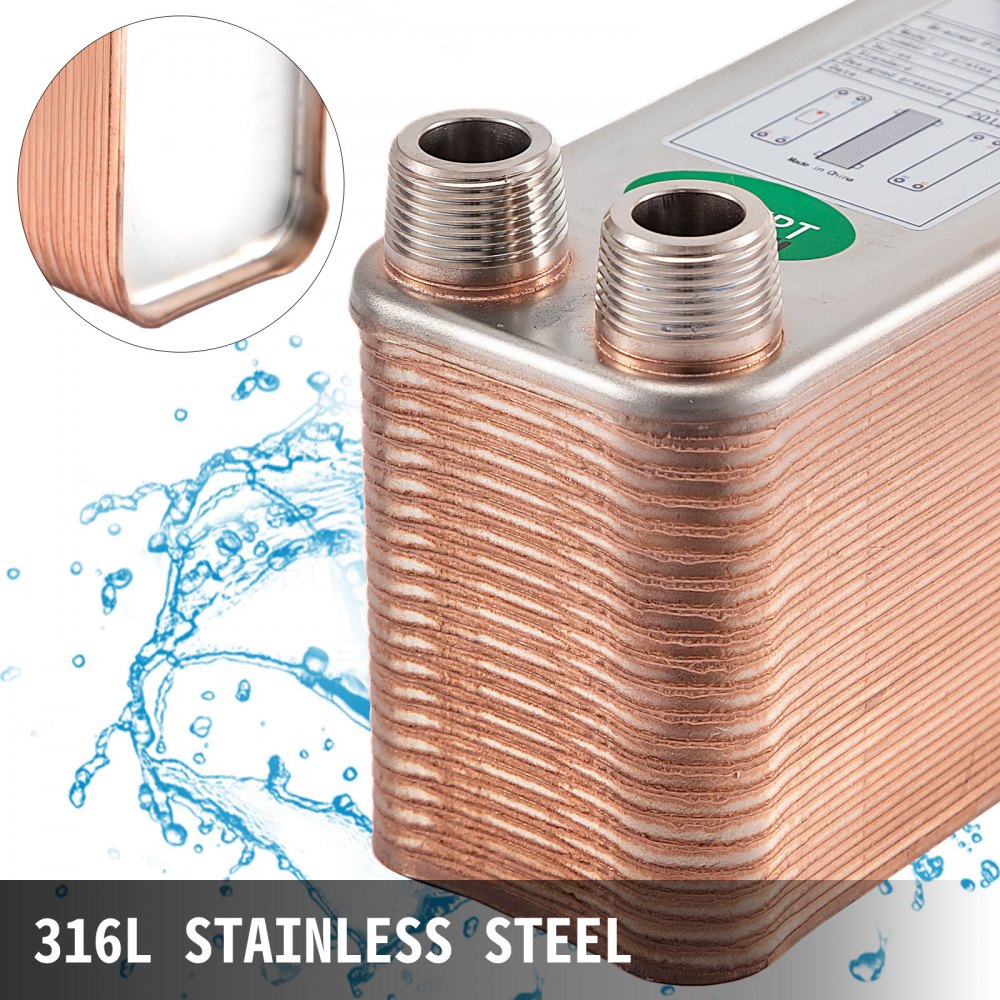

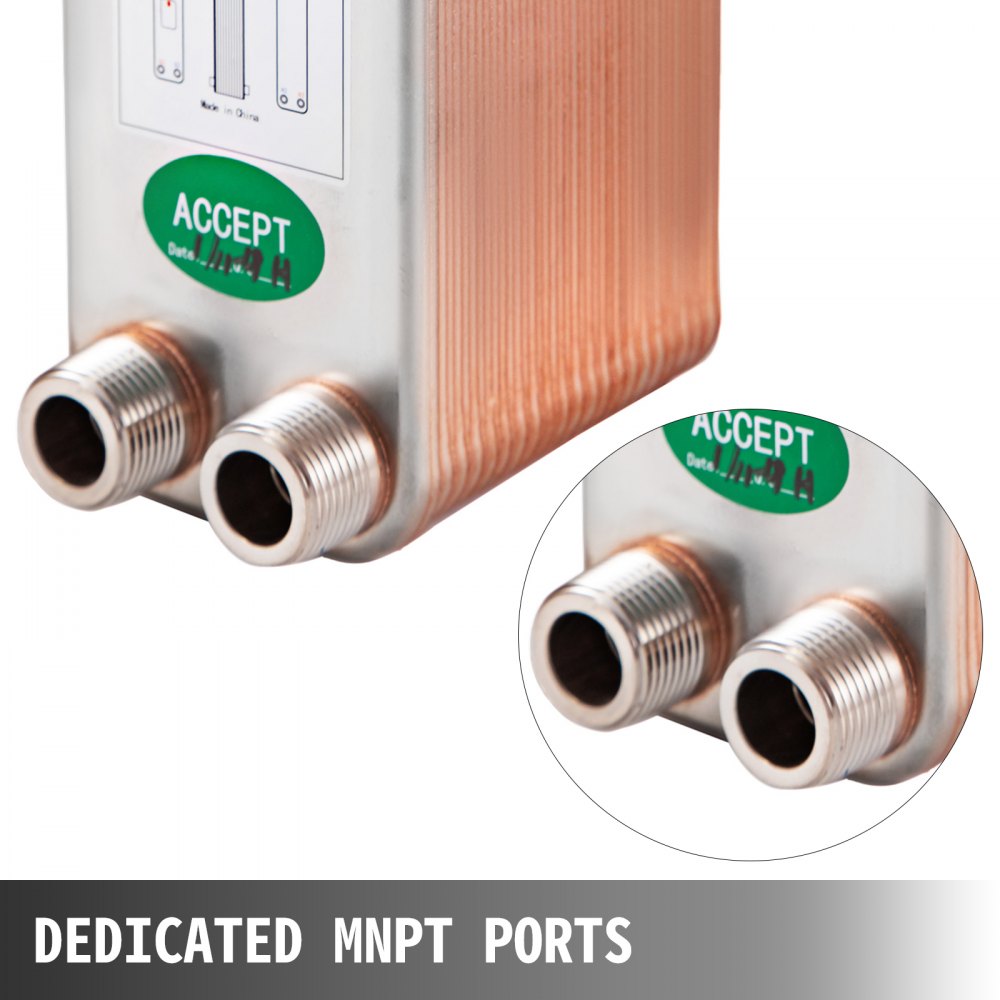

- ROBUST CONSTRUCTION: - This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.

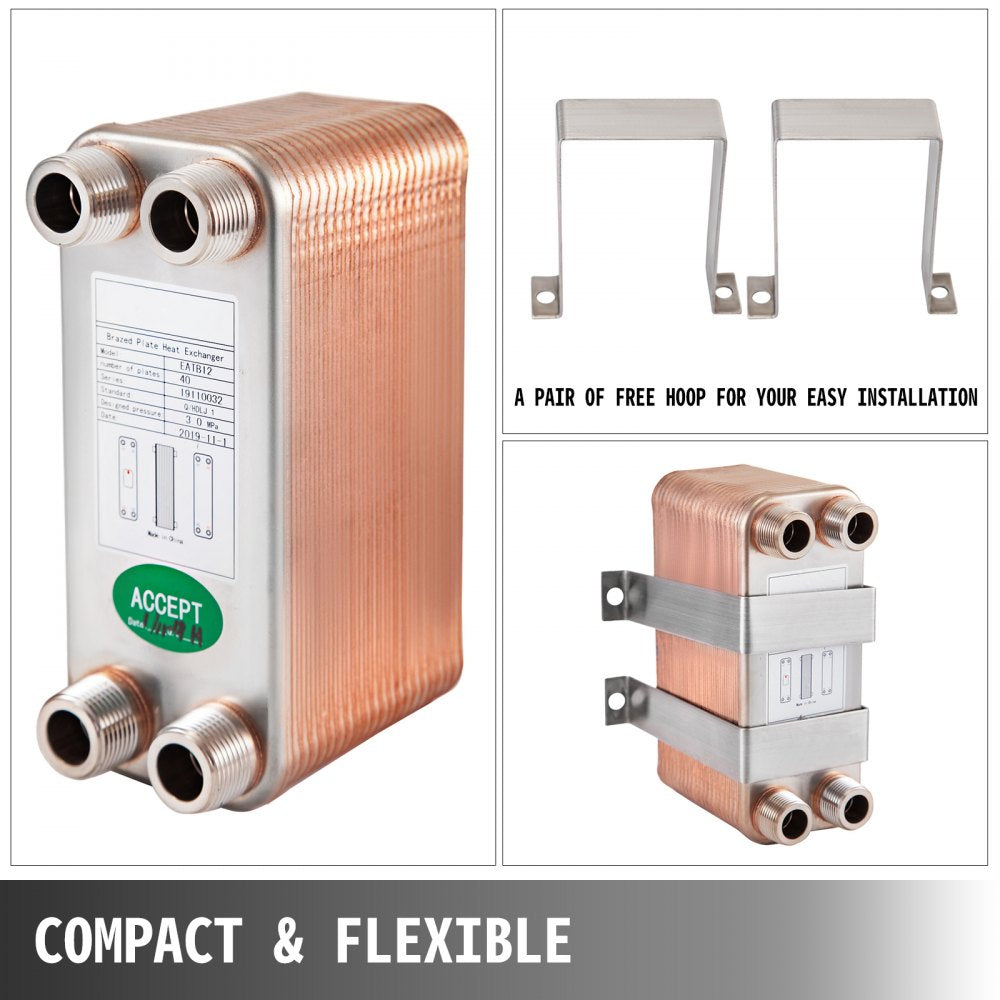

- COMPACT DESIGN: - Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
- HIGHLY VERSATILE: - This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Specifications
| Model | EATB12 |
| Material | 316L Stainless Steel + 99.9% Copper |
| Ports | 3/4" MNPT |
| Plate Quantity | 40 |
| Design Pressure Max | 3.0 Mpa |
| Test Pressure Min | 4.5 Mpa |
| Design Temperature Max | +225 ℃ |
| Design Temperature Min | -196 ℃ |
| Dimensions | 7.6" x 2.7" x 4.6" |
| Maximum Flow Rate | 8 m³/h |
| Minimum Flow Rate | 700 L/h |

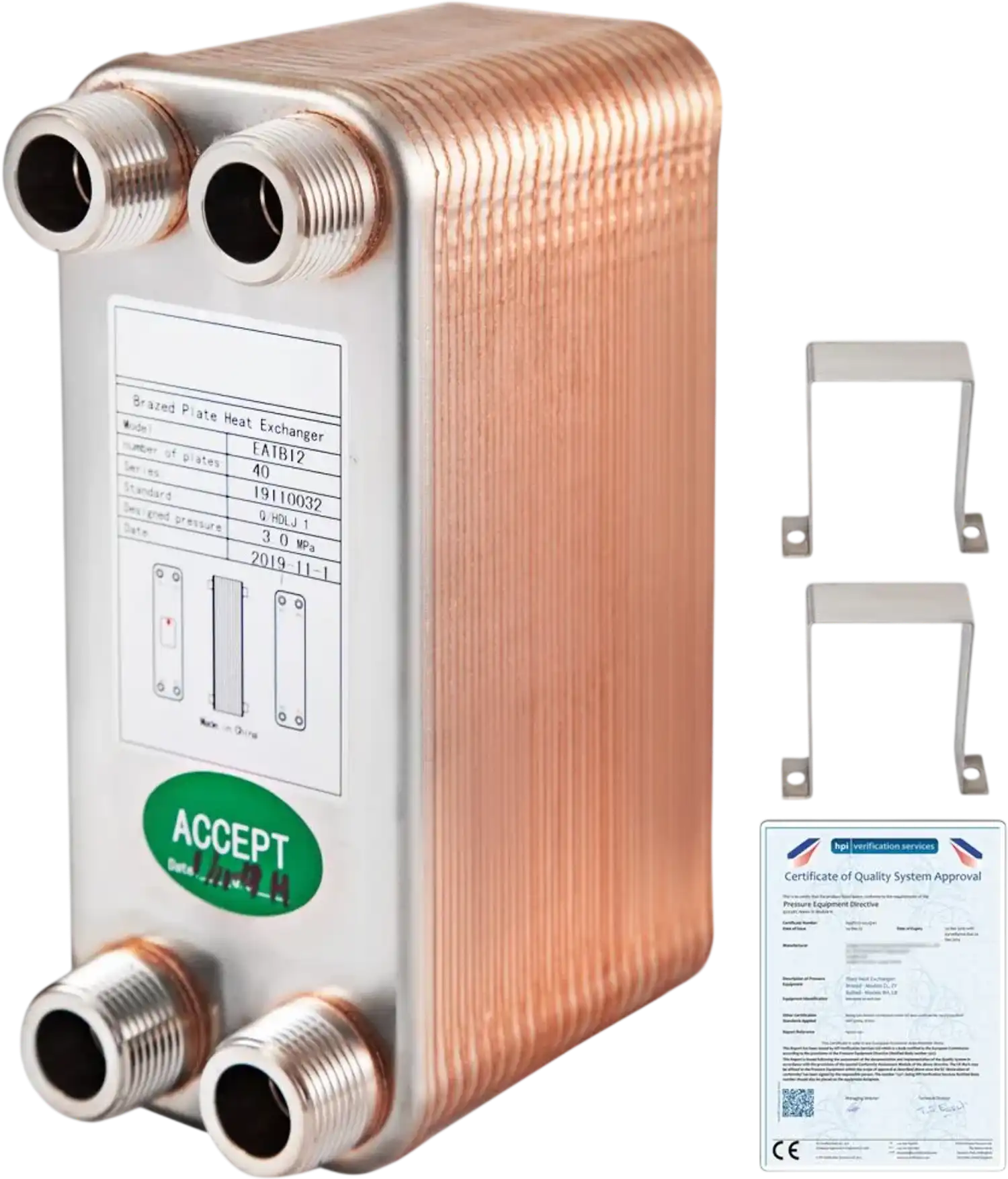

Package Contents
1 x Heat Exchanger

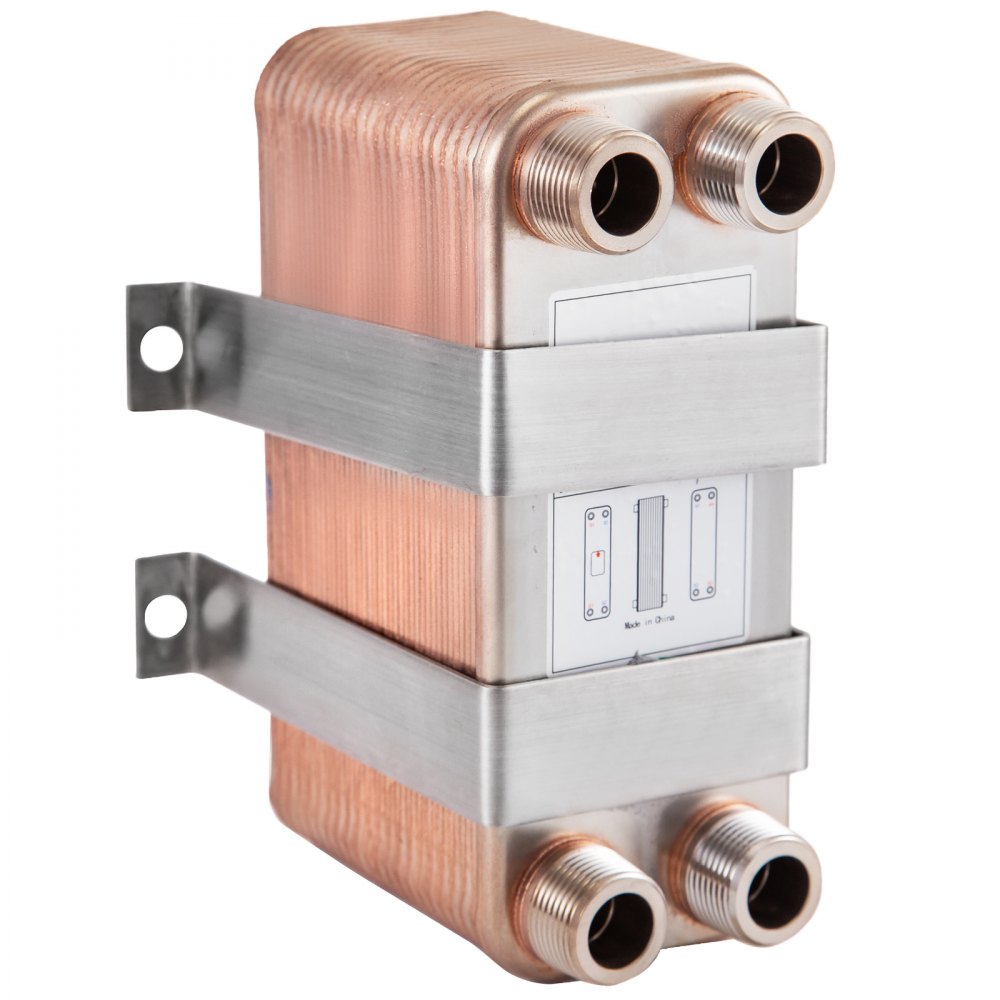

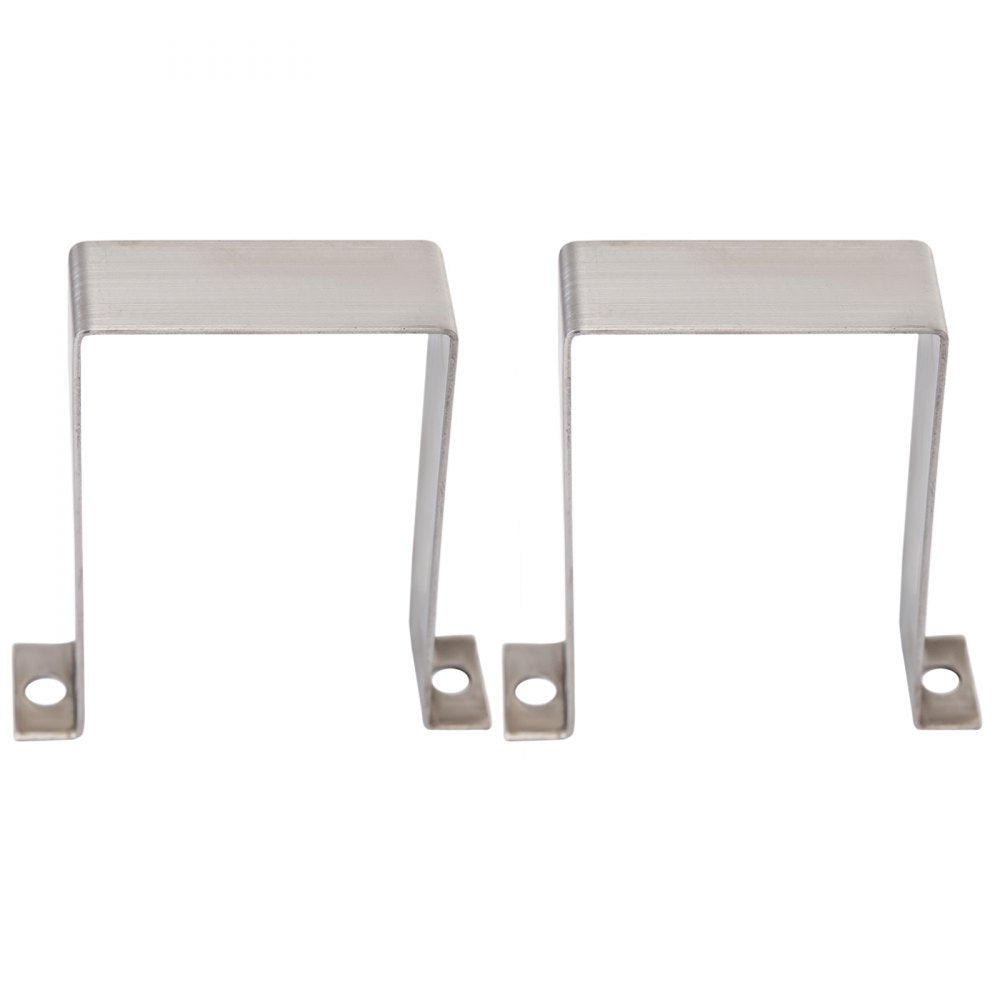

1 x A Pair of Hoops
Warranty
This item comes with a 1 year factory warranty.
