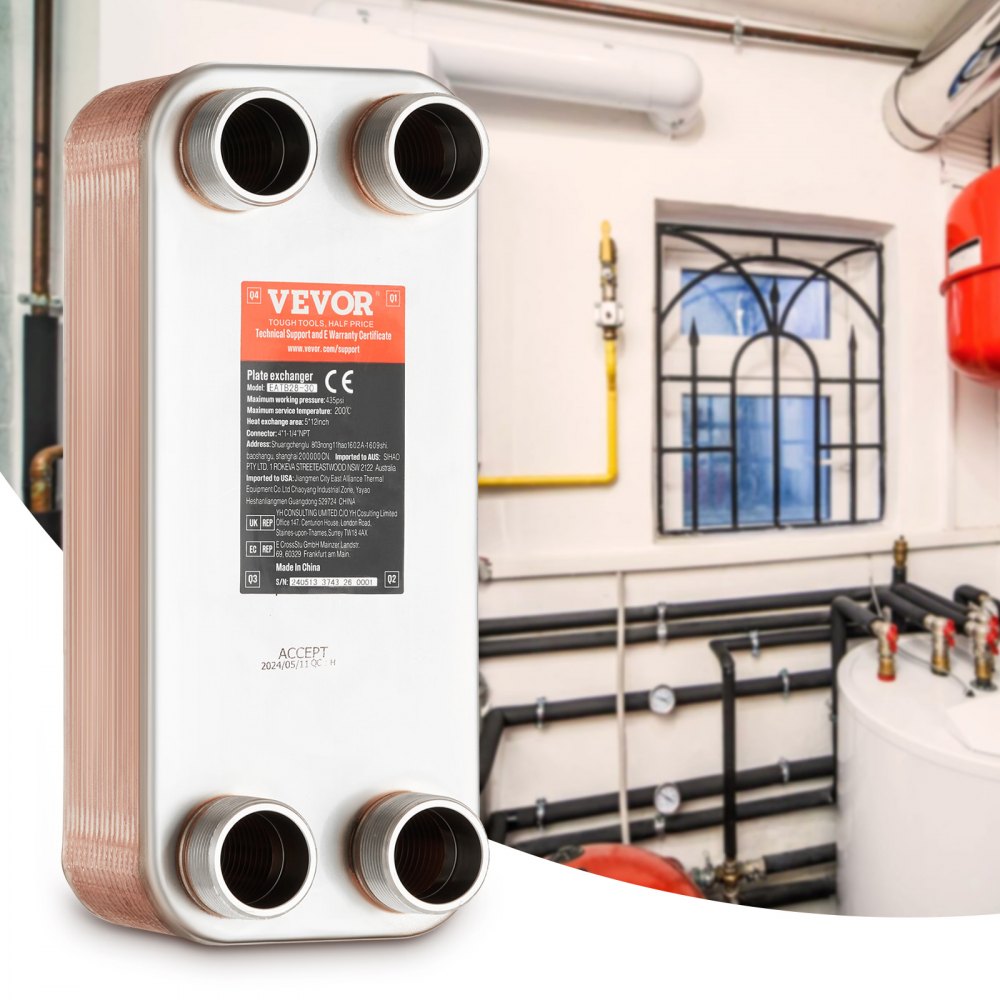

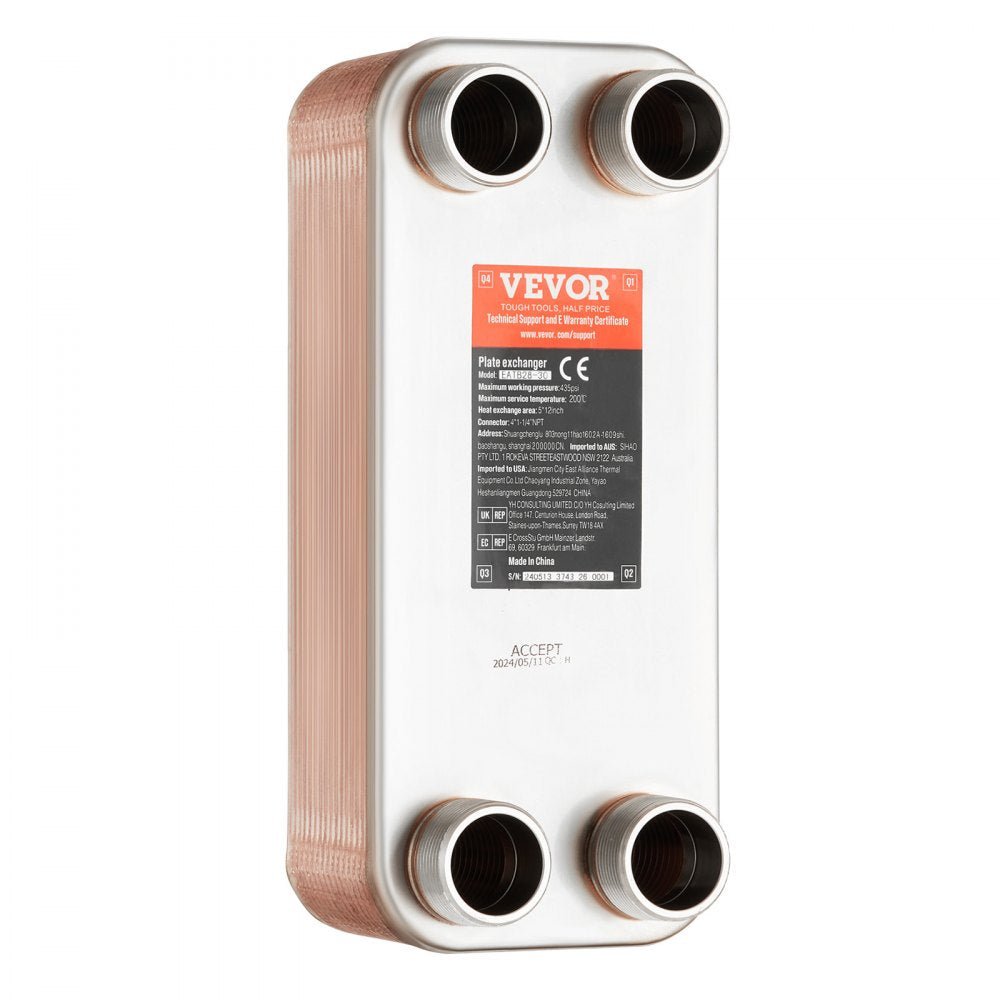

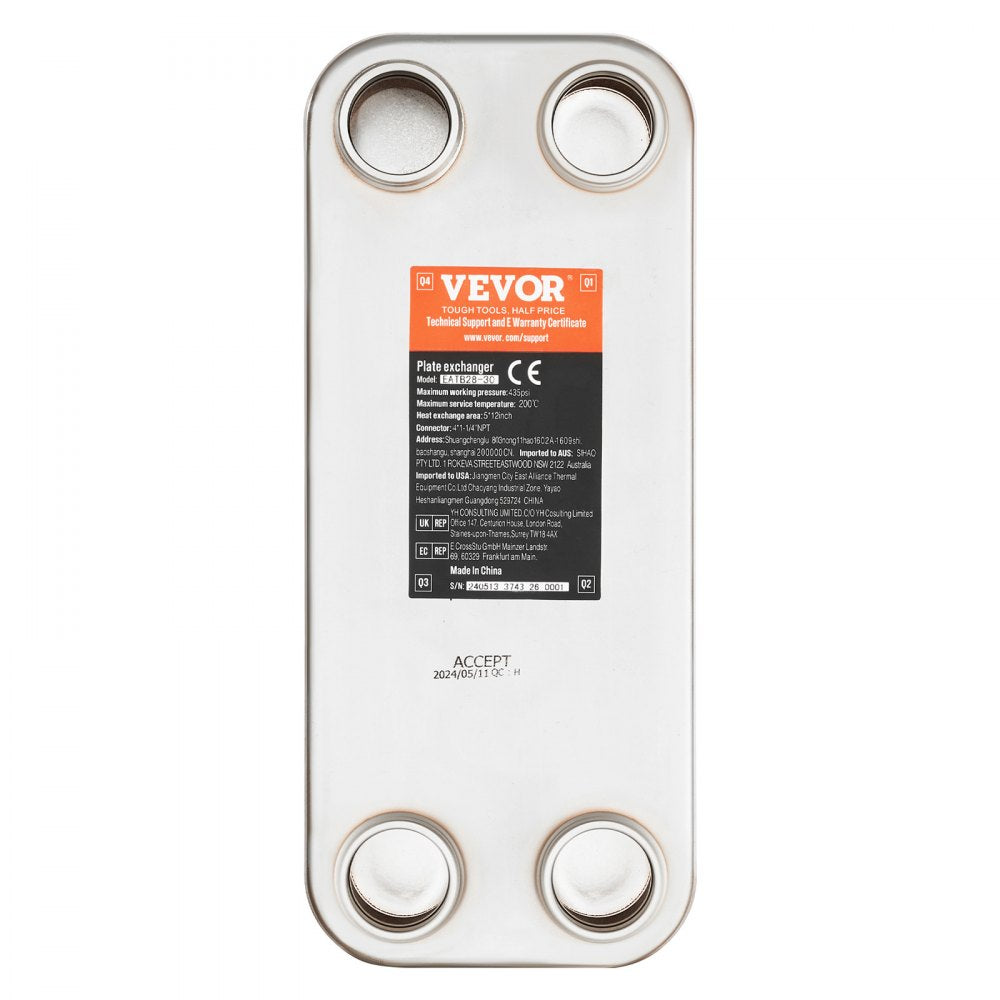

Vevor Heat Exchanger 5" x 12" 30-Plate Brazed Water-to-Water Heat Exchanger New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

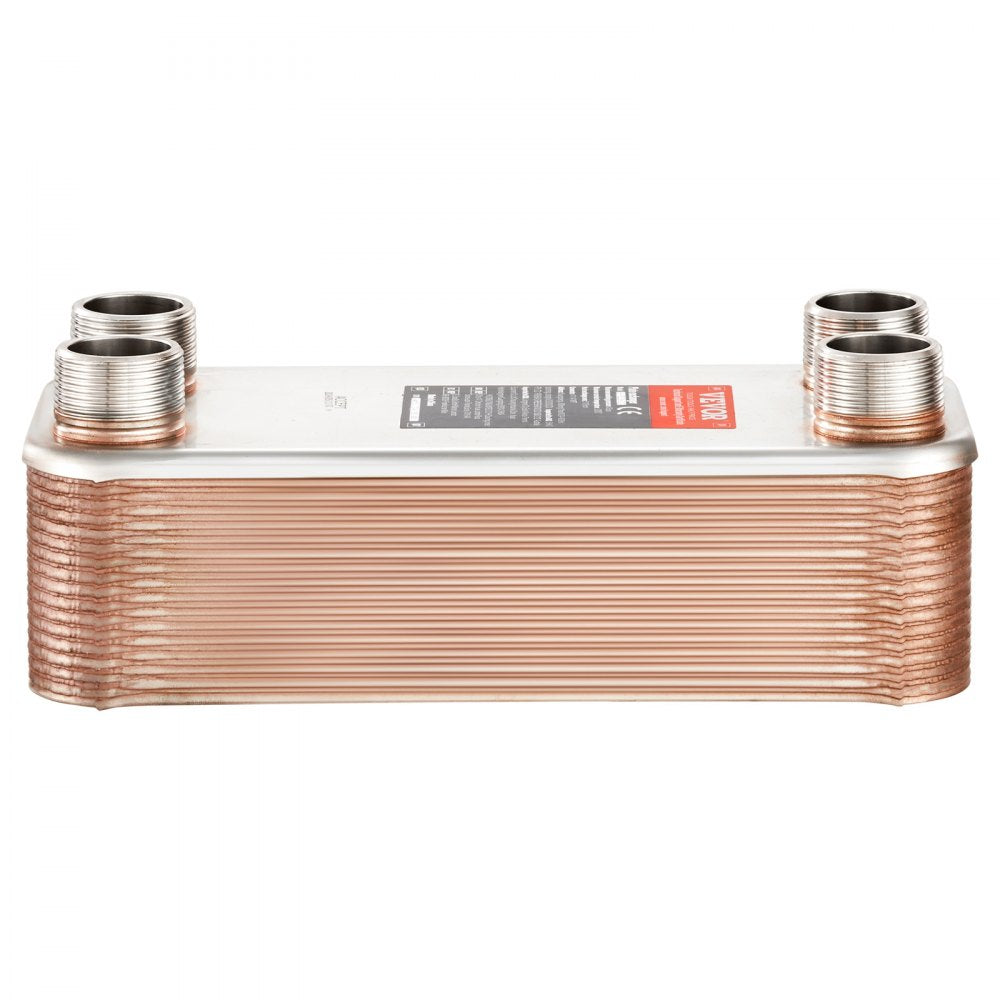

- High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

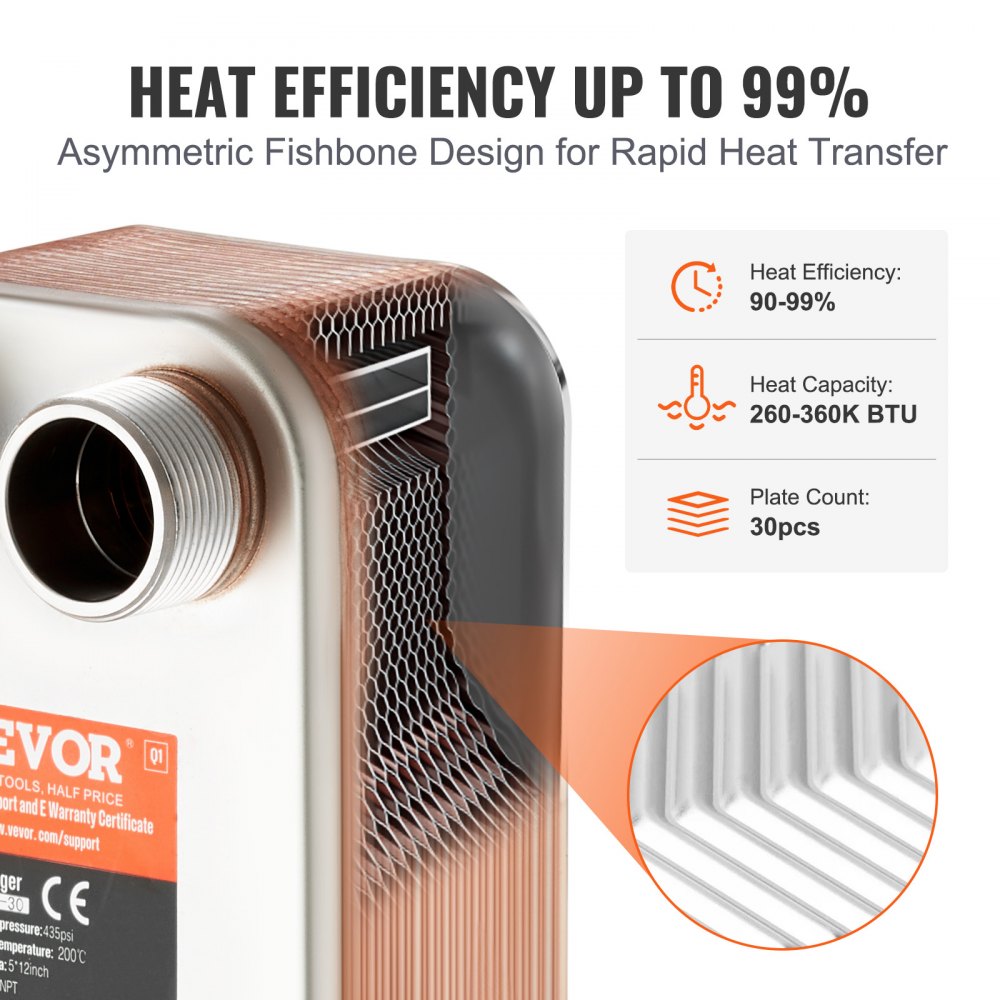

- Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 260-360K BTU per hour, saving pump power and electricity, reducing overall application costs.

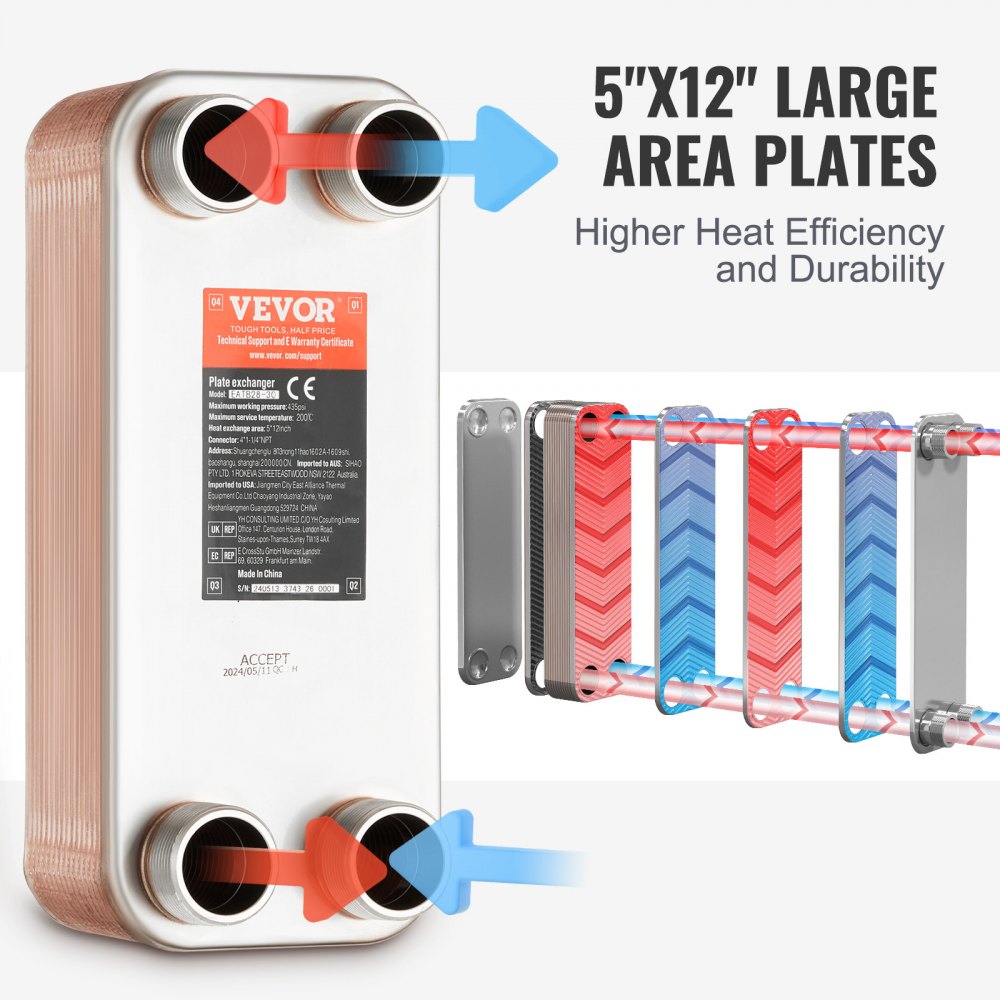

- Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 30 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

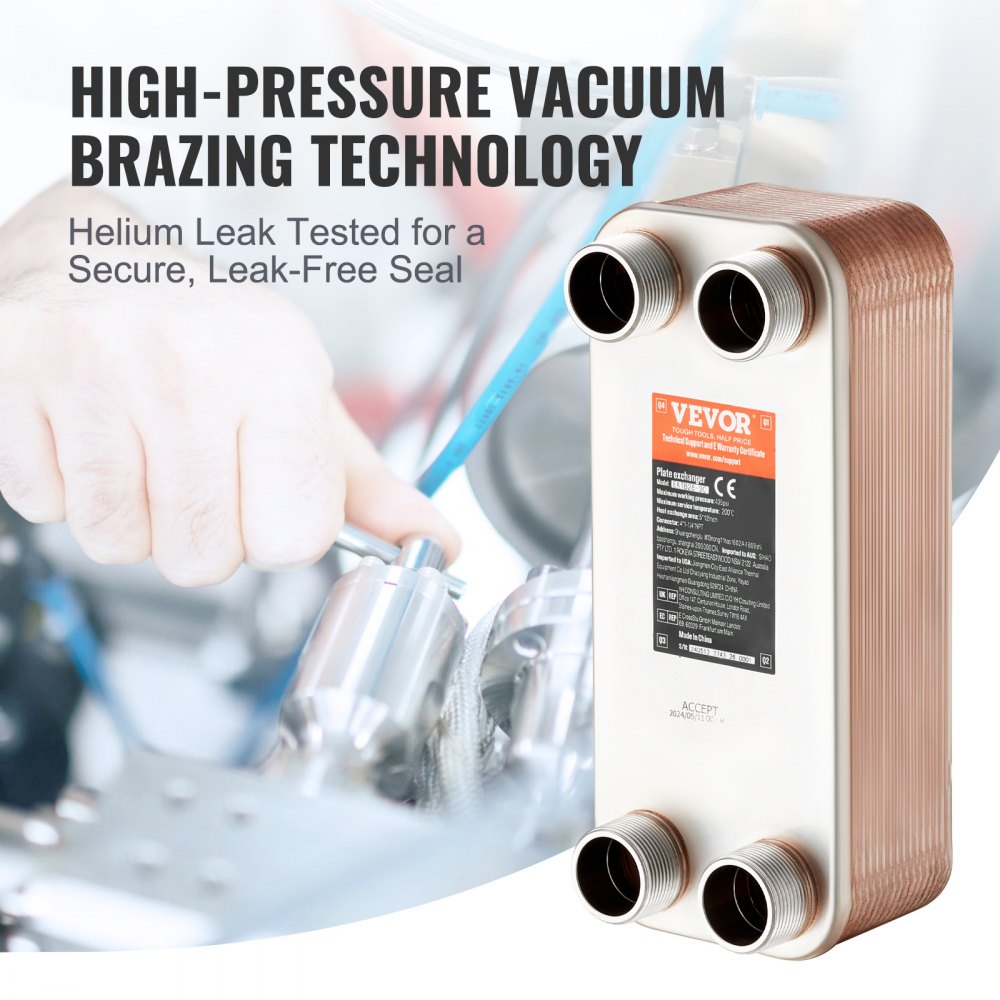

- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

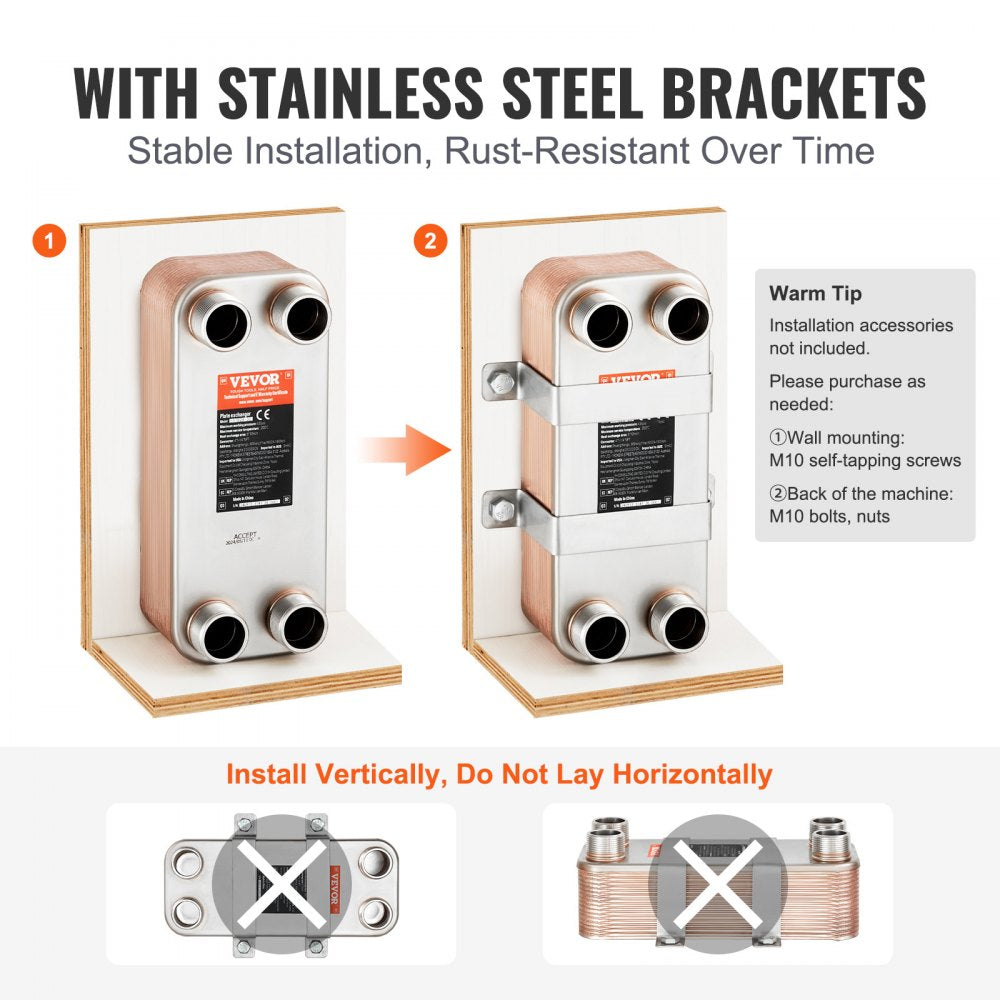

- Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

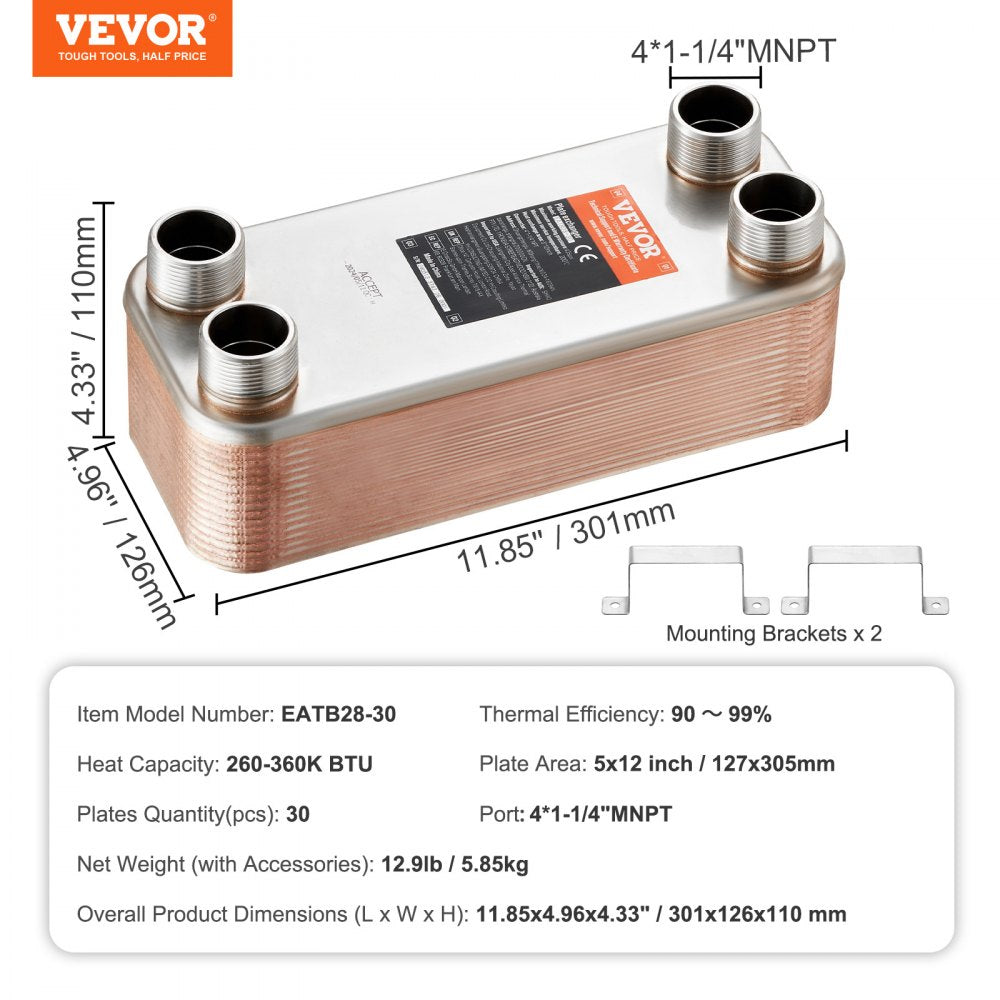

Specifications
| Model | EATB28-30 |
| Thermal Efficiency | 90-99% |
| Heat Capacity | 260-360K BTU |
| Plate Area | 5 x 12 in / 127 x 305 mm |
| Plates Quantity | 30 |
| Port | 4 x 1-1/4" MNPT external thread |
| Color | Stainless Steel and Copper |
| Material | 304/316 stainless steel, solder |
| Net Weight With Accessories | 12.9 lbs / 5.85 kg |
| Dimensions | 11.85 x 4.96 x 4.33 in / 301 x 126 x 110 mm |

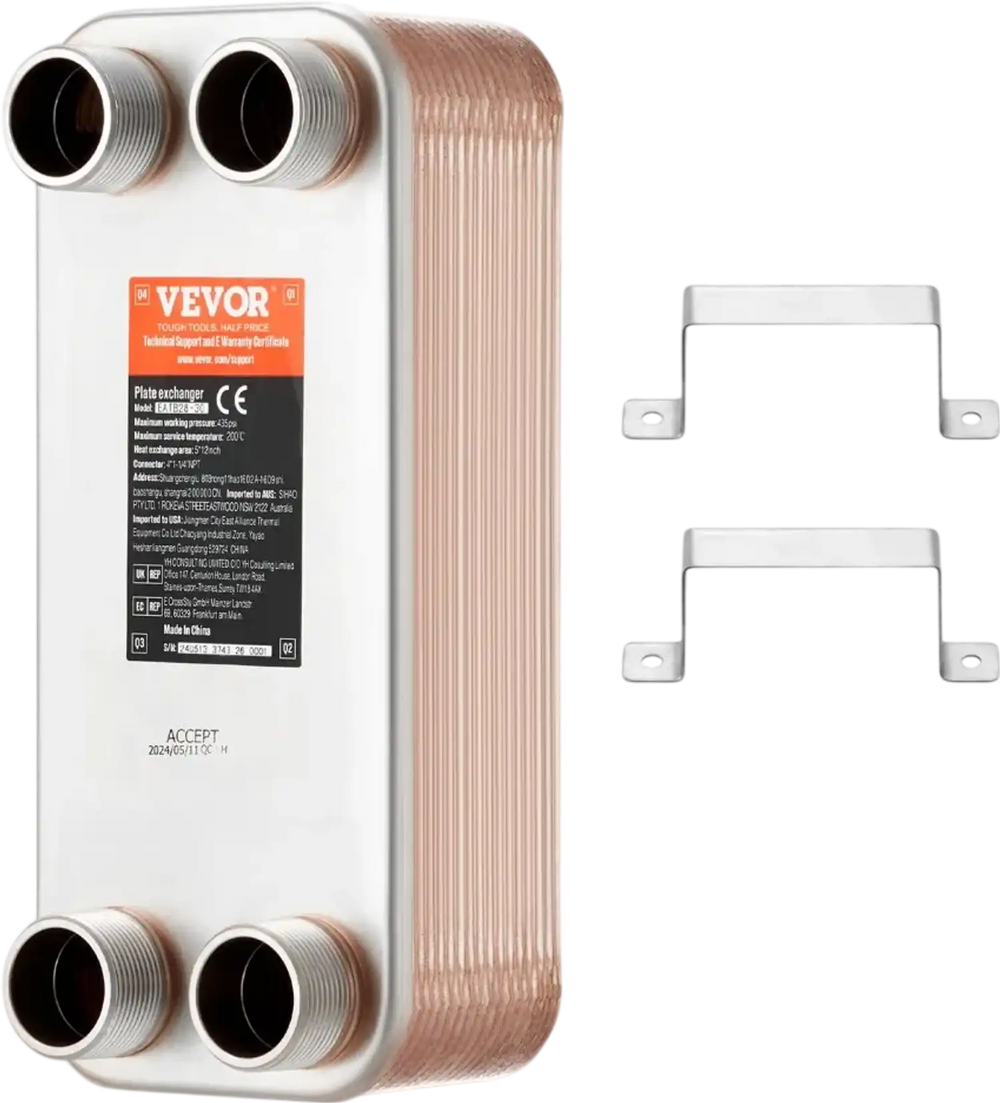

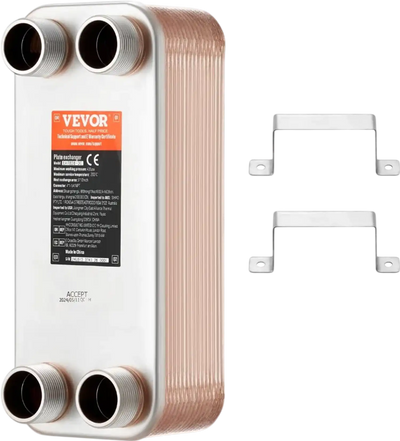

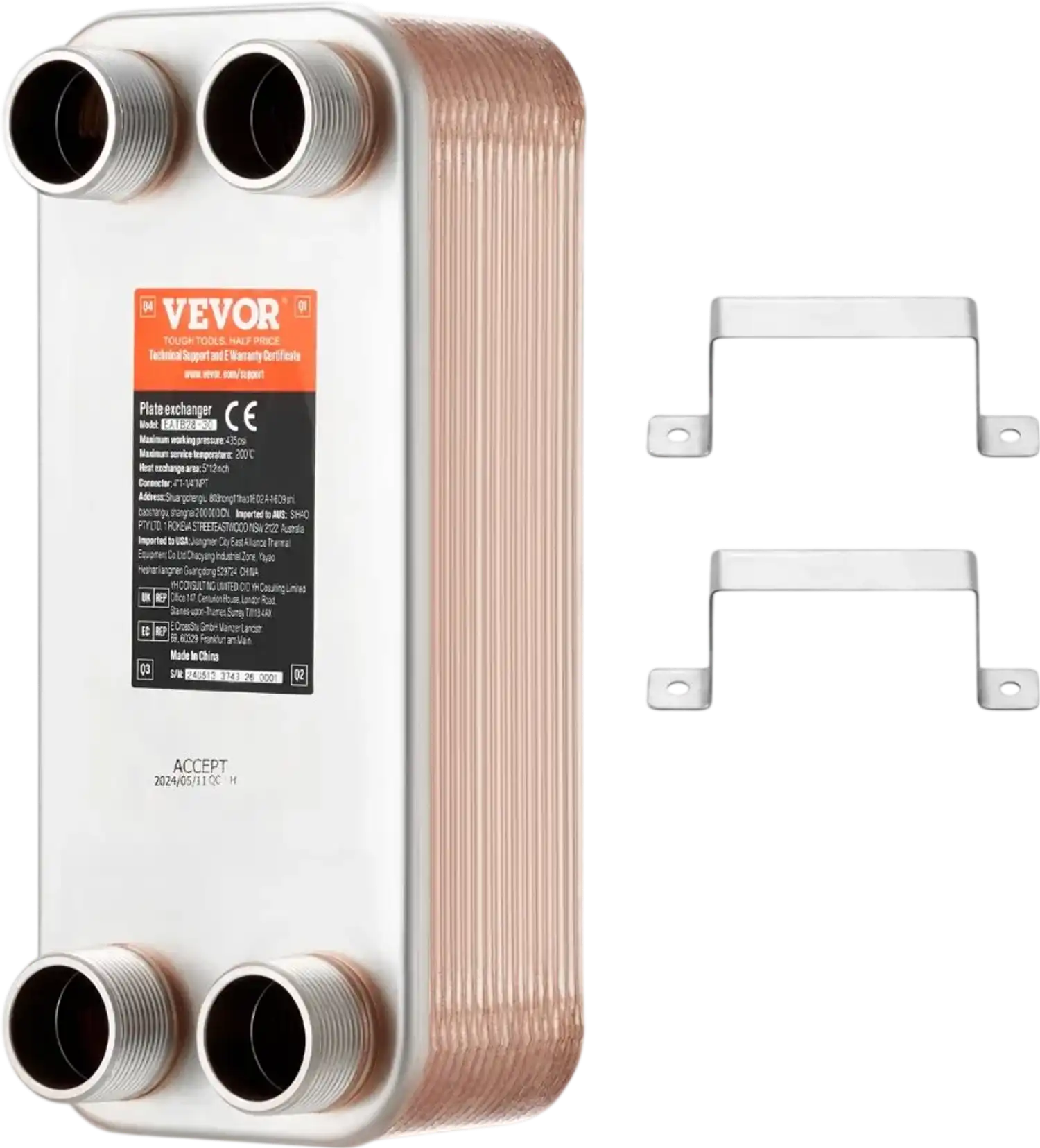

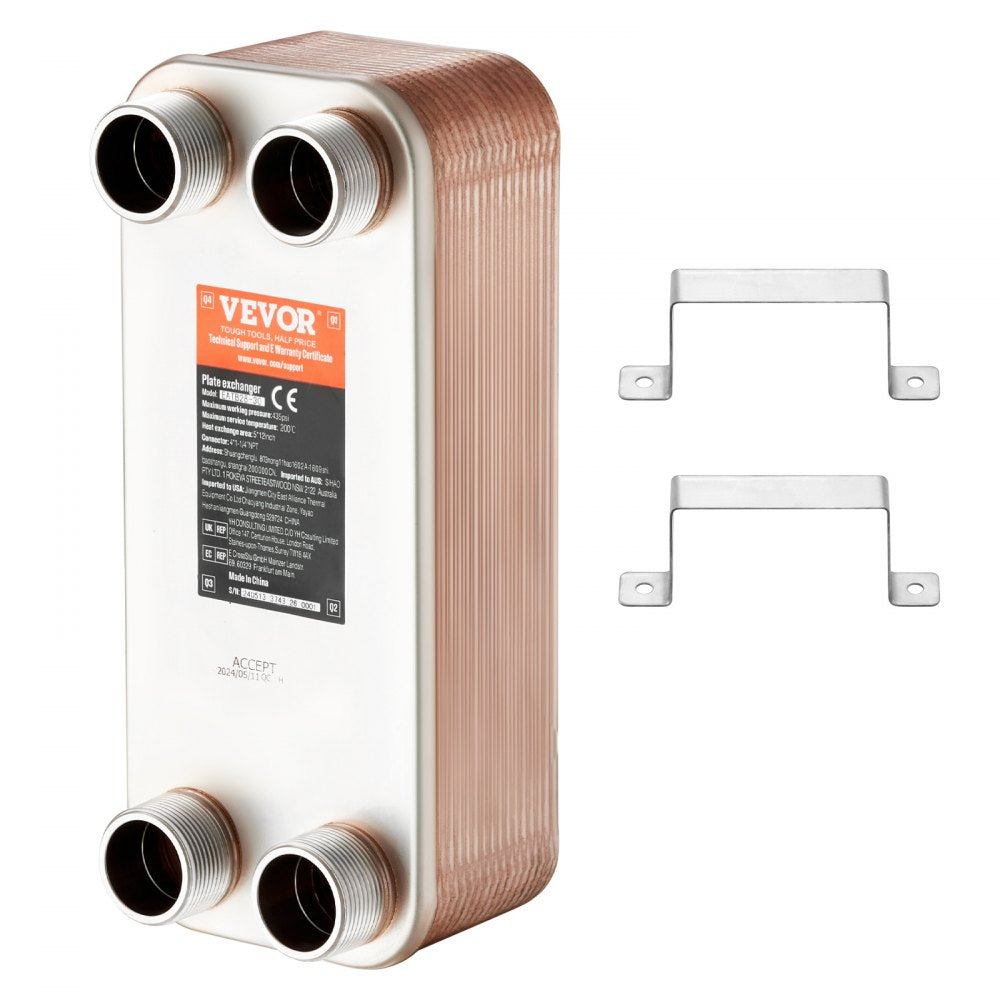

Package Contents
Heat exchanger
2 stainless steel brackets
Warranty
This item comes with a 1 year factory warranty.
