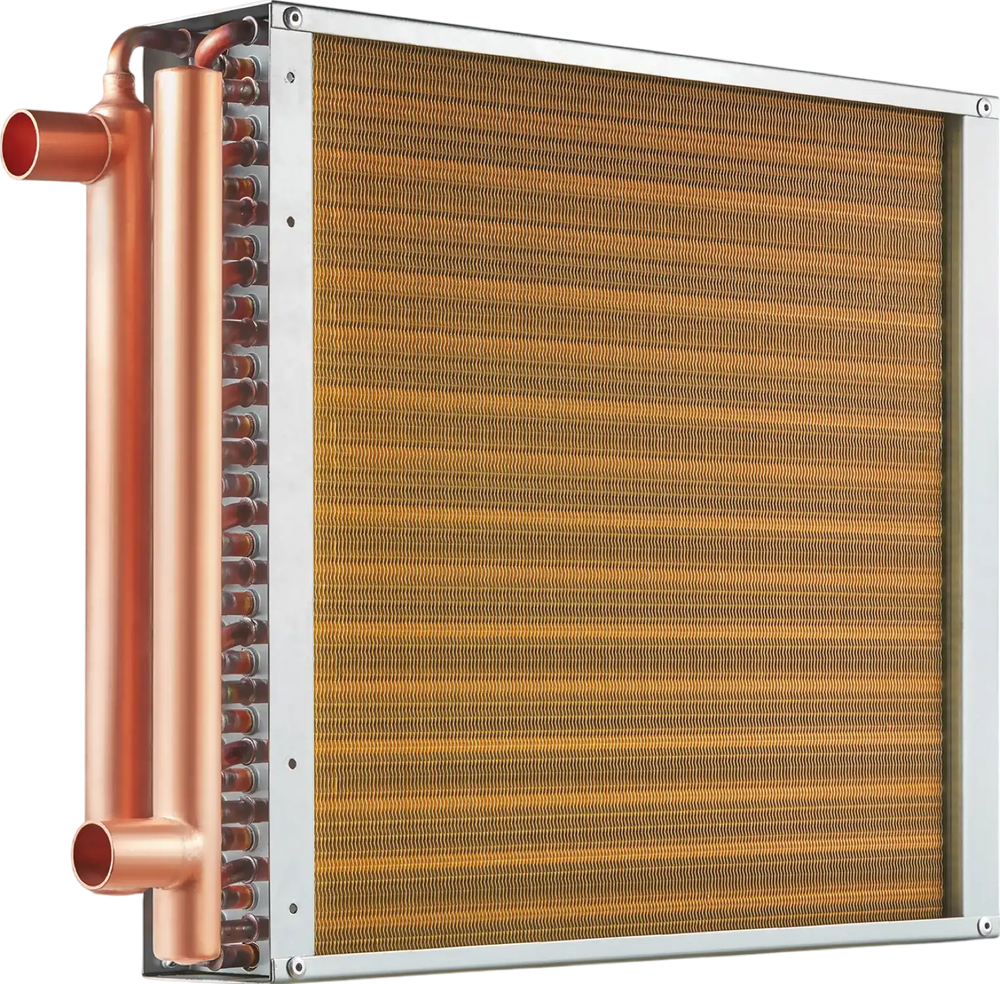

Vevor Heat Exchanger Water to Air 16" x 16" with 3-Row 3/8" Copper Ports 193 Aluminum Fins New
Manufacturer: Vevor
SKU: CPGSHRQ161606S869V0
Plate Area
QTY
(888) 999-1522
$ 119.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased

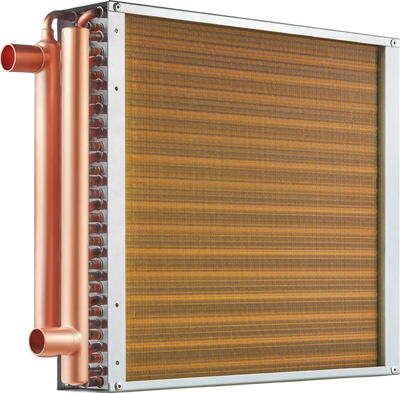

Vevor Heat Exchanger Water to Air 16" x 16" with 3-Row 3/8" Copper Ports 193 Aluminum Fins New
Product Overview
Vevor's heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation. The heat exchanger features a thickened interface with smooth threads for easy and convenient connection. This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. UL and CE certified for reliable quality.
- Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40°F to 356°F.
- Efficient Heat Transfer: The heat exchanger generates up to 80k BTU per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.
- Large Heat Exchange Area: With an effective heat exchange area of 16" x 16" and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.
- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
Specifications
| Item Model # | C16×16 |
| Heat Capacity | ≥80K BTU |
| Port | 1" ID |
| Copper Tube Diameter | 3/8" |
| Plate Area | 16" x 16" |
| Number of Copper Tubes | 3-Row 3/8" |
| Number of Aluminum Fins | 193 pcs (12pcs/inch) |
| Max Working Pressure | 2.5MPa |
| Operating Temperature | -40°F to 356°F |
| Main Materials | Copper |
| Product Dimensions | 21.57" x 16.06" x 3.62" |
| Net Weight | 13.65 lbs / 6.19 kg |
Package Contents
Vevor Heat Exchanger Water to Air 16" x 16"
Warranty
This item comes with a 1 year factory warranty.
