Vevor Heat Press 8-in-1 Sublimation Machine 15" x 15" and 28" Vinyl Cutter/Plotter New
Product Overview
The Vevor 28" Vinyl Cutter offers robust performance with a 24.8" cutting width, adjustable pressure, and high-speed cutting, compatible with COMPIM and USB interfaces for Windows systems. Paired with a 360° swing-away arm heat press, which applies even pressure and includes an LCD control panel with an audible alarm, this combo enables precise, professional transfers on custom designs and signs.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Features & Details
- TRUSTED PERFORMANCE: - 28-inch cutting plotter enjoys a good reputation for its robust performance. The maximum paper feed: 720mm (28.3"), the maximum cutting width: 630mm (24.8"), cutter pressure: 10-500g, cutting speed: 10-800mm/s, memory: 2MB, repetition accuracy: 0.0004" (0.01mm).
- HIGH COMPATIBILITY: - Available with COMPIM and USB interface for easier connection. The vinyl printer supports DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32 & 64). Not compatible with Mac system.
- DIGITAL CONTROL OF BOTH: - For vinyl cutter plotter: illuminated LCD screen and large control panel to adjust cutting pressure from 10 to 500g, and cutting speed 10-800mm/s. For heat press: LCD screen display with easy-to-operate buttons makes it simple to set desired parameters as needed. Equipped with an audible alarm, which reminds the heat press of stopping heating.
- 360°SWING AWAY FEATURE: - The swing arm is fully rotated 360 degrees, allowing the heating element to move to the side, reducing the chance of accidental contact. Making the pressure to be applied directly & evenly downwards enhances the quality of transfer further.
Specifications
| Model # | 28 Inch Vinyl Cutter |
| Max Paper Feed | 28.3" (720 mm) |
| Max Cutter Width | 24.8" (630 mm) |
| Cutter Pressure | 10-500 g |
| Cutting Speed | 10-800 mm per second |
| Memory | 2 MB |
| Repetition Accuracy | 0.0004" (0.01 mm) |
| 8 In 1 Heat Press Machine | Wattage |
| 1400W | Timer Control |
| 0 - 999 s | Temperature Range |
| 200-450°F（95-232°C） | Gross Weight |
| 59.7 lb (27.1 kg) | Eight Elements |
| Platen Press (Telfon-coated) | 15" x 15" (38 x 38 cm) |
| Hat/Cap Press | 6" x 3" (15 x 7.6 cm) (Curved) |
| Mug Press #1 | 2" - 2.75" (5.1 - 7 cm) Diameter (6 OZ) |
| Mug Press #2 | 3" - 3.5" (7.6 x 8.9 cm) Diameter (11 OZ) |
| Mug Press #3 | 12 OZ Latte Mug (Cone) |
| Mug Press #4 | 17 OZ Latte Mug (Cone) |
| Plate Press #1 | 5" (12.7 cm) Max Diameter |
| Plate Press #2 | 6" (15.2 cm) Max Diameter |
| Product Size | 15.15 x 15.15 x 14.96 inch/38.5 x 38.5 x 38 cm |

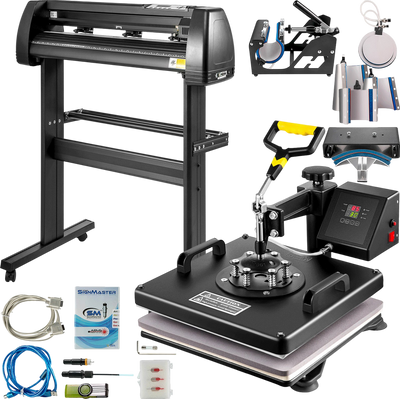

Package Contents
Vevor Heat Press 8-in-1 Sublimation Machine 15 x 15 in. and 28 in. Vinyl Cutter/Plotter
28 Inch Vinyl Cutter Plotter Machine
SIGNMASTER Software
Blades Holder
(3) Blades
Pen Holder
(3) Cables (USB/Serial/Power Cord)
USB Flash Disk
Floor Stand Kit
8 In 1 Heat Press Machine
Fully-assembled Machine with Platen Press
Hat Press
(4) Mug Presses
(2) Plate Presses
Removable Silicone Pad and Cotton Pad
User Manual
T-shirts, Cups And Hats Are NOT Included.
Warranty
This item comes with a 1 year factory warranty.
