Vevor Hinge Jig 35 mm Concealed Door Hinge Drill Jig New
Manufacturer: Vevor
SKU: JLDWKKQTS35MMM9D7V0
Functional Specifications Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 22.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Pocket Hole Jig Kit Adjustable 1/2" to 1-1/2" Woodworking System New
-
Vevor Pocket Hole Jig 56-Pc Mini Joinery Woodworking System with 9" C-Clamp New
-
Vevor Survival Shovel Axe 16-in-1 Camping Folding Multitool Kit New
-
Vevor Pocket Hole Jig Kit Adjustable 1/2", 3/4", 1-1/2" Woodworking System New
-
Vevor Pocket Hole Jig Kit Adjustable 1/2" to 1-1/2" Woodworking System New
-
Vevor Doweling Jig Self-Centering Dowel Drill Jig Kit for Woodworking 1/4", 5/16", 3/8" New
-
Vevor Pocket Hole Jig Kit Adjustable 1/2" to 1-1/2" Mini System for Woodworking New
-
Vevor Doweling Jig Self-Centering Straight Hole Drill Kit New
-
Vevor Dovetail Jig Half-Blind 12" Router Jig New
-
Vevor Pocket Hole Jig Kit Adjustable Woodworking System New
-
Vevor Pocket Hole Jig Kit 34 Pcs Adjustable Woodworking Joinery System with 11" C-Clamp New
-
Vevor Drill Guide Portable Precision Angle Drilling Jig New
-
Vevor Dovetail Jig 12" Woodworking Router Jig with 3 Templates New
-
Vevor Survival Shovel 8-in-1 Folding Multitool Tactical Camping Shovel New
-
Vevor Drill Guide Multi-Angle Portable Precision Drilling Jig Attachment New
-
Vevor Pocket Hole Jig Kit Adjustable 30-Pc Woodworking System New
-
Vevor Dowel Jig Kit Self-Centering Woodworking Drill Jig New
-
Vevor Shelf Pin Drilling Jig Two-in-One Cabinet Hole Drilling Template New
-
Vevor Jab Saw Folding Drywall Saw 5" with Soft Grip Handle New
Vevor Hinge Jig 35 mm Concealed Door Hinge Drill Jig New
Product Overview

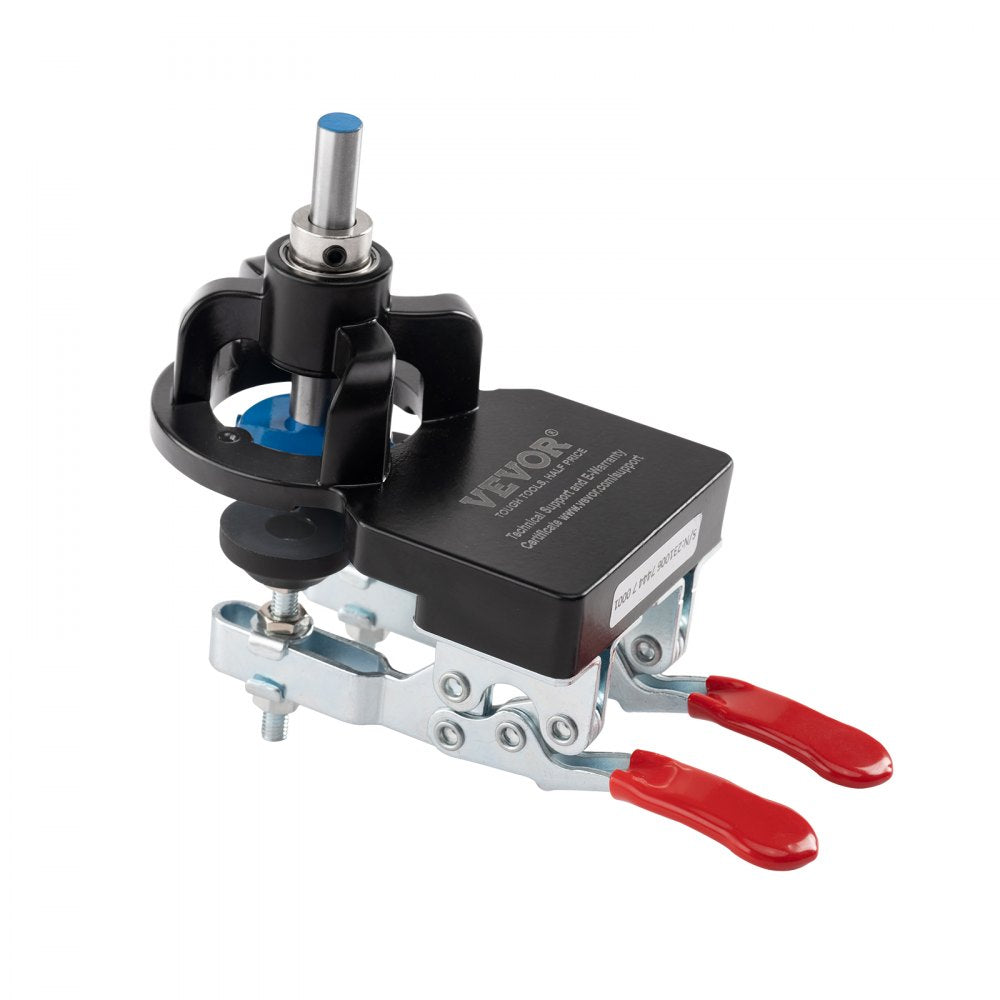

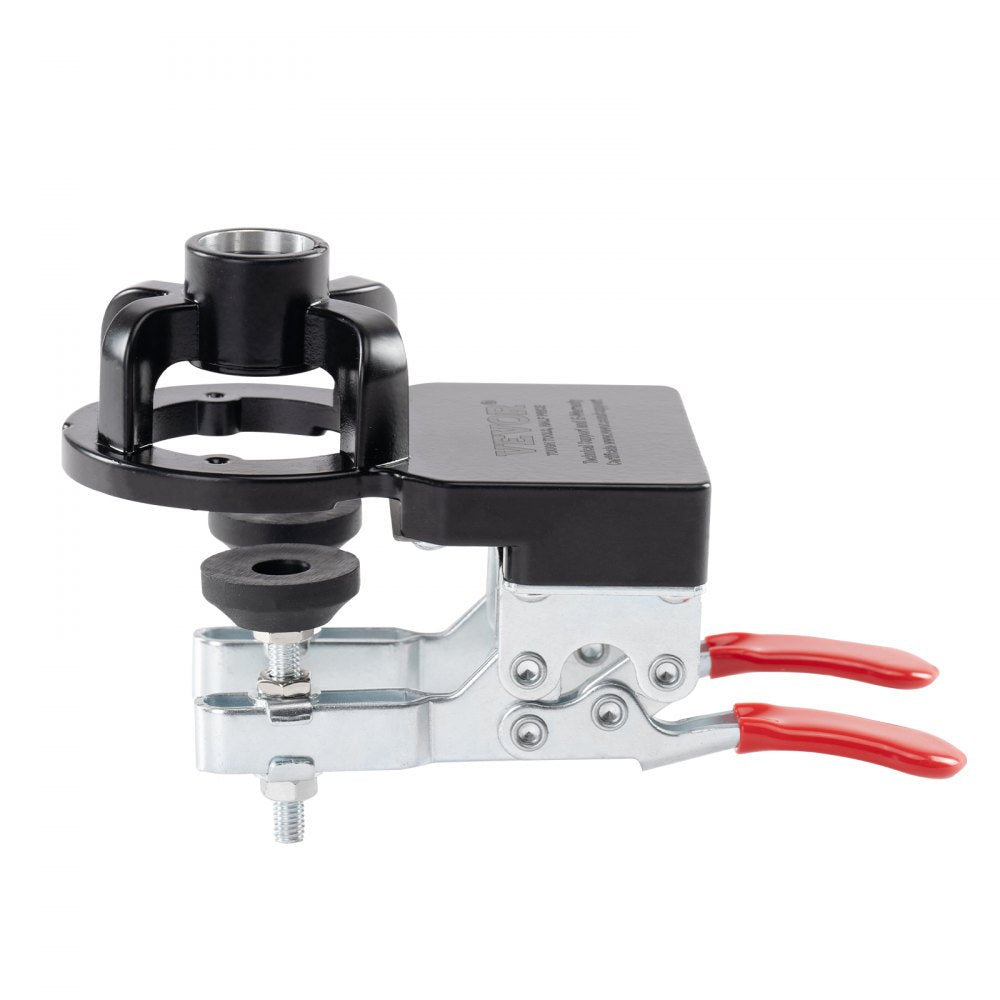

The Vevor 35 mm concealed door hinge jig is designed for precise, fast drilling when installing cabinet and door hinges. Its dual-clamp design helps hold workpieces securely in place for improved drilling accuracy and stability. Built with an aluminum alloy body and steel components, it is made for durability in regular woodworking use. Adjustable settings allow you to fine-tune edge spacing and drilling depth for different hinge installation needs. It is suitable for cabinets, wardrobes, doors, and similar woodworking projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

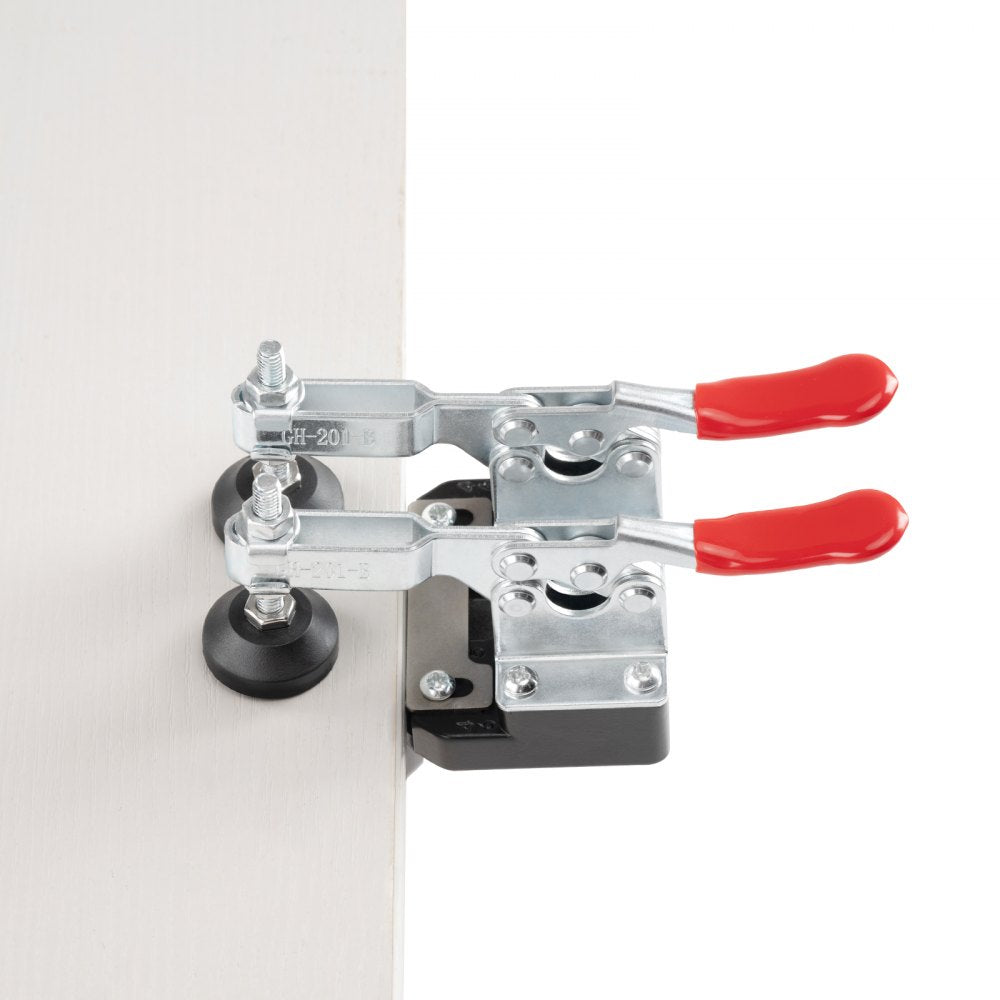

- Dual-Clamp Fixation: This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage. Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability. It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision.
- Sturdy and Durable: The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy. The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture. It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use.
- Precision Drilling: This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment. You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm). The higher the top-bearing height, the more precise the holes it drills.
- User-Friendly: Our hinge jig kit is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge. You can complete the installation in just a few minutes.
- Wide Application: This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).
Specifications
| Item Model Number | SXRJL-2302 |
| Compatible Hinge Type | 1.38" / 35 mm hinge |
| Clamping Thickness Range | 0.47-0.98" / 12-25 mm |
| Drilling Depth | 0.39-0.59" / 10-15 mm |
| Edge Spacing Range | 0.12-0.28" / 3-7 mm |
| Hinge Screw Distance | 1.81" 46 mm; 1.89" 48 mm; 2.05" 52 mm |
| Main Materials | Aluminum alloy body and steel |
| Product Weight | 1.43 lbs / 0.65 kg |
| Dimensions | 6.50 x 2.95 x 5.31" / 165 x 75 x 135 mm |

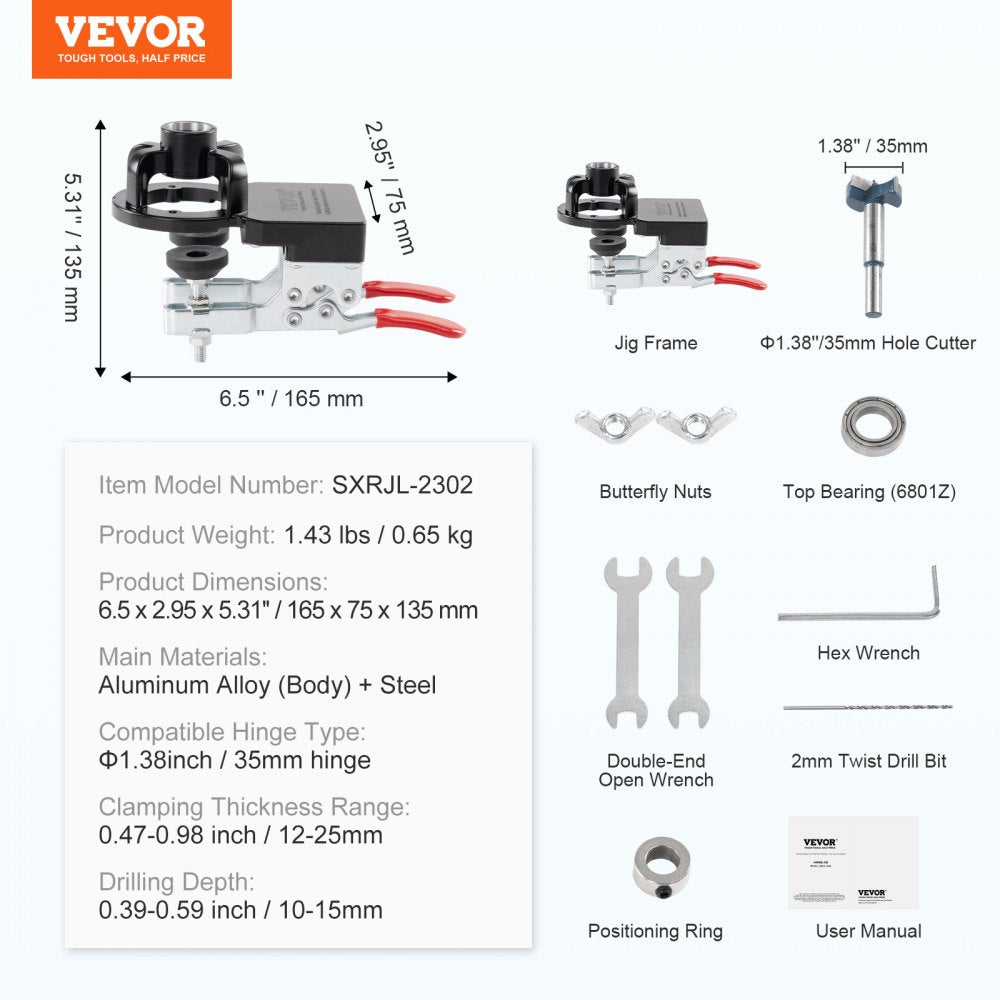

Package Contents
Hinge jig frame
35 mm hole cutter
2 mm twist drill bit
Double-end open wrenches
Hex wrench
Positioning ring
Butterfly nut
Top bearing
Manual
Warranty
This item comes with a 1 year factory warranty.
