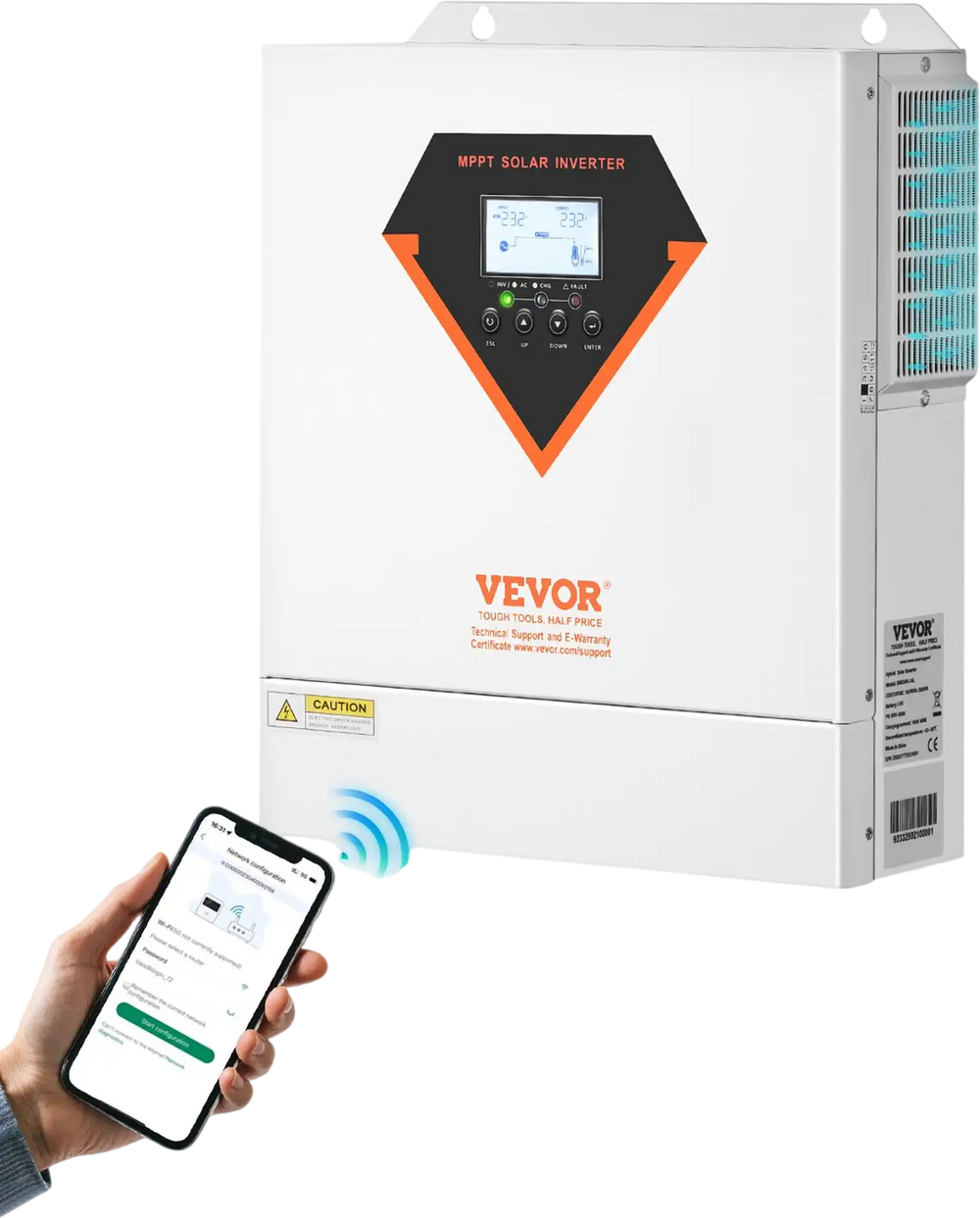

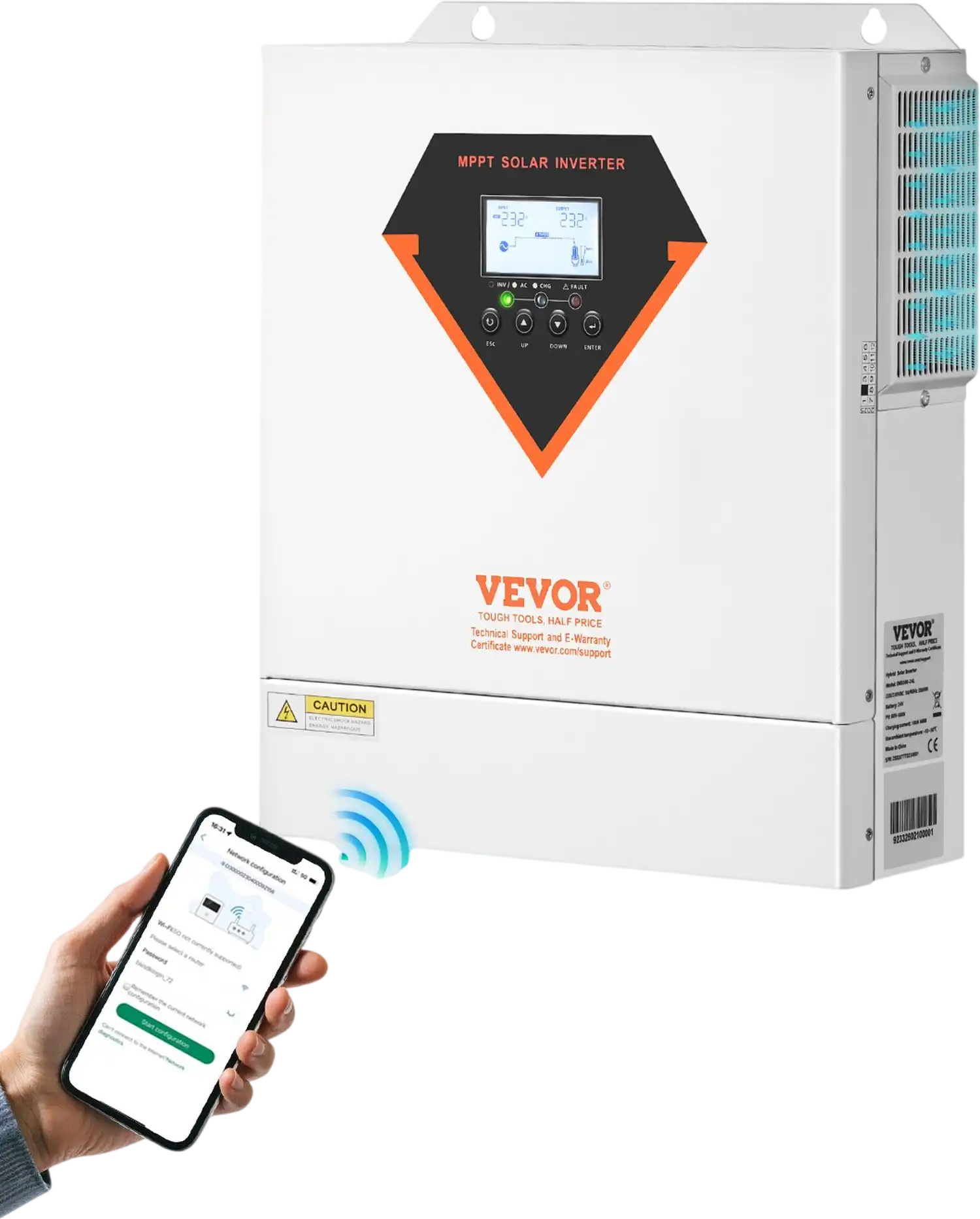

Vevor Hybrid Solar Inverter 3500W 1 Phase 24V DC to 220/230V AC with MPPT Solar Controller New
Manufacturer: Vevor
SKU: LWGPNKYTJ230DIY24V7
Power Options
Battery Voltage Options
QTY
(888) 999-1522
$ 249.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hose Reel Retractable Garden 100' x 5/8" Wall Mounted with 9-Pattern Nozzle New
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Ceiling Fan 96" 8 Blade No Light 6-Speed Remote Control Reversible Flush Mount New
-
Vevor Solar Battery Charger Maintainer 20W 12V Trickle Charging Kit New
-
Vevor Portable EV Charger Level 1+2 16A 120V/240V with 28' Cable for SAE J1772 EVs New
-
Vevor Solar Panel Mounting Brackets 30°-60° Adjustable Ground Mount Stand New
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor EV Charger Level 2 Portable 32A 240V 25' J1772 New
-
Vevor Solar Panel Mount Brackets 50" Adjustable Tilt Mounting Brackets New
-
Vevor EV Charger Extension Cable 48A 21' J1772 Level 1/Level 2 New
-
Vevor Solar Panel Extension Cable 30' 10 AWG MC4 Black Red New
-
Vevor Wind Turbine Generator 500W 12V 3-Blade Kit with Anemometer New
-
Vevor DC to DC Battery Charger 12V 40A 500W Smart Multi-Stage On-Board New
-
Vevor DC to DC Charger 520W 40A MPPT On-Board Battery Charger New
-
Vevor MPPT Solar Charge Controller 50A 12V/24V Bluetooth Solar Panel Regulator Charger New
-
Vevor DC to DC Battery Charger 520W 40A Alternator Charger New

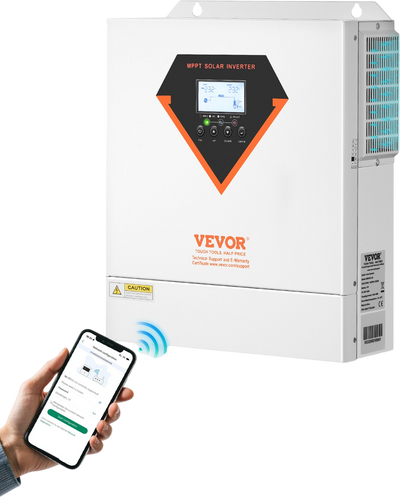

Vevor Hybrid Solar Inverter 3500W 1 Phase 24V DC to 220/230V AC with MPPT Solar Controller New
Product Overview
This all-in-one hybrid solar inverter combines an inverter and MPPT solar controller in one unit for off-grid solar power systems. It delivers 3500W pure sine wave output at 220/230V AC (50/60Hz) from a 24V battery system and supports up to 100A charging with high conversion efficiency. The unit supports multiple battery types including lead-acid and lithium (including LiFePO4) and includes lithium activation for improved compatibility. Built-in WiFi enables remote monitoring and system control through an app, while multiple protection features help safeguard your power system. It’s designed for stable home or office backup and off-grid applications requiring reliable AC output.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

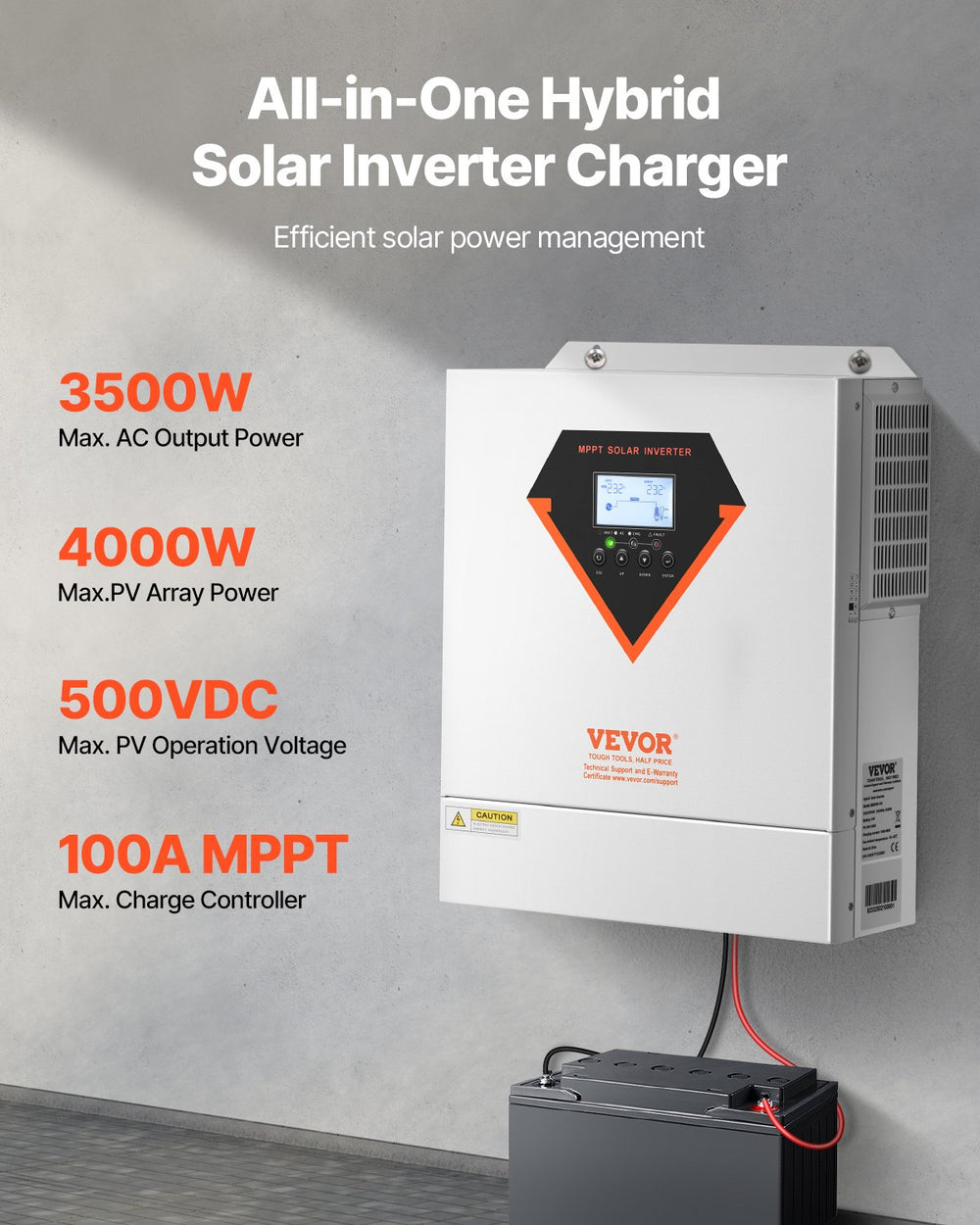

- 2-in-1 Hybrid Solar Inverter: Our 2-in-1 hybrid solar inverter combines an inverter and controller in one efficient unit. With a powerful 3500W pure sine wave output at 220/230V AC, it meets high-energy demands. It is ideal for off-grid solar photovoltaic systems, providing efficient power solutions for various applications

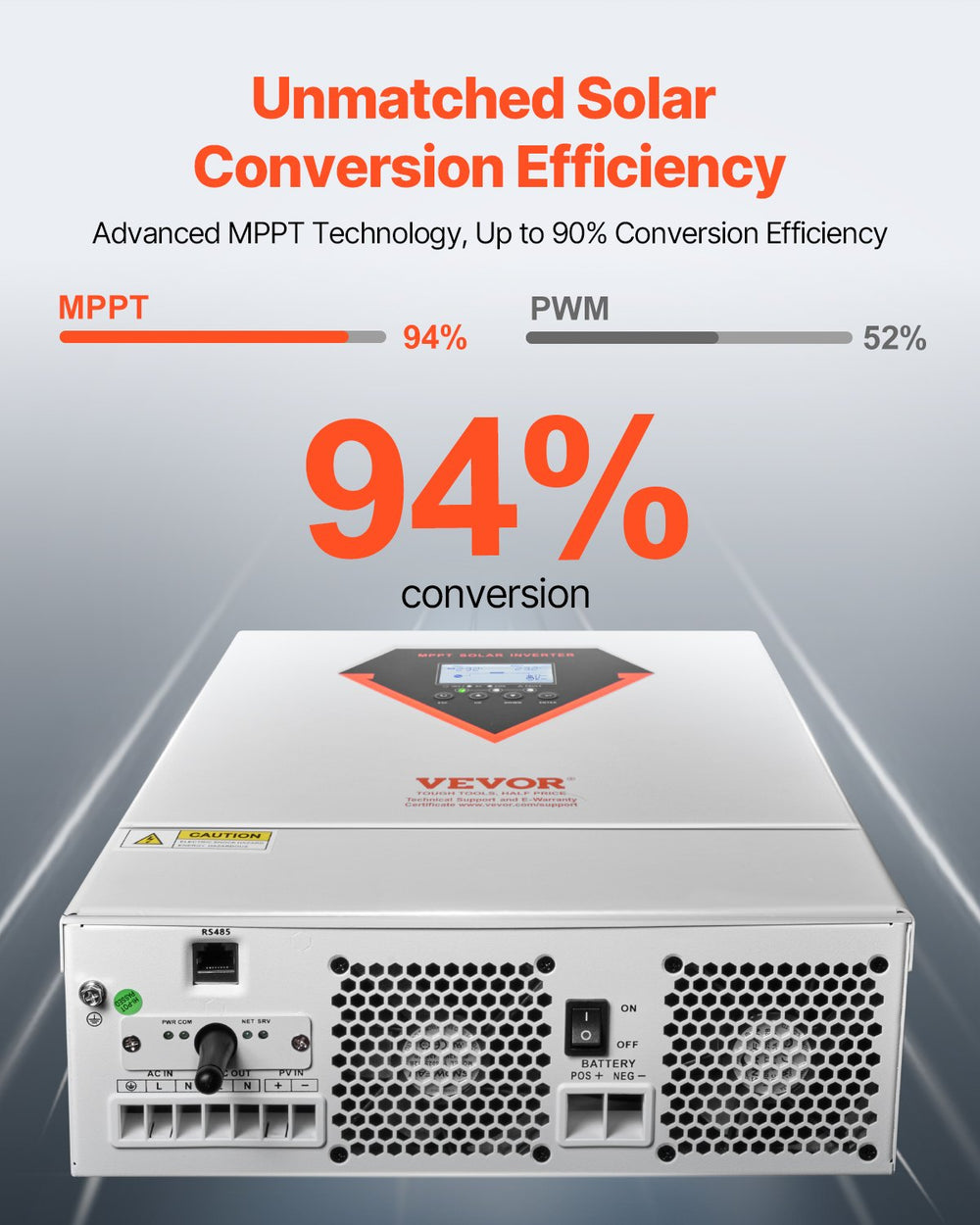

- Efficient MPPT Charging Technology: Equipped with an advanced MPPT solar charge controller, this hybrid solar power inverter supports up to 100A battery charging, boosting solar energy conversion efficiency to 94%. It supports a maximum power of 4000W and a voltage range from 60V to 500V DC, making it highly compatible with a wide range of solar systems

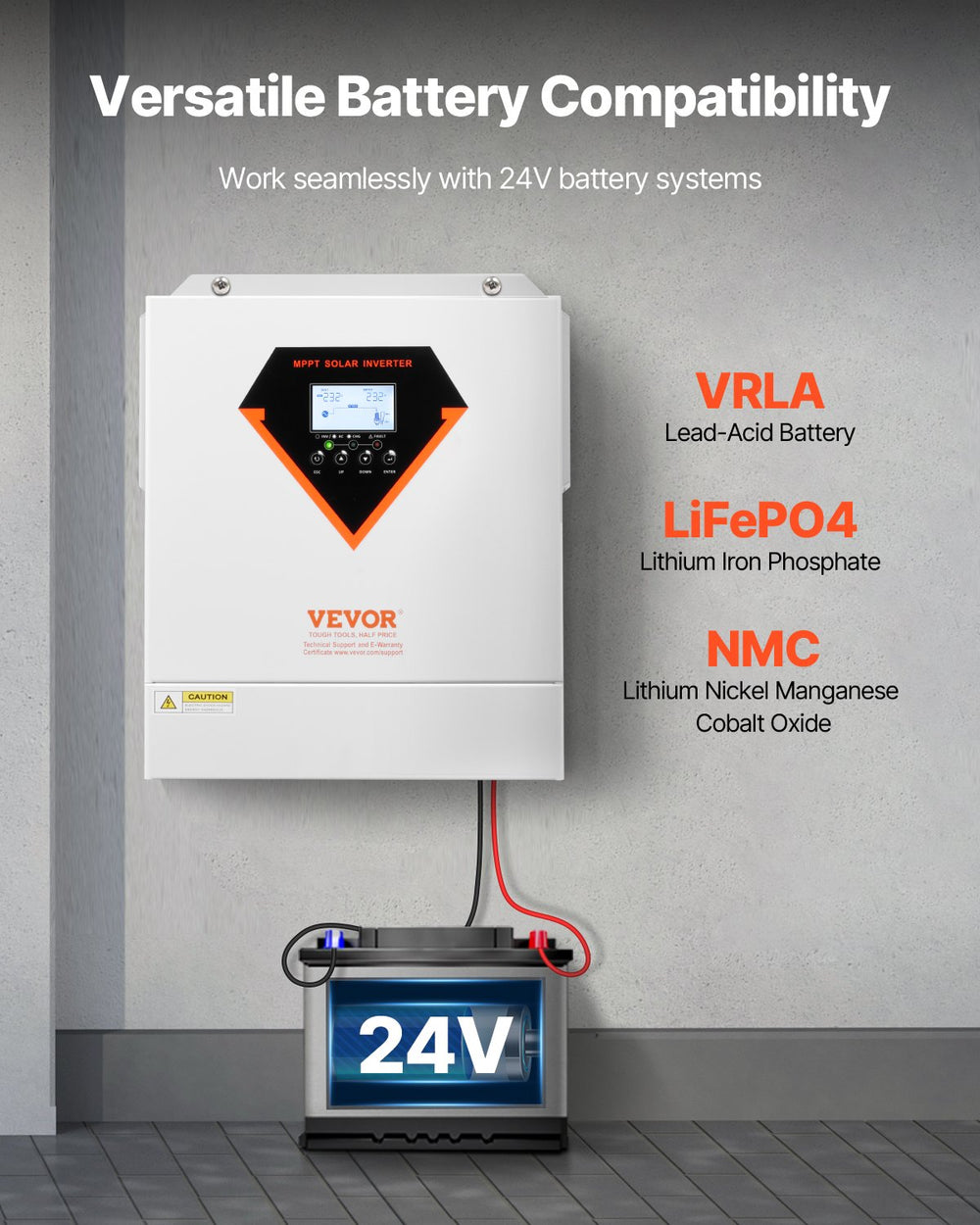

- Compatible with Various Battery Types: Designed for 24V battery systems, our hybrid inverter charger supports a range of battery types, including lithium, lead-acid, and custom batteries. Specially optimized for lithium battery systems, it has an activation function to enhance battery performance

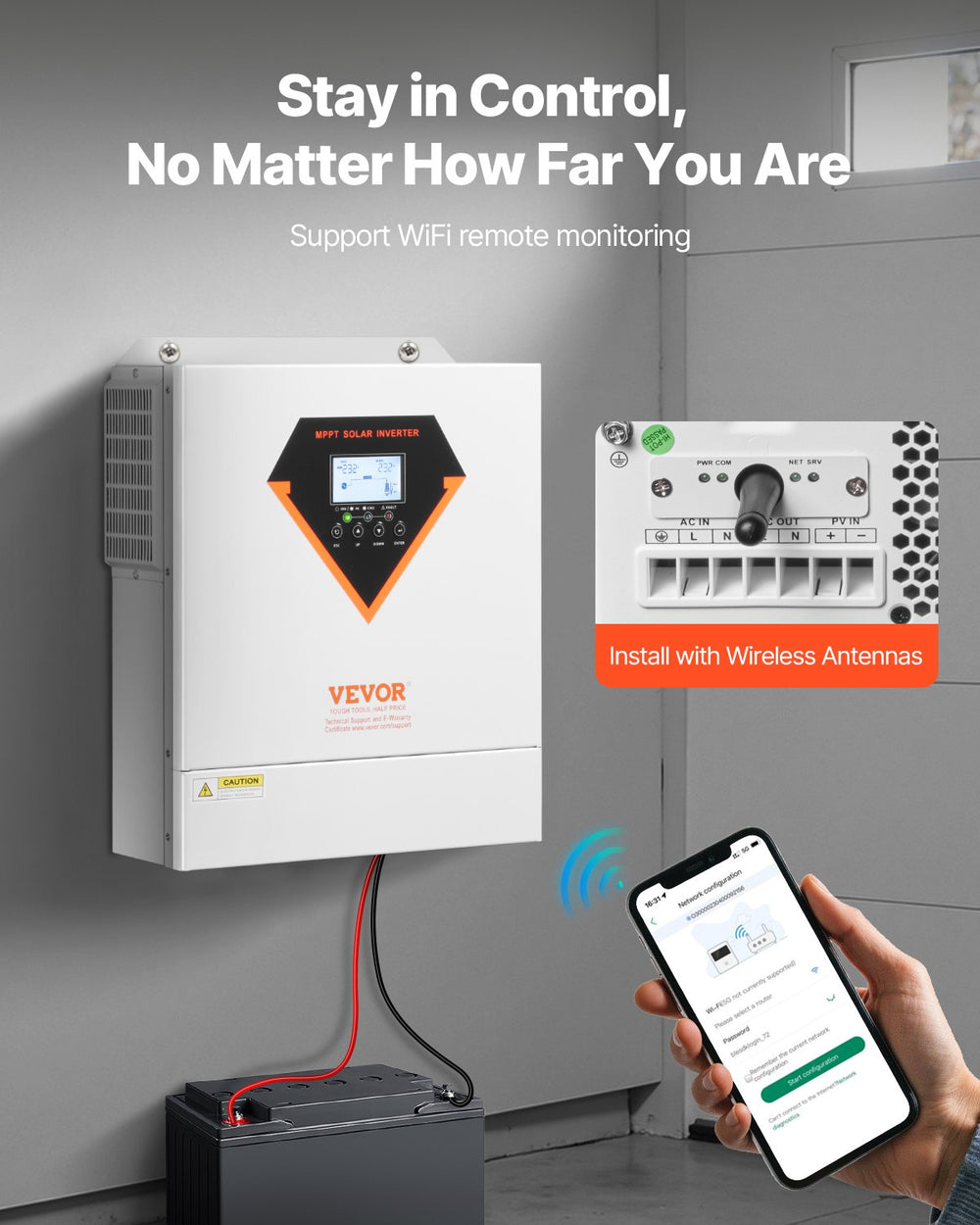

- Smart Monitoring, Stay In Control: With a built-in WiFi module, this solar power inverter allows for remote monitoring via WiFi, so you can track your system's status. (Note: The APP collects system data every 5 minutes, not in real time.) Additionally, you can easily adjust different charging modes (Solar Only, Mains Only, or Solar & Mains hybrid charging) and output modes (UTL, SOL, SBU, and SUB) using the on-device buttons. Fit for powering most devices in your home or office

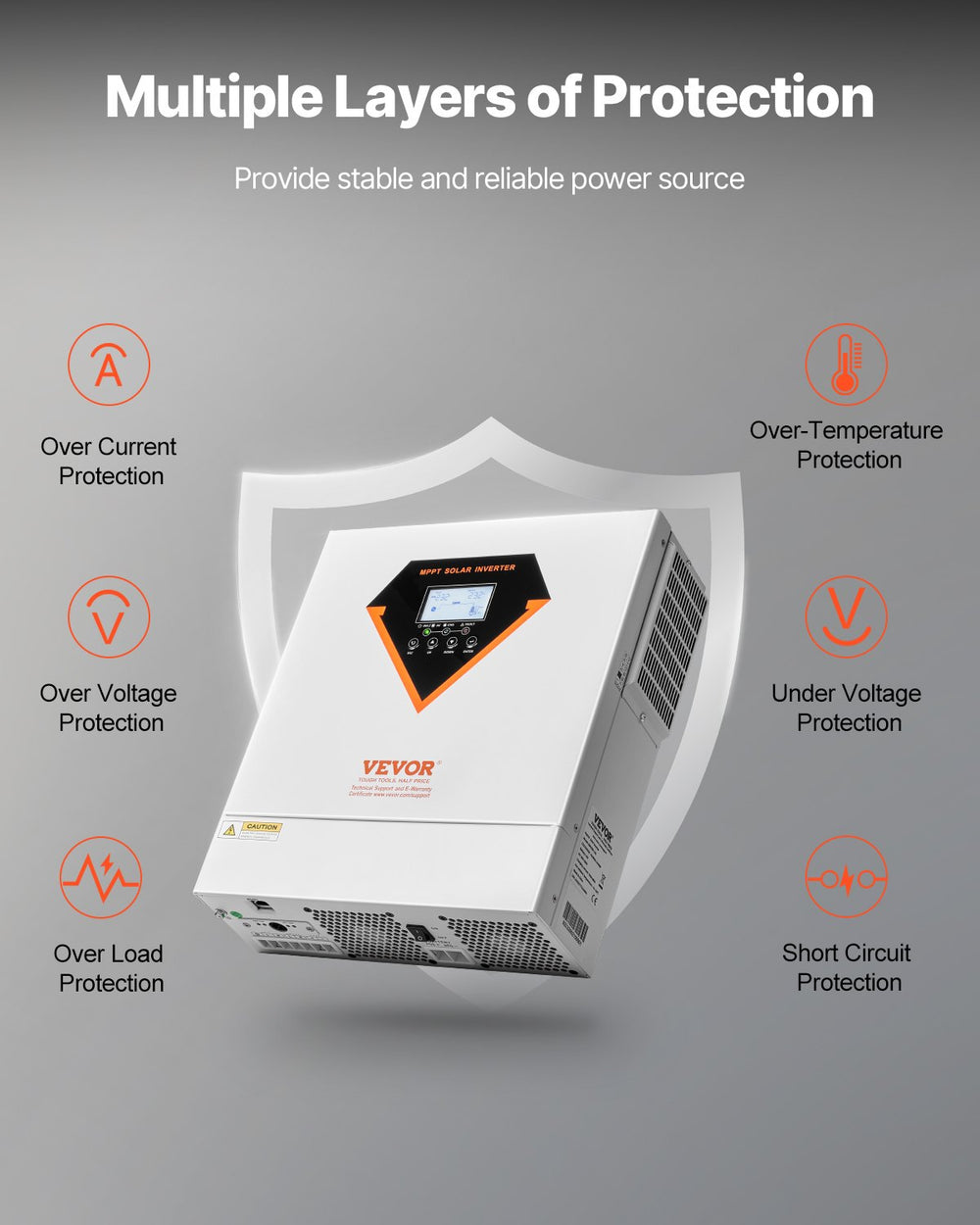

- Comprehensive Protection Features: Your system's security is our priority. This off grid hybrid solar inverter features multiple protection, including over-temperature, over current, over voltage, under voltage, short circuit, and overload protection, giving peace of mind to your circuit and power source

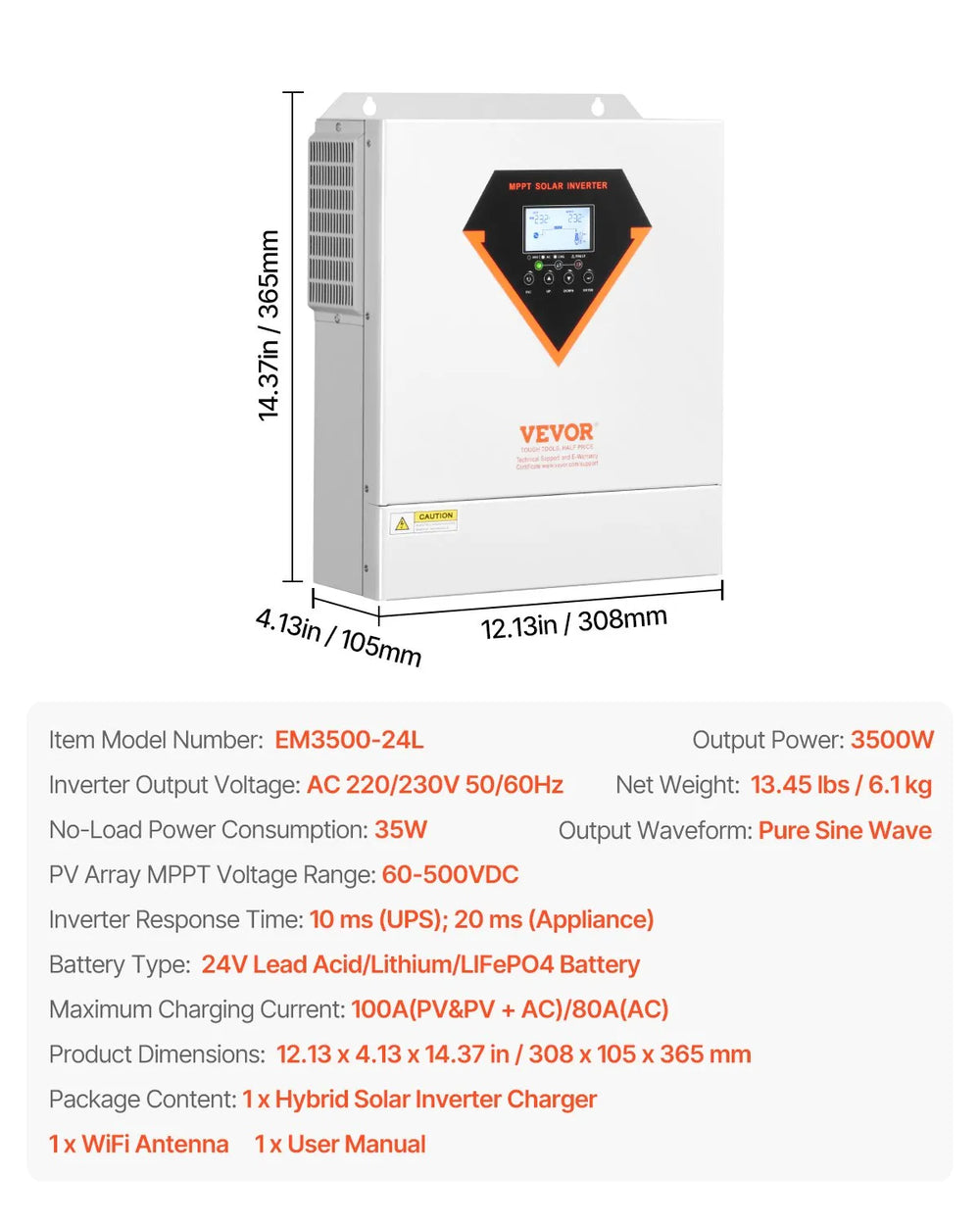

Specifications
| Item Model Number | EM3500-24L |
| Inverter Output Voltage | AC 220/230V 50/60Hz |
| Inverter Response Time | 10 ms (UPS); 20 ms (Appliance) |
| Output Waveform | Pure Sine Wave |
| Battery Type | 24V Lead Acid/Lithium/LIFePO4 Battery |
| Output Power | 3500W |
| Maximum Charging Current | 100A (PV & PV + AC) / 80A (AC) |
| PV Array MPPT Voltage Range | 60-500VDC |
| No-Load Power Consumption | 35W |
| Product Dimensions | 12.13 x 4.13 x 14.37 in |
| Net Weight | 13.45 lbs |
Package Contents
Vevor Hybrid Solar Inverter Charger 3500W
Wi-Fi Antenna
User Manual
Warranty
This item comes with a 1 year factory warranty.
