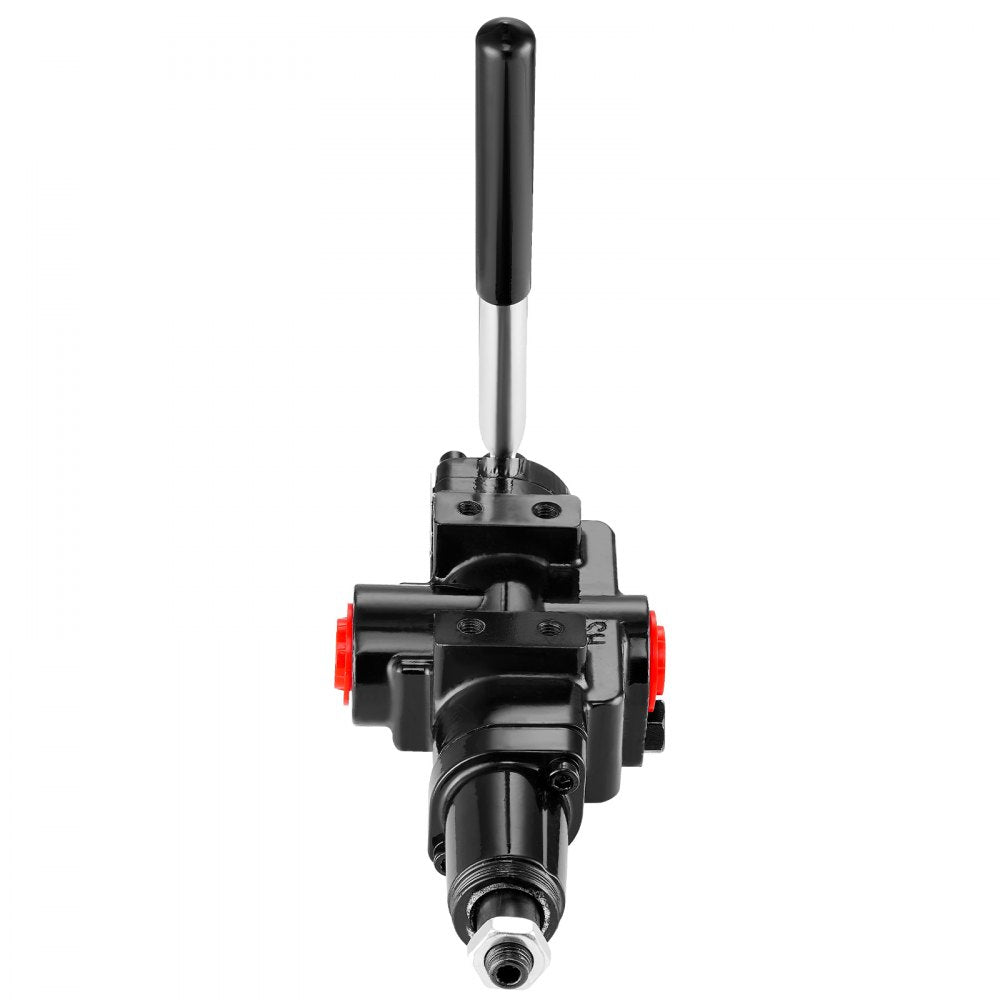

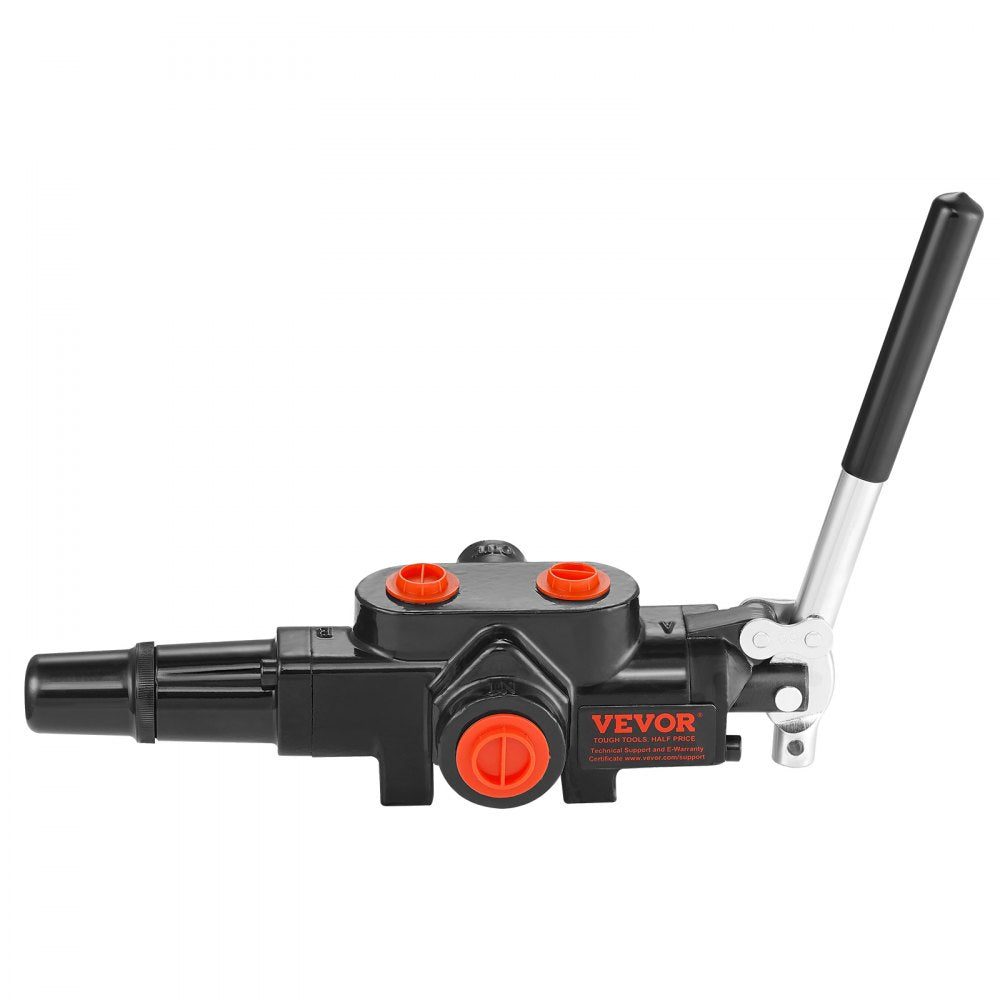

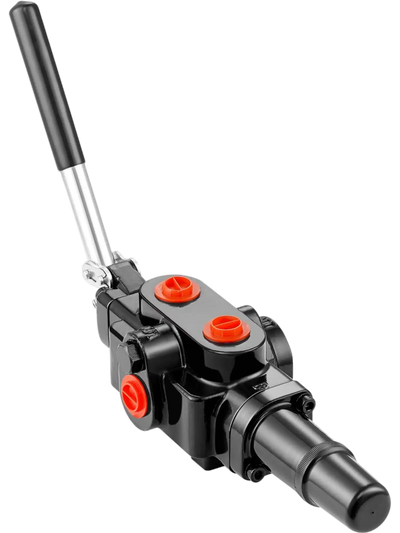

Vevor Hydraulic Control Valve 1-Spool 25 GPM Log Splitter Directional Valve New
Manufacturer: Vevor
SKU: YMFLF25GPM1FF1JUNV0
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 79.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Hydraulic PTO Pump 21.2 GPM 2250PSI 540 RPM New
-
Vevor Hydraulic Pump 16.6 GPM 540 RPM 2500PSI SAE 16 and SAE 12 Port for Log Splitters or Tractor...
-
Vevor Hydraulic Wood Log Splitter Pump Kit 16 GPM 2-Stage 4000 PSI New
-
Vevor Hydraulic Pump 16 GPM 2-Stage 4000 PSI Log Splitter Gear Pump New
-
Vevor Hydraulic Log Splitter Pump 13 GPM 2-Stage 3000 PSI New
-

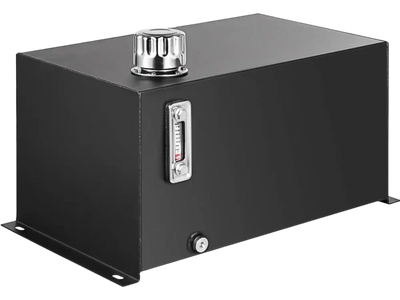

Vevor Hydraulic Reservoir 10 Gal Steel Oil Tank with Filter & Temp Gauge New
Vevor Hydraulic Control Valve 1-Spool 25 GPM Log Splitter Directional Valve New
Product Overview

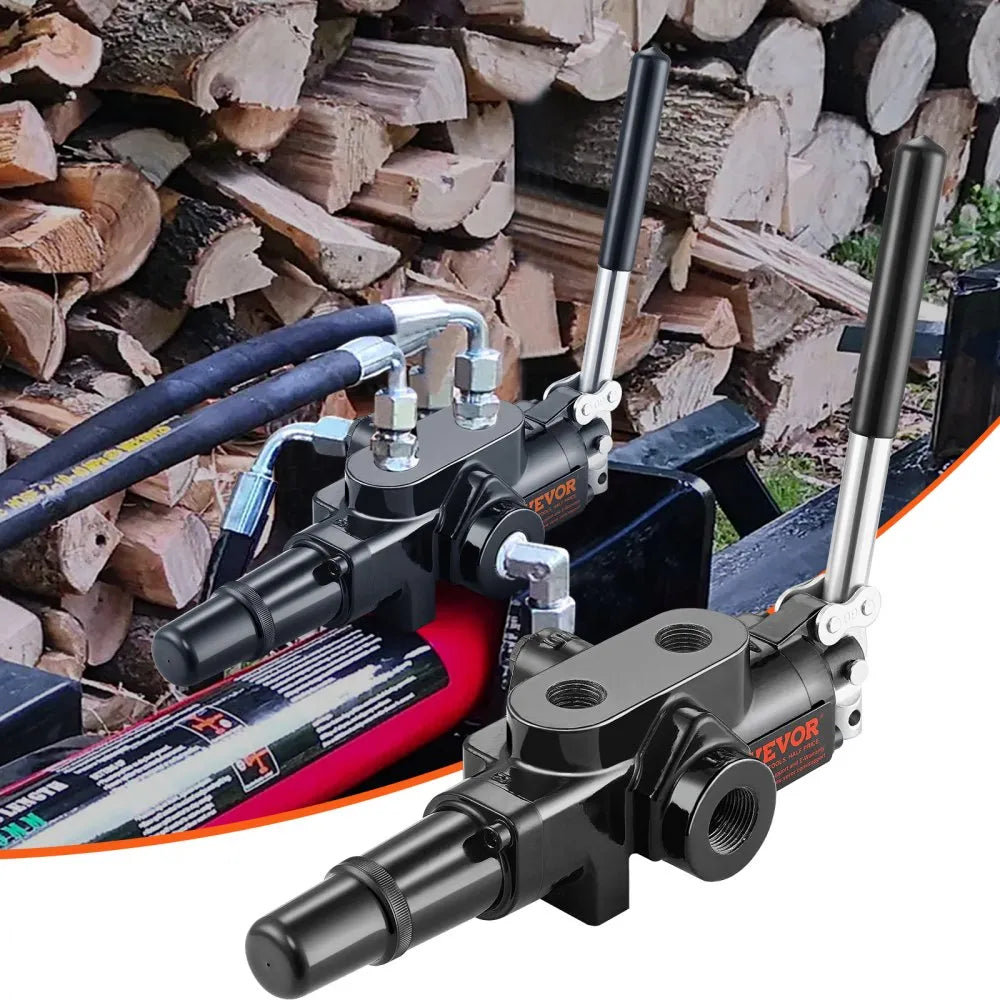

The Vevor 1-spool hydraulic control valve is designed as a replacement for leaking or malfunctioning valves in small to medium-sized hydraulic log splitter systems. It delivers a 25 GPM flow rate for efficient performance and features a spring return mechanism for smooth joystick operation. Built with vermicular graphite cast iron, it is made for durable use in agricultural, forestry, construction, and industrial applications. The valve supports up to 3626 PSI maximum working pressure and uses NPT ports for straightforward installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

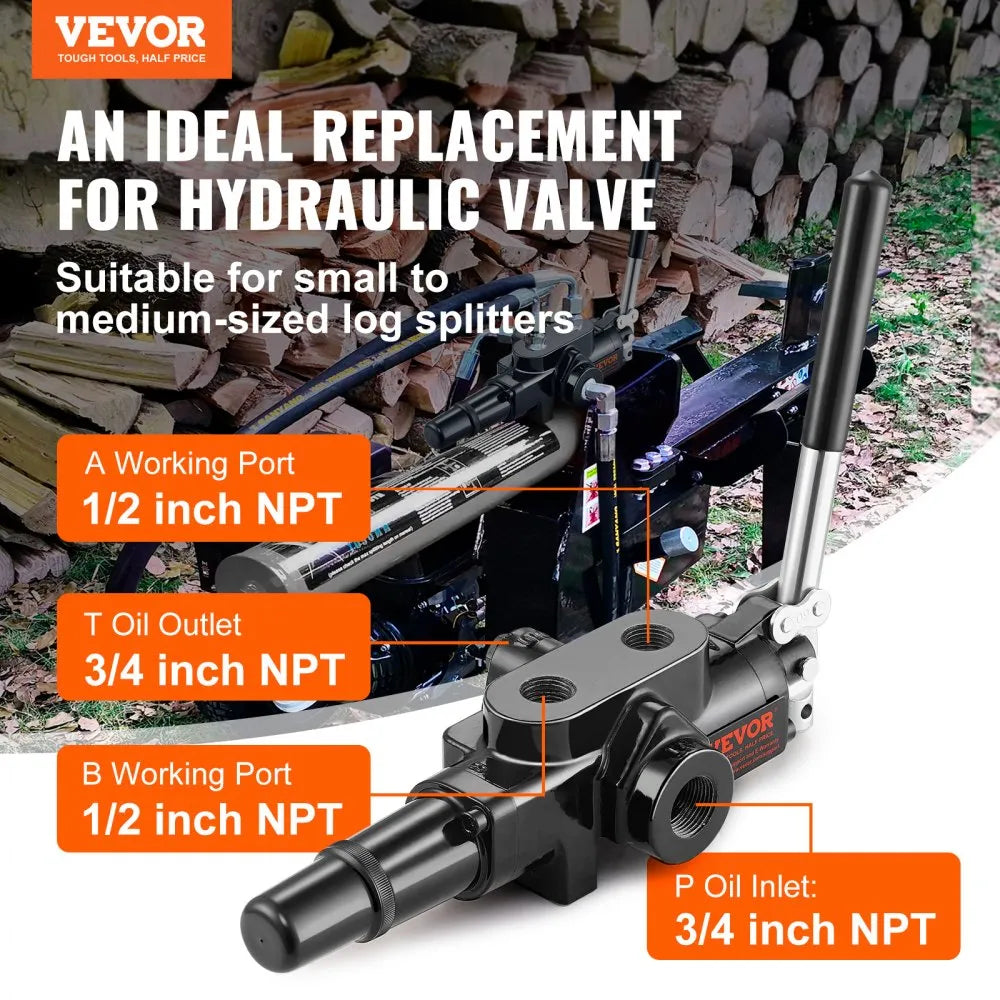

- For Small to Medium-Sized Hydraulic Log Splitters: VEVOR's 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry. It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports.

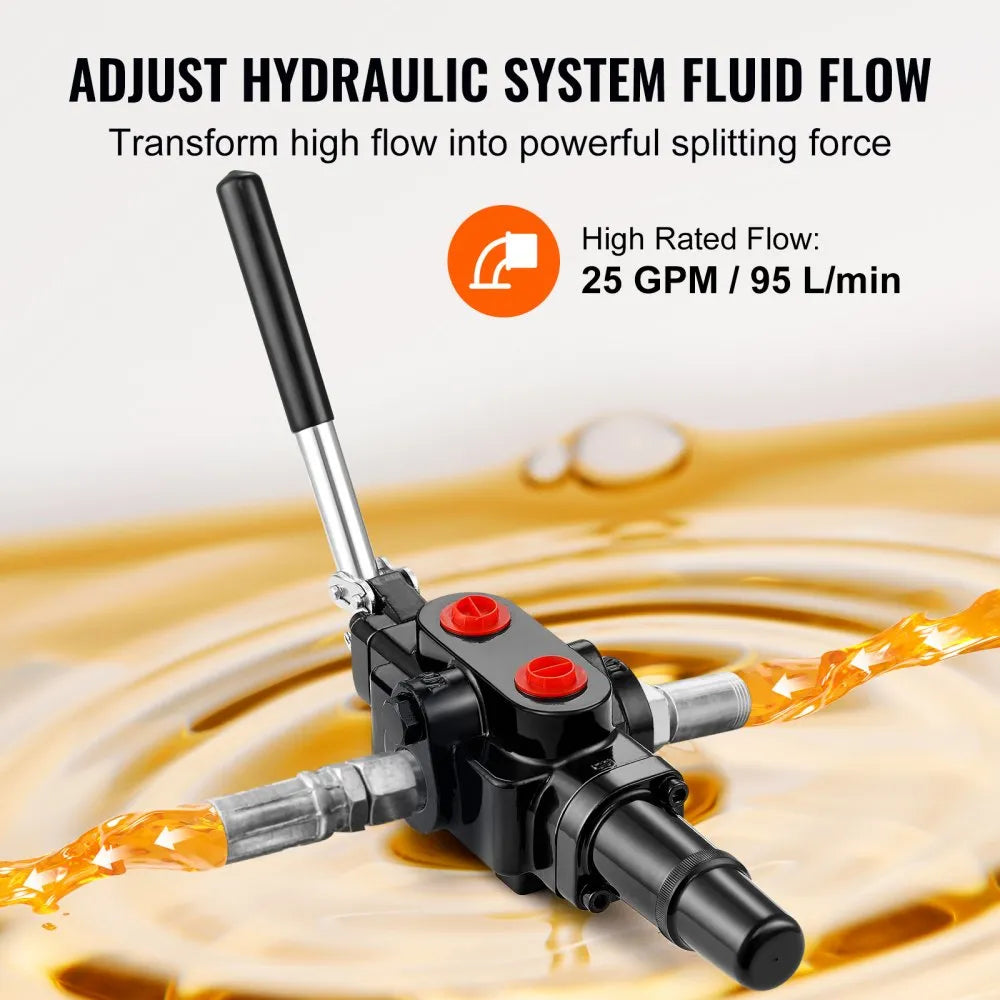

- High Flow, High Efficiency: With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting.

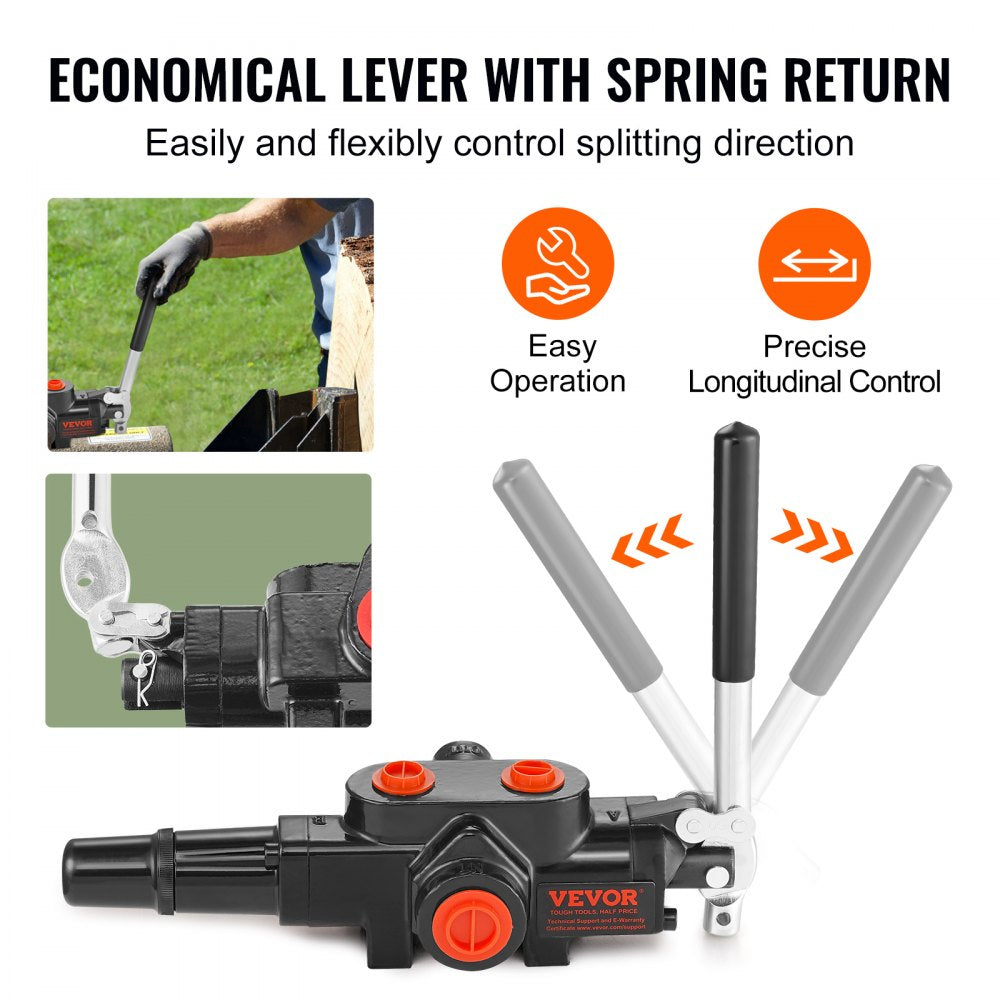

- Built-in Spring Return: The standard spool features a spring return mechanism, automatically resetting to the neutral position. Additionally, there is a spring at the base of the handle, making joystick control smoother and easier.

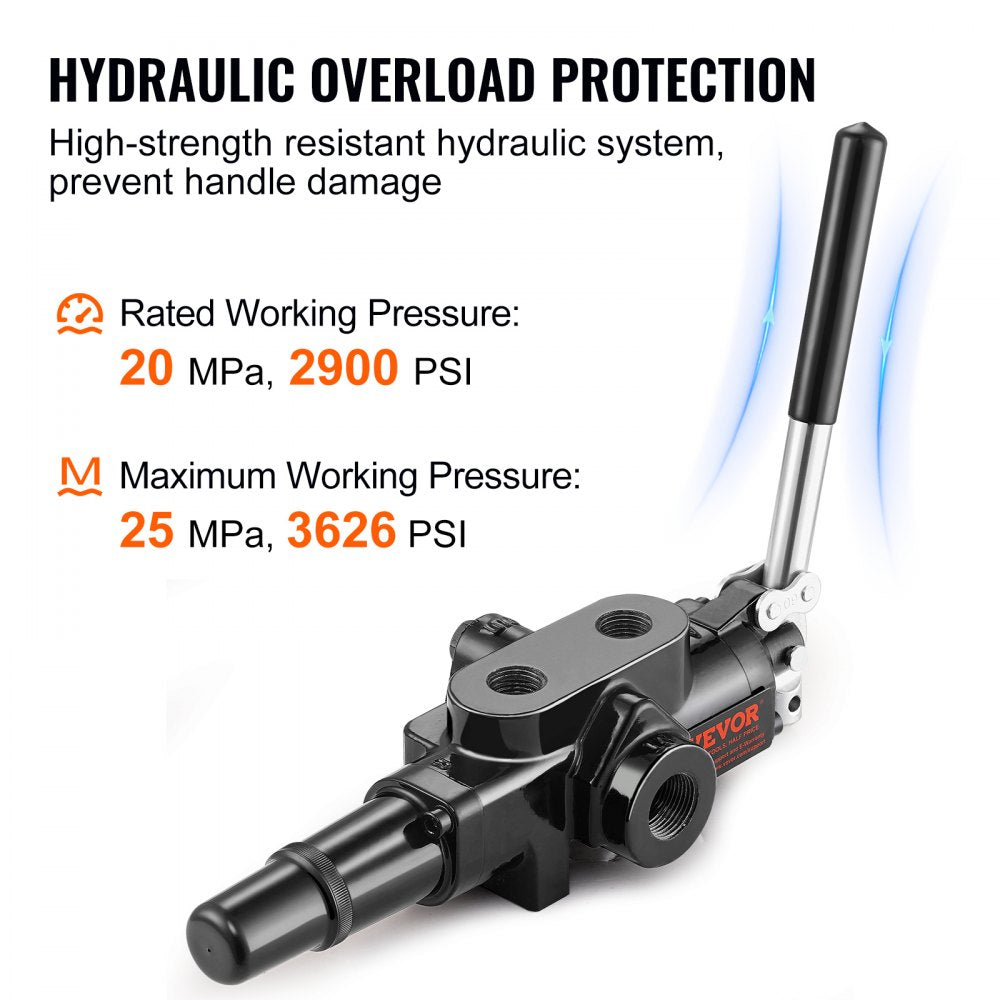

- Durable and Secure: Equipped with a hydraulic safety valve, VEVOR 1-spool hydraulic loader valve can withstand up to 25 MPa / 3626 PSI maximum pressure, ensuring durability and preventing damage. Its solid vermicular graphite cast iron construction can provide long-term service.

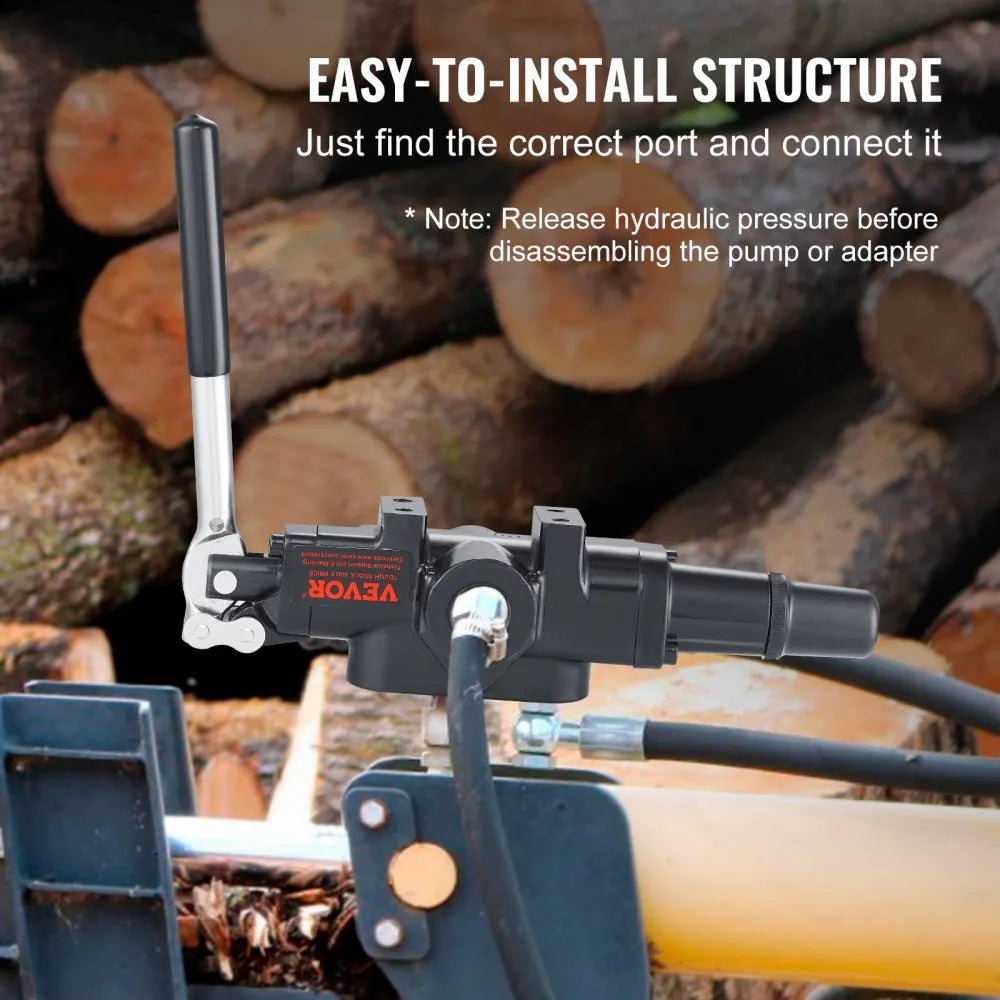

- Simple Installation: Installing or replacing this loader control valve is straightforward. Identify the ports, connect the pipelines, and tighten each interface to complete the installation. Remember to release the hydraulic pressure before disassembling the pump or adapter for safety.

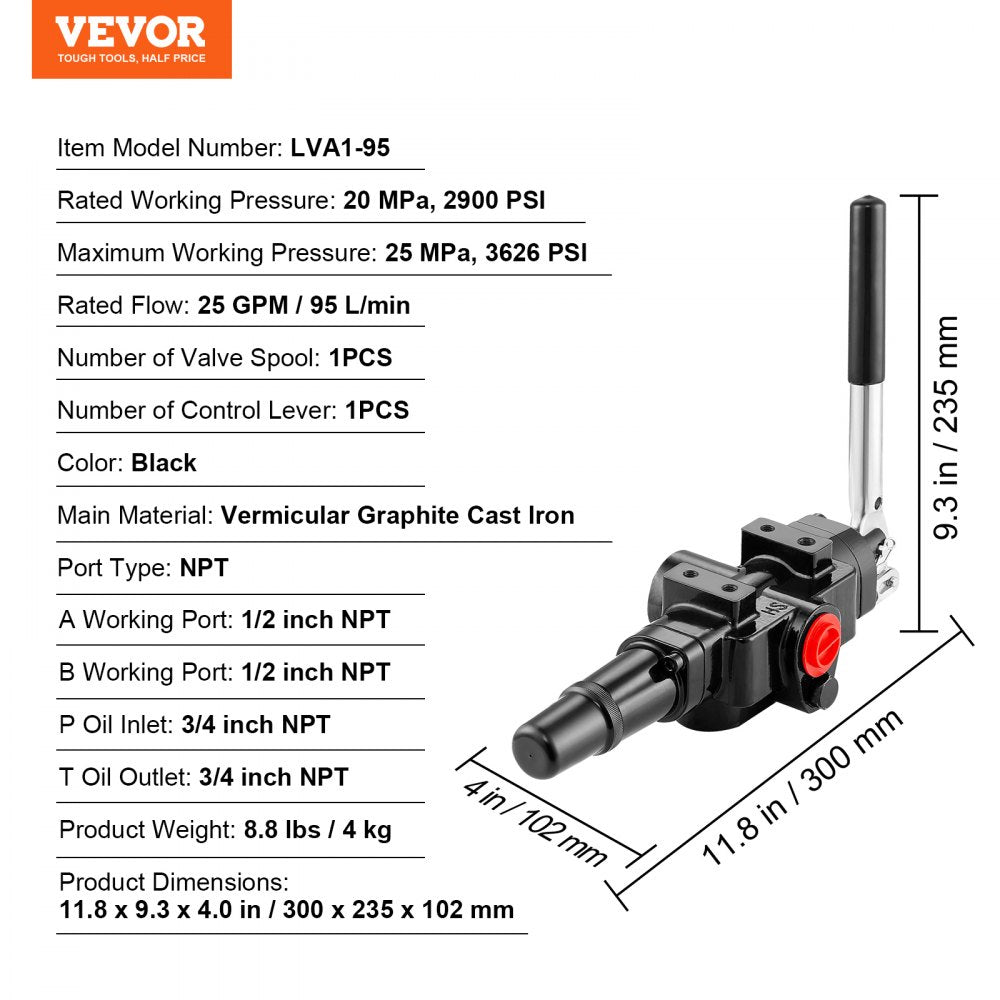

Specifications
| Item Model Number | LVA1-95 |
| Rated Working Pressure | 20 MPa / 2900 PSI |
| Maximum Working Pressure | 25 MPa / 3626 PSI |
| Rated Flow | 25 GPM / 95 L/min |
| Number of Valve Spool | 1 |
| Number of Control Lever | 1 |
| Port Type | NPT |
| A Working Port | 1/2" NPT |
| B Working Port | 1/2" NPT |
| P Oil Inlet | 3/4" NPT |
| T Oil Outlet | 3/4" NPT |
| Color | Black |
| Main Material | Vermicular Graphite Cast Iron |
| Product Weight | 9.5 lbs |
| Dimensions | 11.8 x 9.3 x 4.0" |
Warranty
This item comes with a 1 year factory warranty.
