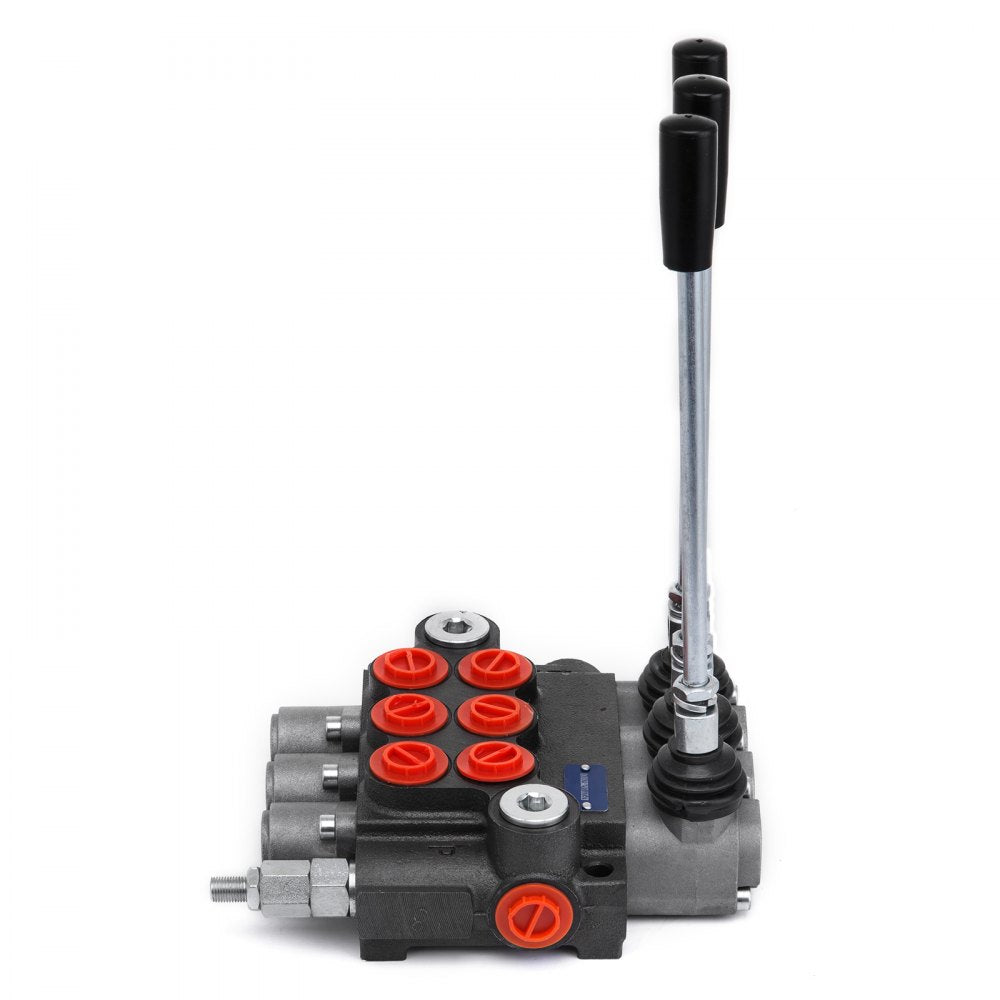

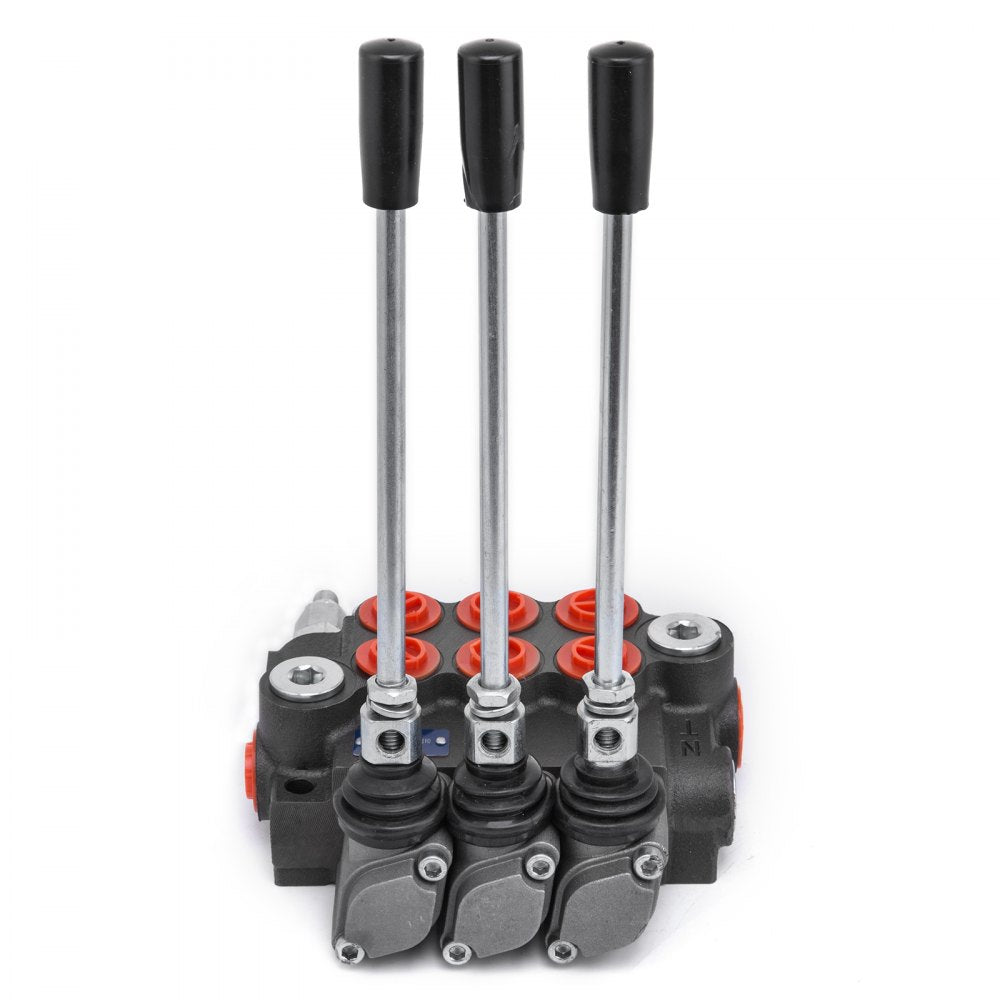

3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

Interface Options





Flow Rate Options





Number of Slide Valves Options





QTY

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$ 69.90

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or


divider
in stock checkmark

In Stock

delivery truck icon

Most orders ship out the same or next business day

If ordered by 12 PM ET

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor Hydraulic Control Valve 3 Spool Double Acting 11 GPM New

Vevor Hydraulic Control Valve 3 Spool Double Acting 11 GPM New

Product Overview

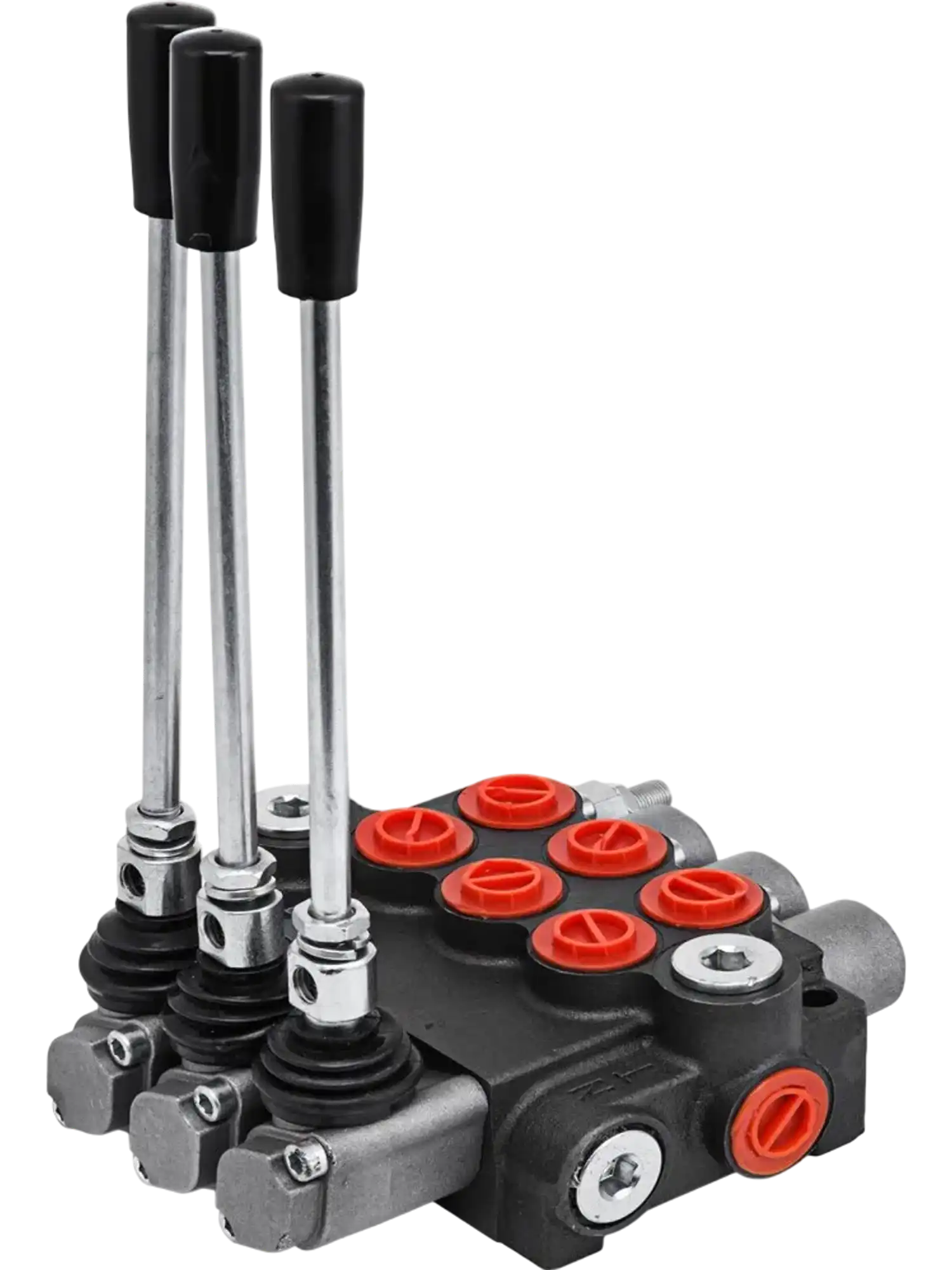

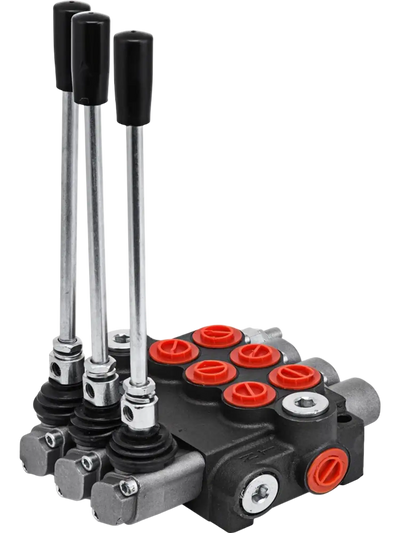

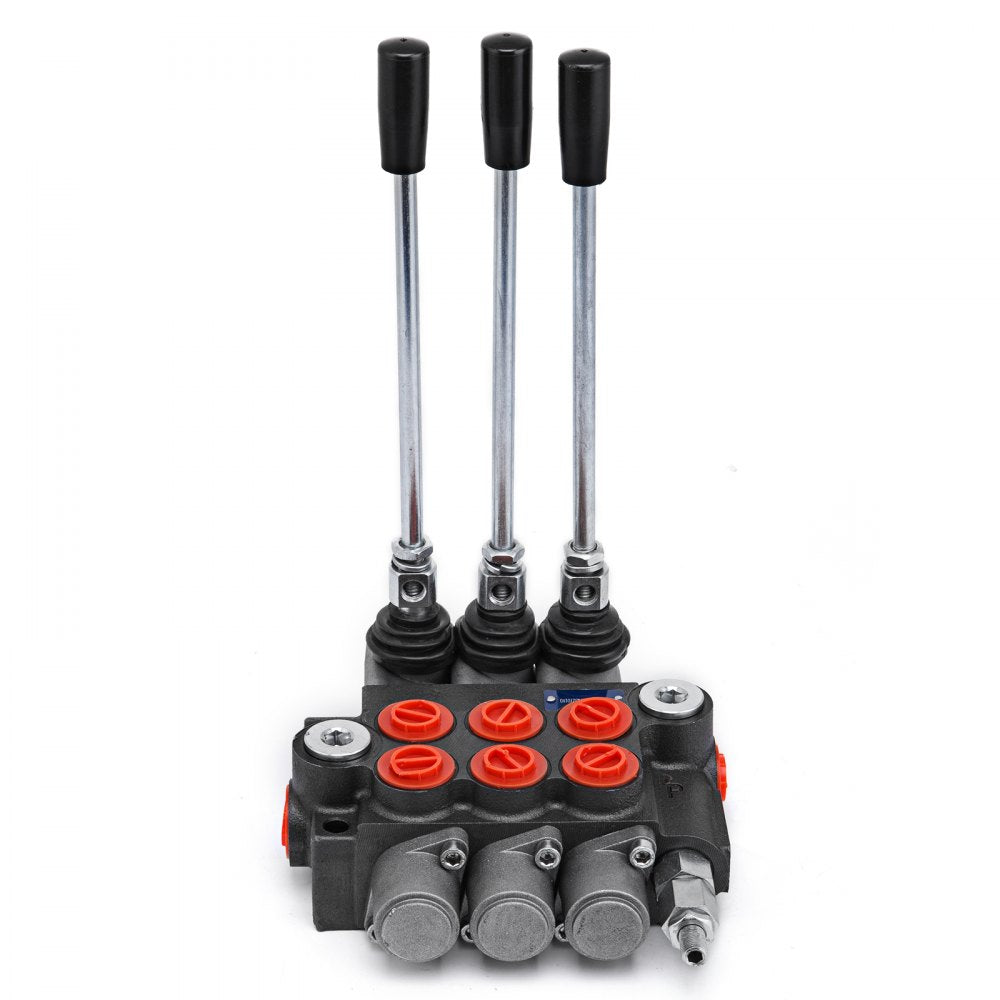

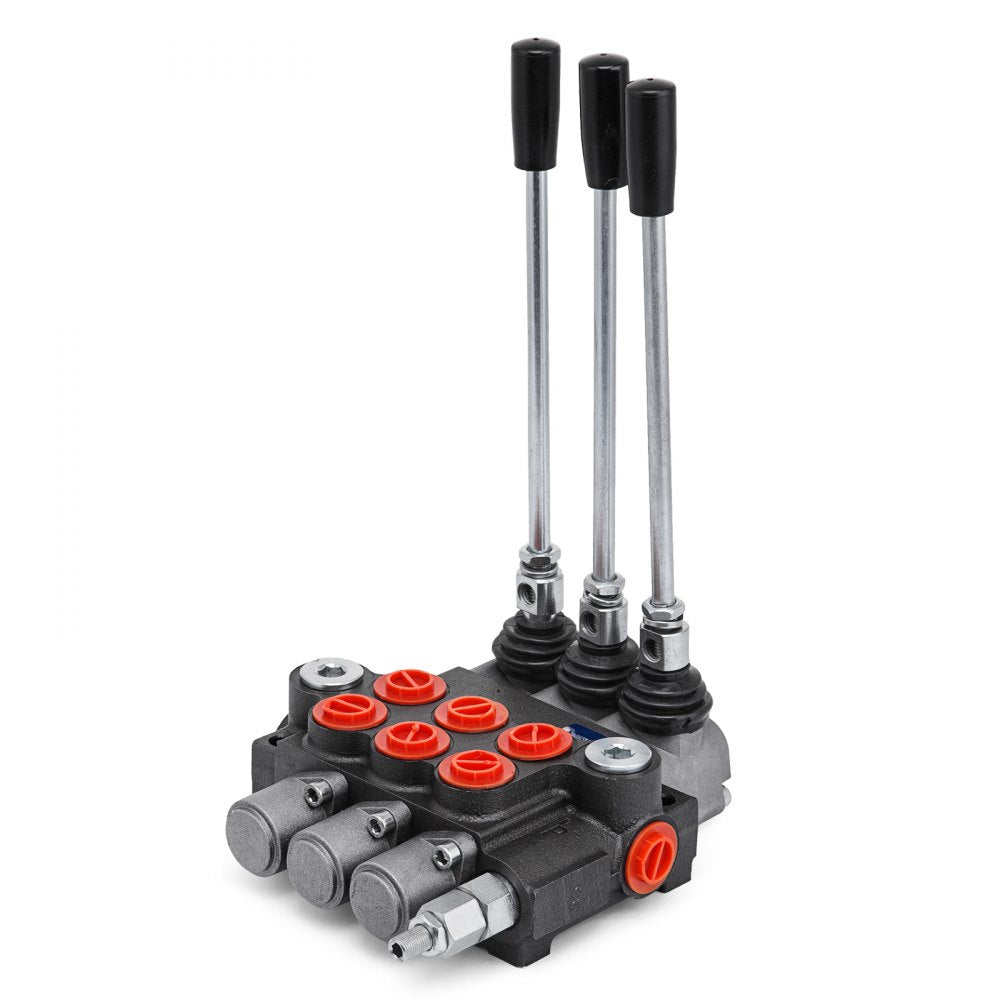

The Vevor 3 spool hydraulic directional control valve is designed for operating double-acting cylinders in tractors, loaders, log splitters, and other hydraulic equipment. It features a durable cast iron body with spring-return spools that automatically return to neutral for easier operation. The valve delivers a nominal flow of 11 GPM and an adjustable relief valve with pressure up to 3600 PSI. Its open center system and compact design make it a practical choice for a range of small machinery applications.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

  • DOUBLE ACTING: - Our hydraulic control valve is made for operating double-acting cylinders.

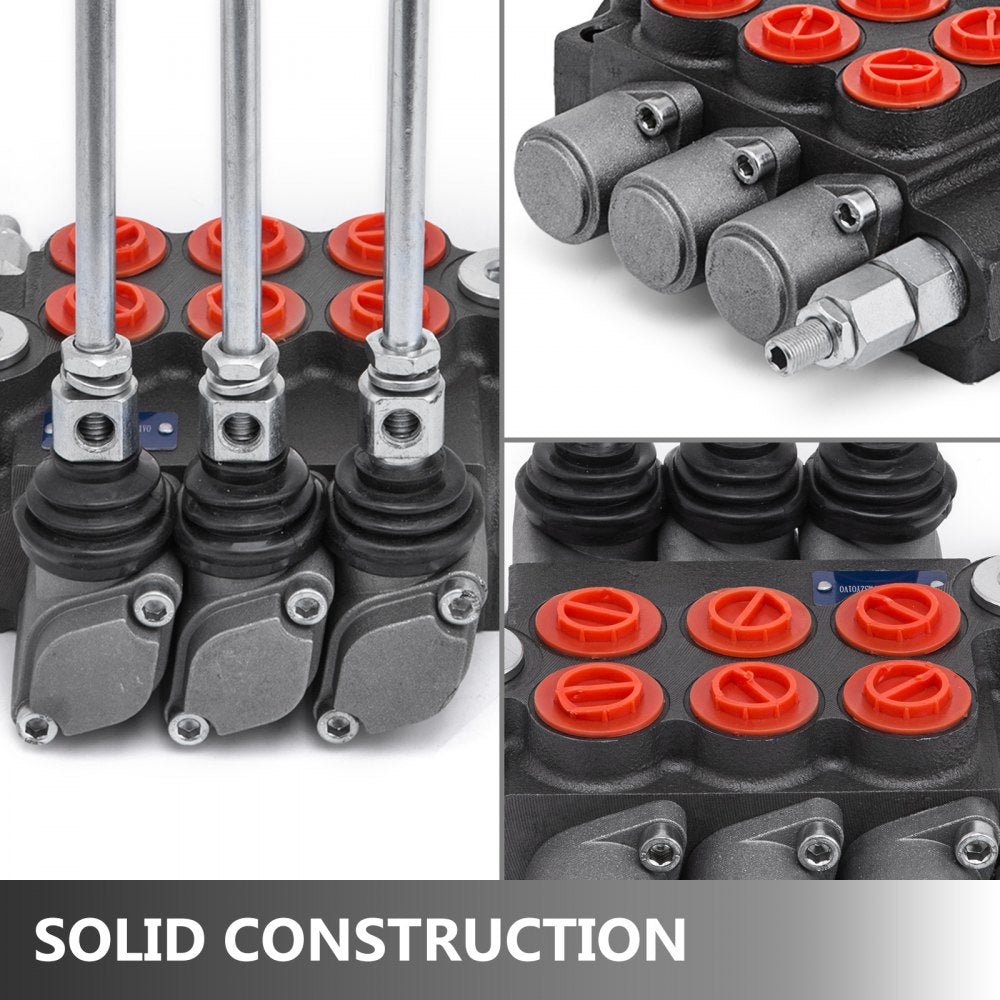

  • DURABLE QUALITY: - This control valve comes with 3 spools and 1/2 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.

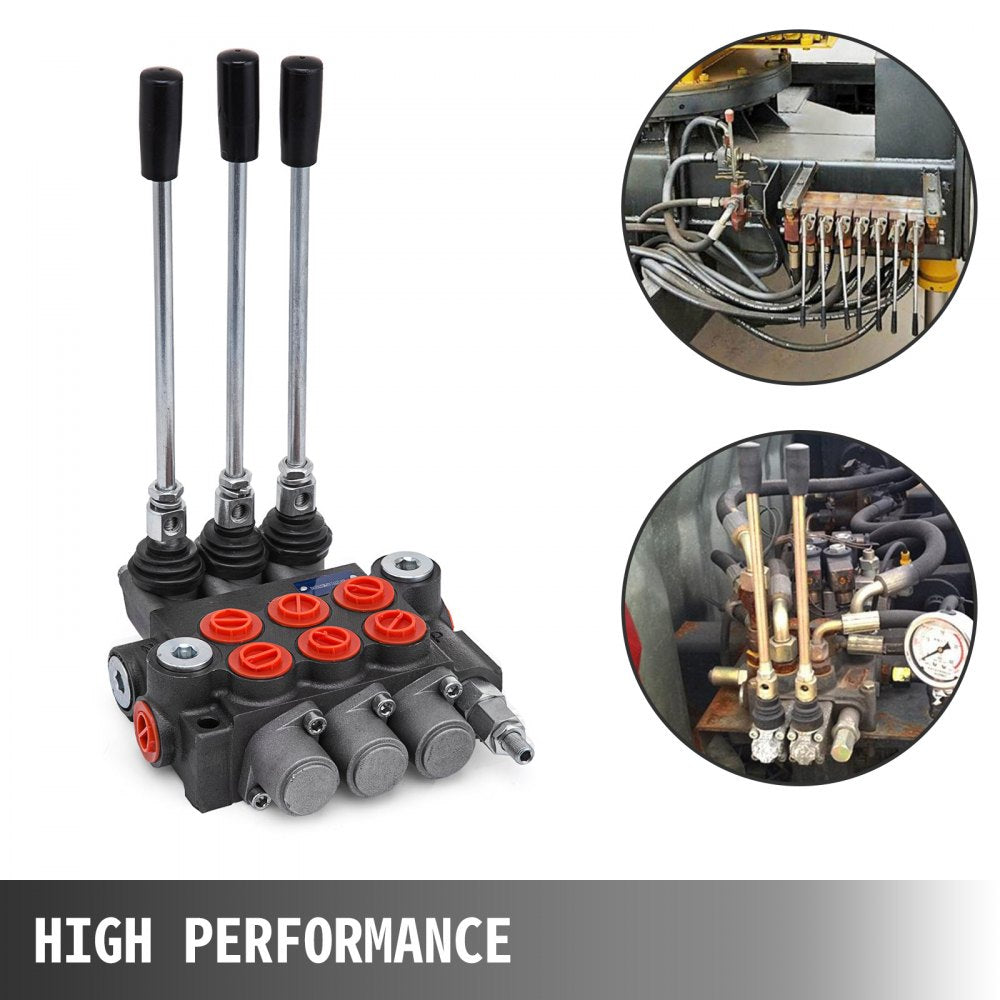

  • HIGH PERFORMANCE: - This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

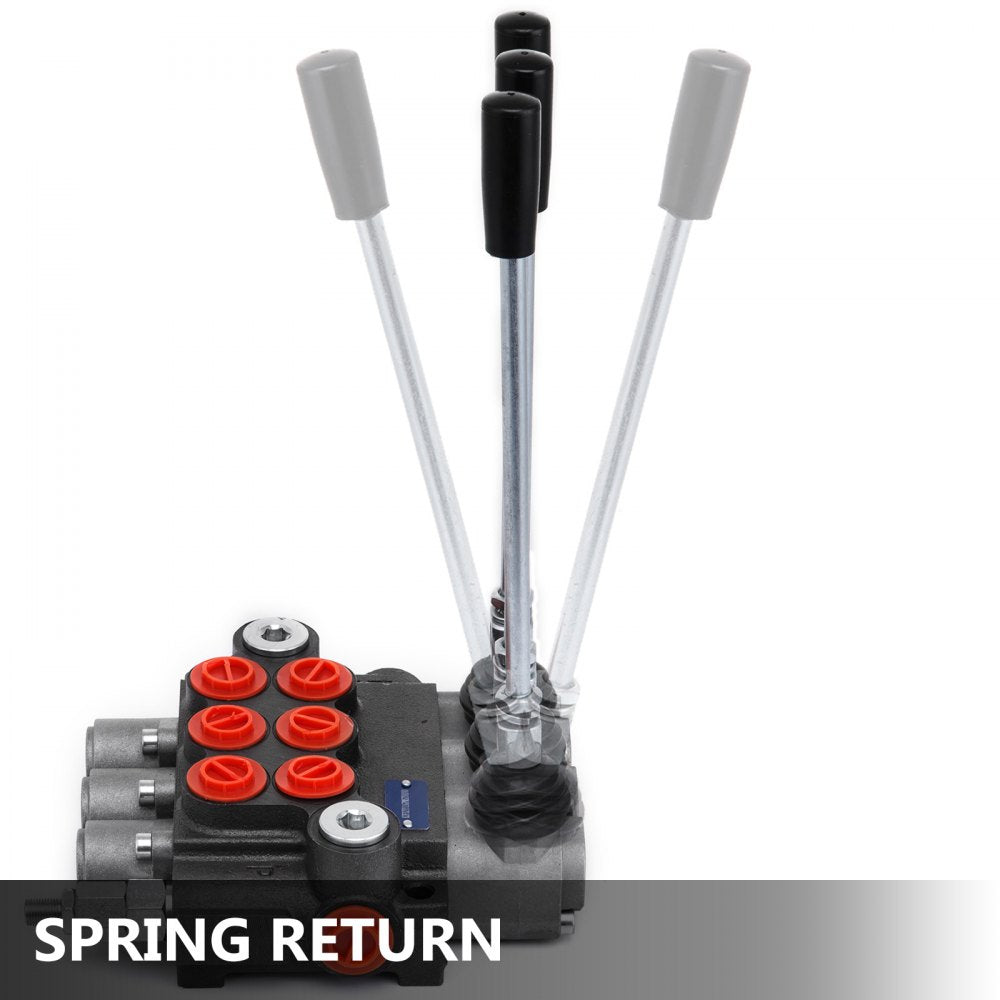

  • SPRING RETURN: - All spool valves come with spring return, which can return to the neutral position.
  • WIDELY USED: - This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Specifications

Model KZF3ZYY11GPMSZY01V0
Product Type Hydraulic Control Valve
Nominal Flow 11 GPM (40 L/min)
Spool Count 3 Spool
Interface NPT
Number of Slide Valves 3 Sliding Valves
PABTN 1/2" Unthreaded sealed cylindrical pipe threads
PTN 1/2"
AB G3/8
Thread Size 7/8-14UNF; 3/4-16UNF

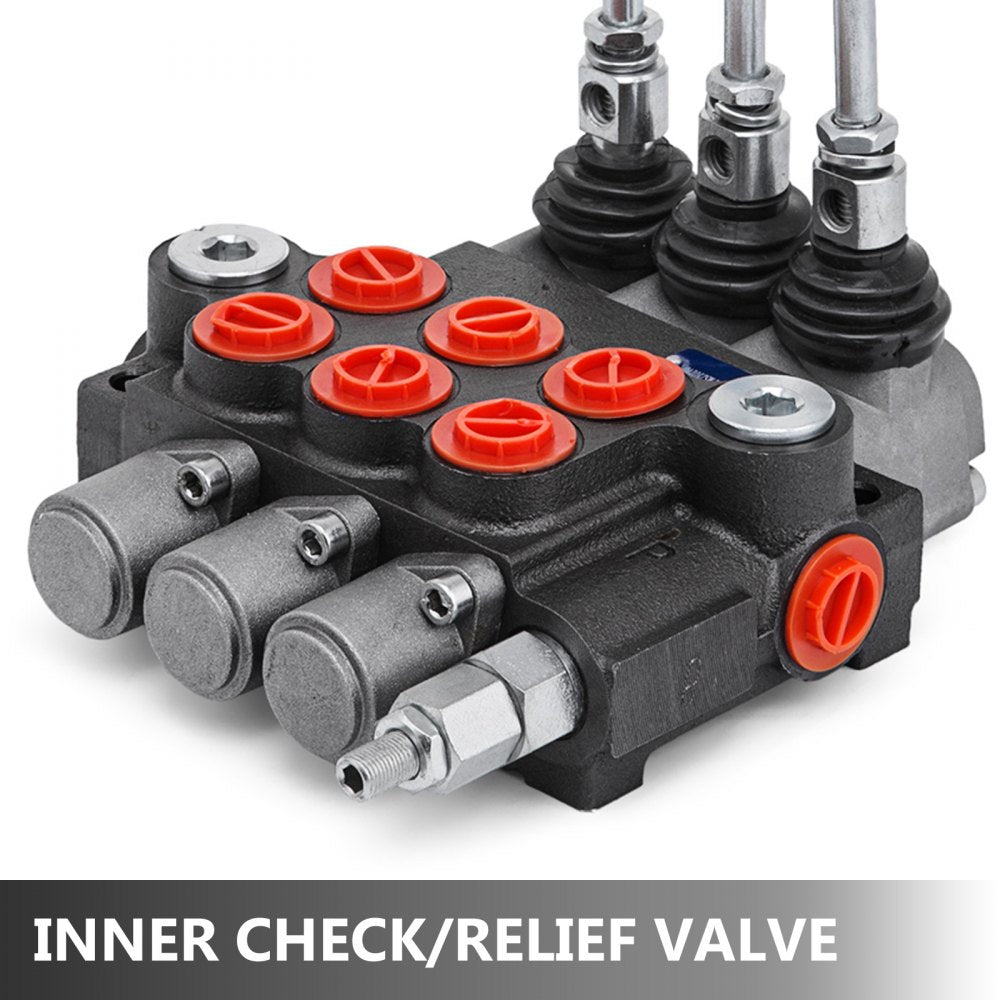

Relief Valve Adjustable
Center System Open
Max Pressure 3600 PSI
Factory Pressure Setting 20 MPa
Weight 14.6 lbs (6.6 kg)

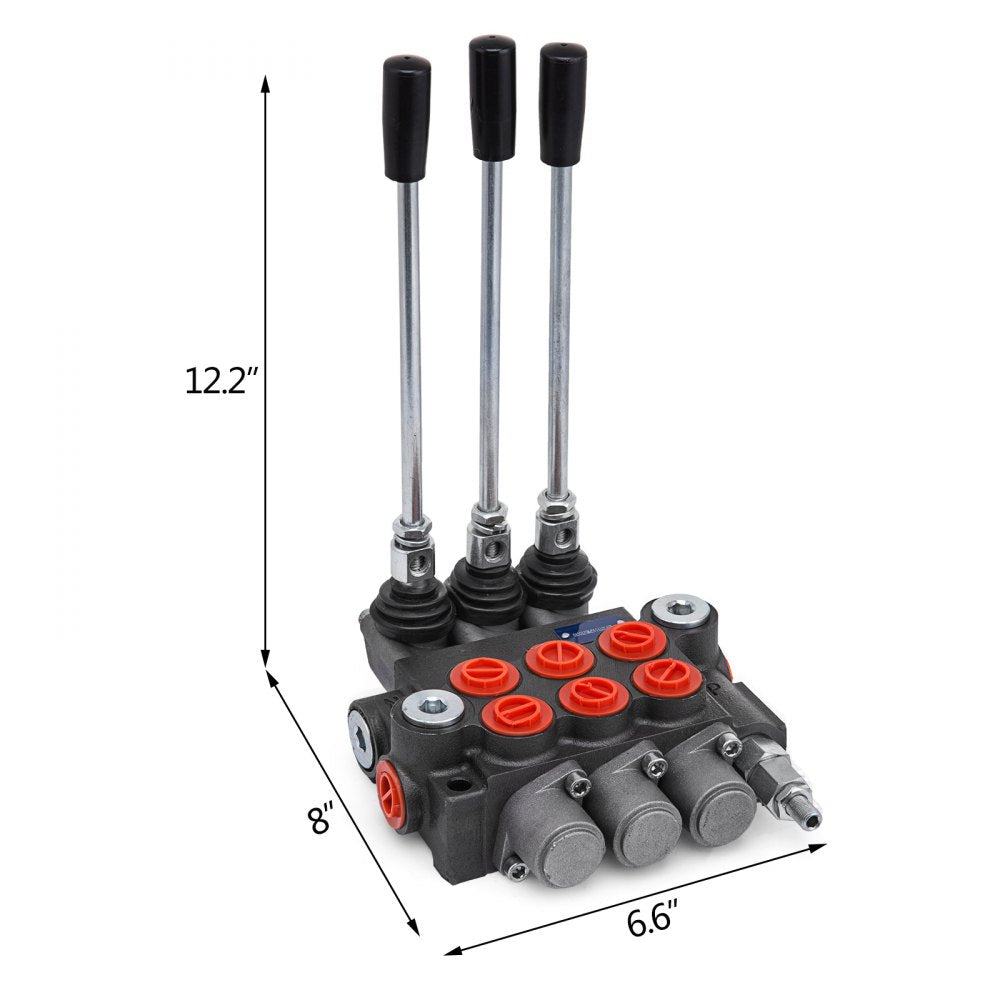

Dimensions 12.2" x 8" x 6.6" (31 x 20 x 16.8 cm)

Package Contents

1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
