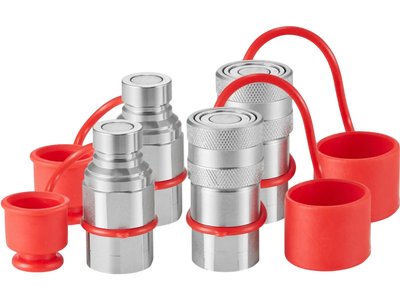

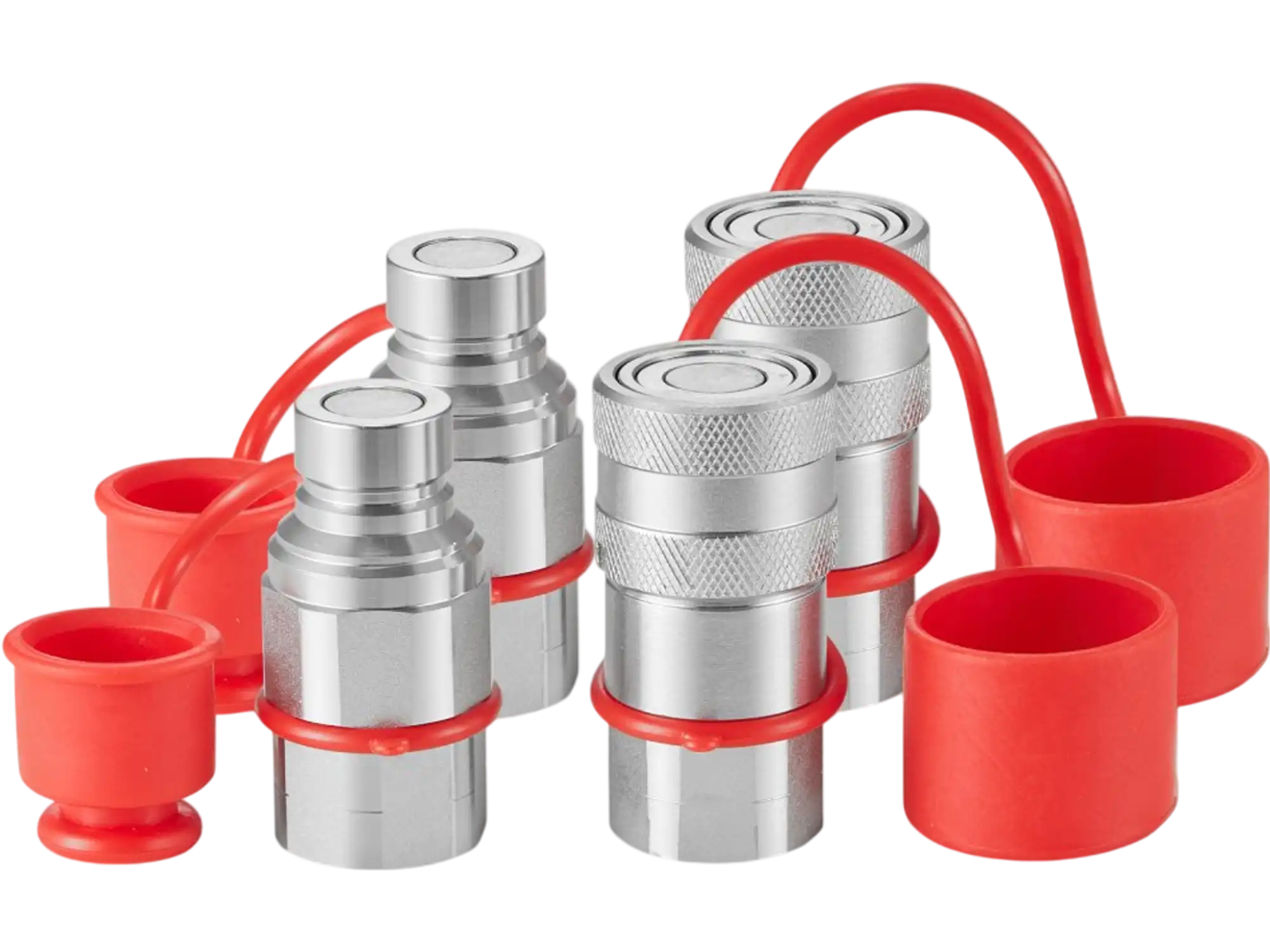

Vevor Hydraulic Couplers 1/2" Flat Face Quick Connect Couplers with 4 Dust Caps New
Product Overview

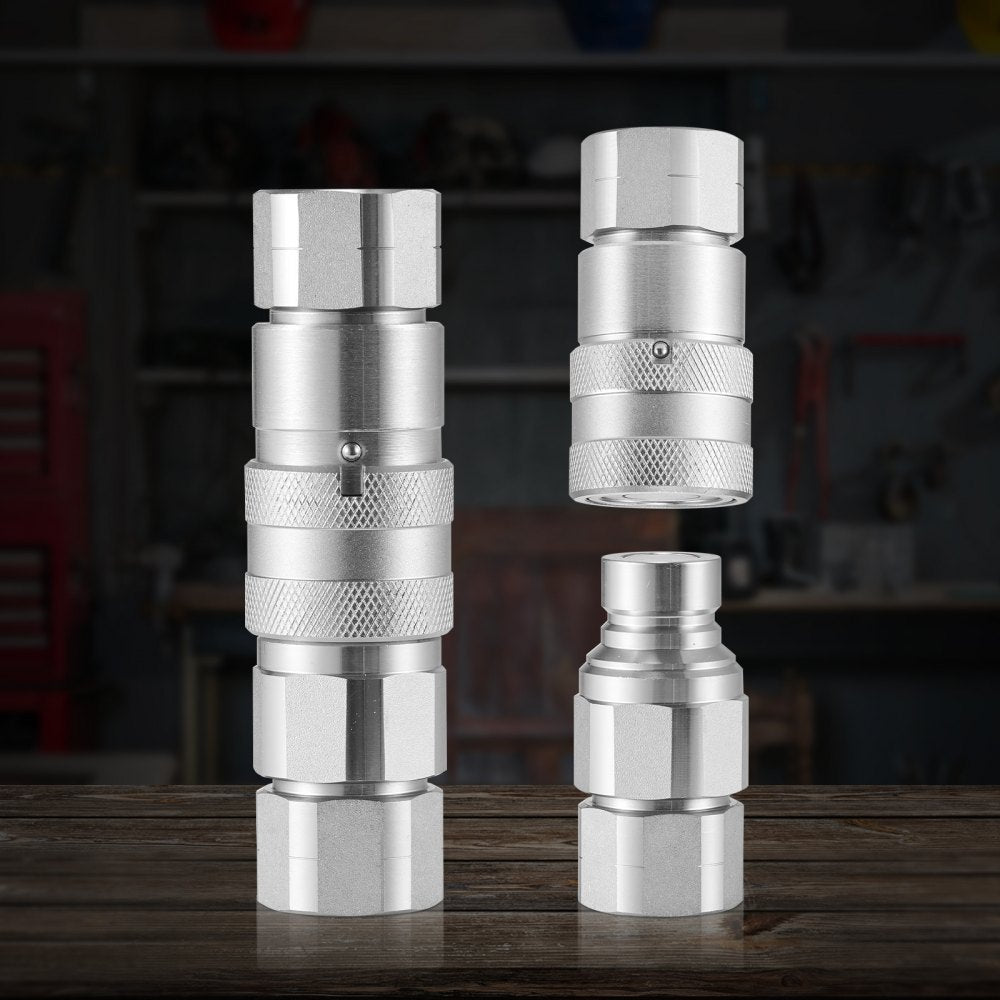

The Vevor 1/2" flat face hydraulic couplers are designed for connecting hydraulic lines on skid steer and similar equipment. Built from hardened carbon steel with chrome-plated couplers, they meet ISO 16028 standards for dependable performance. The flat face design helps reduce contamination, while the sleeve locking mechanism allows quick, simple connection. This 2-pair set includes dust caps to help keep the connection system clean when not in use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

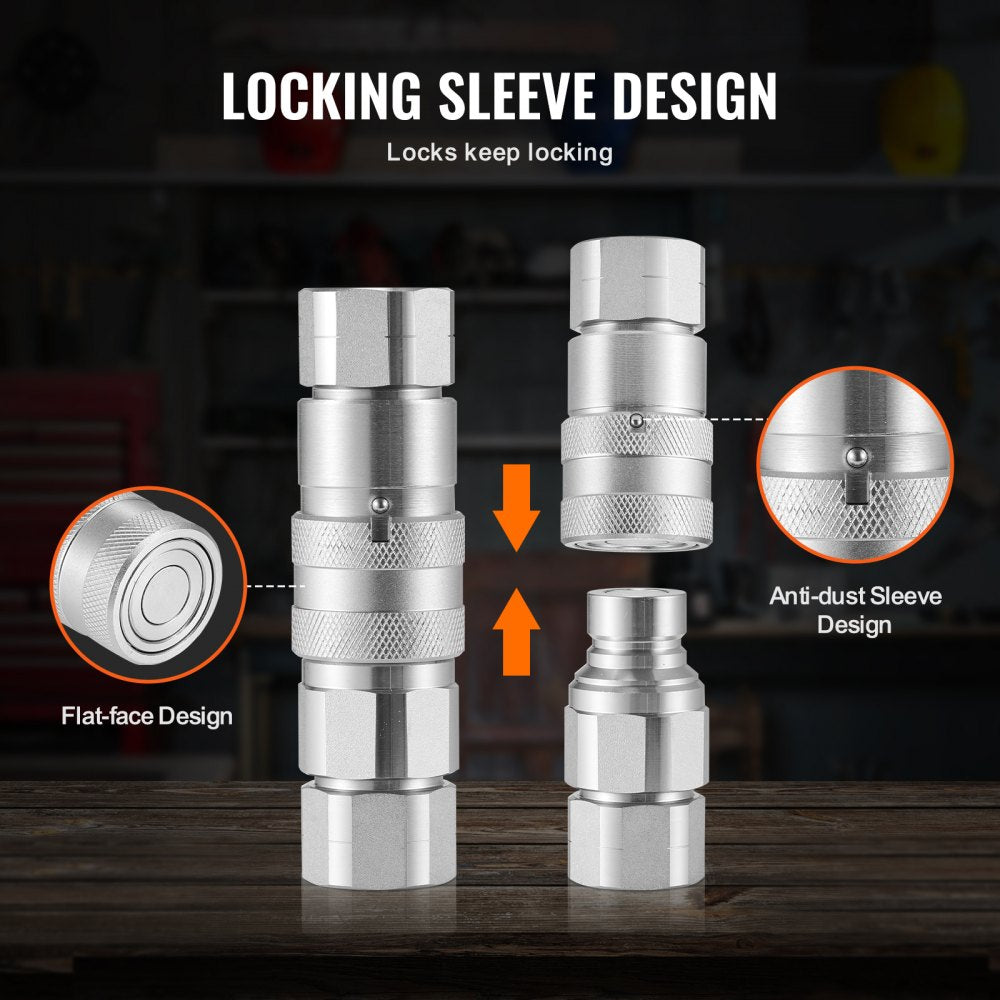

- Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

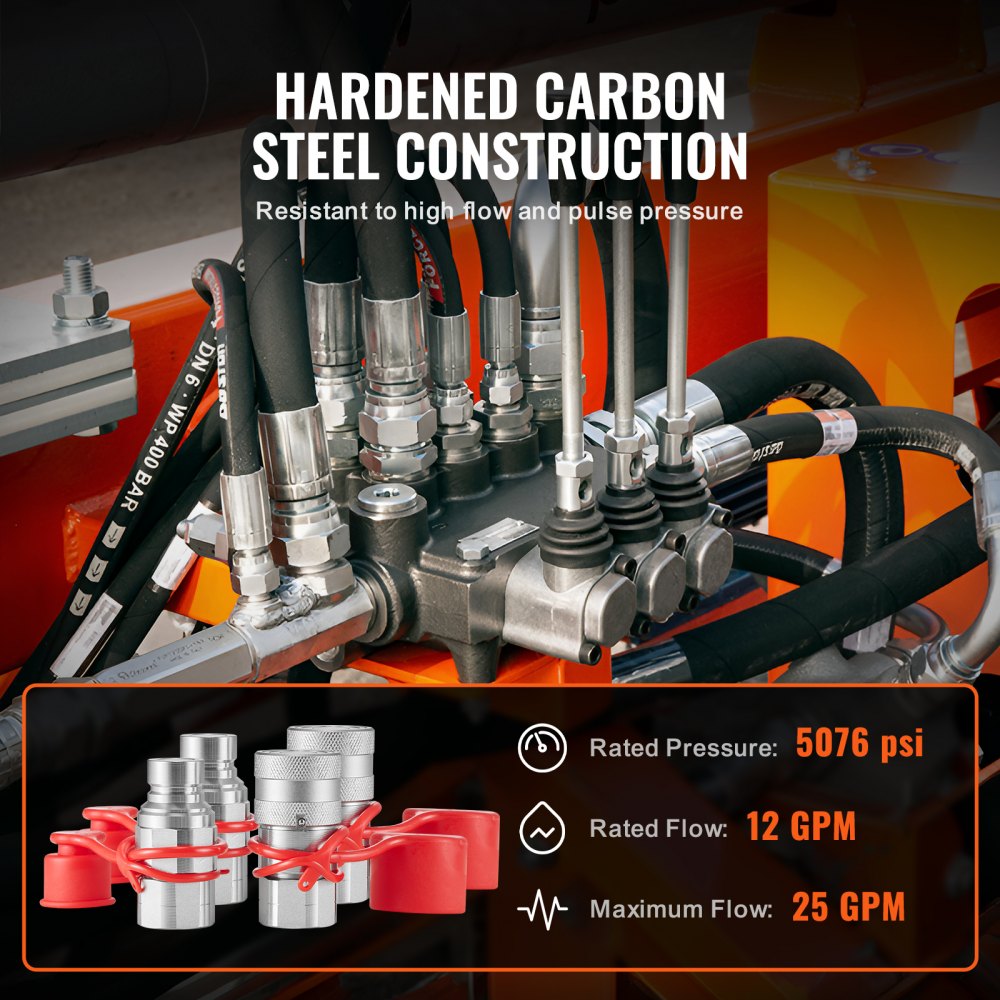

- Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

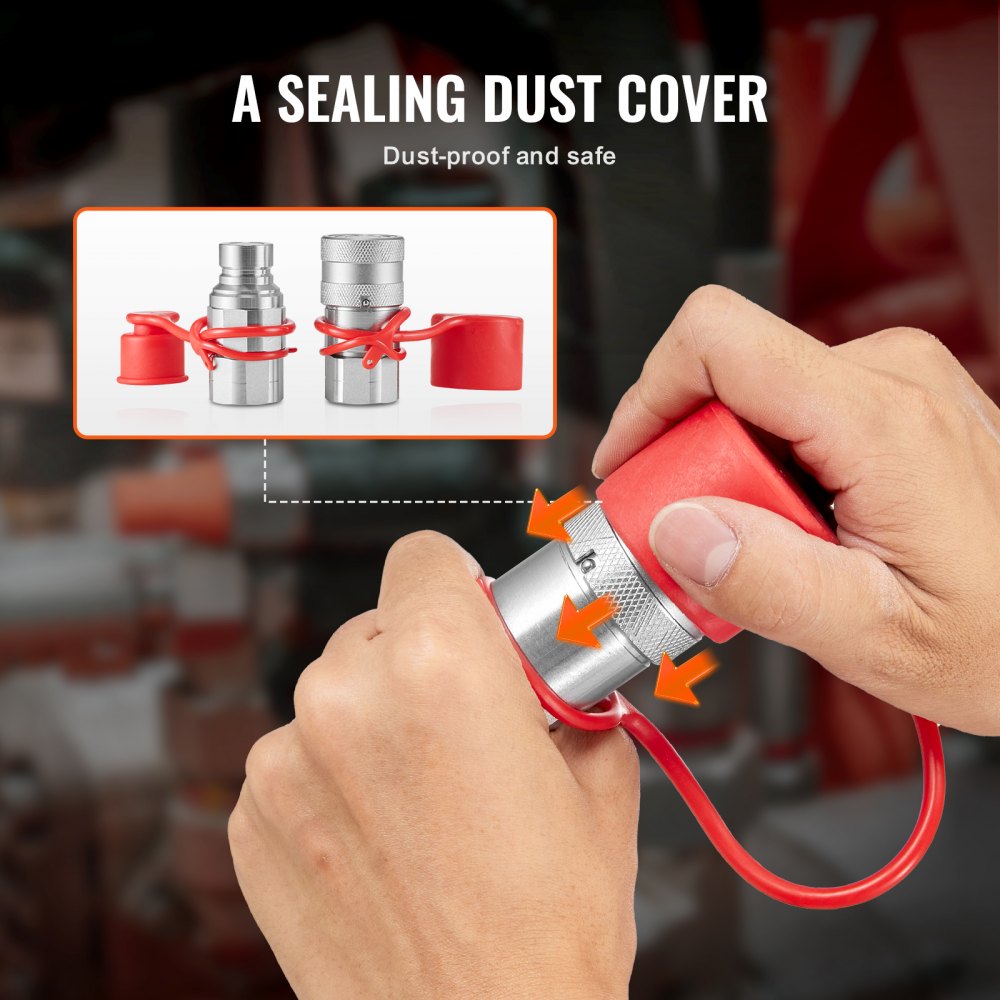

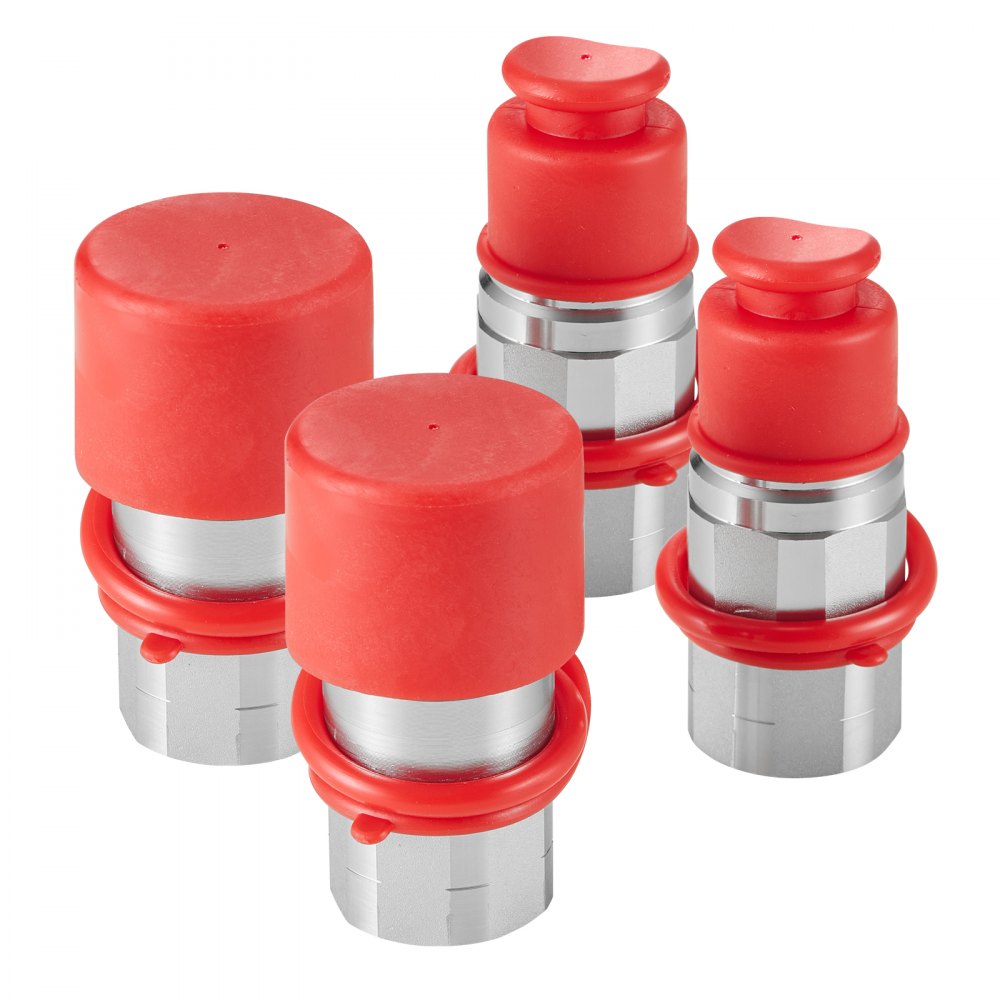

- Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.

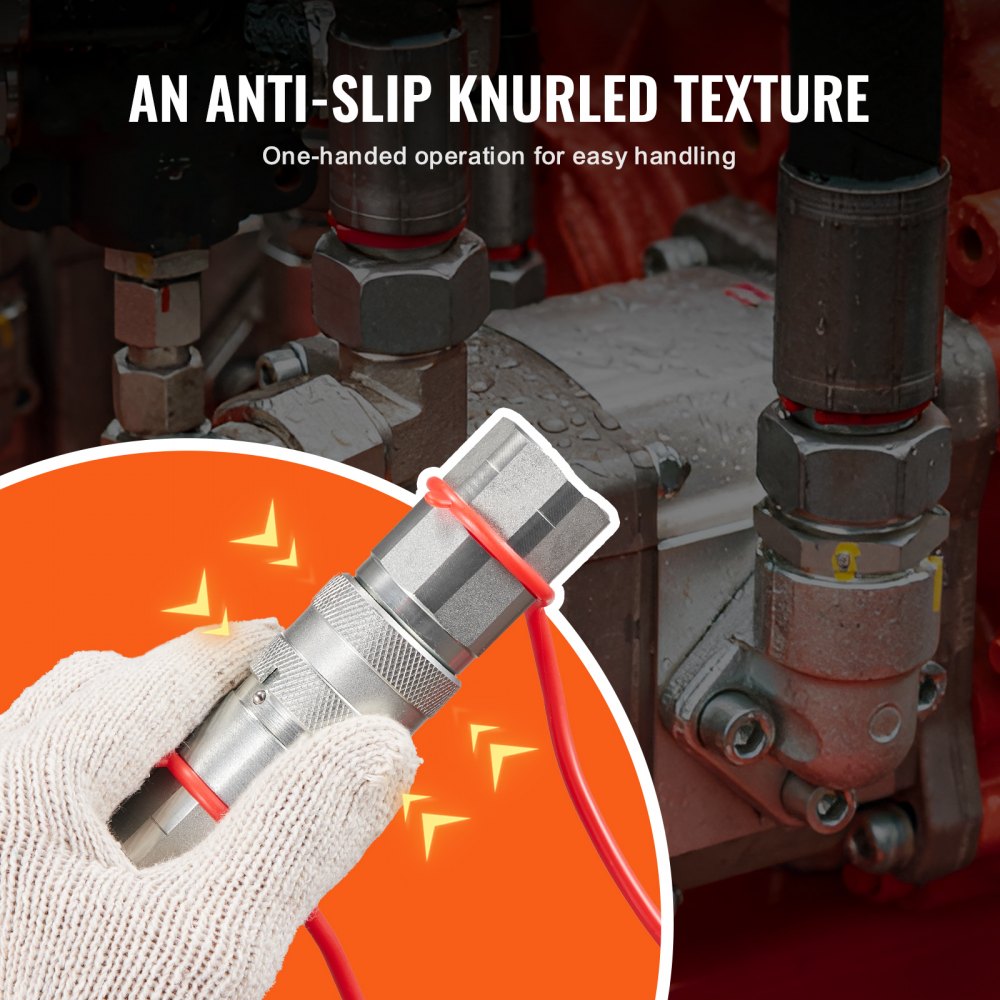

- Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Specifications
| Item Model Number | LSQ-FF |
| Coupler Type | Flat Face Hydraulic Coupler |
| Standard | ISO16028 |
| Coupler Body Size | 1/2" |
| Rated Pressure | 5076 psi |
| Rated Flow | 12 GPM |
| Maximum Flow | 25 GPM |
| Quantity | 2 pairs |
| Male Coupler Thread Size | 1/2" NPT internal thread |
| Female Coupler Thread Size | 1/2" NPT internal thread |
| Configuration | Dust Caps |
| Color | White |
| Main Material | 45# Carbon Steel |

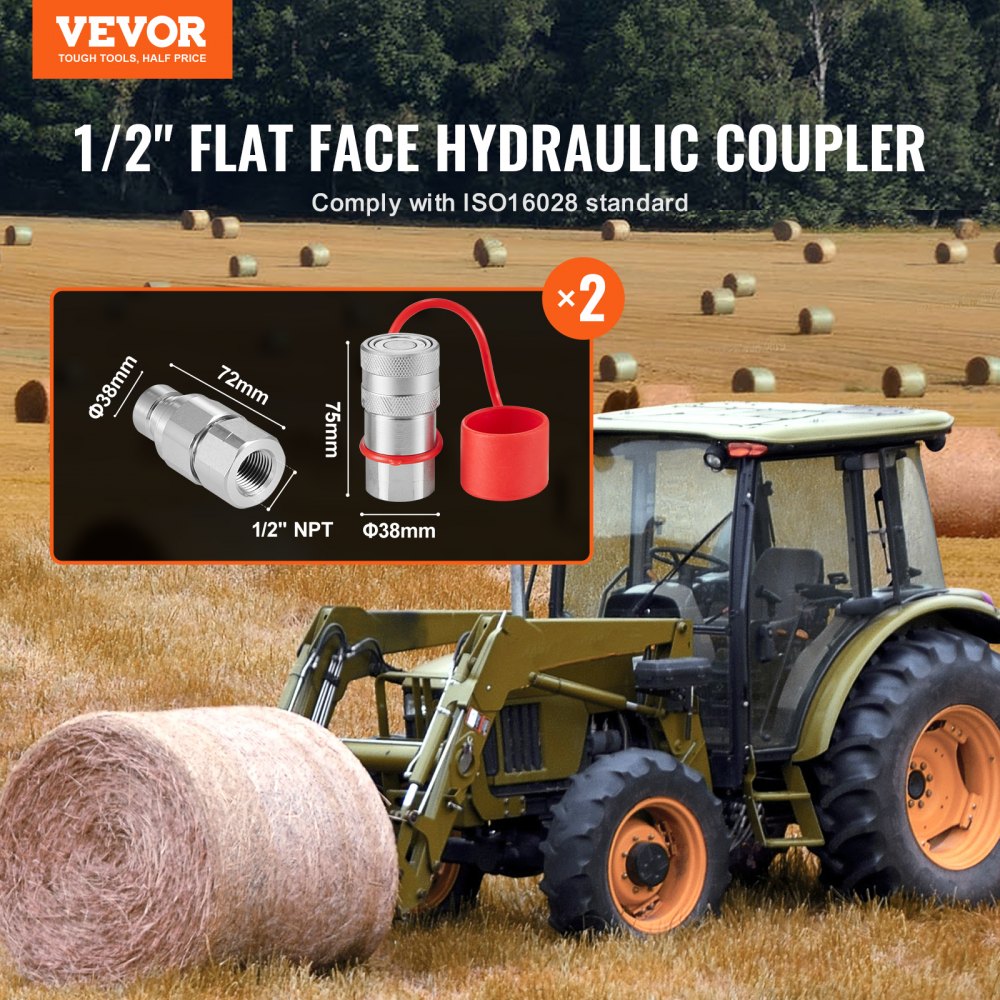

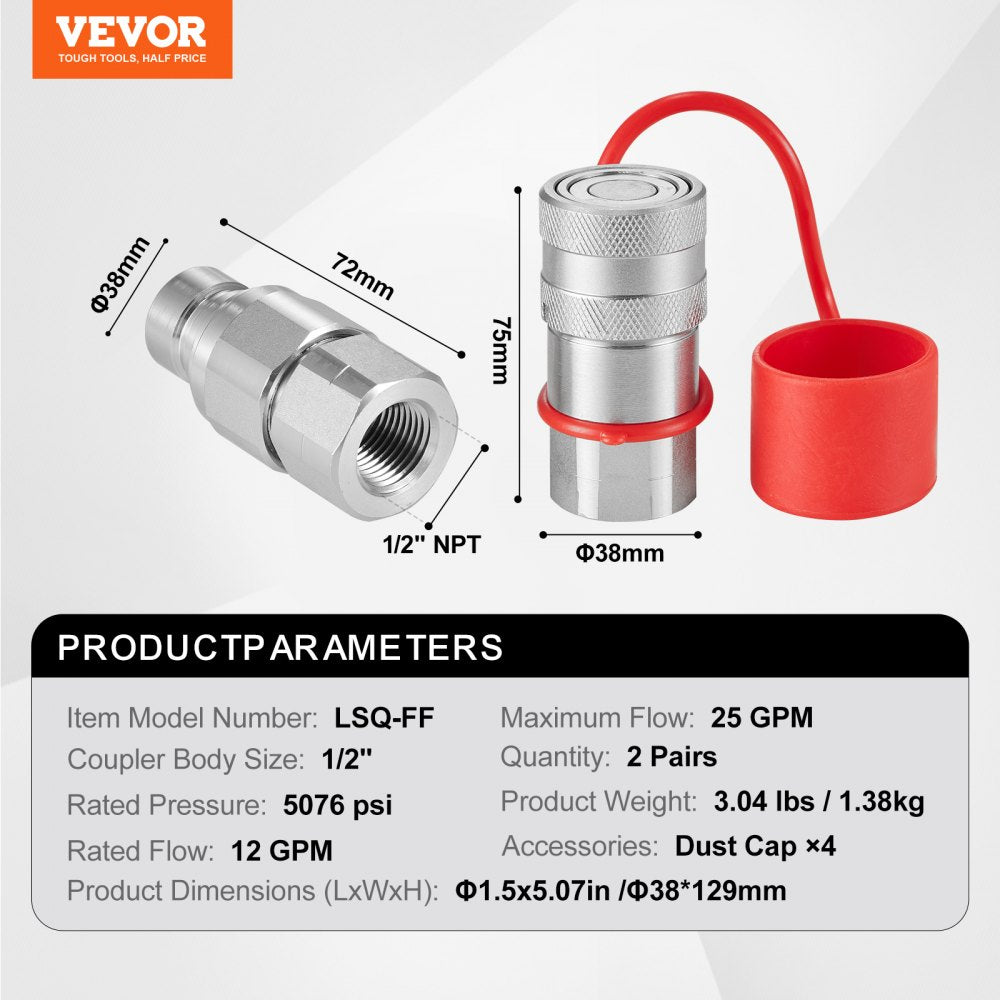

| Male Coupler Dimensions | Φ38 x 72 mm O.D. x L |
| Male Coupler Finish | Chrome Plating |
| Female Coupler Dimensions | Φ38 x 75 mm O.D. x L |
| Female Coupler Finish | Chrome Plating |
| Dust Cap Dimensions | Φ40 x 260 mm O.D. x L |
| Dust Cap Material | Rubber |
| Dust Cap Color | Red |
| Product Weight | 3.04 lbs |
| Product Dimensions | Φ1.5 x 5.07 in |

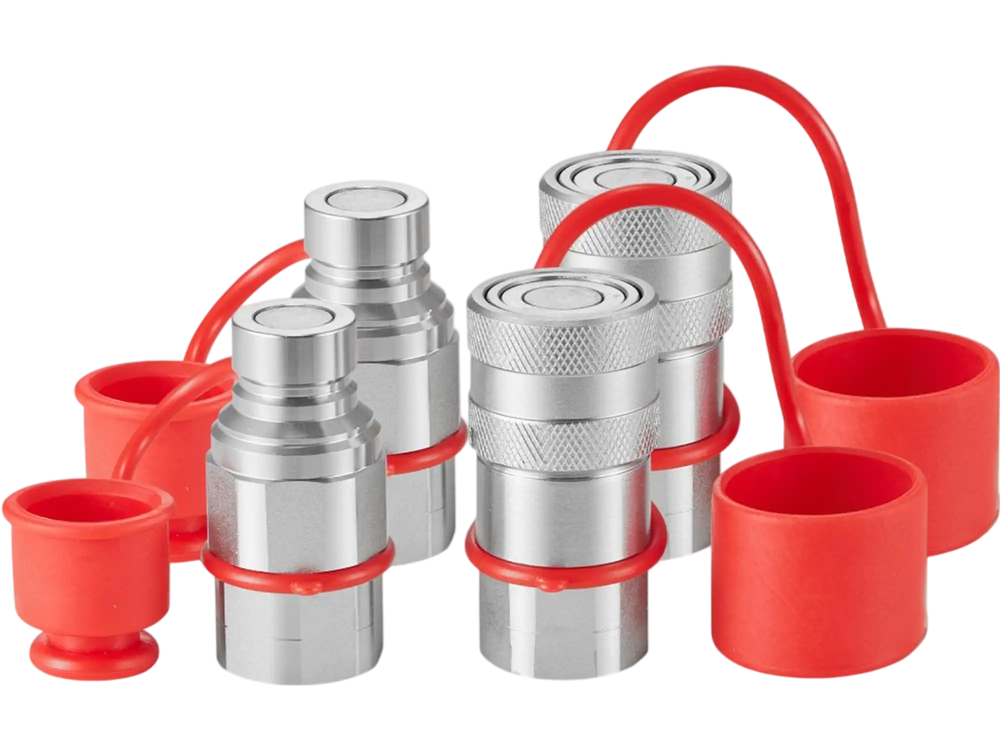

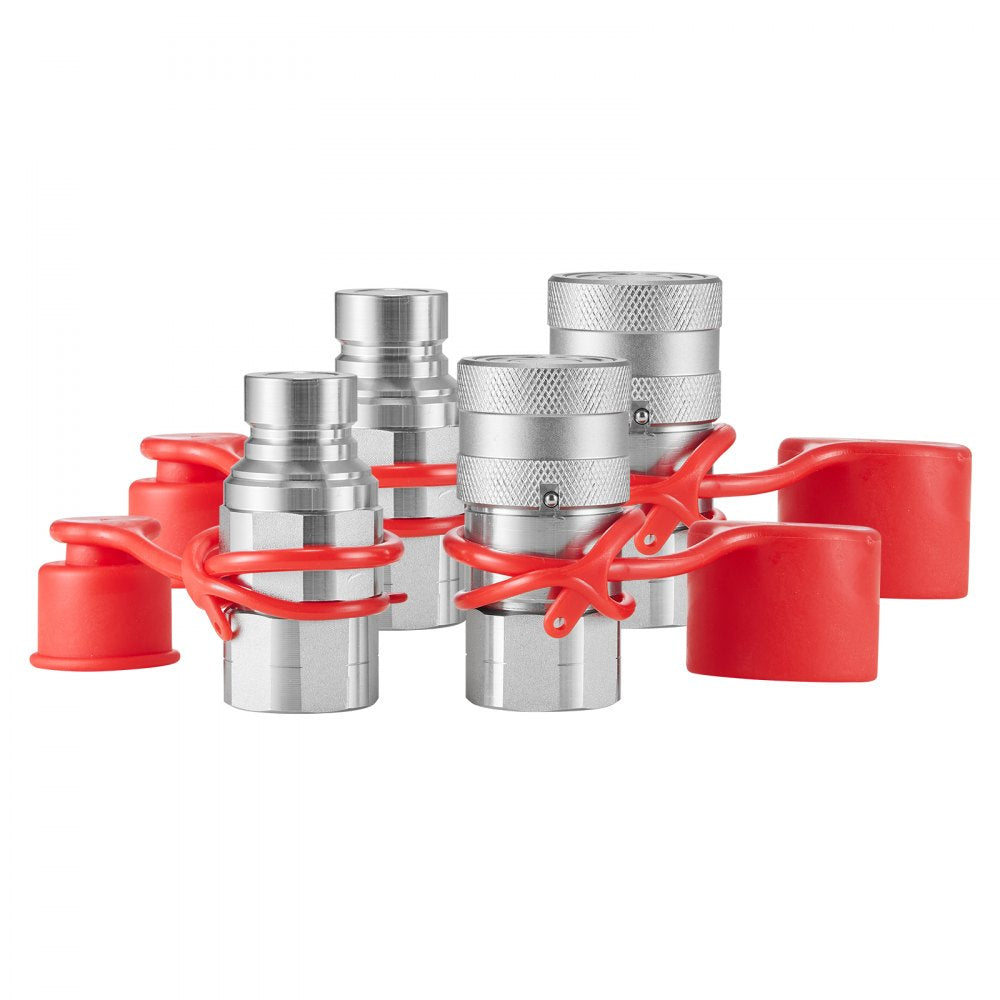

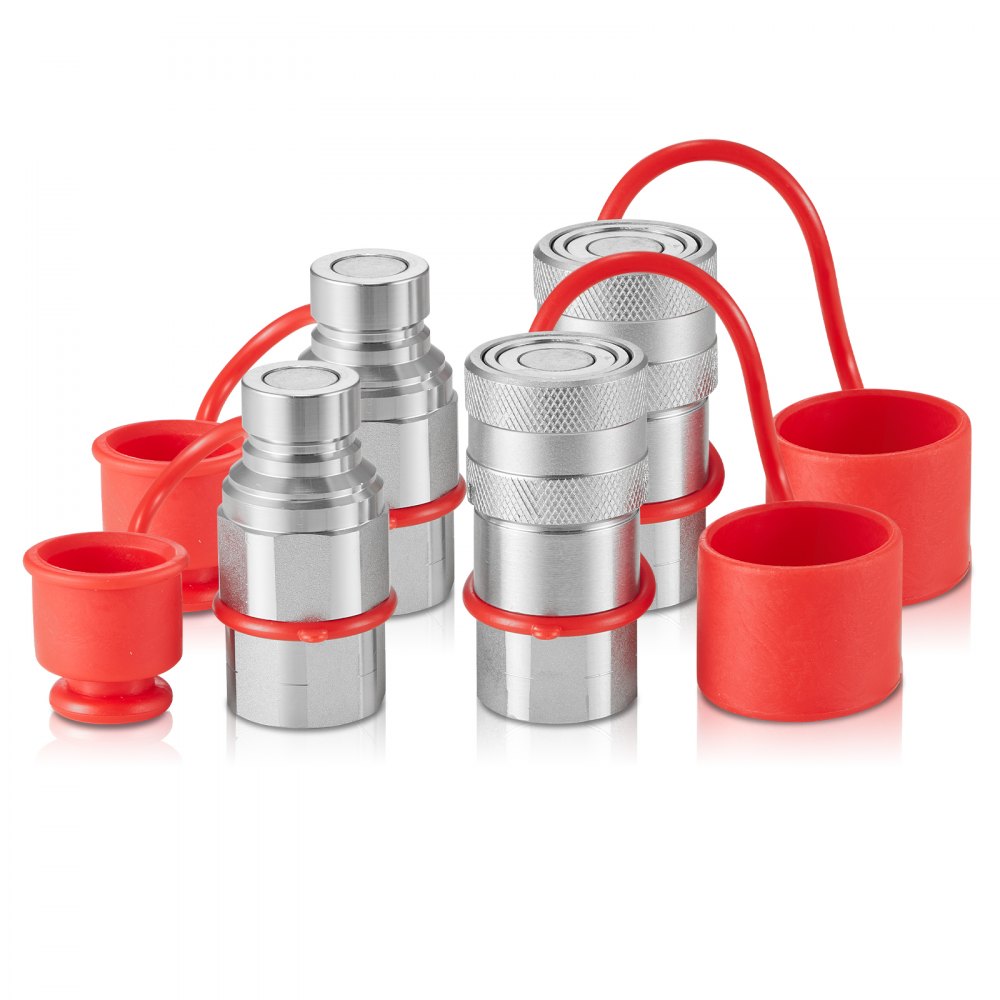

Package Contents
2 pairs of flat face hydraulic couplers
4 dust caps
Warranty
This item comes with a 1 year factory warranty.
