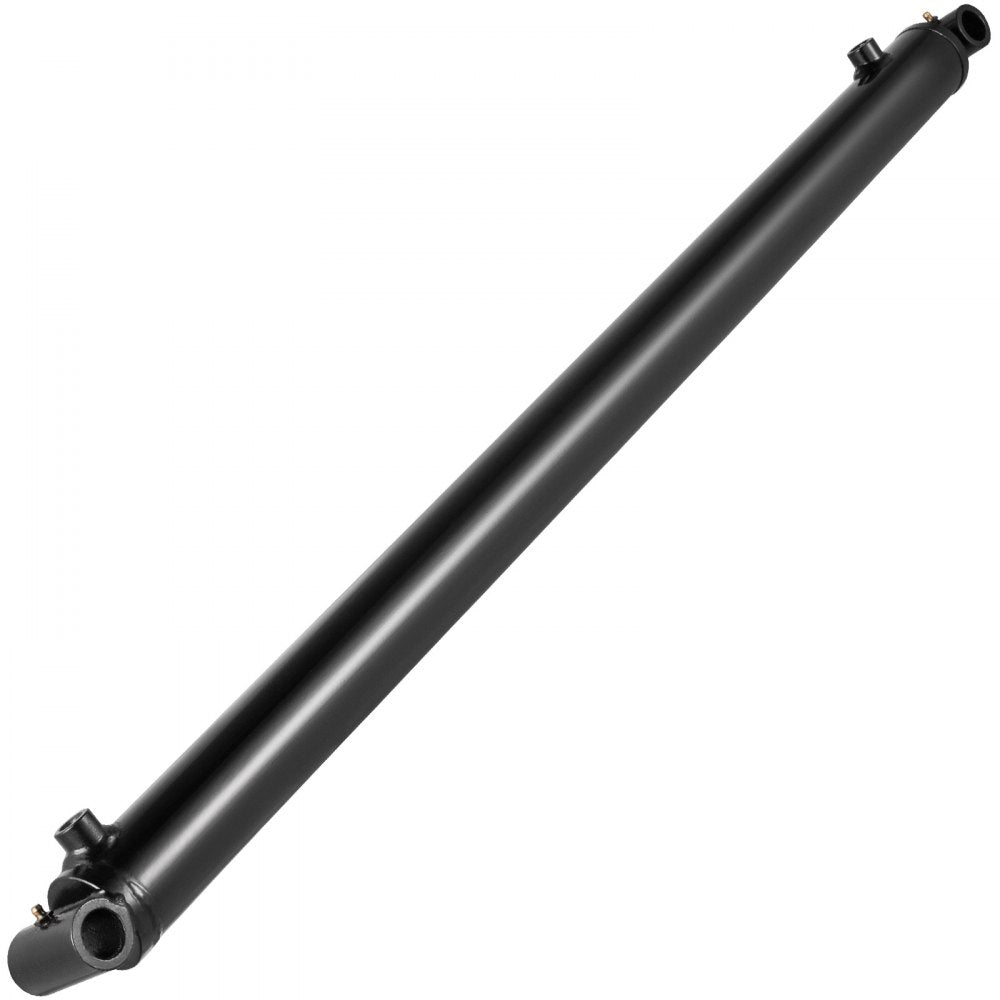

Vevor Hydraulic Cylinder 2" Bore 36" Stroke Double Acting Cross Tube New
Manufacturer: Vevor
SKU: YYG2X36YCYYYG0001V0
QTY
(888) 999-1522
$ 175.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hydraulic Cylinder Jack 30 T Ram Stroke 4" Single Acting Hollow New
-
Vevor Hydraulic Directional Control Valve 6-Spool 11 GPM 3600 PSI New
-
Vevor Air Hydraulic Pump 10,000 PSI Foot Operated with Hose and Spray Gun New
-
Vevor Hydraulic Control Valve 2 Spool Directional Double Acting 11 GPM New
-
Vevor Hydraulic Pump 8 Quart Double Acting Power Unit 3200 PSI 12V New
-
Vevor Hydraulic Pump 6 Quart Double Acting Power Unit 3200 PSI 12V New
-
Vevor Hydraulic PTO Pump 21.2 GPM 2250PSI 540 RPM New
-
Vevor Hydraulic Pump Single Acting 4 Quart Power Unit 3200 PSI 12V New
-
Vevor 60 Ton Hydraulic Cylinder Jack 2" Ram Stroke Single Acting Hollow New
-
Vevor Hydraulic Reservoir 10 Gal Steel Oil Tank with Filter & Temp Gauge New
-
Vevor Hydraulic Pump Double Solenoid Double-Acting 4.5 Quart Reservoir 12V DC New
-
Vevor Hydraulic Pump 16.6 GPM 540 RPM 2500PSI SAE 16 and SAE 12 Port for Log Splitters or Tractor...
-
Vevor Electric Car Jack 5-Ton 12V Hydraulic Tire Change Kit New
-
Vevor Hydraulic Hose Crimper Manual with 8 Dies .24" - 1.1" New
-
Vevor Hydraulic Wood Log Splitter Pump Kit 16 GPM 2-Stage 4000 PSI New
-
Vevor Linear Actuator 12V 20" Waterproof IP65 660lbs 0.19"/s with Mounting Bracket New
-
Vevor Long Ram Jack 8-Ton Hydraulic Engine Hoist Cylinder with Double Piston Pump and Clevis Base...
Vevor Hydraulic Cylinder 2" Bore 36" Stroke Double Acting Cross Tube New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

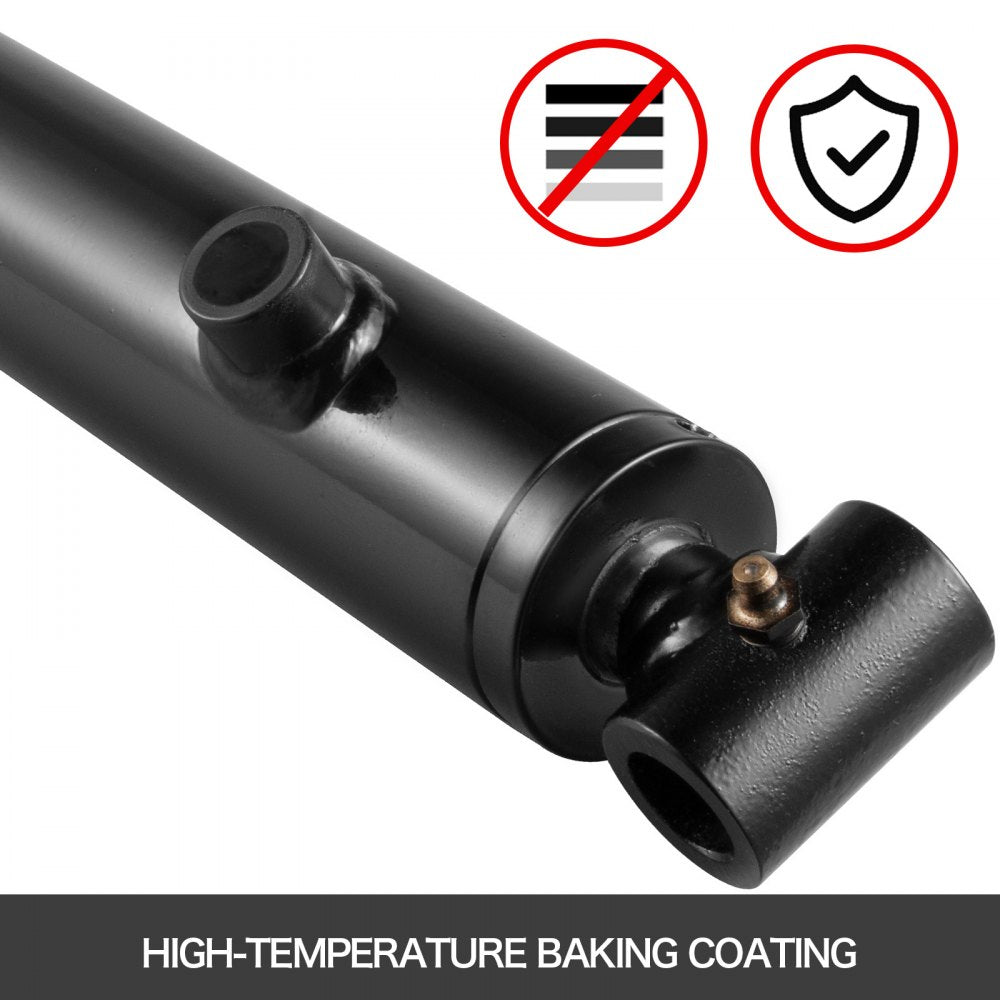

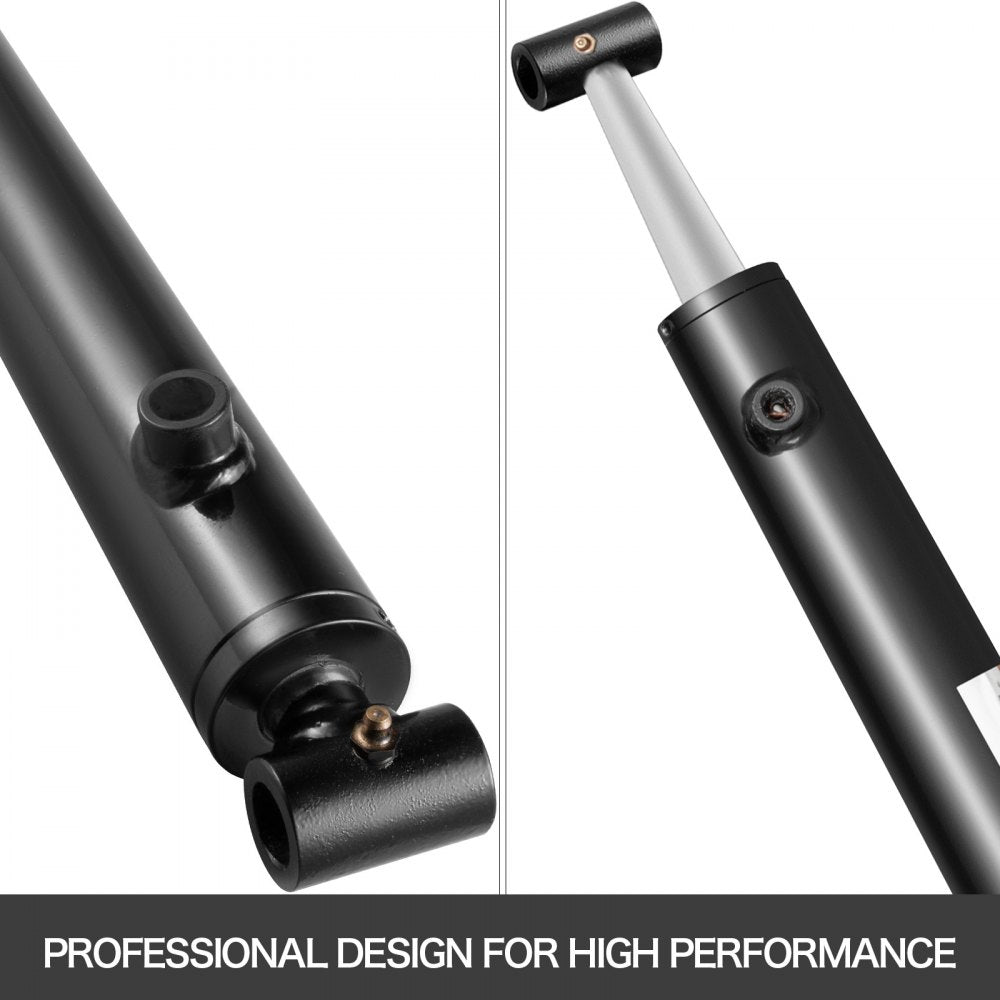

- RIGID WELDED CONSTRUCTION: - Rigid welded construction, high tensile welded steel end mounts, threaded gland and top quality seal components allow cylinders to work in harsh conditions.

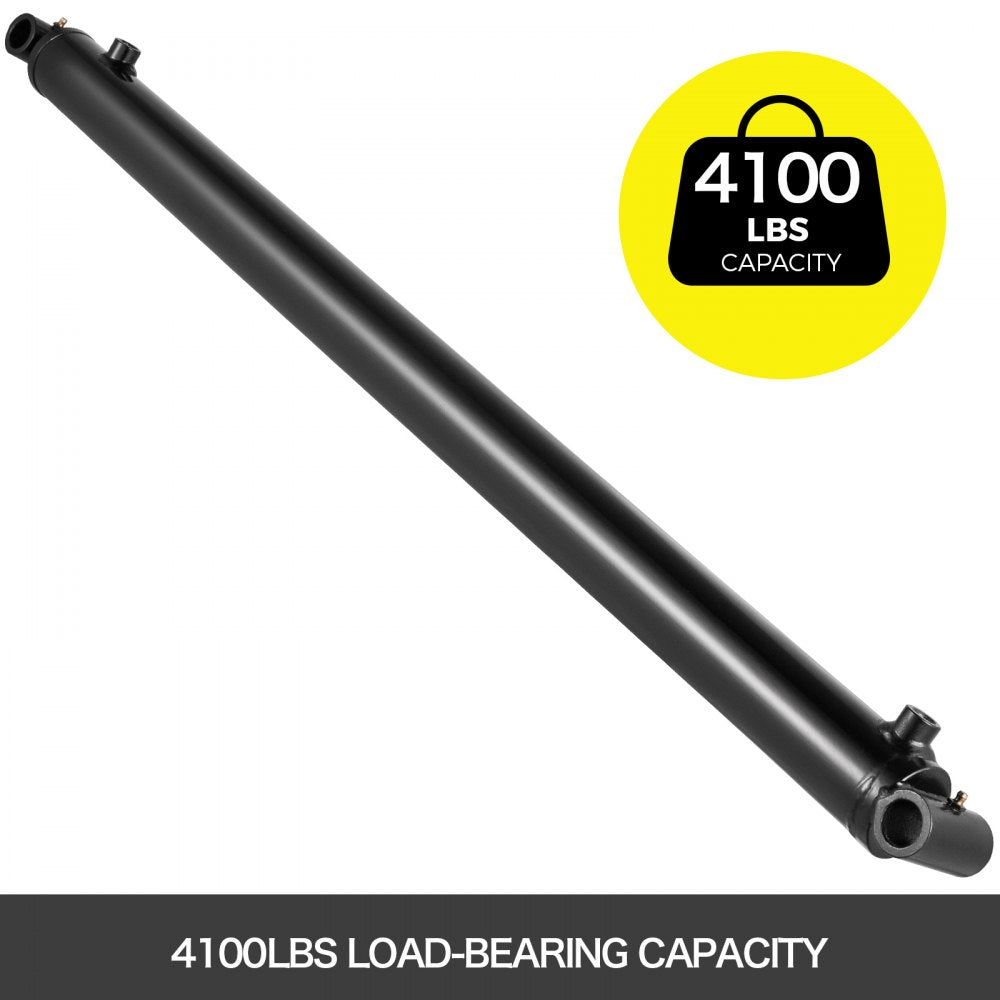

- MAX LOAD-BEARING CAPACITY: - This hydraulic cylinder bore is 50mm/2inch, the longest Length is 2032mm/80inch, and the max load-bearing capacity is 4100 LBS.
- STABLE SEALING PERFORMANCE: - All cylinders are fully and easily maintainable and repairable. Each cylinder is pressure tested at 150% of its working pressure before packing and shipping.
- CONVENIENT TO ASSEMBLE: - All the components of this hydraulic cylinder are fully tested, well-designed, very sturdy and compact, easily to install and to disassemble.

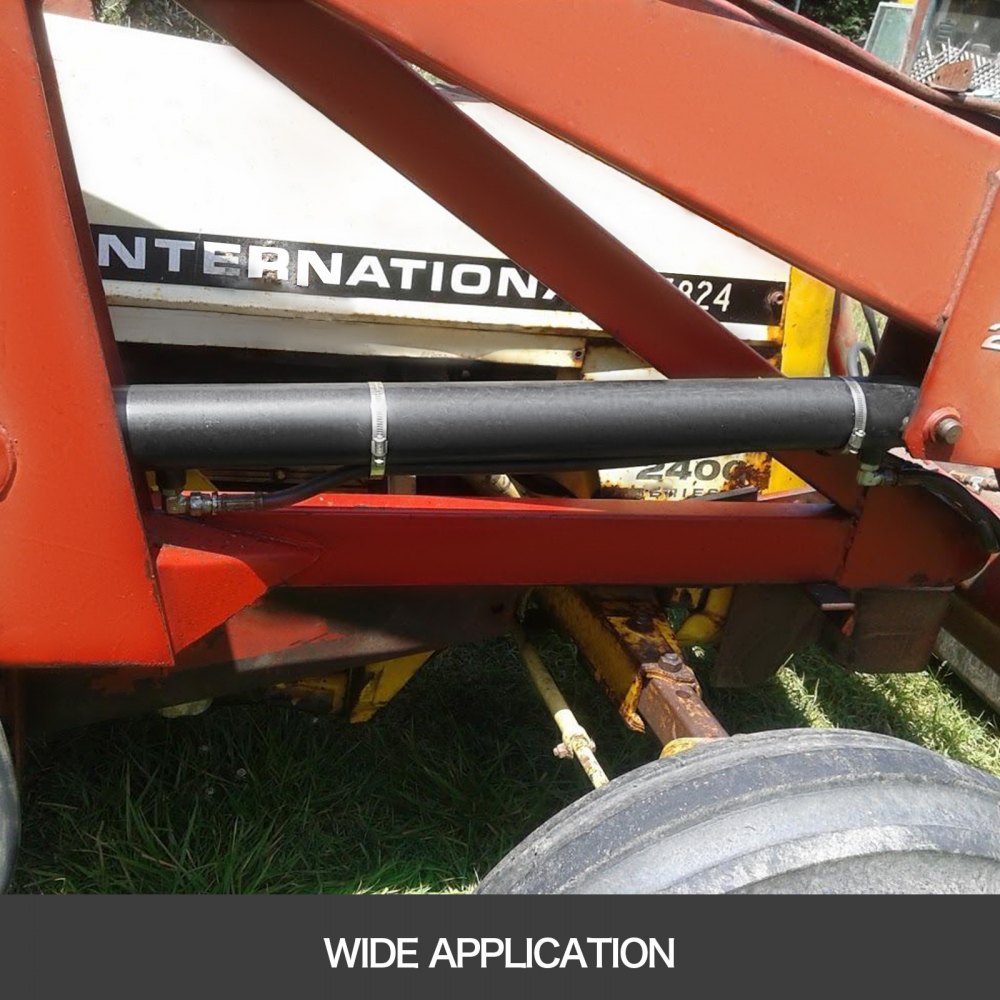

- WIDE APPLICATION: - The product created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.

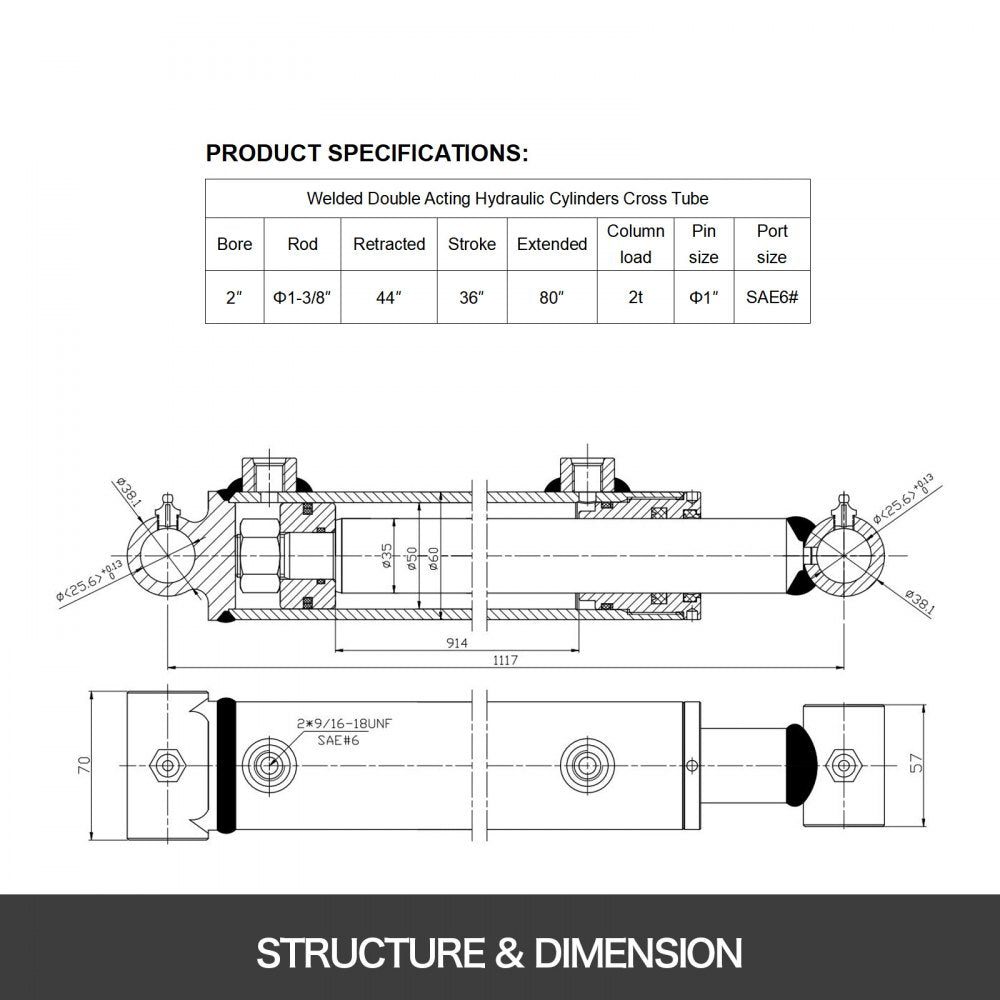

Specifications
| Cylinder Bore | 50mm / 2" |
| Stroke | 914mm / 36" |
| Pin | 26mm / 1.0" |
| Diameter Of Piston Rod | 35mm / 1.3" |

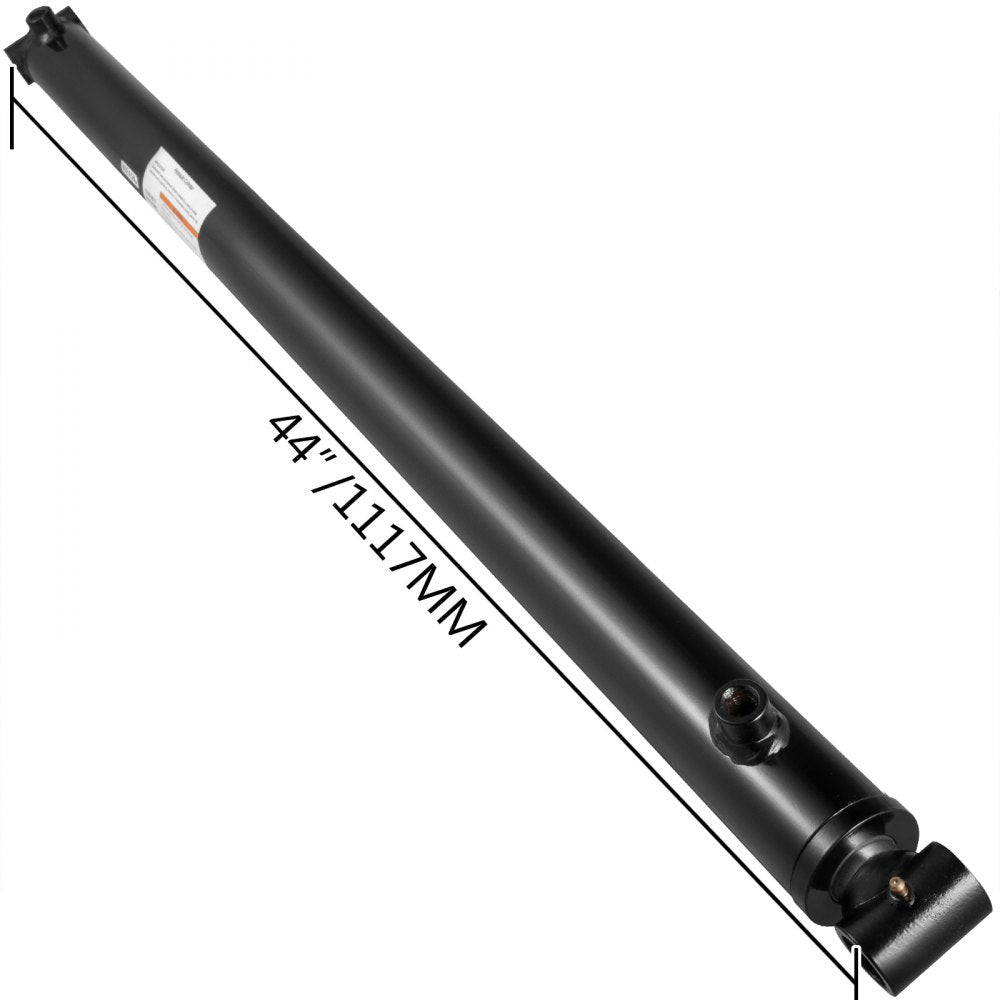

| Minimum Length | 1117mm / 43.9" |
| Max Length | 2032mm / 80.0" |
| Max Load-Bearing Capacity | 4100 lbs |
| Port Size | SAE6 |
| Work Pressure | 3500 PSI |
| Weight | 33 lbs / 15 kg |
| Packing Size | 1160mm x 85mm x 85mm / 45.6" x 3.3" x 3.3" |

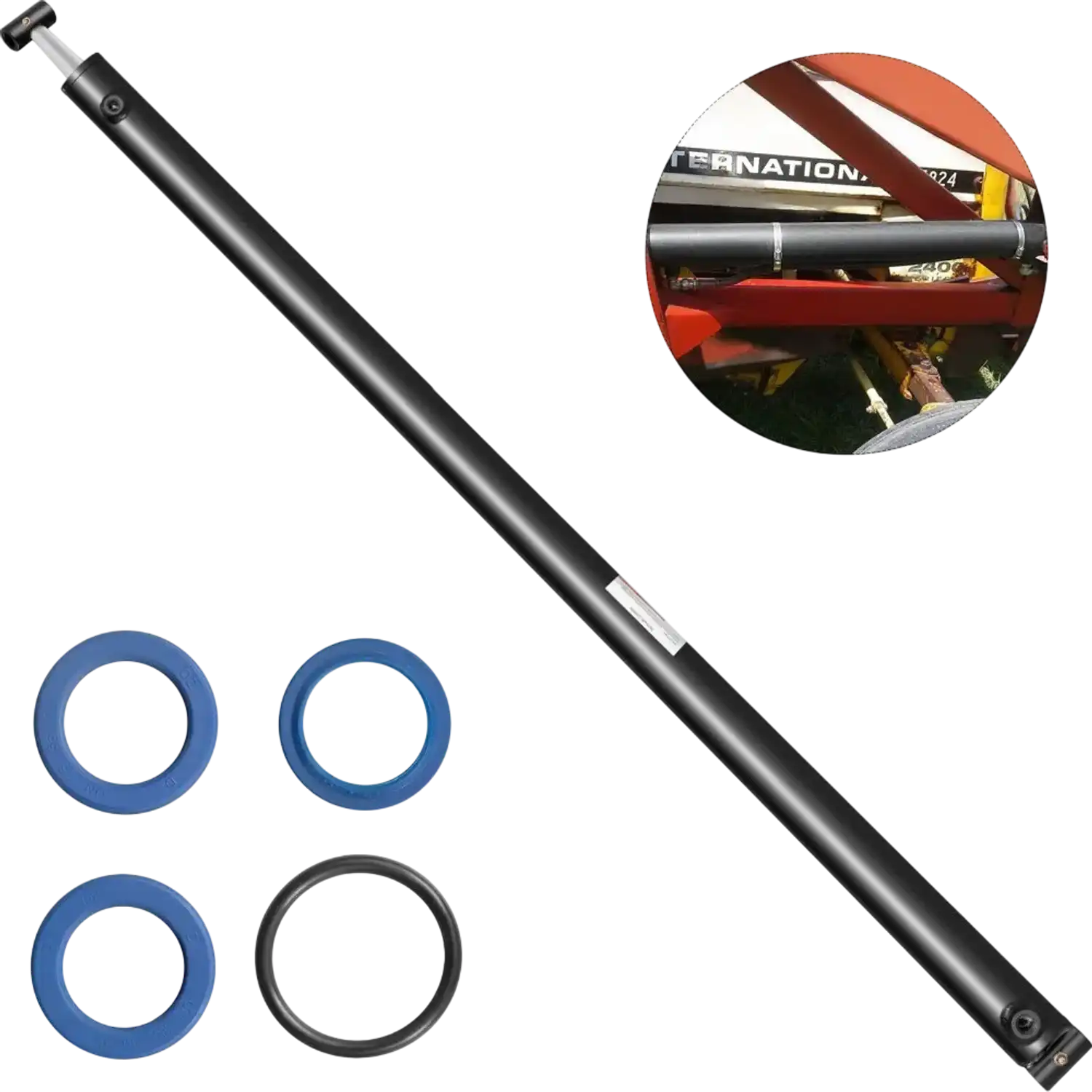

Package Contents
1 x Hydraulic Cylinder

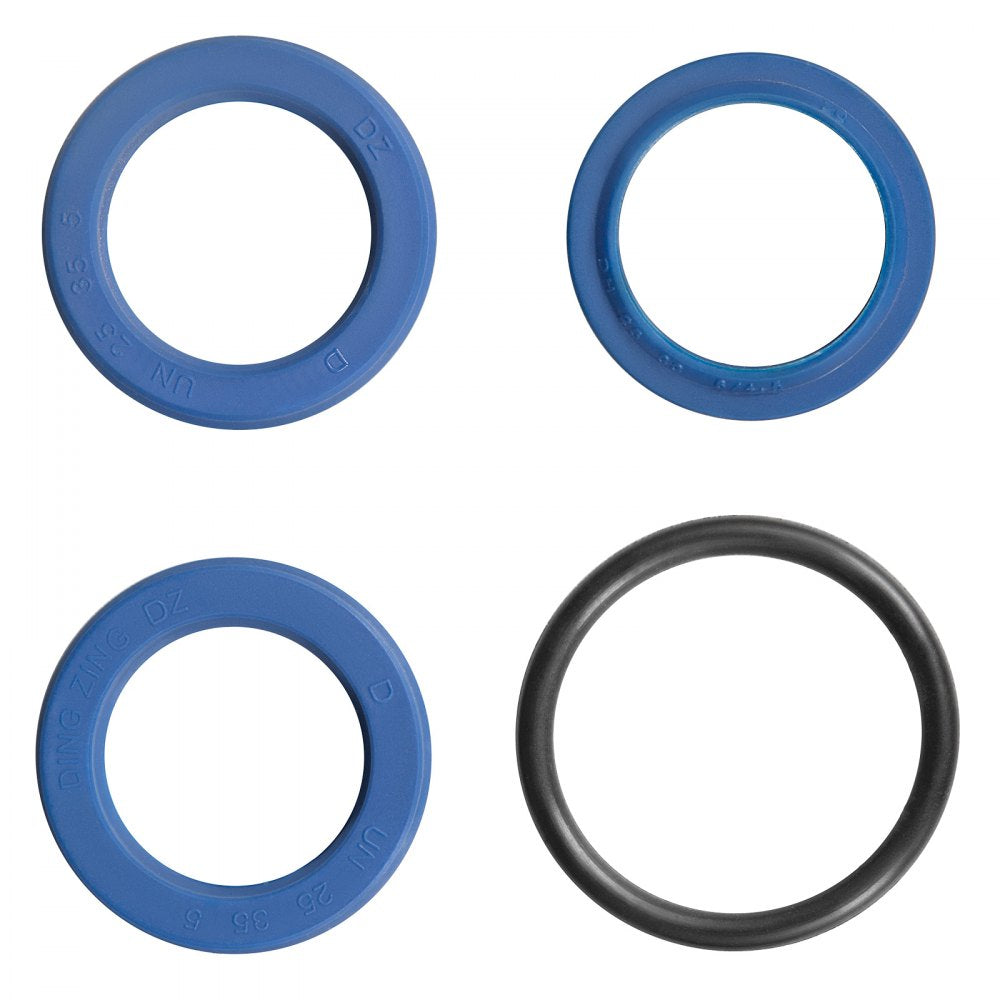

1 x Seal Ring Set
Warranty
This item comes with a 1 year factory warranty.
