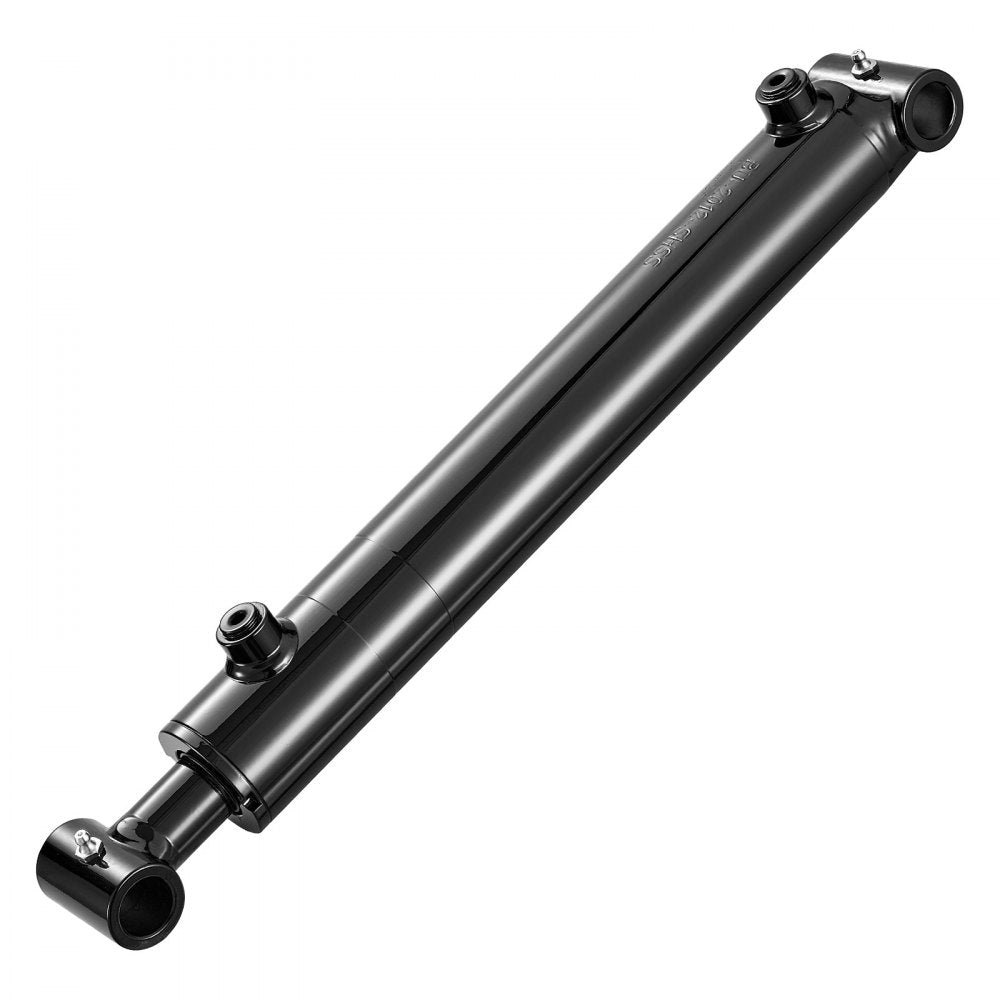

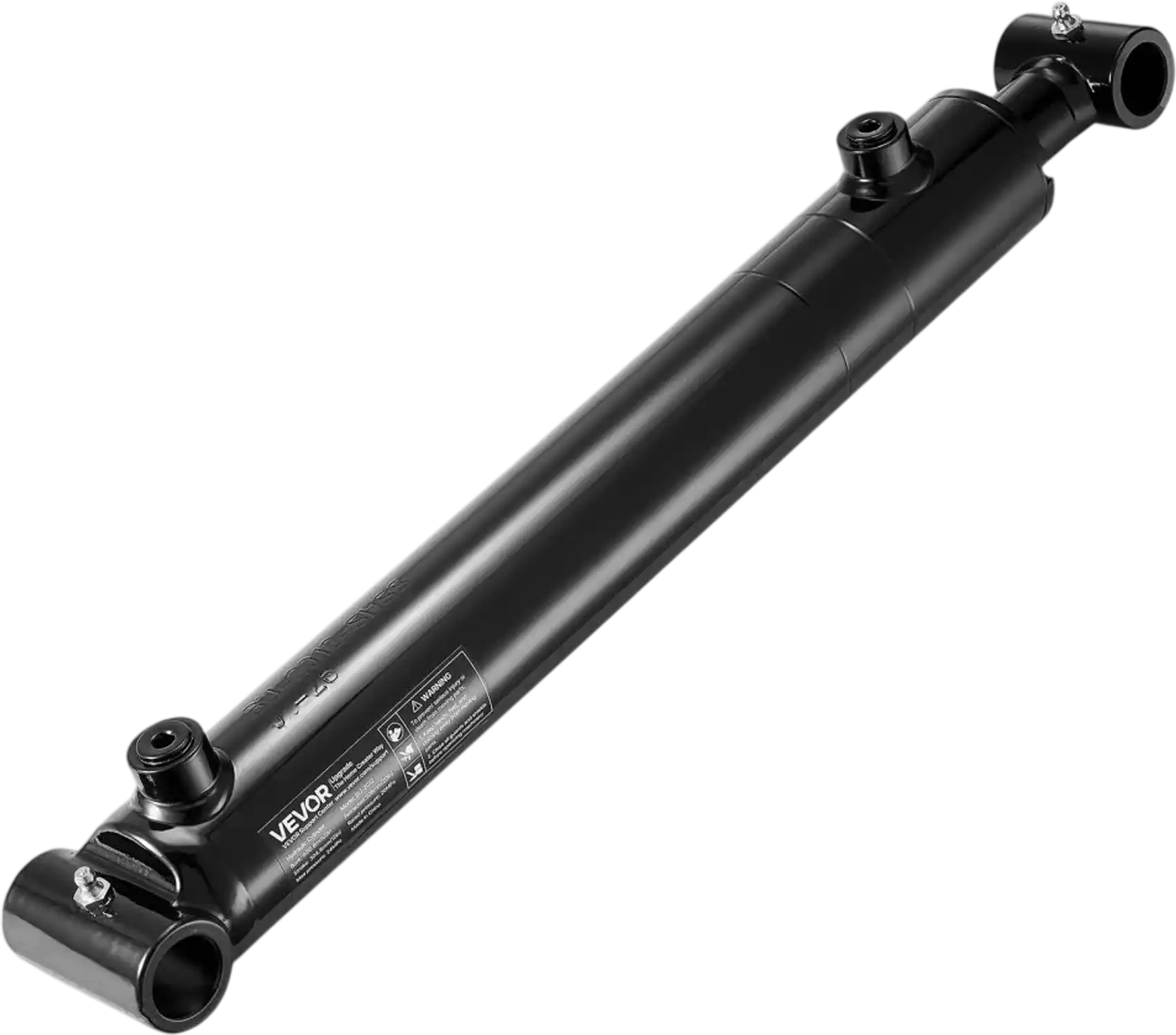

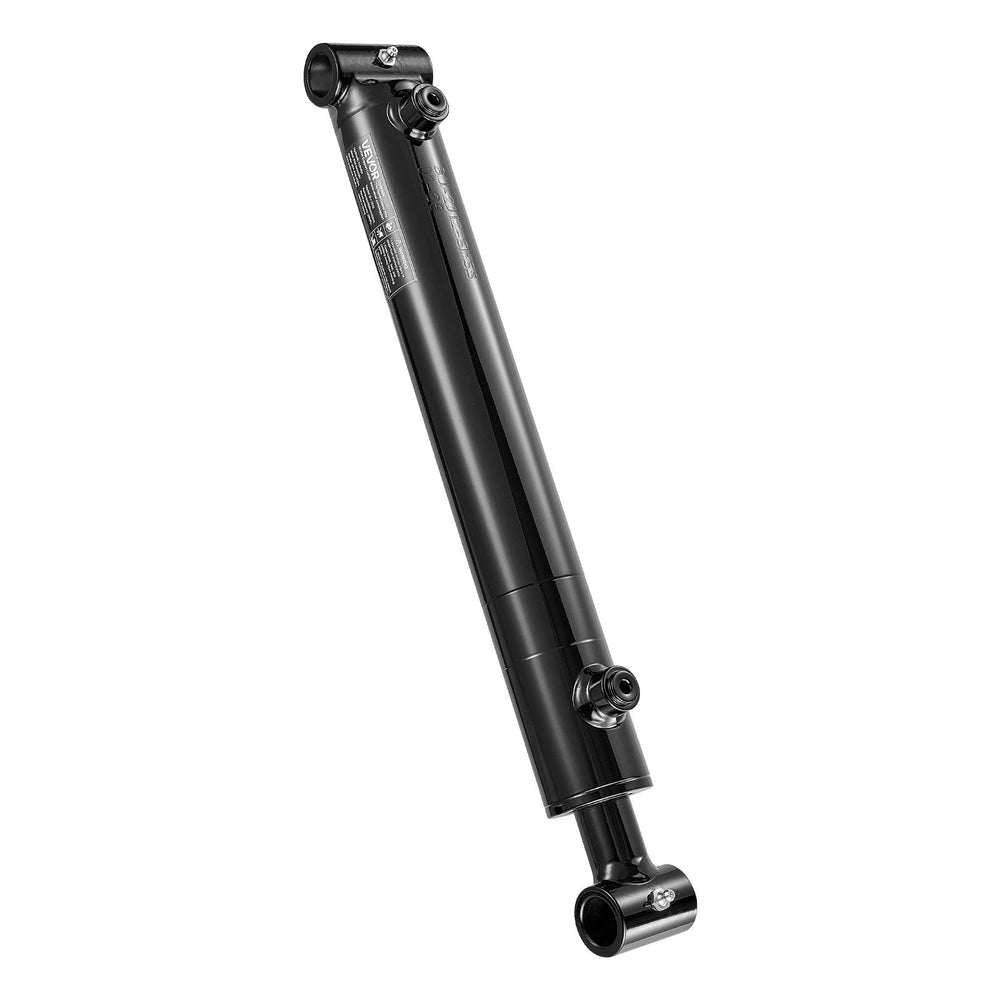

Vevor Hydraulic Cylinder Double Acting 2" Bore x 12" Stroke 3500 PSI Welded Cross Tube New
Manufacturer: Vevor
SKU: CGSZYYYG2INCY7GAR001V0
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 101.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

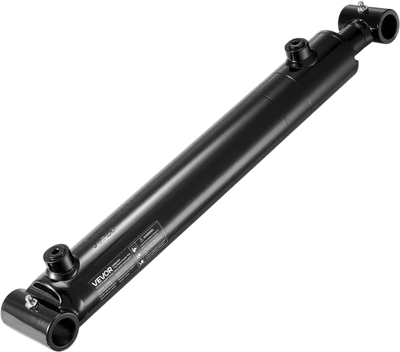

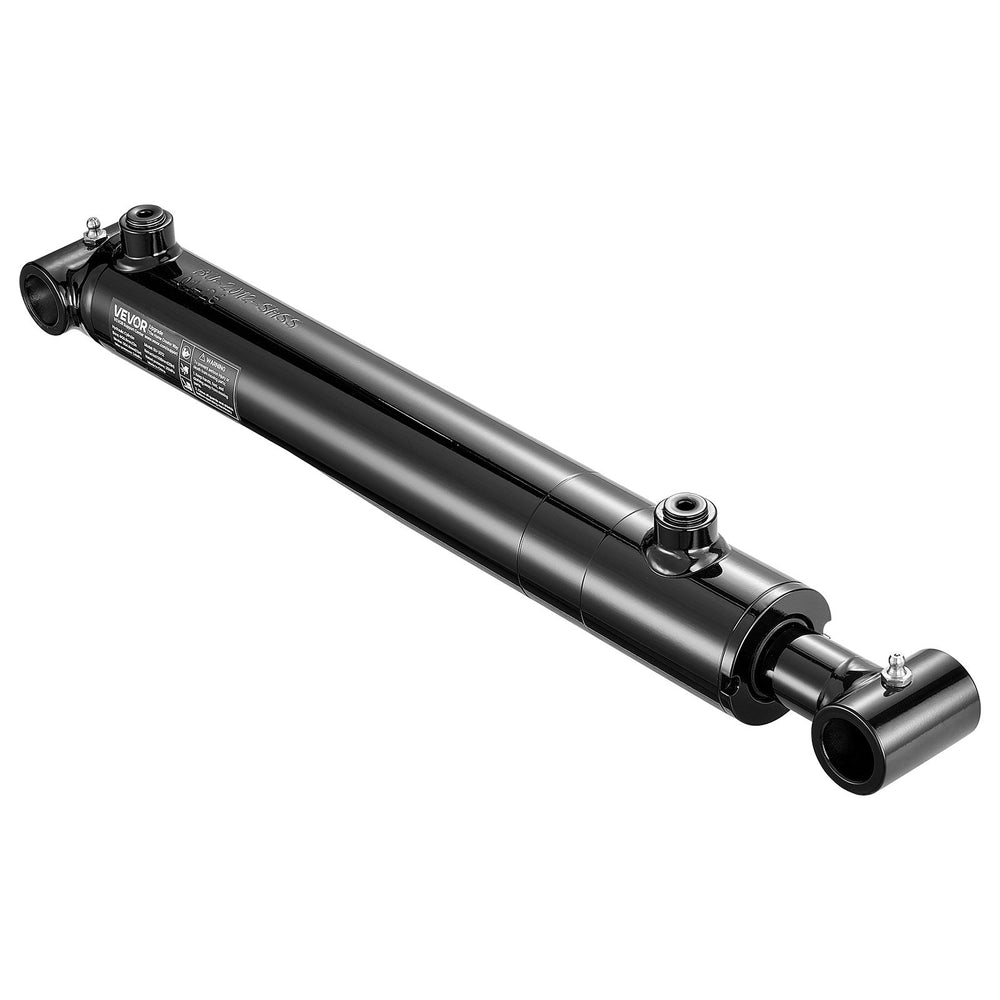

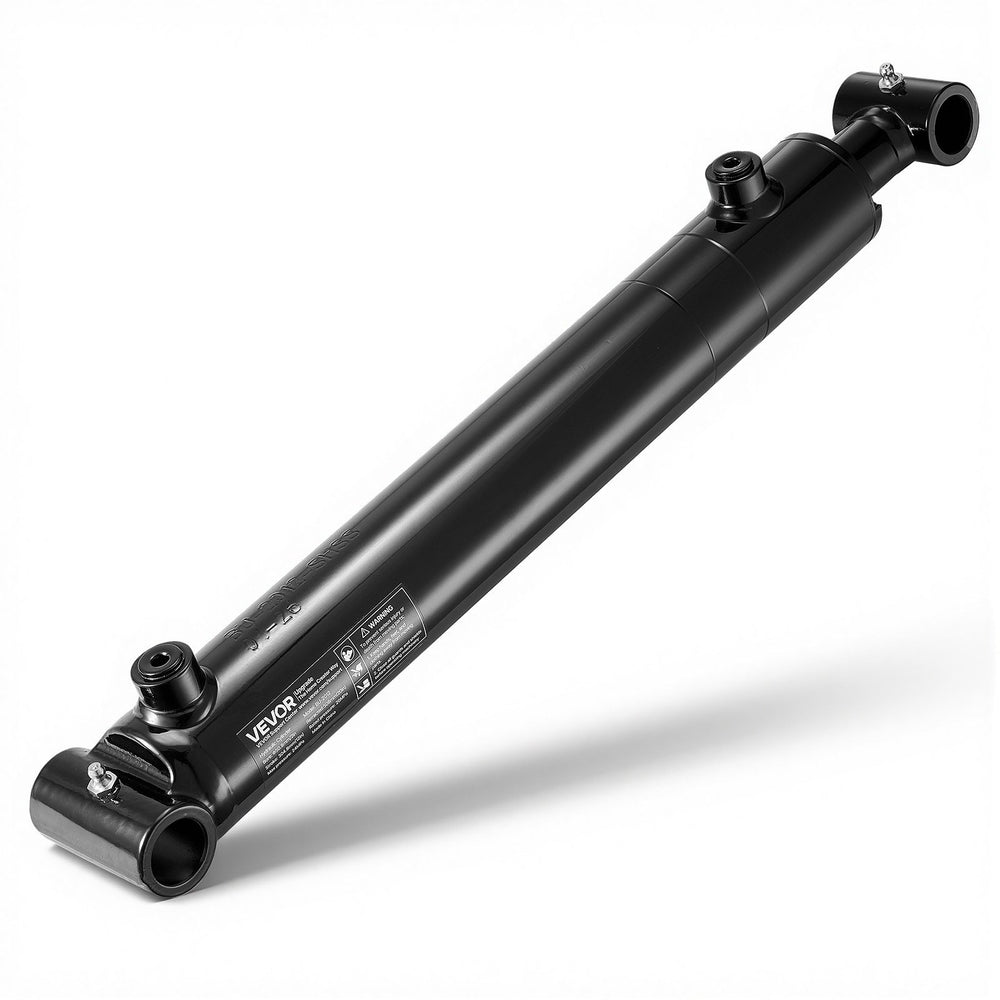

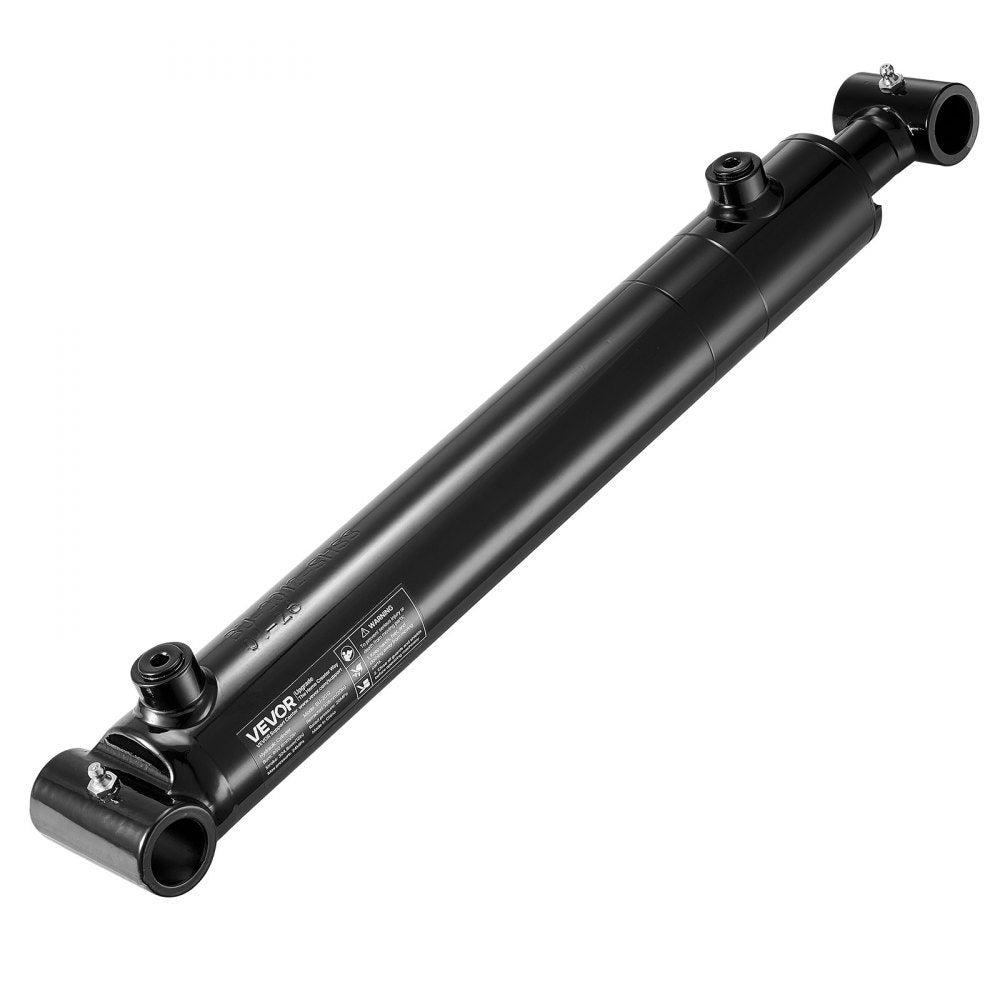

Vevor Hydraulic Cylinder Double Acting 2" Bore x 12" Stroke 3500 PSI Welded Cross Tube New
Product Overview

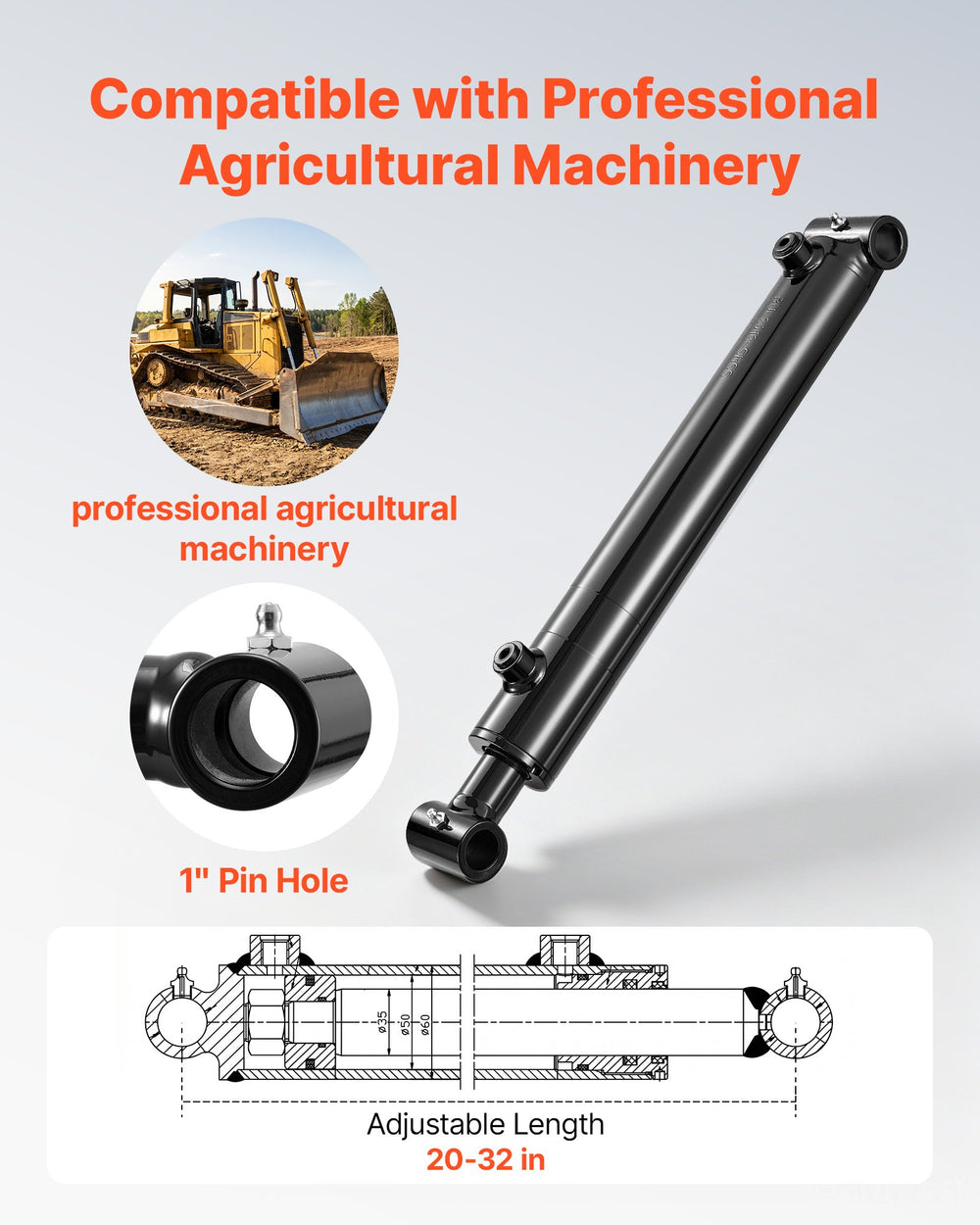

The Vevor double acting hydraulic cylinder is designed to deliver smooth, controlled push-and-pull motion for agricultural machinery and similar equipment. It features a 2" bore, 12" stroke, welded cross tube construction, and a chrome-plated piston rod for durability. With a rated pressure of 2900 PSI and a maximum pressure of 3500 PSI, it is built for demanding hydraulic applications. The high-performance sealing system helps reduce leakage and maintain stable pressure during operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features
- Key Specifications: Bore: 2 in (50.8 mm), Stroke: 12 in (305 mm), Retracted Length: 20 in (508 mm), Extended Length: 32 in (813 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in

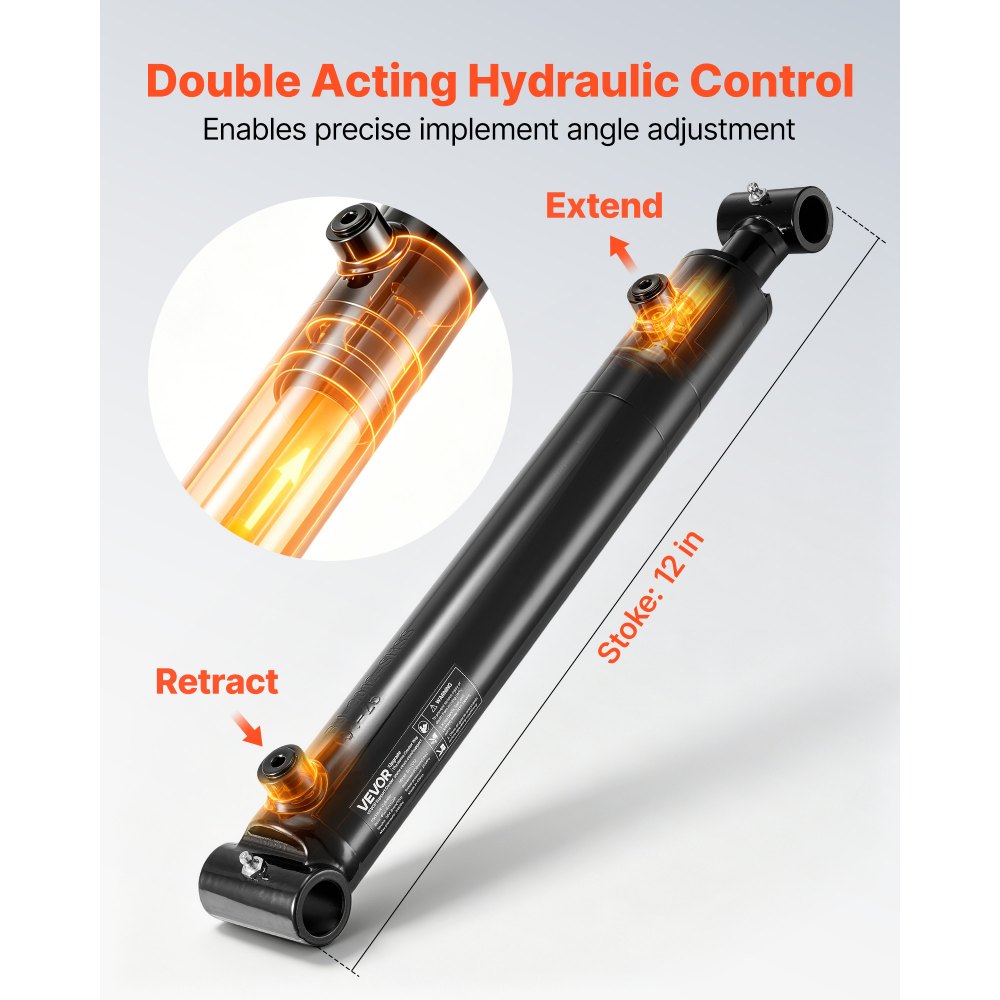

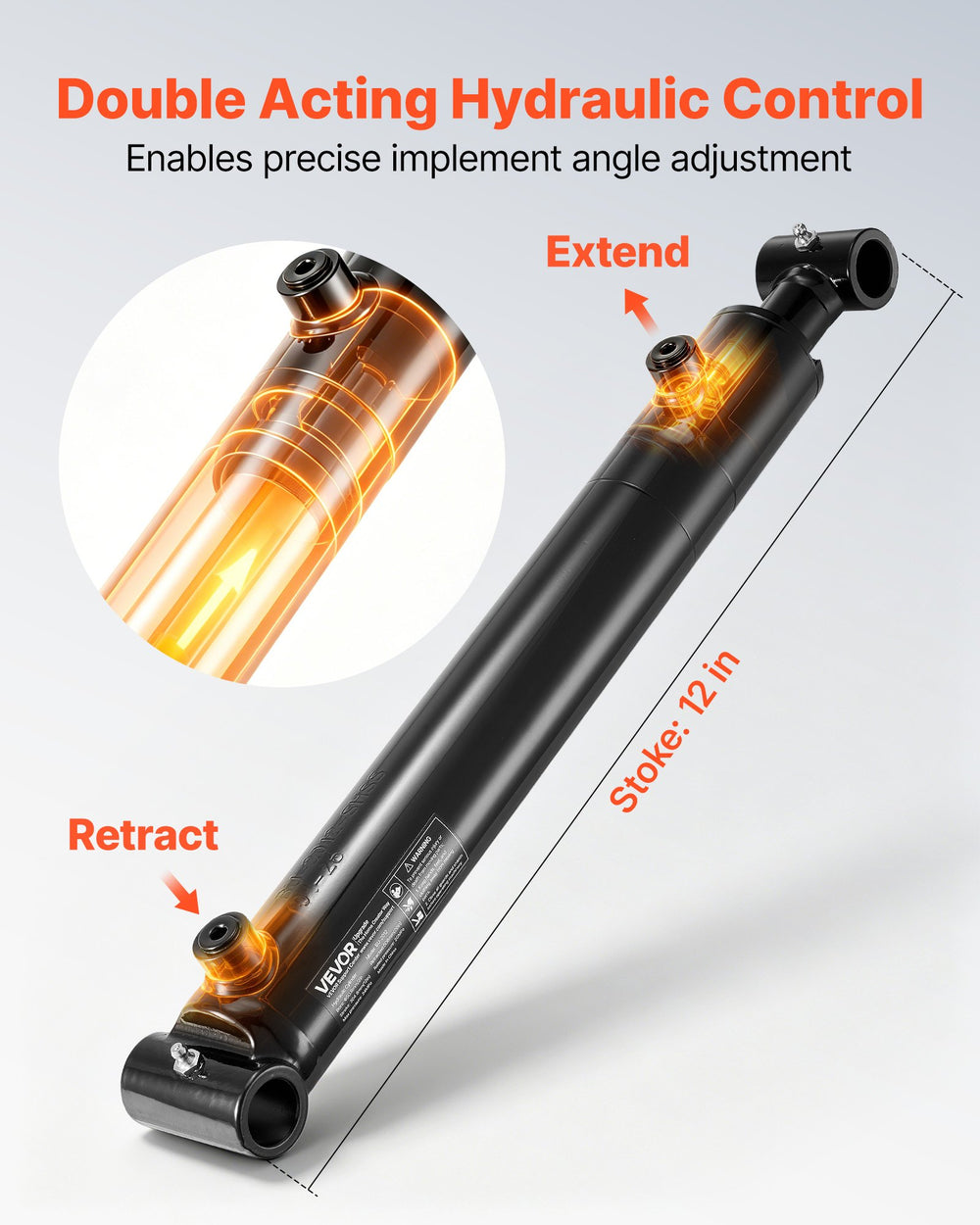

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation

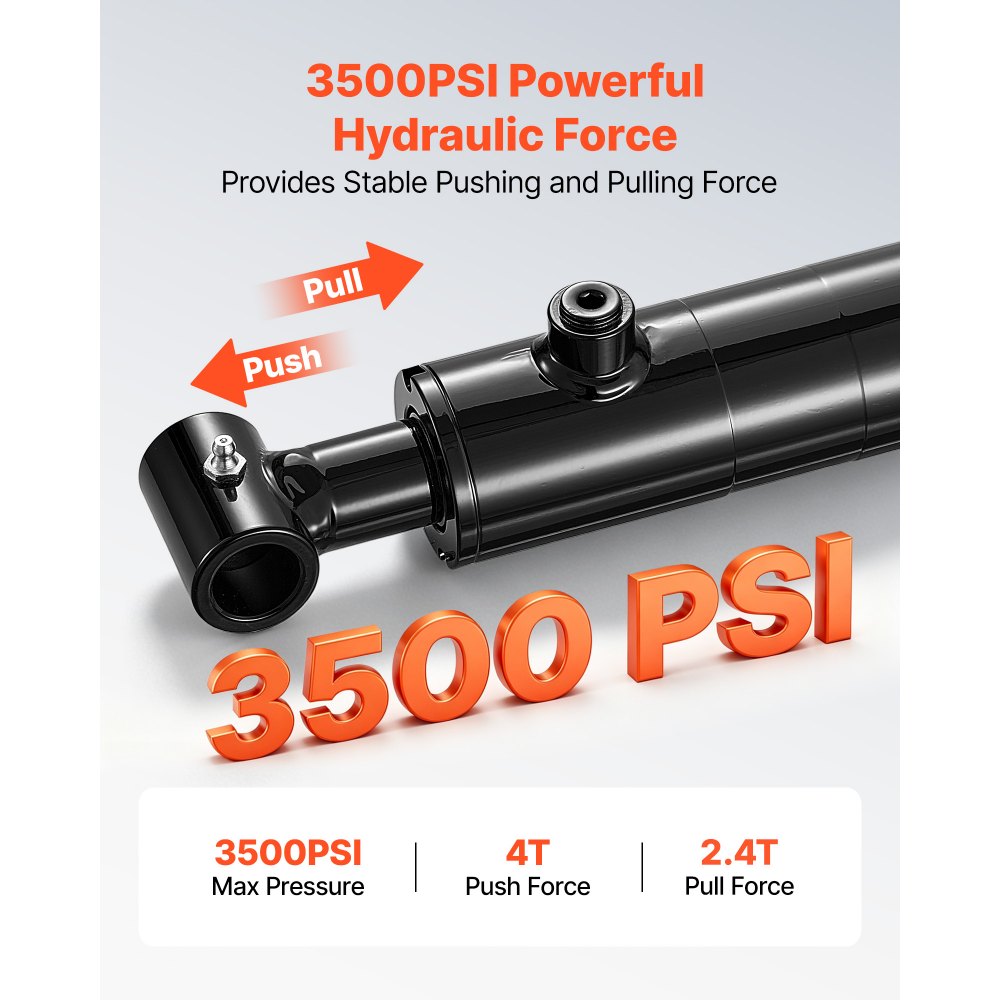

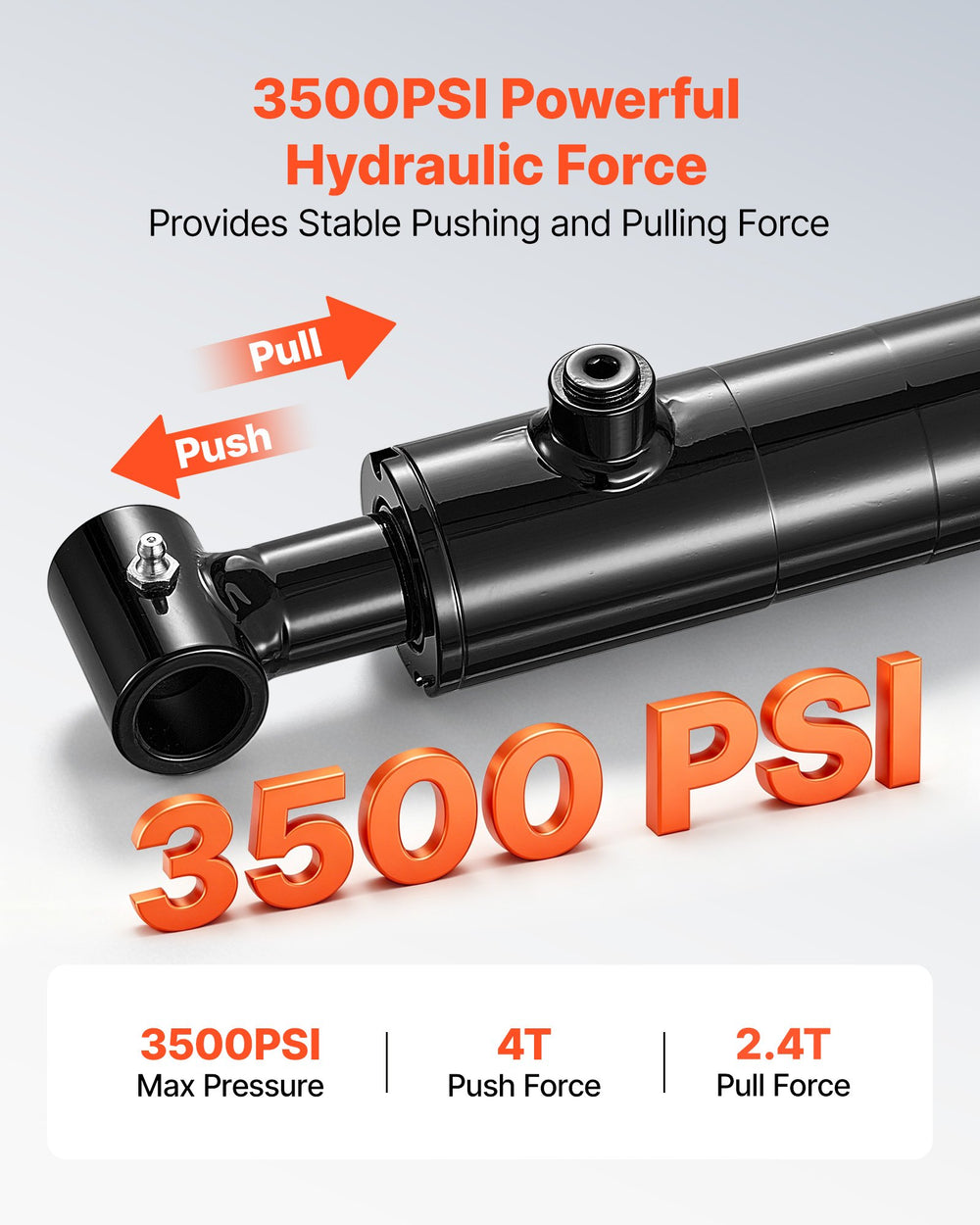

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency
- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 4568 lbs (2.07 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

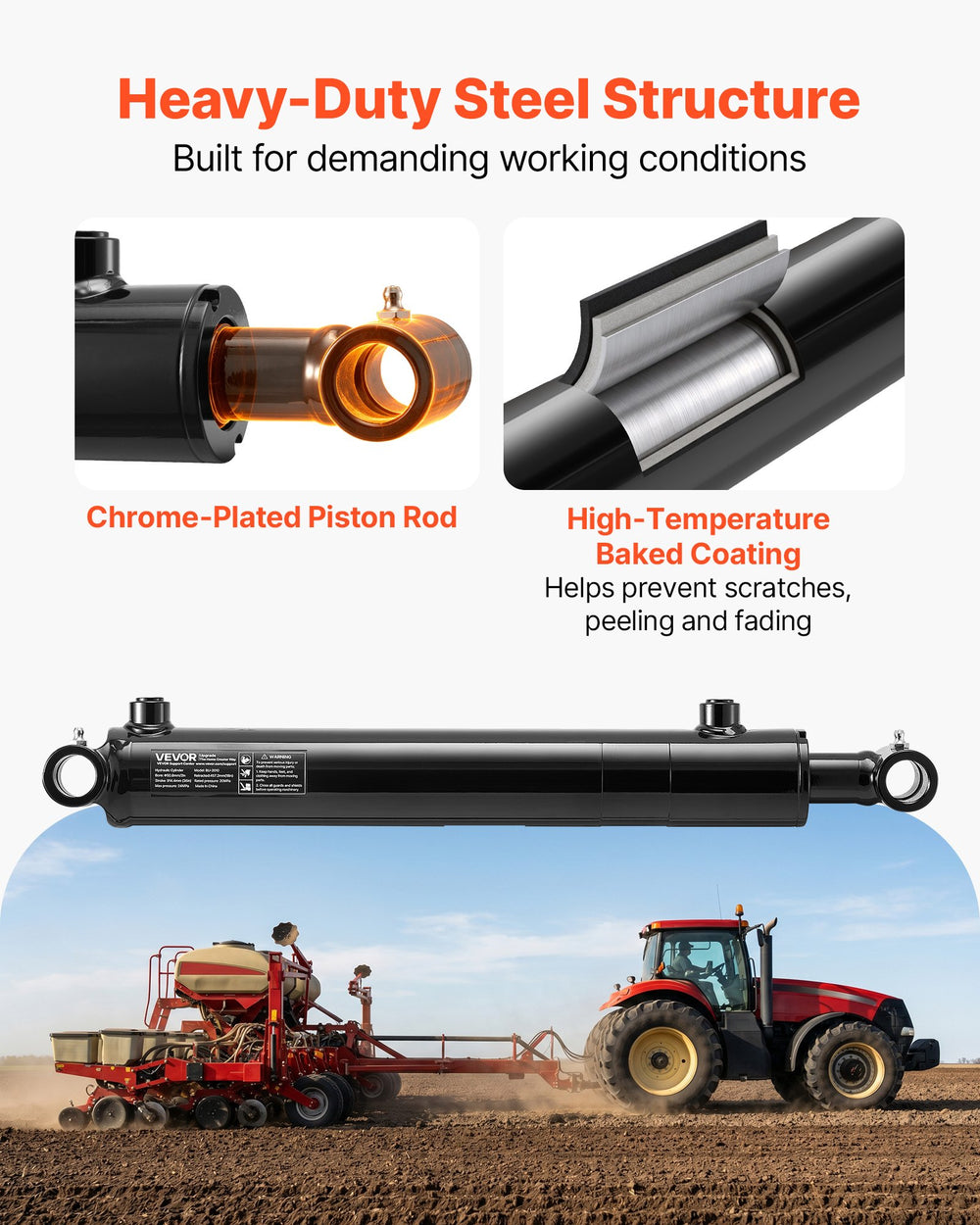

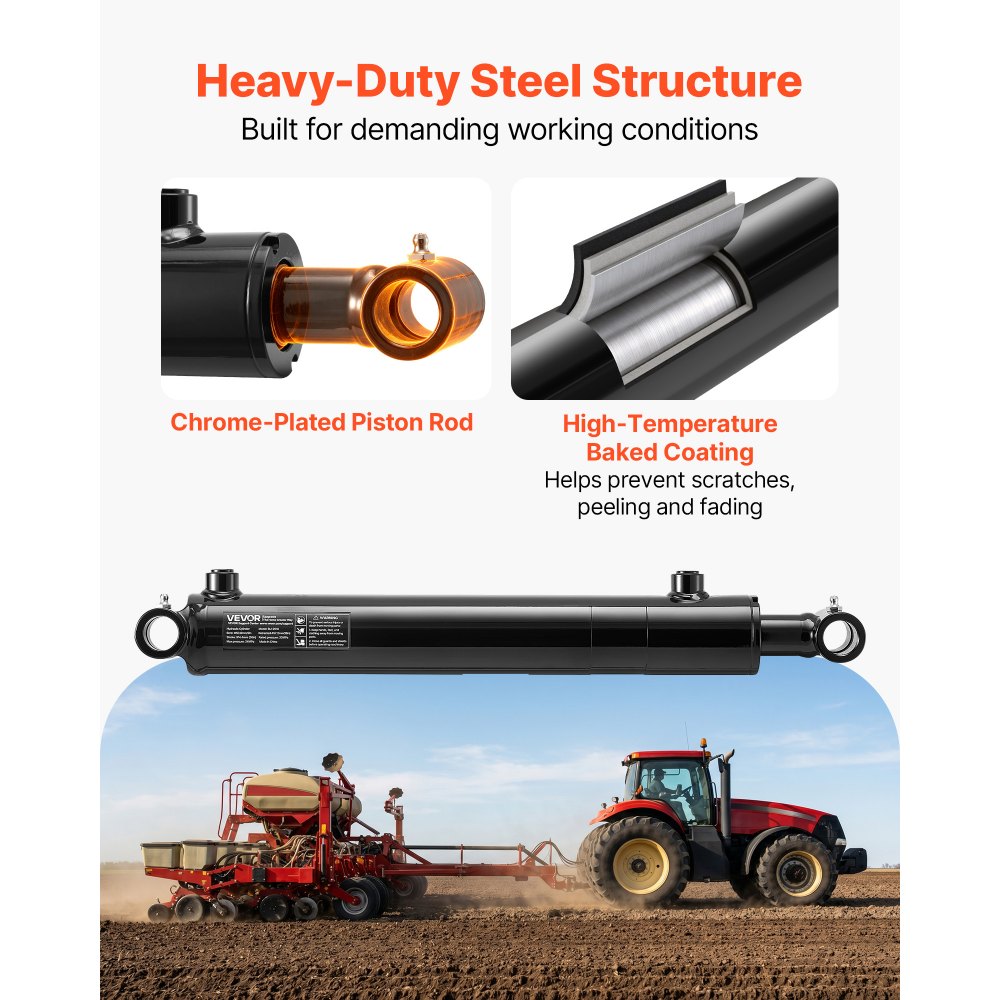

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

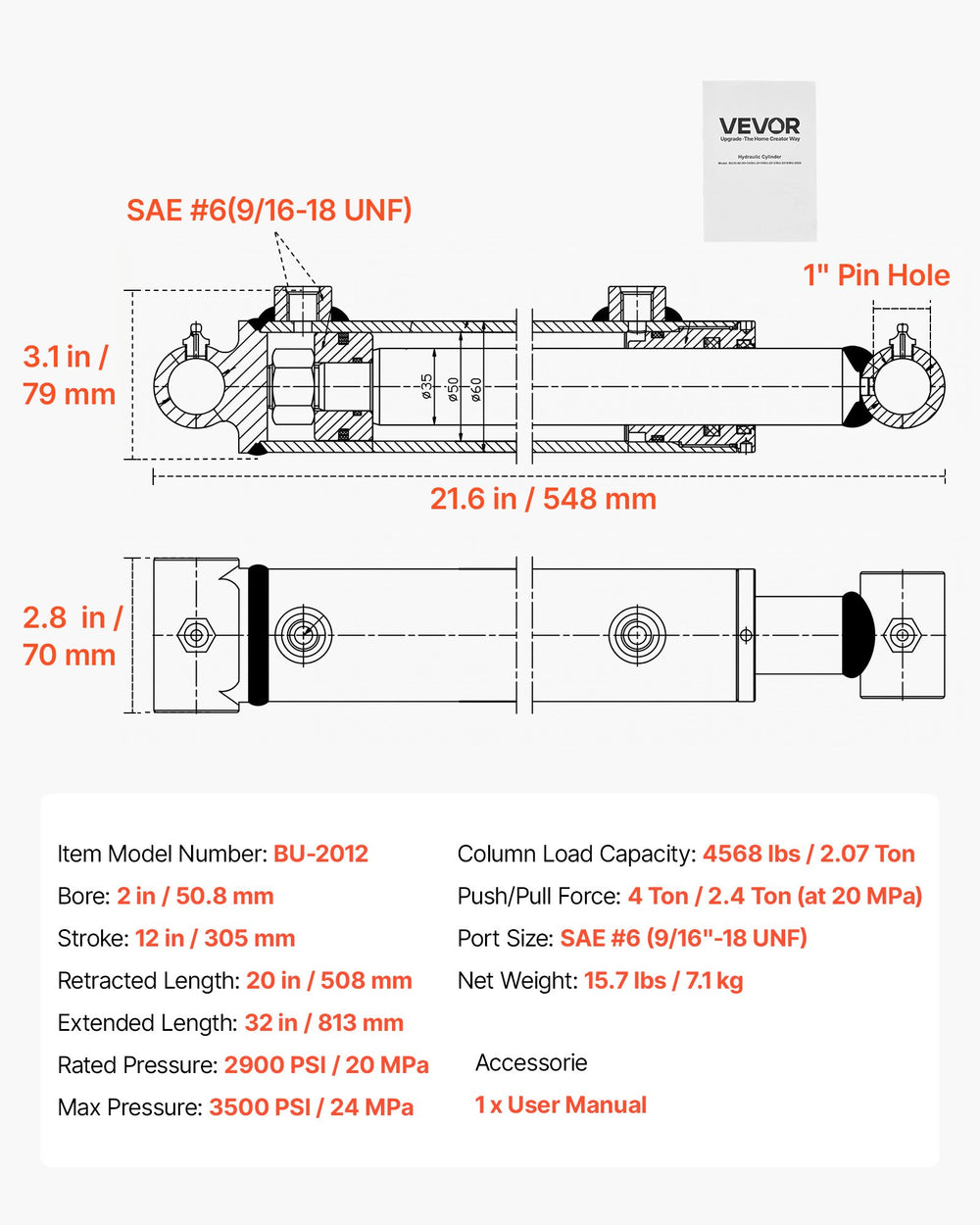

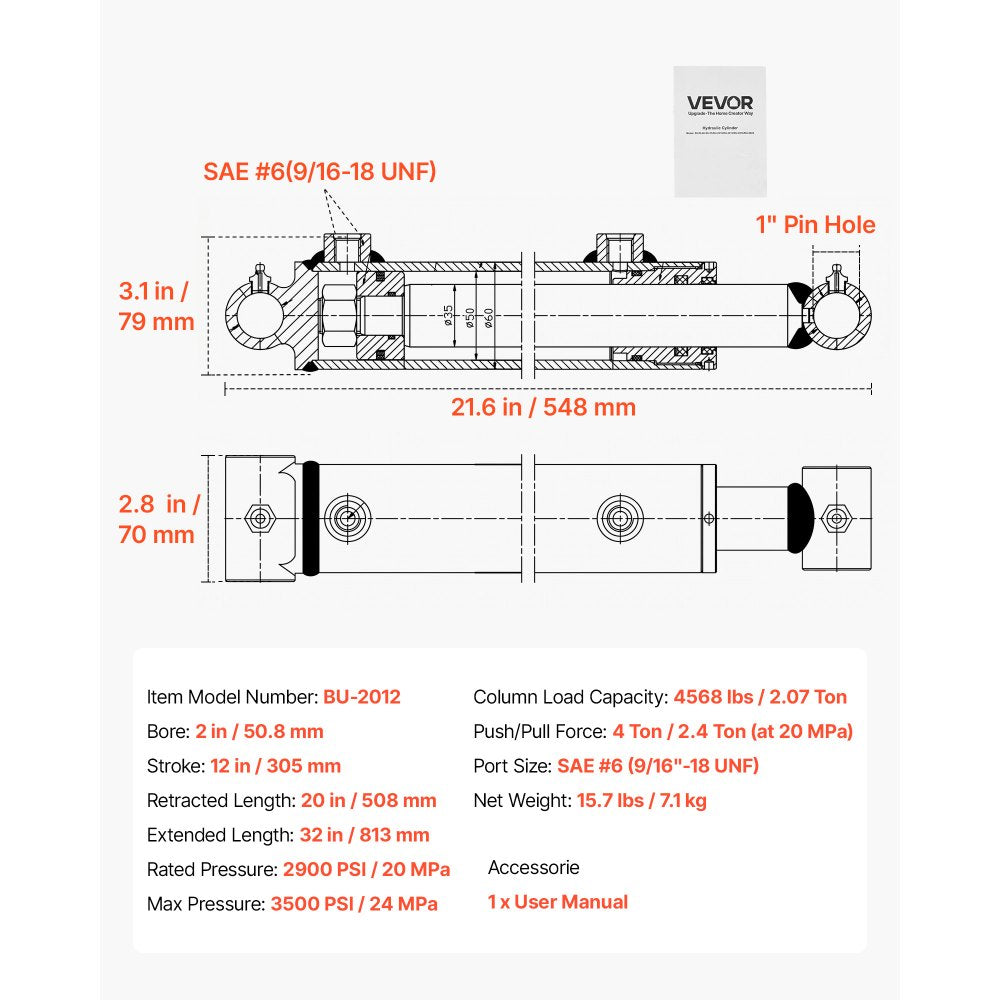

Specifications
| Item Model Number | BU-2012 |
| Bore | 2 in / 50.8 mm |
| Stroke | 12 in / 305 mm |
| Retracted Length | 20 in / 508 mm |
| Extended Length | 32 in / 813 mm |
| Rated Pressure | 2900 PSI / 20 MPa |
| Max Pressure | 3500 PSI / 24 MPa |
| Column Load Capacity | 4568 lbs / 2.07 Ton |
| Push/Pull Force | 4 Ton / 2.4 Ton at 20 MPa |

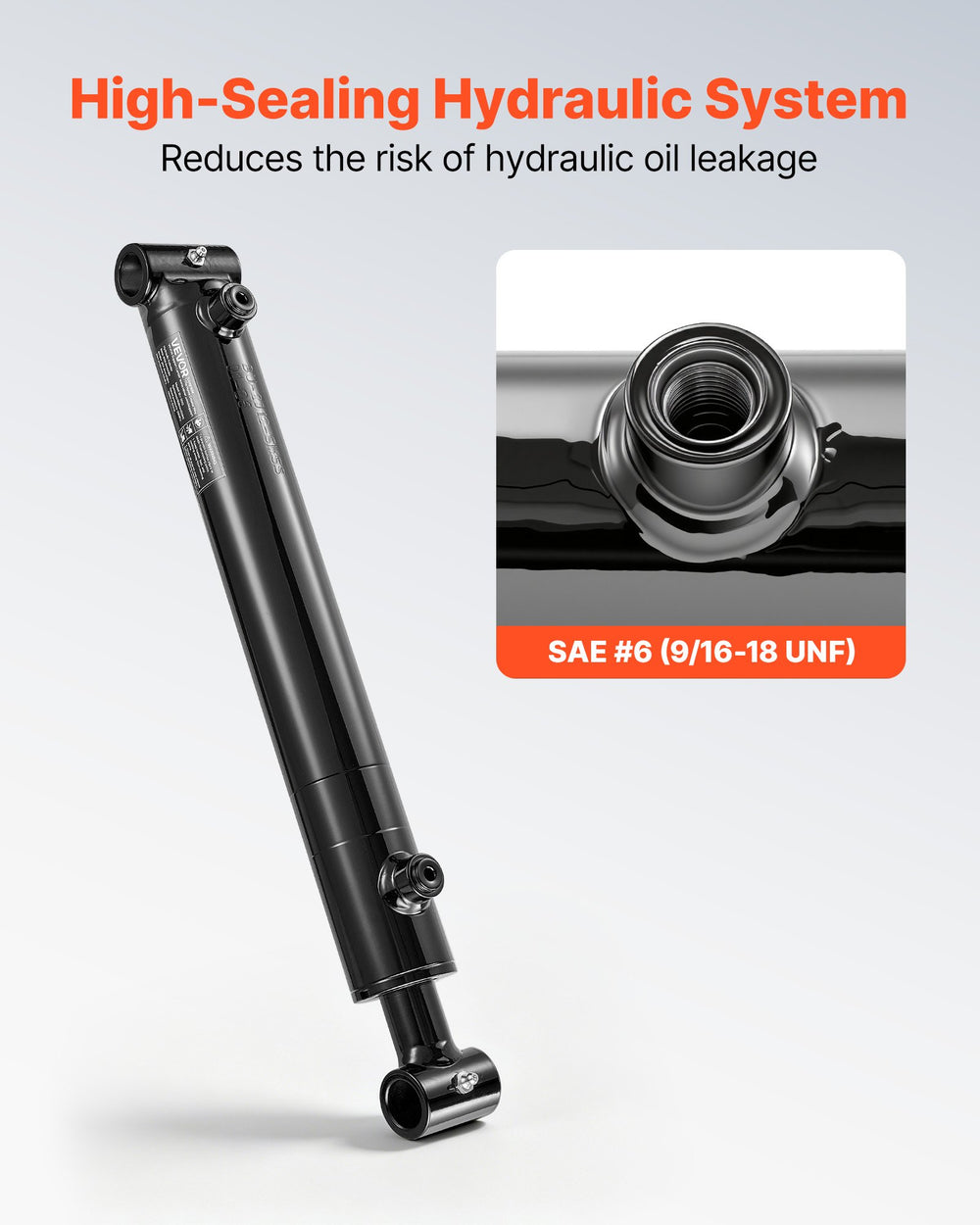

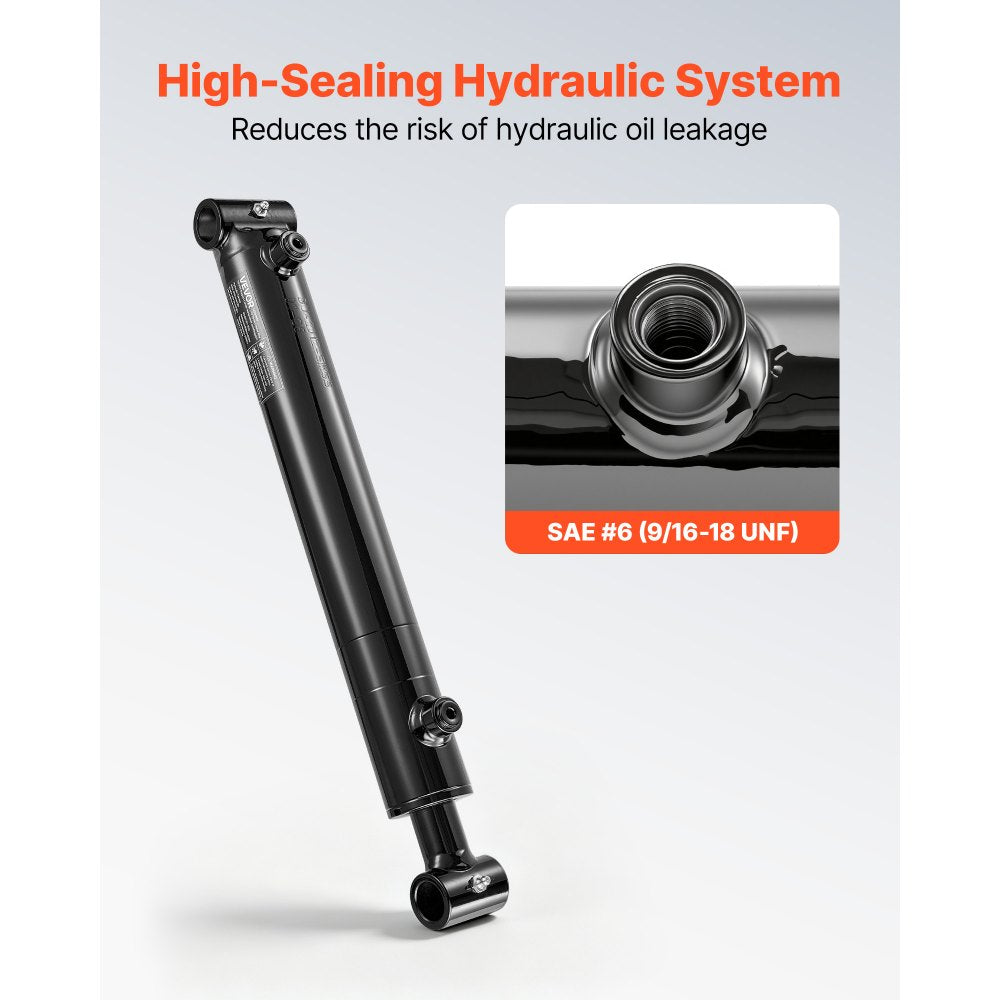

| Port Size | SAE #6 (9/16"-18 UNF) |

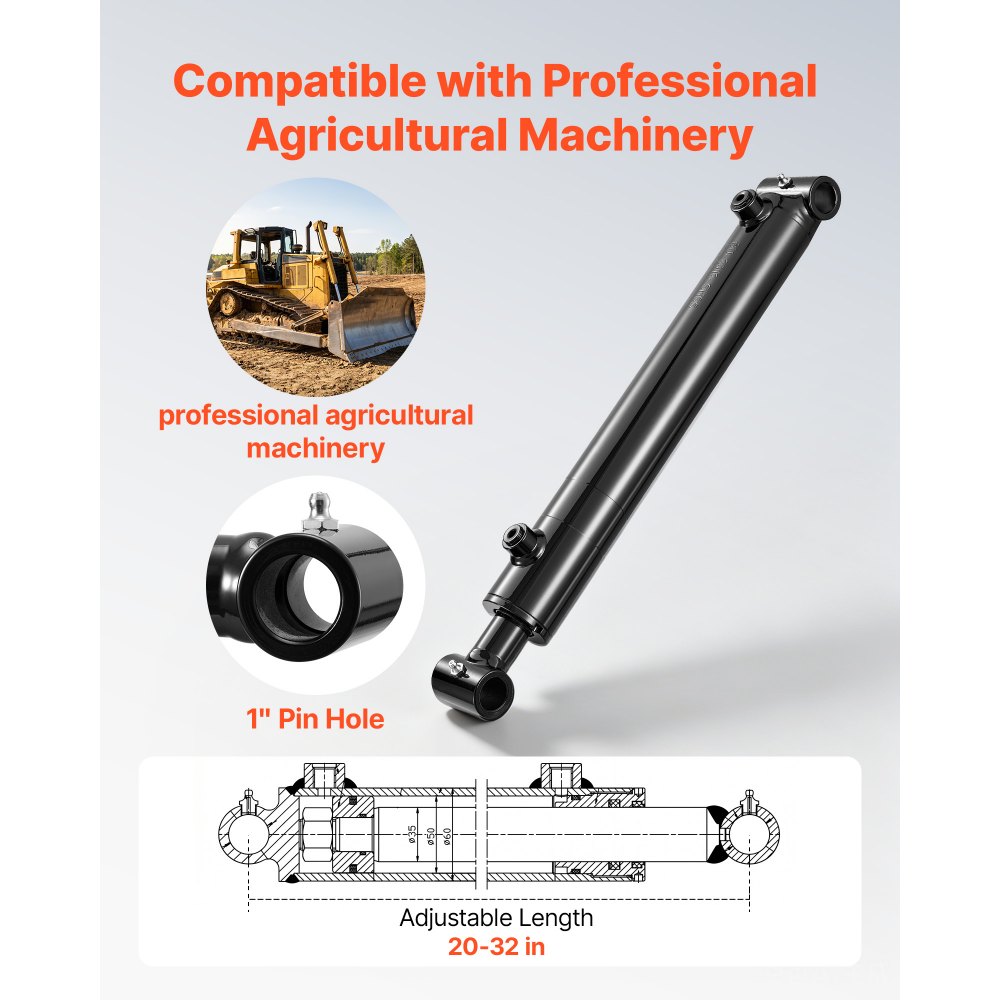

| Pin Hole Diameter | 1 in |
| Net Weight | 15.7 lbs / 7.1 kg |
| Dimensions | 20" retracted length; 32" extended length |
Warranty
This item comes with a 1 year factory warranty.
