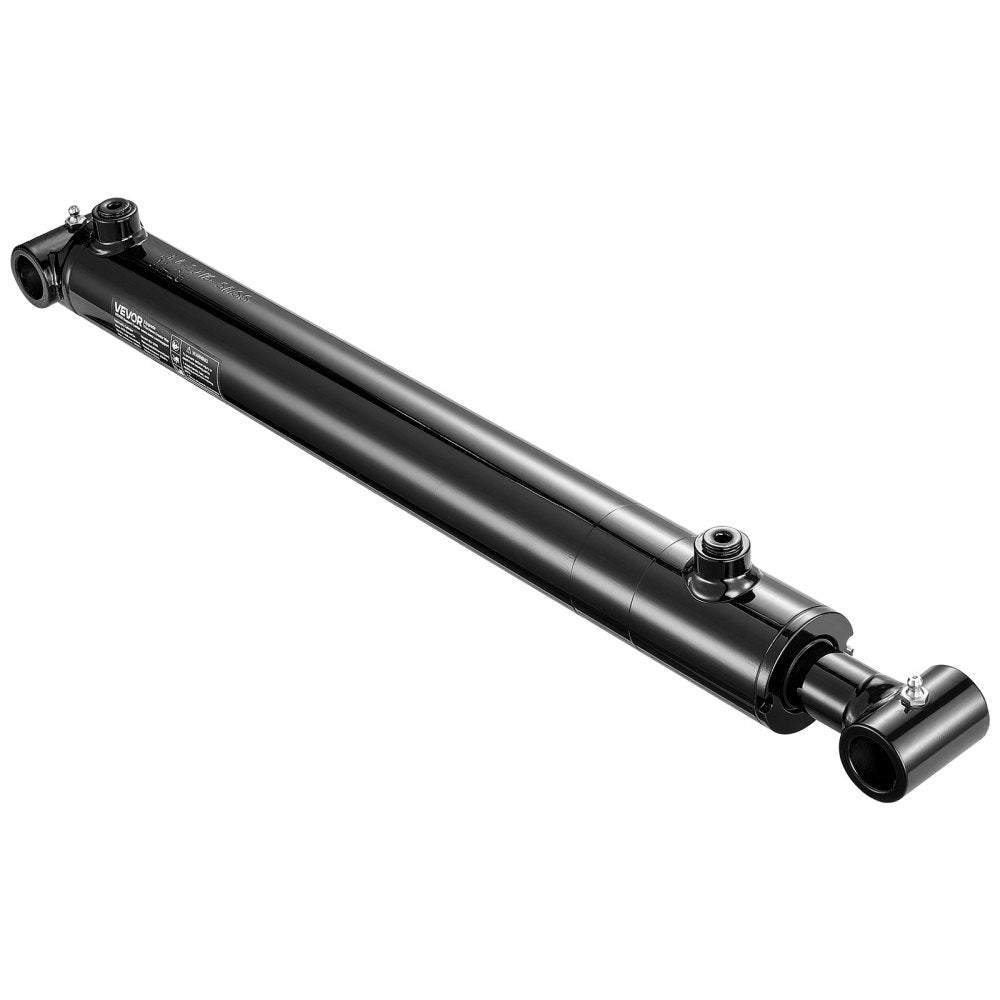

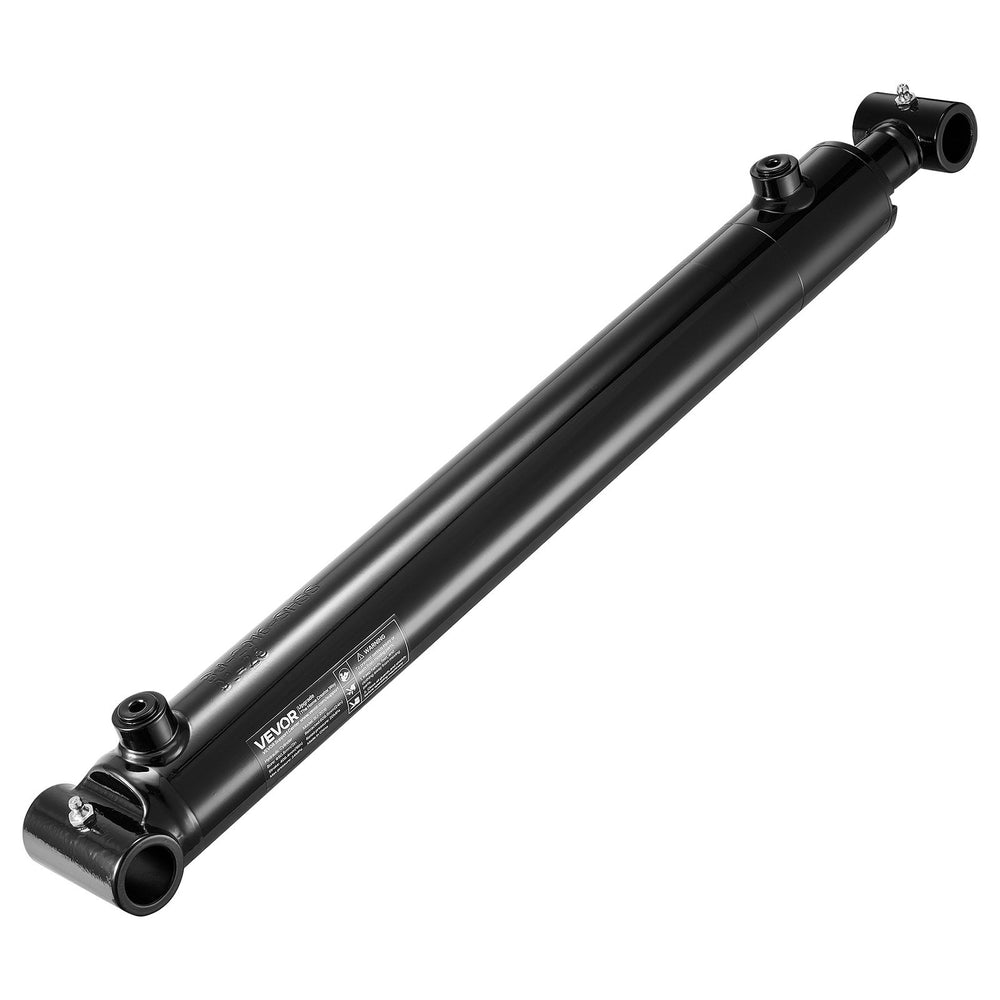

Vevor Hydraulic Cylinder Double-Acting 2" Bore x 16" Stroke Cross Tube New
Product Overview

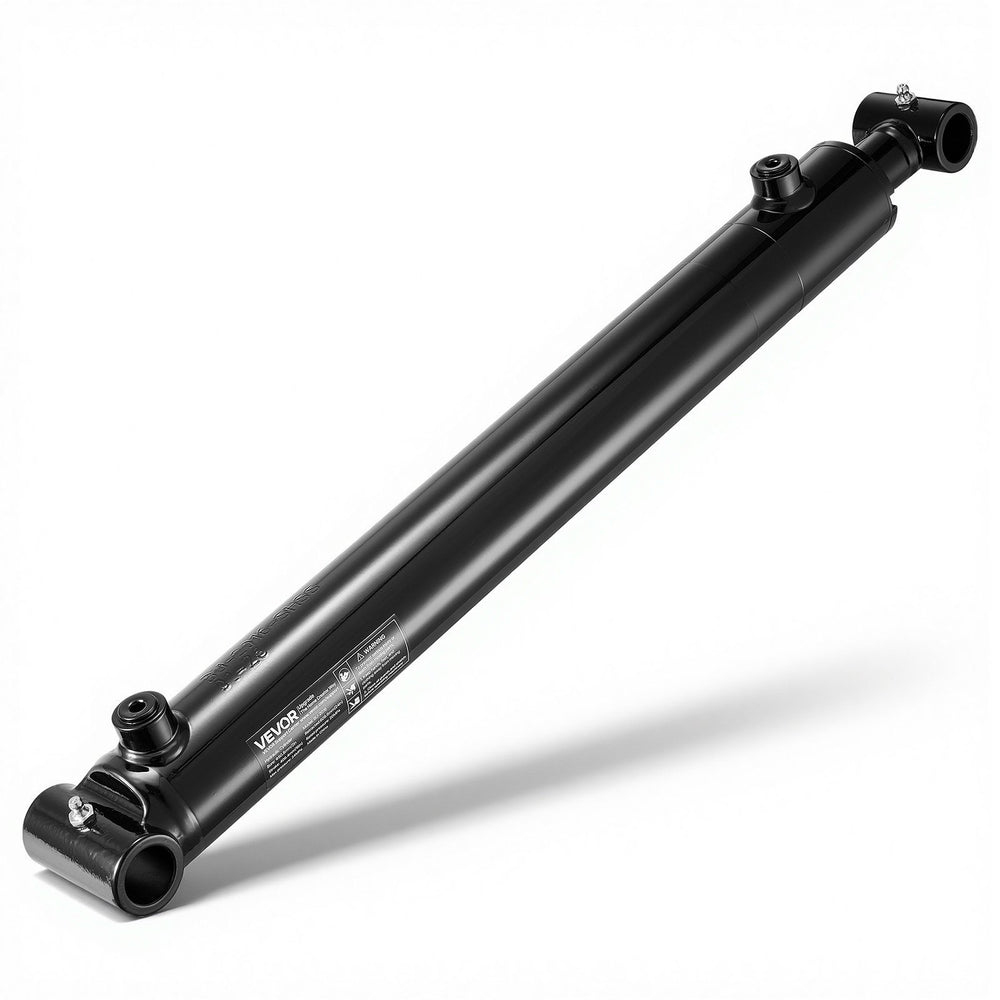

This double-acting hydraulic cylinder is designed to deliver smooth, controlled push-and-pull motion for agricultural machinery and related equipment. It features a heavy-duty steel cross tube construction with a chrome-plated piston rod and high-performance sealing system for reliable operation. The cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure for demanding hydraulic applications. Its welded design helps resist wear, corrosion, and leakage in tough working conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

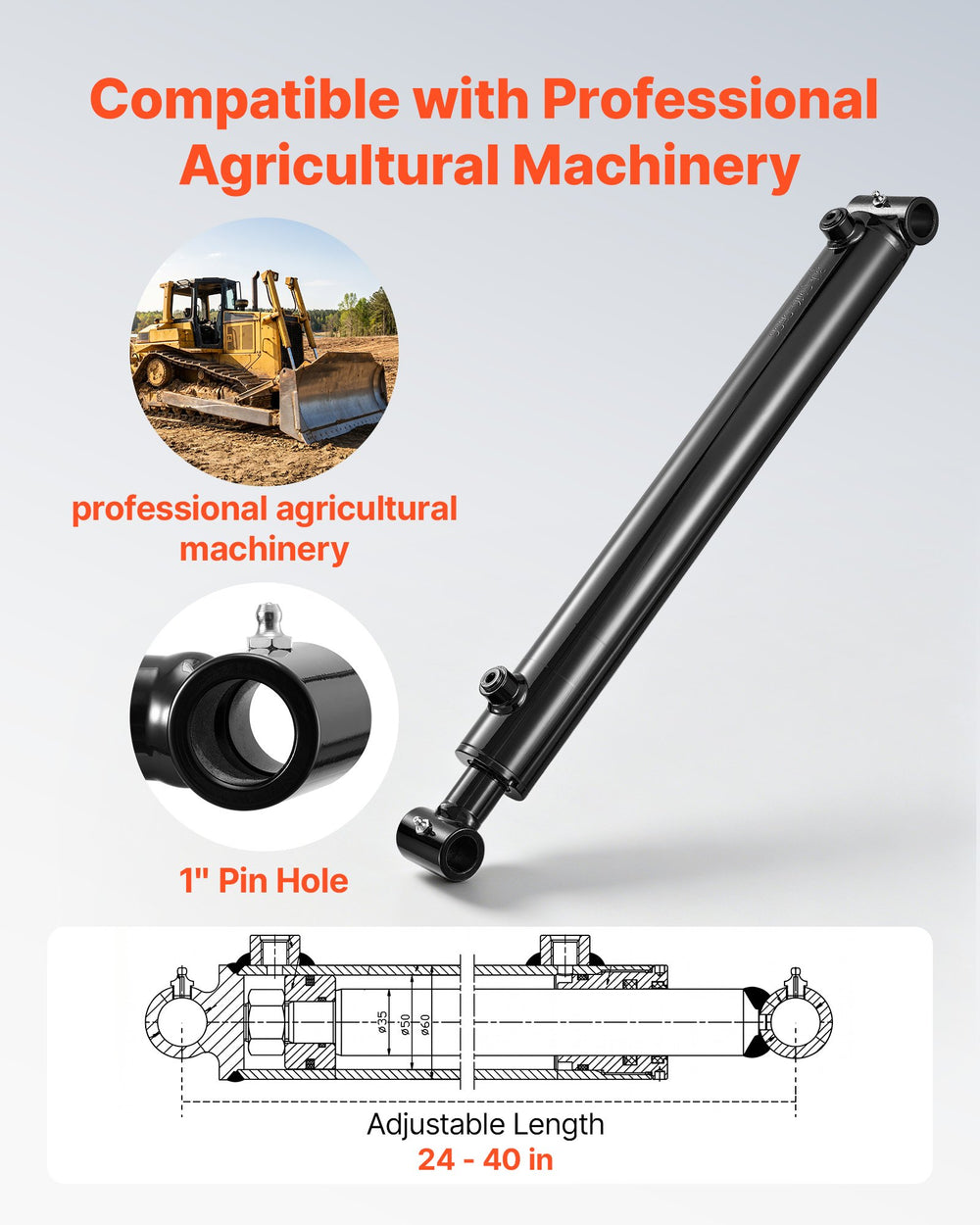

- Key Specifications: Bore: 2 in (50.8 mm), Stroke: 16 in (406 mm), Retracted Length: 24 in (609 mm), Extended Length: 40 in (914 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in

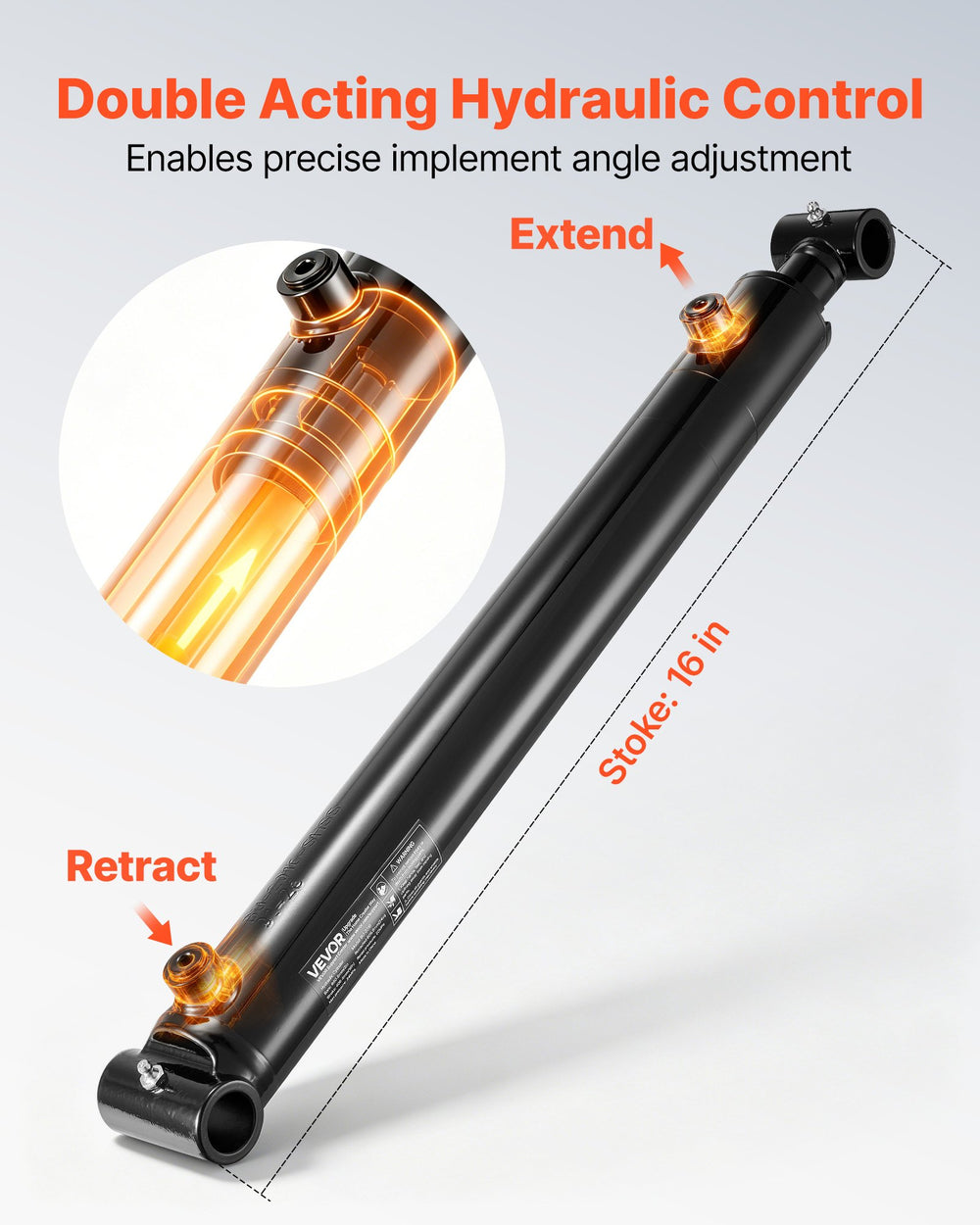

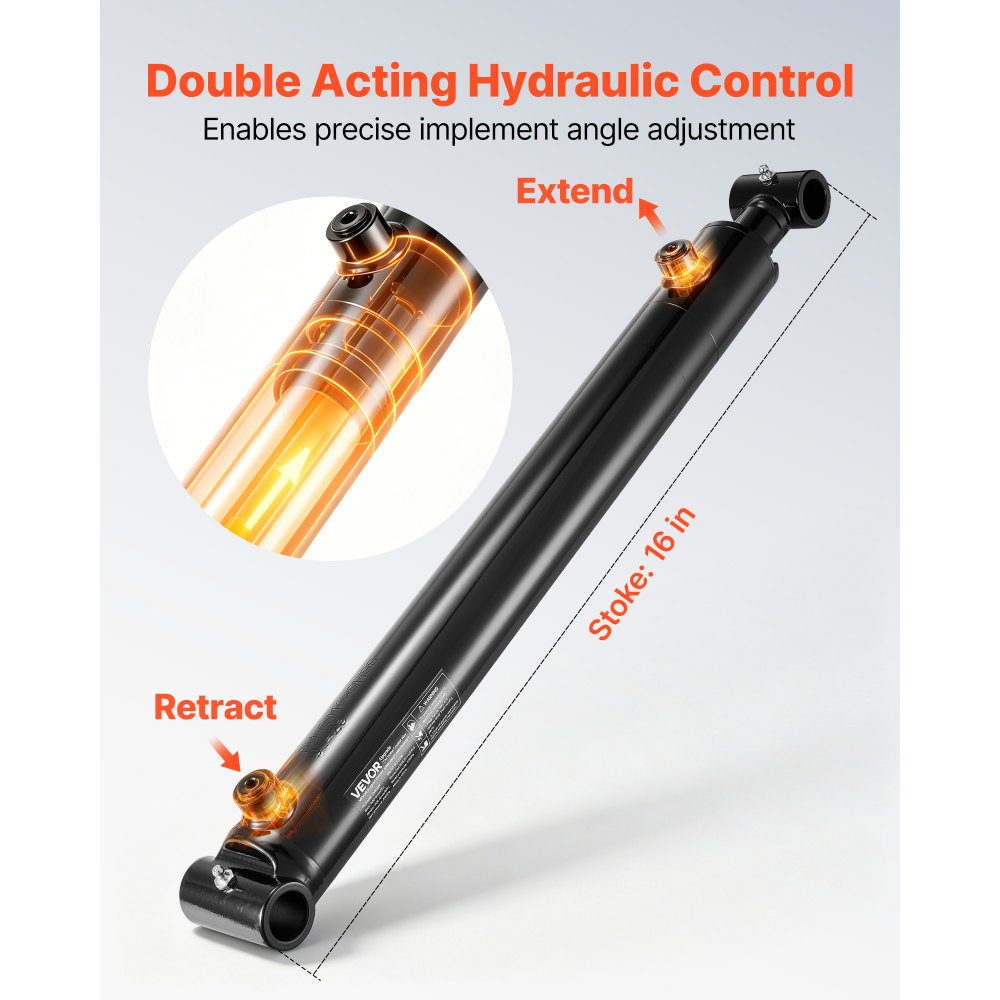

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation
- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency

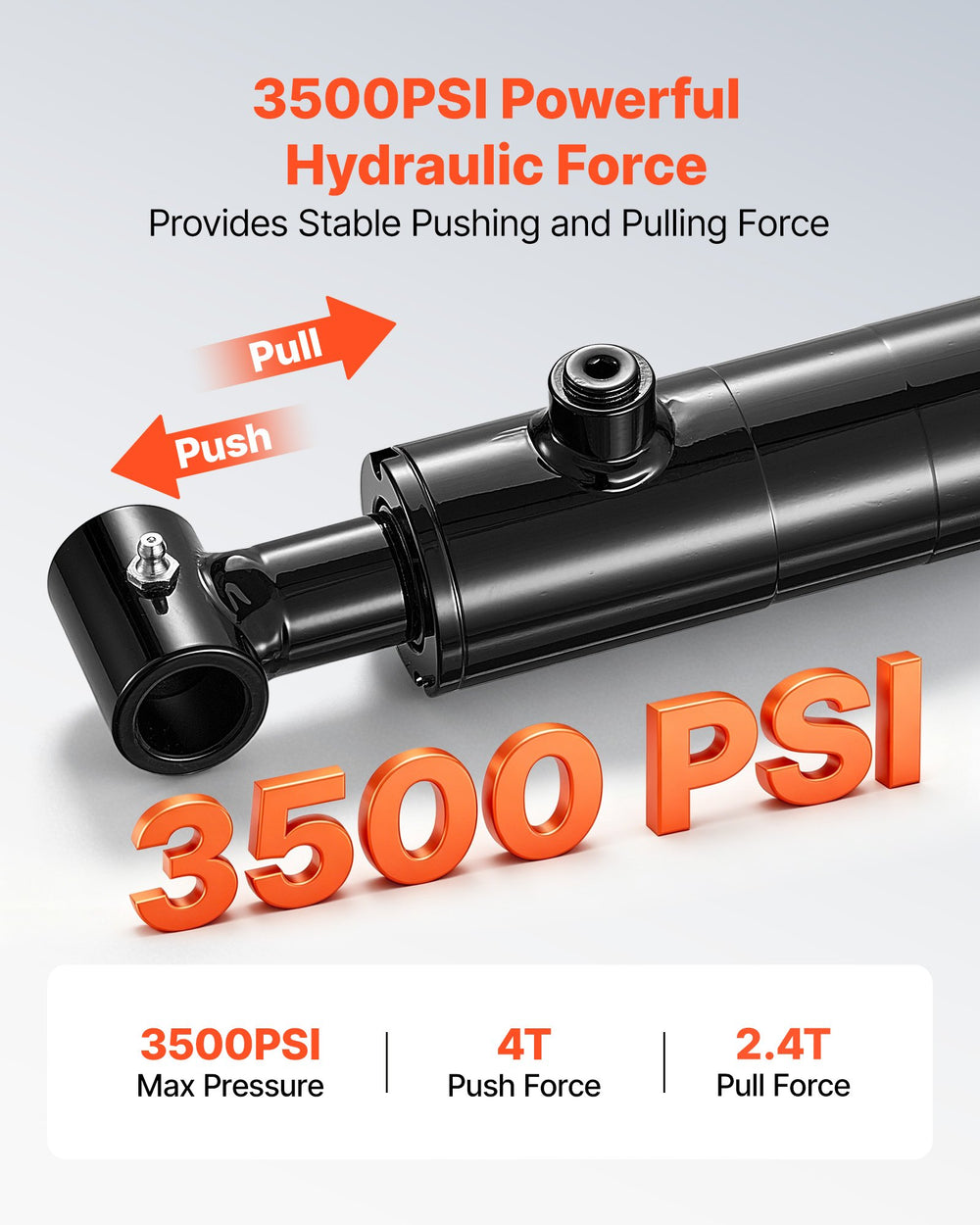

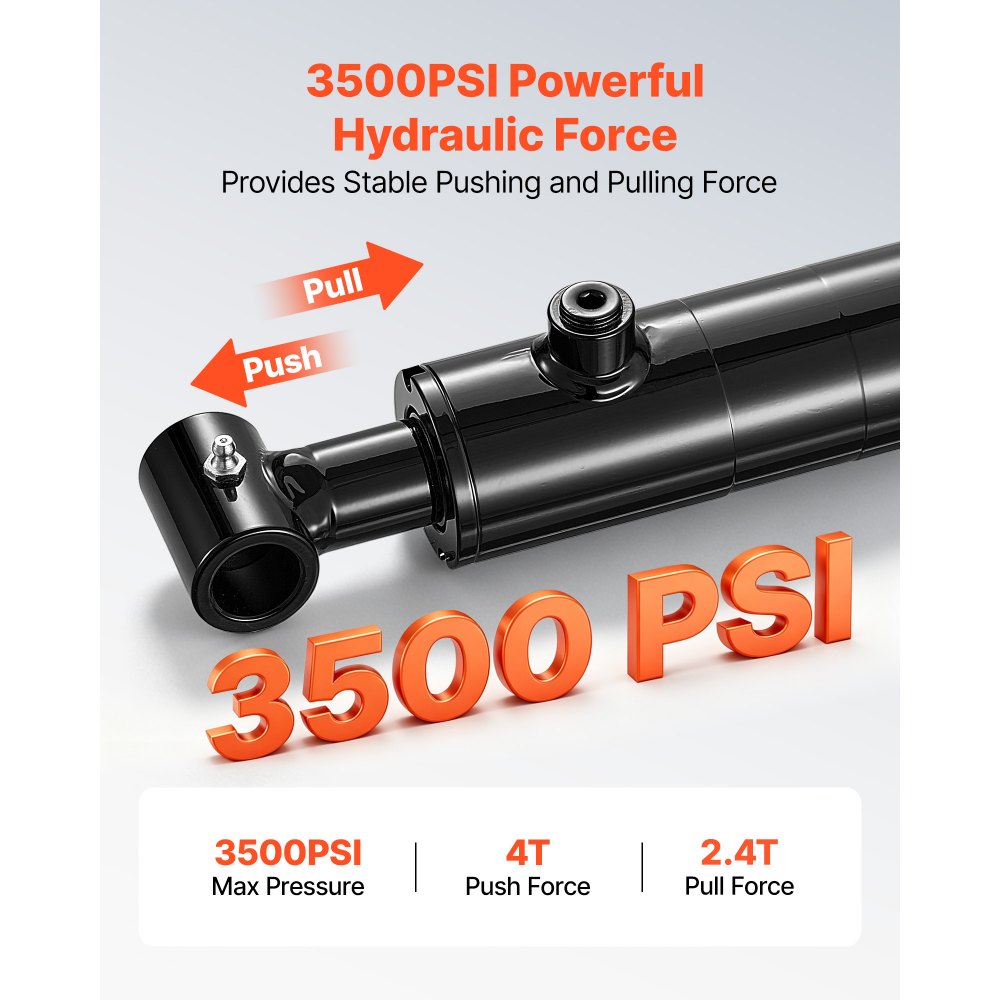

- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

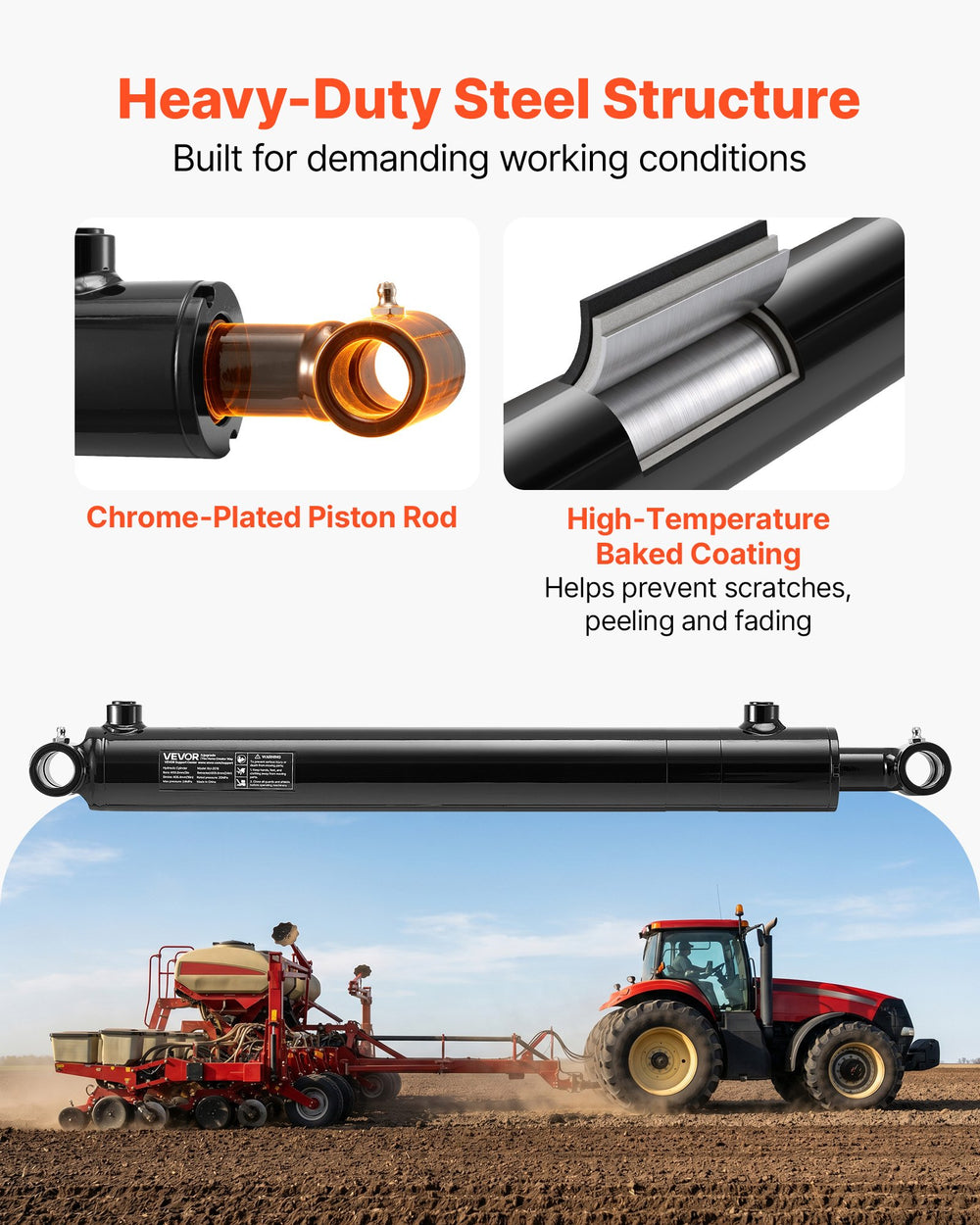

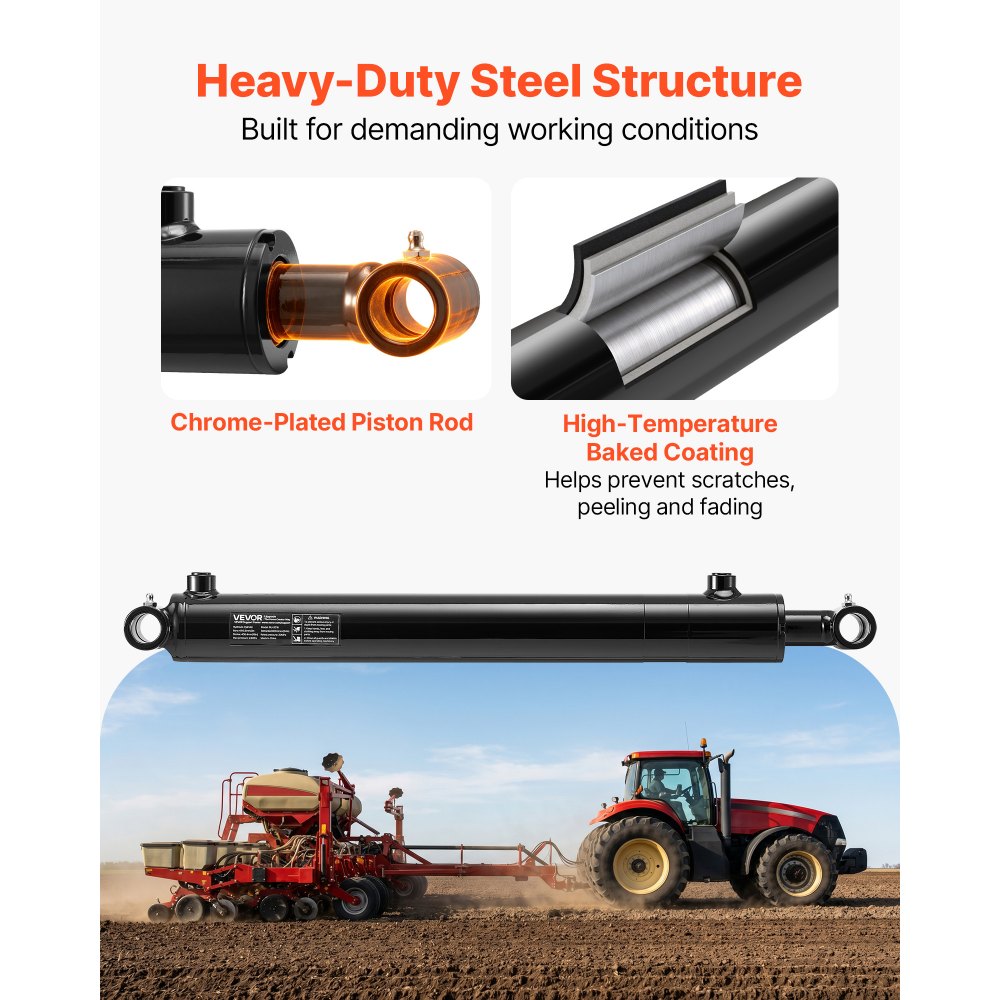

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

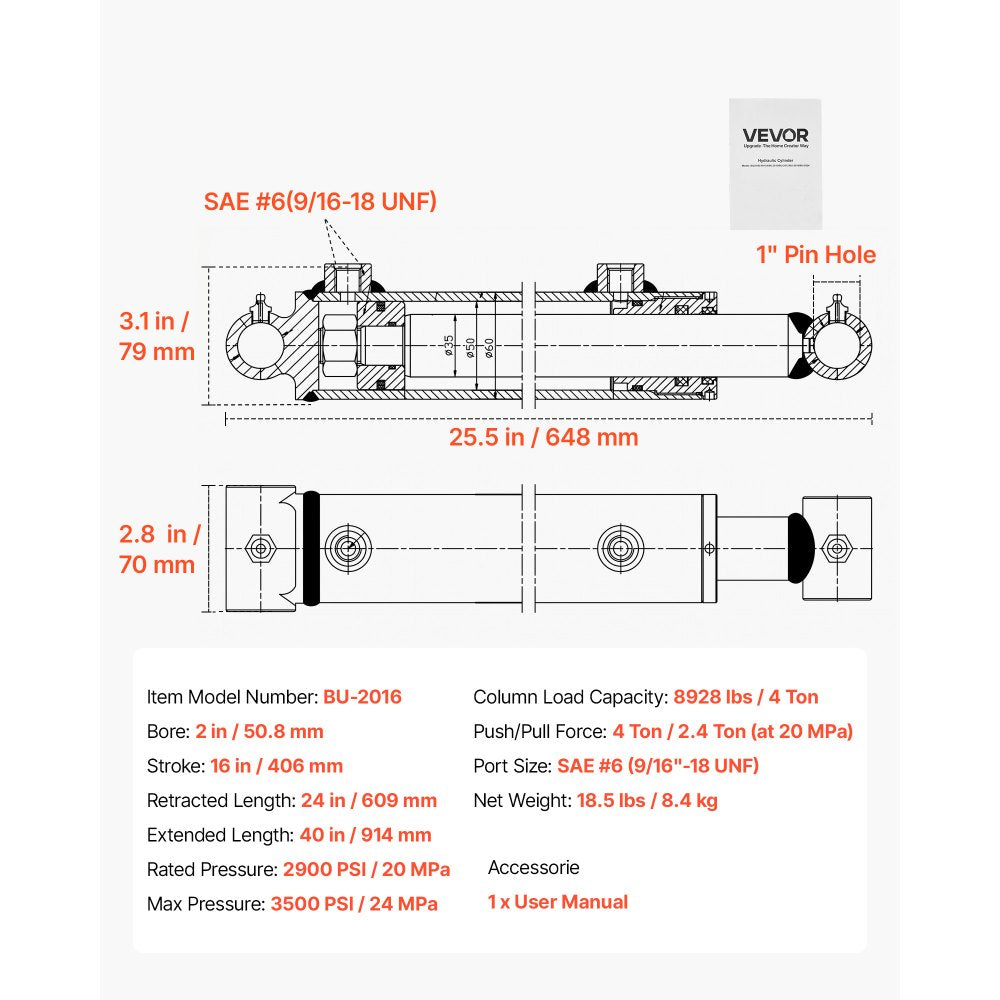

Specifications

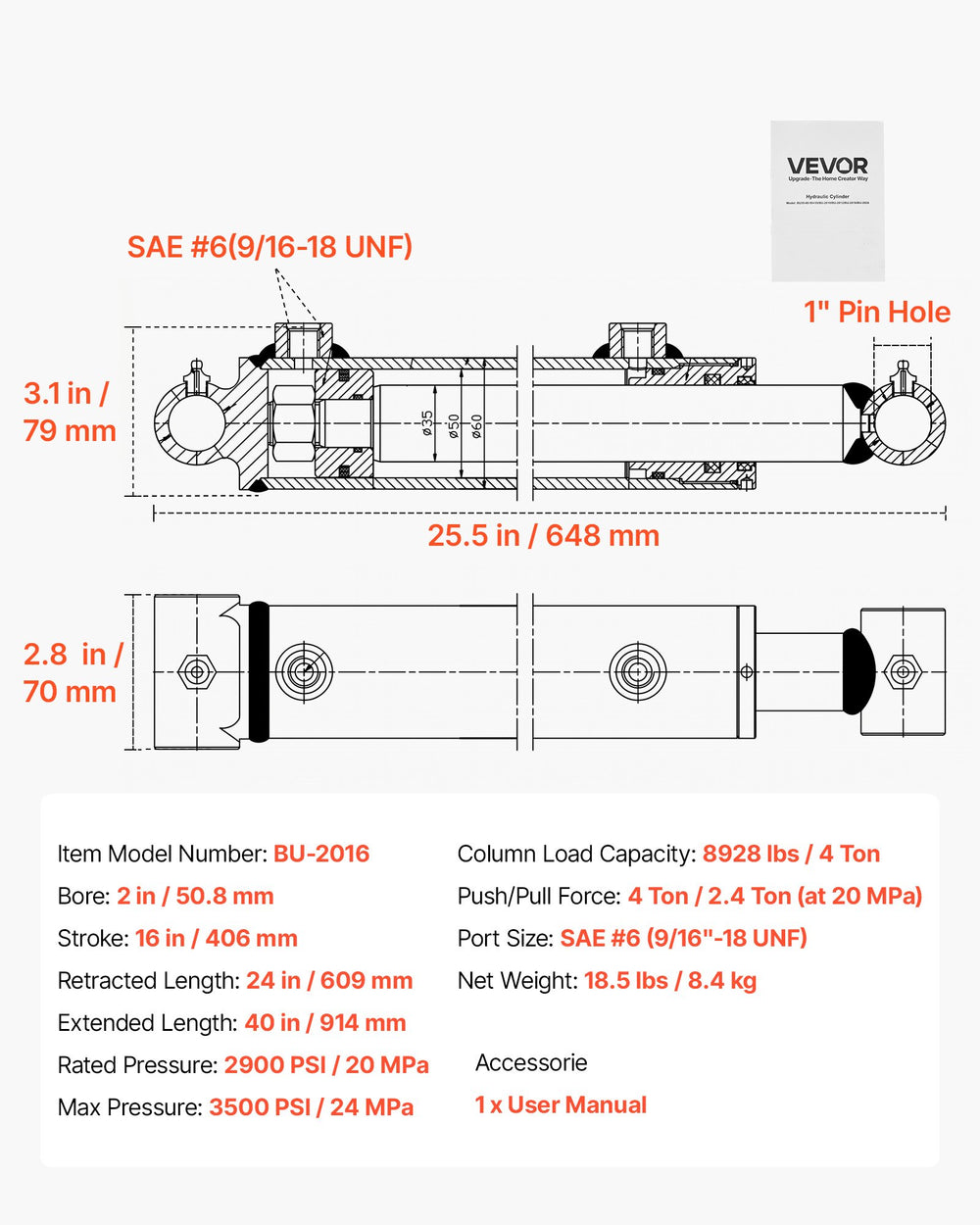

| Item Model Number | BU-2016 |
| Bore | 2 in / 50.8 mm |
| Stroke | 16 in / 406 mm |
| Retracted Length | 24 in / 609 mm |
| Extended Length | 40 in / 914 mm |
| Rated Pressure | 2900 PSI / 20 MPa |
| Max Pressure | 3500 PSI / 24 MPa |
| Column Load Capacity | 8928 lbs / 4 Ton |
| Push/Pull Force | 4 Ton / 2.4 Ton at 20 MPa |

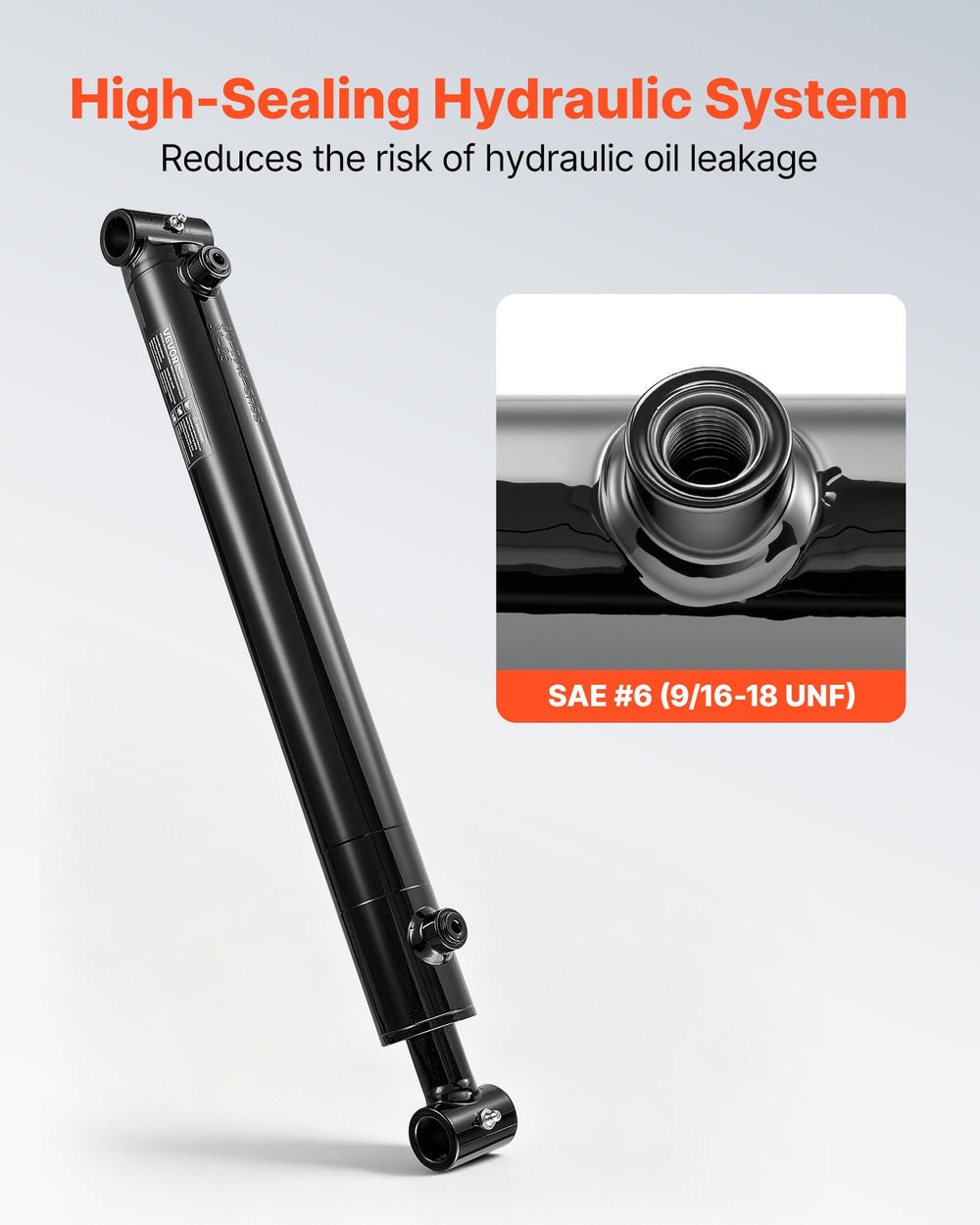

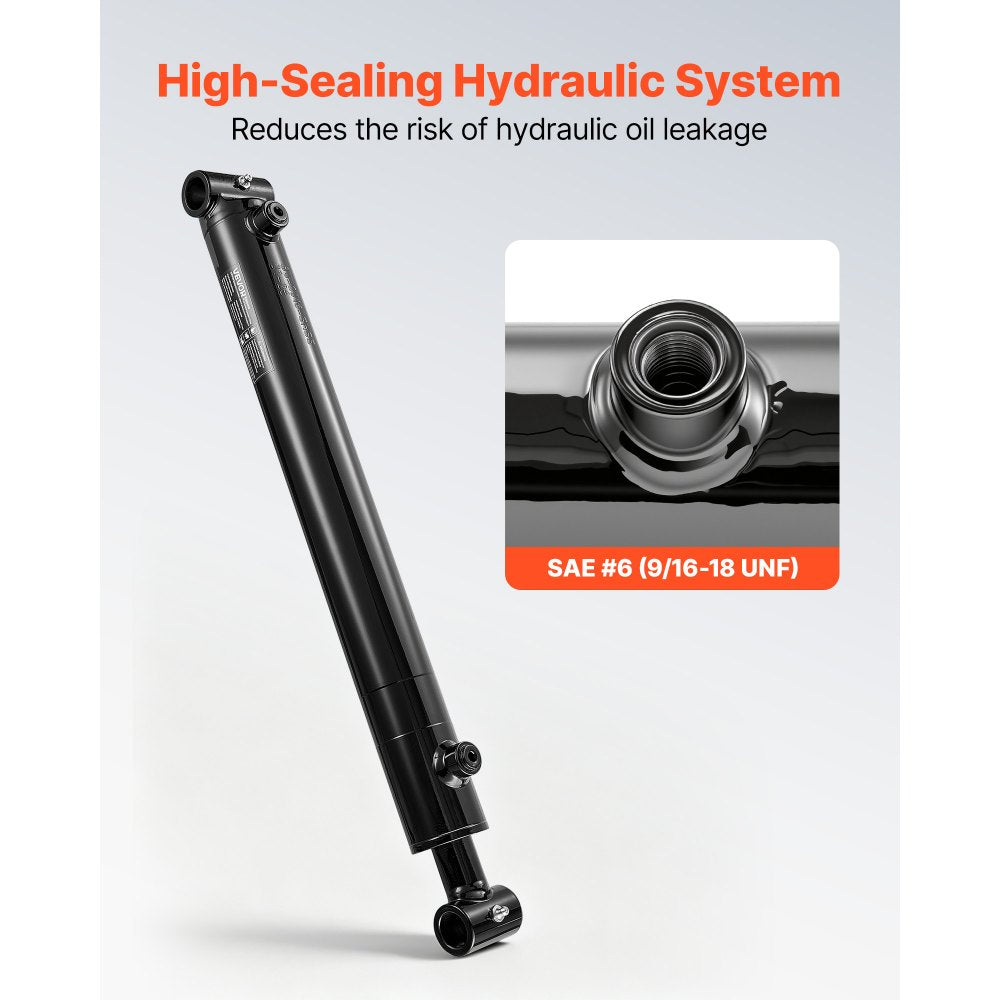

| Port Size | SAE #6 (9/16"-18 UNF) |

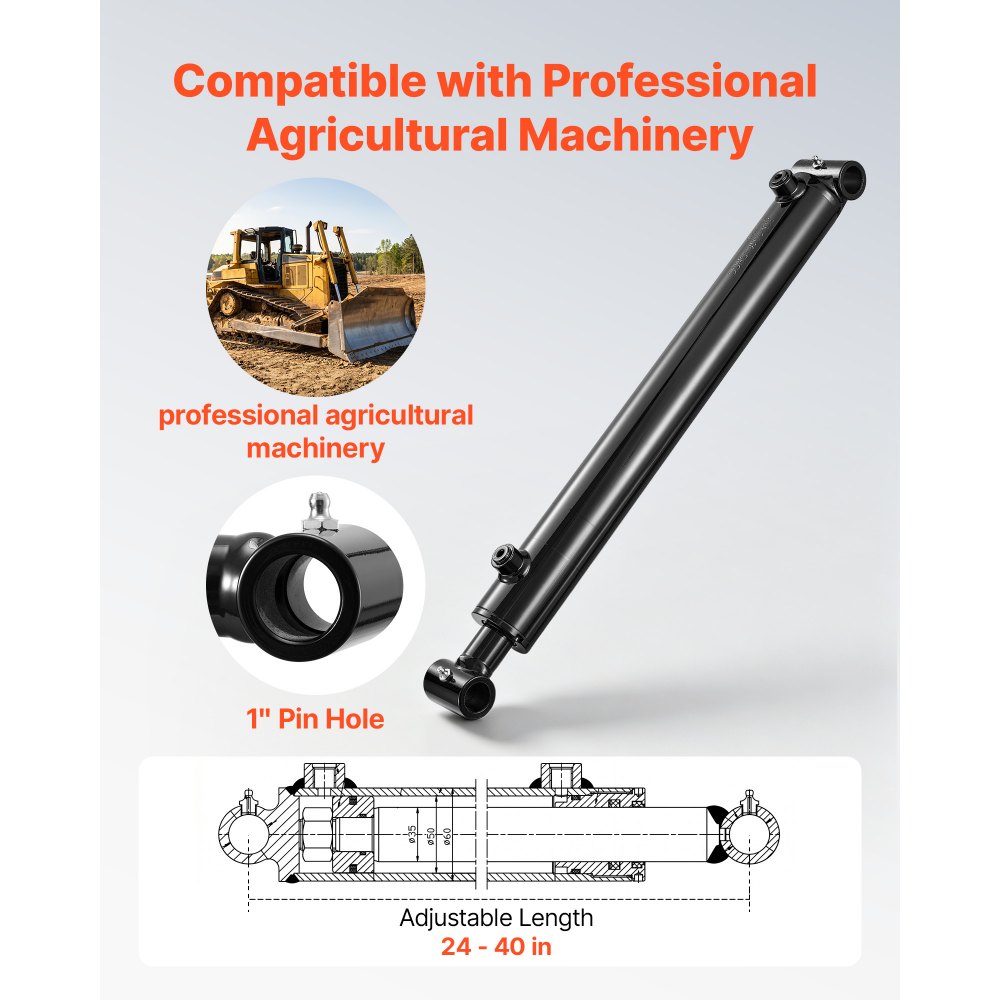

| Pin Hole Diameter | 1 in |
| Net Weight | 18.5 lbs / 8.4 kg |
| Dimensions | 24" retracted length, 40" extended length |
Warranty
This item comes with a 1 year factory warranty.
